Screened power & VFD / motor supply cablesAD8 Submersible · 500 mU0/U 0.6/1 kVVFD Power + Screened Pairs

SUBCAB VFD and Screened MonitoringAD8 waterproof 0.6/1 kV EPR/PCP hybrid VFD pump power + screened sensor cable

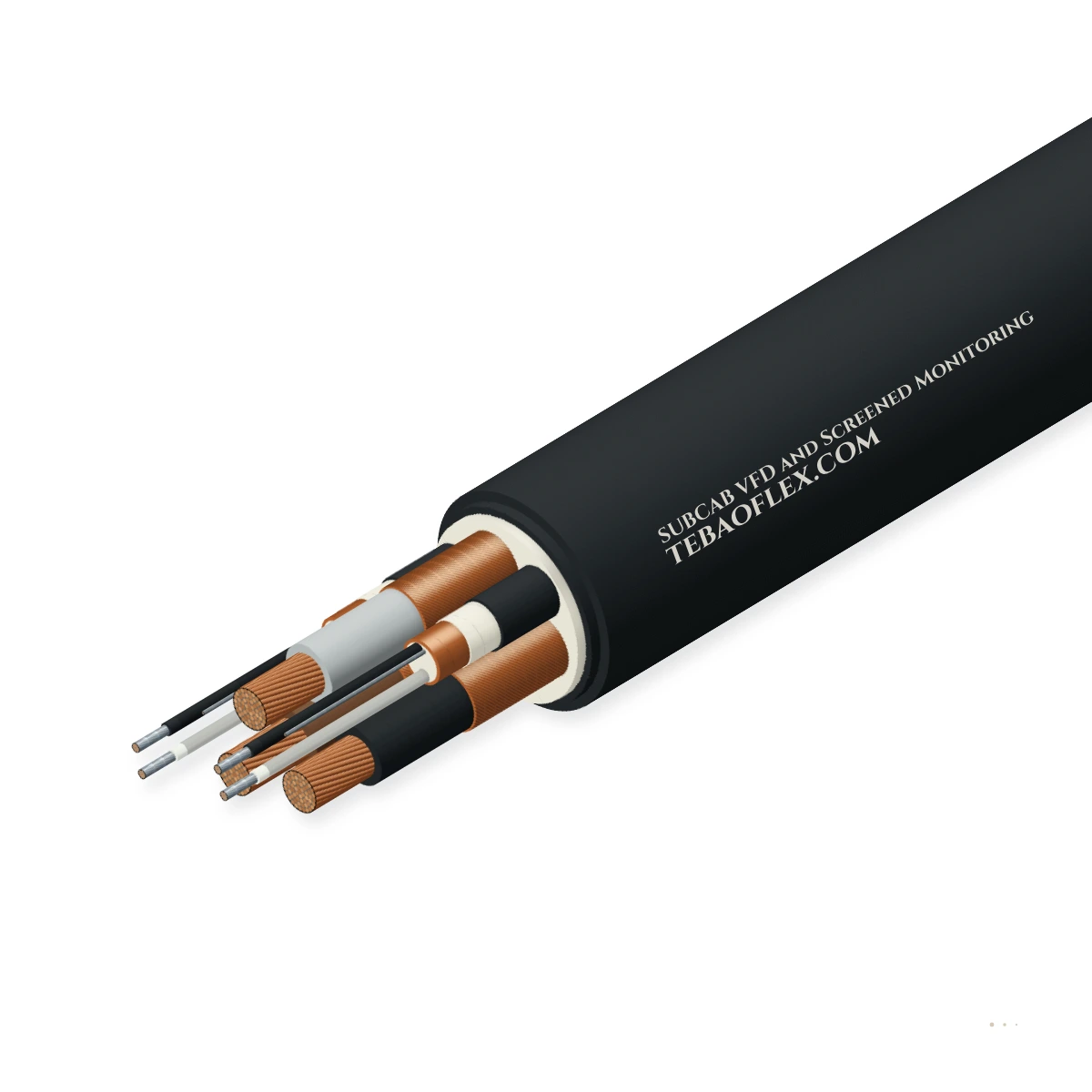

SUBCAB VFD and Screened Monitoring — Hybrid 0.6/1 kV submersible pump cable combining EMC-screened VFD power cores (4G or symmetrical 3+3G) with individually screened PT100/thermistor/seal-leakage monitoring pairs inside an AD8.

Water-resistant
Low-EMC design
EMC screen
Oil-resistant
Order designation
Sub-VFD 3×35+3G6 + 2×(2×1.5)C
Outer Ø ≈
35.8 mm
Copper weight
1,510 kg/km
Total weight ≈
2,160 kg/km
Min. bend R (fixed)
215 mm
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
power · 300/500 V control pairs
Submersion depth
AD8 · ≤ 500 m
50 bar hydrostatic water pressure
Sensor screening
Indiv. Cu braid
≥ 85% tinned Cu on each pair + overall
Conductor temp.
+90 °C max.
max. +70 °C water temperature
Min. bend radius
6 × D fixed
10 × D flexing / lowering
Hybrid range
2.5–120 mm² + 2P
power + 2×(2×1.0/1.5)C sensor pairs

Typical values for this cable type, based on DIN VDE 0250-812 · EN 50525-2-21 · AD8 — confirmed in the datasheet and quotation for your order.

Application fit

Is SUBCAB VFD and Screened Monitoring right for your machine?

Engineered for inverter-driven submersible sewage, dewatering, and mine drainage pumps requiring single-cable power and interference-free PT100/seal monitoring.

Immersion & wet locations

Suitable

AD8 permanent submersion down to 500 m in municipal sewage, mine water, and groundwater wells.

VFD inverter to AC motor screened feeder

Suitable

Overall tinned-copper EMC screen + individual pair screens isolate PT100/PTC signals from PWM inverter dv/dt noise.

Free-hanging vertical run

Suitable

Supports vertical riser suspension alongside pump discharge column up to 15 N/mm² copper tensile load.

Motorised monospiral reel

Not suitable

Designed for vertical pump lowering and wet-well suspension, not high-speed horizontal crane drum reeling.

Use (N)SSHCÖU VFD
Typical machinesSubmersible VFD sewage pumpsMine dewatering & shaft pumpsOffshore caisson & ballast pumpsMunicipal water & storm stations

Construction

Layer by layer

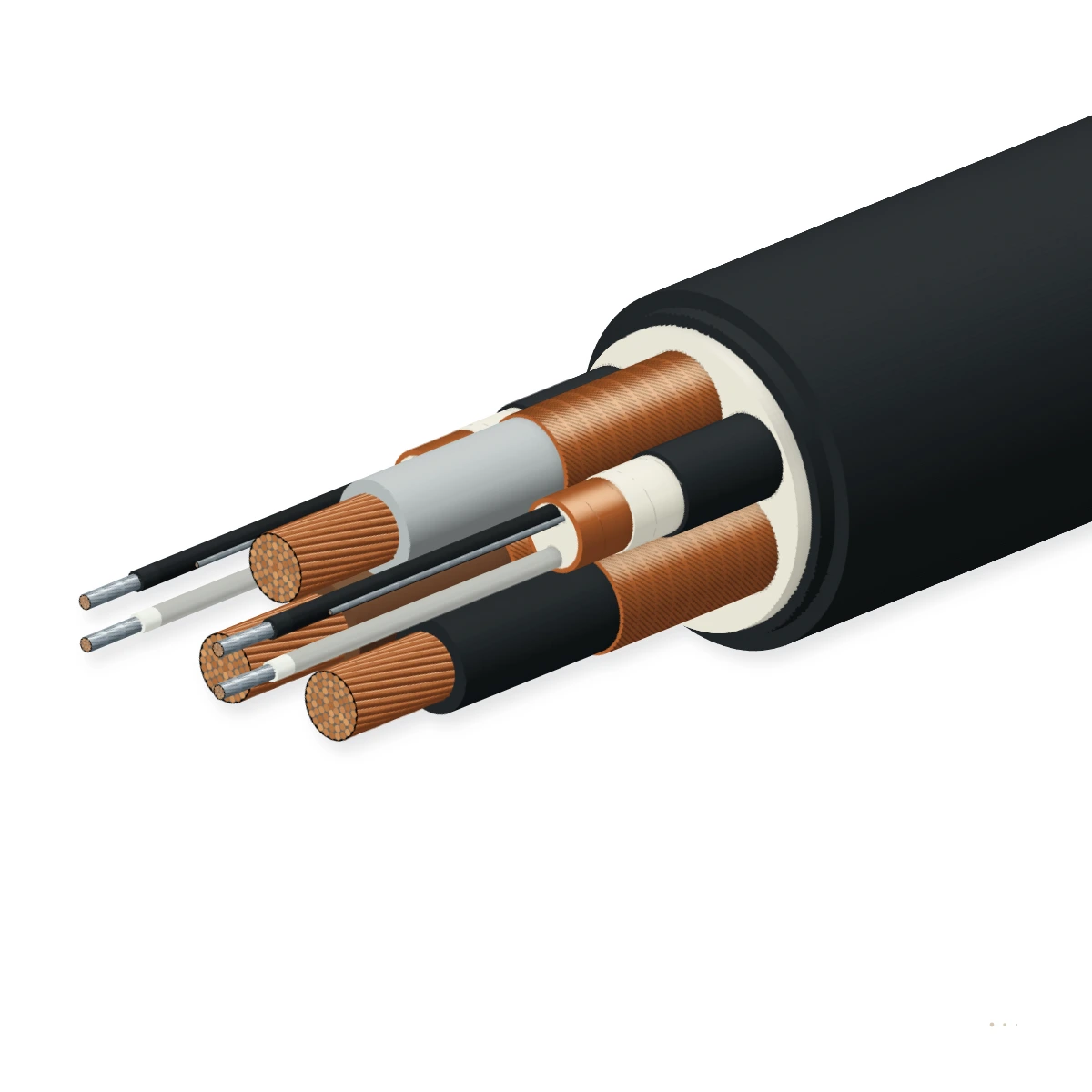

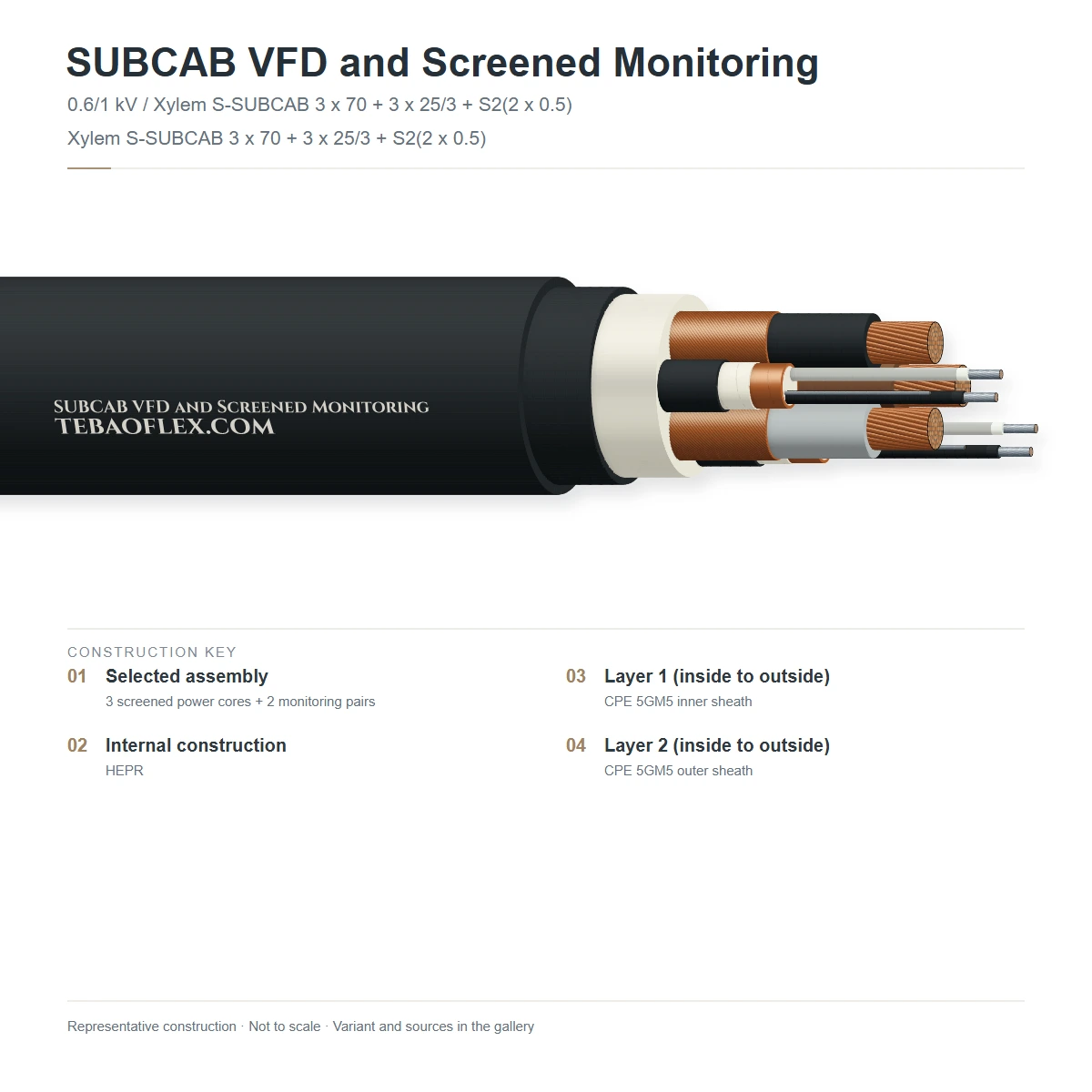

Shown: 3×35+3G6 + 2×(2×1.5)C — three phase cores, three split earth cores, and two individually screened sensor pairs.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Power & control conductorsTinned copper, finely stranded Class 5IEC 60228 / DIN EN 60228 Class 5
2Core insulationWater-resistant low-capacitance EPR / HEPR elastomer (3GI3)DIN VDE 0207-20 (+90 °C)
3Monitoring pair screensIndividual Al/PET tape + tinned copper braid (≥ 85 %) over each control pairIsolates PT100, thermistor & seal-probe signals
4Inner sheathVulcanised water-blocking elastomer filler sheath (GM1b)DIN VDE 0250-812 pressure-extruded bedding
5Overall EMC screenTinned copper wire braid (optical coverage ≥ 85 %)Overall VFD motor supply EMC containment
6Outer sheathHeavy-duty AD8 chlorinated rubber (5GM5 / PCP) or hydrolytically stable PURSubmersible to 500 m · wastewater & oil resistant

4G + 2×(2×1.0/1.5)C

Three phase cores + 1 GNYE earth + two individually screened monitoring pairs (2.5–16 mm²)

3+3G + 2×(2×1.5)C

Three phase cores + 3 symmetrical split earths + two individually screened monitoring pairs (16–120 mm²)

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-812 · EN 50525-2-21 · AD8. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
600/1000 V (power) · 300/500 V (pairs)
AC test voltage
4000 V (power) · 2000 V (pairs)
Screen / Field control
Individual pair Cu braids + overall Cu braid
Current rating
Per DIN VDE 0298-4 (+90 °C EPR)

Thermal

Max. conductor temperature
+90 °C continuous
Short-circuit temperature
+250 °C (max. 5 s)
Max. water temperature
+70 °C continuous submerged
Temperature, flexing
−25 °C to +80 °C

Mechanical

Min. bending radius, fixed
6 × OD
Min. bending radius, moving
10 × OD
Max. tensile load (permanent / dynamic)
15 N/mm²
Submersion depth
Up to 500 m (5.0 MPa / AD8)

Resistance

Water
AD8 permanent submersion (IEC 60529 IP68)
Oil resistance
EN 60811-404 / DIN VDE 0473-811-404
Chemicals
Sewage, slurry, weak acids & alkalis (pH 4–10)
Flame retardance
IEC 60332-1-2

Reference standards

Cable type (construction standard)
DIN VDE 0250-812 / EN 50525-2-21
Conductor
IEC 60228 / DIN EN 60228 Class 5 tinned
EMC compliance
EN 61800-3 / EN 55011
RoHS · REACH
2011/65/EU (RoHS 2) & EC 1907/2006

Identification

Sheath colour
Black (heavy-duty 5GM5 / PUR)
Core identification
HD 308 S2 power + numbered screened pairs
Marking
TEBAOFLEX SUB-VFD 0.6/1 kV [size] AD8 EMC CE
Customs tariff (HS)
8544.49

Sizes

12 standard hybrid sizes (VFD power + screened sensor pairs)

Typical dimensions for Submersible-Pump VFD Power and Screened Monitoring Cable (0.6/1 kV).

Dimensions & weights
Order designationPower cores
mm²		Screened pairs
mm²		Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
4G power + 2 individually screened control pairs
Sub-VFD 4G2.5 + 2×(2×1.0)C4G2.52×(2×1.0)C18.4215445110
Sub-VFD 4G4 + 2×(2×1.0)C4G42×(2×1.0)C20.2295560121
Sub-VFD 4G6 + 2×(2×1.0)C4G62×(2×1.0)C22.1385690133
Sub-VFD 4G10 + 2×(2×1.5)C4G102×(2×1.5)C25.8610985155
Sub-VFD 4G16 + 2×(2×1.5)C4G162×(2×1.5)C29.48651,320176
Symmetrical 3+3G power + 2 individually screened control pairs
Sub-VFD 3×16+3G2.5 + 2×(2×1.5)C3×16 + 3G2.52×(2×1.5)C28.67551,240172
Sub-VFD 3×25+3G4 + 2×(2×1.5)C3×25 + 3G42×(2×1.5)C32.51,1201,690195
Sub-VFD 3×35+3G6 + 2×(2×1.5)C3×35 + 3G62×(2×1.5)C35.81,5102,160215
Sub-VFD 3×50+3G10 + 2×(2×1.5)C3×50 + 3G102×(2×1.5)C40.42,1202,890242
Sub-VFD 3×70+3G10 + 2×(2×1.5)C3×70 + 3G102×(2×1.5)C44.82,7953,680269
Sub-VFD 3×95+3G16 + 2×(2×1.5)C3×95 + 3G162×(2×1.5)C50.23,7904,820301
Sub-VFD 3×120+3G16 + 2×(2×1.5)C3×120 + 3G162×(2×1.5)C54.64,6205,750328
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Other auxiliary pair/triad combinations (e.g. 3×(2×1.0)C or 4×1.5C) are manufactured to match specific pump gland entry plates.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC high-voltage dielectric test4000 V AC for 5 minEvery manufactured drum length
Conductor DC resistance checkPer IEC 60228 Class 5 limits at 20 °CEvery drum length
Sample tests
Mutual capacitance & transfer impedanceLow pF/m & Zt ≤ 25 mΩ/m @ 30 MHzPer production lot
Vertical flame propagationSelf-extinguishing per IEC 60332-1-2Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

CE (2014/35/EU Low Voltage Directive)EN 61800-3 / EN 55011 EMC Class A/BIEC 60332-1-2 Flame Retardant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX SUB-VFD 0.6/1 kV [Power+Pairs] AD8 500M EMC CE
Delivery form
Cut-to-length or wooden export drums
Standard drum lengths
500 m · 1000 m
MOQ
100 m (stock sizes) · 500 m (production)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFSUBCAB VFD and Screened Monitoring – technical datasheet12 sizes · construction, technical data, approvalsXLSXSUBCAB VFD and Screened Monitoring spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why combine VFD power cores and individually screened sensor pairs in one submersible cable?
Running a single hybrid umbilical eliminates a second cable entry gland on the submersible pump motor housing and prevents separate power and signal cables from tangling in the riser shaft. Individual copper screens on each monitoring pair block PWM inverter dv/dt spikes from corrupting millivolt PT100 temperature and moisture-probe signals.
What water depth and fluid conditions does the AD8 outer sheath withstand?
The pressure-extruded inner bedding and heavy-duty polychloroprene (5GM5) or polyurethane outer sheath are rated for AD8 permanent submersion down to 500 m depth (50 bar hydrostatic pressure) in municipal sewage, industrial effluent, groundwater, and abrasive mine-water sumps up to +70 °C.
Why are tinned copper conductors used instead of bare copper?
Class 5 tinned copper conductors resist hydrogen sulphide (H2S) corrosion common in anaerobic sewage wet wells and mine water, ensuring long-term contact reliability at both the potted motor resin joint and the surface VFD cabinet terminals.
How should the cable be supported in deep vertical pump risers?
Secure the cable to the vertical discharge column every 2 to 3 metres using wide stainless-steel cleats or elastomer-lined cable clamps so the continuous tensile stress on the copper conductors stays below 15 N/mm² per DIN VDE 0298-3.
