Furnace, kiln & high-temp zone
Varnished E-glass outer braid shields the inner silicone sheath against radiant heat and hot surface contact up to +200 °C (+250 °C peak).
Product

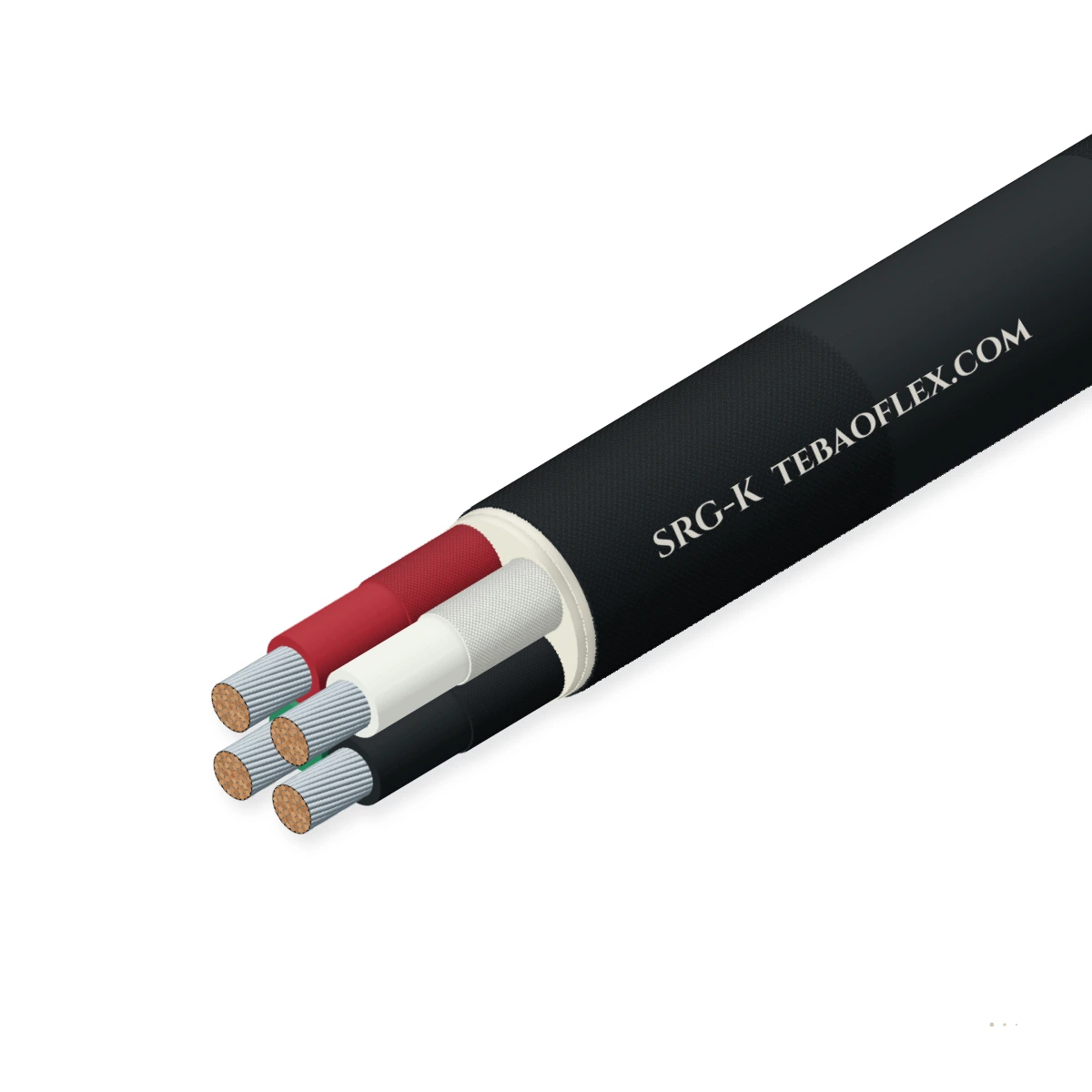

SRG-K (SiHF-GL) flexible high-temperature multicore cable combining Class 5 tinned copper conductors, EI2 silicone core insulation, an inner silicone sheath, and a silicone-varnished E-glass outer braid for -60 °C to +180 °C (+200 °C) service.
Typical values for this cable type, based on DIN VDE 0250-1 / EN 50525-2-83 / JB/T 8734 — confirmed in the datasheet and quotation for your order.
Application fit
Select SRG-K where standard unbraided SiHF silicone cable needs external mechanical protection against hot metal edges, abrasion, and radiant heat in ovens and steelworks.
Varnished E-glass outer braid shields the inner silicone sheath against radiant heat and hot surface contact up to +200 °C (+250 °C peak).
High cut-through and notch resistance when pulled over steel cable trays, furnace frames, and kiln ductwork.
Ideal for auxiliary fan motors, damper actuators, and heater banks on industrial baking ovens and cement kilns.
Not designed for continuous high-speed crane reeling; use NSHTÖU for drum reeling.
Use NSHTÖU for drum reelingConstruction

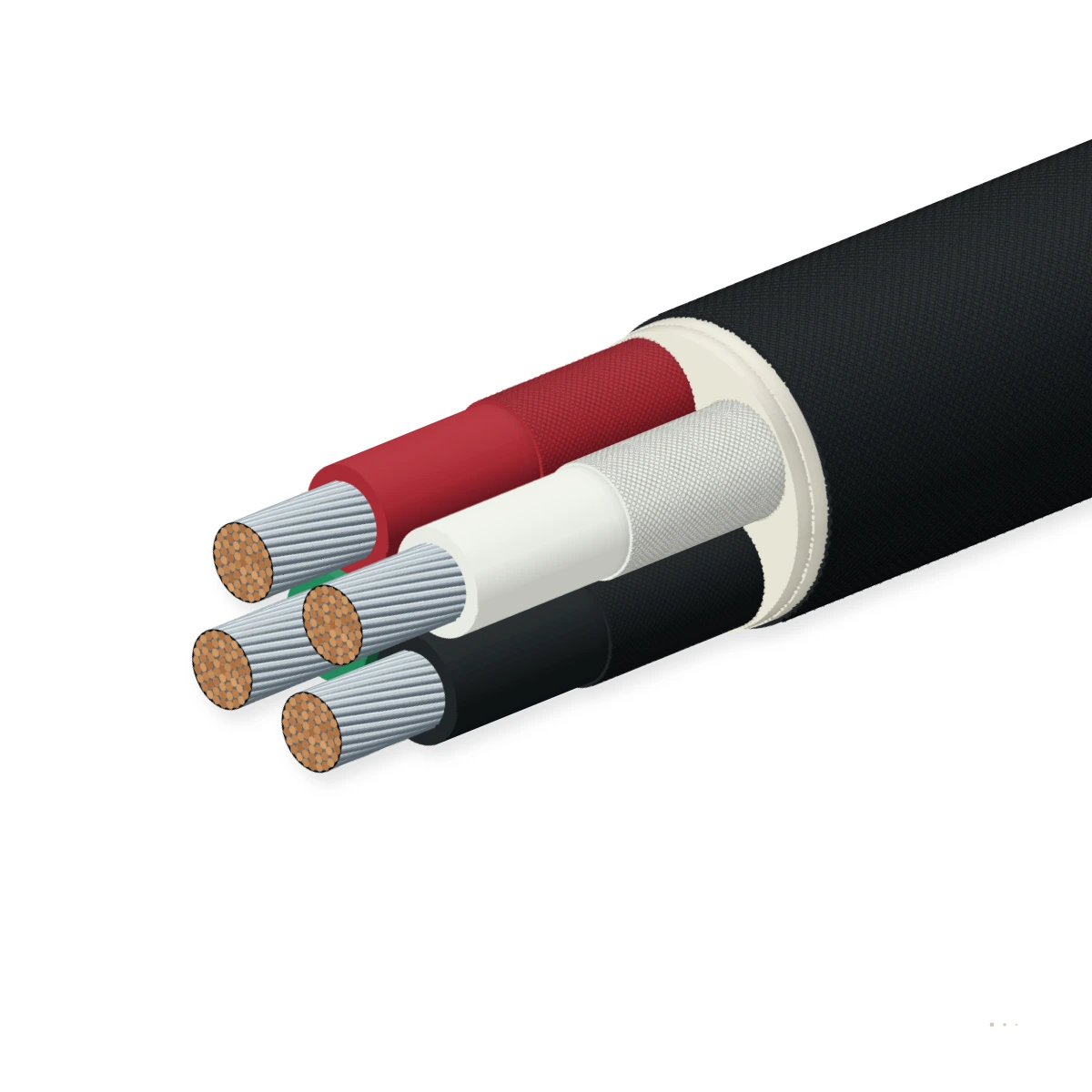

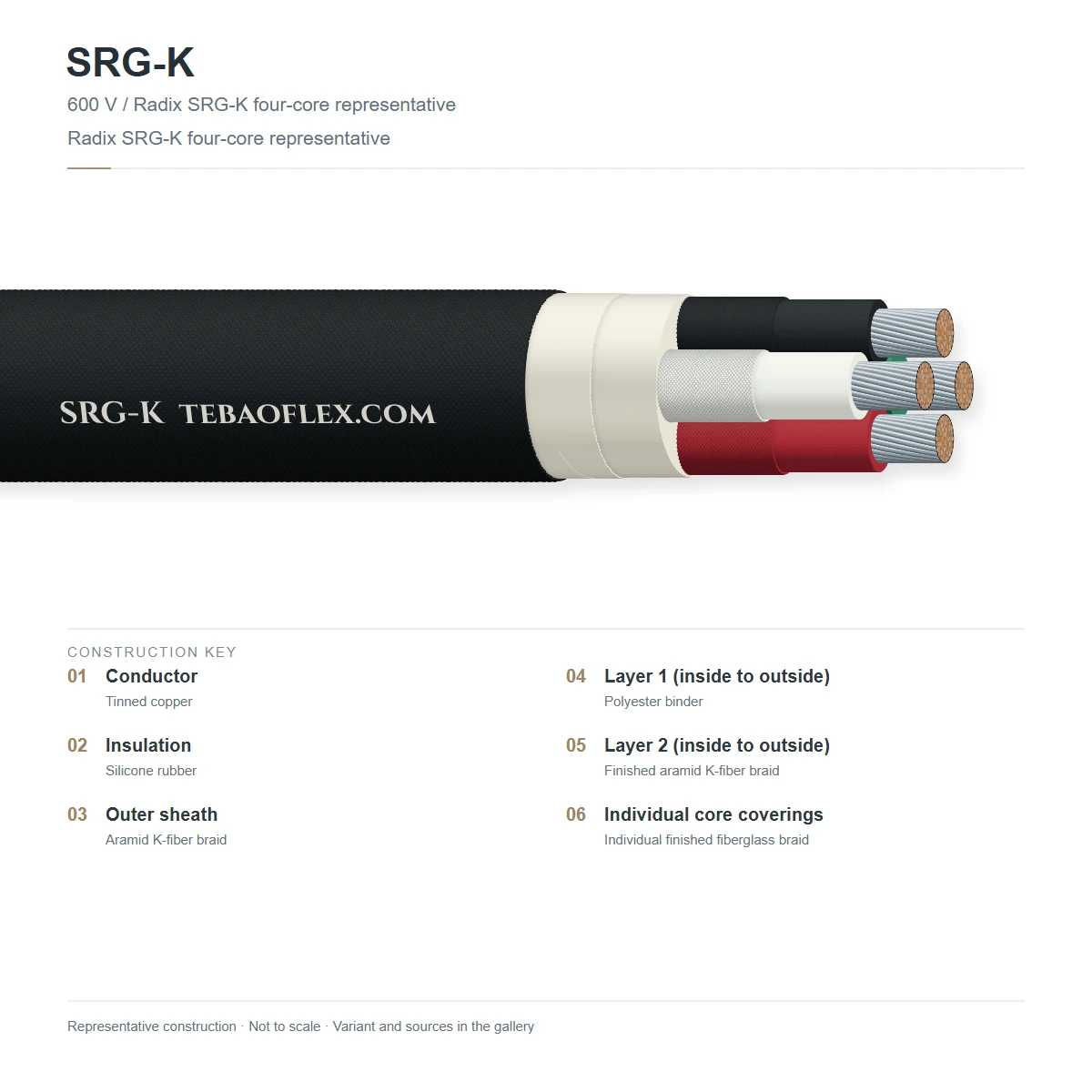

SRG-K (SiHF-GL) four-layer build: Class 5 tinned copper conductors, EI2 silicone core insulation, extruded silicone inner sheath, and silicone-varnished E-glass outer braid.
| # | Layer | Material & reference |
|---|---|---|
| 1 | Class 5 tinned copper conductor | Fine-stranded tinned annealed copper (IEC 60228 Class 5)Corrosion- and oxidation-resistant flexible conductor for +180/+200 °C operation |
| 2 | Silicone rubber core insulation | Cross-linked silicone elastomer Type EI2 (EN 50363-1)Maintains dielectric integrity and flexibility from -60 °C to +180 °C |
| 3 | Inner silicone rubber bedding sheath | Extruded halogen-free silicone compound consolidating the cabled coresSeals the core bundle against moisture and dampness before braiding |
| 4 | Silicone-varnished E-glass outer braid | Closely braided E-glass fibre sleeve impregnated with high-temp silicone resinIncreases mechanical notch, abrasion, and radiant-heat resistance over plain SiHF |
With green-yellow protective earth conductor for 3-phase heater and motor circuits
Without protective earth conductor for control, sensor, and 2-wire heating circuits
Technical data
Sizes
Engineering dimensions, conductor stranding, mass and electrical ratings for SRG-K per DIN VDE 0250-1 / EN 50525-2-83 / JB/T 8734.
| Order designation | Cross-section / size | Conductor build | Wall ≈ mm | Outer Ø ≈ mm | Metal kg/km | Weight ≈ kg/km | Min. bend R fixed mm | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Standard SRG-K configurations | ||||||||
| SRG-K 2×0.75 | 2×0.75 | Class 5 Sn-Cu (0.75 mm²) | 1.40 | 7.50 | 14.4 | 80.8 | 45 | |
| SRG-K 3G0.75 | 3G0.75 | Class 5 Sn-Cu (0.75 mm²) | 1.40 | 7.90 | 21.6 | 95.2 | 47 | |
| SRG-K 4G0.75 | 4G0.75 | Class 5 Sn-Cu (0.75 mm²) | 1.40 | 8.50 | 28.8 | 114.1 | 51 | |
| SRG-K 5G0.75 | 5G0.75 | Class 5 Sn-Cu (0.75 mm²) | 1.40 | 9.20 | 36.0 | 135.9 | 55 | |
| SRG-K 2×1 | 2×1 | Class 5 Sn-Cu (1 mm²) | 1.40 | 7.90 | 19.2 | 92.8 | 47 | |
| SRG-K 3G1 | 3G1 | Class 5 Sn-Cu (1 mm²) | 1.40 | 8.30 | 28.8 | 110.1 | 50 | |
| SRG-K 4G1 | 4G1 | Class 5 Sn-Cu (1 mm²) | 1.40 | 8.90 | 38.4 | 131.9 | 53 | |
| SRG-K 5G1 | 5G1 | Class 5 Sn-Cu (1 mm²) | 1.40 | 9.60 | 48.0 | 156.7 | 58 | |
| SRG-K 2×1.5 | 2×1.5 | Class 5 Sn-Cu (1.5 mm²) | 1.40 | 8.50 | 28.8 | 114.1 | 51 | |
| SRG-K 3G1.5 | 3G1.5 | Class 5 Sn-Cu (1.5 mm²) | 1.40 | 8.90 | 43.2 | 136.7 | 53 | |
| SRG-K 4G1.5 | 4G1.5 | Class 5 Sn-Cu (1.5 mm²) | 1.40 | 9.70 | 57.6 | 168.6 | 58 | |
| SRG-K 5G1.5 | 5G1.5 | Class 5 Sn-Cu (1.5 mm²) | 1.40 | 10.40 | 72.0 | 199.6 | 62 | |
| SRG-K 7G1.5 | 7G1.5 | Class 5 Sn-Cu (1.5 mm²) | 1.40 | 11.30 | 100.8 | 251.5 | 68 | |
| SRG-K 12G1.5 | 12G1.5 | Class 5 Sn-Cu (1.5 mm²) | 1.40 | 14.60 | 172.8 | 424.3 | 88 | |
| SRG-K 3G2.5 | 3G2.5 | Class 5 Sn-Cu (2.5 mm²) | 1.40 | 10.80 | 72.0 | 209.6 | 65 | |
| SRG-K 4G2.5 | 4G2.5 | Class 5 Sn-Cu (2.5 mm²) | 1.40 | 11.80 | 96.0 | 260.3 | 71 | |
| SRG-K 5G2.5 | 5G2.5 | Class 5 Sn-Cu (2.5 mm²) | 1.40 | 12.80 | 120.0 | 313.3 | 77 | |
| SRG-K 4G4 | 4G4 | Class 5 Sn-Cu (4 mm²) | 1.80 | 13.90 | 153.6 | 381.6 | 83 | |
| SRG-K 4G6 | 4G6 | Class 5 Sn-Cu (6 mm²) | 1.80 | 15.40 | 230.4 | 510.2 | 92 | |
| Configuration | Max. DC R @ 20 °C Ω/km | Primary rating (A or kV) | Derated / AC rating | Dielectric test V AC rms |
|---|---|---|---|---|
| 2×0.75 mm² | 26.70 | 12.0 | 9.0 | 2,000 |
| 3G0.75 mm² | 26.70 | 12.0 | 9.0 | 2,000 |
| 4G0.75 mm² | 26.70 | 12.0 | 9.0 | 2,000 |
| 5G0.75 mm² | 26.70 | 12.0 | 9.0 | 2,000 |
| 2×1 mm² | 20.00 | 15.0 | 12.0 | 2,000 |
| 3G1 mm² | 20.00 | 15.0 | 12.0 | 2,000 |
| 4G1 mm² | 20.00 | 15.0 | 12.0 | 2,000 |
| 5G1 mm² | 20.00 | 15.0 | 12.0 | 2,000 |
| 2×1.5 mm² | 13.70 | 18.0 | 14.0 | 2,000 |
| 3G1.5 mm² | 13.70 | 18.0 | 14.0 | 2,000 |
| 4G1.5 mm² | 13.70 | 18.0 | 14.0 | 2,000 |
| 5G1.5 mm² | 13.70 | 18.0 | 14.0 | 2,000 |
| 7G1.5 mm² | 13.70 | 18.0 | 14.0 | 2,000 |
| 12G1.5 mm² | 13.70 | 18.0 | 14.0 | 2,000 |
| 3G2.5 mm² | 8.21 | 26.0 | 20.0 | 2,000 |
| 4G2.5 mm² | 8.21 | 26.0 | 20.0 | 2,000 |
| 5G2.5 mm² | 8.21 | 26.0 | 20.0 | 2,000 |
| 4G4 mm² | 5.09 | 34.0 | 27.0 | 2,000 |
| 4G6 mm² | 3.39 | 44.0 | 34.0 | 2,000 |
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| Dielectric spark / high-voltage withstand test | 100 % in-line spark and AC/DC dielectric withstand per DIN VDE 0250-1 / EN 50525-2-83 / JB/T 8734 | Every manufactured length |
| Conductor DC resistance & continuity check | Within maximum 20 °C resistance limit specified for SRG-K | Every spool or drum length |
| Sample tests | ||
| Thermal ageing & dimensional verification | Wall thickness, concentricity and post-ageing elongation per DIN VDE 0250-1 / EN 50525-2-83 / JB/T 8734 | Per production batch |
| Flame, outgassing or high-temperature endurance | Qualified to DIN VDE 0250-1 / EN 50525-2-83 / JB/T 8734 thermal and environmental performance criteria | Type qualification |
Marking & supply
Sheath marking
Technical documents
FAQ
Not covered here? Send your drawing — an engineer replies within 2 business hours.
