fiber optic cable seriesFibre + Copper HybridAir-Blown Microcable48 V DC / PoE / Class 2

SiroccoHYBRID Composite Fibre-Optic and Copper Power Air-BlownAir-blown composite optical fibre (2–24F) + DC remote power copper (0.5–2.5 mm²)

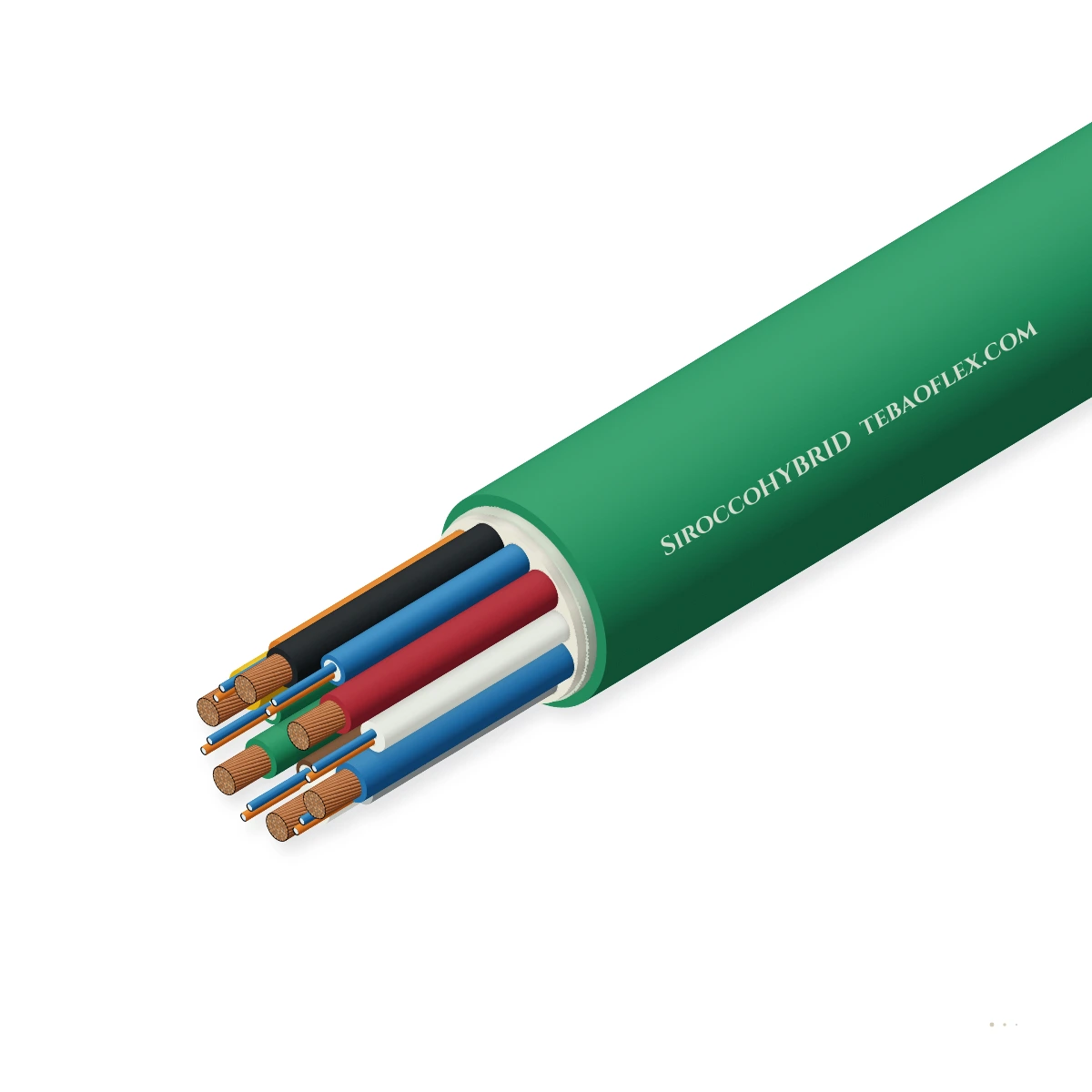

SiroccoHYBRID Composite Fibre-Optic and Copper Power Air-Blown Microcable integrating 2 to 24 ITU-T G.657.A1 single-mode optical fibres and 2 × 0.5 mm² to 2.5 mm² Class 5 stranded copper power conductors inside a low-friction Ø.

Air-Blown Microduct
Water-Blocked Hybrid
HDPE / LSZH Options
IEC 60794-5-10
Order designation
SiroccoHYBRID 2×1.5+12F
Outer Ø
6.4 mm
Weight ≈
56 kg/km
Conductor DC R
13.30 Ω/km
Min. microduct ID
10.0 mm
All sizes (5)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Optical cores
2 to 24 fibres
ITU-T G.657.A1 bend-insensitive
Copper power
2 × 0.5–2.5 mm²
IEC 60228 Class 5 annealed Cu
Voltage rating
300 V DC / AC
48–60 V SELV / RFT / PoE+
Outer Ø
4.8 to 7.8 mm
Fits 8/6, 10/8 & 12/10 mm ducts
Blowing reach
Up to 1,200 m
Low-friction microduct sheath
Temperature
-30 to +70 °C
Continuous remote powering

Typical values for this cable type, based on IEC 60794-5-10 / IEC 60228 / ITU-T G.657.A1 — confirmed in the datasheet and quotation for your order.

Application fit

Is SiroccoHYBRID right for your machine?

Eliminates local AC utility metering at remote 5G small cells, highway CCTV cameras, ONTs and IoT gateways by blowing optical data and 48 V / ±190 V RFT DC power through a single microduct.

Fixed installation

Suitable

Air-blown or pulled into 8/6 mm, 10/8 mm, 12/10 mm and 14/10 mm microducts or building risers.

TBM gantry & advancing tunnel reel

Suitable

LSZH-sheathed hybrid variant powers and networks emergency phones, Wi-Fi APs and sensors along tunnels.

Immersion & wet locations

Suitable

Gel-filled optical micro-tube and dry water-swellable yarns pass IEC 60794-1-22 F5B.

Energy chain / drag chain

Not suitable

Static air-blown microduct distribution cable; not intended for drag-chain motion.

Use SMPTE 311M Hybrid
Typical machines5G Small Cell & DAS Remote PoweringSmart Highway CCTV, Radar & VMS SignsFTTx Active Optical Network (AON) & PoEAirport, Port & Campus Perimeter Wi-Fi/PTZRail & Tunnel Emergency IoT Nodes

Construction

Layer by layer

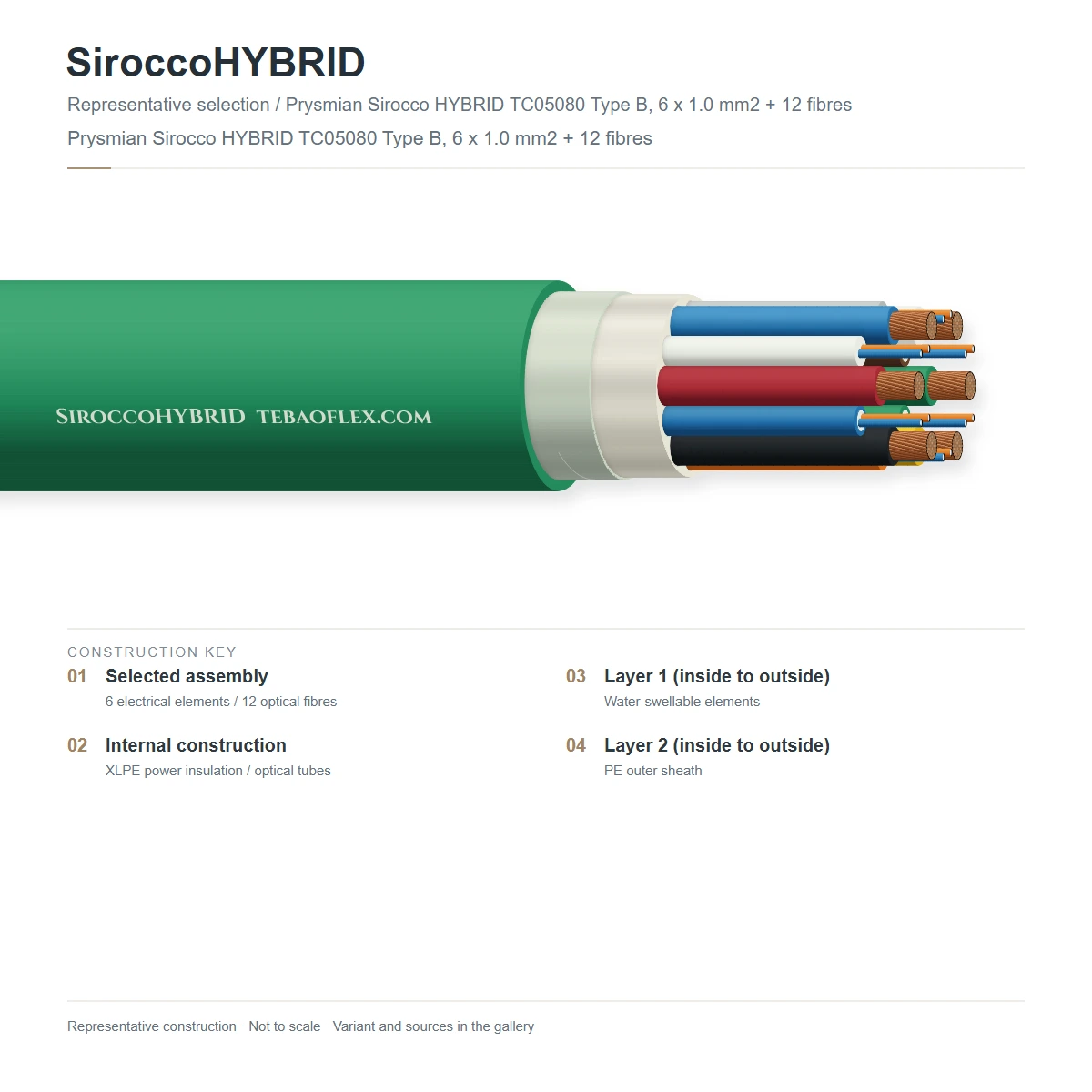

SiroccoHYBRID showing 1 or 2 thin-wall micro-tubes housing 2–24 ITU-T G.657.A1 optical fibres stranded with 2 × insulated Class 5 copper power conductors (0.50 to 2.5 mm²), dry water-blocking yarns, and low-friction HDPE/LSZH micro-sheath.

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Copper power conductors + G.657.A1 optical fibres2 × 0.50, 0.75, 1.50 or 2.50 mm² Class 5 plain annealed copper conductors (IEC 60228) + 2 to 24 ITU-T G.657.A1 250/200 µm single-mode fibresSimultaneous gigabit optical transport & DC remote power
2Power core XLPE/PE insulation & optical micro-tubeThin-wall high-dielectric PE/LSZH on copper conductors (Blue/Red or Black/Red) + gel-filled PBT optical loose micro-tube300 V rating & thermal isolation up to +70 °C
3Aramid / glass yarn & dry water-blocking bedLongitudinal water-swellable yarns and non-metallic aramid/glass tensile elements600–1,400 N blowing/pulling strength & longitudinal water block
4Low-friction HDPE or flame-retardant LSZH sheathLow-friction Black HDPE for outdoor microduct blowing or halogen-free LSZH (IEC 60332-3-24) for indoor/tunnel ductsSmooth thin-wall profile optimised for 8–14 mm microducts

SiroccoHYBRID-HDPE (Outdoor Microduct)

Low-friction Black HDPE outer sheath for air-blowing up to 1,200 m in underground microducts

SiroccoHYBRID-LSZH (Indoor / Tunnel)

Halogen-free flame-retardant LSZH jacket for FTTB risers, airports, data centres and rail tunnels

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEC 60794-5-10 / IEC 60228 / ITU-T G.657.A1. Values for your order are confirmed in the datasheet and quotation.

Electrical

Copper cross-sections
2 × 0.50 mm² · 2 × 0.75 mm² · 2 × 1.50 mm² · 2 × 2.50 mm²
Max. DC resistance @ 20 °C
39.0 Ω/km (0.5) · 26.0 Ω/km (0.75) · 13.3 Ω/km (1.5) · 7.98 Ω/km (2.5)
Nominal voltage rating
300 V DC / AC rms (48 V SELV / ±190 V RFT Class 2)
Dielectric test voltage
1,500 V AC rms for 1 min

Thermal

Operating temperature
-30 °C to +70 °C
Installation (blowing) temp.
-10 °C to +50 °C
Storage temperature
-40 °C to +70 °C

Mechanical

Outer diameter range
4.8 mm (2×0.5 + 4F) to 7.8 mm (2×2.5 + 24F)
Max. pulling / blowing load
600 N to 1,400 N
Crush resistance
1,000 N / 100 mm
Min. bend radius
15 × OD (static) · 20 × OD (installation)

Optical

Optical fibre type
ITU-T G.657.A1 bend-insensitive SM (2 to 24 fibres)
Attenuation @ 1310 / 1550 nm
≤ 0.35 dB/km @ 1310 nm · ≤ 0.21 dB/km @ 1550 nm
Macro-bend loss
≤ 0.2 dB (10 turns @ R = 15 mm, 1550 nm)

Resistance

Water penetration
IEC 60794-1-22 Method F5B pass
Flame option (LSZH)
IEC 60332-1-2 & IEC 60332-3-24 Cat C
Microduct blowing
Up to 1,000–1,200 m per blowing shot

Reference standards

Microcable & conductor std
IEC 60794-5-10 & IEC 60228 Class 5
Remote power safety
IEC 62368-1 ES1/ES2 & NEC Class 2 compatible
RoHS & REACH
2011/65/EU & EC 1907/2006 compliant

Identification

Power core colours
Blue (-) & Red (+) or Black & Red
Fibre colour code
TIA-598-D 12-colour
Customs tariff (HS)
8544.7000

Sizes

5 standard SiroccoHYBRID copper + optical microcable configurations

Copper cross-section, fibre count, outer diameter, DC loop resistance and minimum microduct ID.

Dimensions, DC resistance & duct fit
Order designationCopper + optical complimentOuter Ø
mm		Weight ≈
kg/km		Cu DC R
Ω/km		Min. duct ID
mm		Enquiry
Composite Copper Power + G.657.A1 Optical Microcables
SiroccoHYBRID 2×0.5+04F2 × 0.50 mm² Cu + 4F G.657.A14.82839.008.0
SiroccoHYBRID 2×0.75+12F2 × 0.75 mm² Cu + 12F G.657.A15.53826.008.0
SiroccoHYBRID 2×1.5+12F2 × 1.50 mm² Cu + 12F G.657.A16.45613.3010.0
SiroccoHYBRID 2×2.5+12F2 × 2.50 mm² Cu + 12F G.657.A17.5827.9810.0
SiroccoHYBRID 2×2.5+24F2 × 2.50 mm² Cu + 24F G.657.A17.8887.9812.0
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • At 56 V DC remote feed, 2 × 2.5 mm² delivers 100 W at up to 450 m or 60 W at up to 750 m.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
100 % OTDR optical trace, conductor DC R & 1.5 kV AC testOptical α ≤ 0.35/0.21 dB/km, DC R within IEC 60228, zero dielectric breakdownEvery manufactured drum length
Sample tests
Microduct blowing & tensile test (IEC 60794-1-21 E1 & E19)≥ 1,000 m air-blowing reach with zero optical or insulation damageType qualification
Combined current heating + thermal cycling testΔα ≤ 0.05 dB/km under full rated DC load up to +70 °CType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

IEC 60794-5-10 & IEC 60228ITU-T G.657.A1 & IEC 62368-1RoHS 2 & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX SIROCCOHYBRID 2x<MM2>Cu+<COUNT>F G.657.A1
Delivery form
Fumigated export wooden or steel drums
Standard drum lengths
1000 m · 2000 m · 4000 m (or custom cut lengths)
MOQ
500 m (standard) · 1000 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFSiroccoHYBRID Composite Fibre-Optic and Copper Power Air-Blown – technical datasheet5 sizes · construction, technical data, approvalsXLSXSiroccoHYBRID spec data (Excel)All 5 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How far can SiroccoHYBRID deliver remote DC power to a 5G small cell, Wi-Fi AP or highway camera?
Using a standard 56 V DC SELV supply (dropping to 36 V minimum at the remote DC/DC converter), the 2 × 1.5 mm² variant powers a 50 W load up to ~540 m, while the 2 × 2.5 mm² variant powers a 50 W load up to ~900 m (or over 2,500 m when using ±190 V / 380 V DC Class 2 / RFT fault-managed power).
Why blow a single SiroccoHYBRID cable instead of separate fibre and copper cables?
A microduct can only accept one cable per bore without jamming during compressed-air blowing. SiroccoHYBRID combines the Class 5 copper power pair and 4–24 G.657.A1 optical fibres inside a single round low-friction HDPE jacket that blows into one 8/6 mm or 10/8 mm microduct.
Does Joule heating from the copper conductors affect the optical fibres?
No. The optical fibres are housed in a thermally buffered PBT micro-tube rated for +70 °C continuous operation, and conductor sizing limits temperature rise to ≤ 15 K at rated DC current.
What drum lengths are supplied?
We supply continuous lengths of 1,000 m, 2,000 m and 3,000 m on export wooden drums.
