fiber optic cable seriesIEC 60794-5-10/20180 / 200 / 250 µm12 to 864 Fibres

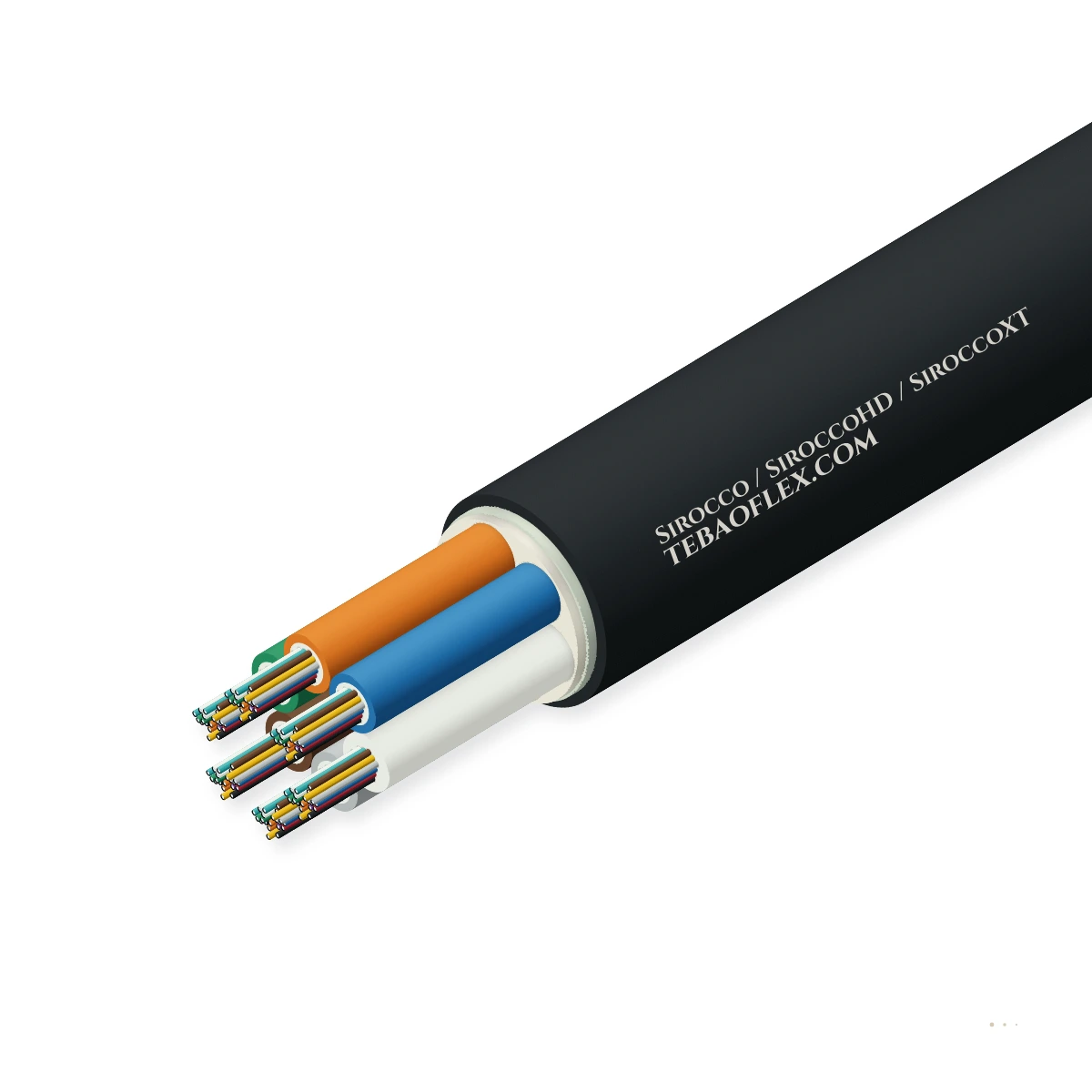

Sirocco / SiroccoHD / SiroccoXT Air-Blown Microduct Fibre OpticUltra-high-density (12 to 864F) 200 µm & 180 µm air-blown microduct fibre cables &

Sirocco, SiroccoHD & SiroccoXT Air-Blown Microduct Fibre Optic Unit & Cable series engineered per IEC 60794-5-10/5-20 with 250 µm, 200 µm (HD) and 180 µm (XT) bend-insensitive G.657.A1/A2 fibres for compressed-air jetting up to 2,500.

2.5 km Air-Blown Jetting

Water-Blocked Microtubes

100 % All-Dielectric

IEC 60794-5-10

Sirocco model

Order designation: SiroccoHD-288F-200
Cable outer Ø: 6.0 mm
Weight ≈: 35.0 kg/km
Max. blowing pull: 900 N
Min. microduct ID: 8.0 mm

All sizes (7)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Standard: IEC 60794-5-10
Fibre coating: 180/200/250 µm
Fibre count: 2 to 864 fibres
Outer Ø: 1.1 to 9.7 mm
Blowing reach: Up to 2,500 m
Temperature: -30 to +70 °C

Typical values for this cable type, based on IEC 60794-5-10 / IEC 60794-5-20 / ITU-T G.657.A1/A2 — confirmed in the datasheet and quotation for your order.

Application fit

Is Sirocco / SiroccoHD / SiroccoXT right for your machine?

Maximises fibre count inside congested urban, metro and hyperscale data-centre microduct pathways using reduced-coating 200 µm (SiroccoHD) and 180 µm (SiroccoXT) optical fibres.

Fixed installation

Suitable

Compressed-air jetting (up to 15 bar, 100 m/min) into pre-installed 5/3.5, 8/6, 10/8, 12/10 and 14/10 mm microducts.

TBM gantry & advancing tunnel reel

Suitable

Allows rapid, splice-free pay-as-you-grow fibre upgrades along railway, highway and utility tunnels.

Immersion & wet locations

Suitable

Gel-filled or dry water-blocked micro-tubes pass IEC 60794-1-22 Method F5B water penetration.

Free-hanging vertical run

Not suitable

Ultra-lightweight microduct cable; must be installed inside protective microducts rather than strung overhead.

Use ADSS Aerial FO Cable

Typical machinesHyperscale Data-Centre Interconnects (DCI)FTTH / FTTx Metro Access Networks5G Mobile Fronthaul & Backhaul DuctsSmart Highway & Railway Trackside DuctsUtility & Campus Microduct Infrastructure

Construction

Layer by layer

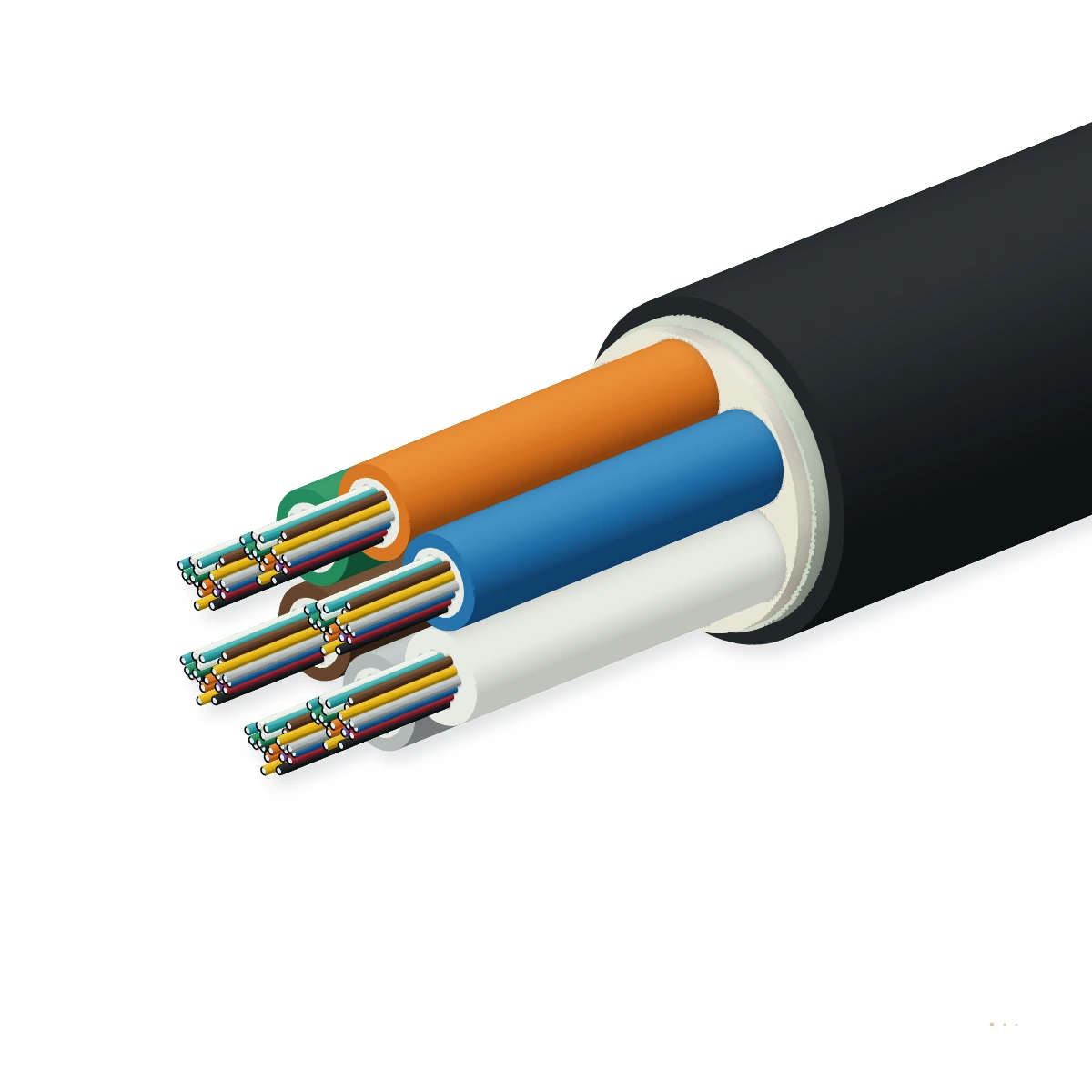

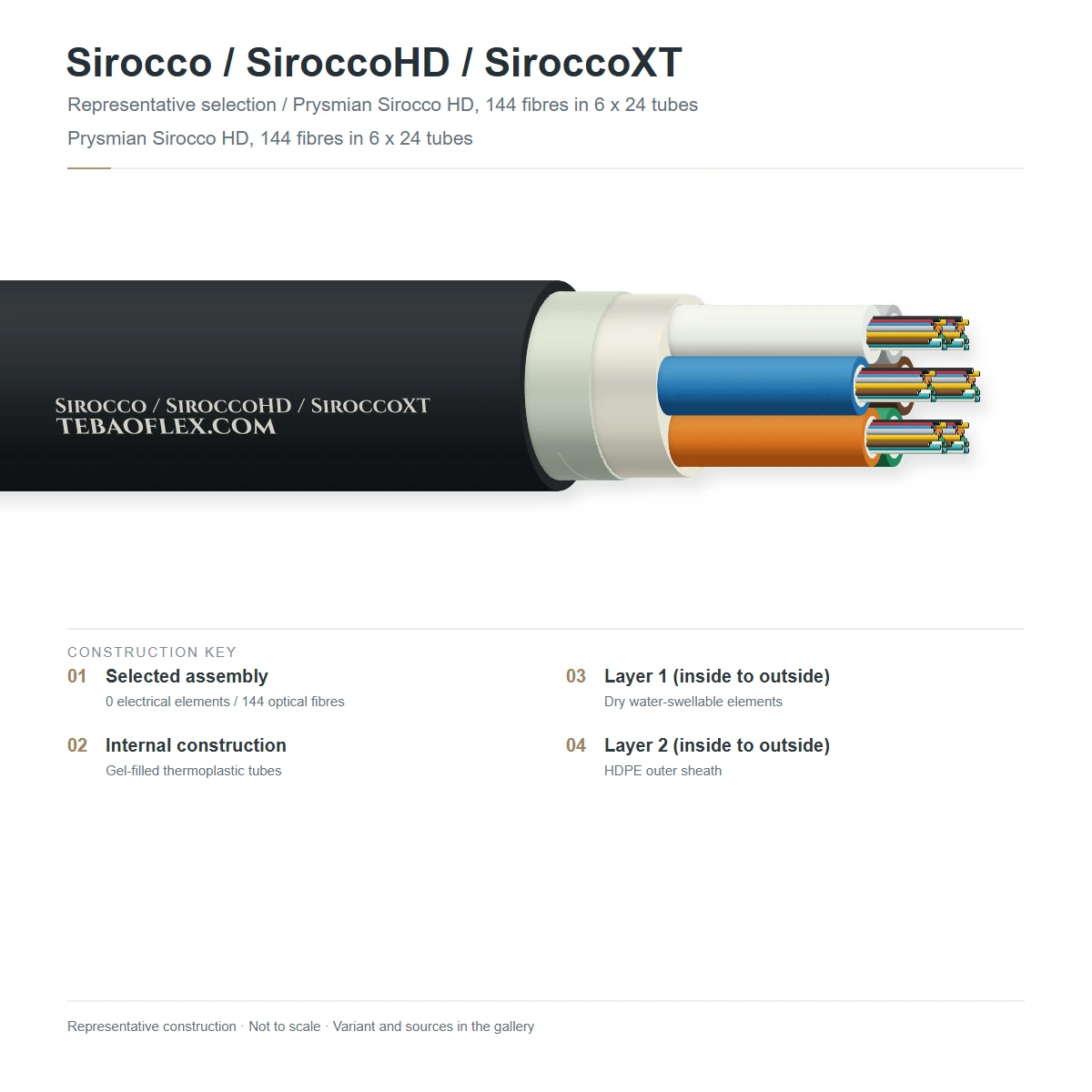

Sirocco / SiroccoHD / SiroccoXT showing central FRP dielectric strength member, thin-wall gel-filled or dry micro-tubes housing 12 or 24 fibres (250 µm, 200 µm or 180 µm G.657.A1/A2), dry water-swellable yarns, and low-friction HDPE micro-sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	250 µm / 200 µm (HD) / 180 µm (XT) optical fibres	ITU-T G.652.D / G.657.A1 (250 µm or 200 µm SiroccoHD) or G.657.A2 (180 µm SiroccoXT) single-mode silica fibresSplices directly to standard 125 µm glass cladding
2	Thin-wall colour-coded micro-tubes (or acrylate EPFU matrix)	12-fibre or 24-fibre thin-wall polymeric loose micro-tubes (or dimpled UV-cured acrylate bundle on 2–12F EPFU)High packing density with zero macro-bending loss
3	Central dielectric FRP rod & dry water-block	Central Fibre-Reinforced Plastic (FRP) anti-buckling rod with water-swellable yarnsProvides optimal pushing stiffness during initial jetting
4	Low-friction virgin HDPE micro-sheath	Thin-wall (~0.35–0.50 mm) low-coefficient-of-friction Black HDPE outer jacket (or dimpled EPFU outer skin)Engineered for aerodynamic drag & 2,000+ m blowing distance

Sirocco EPFU (2 to 12F, Ø 1.1–1.6 mm)

Enhanced Performance Fibre Unit per IEC 60794-5-20 for 3/2 mm and 5/3.5 mm FTTH drop microducts

SiroccoHD (48 to 864F, 200 µm G.657.A1)

High-density 200 µm microcable fitting 288F in 8 mm duct (Ø 6.0 mm) or 576F in 12 mm duct (Ø 8.5 mm)

SiroccoXT (144 to 864F, 180 µm G.657.A2)

Extreme-density 180 µm microcable fitting 288F in Ø 5.5 mm or 552F in Ø 7.9 mm (10 mm inner duct)

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEC 60794-5-10 / IEC 60794-5-20 / ITU-T G.657.A1/A2. Values for your order are confirmed in the datasheet and quotation.

Electrical

Dielectric design: 100 % metal-free all-dielectric construction
Glass cladding diameter: 125.0 µm ± 0.7 µm across all 250/200/180 µm tiers
Mode field diameter: 8.6 to 9.2 µm ± 0.4 µm @ 1310 nm

Thermal

Operating temperature: -30 °C to +70 °C (-40 °C on 12–144F standard)
Installation (blowing) temp.: -10 °C to +50 °C
Storage temperature: -40 °C to +70 °C

Mechanical

Outer diameter range: 1.1 mm (4F EPFU) · 5.5 mm (288F XT) · 9.7 mm (864F)
Max. blowing / pulling load: 15 N (EPFU) · 700 N to 1,800 N (microcables)
Crush resistance: 500 N to 1,000 N / 100 mm
Min. bend radius: 15 × OD (static) · 20 × OD (blowing)

Optical

Attenuation @ 1310 nm: ≤ 0.35 dB/km
Attenuation @ 1550 / 1625 nm: ≤ 0.21 dB/km @ 1550 nm · ≤ 0.23 dB/km @ 1625 nm
PMD link design value: ≤ 0.06 ps/√km

Resistance

Water penetration: IEC 60794-1-22 Method F5B longitudinal block
Blowing track performance: ≥ 1,000–2,500 m on IEC 60794-1-21 Method E19 track
Sheath friction coeff.: μ ≤ 0.12 against ribbed/silicone-lined HDPE microducts

Reference standards

Microduct cable standard: IEC 60794-5-10 & IEC 60794-5-20 (EPFU)
Optical fibre standard: ITU-T G.652.D · G.657.A1 · G.657.A2
RoHS & REACH: 2011/65/EU & EC 1907/2006 compliant

Identification

Outer sheath: Black low-friction HDPE (Yellow dimpled on EPFU)
Fibre & tube colour code: TIA-598-D / IEC 60304 12-colour + ring mark (24F)
Customs tariff (HS): 8544.7000

Sizes

7 representative Sirocco, SiroccoHD & SiroccoXT configurations

Fibre count, coating diameter, nominal cable OD, weight and minimum recommended microduct ID.

Dimensions & microduct sizing
Order designation	Fibre count & coating	Cable Ø mm	Weight ≈ kg/km	Max. pull N	Min. duct ID mm
Sirocco EPFU & Standard 250 µm
Sirocco EPFU-12F	12F × 200 µm G.657.A1 EPFU	1.6	2.1	25	3.5
Sirocco-48F-250	48F (4×12) × 250 µm G.657.A1	5.2	24.0	700	8.0
SiroccoHD (200 µm) & SiroccoXT (180 µm) High-Density
SiroccoHD-144F-200	144F (12×12) × 200 µm G.657.A1	6.2	36.0	900	8.0
SiroccoHD-288F-200	288F (12×24) × 200 µm G.657.A1	6.0	35.0	900	8.0
SiroccoXT-288F-180	288F (12×24) × 180 µm G.657.A2	5.5	29.0	850	8.0
SiroccoXT-552F-180	552F (23×24) × 180 µm G.657.A2	7.9	61.0	1,400	10.0
SiroccoHD-864F-200	864F (36×24) × 200 µm G.657.A1	9.7	92.0	1,800	12.0

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Recommended microduct fill ratio is 50 % to 75 % of microduct inner diameter (ID) for maximum blowing distance.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
100 % bidirectional OTDR attenuation @ 1310 / 1550 / 1625 nm	≤ 0.35 / 0.21 / 0.23 dB/km with zero point discontinuities	Every manufactured drum length
Sample tests
Standard figure-8 microduct blowing test (IEC 60794-1-21 E19)	≥ 1,500–2,500 m continuous jetting at ≤ 15 bar with Δα ≤ 0.05 dB	Type qualification
Thermal cycling & water penetration (IEC 60794-1-22 F1 & F5B)	Δα ≤ 0.05 dB/km across -30/+70 °C and 24 h water block	Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

IEC 60794-5-10 & IEC 60794-5-20ITU-T G.652.D / G.657.A1 / A2RoHS 2 & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX SIROCCO HD/XT <COUNT>F G.657 MICRODUCT CABLE

Delivery form: Fumigated export wooden or steel drums
Standard drum lengths: 1000 m · 2000 m · 4000 m (or custom cut lengths)
MOQ: 500 m (standard) · 1000 m (custom build)
Lead time: 2–4 weeks ex-works
Incoterms: EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFSirocco / SiroccoHD / SiroccoXT Air-Blown Microduct Fibre Optic – technical datasheet7 sizes · construction, technical data, approvals XLSXSirocco / SiroccoHD / SiroccoXT spec data (Excel)All 7 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Can 200 µm (SiroccoHD) and 180 µm (SiroccoXT) fibres be fusion-spliced to standard 250 µm telecom fibres?

Yes. Only the external polymer acrylate coating is reduced from 250 µm to 200 µm or 180 µm; the underlying silica glass cladding remains the universal 125.0 µm ± 0.7 µm diameter. Once stripped, they fusion-splice directly to any standard G.652.D or G.657 fibre using standard core-alignment splicers.

How do Sirocco, SiroccoHD and SiroccoXT differ?

Standard Sirocco uses 250 µm fibres (up to 288F) and 2–12F EPFU blown fibre units. SiroccoHD uses 200 µm bend-insensitive G.657.A1 fibres to pack up to 864 fibres into a 9.7 mm cable. SiroccoXT uses 180 µm G.657.A2 fibres to achieve world-record density—such as 288F in Ø 5.5 mm (for 8 mm ID ducts) and 552F in Ø 7.9 mm (for 10 mm ID ducts).

What drum lengths are supplied to eliminate mid-span splice chambers?

We supply continuous splice-free lengths of 2,000 m, 4,000 m, 6,000 m and up to 8,000 m per drum.

Can Sirocco microcables also deliver DC power to remote 5G small cells or Wi-Fi APs?

For applications requiring both air-blown optical fibres and remote copper DC power in the same microduct, specify our companion SiroccoHYBRID Composite Fibre-Optic and Copper Power Air-Blown Microcable.
