fiber optic cable seriesIEEE 1222 / IEC 60794-4-20100–600 m SpansAT Anti-Tracking Sheath

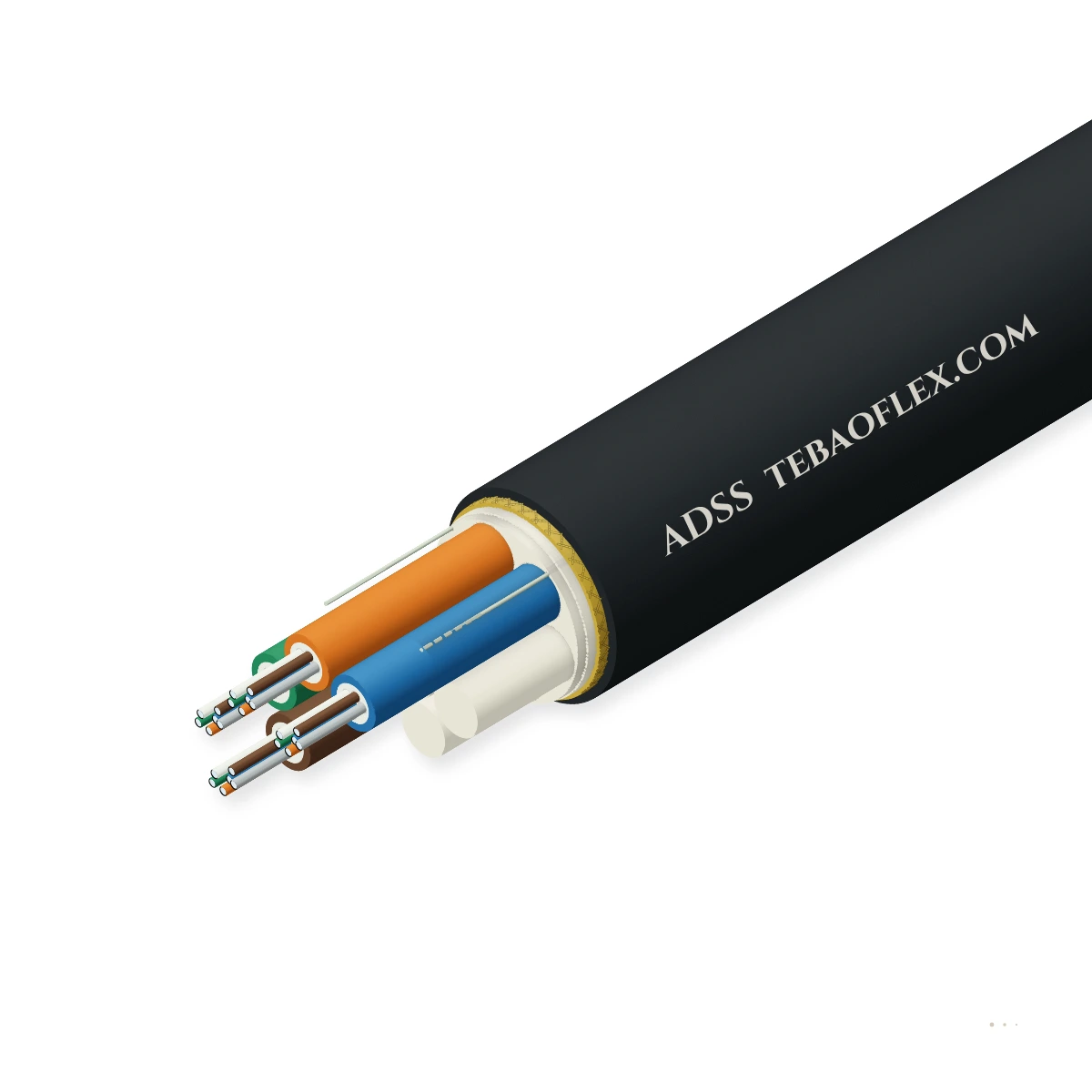

ADSS All-Dielectric Self-Supporting Fiber Optic CableAll-dielectric polyaramid-reinforced aerial optical cable for 10–500 kV lines

ADSS All-Dielectric Self-Supporting Fiber Optic Cable engineered per IEEE 1222 and IEC 60794-4-20 with SZ loose tubes, high-modulus polyaramid tensile yarns for 100–600 m spans, and HDPE or Anti-Tracking (AT) outer sheath for.

100–600 m Aerial Span

100 % Metal-Free Dielectric

IEEE 1222 Anti-Tracking

Gel & Yarn Water-Blocked

Span & fibre configuration

Order designation: ADSS-48B1-AT-300M
Outer Ø ≈: 13.8 mm
Weight ≈: 158 kg/km
Max. working load (MAT): 15.5 kN
Breaking load (RTS): 36 kN

All sizes (8)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Fibre count: 12 to 144 fibres
Design spans: 100 to 600 m
Rated RTS: 15 to 65 kN
Space potential: ≤ 12 kV / ≤ 25 k
Crush rating: 2,200 N/100 mm
Temperature: -40 to +70 °C

Typical values for this cable type, based on IEEE 1222 / IEC 60794-4-20 / DL/T 788 — confirmed in the datasheet and quotation for your order.

Application fit

Is ADSS right for your machine?

Purpose-built for under-build or cross-arm suspension along live 10 kV to 500 kV overhead power transmission and distribution towers without power outages.

Free-hanging vertical run

Suitable

Self-supporting across 100 m to 600 m tower spans using preformed armour-rod suspension and dead-end fittings.

Fixed installation

Suitable

Can transition down transmission towers in protective conduits directly into substation patch bays.

Immersion & wet locations

With conditions

Water-blocked per IEC 60794 F5B for aerial rain/ice, not designed for permanent submarine burial.

Use Armoured Loose-Tube FO

Motorised monospiral reel

Not suitable

Engineered for static overhead catenary tension, not dynamic crane reeling.

Use Rubber Crane FO Cable

Typical machinesHV Overhead Power Transmission (110–500 kV)MV Distribution & Rural Utility GridsRailway Electrification Catenary CorridorsWind & Solar Farm Collector LinesRiver, Valley & Highway Aerial Crossings

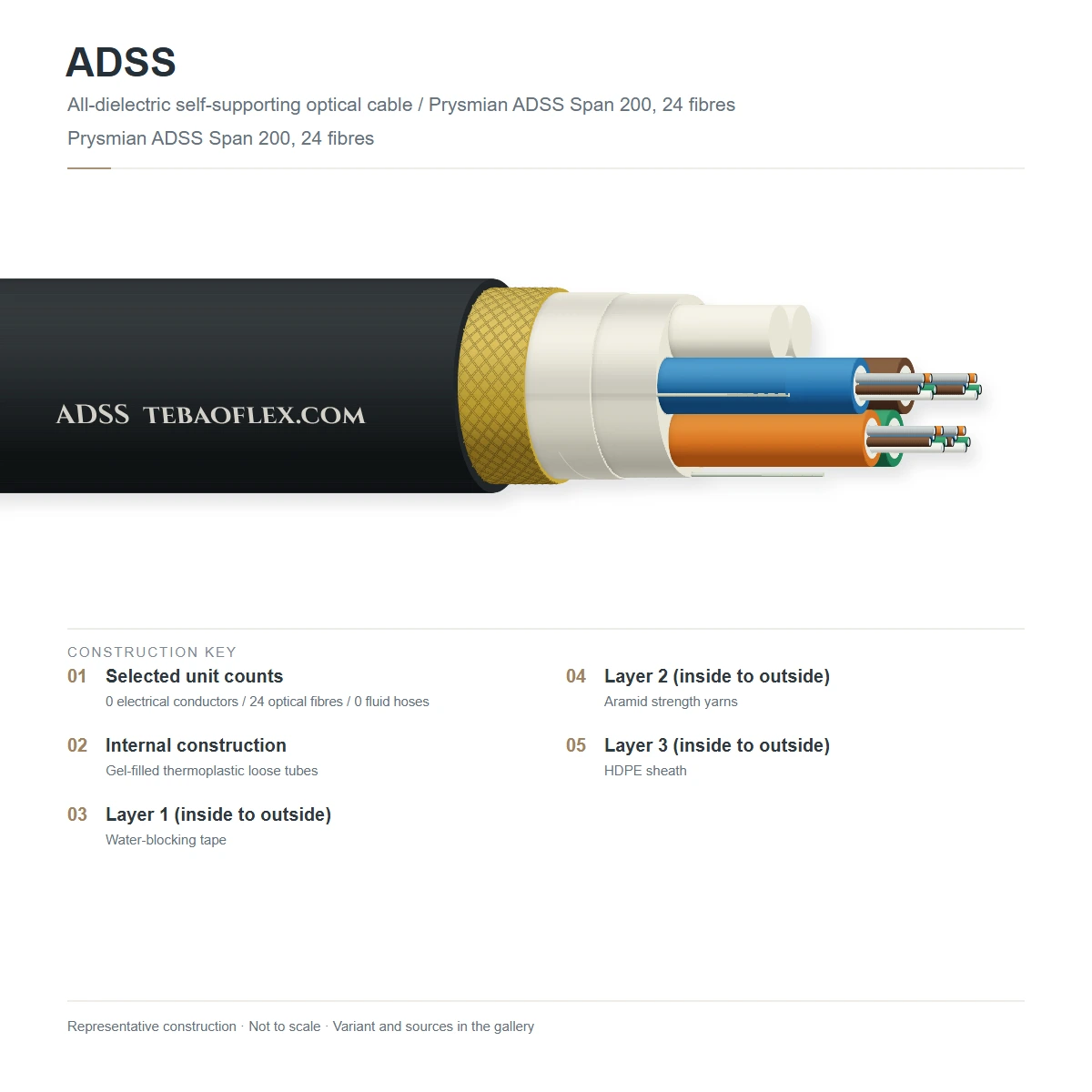

Construction

Layer by layer

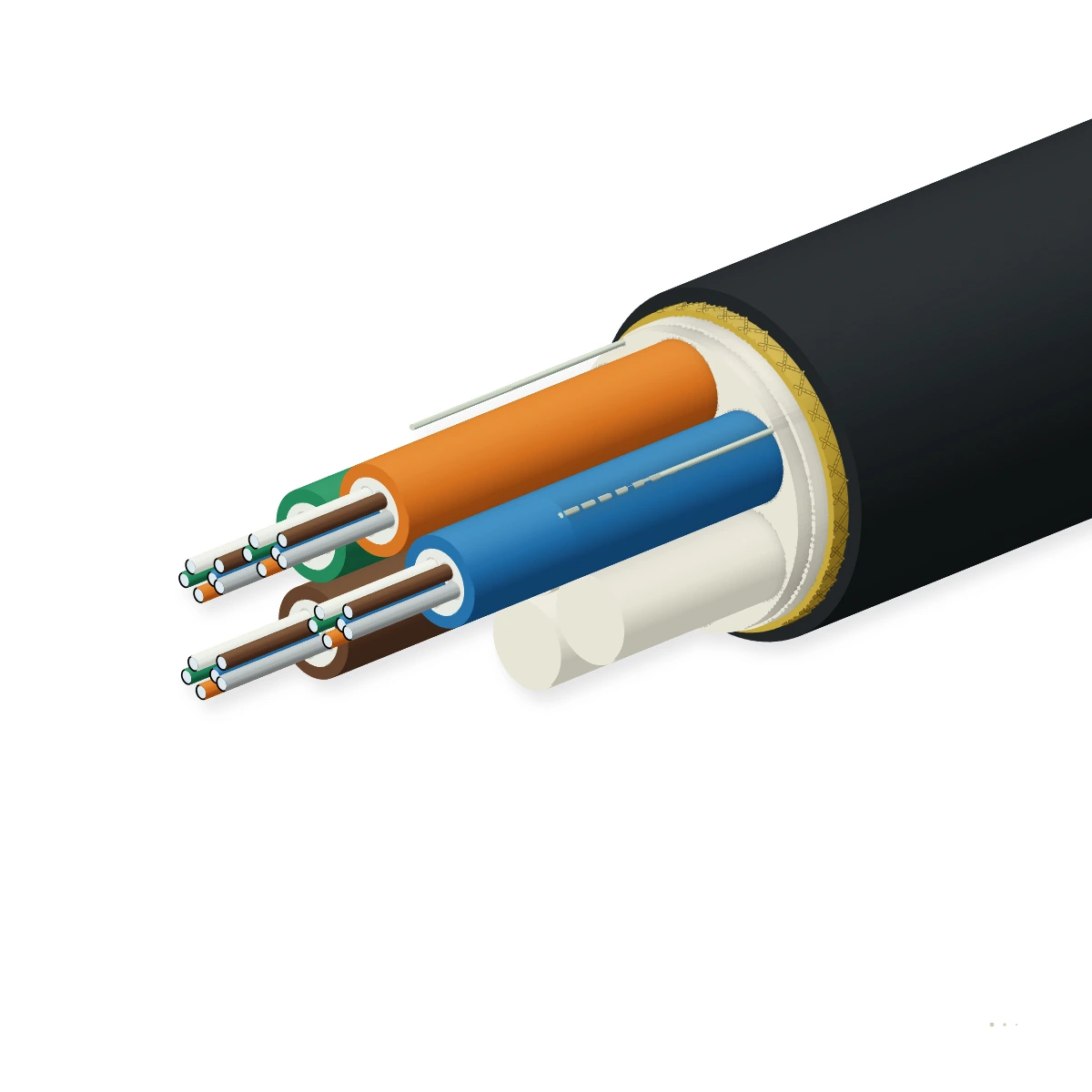

Double-sheath ADSS All-Dielectric Self-Supporting Fiber Optic Cable showing central FRP rod, SZ-stranded PBT buffer tubes, PE inner sheath, bidirectional high-modulus polyaramid yarn layer, and AT anti-tracking outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Single-mode optical fibres	ITU-T G.652.D or G.655 dispersion-unshifted/non-zero-dispersion silica fibres (250 µm colour-coded)≤ 0.35 dB/km @ 1310 nm · ≤ 0.21 dB/km @ 1550 nm
2	SZ-stranded PBT loose tubes	Hydrolysis-resistant PBT tubes filled with thixotropic gel, SZ-stranded with controlled excess fibre lengthZero fibre strain up to Maximum Allowable Tension (MAT)
3	Central dielectric strength rod	Pultruded non-metallic Fibre-Reinforced Plastic (FRP) rod with PE up-jacketingLow thermal expansion coefficient (7.0 × 10⁻⁶ /K)
4	Inner polyethylene bedding sheath	Extruded black MDPE/HDPE inner jacket over water-swellable core wrapIsolates loose tubes from radial pressure of dead-end clamps
5	Tensile load-bearing yarn	Contra-helically stranded high-modulus polyaramid yarnsSized to span length (100–600 m), ice thickness and wind velocity
6	Outer HDPE or AT anti-tracking jacket	UV-stabilised HDPE (for ≤ 12 kV space potential) or Track-Resistant AT compound (for 12–25 kV field)Resists dry-band arc tracking on 110–500 kV towers per IEEE 1222

ADSS-PE (≤ 12 kV Space Potential)

UV-stabilised black HDPE outer sheath for 10 kV–35 kV lines and telecom pole routes

ADSS-AT (12–25 kV Anti-Tracking)

Dry-band arc track-resistant (AT) outer sheath for 110 kV–500 kV high-voltage transmission towers

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEEE 1222 / IEC 60794-4-20 / DL/T 788. Values for your order are confirmed in the datasheet and quotation.

Electrical

Dielectric isolation: 100 % non-metallic — hot-line installable
Max. space potential (PE): ≤ 12 kV induced electric field
Max. space potential (AT): 12 kV to 25 kV (IEEE 1222 dry-band arc)

Thermal

Operating temperature: -40 °C to +70 °C
Installation temperature: -20 °C to +50 °C
Thermal expansion coeff.: 8.2 to 11.5 × 10⁻⁶ /K (span-dependent)

Mechanical

Rated Tensile Strength (RTS): 15 kN to 65 kN across 100–600 m span designs
Max. Allowable Tension (MAT): 40 % to 50 % of RTS (zero optical loss)
Everyday Stress (EDS): 16 % to 20 % of RTS
Elastic modulus: 9.5 to 14.5 GPa (for sag-tension calculation)
Min. bend radius: 15 × OD (static) · 20 × OD (stringing)

Optical

Fibre standard: ITU-T G.652.D (OS2) or ITU-T G.655 (NZDSF)
Attenuation @ 1310 / 1550 nm: ≤ 0.35 dB/km / ≤ 0.21 dB/km
Fibre strain at MAT: ≤ 0.05 % (within tube excess fibre window)
Aeolian vibration test: 10⁸ cycles at EDS without attenuation rise

Resistance

Dry-band arc tracking: IEEE 1222 salt-fog tracking pass (AT sheath)
Water penetration: IEC 60794-1-22 Method F5B pass
UV & weather ageing: 2,000 h xenon-arc weathering (ISO 4892-2)
Galloping & sheave test: Passes IEEE 1222 sheave & galloping fatigue

Reference standards

Primary aerial standard: IEEE Std 1222 & IEC 60794-4-20
Optical fibre standard: ITU-T G.652.D / IEC 60793-2-50
RoHS & REACH: 2011/65/EU & EC 1907/2006 compliant

Identification

Outer sheath colour: UV black (HDPE or AT compound)
Tube & fibre colour code: 12-colour TIA-598-D / IEC 60304
Sheath marking: TEBAOFLEX ADSS-<COUNT>B1-<SPAN>M PE/AT YEAR + METRE
Customs tariff (HS): 8544.7000

Sizes

8 standard ADSS aerial span configurations (100 m to 600 m)

Double-sheath ADSS dimensional, tensile (MAT / RTS) and sag-tension modulus data for NESC Medium loading per IEEE 1222.

Span designs & mechanical data
Order designation	Span & fibres	Outer Ø ≈ mm	Weight ≈ kg/km	MAT kN	RTS kN
HDPE Outer Sheath (Space potential ≤ 12 kV)
ADSS-24B1-PE-100M	100 m · 24F G.652.D	11.4	108	7.0	16
ADSS-24B1-PE-200M	200 m · 24F G.652.D	12.2	124	10.5	24
ADSS-48B1-PE-200M	200 m · 48F G.652.D	12.8	136	11.5	26
AT Anti-Tracking Outer Sheath (Space potential 12–25 kV)
ADSS-24B1-AT-300M	300 m · 24F G.652.D	13.4	148	14.5	33
ADSS-48B1-AT-300M	300 m · 48F G.652.D	13.8	158	15.5	36
ADSS-48B1-AT-400M	400 m · 48F G.652.D	14.8	182	19.5	45
ADSS-96B1-AT-500M	500 m · 96F G.652.D	16.5	228	24.0	55
ADSS-144B1-AT-600M	600 m · 144F G.652.D	18.2	274	28.5	65

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Custom sag-tension tables and preformed helical dead-end/suspension fittings supplied matched to exact outer diameter and RTS.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
100 % bidirectional OTDR attenuation test	≤ 0.35 dB/km @ 1310 nm and ≤ 0.21 dB/km @ 1550 nm on every fibre	Every manufactured drum length
Sample tests
Stress-strain & MAT zero-fibre-strain test	Fibre strain ≤ 0.05 % and Δα ≤ 0.05 dB up to rated MAT	Type qualification
Dry-band arc electrical tracking test (AT jacket)	Withstands 25 kV space potential salt-fog tracking test per IEEE 1222	Type qualification (AT)
Aeolian vibration & sheave passing test	100 million vibration cycles and sheave pull under tension without fibre damage	Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

IEEE Std 1222 & IEC 60794-4-20ITU-T G.652.D / G.655RoHS 2 (2011/65/EU) & REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX ADSS-<COUNT>B1-<SPAN>M IEEE 1222 IEC 60794-4-20

Delivery form: Fumigated export wooden or steel drums
Standard drum lengths: 1000 m · 2000 m · 4000 m (or custom cut lengths)
MOQ: 500 m (standard) · 1000 m (custom build)
Lead time: 2–4 weeks ex-works
Incoterms: EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFADSS All-Dielectric Self-Supporting Fiber Optic Cable – technical datasheet8 sizes · construction, technical data, approvals XLSXADSS spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

When is an Anti-Tracking (AT) outer sheath required instead of standard HDPE on ADSS cable?

On overhead transmission lines of 110 kV and above, capacitive coupling induces a high space potential on the cable surface. Where the induced electric field at the tower attachment point exceeds 12 kV (up to 25 kV), dry-band arcing across wet pollution layers can erode standard HDPE; an IEEE 1222 AT sheath prevents carbon tracking.

What is the difference between MAT, EDS, and RTS when specifying ADSS cable?

Everyday Stress (EDS, typically 16–20 % of RTS) is the continuous tension under still air at average ambient temperature. Maximum Allowable Tension (MAT, 40–50 % of RTS) is the worst-case design wind and ice load where optical attenuation and fibre strain remain zero. Rated Tensile Strength (RTS) is the ultimate mechanical breaking load.

Why do medium- and long-span ADSS cables use a double-sheath (PE inner + PE/AT outer) construction?

Preformed helical dead-end and suspension grips exert high radial clamping pressure to transfer tens of kilonewtons of axial tension from the outer jacket to the internal polyaramid yarns. The inner PE bedding sheath prevents that radial compression from deforming the PBT loose buffer tubes.

Can custom drum lengths be manufactured to match exact transmission tower span schedules?

Yes. ADSS cables are manufactured to project-specific tower-to-tower splice schedules (commonly 2,000 m to 5,000 m per drum) so joint closures always land on tension towers rather than mid-span.
