Free-hanging round travelling cable300/500 V & 450/750 VUp to 300 m Hang HeightCentral Steel Core

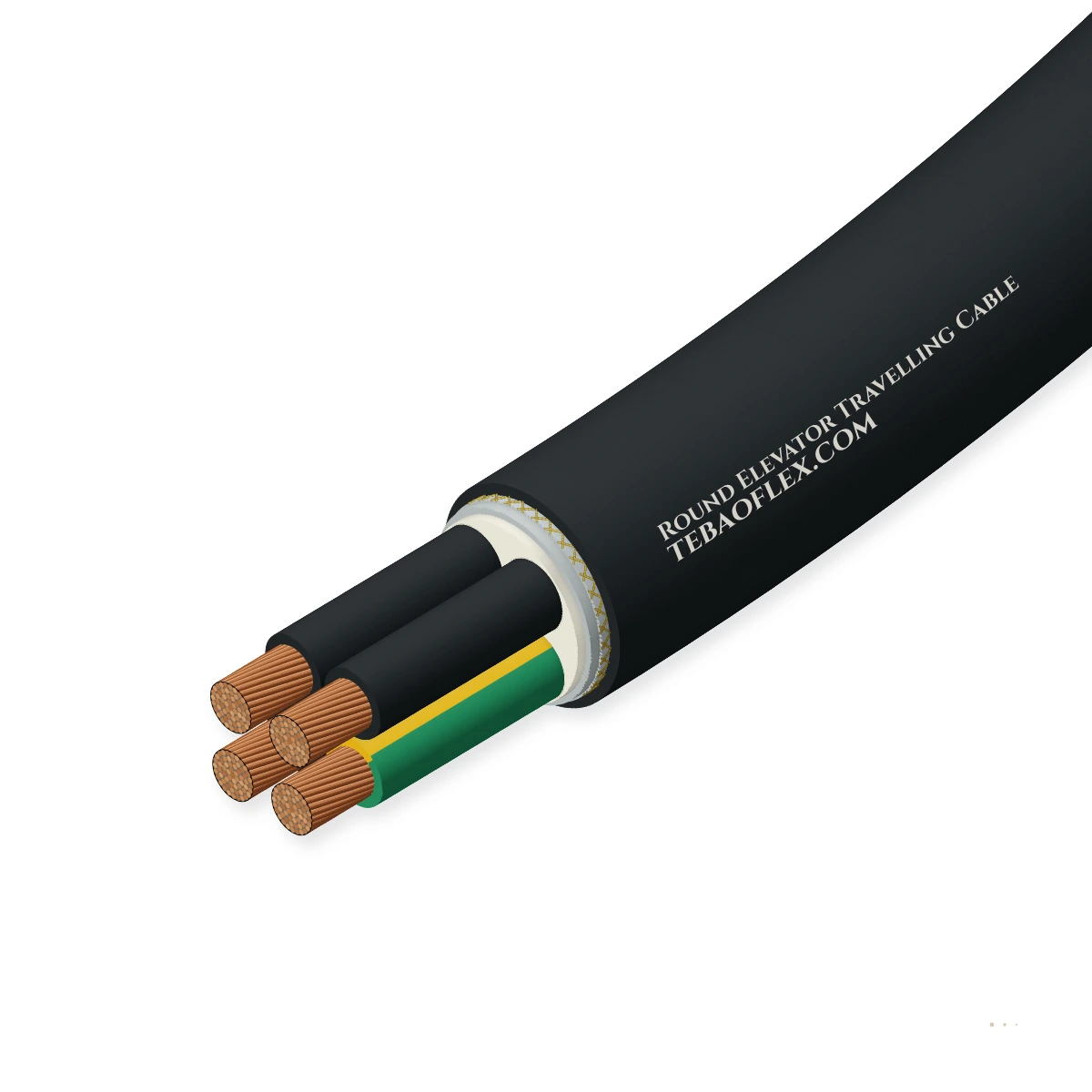

Round Elevator Travelling CableCentral steel-rope-supported round travelling cable for up to 300 m hang height

High-rise round elevator and hoist travelling cable built with a central galvanised steel wire rope (SWR) suspension core, alternating S/Z counter-laid Class 5 copper cores, anti-torsion textile braid and cold-flexible polychloroprene/elastomer jacket.

Anti-torsion braid
Outdoor & humid
Ozone, UV & moisture
Flame-retardant
Order designation
LIFT-RND-SWR 24G1.0
Outer Ø ≈
18.9 mm
Max. hang height
260 m
Steel core break
6.0 kN
Total weight ≈
542 kg/km
Check against my drumAll sizes (14)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Suspension max
Up to 300 m
free-hanging vertical loop
Travel speed
Up to 10 m/s
high-speed lift & rack hoist
Breaking load
4.5–9.0 kN
central SWR strain member
Rated voltage
300/500 V
450/750 V on 1.5 mm² hoist sizes
Temperature
−30…+70 °C
flexing · −40…+80 °C fixed
Natural loop Ø
10–15 × OD
plumb torsion-free U-loop

Typical values for this cable type, based on DIN VDE 0250 / EN 50214 — confirmed in the datasheet and quotation for your order.

Application fit

Is Round Elevator Travelling Cable right for your machine?

Engineered for long vertical free-hanging loops on high-rise passenger/freight elevators, rack-and-pinion construction hoists, tower cranes and mine shaft cages.

Free-hanging vertical run

Suitable

Central steel wire rope (4.5–9.0 kN breaking load) supports up to 300 m free-hanging vertical suspension.

Construction hoist & mast-guided loop

Suitable

Round cross-section reduces wind drag on outdoor rack-and-pinion construction hoists and tower cranes.

Festoon & line chain

Suitable

Can be suspended on heavy-duty I-beam trolley festoons for bridge cranes and ship-to-shore gantries.

Motorised monospiral reel

Not suitable

Central steel suspension core and S/Z loop balance are designed for free hanging, not motorised drum reeling.

Use NSHTÖU Reeling Cable
Typical machinesHigh-Rise Passenger & Freight LiftsRack-and-Pinion Construction HoistsTower Cranes & Mast ClimbersIndustrial Chimney & Dam LiftsMine Shaft & Silo Inspection Cages

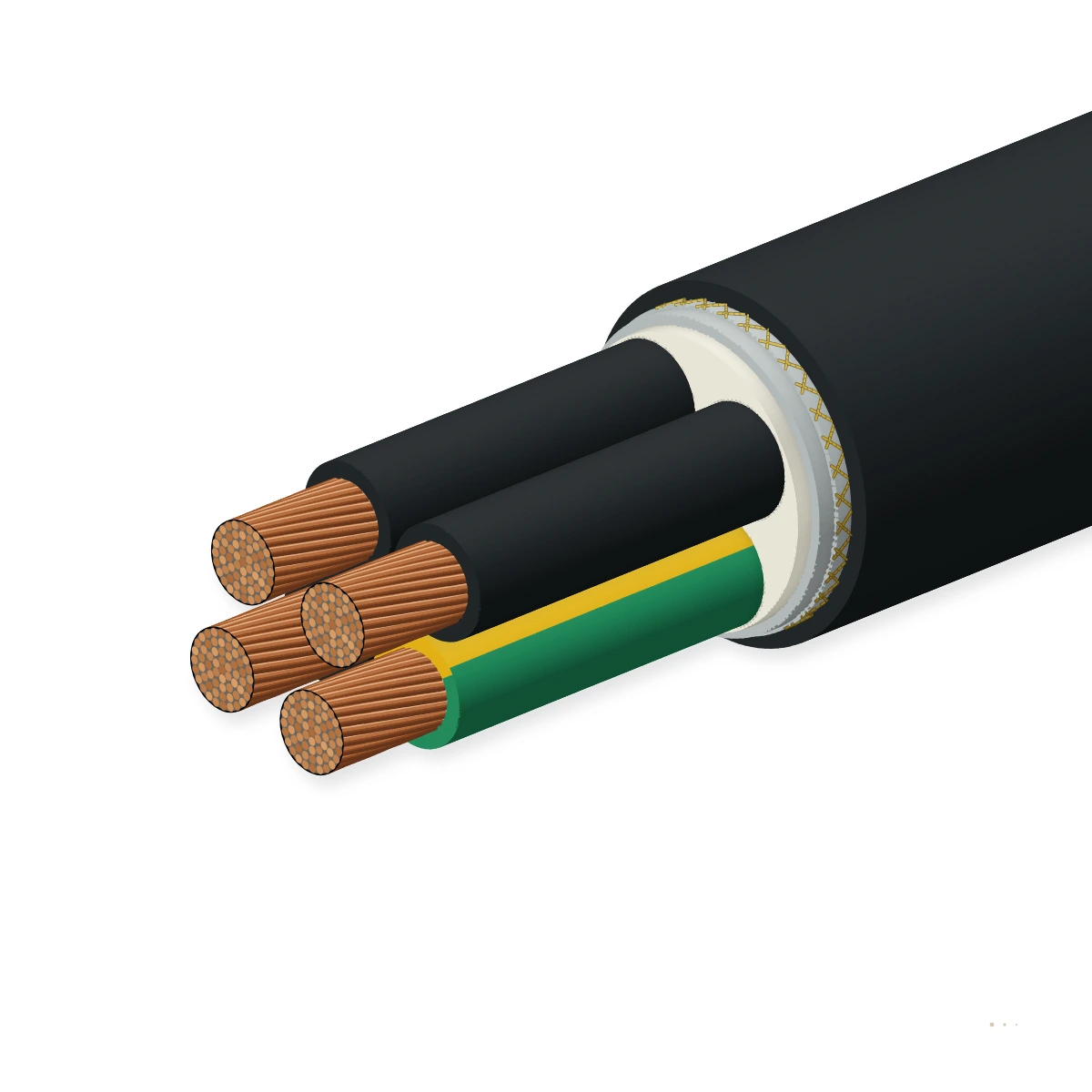

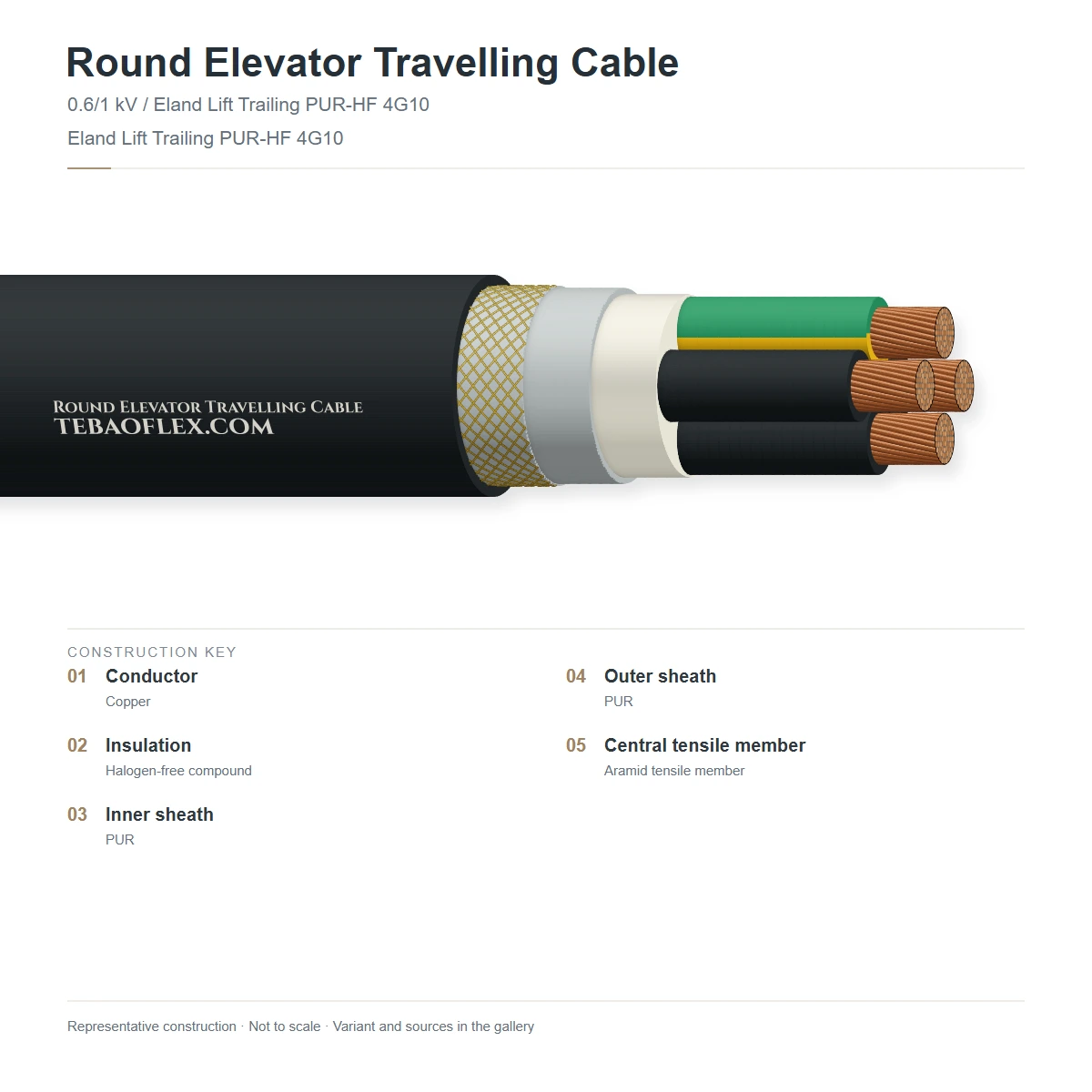

Construction

Layer by layer

Shown: LIFT-RND-SWR 24G1.0 round travelling cable with cushioned central galvanised steel wire rope, two counter-directional S/Z core layers, inner textile anti-torsion braid and black PCP outer sheath.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Fine-stranded copper conductorsBare copper, fine-stranded (IEC 60228 Class 5)Laid around the cushioned central support core without tensile stress
2Central load-bearing support coreGalvanised steel wire rope (SWR, 4.5–9.0 kN breaking force) cushioned in an extruded elastomer beddingCarries the entire suspended cable weight over 150–300 m vertical drops
3Cold-flexible core insulationSpecial cross-linked EPR / cold-resistant elastomer, black cores with white numbers + GNYERemains flexible down to −30 °C in unheated outdoor hoist shafts
4Counter-directional S/Z layer strandingConcentric core layers laid in alternating S and Z directions with non-woven fleece between layersCancels internal residual torque so the hanging U-loop never twists into shaft walls
5Anti-torsion textile reinforcing braidOpen-weave high-tenacity synthetic yarn braid embedded inside the sheathStabilises sheath geometry at travel speeds up to 10 m/s
6Weather- & oil-resistant outer sheathFlame-retardant polychloroprene (PCP / EM2) or cold-flex elastomer, black RAL 9005DIN EN 50363-2-1 · UV, ozone, oil and weather resistant

LIFT-RND-SWR (Steel Core)

Central galvanised steel wire rope suspension member for maximum hang heights up to 300 m and outdoor wind stability

LIFT-RND-HYB (Power + Bus)

Adds individually screened twisted pairs — e.g. 3×(2×0.5)C — for CANopen-Lift, RS-485 car-top serial bus and CCTV

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250 / EN 50214. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
300/500 V (450/750 V on 1.5 mm² sizes)
AC test voltage
2500 V AC (3000 V AC on 450/750 V sizes)
Insulation resistance
≥ 20 MΩ·km at 20 °C
Screen / Field control
Unscreened control or screened bus pairs (HYB)

Thermal

Temperature, flexing
−30 °C to +70 °C
Temperature, fixed installation
−40 °C to +80 °C
Max. conductor temperature
+70 °C (+90 °C EPR option)
Short-circuit temperature
+200 °C (max. 5 s)

Mechanical

Max. free-hanging length
Up to 200–300 m (by central SWR breaking load)
Max. travel speed
Up to 10.0 m/s (elevator shaft) · 4.0 m/s (outdoor)
Max. acceleration
Up to 2.5 m/s²
Min. natural loop diameter
12 × to 15 × cable OD
Min. bending radius, fixed
6 × OD

Resistance

Oil resistance
DIN EN 50363-2-1 EM2 (hoist gearbox oils)
Flame retardance
IEC 60332-1-2 self-extinguishing
UV & ozone
Ozone and UV resistant for outdoor tower hoists
Cold impact
Passes −30 °C cold-bend test (IEC 60811-504)

Reference standards

Cable type (construction standard)
DIN VDE 0250-606 & EN 50214 test principles
Conductor
IEC 60228 Class 5 fine-stranded copper
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour
Black (RAL 9005)
Core identification
Black cores with white numbers + GNYE (EN 50334)
Marking
TEBAOFLEX LIFT-RND-SWR <size> 300/500V CE
Customs tariff (HS)
8544.49

Sizes

14 standard round elevator & hoist travelling cable sizes

Includes central steel wire rope breaking load (kN) and maximum recommended free-hanging suspension height (m).

Dimensions, suspension height & breaking load
Order designationConfigurationMax. hang
height (m)		Steel core
break (kN)		Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. loop Ø
mm		Enquiry
0.75 mm² round elevator control & signal travelling cables (12G–36G)
LIFT-RND-SWR 12G0.7512G0.752204.513.686265190
LIFT-RND-SWR 18G0.7518G0.752504.515.8130358221
LIFT-RND-SWR 24G0.7524G0.752506.017.6173445246
LIFT-RND-SWR 30G0.7530G0.752806.019.4216535272
LIFT-RND-SWR 36G0.7536G0.753007.521.0260632294
1.0 mm² high-rise lift & hoist travelling cables (12G–42G)
LIFT-RND-SWR 12G1.012G1.02204.514.4115312202
LIFT-RND-SWR 18G1.018G1.02506.016.8173428235
LIFT-RND-SWR 24G1.024G1.02606.018.9230542265
LIFT-RND-SWR 30G1.030G1.02807.520.8288655291
LIFT-RND-SWR 36G1.036G1.03007.522.6346775316
LIFT-RND-SWR 42G1.042G1.03009.024.4403895342
1.5 mm² construction hoist power & hybrid CAN-bus travelling cables
LIFT-RND-SWR 12G1.512G1.52006.016.2173412227
LIFT-RND-SWR 18G1.518G1.52207.518.8259568263
LIFT-RND-HYB 24G1.5+3×(2×0.5)C24G1.5 + 3×(2×0.5)C2509.022.4385790314
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Always anchor the central galvanised steel wire rope directly to the shaft wall bracket and car-bottom wedge clamp so zero tensile load is placed on the copper conductors.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm ≥ 264 mmBending radius OK (7 × OD 18.9 mm)
240 m/min ≤ 600 m/minWithin the rated travel speed
Minimum bending radius
132 mm
Min. drum core diameter
≈ 264 mm
Cable weight on drum
81.3 kg
Copper content
34.5 kg
Indicative only: based on the datasheet outer diameter and 7 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
2500 V / 3000 V AC high-voltage dielectric test2.5 kV / 3.0 kV AC for 5 min without breakdownEvery manufactured drum length
Free-hanging plumb & zero-twist verification≤ 5° loop rotation under suspended dead-weight testEvery production lot
Sample tests
Central steel wire rope tensile breaking testMinimum breaking load ≥ 4.5 kN to 9.0 kN per size schedulePer production batch
−30 °C cold bend & outdoor weather testPass IEC 60811-504 at −30 °C and DIN EN 50363-2-1 EM2 oil/ozoneType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

CE (2014/35/EU LVD & 2014/33/EU Lift Directive)DIN VDE 0250-606 / EN 50214 CompliantRoHS 2 (2011/65/EU) & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX LIFT-RND-SWR <size> 300/500V STEEL CORE CE
Delivery form
Non-returnable fumigated wooden drums or coils
Standard lengths
100 m · 500 m · 1000 m (cut lengths on request)
MOQ
100 m (stock sizes) · 300 m (custom)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFRound Elevator Travelling Cable – technical datasheet14 sizes · construction, technical data, approvalsXLSXRound Elevator Travelling Cable spec data (Excel)All 14 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

When should I use a Round Elevator Travelling Cable instead of a flat PVC elevator travelling cable (H05VVH6-F)?
Flat PVC travelling cables (H05VVH6-F) are designed for indoor passenger lifts up to 45–65 m suspension height, where their wide ribbon profile catches wind if used outdoors. Round Elevator Travelling Cable integrates a central galvanised steel wire rope (4.5–9.0 kN breaking load) and a weather-proof polychloroprene/elastomer jacket, making it essential for high-rise shafts up to 300 m, outdoor rack-and-pinion construction hoists, tower cranes, and windy industrial shafts.
How is a multi-layer round travelling cable prevented from twisting and corkscrewing in a 200 m hoistway?
If all cores were laid in the same helical direction, the cable's own suspended weight would cause it to untwist and spin the bottom U-loop into the shaft guide rails. We strand the insulated cores in alternating counter-directional (S and Z) concentric layers separated by sliding fleece and stabilised by an inner textile braid so the net torsional moment under load is zero.
How should the central steel wire rope be terminated at the top midpoint anchor and beneath the elevator car?
Before installation, hang the cable freely for 24 hours to relax drum coiling memory. Strip back the outer jacket at both suspension points, pass the cable body through a cushioned rubber wedge clamp, and secure the exposed central galvanised steel wire rope with wire-rope thimbles and Crosby clips so the copper conductors hang completely slack inside the junction box.
Can Round Elevator Travelling Cable include screened data pairs for CANopen-Lift or IP cameras?
Yes. Our hybrid execution — such as 24G1.5 + 3×(2×0.5)C — incorporates individually copper-screened twisted pairs in the outer layer for RS-485, CANopen-Lift, intercom audio, and cabin CCTV video transmission.
