Vertical / spreader reel
Torque-balanced contra-helical GIPS wire armour supports vertical ROV/TMS deployment without hockling.
Product

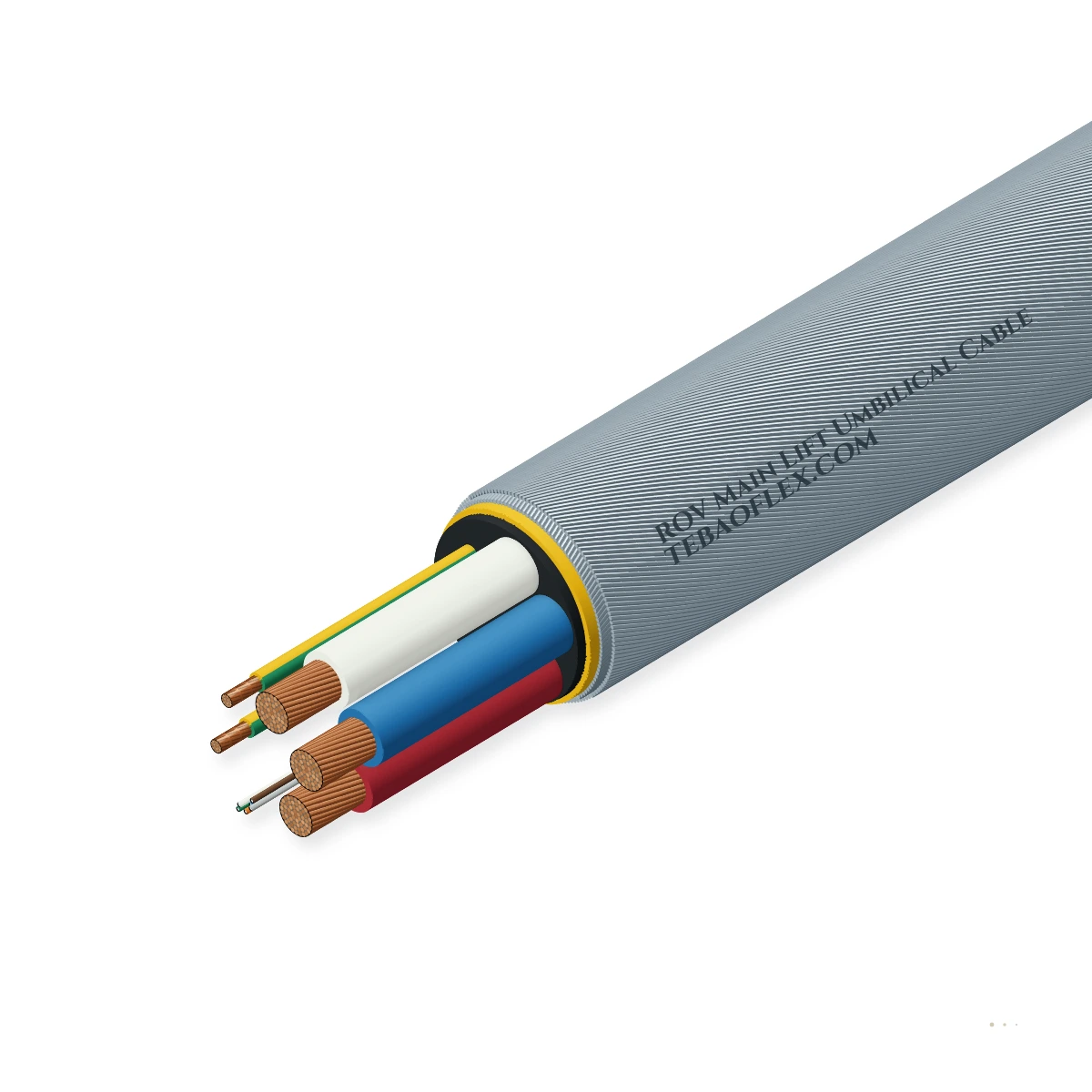

Engineered for work-class ROV and TMS launch-and-recovery systems (LARS) to 6,000 m depth, combining 3.0–4.5 kV power triads, laser-welded FIMT optical tubes and multi-layer GIPS contra-helical steel wire armour per ISO 13628-5.
Typical values for this cable type, based on ISO 13628-5 / API Spec 17E / DNV-ST-E402 — confirmed in the datasheet and quotation for your order.
Application fit
Select ROV Main Lift Umbilical Cable for vertical LARS winch deployment of heavy work-class ROV cages and TMS packages.
Torque-balanced contra-helical GIPS wire armour supports vertical ROV/TMS deployment without hockling.
Void-free elastomeric matrix and laser-welded FIMT withstand continuous 60 MPa deepwater immersion.
Galvanised improved plow steel armour and optional HDPE/PUR jacket resist LARS sheave wear and salt spray.
Suitable for suspended cage/depressor towing; specify neutrally buoyant ROV Tether Cable for horizontal excursion.
Use ROV Tether CableHeavy steel-armoured subsea lift umbilical is not designed for indoor automation drag chains.
Use M23 Servo AssemblyConstruction

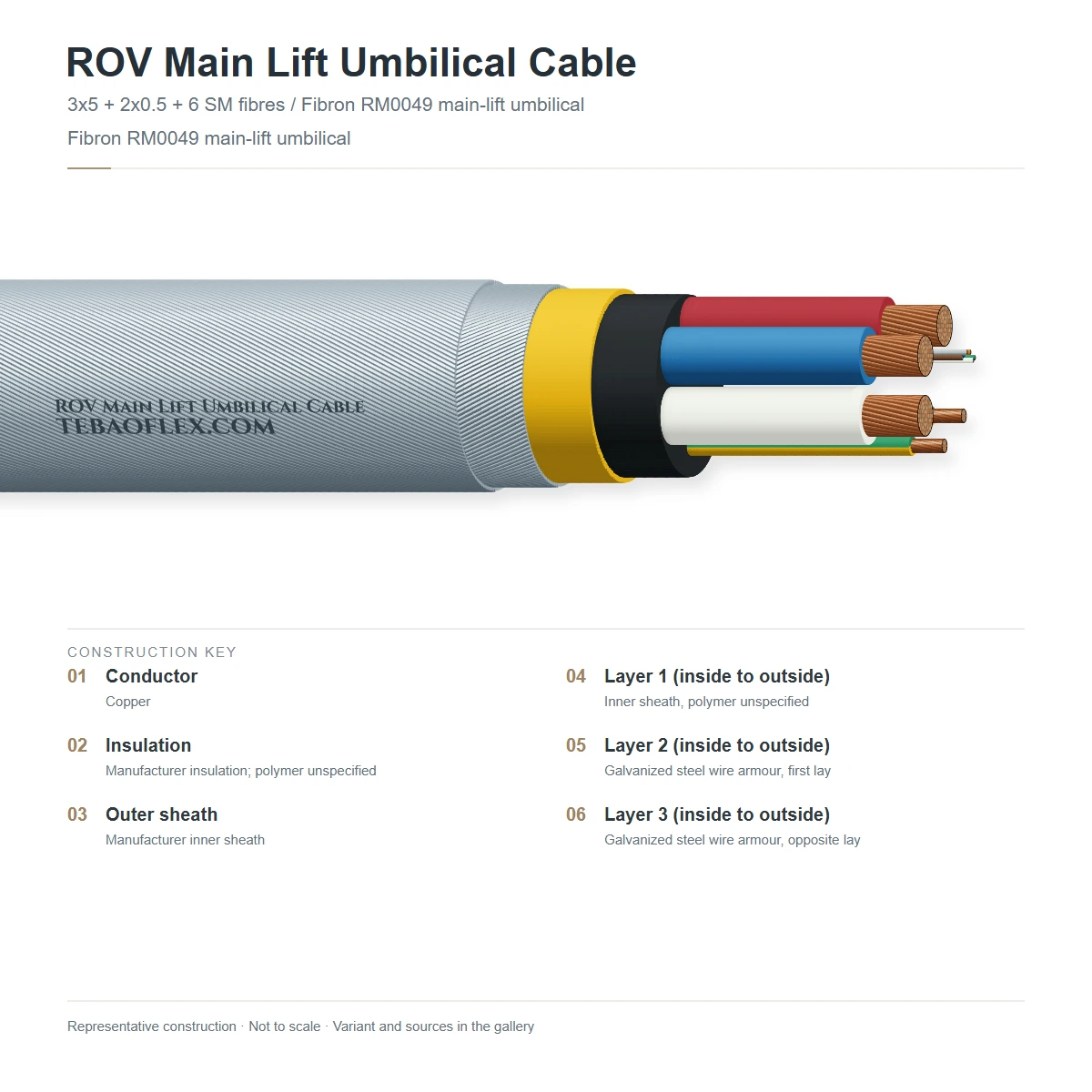

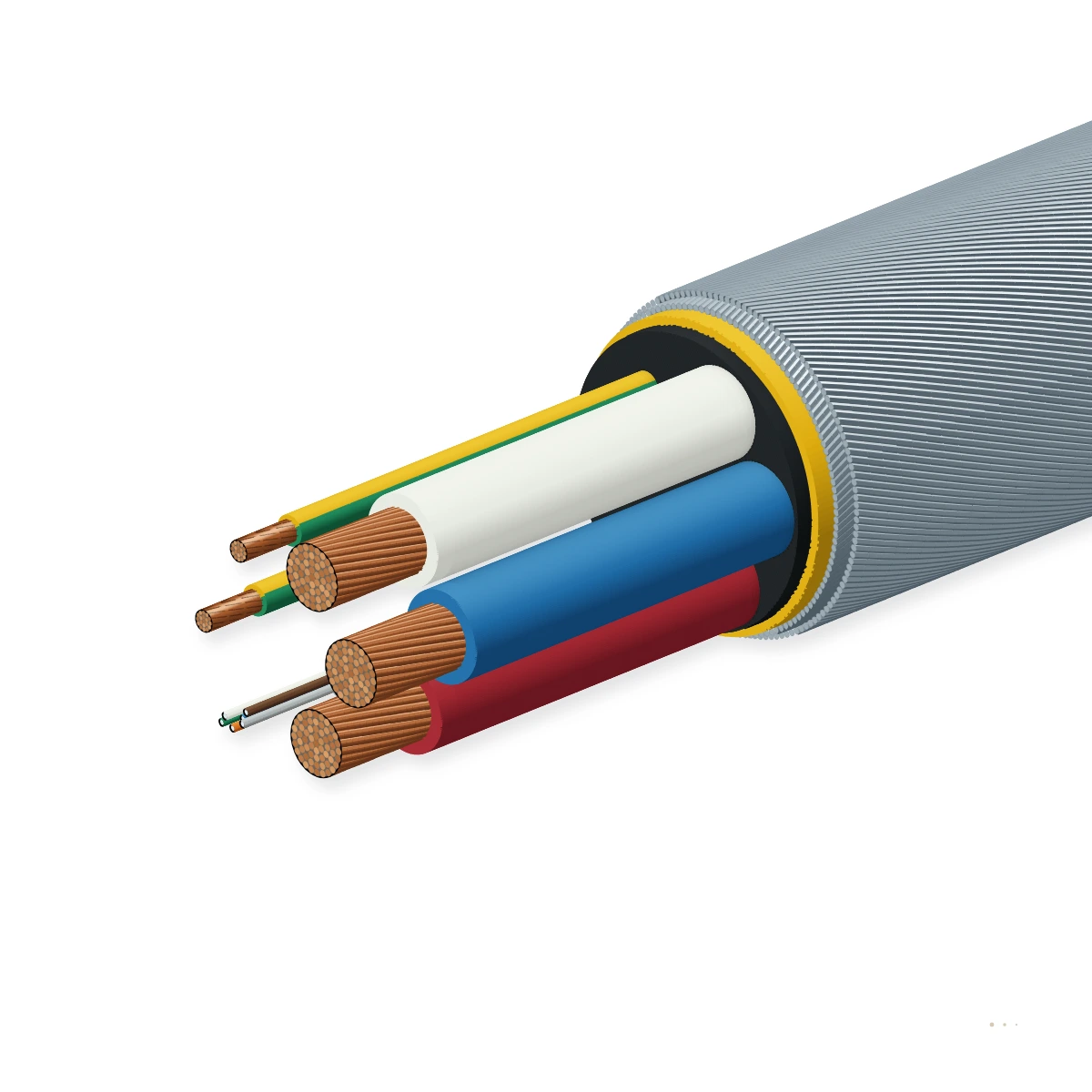

Representative work-class ROV main lift cross-section: 3 HV power cores + screened control quads + central 316L FIMT + contra-helical GIPS armour.
| # | Layer | Material & reference |
|---|---|---|
| 1 | HV power & signal conductors | Compacted stranded tinned copper (IEC 60228 Class 5), 4.0–35 mm² power + 0.75–1.5 mm² quadsLow voltage drop for 100–400 HP ROV hydraulic packs |
| 2 | Optical FIMT unit | Laser-welded 316L stainless-steel tube filled with hydrogen-scavenging gel housing 12–24 G.652.D / G.657.A1 fibresHermetic 60 MPa crush barrier for Gigabit telemetry |
| 3 | HV dielectric insulation | Water-tree-retardant HEPR / XLPE with semiconductive stress control (for ≥3.0 kV grades)High impulse and AC dielectric endurance under pressure |
| 4 | Core & pair shields | Tinned copper wire screen on HV cores + Al/PET foil and tinned copper braid on control quadsEliminates VFD thruster coupling into sonar/video channels |
| 5 | Water-blocked inner bedding | Void-free vulcanised elastomeric filler compound + extruded HDPE / TPU inner sheathPrevents axial water migration and radial core bird-caging |
| 6 | Contra-helical lift armour | 2 or 3 contra-helically served layers of galvanised extra-improved plow steel (GIPS, 1960–2160 MPa) with bitumen/polymeric flushTorque-balanced axial load bearing up to 850 kN MBL |
Bitumen/zinc-chromate flushed contra-helical GIPS outer armour for maximum heat dissipation on multi-layer LARS winches
High-density PE or polyether PUR outer sheath over double steel armour for corrosion protection and clean deck handling
Technical data
Sizes
Typical dimensions, weights in air/seawater, and mechanical breaking loads per ISO 13628-5.
| Order designation | Power + Signal + Optical | Power V kV | Nominal OD mm | Weight in air kg/km | Weight in sea kg/km | SWL kN | MBL kN | Min. sheave R mm | Enquiry |
|---|---|---|---|---|---|---|---|---|---|
| 3.0 kV Work-Class ROV Lift Umbilicals | |||||||||
| RMU-30-3X4-12FO | 3×4.0 + 3×2×0.75 + 12FO | 3.0 | 20.8 | 1,480 | 1,120 | 40 | 200 | 312 | |
| RMU-30-3X6-12FO | 3×6.0 + 4×2×0.75 + 12FO | 3.0 | 23.5 | 1,920 | 1,460 | 52 | 260 | 353 | |
| RMU-30-3X10-12FO | 3×10 + 4×2×1.0 + 12FO | 3.0 | 26.8 | 2,540 | 1,940 | 68 | 340 | 402 | |
| RMU-30-3X10-18FO-JK | 3×10 + 6×2×1.0 + 18FO (Jacketed) | 3.0 | 29.4 | 2,780 | 2,050 | 72 | 360 | 441 | |
| RMU-30-3X16-12FO | 3×16 + 4×2×1.0 + 12FO | 3.0 | 30.2 | 3,280 | 2,520 | 85 | 425 | 453 | |
| RMU-30-3X25-18FO | 3×25 + 6×2×1.0 + 18FO | 3.0 | 34.6 | 4,320 | 3,340 | 110 | 550 | 519 | |
| RMU-30-3X35-18FO | 3×35 + 6×2×1.5 + 18FO | 3.0 | 38.4 | 5,380 | 4,160 | 130 | 650 | 576 | |
| 4.5 kV Heavy Trenching & Deepwater ROV Umbilicals | |||||||||
| RMU-45-3X10-18FO | 3×10 + 4×2×1.0 + 18FO | 4.5 | 29.8 | 3,120 | 2,380 | 80 | 400 | 447 | |
| RMU-45-3X16-18FO | 3×16 + 6×2×1.0 + 18FO | 4.5 | 33.4 | 3,950 | 3,020 | 100 | 500 | 501 | |
| RMU-45-3X25-24FO | 3×25 + 6×2×1.0 + 24FO | 4.5 | 37.8 | 4,980 | 3,820 | 125 | 625 | 567 | |
| RMU-45-3X35-24FO | 3×35 + 8×2×1.5 + 24FO | 4.5 | 41.6 | 6,120 | 4,720 | 145 | 725 | 624 | |
| RMU-45-3X50-24FO | 3×50 + 8×2×1.5 + 24FO | 4.5 | 45.8 | 7,450 | 5,760 | 170 | 850 | 687 | |
| RMU-45-3X16-24FO-6000M | 3×16 + 4×2×1.0 + 24FO (3-Layer Armour) | 4.5 | 36.2 | 4,890 | 3,810 | 135 | 675 | 543 | |
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| HV AC dielectric withstand test | 6.5 kV AC (3.0 kV grade) / 9.5 kV AC (4.5 kV grade) for 5 min | 100 % of manufactured length |
| Bidirectional OTDR optical attenuation | ≤ 0.36 dB/km @ 1310 nm & ≤ 0.22 dB/km @ 1550 nm | Every optical fibre before & after armouring |
| Sample tests | ||
| Break-load & torque-balance tension test | Verify MBL and ≤ ±2°/m rotation up to 50 % MBL | Qualification & project lot sample |
| Cyclic bending over sheave (CBOS) fatigue | ≥ 50,000 cycles over 15 × OD sheave at SWL without optical/electrical degradation | Type qualification |
