75 Ω Broadcast, Video & CATV Coaxial Cables75 Ω Video & SDIØ 6.15 mm (0.242")95 % Bare Cu Braid

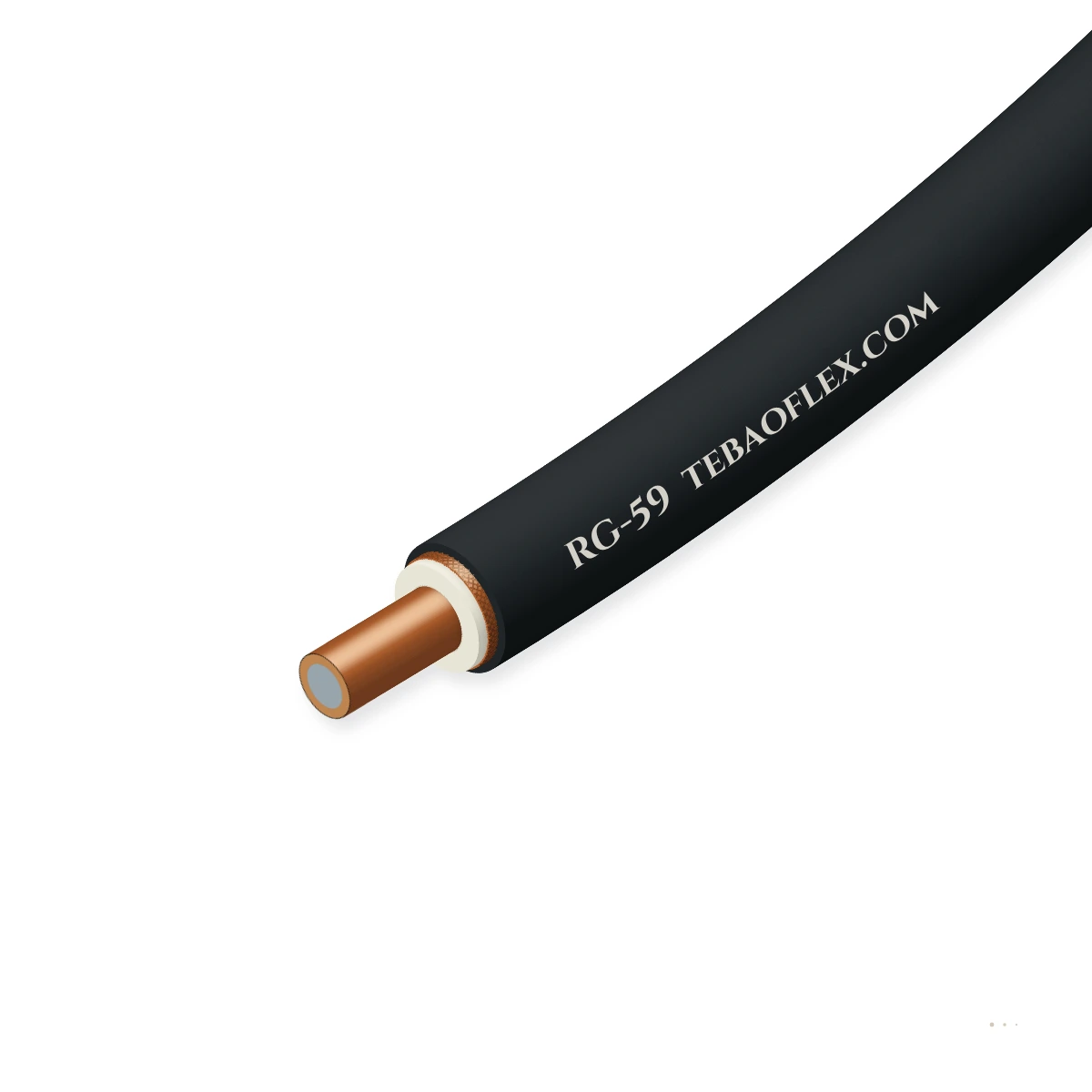

RG-59 Video Coaxial CableMIL-C-17 / SMPTE · 75 Ω ± 3 Ω · Ø 6.15 mm · 22/20 AWG Cu or CCS · Solid or Foam PE · 95

RG-59 is the industry-standard 75 Ω flexible video coaxial cable (Ø 6.15 mm / 0.242 in) supplied in two engineered constructions: MIL-C-17 RG-59B/U (22 AWG CCS + solid PE + bare Cu braid) for RF/analog interconnect, and Broadcast/CCTV RG-59 (20 AWG solid

EMC screen
Low-EMC design
Flame-retardant
Outdoor & humid
Order designation
RG-59/U CCTV (20 AWG Bare Cu + 95% Cu Braid)
Outer Ø ≈
6.15 mm
Metal weight
25.5 kg/km
Total weight ≈
52.0 kg/km
Min. bend R (fixed)
31 mm
All sizes (4)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Impedance Z₀
75 Ω ± 3 Ω
± 1.5 Ω on precision SDI grade
Outer diameter
6.15 mm (0.242")
Standard RG-59 BNC crimp size
Center conductor
20 AWG Cu / 22
Pure Cu for CCTV/SDI · CCS for RF
Velocity / Cap.
66 % (PE) / 78
67 pF/m (PE) · 53 pF/m (Foam PE)
Shielding
95 % bare Cu
Plus 100 % Al-foil on SDI/CATV
Temp. rating
-40 to +80 °C
PVC, LSZH or outdoor PE sheath

Typical values for this cable type, based on MIL-C-17 / SMPTE ST 259 / ST 292 — confirmed in the datasheet and quotation for your order.

Application fit

Is RG-59 right for your machine?

Designed for baseband analog CCTV, HD-over-Coax (HD-TVI, HDCVI, AHD), broadcast word-clock/genlock/MADI, SD/HD/3G-SDI rack patching, and 75 Ω RF telemetry.

Fixed installation

Suitable

Standard building riser, studio rack, and outdoor camera pole coaxial feed.

Switchgear & control cabinet wiring

Suitable

6.15 mm diameter and supple PVC/LSZH jacket allow high-density BNC patchbay routing.

Trailing & towing

Suitable

Stranded-center RG-59 flex variant supports portable OB van and stage camera reels.

Energy chain / drag chain

Not suitable

Standard video coax is not rated for continuous linear drag chains.

S 368 C
Typical machinesBroadcast Studio & OB Van PatchingAnalog & HD-over-Coax Security CCTVMADI, Word Clock & Genlock SyncHeadend CATV & Satellite IF DistributionIndustrial Vision & Inspection Cameras

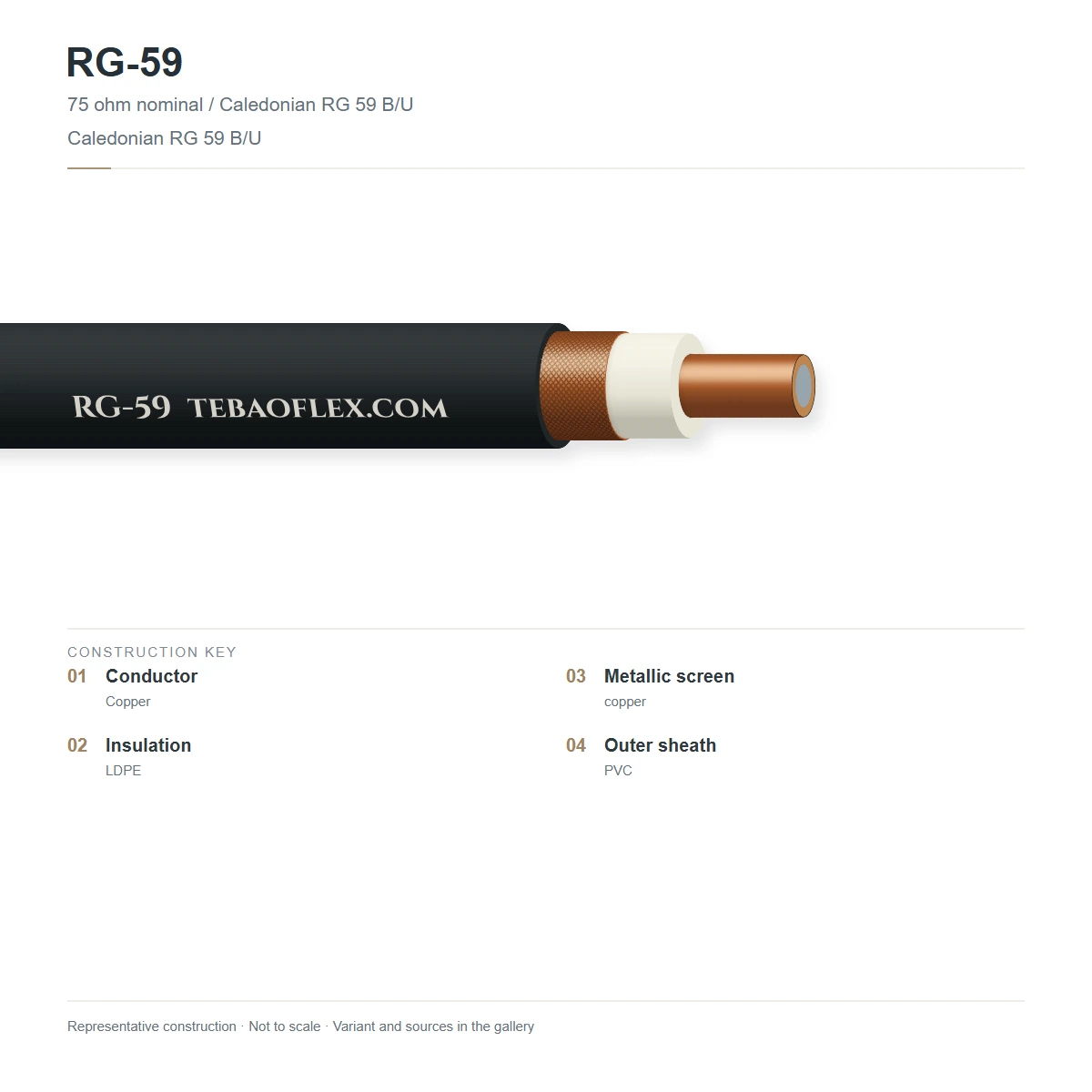

Construction

Layer by layer

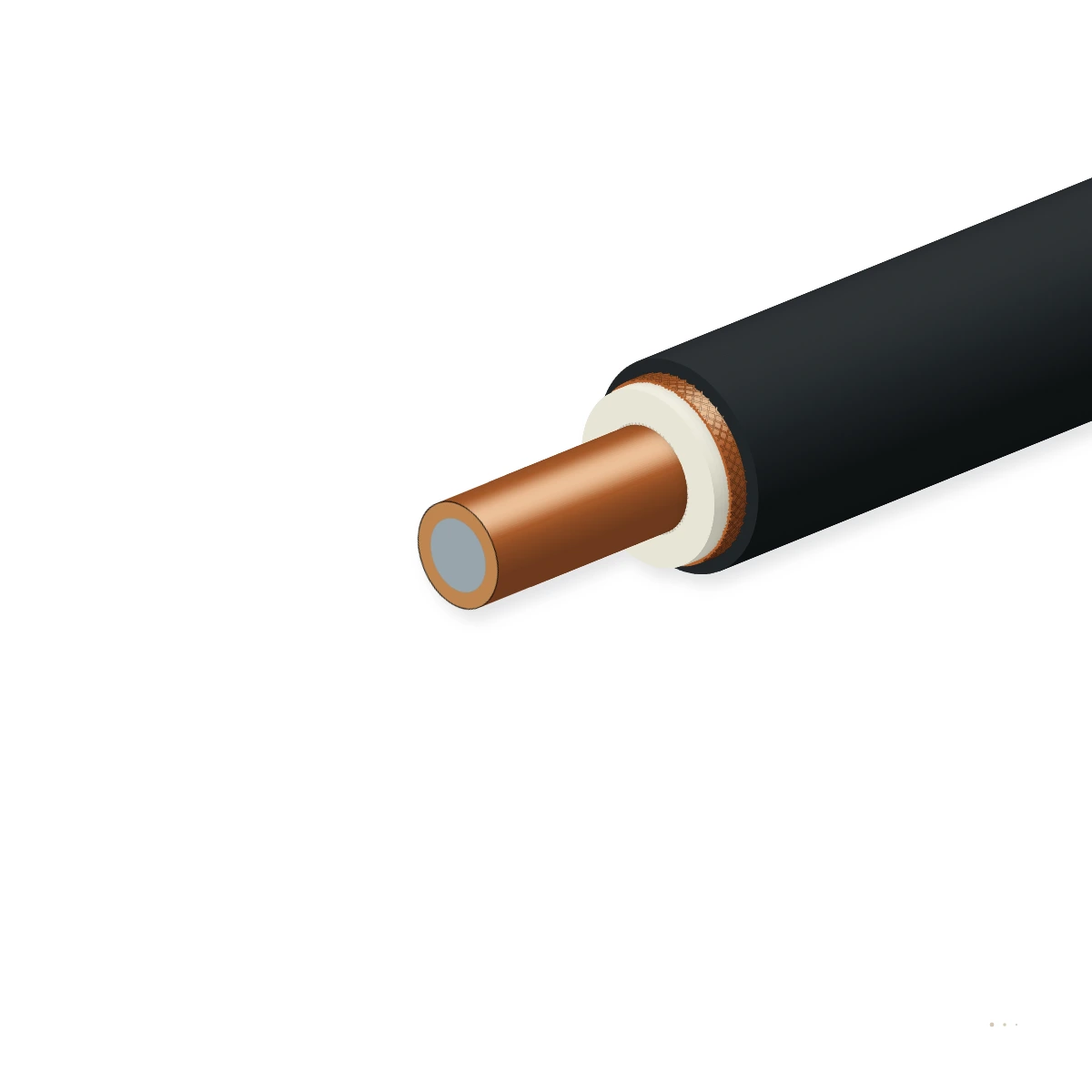

20 AWG (Ø 0.81 mm) solid bare copper or 22 AWG (Ø 0.64 mm) CCS center, Ø 3.71 mm solid or gas-injected foam PE dielectric, ≥ 95 % bare

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Center conductor (20 AWG Cu or 22 AWGØ 0.81 mm solid bare copper (CCTV/Broadcast grade) or Ø 0.58–0.64 mm copper-clad steelMIL-C-17 / SMPTE
2Polyethylene dielectric (Solid or FoamØ 3.71 mm ± 0.10 mm (0.146 in) solid PE (66 % VoP) or gas-injected foam HDPE (78–82 % VoP)MIL-C-17 / SMPTE
3High-coverage bare copper braid34 AWG annealed bare copper braid (≥ 95 % coverage; paired with 100 % Al-Mylar tape onMIL-C-17 / SMPTE
4Flame-retardant PVC / LSZH / PE jacketBlack (or studio violet/blue/green) PVC Type IIA, halogen-free LSZH, or outdoor PE, ØMIL-C-17 / SMPTE

RG-59B/U (MIL-C-17 Solid PE + CCS)

22–23 AWG CCS conductor, solid PE dielectric (66 % VoP), 95 % bare Cu braid, 2,300 V rms rating.

RG-59 CCTV (20 AWG Bare Cu + 95 % Cu Braid)

Pure copper center conductor and bare copper braid for minimal DC resistance on base-band video & IR power.

RG-59 SDI Digital (20 AWG Cu + Foam PE + Foil/Braid)

75 Ω ± 1.5 Ω gas-injected foam PE (78–82 % VoP) swept to 3 GHz for SMPTE ST 259 / 292 / 424 SDI.

RG-59 Siamese (RG-59 + 2×0.75 mm² Power)

Composite CCTV cable combining 75 Ω RG-59 video coax with a 2×18 AWG (0.75 mm²) 12V/24V camera power pair.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on MIL-C-17 / SMPTE ST 259 / ST 292. Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic impedance Z₀
75 Ω ± 3 Ω (± 1.5 Ω SDI grade)
Nominal capacitance
67.3 pF/m (Solid PE) / 53.5 pF/m (Foam PE)
Velocity of propagation (VoP)
66 % (Solid PE) / 78–82 % (Foam PE)
Conductor DC resistance
≤ 33 Ω/km (20 AWG Cu) / ≤ 165 Ω/km (CCS)
Shield DC resistance
≤ 8.5 Ω/km (95 % bare Cu braid)
Max. operating voltage
2,300 V rms (MIL RG-59B/U) / 300 V (UL)

Thermal

Operating temperature range
-40 °C to +80 °C
Installation temperature range
-20 °C to +70 °C
Flame retardance
IEC 60332-1-2 / UL 1666 CMR
LSZH option
IEC 60332-3-24 & IEC 60754-1/2
Cold-bend rating
-40 °C per MIL-DTL-17
Outdoor UV stability
Black PVC or carbon-black HDPE

Mechanical

Center conductor diameter
0.81 mm (20 AWG Cu) / 0.58 mm (23 AWG CCS)
Dielectric diameter
3.71 mm ± 0.10 mm (0.146 in)
Outer jacket diameter
6.15 mm ± 0.15 mm (0.242 in)
Min. bend radius (fixed / flex)
30 mm (5×D) / 60 mm (10×D)
Nominal cable weight
52.0 kg/km (35 lb/1000 ft)
Connector compatibility
75 Ω BNC, F-type, RCA, DIN 1.0/2.3

Resistance

Low-frequency hum rejection
95 % bare Cu braid blocks 50/60 Hz ground
High-frequency RF shielding
100 % foil + braid on SDI/CATV variant
UV & outdoor weather
UV-stabilised outer sheath
Abrasion resistance
Flexible matte studio PVC or PUR option
Moisture barrier
Flooded gel + PE jacket option for burial
RoHS / REACH status
RoHS 3 compliant

Reference standards

Military specification
MIL-C-17 / MIL-DTL-17/29 (RG-59B/U)
Broadcast SDI standards
SMPTE ST 259 (SD), ST 292 (HD), ST 424 (3G)
CATV drop standard
SCTE 74 / EN 50117
Flame test standard
IEC 60332-1-2 / UL CMR
Coaxial RF standard
IEC 61196-1
Quality certification
EN 10204 3.1 + return-loss test report

Identification

Dielectric colour
Natural translucent PE or white Foam PE
Outer jacket colour
Black (standard), Violet, Blue, Green, Grey
Surface legend
TEBAOFLEX RG-59 75 OHM VIDEO COAX
Standard reel lengths
100 m, 305 m (1000 ft), 500 m
Impedance group
75 Ω 0.242" video coax
Batch traceability
Lot number & metre marking

Sizes

4 standard configurations (RG-59)

Dimensional, physical and high-frequency electrical parameters for RG-59 per MIL-C-17 / SMPTE ST 259 / ST 292.

Dimensions & construction
Order designationConstruction / VariantConductorOuter Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard RG-59 variants
RG-59/U CCTV (20 AWG Bare Cu + 95% Cu Braid)75 Ω 95% Bare Cu Braid (PVC)20 AWG (Ø 0.81 Cu)6.1525.552.031
RG-59B/U MIL-C-17 (CCS + Solid PE)75 Ω 95% Bare Cu Braid (PVC)23 AWG (Ø 0.58 CCS)6.1522.054.031
RG-59 3G-SDI Broadcast (Foam PE + Foil/Braid)75 Ω Al-Foil + 95% Tinned Cu Braid20 AWG (Ø 0.81 Cu)6.1526.549.031
RG-59 + 2×0.75 mm² Siamese CCTV Power75 Ω Coax + 2×0.75 mm² Power20 AWG + 2×0.75 mm²6.1539.882.031
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are nominal production values subject to manufacturing tolerances per MIL-C-17 / SMPTE ST 259 / ST 292.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Sweep impedance & structural return loss75 Ω ± 3 Ω (± 1.5 Ω SDI grade); SRL ≥ 23 dB to 1.5 GHzEvery reel
Dielectric spark & AC withstand test3.0 kV rms spark test without breakdown100 % of length
Sample tests
Conductor & braid DC loop resistance≤ 33 Ω/km center (20 AWG Cu) and ≤ 8.5 Ω/km shieldPer batch
IEC 60332-1-2 flame & cold-bend testSelf-extinguishing; zero cracking at -40 °CQualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

MIL-C-17 / SMPTEIEC 60332-1-2 / UL CMRRoHS 3 / CE

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX RG-59 75 OHM PROFESSIONAL VIDEO
Delivery form
Spools, reels or export wooden drums
Standard reel lengths
100 m · 305 m (1000 ft) · 500 m · 1000 m
MOQ
100 m (stock) · 305–500 m (production)
Lead time
1–3 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFRG-59 Video Coaxial Cable – technical datasheet4 sizes · construction, technical data, approvalsXLSXRG-59 spec data (Excel)All 4 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why must analog CCTV and HD-over-Coax cameras use 100 % bare copper RG-59 instead of CCS?
Baseband composite video and HD-TVI/CVI/AHD signals contain critical DC and low-frequency sync components (0 Hz to 50 MHz) that travel through the entire cross-section of the conductor rather than just the outer skin; copper-clad steel (CCS) has 5× higher DC resistance, causing sync drop-outs and dim video over runs longer than 50 m.
When should RG-6 (such as 12G-SDI 4694R) or RG-11 be used instead of RG-59?
RG-59 is ideal for flexible rack patching and camera runs up to ~150 m (analog/HD-TVI) or ~50 m (6G/12G-SDI); for 4K 12G-SDI up to 80–100 m specify 18 AWG RG-6 (12G-SDI 4694R), and for trunk runs over 150–300 m specify 14 AWG RG-11.
What is the difference between solid-PE RG-59B/U and foam-PE digital SDI RG-59?
MIL RG-59B/U uses solid polyethylene (66 % VoP, 67 pF/m) for rugged voltage withstand, whereas digital SDI RG-59 uses gas-injected foam HDPE (78–82 % VoP, 53 pF/m) plus a 100 % bonded foil + 95 % tinned braid to slash high-frequency attenuation at 1.5–3 GHz.
Do standard 75 Ω BNC connectors fit RG-59?
Yes, RG-59's 0.81 mm conductor, 3.71 mm dielectric, and 6.15 mm jacket define the universal RG-59 3-piece crimp and 1-piece compression 75 Ω BNC connector size. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.
