industrial data rf cable seriesMIL-DTL-17/30 · 93 Ω ± 5 Ω44.3 pF/m · 84 % VoP Air-Spaced PERG-62A/U (Solid) · RG-62B/U (Stranded)

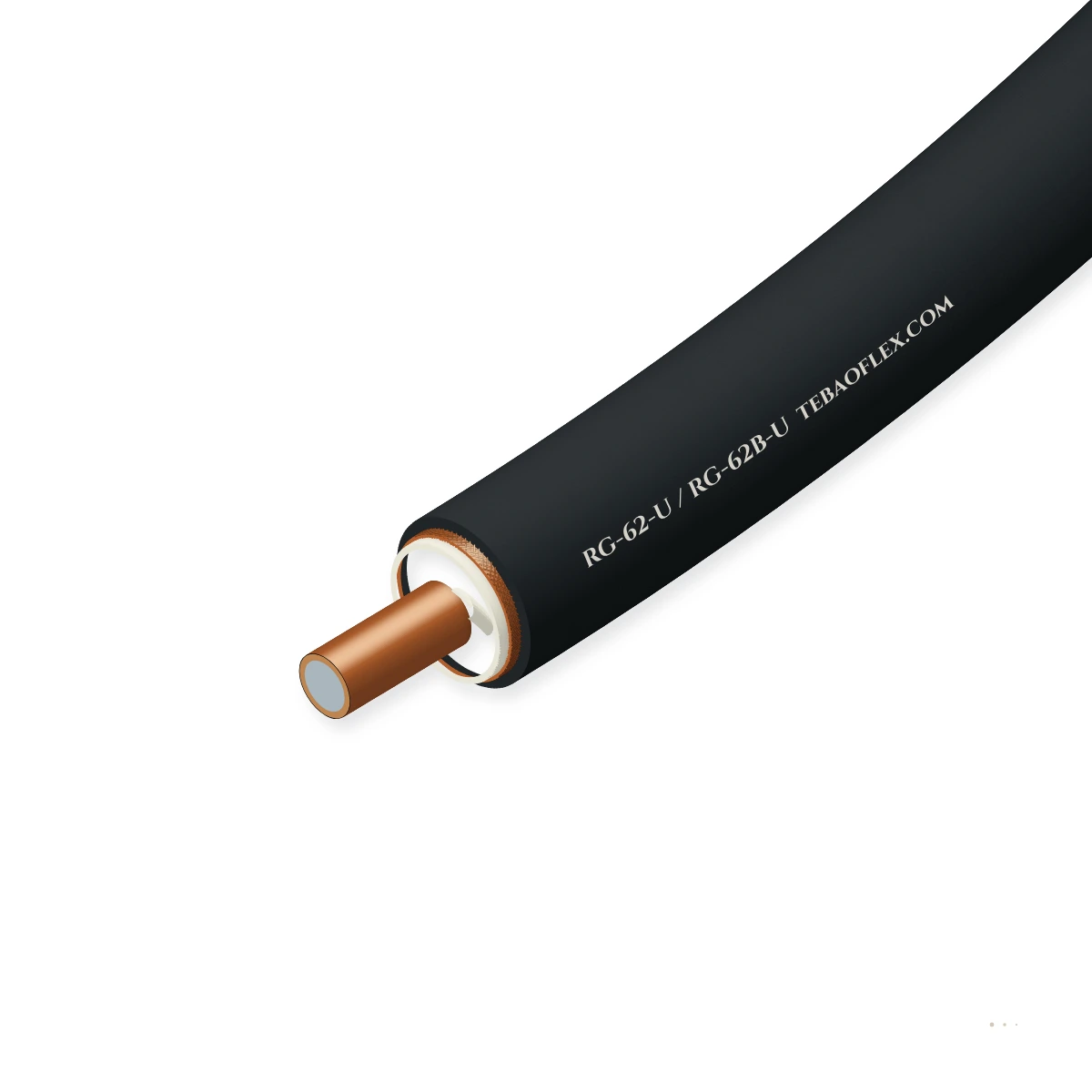

RG-62-U / RG-62B-U 93 Ohm Air-Spaced Semi-Solid PE Coaxial Data &MIL-DTL-17 · 93 Ω air-spaced semi-solid PE low-capacitance coax · 44.3 pF/m · 84 % VoP

93 Ω low-capacitance (44.3 pF/m) air-spaced semi-solid PE coaxial cable (RG-62/U, RG-62A/U solid 22 AWG CCS; RG-62B/U stranded 24 AWG CCS) per MIL-DTL-17 (M17/30-RG62) with 84 % VoP, bare copper braid, and PVC jacket for ARCNET and sensors.

Low-EMC design
EMC screen
Flame-retardant
Oil-resistant
Order designation
M17/30-RG062 (RG-62A/U)
Outer Ø ≈
6.15 mm
Wall thickness
0.84 mm
Total weight ≈
56.0 kg/km
Min. bend R (fixed)
62 mm
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Impedance
93 Ω ± 5 Ω
MIL-DTL-17/30 low-cap coaxial
Capacitance
44.3 pF/m
13.5 pF/ft ultra-low loading
Velocity (VoP)
84 %
Semi-solid air-spaced PE helix
Conductor
22 AWG CCS
Solid (62A/U) · 7×30 (62B/U)
Outer diameter
6.15 mm (.242")
Fits standard RG-59/62 BNC plugs
Voltage rating
750 V RMS
MIL-DTL-17 working voltage

Typical values for this cable type, based on MIL-DTL-17/30-RG062 (93 Ω ± 5 Ω Air-Spaced Semi-Solid PE Coax) — confirmed in the datasheet and quotation for your order.

Application fit

Is RG-62-U / RG-62B-U right for your machine?

Specify RG-62A/U and RG-62B/U for ARCNET 2.5 Mbps industrial token-bus networks, IBM 3270 coaxial terminal systems, NIM/CAMAC nuclear physics fast-pulse detectors, and low-capacitance piezoelectric/capacitance sensors.

Fixed installation

Suitable

Air-spaced semi-solid PE core cuts capacitance to 44.3 pF/m (13.5 pF/ft), preserving fast pulse edges on long sensor/ARCNET runs.

Switchgear & control cabinet wiring

Suitable

RG-62B/U uses a 7×30 AWG stranded copper-clad steel center conductor to resist flex fatigue on NIM rack patch panels.

VFD inverter to AC motor screened feeder

Suitable

95 % coverage bare copper braid shields high-impedance charge-amplifier and ARCNET signals from switching noise.

Immersion & wet locations

Not suitable

Air-spaced semi-solid core channel must be kept dry with sealed BNC boots; for flooded ducts, specify solid/foam watertight coaxial cables.

Use ControlNet 3092A Quad
Typical machinesARCNET Industrial Automation Token BusesNuclear Physics NIM / CAMAC Pulse CountersHigh-Impedance Piezo & Capacitance ProbesLegacy IBM 3270 Mainframe Coax TerminalsAerospace & Defense Test Instrumentation

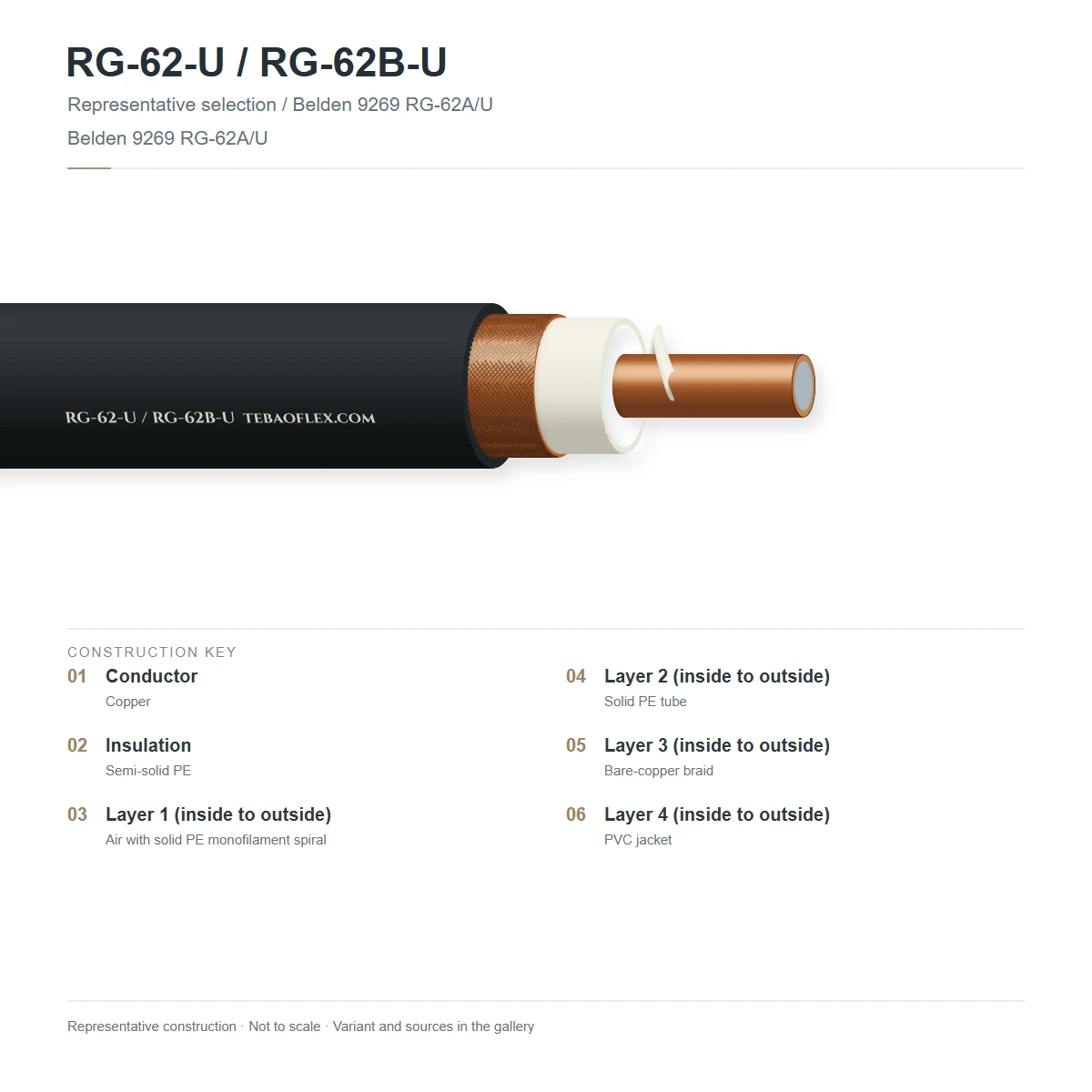

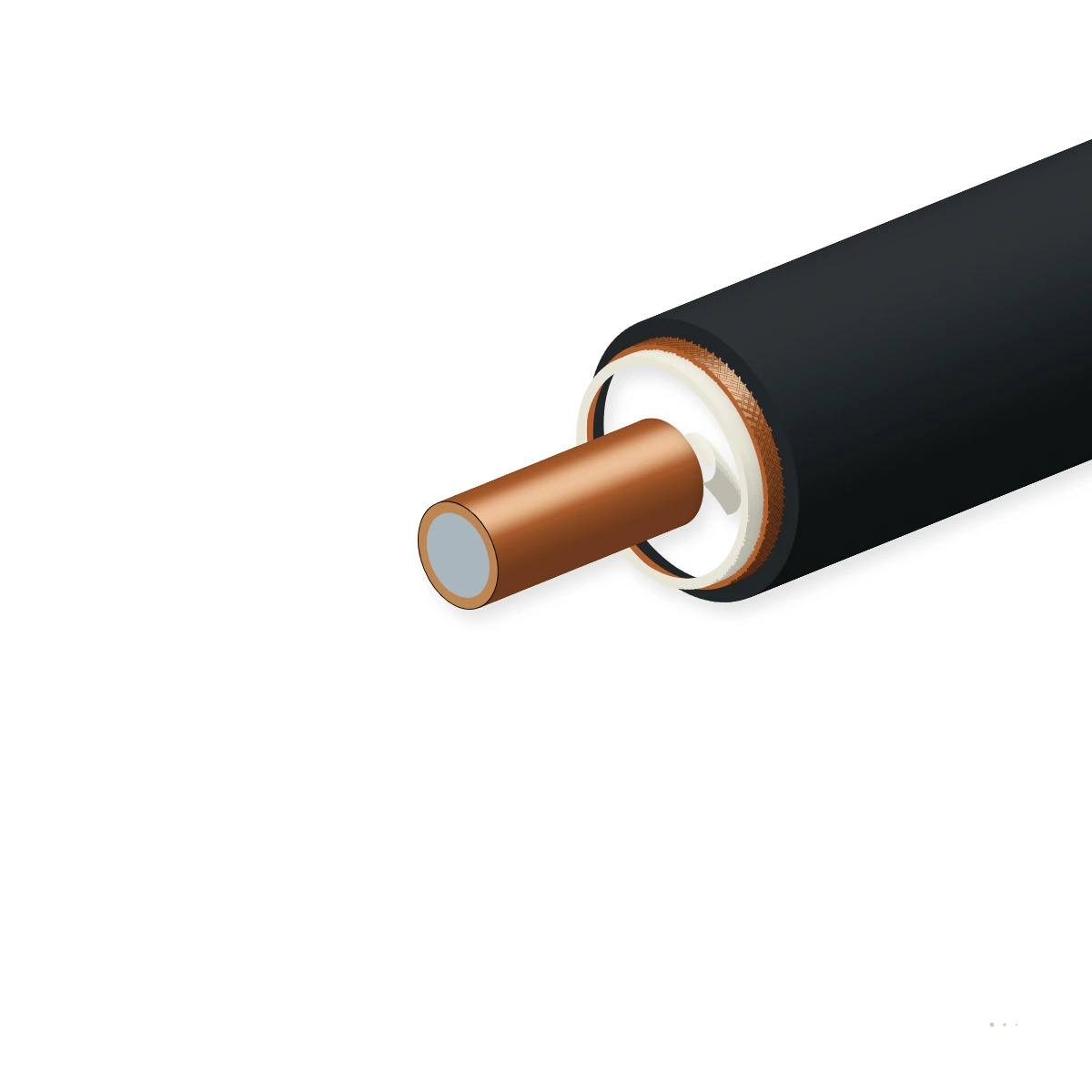

Construction

Layer by layer

MIL-DTL-17/30 93 Ω build: 22 AWG solid (RG-62A/U) or 7-strand (RG-62B/U) copper-clad steel center, helical PE filament + extruded PE tube (84 % VoP), 95 % bare Cu braid, and PVC Type IIA jacket.

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
122 AWG copper-clad steel (CCS) center conductorSolid Ø 0.64 mm (0.0253 in) 30 % conductivity CCS (RG-62/U, RG-62A/U) or 7×30 AWG stranded CCS (RG-62B/U)Small Ø 0.64 mm diameter combined with air-spaced core establishes 93 Ω ± 5 Ω impedance
2Air-spaced semi-solid polyethylene (PE) dielectricExtruded polyethylene tube with internal helical PE spacing filament (Ø 3.71 mm, 84 % VoP, 44.3 pF/m)Achieves 13.5 pF/ft ultra-low capacitance and 3.97 ns/m propagation delay
3Bare copper wire braid shield34 AWG annealed bare copper wire braid (≥ 95 % optical coverage, Ø 4.47 mm)Low transfer impedance and direct compatibility with .242-inch BNC crimp ferrules
4Non-contaminating PVC Type IIA or LSZH jacketBlack MIL-DTL-17 Type IIA non-contaminating PVC (Ø 6.15 mm), FEP plenum, or LSZH compoundPrevents plasticizer migration into the low-loss PE dielectric over -40 °C to +80 °C

RG-62A/U (M17/30-RG062 · Solid 22 AWG)

Solid Ø 0.64 mm CCS center conductor for permanent ARCNET, 3270, and instrumentation trunks

RG-62B/U (Stranded 7×30 AWG CCS)

7-strand 22 AWG CCS center conductor for flexible patch cords and vibrating machinery

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on MIL-DTL-17/30-RG062 (93 Ω ± 5 Ω Air-Spaced Semi-Solid PE Coax). Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic impedance
93 Ω ± 5 Ω
Nominal capacitance
44.3 pF/m (13.5 pF/ft) nominal · 47.6 pF/m max.
Velocity of propagation
84 % nominal (3.97 ns/m propagation delay)
Attenuation @ 10 / 100 / 400 MHz
2.8 / 8.9 / 17.4 dB/100m
Conductor / shield DC resistance
135 Ω/km (CCS center) · 8.5 Ω/km (Cu braid)
Working / test voltage
750 V RMS working · 3,000 V RMS dielectric test

Thermal

Operating temperature range
-40 °C to +80 °C (PVC Type IIA)
Plenum FEP version (89269)
-70 °C to +200 °C (UL CMP)
Max. core temperature
+80 °C continuous PE helix stability

Mechanical

Center / dielectric / braid Ø
0.64 mm / 3.71 mm / 4.47 mm
Overall jacket diameter
6.15 mm ± 0.18 mm (0.242 in)
Min. bending radius
62 mm (10 × OD) fixed installation

Resistance

Jacket non-contamination
MIL-DTL-17 Type IIA non-migrating PVC
Flame retardancy
UL 1685 CM / CL2 / IEC 60332-1-2
Braid optical coverage
≥ 95 % bare copper wire shield

Reference standards

Military specification
MIL-DTL-17/30 (M17/30-RG062, RG-62A/U, RG-62B/U)
Network standard
ANSI/ATA 878.1 ARCNET 93 Ω Coaxial Media
RoHS & REACH
RoHS 3 & REACH SVHC compliant

Identification

Outer jacket colour
Black (standard) or Grey (IBM 3270 indoor)
Surface legend
TEBAOFLEX M17/30-RG062 RG-62A/U 93 OHM LOW CAPACITANCE COAX
Customs tariff (HS)
8544.20

Sizes

8 standard configurations (RG-62-U / RG-62B-U)

Engineering dimensions, impedance, propagation velocity, and electrical ratings for RG-62-U / RG-62B-U per MIL-DTL-17/30-RG062 (93 Ω ± 5 Ω Air-Spaced Semi-Solid PE Coax).

Dimensions & weights
Order designationImpedance / sizeConductor & dielectricWall ≈
mm		Outer Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard RG-62-U / RG-62B-U configurations
M17/30-RG062 (RG-62A/U)93 Ω · 22 AWG Solid CCSSolid Ø 0.64 + Air-PE + Cu0.846.1525.056.062
RG-62B/U Stranded Flex93 Ω · 22 AWG (7×30 CCS)7×30 CCS + Air-PE + Cu Braid0.846.1525.557.050
RG-62/U-BC Bare Copper93 Ω · 22 AWG Solid CuSolid Bare Cu + Air-PE + Cu0.846.1526.057.562
RG-62A/U-FEP Plenum93 Ω · 22 AWG FEP +200°CSolid CCS + Air-FEP + Braid0.555.3525.049.054
RG-62A/U-LSZH93 Ω · 22 AWG LSZHSolid CCS + Air-PE + LSZH0.856.2025.059.062
RG-62A/U-PE Outdoor93 Ω · 22 AWG UV-PESolid CCS + Air-PE + HDPE0.886.2525.053.063
RG-62A/U Double-Shield93 Ω · 22 AWG Foil+BraidSolid CCS + Air-PE + Foil/Cu0.866.2528.060.063
RG-71B/U Dual-Braid 93 Ω93 Ω · 22 AWG 2×BraidSolid CCS + Air-PE + 2×Cu0.886.3538.072.064
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal engineering values for RG-62-U / RG-62B-U subject to standard manufacturing tolerances per MIL-DTL-17/30-RG062 (93 Ω ± 5 Ω Air-Spaced Semi-Solid PE Coax).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Characteristic impedance, return loss (VSWR) & TDR sweep100 % frequency-domain return loss and TDR impedance verification per MIL-DTL-17/30-RG062 (93 Ω ± 5 Ω Air-Spaced Semi-Solid PE Coax)Every manufactured length
Dielectric spark & high-voltage withstand test100 % in-line spark and AC/DC dielectric withstand per MIL-DTL-17/30-RG062 (93 Ω ± 5 Ω Air-Spaced Semi-Solid PE Coax)Every spool or drum length
Sample tests
Insertion loss (attenuation), velocity & capacitance checkAttenuation (dB/100m), VoP (%), and capacitance within MIL-DTL-17/30-RG062 (93 Ω ± 5 Ω Air-Spaced Semi-Solid PE Coax) limitsPer production batch
Screening attenuation, transfer impedance & environmental qualificationQualified to MIL-DTL-17/30-RG062 (93 Ω ± 5 Ω Air-Spaced Semi-Solid PE Coax) EMC shielding, thermal, and flame/fluid criteriaType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

MIL-DTL-17/30-RG062 (93 Ω ± 5 Ω Air-Spaced Semi-Solid PE Coax)CE (2014/35/EU) & RoHS 3 (2015/863/EU) CompliantREACH SVHC Compliance Verified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX M17/30-RG062 RG-62A/U 93 OHM AIR-SPACED PE COAXIAL CABLE
Delivery form
Export wooden drums, flange reels or precision coils
Standard lengths
100 m · 305 m · 500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFRG-62-U / RG-62B-U 93 Ohm Air-Spaced Semi-Solid PE Coaxial Data & – technical datasheet8 sizes · construction, technical data, approvalsXLSXRG-62-U / RG-62B-U spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does RG-62A/U achieve 93 Ω characteristic impedance and 44.3 pF/m ultra-low capacitance inside the same 6.15 mm (.242") diameter as 75 Ω RG-59?
Instead of a solid PE core, RG-62A/U extrudes an open polyethylene monofilament helix around a thin 22 AWG (Ø 0.64 mm) center conductor inside a thin PE tube. Because the dielectric volume is mostly air (εr ≈ 1.42, 84 % VoP), characteristic impedance rises to 93 Ω ± 5 Ω and capacitance drops to 44.3 pF/m (13.5 pF/ft)—less than half the capacitance of 50 Ω RG-58 (101 pF/m).
What is the difference between RG-62A/U and RG-62B/U?
RG-62A/U (M17/30-RG062) has a solid 22 AWG (Ø 0.64 mm) copper-clad steel center conductor for fixed conduit and tray runs, whereas RG-62B/U uses a 7×30 AWG stranded copper-clad steel center conductor for flexing patch leads and vibrating equipment.
Why do nuclear physics NIM modules and high-impedance transducers specify 93 Ω RG-62?
Photomultiplier tubes, proportional counters, and piezoelectric/capacitance probes are easily loaded down by cable shunt capacitance. RG-62's 44.3 pF/m capacitance preserves fast nanosecond pulse edges and charge sensitivity over long coaxial runs.
Can RG-62 use standard RG-59 BNC connectors?
Both cables share a 6.15 mm (.242") jacket and 3.71 mm (.146") dielectric diameter, so mechanical crimp sleeves match, though true 93 Ω BNC plugs (or compatible 75 Ω BNC plugs with a 22 AWG center contact pin) must accommodate the thinner 22 AWG (0.64 mm) center wire.

Request a quote

Get an engineering quote for RG-62-U / RG-62B-U

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

03Message for our engineers

RG-62-U / RG-62B-U 93 Ohm Air-Spaced Semi-Solid PE Coaxial Data &

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:
