MIL-DTL-17 PE/PVC RF Coaxial CablesMIL-DTL-17/75 RG-21450 Ω · DC–11 GHzDual SPC Braids > 90 dB

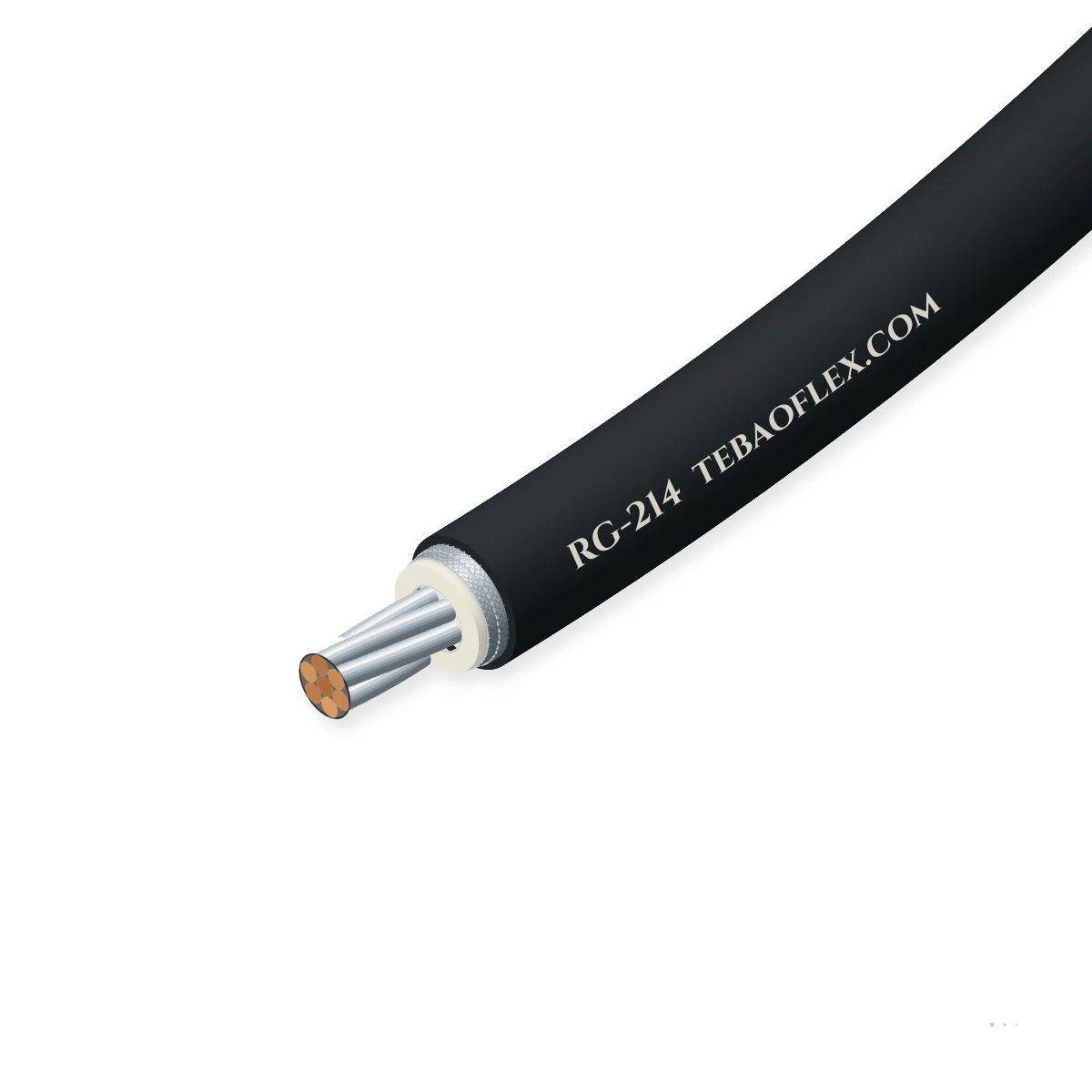

RG-214 Double-Shielded RF CableMIL-DTL-17/75 · 50 Ω ± 2 Ω · Ø 10.80 mm · 13 AWG (7×0.75) SPC · Solid PE · Dual SPC braids

RG-214 (RG-214/U, MIL-DTL-17/75-RG214 and M17/164-00001) is a heavy-duty 50 Ω double-shielded coaxial cable (Ø 10.80 mm) engineered for high-power RF transmission and low-leakage receiver feeds from DC to 11 GHz, combining a 13 AWG silver-plated copper

EMC screen

Low-EMC design

Outdoor & humid

Flame-retardant

Variant

Order designation: RG-214/U (M17/75-RG214) Type IIA PVC
Outer Ø ≈: 10.80 mm
Metal weight: 112.0 kg/km
Total weight ≈: 195.0 kg/km
Min. bend R (fixed): 54 mm

All sizes (4)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Impedance Z₀: 50 Ω ± 2 Ω
Outer diameter: 10.80 mm (0.425
Center & shields: Silver-plated Cu
Shielding: > 90 dB isolati
Frequency range: DC to 11 GHz
Max. voltage: 3700 V rms

Typical values for this cable type, based on MIL-DTL-17/75-RG214 (M17/164-00001) — confirmed in the datasheet and quotation for your order.

Application fit

Is RG-214 right for your machine?

Selected for naval shipboard radar and communications, EMC test chamber Bulkhead feeds, air-traffic control transmitters, and co-located multi-channel RF sites where single-braid RG-213 leaks

Fixed installation

Suitable

Standard heavy-duty coaxial feeder for naval superstructures, radar towers, and EMC shielded rooms.

Switchgear & control cabinet wiring

Suitable

> 90 dB shielding isolation prevents crosstalk between high-power PA outputs and sensitive LNA inputs.

Trailing & towing

With conditions

7-strand 13 AWG SPC conductor supports heavy test-bench jumper duty at ≥ 55 mm bend radius.

Energy chain / drag chain

Not suitable

Ø 10.8 mm feeder coax is intended for static or portable deployment, not linear drag chains.

S 368 C

Typical machinesNaval Shipboard Radar & SATCOMAir Traffic Control (ATC) & DME TowersEMC / Anechoic Chamber FeedthroughsHigh-Power Broadcast & Defense CommsParticle Accelerator RF Cavities

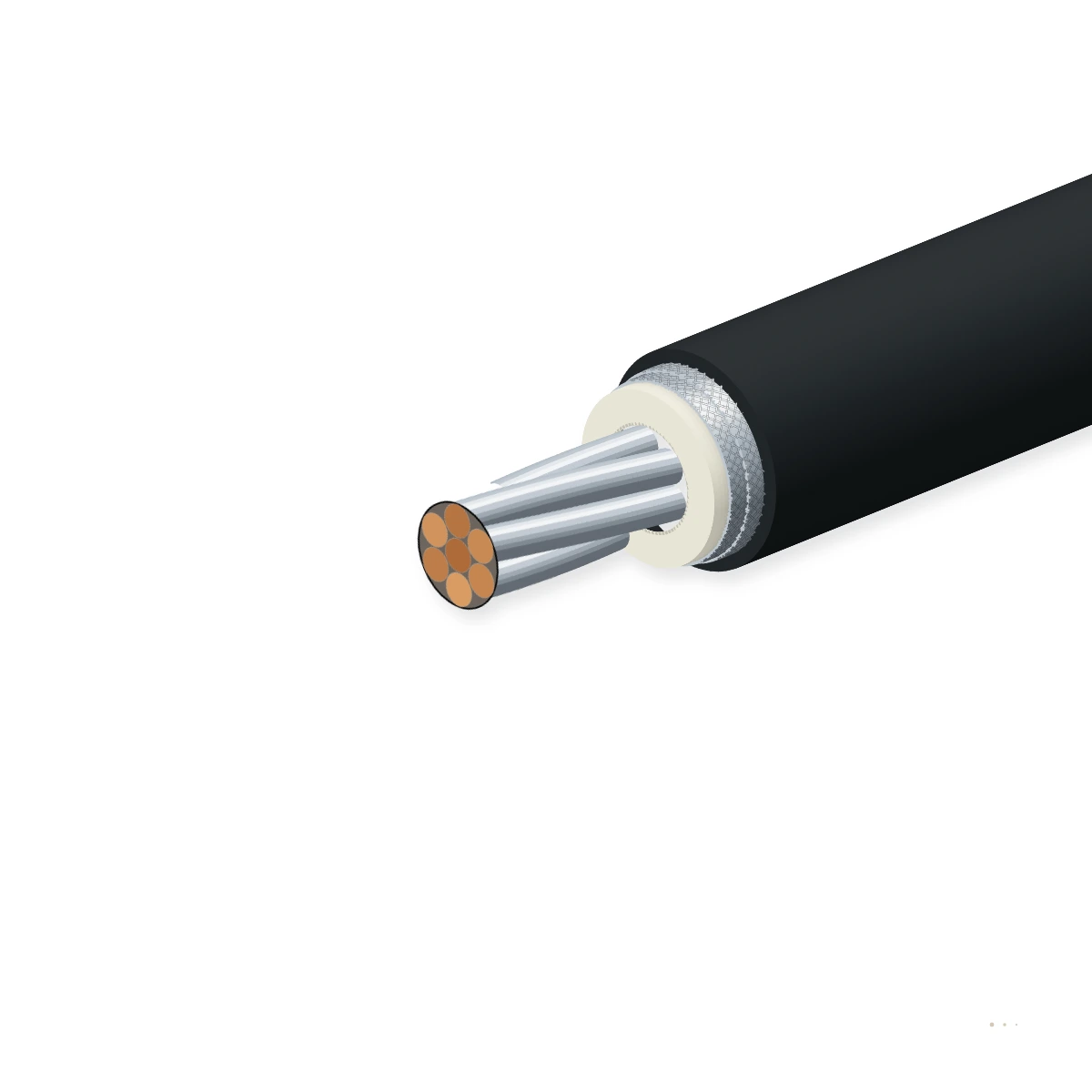

Construction

Layer by layer

13 AWG (7×0.75 mm) silver-plated copper center, Ø 7.24 mm solid polyethylene dielectric, two concentric silver-plated copper braids, and Ø

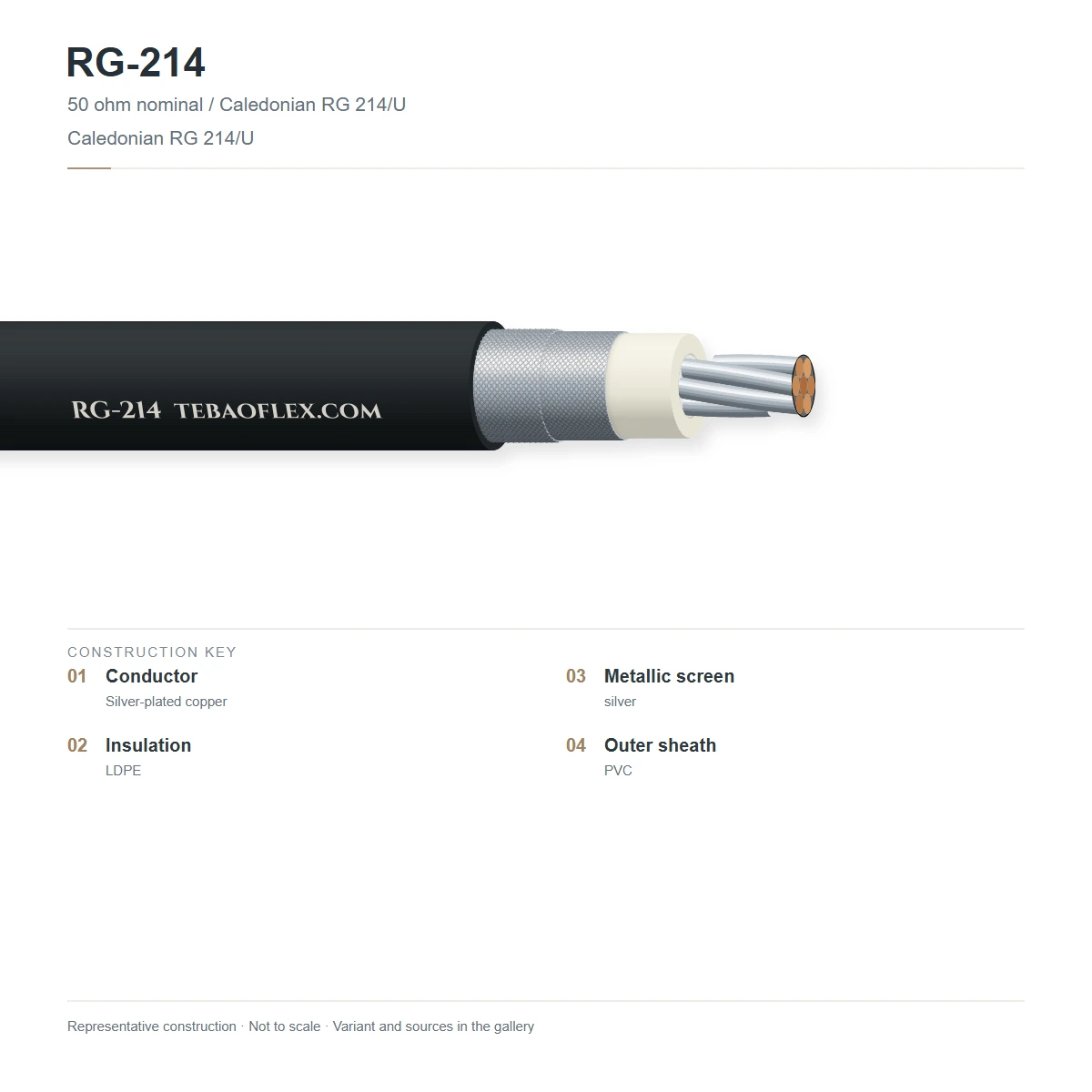

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Stranded SPC center conductor (13 AWG)	7 × 0.75 mm (Ø 2.26 mm, 3.09 mm²) silver-plated oxygen-free copper wire per ASTM B298MIL-DTL-17/75
2	Solid polyethylene (PE) dielectric	Virgin low-loss solid polyethylene Type A, Ø 7.24 mm ± 0.18 mm (0.285 in)MIL-DTL-17/75
3	Inner silver-plated copper braid	34 AWG silver-plated copper wire braid (≥ 95 % optical coverage)MIL-DTL-17/75
4	Outer silver-plated copper braid	Second counter-woven 34 AWG silver-plated copper braid (≥ 95 % coverage, > 90 dB totalMIL-DTL-17/75
5	Non-contaminating PVC Type IIA jacket	UV-resistant black polyvinyl chloride Type IIA (or shipboard halogen-free LSZH), Ø 10.80MIL-DTL-17/75

RG-214/U (M17/75-RG214 / M17/164)

Standard MIL-DTL-17 double-SPC-braided coaxial cable with black non-contaminating PVC Type IIA sheath.

RG-214-LSZH (Naval Shipboard)

Halogen-free low-smoke zero-halogen outer jacket compliant with IEC 60332-3-22 and NES 713 / Def Stan.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on MIL-DTL-17/75-RG214 (M17/164-00001). Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic impedance Z₀: 50 Ω ± 2 Ω
Nominal capacitance: 101.0 pF/m (30.8 pF/ft)
Velocity of propagation (VoP): 66.0 %
Shielding effectiveness: > 90 dB (dual silver-plated braids)
Max. operating voltage: 3,700 V rms
Dielectric withstand test: 10.0 kV rms at 60 Hz

Thermal

Operating temperature range: -40 °C to +80 °C
Installation temperature range: -20 °C to +70 °C
Dielectric softening temperature: +85 °C (solid PE)
Flame retardance: IEC 60332-1-2 (IEC 60332-3 on LSZH)
Cold-bend rating: -40 °C per MIL-DTL-17
Continuous CW power @ 400 MHz: 650 W (@ +40 °C ambient)

Mechanical

Center conductor stranding: 7 × 0.75 mm (13 AWG, Ø 2.26 mm)
Dielectric diameter: 7.24 mm ± 0.18 mm (0.285 in)
Outer jacket diameter: 10.80 mm ± 0.18 mm (0.425 in)
Min. bend radius (fixed / flex): 55 mm (5×D) / 110 mm (10×D)
Nominal cable weight: 195.0 kg/km (131 lb/1000 ft)
Connector compatibility: Type N, TNC, BNC, 7/16 DIN, SC (RG-214 group)

Resistance

Plasticizer non-contamination: Type IIA non-migrating PVC
Corrosion & salt-spray resistance: Silver-plated copper resists oxidation
UV & outdoor weather: Black UV-stabilised outer sheath
RF interference immunity: Dual SPC braids eliminate ingress/egress
LSZH naval option: IEC 60754-1/2 & IEC 61034
RoHS / REACH status: RoHS 3 compliant

Reference standards

Military detail specification: MIL-DTL-17/75-RG214 & M17/164-00001
Conductor & braid standard: ASTM B298 silver-coated soft copper
Flame test standard: IEC 60332-1-2 / UL VW-1
Coaxial RF standard: IEC 61196-1
Shipboard LSZH option: IEC 60092-350 / 60332-3
Quality certification: EN 10204 3.1 + 11 GHz sweep report

Identification

Dielectric colour: Translucent natural solid PE
Outer jacket colour: Black
Surface legend: TEBAOFLEX MIL-DTL-17/75-RG214 50 OHM
Standard drum lengths: 100 m, 305 m, 500 m
Impedance group: 50 Ω double-shielded 0.425" coax
Batch traceability: Lot number & sweep ID

Sizes

4 standard configurations (RG-214)

Dimensional, physical and high-frequency electrical parameters for RG-214 per MIL-DTL-17/75-RG214 (M17/164-00001).

Dimensions & construction
Order designation	Construction / Variant	Conductor	Outer Ø ≈ mm	Metal kg/km	Weight ≈ kg/km	Min. bend R fixed mm
Standard RG-214 variants
RG-214/U (M17/75-RG214) Type IIA PVC	50 Ω Dual SPC Braid (PVC)	13 AWG (7×0.75 SPC)	10.80	112.0	195.0	54
RG-214-LSZH Naval Halogen-Free	50 Ω Dual SPC Braid (LSZH)	13 AWG (7×0.75 SPC)	10.80	112.0	202.0	54
RG-214-PUR Tactical Abrasion-Resistant	50 Ω Dual SPC Braid (PUR)	13 AWG (7×0.75 SPC)	10.80	112.0	188.0	54
RG-213/U Single-Braid Bare Copper Sister	50 Ω Single Bare Cu Braid (PVC)	13 AWG (7×0.75 Cu)	10.30	74.0	156.0	52

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are nominal production values subject to manufacturing tolerances per MIL-DTL-17/75-RG214 (M17/164-00001).

Attenuation & RF power handling
Frequency	Nominal attenuation dB / 100 m	Nominal attenuation dB / 100 ft	Max. CW RF power W (@ 40 °C)	Impedance Z₀ Ω	Velocity VoP %
50 MHz	4.3	1.31	2,100	50	66.0
100 MHz	6.6	2.01	1,450	50	66.0
400 MHz	14.8	4.51	650	50	66.0
1000 MHz (1 GHz)	25.6	7.80	370	50	66.0
3000 MHz (3 GHz)	52.5	16.00	180	50	66.0
6000 MHz (6 GHz)	85.3	26.00	110	50	66.0
11000 MHz (11 GHz)	135.0	41.15	65	50	66.0

Attenuation values apply at +20 °C ambient into a matched 50 Ω load; CW power ratings assume VSWR 1.0:1 at +40 °C ambient.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
Sweep VSWR & impedance to 11 GHz	50 Ω ± 2 Ω; low structural return loss across DC–11 GHz	Every drum
10.0 kV AC dielectric withstand test	10.0 kV rms at 60 Hz without breakdown	Every drum
Sample tests
Shielding effectiveness & transfer impedance	> 90 dB RF isolation from dual silver-plated braids	Per batch
Type IIA jacket non-contamination & cold bend	Complies with MIL-DTL-17/75 thermal and aging requirements	Qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

MIL-DTL-17/75-RG214IEC 60332-1-2RoHS 3 / CE

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX MIL-DTL-17/75-RG214 50 OHM [Lot]

Delivery form: Spools, reels or export wooden drums
Standard reel lengths: 100 m · 305 m (1000 ft) · 500 m · 1000 m
MOQ: 100 m (stock) · 305–500 m (production)
Lead time: 1–3 weeks ex-works
Incoterms: EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFRG-214 Double-Shielded RF Cable – technical datasheet4 sizes · construction, technical data, approvals XLSXRG-214 spec data (Excel)All 4 sizes with dimensions and data, for your BOM or quotation
