MIL-DTL-17 PE/PVC RF Coaxial CablesMIL-DTL-17/84 RG-22350 Ω · DC–12.4 GHzDual SPC Braids > 90 dB

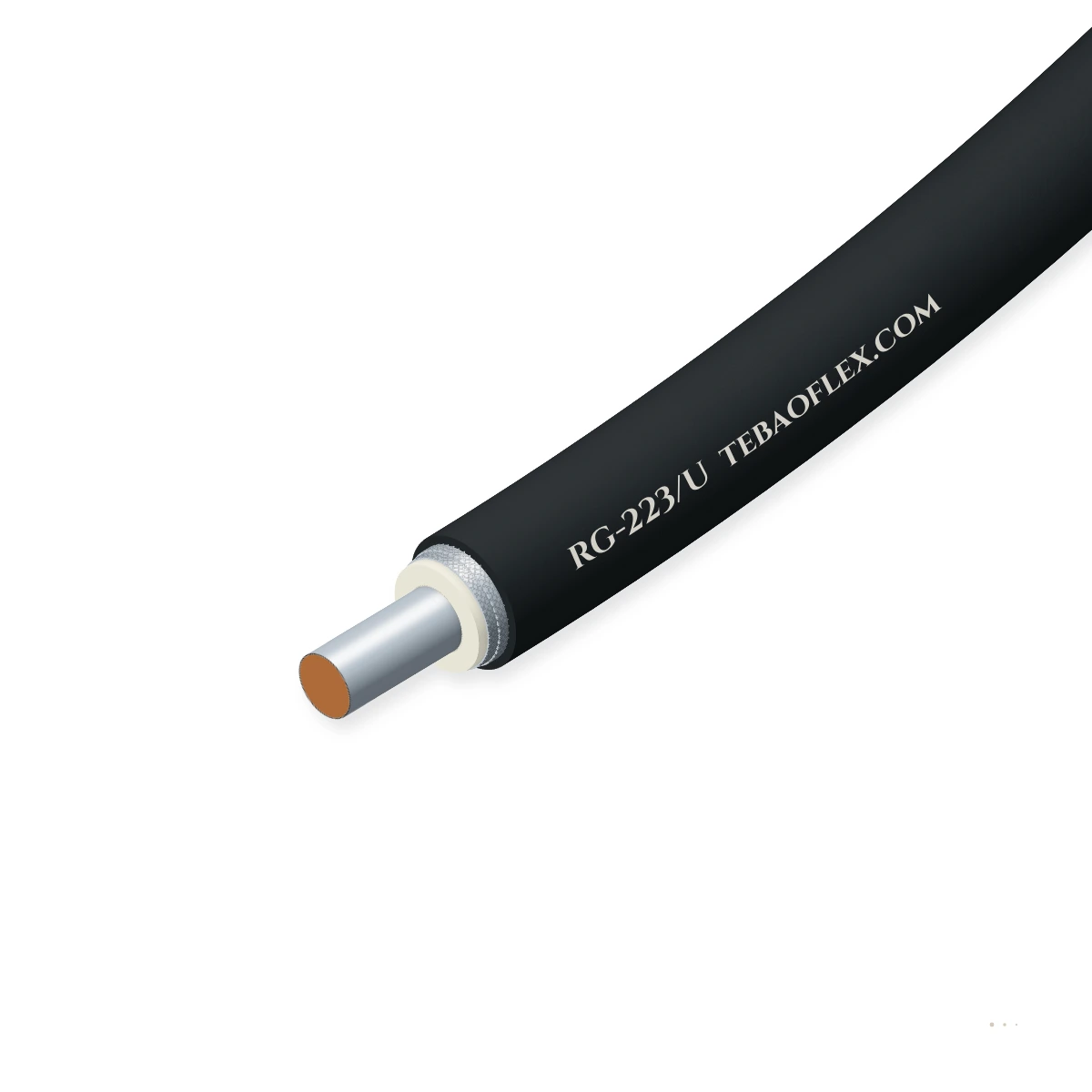

RG-223/U Double-Shielded Coaxial CableMIL-DTL-17/84 · 50 Ω ± 2 Ω · Ø 5.38 mm · 19 AWG (Ø 0.89) solid SPC · Solid PE · Dual SPC

RG-223/U (MIL-DTL-17/84-RG223 and M17/167-00001) is the precision 50 Ω double-shielded coaxial upgrade to RG-58, featuring a 19 AWG (Ø 0.89 mm) solid silver-plated copper center conductor, Ø 2.95 mm solid polyethylene dielectric, dual silver-plated copper

EMC screen

Low-EMC design

Flame-retardant

Oil-resistant

Variant

Order designation: RG-223/U (M17/84-RG223) Type IIA PVC
Outer Ø ≈: 5.38 mm
Metal weight: 36.5 kg/km
Total weight ≈: 54.0 kg/km
Min. bend R (fixed): 27 mm

All sizes (4)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Impedance Z₀: 50 Ω ± 2 Ω
Outer diameter: 5.38 mm (0.212")
Center & shields: Silver-plated Cu
Shielding: > 90 dB isolati
Frequency range: DC to 12.4 GHz
Max. voltage: 1900 V rms

Typical values for this cable type, based on MIL-DTL-17/84-RG223 (M17/167-00001) — confirmed in the datasheet and quotation for your order.

Application fit

Is RG-223/U right for your machine?

Standard coaxial interconnect for RF test and measurement benches, cellular base-station rack jumpers, GNSS/rubidium 10 MHz timing distribution, and EMC laboratory instrumentation.

Switchgear & control cabinet wiring

Suitable

Industry-standard 50 Ω jumper for telecom racks, 10 MHz clock distribution, and RF switch matrices.

Fixed installation

Suitable

Solid Ø 0.89 mm silver-plated copper conductor delivers consistent phase and low VSWR up to 12.4 GHz.

Trailing & towing

With conditions

Suitable for benchtop patch cords at ≥ 27 mm bend radius; use stranded RG-400 for heavy flexing.

Furnace, kiln & high-temp zone

Not suitable

Solid PE dielectric is rated to +80 °C; specify PTFE/FEP RG-400 for +200 °C environments.

RG-400

Typical machinesRF Test & Measurement LaboratoriesTelecom Base Station & DAS Racks10 MHz Rubidium / GPS Timing ReferenceBroadcast & Satellite IF Patch PanelsDefense C4ISR & Shelter Wiring

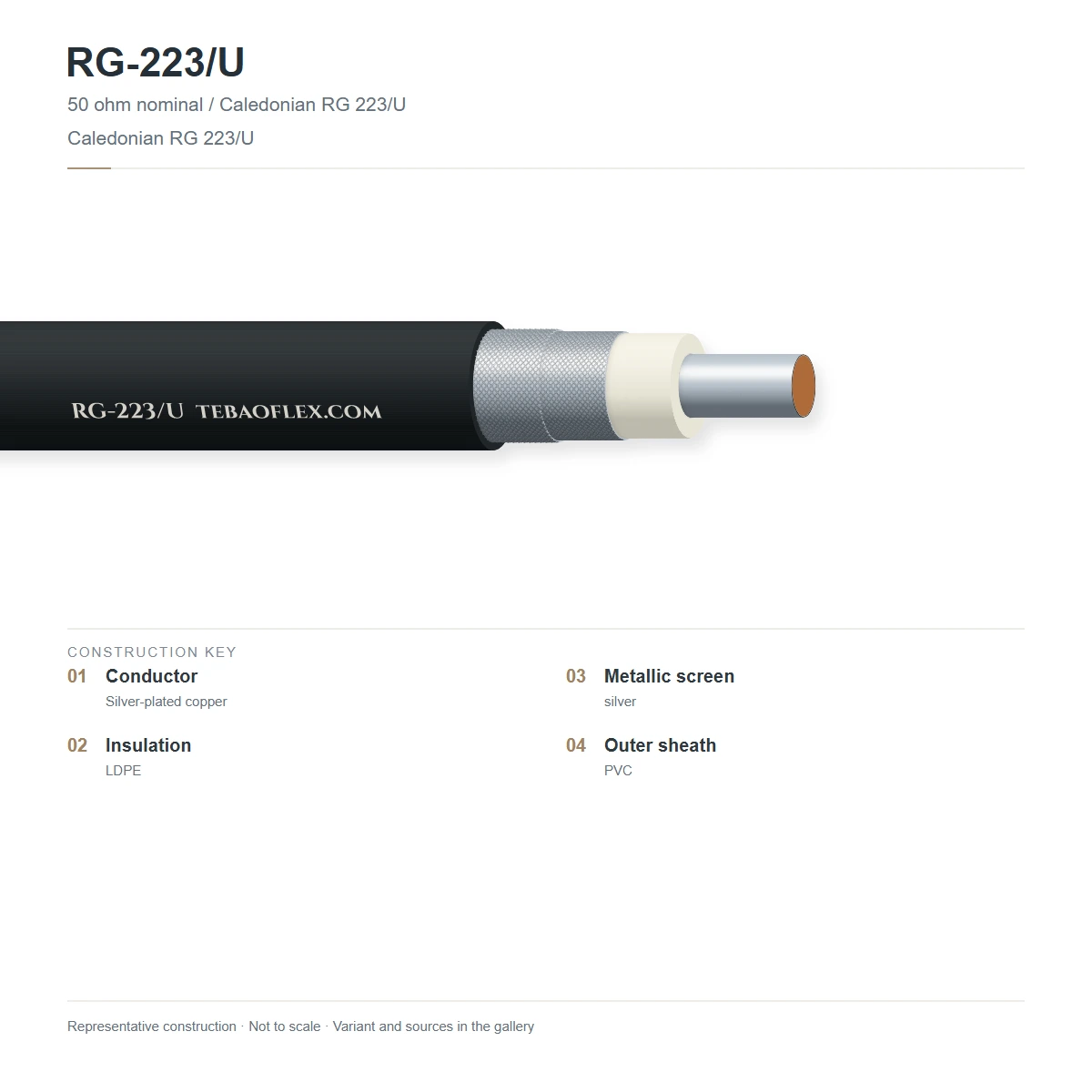

Construction

Layer by layer

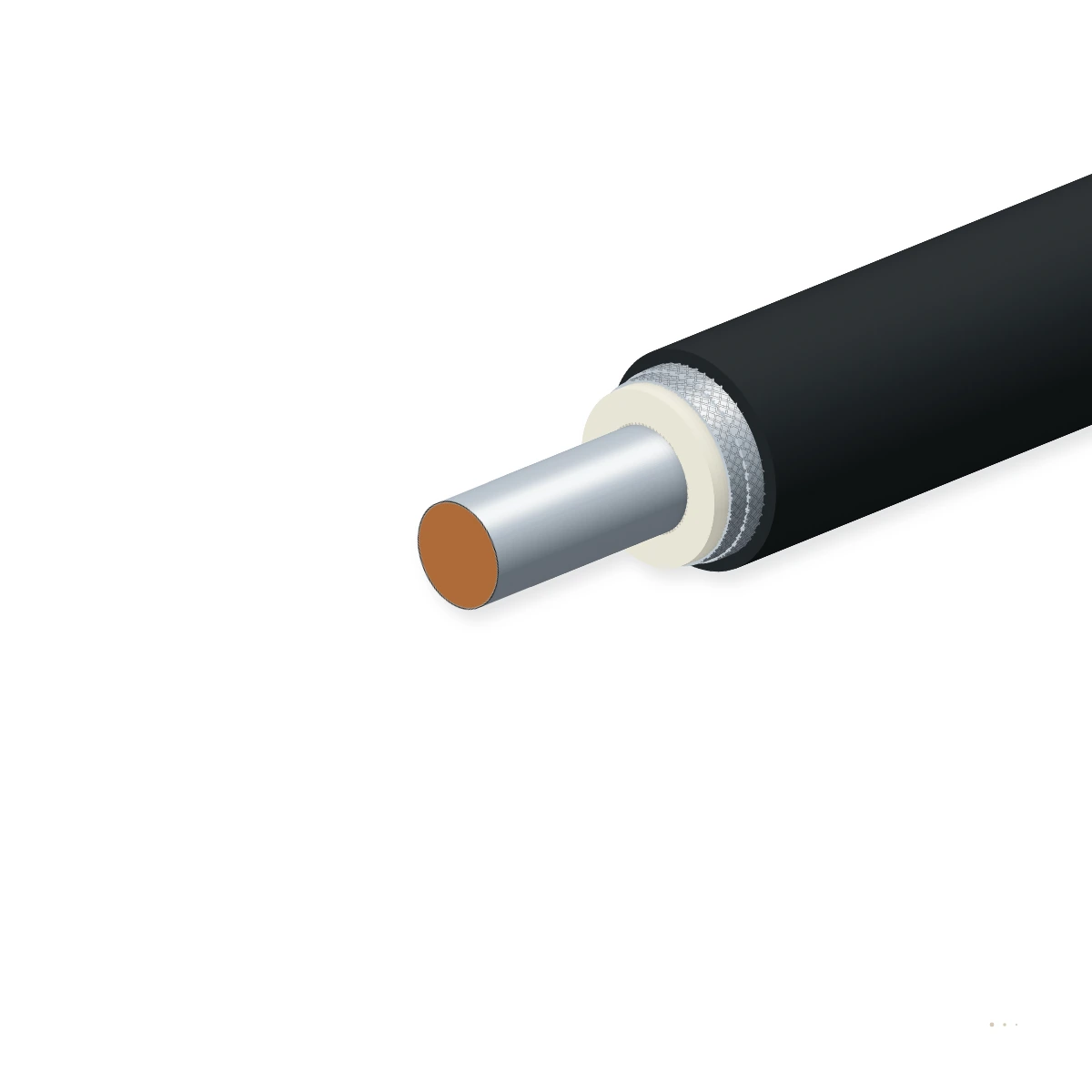

19 AWG (Ø 0.89 mm) solid silver-plated copper center conductor, Ø 2.95 mm solid polyethylene dielectric, two concentric silver-plated

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Solid SPC center conductor (19 AWG)	Ø 0.89 mm (0.035 in, 0.62 mm²) solid silver-plated annealed copper per ASTM B298MIL-DTL-17/84
2	Solid polyethylene (PE) dielectric	Virgin low-loss solid polyethylene Type A, Ø 2.95 mm ± 0.08 mm (0.116 in)MIL-DTL-17/84
3	Inner silver-plated copper braid	36 AWG silver-plated copper wire braid (≥ 95 % optical coverage)MIL-DTL-17/84
4	Outer silver-plated copper braid	Second counter-woven 36 AWG silver-plated copper braid (> 90 dB shielding effectiveness)MIL-DTL-17/84
5	Non-contaminating PVC Type IIA jacket	Black polyvinyl chloride Type IIA (or halogen-free LSZH), Ø 5.38 mm ± 0.13 mm (0.212 in)MIL-DTL-17/84

RG-223/U (M17/84-RG223 / M17/167)

Standard MIL-DTL-17 construction with Type IIA non-contaminating black PVC jacket.

RG-223-LSZH (Halogen-Free)

Flame-retardant low-smoke zero-halogen outer jacket per IEC 60332-3 and IEC 60754-1/2 for telecom central

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on MIL-DTL-17/84-RG223 (M17/167-00001). Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic impedance Z₀: 50 Ω ± 2 Ω
Nominal capacitance: 101.0 pF/m (30.8 pF/ft)
Velocity of propagation (VoP): 66.0 %
Center / shield DC resistance: ≤ 27.6 Ω/km / ≤ 8.2 Ω/km at 20 °C
Max. operating voltage: 1,900 V rms
Dielectric withstand test: 5.0 kV rms at 60 Hz

Thermal

Operating temperature range: -40 °C to +80 °C
Installation temperature range: -20 °C to +70 °C
Dielectric softening temperature: +85 °C (solid PE)
Flame retardance: IEC 60332-1-2 / UL VW-1
Cold-bend rating: -40 °C per MIL-DTL-17
Thermal upgrade alternative: RG-400 (-55 to +200 °C PTFE/FEP)

Mechanical

Center conductor diameter: 0.89 mm solid SPC (19 AWG, 0.035 in)
Dielectric diameter: 2.95 mm ± 0.08 mm (0.116 in)
Outer jacket diameter: 5.38 mm ± 0.13 mm (0.212 in)
Min. bend radius (fixed / flex): 27 mm (5×D) / 54 mm (10×D)
Nominal cable weight: 54.0 kg/km (36 lb/1000 ft)
Connector compatibility: BNC, TNC, Type N, SMA (RG-223/55 group)

Resistance

Plasticizer non-contamination: MIL Type IIA non-migrating PVC
RF crosstalk & leakage: > 90 dB isolation (dual SPC braids)
Corrosion resistance: Silver-plated conductor & shields
UV & outdoor weather: Black UV-stabilised outer sheath
LSZH telecom option: IEC 60754-1/2 halogen-free version
RoHS / REACH status: RoHS 3 compliant

Reference standards

Military detail specification: MIL-DTL-17/84-RG223 & M17/167-00001
Conductor & braid standard: ASTM B298 silver-coated soft copper
Flame test standard: IEC 60332-1-2
Coaxial RF standard: IEC 61196-1
LSZH standard (optional): IEC 60332-3-24 / IEC 60754
Quality certification: EN 10204 3.1 + sweep return-loss report

Identification

Dielectric colour: Translucent natural solid PE
Outer jacket colour: Black
Surface legend: TEBAOFLEX MIL-DTL-17/84-RG223 50 OHM
Standard reel lengths: 100 m, 305 m, 500 m, 1000 m
Impedance group: 50 Ω double-shielded 0.212" coax
Batch traceability: Lot number & sweep ID

Sizes

4 standard configurations (RG-223/U)

Dimensional, physical and high-frequency electrical parameters for RG-223/U per MIL-DTL-17/84-RG223 (M17/167-00001).

Dimensions & construction
Order designation	Construction / Variant	Conductor	Outer Ø ≈ mm	Metal kg/km	Weight ≈ kg/km	Min. bend R fixed mm
Standard RG-223/U variants
RG-223/U (M17/84-RG223) Type IIA PVC	50 Ω Dual SPC Braid (PVC)	19 AWG (Ø 0.89 SPC)	5.38	36.5	54.0	27
M17/167-00001 Swept 12.4 GHz RG-223	50 Ω Swept Dual SPC Braid (PVC)	19 AWG (Ø 0.89 SPC)	5.38	36.5	54.0	27
RG-223-LSZH Halogen-Free Telecom/Rail	50 Ω Dual SPC Braid (LSZH)	19 AWG (Ø 0.89 SPC)	5.40	36.5	56.0	27
RG-400/U +200 °C PTFE/FEP Sister Coax	50 Ω Dual SPC Braid (FEP)	20 AWG (19×0.20 SPC)	4.95	46.5	74.4	25

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are nominal production values subject to manufacturing tolerances per MIL-DTL-17/84-RG223 (M17/167-00001).

Attenuation & RF power handling
Frequency	Nominal attenuation dB / 100 m	Nominal attenuation dB / 100 ft	Max. CW RF power W (@ 40 °C)	Impedance Z₀ Ω	Velocity VoP %
50 MHz	9.5	2.90	420	50	66.0
100 MHz	13.8	4.21	300	50	66.0
400 MHz	29.2	8.90	145	50	66.0
1000 MHz (1 GHz)	47.6	14.51	85	50	66.0
3000 MHz (3 GHz)	91.9	28.01	44	50	66.0
6000 MHz (6 GHz)	144.0	43.89	28	50	66.0
12400 MHz (12.4 GHz)	236.0	71.93	17	50	66.0

Attenuation values apply at +20 °C ambient into a matched 50 Ω load; CW power ratings assume VSWR 1.0:1 at +40 °C ambient.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
Sweep impedance & return loss to 12.4 GHz	50 Ω ± 2 Ω; low VSWR across DC–12.4 GHz	Every spool
5.0 kV AC dielectric withstand test	5.0 kV rms at 60 Hz without breakdown	Every spool
Sample tests
Shielding effectiveness & transfer impedance	> 90 dB isolation from dual SPC braids	Per batch
Type IIA jacket non-contamination & cold bend	Passes -40 °C cold bend and MIL-DTL-17/84 aging	Qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

MIL-DTL-17/84-RG223IEC 60332-1-2RoHS 3 / CE

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX MIL-DTL-17/84-RG223 50 OHM [Lot]

Delivery form: Spools, reels or export wooden drums
Standard reel lengths: 100 m · 305 m (1000 ft) · 500 m · 1000 m
MOQ: 100 m (stock) · 305–500 m (production)
Lead time: 1–3 weeks ex-works
Incoterms: EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFRG-223/U Double-Shielded Coaxial Cable – technical datasheet4 sizes · construction, technical data, approvals XLSXRG-223/U spec data (Excel)All 4 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why choose RG-223/U over standard RG-58C/U?

Standard RG-58C/U has a single tinned-copper braid (~50 dB shielding) and is limited to ~1 GHz, whereas RG-223/U features a silver-plated solid copper center conductor and dual silver-plated copper braids (> 90 dB shielding), extending usable frequency to 12.4 GHz and eliminating crosstalk in dense equipment racks.

How does RG-223/U compare to RG-400/U?

Both cables are 50 Ω double-SPC-braided coaxial cables with a 2.95 mm dielectric diameter; RG-223/U uses a solid SPC center conductor and PE/PVC insulation (-40 to +80 °C) for cost-effective telecom and lab jumpers, whereas RG-400/U uses a 19-strand SPC conductor and PTFE/FEP (-55 to +200 °C) for aerospace and high-temperature service.

Do standard RG-58 BNC connectors fit RG-223/U?

While both share a 2.95 mm dielectric diameter, RG-223/U's second braid increases its outer diameter to 5.38 mm (vs 4.95 mm for RG-58), so you should select crimp ferrules sized for the RG-223/RG-55 group (0.212 in OD). Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.

Is RG-223/U suitable for 10 MHz GPS/rubidium clock distribution?

Yes, its > 90 dB double-braided silver-plated copper shield prevents external switching noise from corrupting low-phase-noise 10 MHz and 1 PPS reference signals. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.
