EN 50288-7 XLPE/LSZH instrumentation cableBS EN 50288-7+90 °C XLPE / LSZHIEC 60754 & 61034

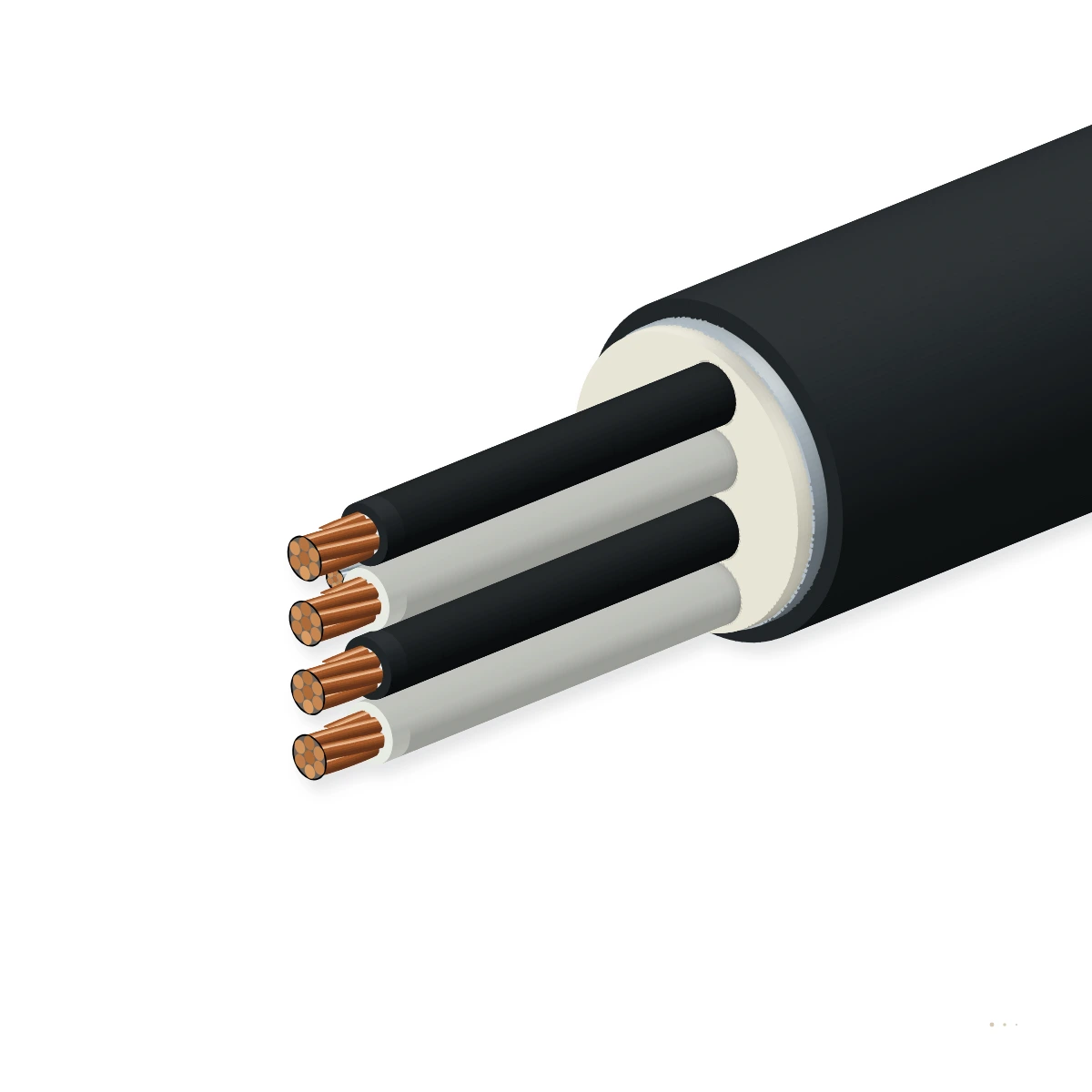

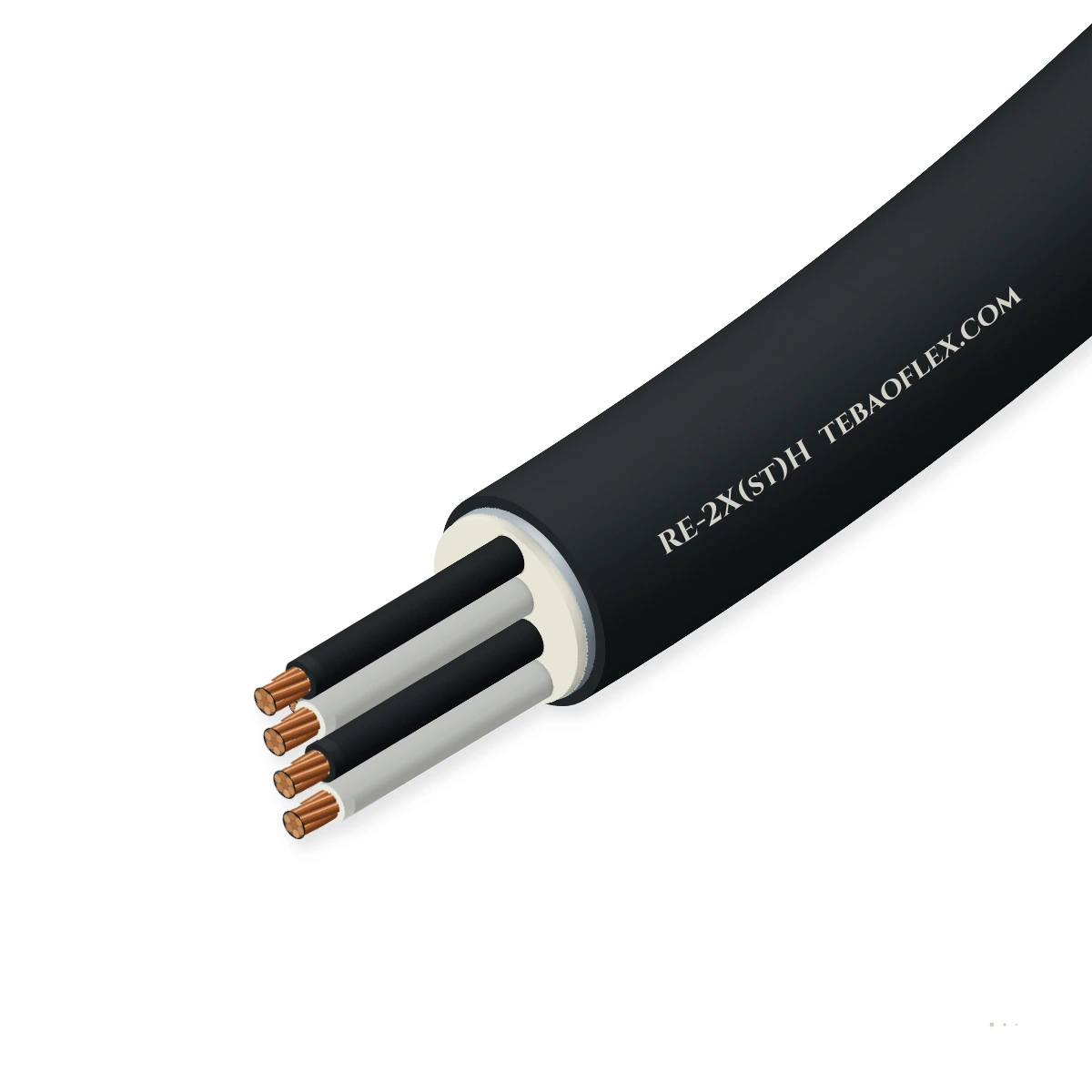

RE-2X(st)H LSZH Instrumentation Cable+90 °C XLPE-insulated Low-Smoke Zero-Halogen (LSZH) process instrumentation cable

Halogen-free 300/500 V process instrumentation cable built to BS EN 50288-7 with Class 2 copper conductors, +90 °C cross-linked polyethylene (2X / XLPE) insulation, collective or PiMF Al/PET screen and low-smoke zero-halogen (LSZH / H) outer sheath.

Low-EMC design
EMC screen
Flame-retardant
Approved
Order designation
RE-2X(st)H 4×2×1.0 PiMF
Outer Ø ≈
12.8 mm
Copper weight
90 kg/km
Total weight ≈
202 kg/km
Min. bend R (fixed)
96 mm
All sizes (18)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
300/500 V
EN 50288-7 · 2000 V AC test
Temperature
−40…+90 °C
XLPE core · +250 °C short-circuit
LSZH rating
IEC 60754/61034
zero halogen · ≥ 60 % light trans.
Max. L/R ratio
≤ 25 / 40 µH/Ω
0.5–1.0 mm² (25) · 1.5 mm² (40)
Capacitance
≤ 100 nF/km
OS · ≤ 115 nF/km PiMF+OS
Bend radius
7.5 × OD
fixed routing · 10 × OD pulling

Typical values for this cable type, based on BS EN 50288-7 / IEC 60754 / IEC 61034 — confirmed in the datasheet and quotation for your order.

Application fit

Is RE-2X(st)H right for your machine?

Specified for control rooms, LNG facilities, tunnels, cleanrooms, power plants and offshore living/control modules where +90 °C thermal margin and zero corrosive acid gas emission are mandatory.

Fixed installation

Suitable

Ideal for high-density DCS marshalling rooms, raised floors and indoor/outdoor process trays.

Offshore platform & shipboard deck trays

Suitable

Black RAL 9005 LSZH compound is UV-stabilised for open-air trays and pipe racks.

TBM gantry & advancing tunnel reel

Not suitable

Unarmoured LSZH sheath requires ducting underground; use RE-2X(st)H SWAH for direct burial.

Use RE-2X(st)H SWAH

Energy chain / drag chain

Not suitable

Class 2 stranded conductors and thermoset XLPE insulation are for fixed installations only.

PUR Drag-Chain Control Cable
Typical machinesControl Rooms & DCS Marshalling BuildingsLNG Terminals & Gas Processing PlantsPower Stations, Substations & TunnelsPharmaceutical & Semiconductor UtilitiesOnshore & Offshore Petrochemical Modules

Construction

Layer by layer

Shown: RE-2X(st)H PiMF 4×2×1.0 mm² with Class 2 copper conductors, +90 °C XLPE core insulation, individual pair foil screens (PiMF), overall Al/PET screen and Black or Ex-i Blue LSZH outer sheath.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded copper conductorsAnnealed bare or tinned copper, 7-wire stranded (IEC 60228 Class 2)Low resistance for long 4–20 mA and HART digital loops
2Cross-linked polyethylene (XLPE / 2X)Thermoset XLPE per EN 50290-2-29 (+90 °C continuous, +250 °C short-circuit)Combines low permittivity (εr ≈ 2.3) with high thermal resistance
3Individual pair screen (PiMF option)Al/PET laminated tape + 0.5 mm² tinned copper drain wire on each pairIsolates adjacent pairs against high-frequency digital crosstalk
4Halogen-free polyester binder tapeHelical PET wrap over the stranded pair/triad bundleMaintains circular core geometry
5Collective Al/PET electrostatic screen (st)Aluminium/PET tape (≥ 20 % overlap) + 0.5 mm² tinned copper drain wire100 % electrostatic coverage
6Low-Smoke Zero-Halogen outer sheath (H)Halogen-free flame-retardant polyolefin (HM4 / LTS1 per EN 50290-2-27), Black RAL 9005 or Blue RAL 5015IEC 60332-3-22/24, IEC 60754-1/2 (< 0.5 % HCl) & IEC 61034-2 (≥ 60 % light)

RE-2X(st)H (Collective Screen)

+90 °C XLPE pairs/triads with collective Al/PET screen and LSZH jacket

RE-2X(st)H PiMF (Indiv. + Overall)

Individual Al/PET pair screens plus overall Al/PET screen and LSZH jacket

RE-2X(st)H Ex-i (RAL 5015 Blue)

Sky-blue LSZH sheath for intrinsically safe Zone 0/1/2 Ex-i loops

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on BS EN 50288-7 / IEC 60754 / IEC 61034. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
300/500 V
Test voltage
2000 V AC (core/core & core/screen) for 1 min
Insulation resistance
≥ 5000 MΩ·km at +20 °C
Mutual capacitance (at 800 Hz)
≤ 100 nF/km (OS) · ≤ 115 nF/km (PiMF)
Max. L/R ratio
≤ 25 µH/Ω (0.5–1.0 mm²) · ≤ 40 µH/Ω (1.5 mm²)

Thermal

Operating temperature, fixed
−40 °C to +90 °C
Operating temperature, installation
−5 °C to +50 °C
Short-circuit conductor temperature
+250 °C (max. 5 s on thermoset XLPE)

Mechanical

Min. bending radius, fixed
7.5 × OD
Min. bending radius, during pulling
10 × OD

Resistance

Flame retardance
IEC 60332-1-2 & IEC 60332-3-22 / 60332-3-24 (Cat A/C)
Halogen acid gas emission
IEC 60754-1 (0 % halogen) · IEC 60754-2 (pH ≥ 4.3, ≤ 10 µS/mm)
Smoke density
IEC 61034-2 light transmittance ≥ 60 %

Reference standards

Design standard
BS EN 50288-7
Conductor standard
IEC 60228 Class 2
CPR Euroclass option
EN 50575 Cca / B2ca-s1a,d1,a1 available on request

Identification

Core identification
Black / White numbered 1, 2… (Triads: Bk/Wh/Rd)
Outer sheath colour
Black (RAL 9005) or Blue (RAL 5015 Ex-i)
Customs tariff (HS)
8544.49

Sizes

18 standard RE-2X(st)H & RE-2X(st)H PiMF LSZH instrumentation sizes

+90 °C XLPE core insulation with Low-Smoke Zero-Halogen (LSZH) outer sheath.

Dimensions & weights
Order designationFormatScreeningOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
0.5 mm² XLPE/LSZH — L/R ≤ 25 µH/Ω · +90 °C
RE-2X(st)H 1×2×0.51×2×0.5 mm²OS5.9154744
RE-2X(st)H 2×2×0.52×2×0.5 mm²OS8.4257963
RE-2X(st)H 4×2×0.5 PiMF4×2×0.5 mm²PiMF+OS10.85213881
RE-2X(st)H 8×2×0.5 PiMF8×2×0.5 mm²PiMF+OS14.098232105
RE-2X(st)H 12×2×0.5 PiMF12×2×0.5 mm²PiMF+OS16.8144330126
0.75 mm² XLPE/LSZH — L/R ≤ 25 µH/Ω · +90 °C
RE-2X(st)H 1×2×0.751×2×0.75 mm²OS6.3205647
RE-2X(st)H 2×2×0.752×2×0.75 mm²OS9.2349669
RE-2X(st)H 4×2×0.75 PiMF4×2×0.75 mm²PiMF+OS11.87116888
RE-2X(st)H 8×2×0.75 PiMF8×2×0.75 mm²PiMF+OS15.5136288116
1.0 mm² XLPE/LSZH — L/R ≤ 25 µH/Ω · +90 °C
RE-2X(st)H 1×2×1.01×2×1.0 mm²OS6.7256650
RE-2X(st)H 4×2×1.0 PiMF4×2×1.0 mm²PiMF+OS12.89020296
RE-2X(st)H 8×2×1.0 PiMF8×2×1.0 mm²PiMF+OS16.8174352126
1.5 mm² XLPE/LSZH — L/R ≤ 40 µH/Ω · +90 °C
RE-2X(st)H 1×2×1.51×2×1.5 mm²OS7.6358657
RE-2X(st)H 2×2×1.52×2×1.5 mm²OS11.06315282
RE-2X(st)H 4×2×1.5 PiMF4×2×1.5 mm²PiMF+OS14.4129268108
RE-2X(st)H 8×2×1.5 PiMF8×2×1.5 mm²PiMF+OS19.0252466142
RE-2X(st)H 12×2×1.5 PiMF12×2×1.5 mm²PiMF+OS22.8374668171
RE-2X(st)H 24×2×1.5 PiMF24×2×1.5 mm²PiMF+OS31.27421,255234
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • All sizes are available in collective screen RE-2X(st)H and individual + collective screen RE-2X(st)H PiMF.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
2000 V AC dielectric test & mutual capacitance test2.0 kV AC for 1 min; C ≤ 100 / 115 nF/kmEvery manufactured drum
Sample tests
IEC 60754-1/2 halogen acid gas & conductivity test< 0.5 % HCl; pH ≥ 4.3; conductivity ≤ 10 µS/mmPer LSZH batch
IEC 61034-2 smoke density & IEC 60332-3-22/24 flame test≥ 60 % light transmittance; pass bunched vertical tray flame testPeriodic audit

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

BS EN 50288-7 CompliantIEC 60754-1/2 & IEC 61034-2 LSZHIEC 60332-1-2 & IEC 60332-3-22/24

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX RE-2X(st)H <size> 300/500V EN 50288-7 LSZH IEC 60332-3 CE
Delivery form
Non-returnable fumigated wooden drums
Standard lengths
500 m · 1000 m standard drums (cut lengths on request)
MOQ
500 m (stock sizes) · 1000 m (custom)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFRE-2X(st)H LSZH Instrumentation Cable – technical datasheet18 sizes · construction, technical data, approvalsXLSXRE-2X(st)H spec data (Excel)All 18 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What advantages does RE-2X(st)H offer over RE-2Y(st)Y?
RE-2X(st)H upgrades two critical materials: it replaces thermoplastic PE (2Y, +70 °C) with thermoset cross-linked polyethylene (2X / XLPE, +90 °C continuous and +250 °C short-circuit), and replaces PVC (Y) with a Low-Smoke Zero-Halogen (H / LSZH) outer sheath that emits no corrosive hydrochloric acid gas or dense black smoke during a fire.
Why is LSZH mandatory in DCS marshalling rooms and control buildings?
Even a small electrical fire involving PVC cables releases hydrogen chloride (HCl) gas, which condenses with moisture into hydrochloric acid on DCS I/O cards, server backplanes, and safety PLC terminals, destroying millions of dollars in electronics. RE-2X(st)H satisfies IEC 60754-2 (pH ≥ 4.3, conductivity ≤ 10 µS/mm) to protect sensitive control rooms.
Does XLPE (2X) change the capacitance or L/R ratio compared with PE (2Y)?
No. Cross-linked polyethylene has virtually the same dielectric constant (εr ≈ 2.3) as thermoplastic polyethylene, so RE-2X(st)H maintains the exact same ≤ 100 nF/km (OS) / ≤ 115 nF/km (PiMF) capacitance and ≤ 25 / 40 µH/Ω L/R limits required for Ex-i intrinsic safety.
How should the screen and drain wire of RE-2X(st)H be earthed in instrumentation and Ex-i loops?
To prevent circulating 50/60 Hz ground-loop currents from coupling into millivolt or 4–20 mA signals, the Al/PET screen and tinned copper drain wire of RE-2X(st)H should be bonded to the clean instrumentation earth bar at one end only (typically in the control/marshalling cabinet) and insulated against chassis contact at the field transmitter or junction box, in accordance with IEC 60079-14 and EN 50288-7.
