PUR underground drilling & tunnelling cablesDIN VDE 0250-8120.6/1 kV (Umax 1.2 kV)EPR 3GI3 + TMPU PUR

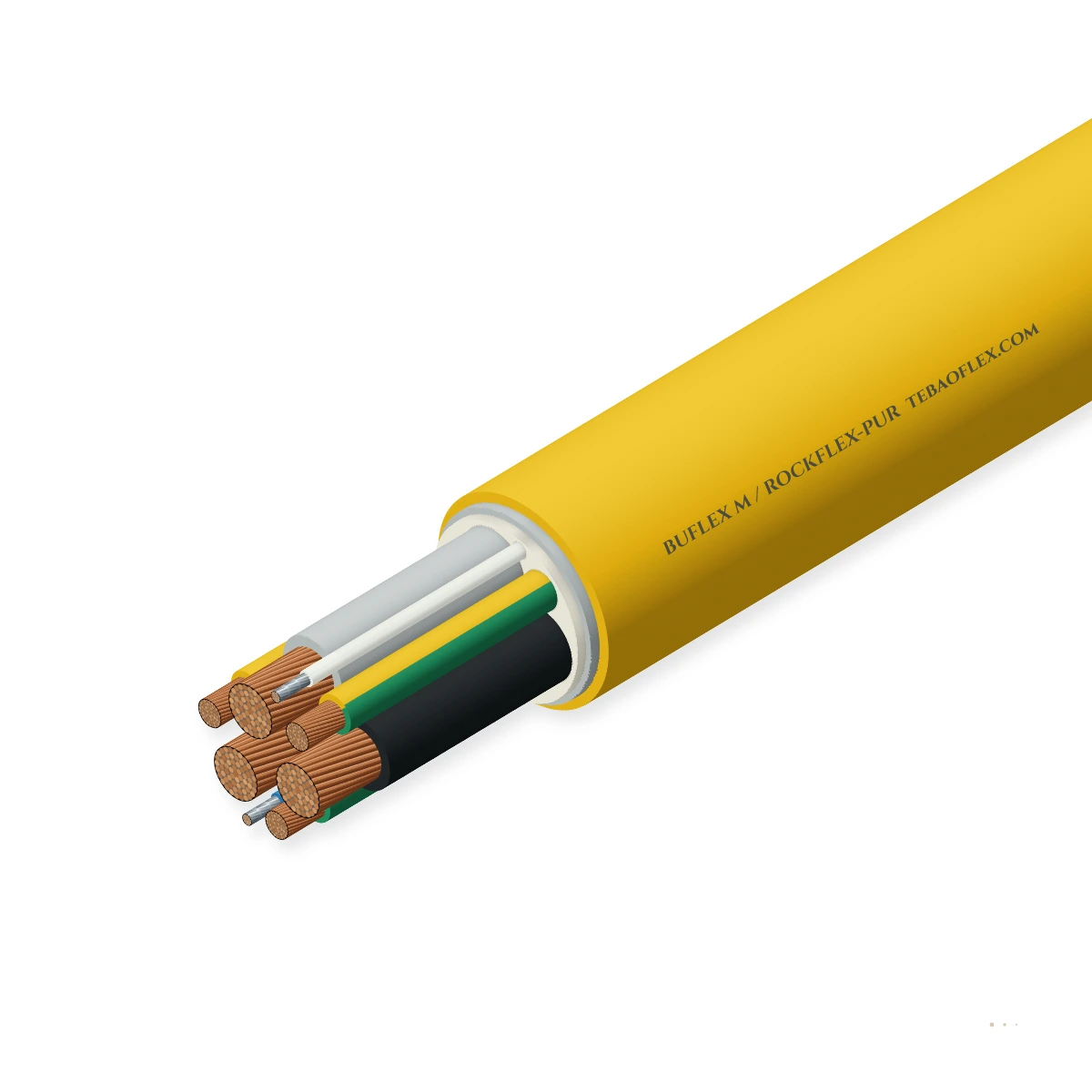

ROCKFLEX-PUR PUR Power and Pilot Cable for Underground0.6/1 kV halogen-free PUR power & pilot trailing cable for underground jumbo drill rigs

ROCKFLEX-PUR is a 0.6/1 kV halogen-free polyurethane (TMPU) power and pilot trailing cable engineered for electro-hydraulic underground face drilling jumbos, rock bolters, and shotcrete rigs operating on abrasive granite and hard-rock roadways.

Oil-resistant
Flame-retardant
Water-resistant
Anti-torsion braid
Order designation
ROCKFLEX-PUR 3×50+3×25/3E+3×2.5
Outer Ø ≈
38.6 mm
Copper weight
1,790 kg/km
Total weight ≈
2,540 kg/km
Min. bend R (fixed)
232 mm
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
Umax 1.2 kV AC · 1.8 kV DC
Conductor
Class 5 Cu
IEC 60228 finely stranded copper
Insulation
EPR 3GI3
+90 °C cross-linked elastomer
Outer sheath
PUR TMPU
Halogen-free yellow/orange PUR
Operating temp.
-40 to +90 °C
Flexing -25 to +80 °C
Min. bend radius
6×D / 10×D
Fixed 6×D · reeling/trailing 10×D

Typical values for this cable type, based on DIN VDE 0250-812 / EN 50525-2-21 (TMPU) — confirmed in the datasheet and quotation for your order.

Application fit

Is ROCKFLEX-PUR right for your machine?

Purpose-built for underground hard-rock jumbo drill rigs, roof bolters, and mobile hydraulic power packs that reel and trail cable across wet, blasted rock floors.

Drilling jumbo & rotary mast feed

Suitable

Primary duty on electro-hydraulic face drill jumbos and bolting rigs with onboard cable reels.

TBM gantry & advancing tunnel reel

Suitable

High-visibility yellow/orange TMPU jacket resists sharp granite spalls and hydraulic oil in headings.

Trailing & towing

Suitable

Integrated pilot/earth-check cores and tear-resistant PUR jacket endure floor dragging.

Motorised monospiral reel

Suitable

Anti-torsion polyamide braid between inner and outer sheaths prevents corkscrewing on rig reels.

Vertical / spreader reel

With conditions

Suitable for short vertical drops up to 35 m; use aramid-reinforced shaft cables for deep shafts.

NSHTÖU or vertical shaft cable
Typical machinesUnderground hard-rock miningDrill & blast tunnellingRock bolting & scaling rigsCavern & hydropower excavation

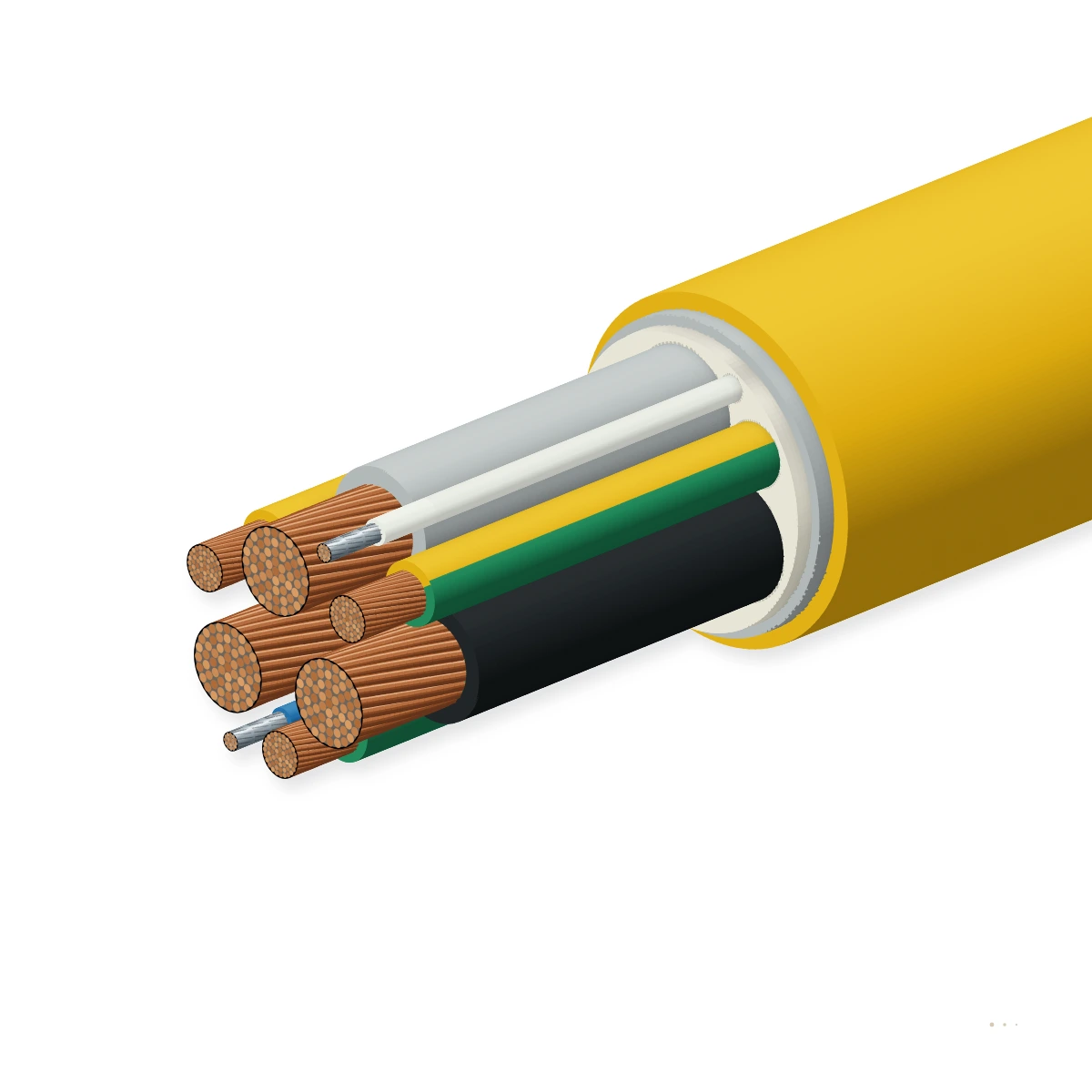

Construction

Layer by layer

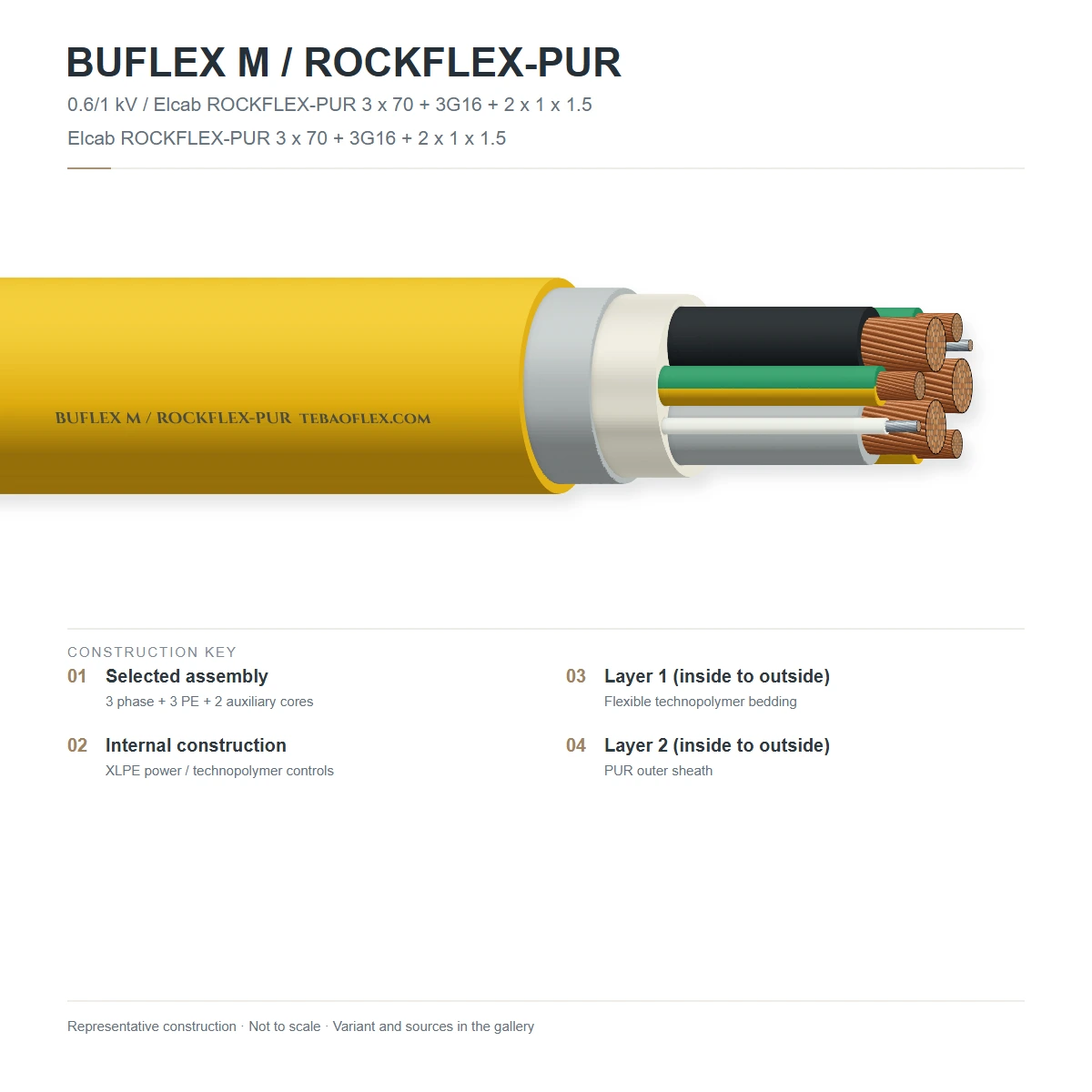

Three Class 5 power cores plus split interstitial earth and pilot monitoring cores, 3GI3 EPR insulation, inner elastomer bedding, open

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Power, earth & pilot conductorsFinely stranded bare or tinned annealed copper, Class 5 per IEC 60228IEC 60228 Class 5
2Core insulationCross-linked ethylene propylene rubber compound 3GI3 (+90 °C)DIN VDE 0207-20
3Short-lay core assembly3 phase cores laid up with split earth and insulated pilot cores around central fillerDIN VDE 0250-812
4Inner sheathHalogen-free elastomeric compound filling core intersticesDIN VDE 0250-812
5Anti-torsion reinforcementOpen-weave high-tenacity polyamide textile braid vulcanised between sheathsRig reel anti-torsion design
6Outer sheathEther-based halogen-free polyurethane TMPU (EN 50363-10-2), high-visibility yellowEN 50363-10-2 TMPU

Symmetrical 3+3E+3P

3 power cores + concentric/split earth + 1–4 pilot cores for Scandinavian/European drill jumbos.

ROCKFLEX-PUR (4G+P)

4 main cores (3 phase + full-size PE) + 2–4 pilot cores for mobile tunnel equipment.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-812 / EN 50525-2-21 (TMPU). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV (Umax 1.2 kV)
Max. operating DC voltage
1.8 kV DC
AC routine test voltage
3.5 kV rms / 5 min (power) · 2.0 kV (pilot)
Insulation resistance @ 20 °C
≥ 100 MΩ·km

Thermal

Max. conductor operating temp.
+90 °C continuous
Max. short-circuit temperature
+250 °C (max. 5 s)
Ambient temp. (mobile / trailing)
-25 °C to +80 °C
Ambient temp. (fixed installation)
-40 °C to +80 °C

Mechanical

Max. permanent tensile load
20 N/mm² of total copper cross-section
Min. bending radius (fixed)
6 × cable outer diameter
Min. bending radius (reeling/traili
10 × cable outer diameter
Abrasion & tear resistance
DIN EN 50363-10-2 TMPU extra-heavy duty

Resistance

Halogen-free & low smoke
IEC 60754-1 / IEC 60754-2 halogen-free PUR
Oil & hydraulic fluid resistance
IEC 60811-404 mineral & ester oil resistant
Flame retardancy
IEC 60332-1-2 vertical flame test
Water & hydrolysis resistance
Ether-based PUR for continuous mine water

Reference standards

Design basis
DIN VDE 0250-812 / SS 424 14 75 / EN
Conductor standard
IEC 60228 / DIN EN 60228 Class 5
Sheath compound standard
DIN EN 50363-10-2 TMPU

Identification

Power core identification
Brown, Black, Grey (+ Green/Yellow or split
Pilot core identification
White numbered or Red/White control cores
Outer sheath colour
High-visibility yellow (RAL 1021) or orange

Sizes

12 standard configurations (ROCKFLEX-PUR)

Nominal dimensions, copper weights and electrical parameters for ROCKFLEX-PUR per DIN VDE 0250-812 / EN 50525-2-21 (TMPU).

Dimensions & weights
Order designationConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard ROCKFLEX-PUR configurations
ROCKFLEX-PUR 3×16+3×16/3E+3×2.53×16 + 3×16/3E + 3×2.51627.57151,180165
ROCKFLEX-PUR 3×25+3×16/3E+3×2.53×25 + 3×16/3E + 3×2.52531.09751,520186
ROCKFLEX-PUR 3×35+3×16/3E+3×2.53×35 + 3×16/3E + 3×2.53534.21,2651,890205
ROCKFLEX-PUR 3×50+3×25/3E+3×2.53×50 + 3×25/3E + 3×2.55038.61,7902,540232
ROCKFLEX-PUR 3×70+3×35/3E+3×2.53×70 + 3×35/3E + 3×2.57043.52,4803,380261
ROCKFLEX-PUR 3×95+3×50/3E+3×2.53×95 + 3×50/3E + 3×2.59548.83,3904,450293
ROCKFLEX-PUR 3×120+3×70/3E+3×2.53×120 + 3×70/3E + 3×2.512053.54,3205,560321
ROCKFLEX-PUR 3×150+3×70/3E+3×2.53×150 + 3×70/3E + 3×2.515058.25,1806,640349
ROCKFLEX-PUR 4G35+2×1.54G35 + 2×1.53533.81,3751,950203
ROCKFLEX-PUR 4G50+2×1.54G50 + 2×1.55038.41,9502,680230
ROCKFLEX-PUR 4G70+2×2.54G70 + 2×2.57043.82,7353,620263
ROCKFLEX-PUR 4G95+2×2.54G95 + 2×2.59549.53,7004,790297
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per DIN VDE 0250-812 / EN 50525-2-21 (TMPU).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage withstand test3.5 kV rms / 5 min on power cores; 2.0 kV on pilot cores100 % of drums
Conductor DC resistanceComplies with IEC 60228 Class 5 at 20 °C100 % of drums
Sample tests
PUR sheath tear & abrasion testEN 50363-10-2 TMPU mechanical & oil immersionPer production batch
Halogen acid gas & flame testIEC 60754-1/2 halogen-free & IEC 60332-1-2Qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-812EN 50363-10-2 TMPUIEC 60754-1/2

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX ROCKFLEX-PUR 0.6/1 kV
Delivery form
Fumigated export wooden drums
Standard drum lengths
300 m · 500 m · 1000 m (or custom cut
MOQ
100 m (stock sizes) · 300 m (custom build)
Lead time
3–5 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFROCKFLEX-PUR PUR Power and Pilot Cable for Underground – technical datasheet12 sizes · construction, technical data, approvalsXLSXROCKFLEX-PUR spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20
