DIN VDE 0250-812 / 813 mining trailing cablesDIN VDE 0250-812 / 8130.6/1 kV · 1.8/3 kV · 3.6/6 kVTG Textile + SH Elastomer Screen

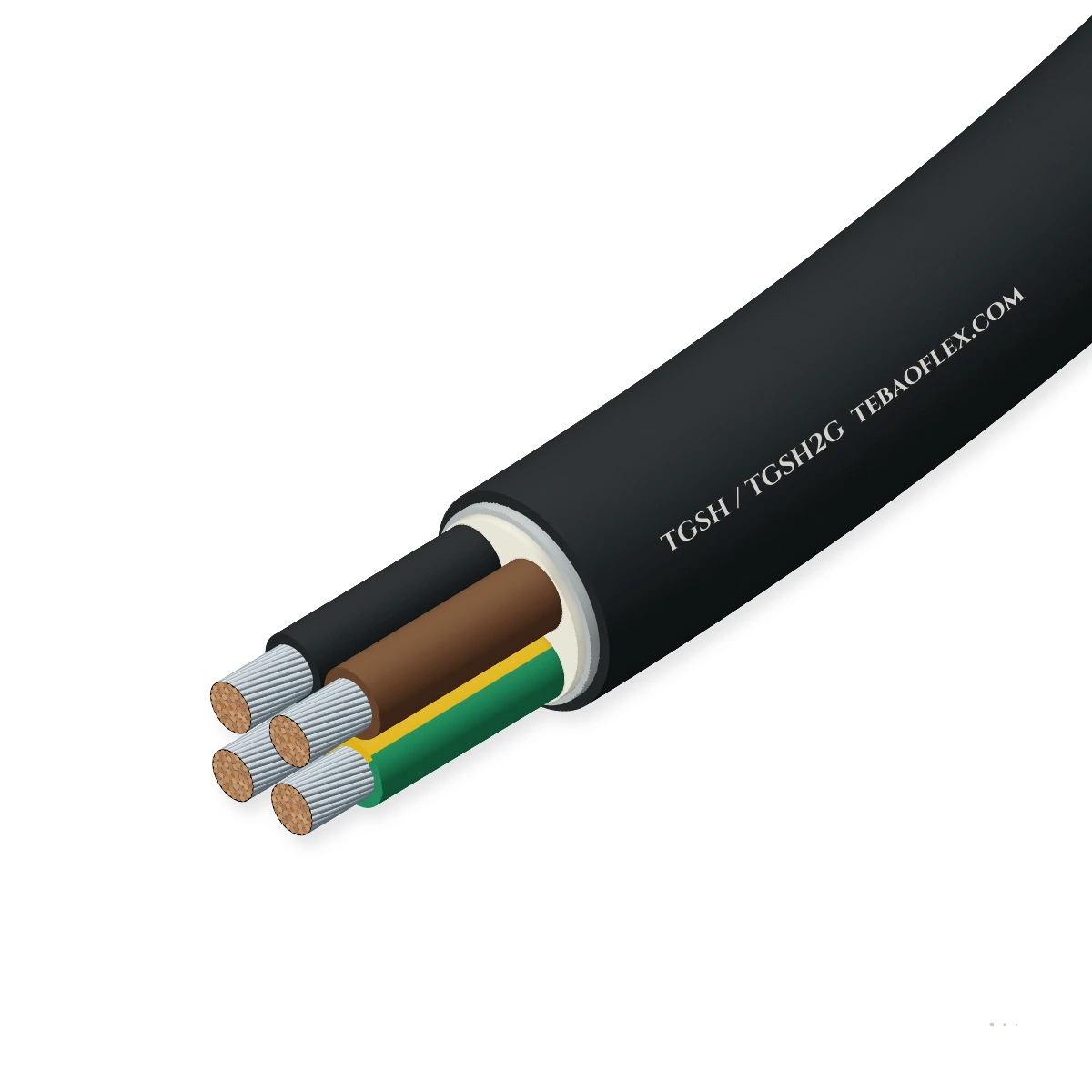

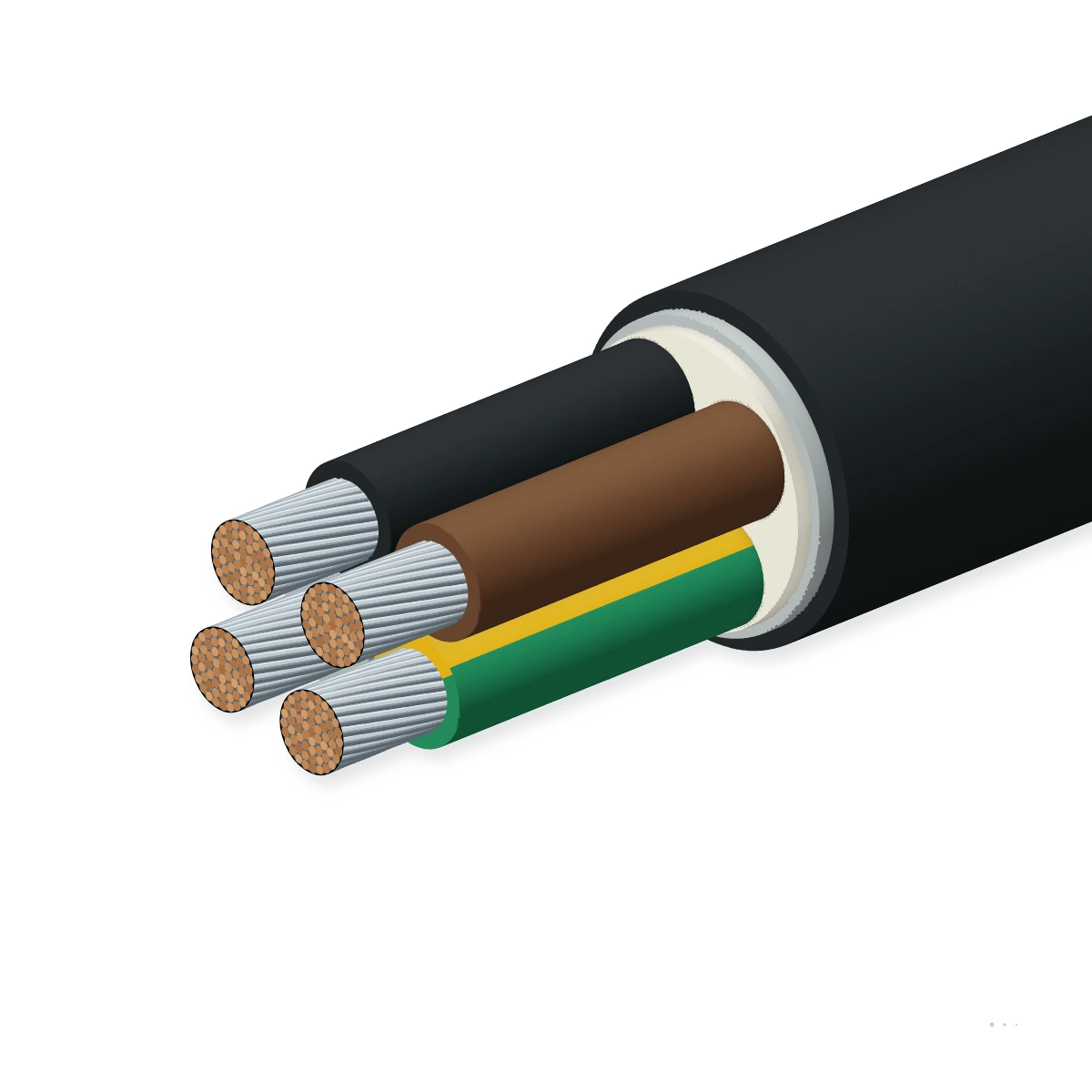

TGSH / TGSH2G Underground Longwall Coal-Shearer Flexible RubberDIN VDE 0250-812 / 813 0.6/1–3.6/6 kV textile-braid & semicon-screened shearer cable

TGSH / TGSH2G is an underground longwall coal-shearer flexible rubber trailing cable combining a vulcanised textile reinforcement braid (TG = Textilgeflecht) with non-metallic semi-conductive elastomeric phase and control screens (SH = Schirm aus

EMC screen
Anti-torsion braid
Oil-resistant
Flame-retardant
Order designation
TGSH 3×95+3×50/3E+4×4 0.6/1 kV
Outer Ø ≈
53.8 mm
Copper weight
3,490 kg/km
Total weight ≈
4,780 kg/km
Min. bend R (fixed)
269 mm
All sizes (10)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
1 to 3.6/6 kV
0.6/1 kV, 1.8/3 kV & 3.6/6 kV
Screen system
SH Elastomer
Wire-free conductive rubber screen
Sheath braid
TG Textile Braid
Anti-tear & anti-torsion braid
Insulation
3GI3 / 2G (+95°)
Heat-resistant EPR / 2G elastomer
Outer sheath
5GM5 PCP
Extra-heavy coal-face rubber
Min. bend radius
5×D / 6×D
High-cycle Bretby chain flexing

Typical values for this cable type, based on DIN VDE 0250-812 / VDE 0250-813 (TGSH / TGSH2G) — confirmed in the datasheet and quotation for your order.

Application fit

Is TGSH / TGSH2G right for your machine?

Purpose-engineered for underground longwall coal shearers operating inside tight Bretby cable handler chains where wire-free SH elastomeric screens eliminate broken-wire short circuits.

Longwall shearer & Bretby handler

Suitable

Wire-free SH conductive elastomer screens survive millions of tight Bretby chain reverse bends.

Mine roadway & tunnel wall hangers

Suitable

TG textile braid vulcanised between inner and outer 5GM5 sheaths stops jacket tearing.

Trailing & towing

Suitable

High tensile and torsional stability during high-speed shearer bidirectional cutting passes.

Festoon & line chain

Suitable

5×D bend capability suits gallery monorail festoon loops feeding the face.

Typical machinesUnderground longwall coal shearersBretby drag-chain cable handlers1.1 kV, 3.3 kV & 6 kV coal facesRoadheaders & face conveyors

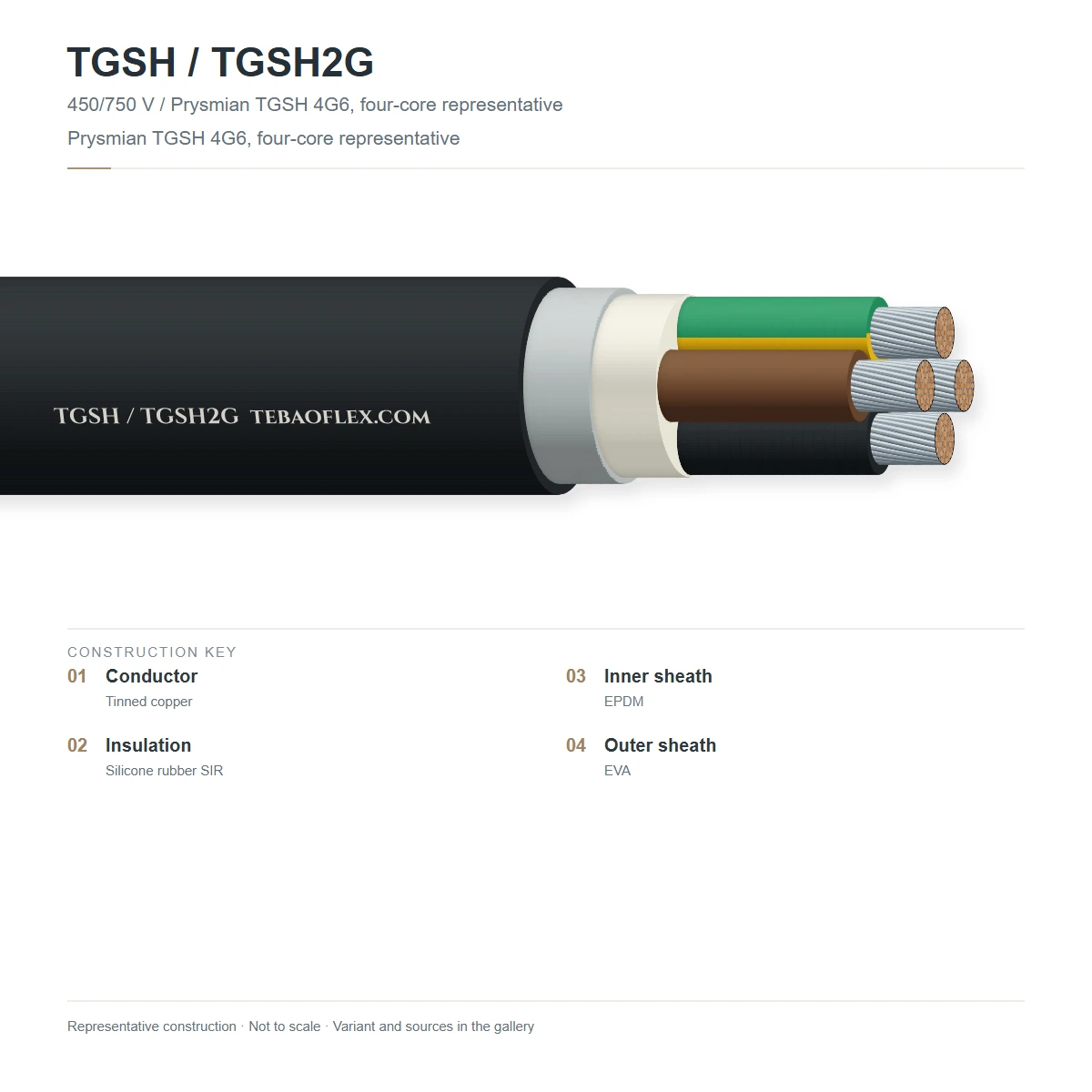

Construction

Layer by layer

Three Class 5 tinned copper phase conductors insulated with 3GI3 EPR (TGSH) or high-temperature 2G elastomer (TGSH2G), extruded SH

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Phase, earth & control conductorsFinely stranded tinned annealed copper, Class 5 per DIN EN 60228DIN EN 60228 Class 5
23GI3 / 2G core insulationCross-linked EPR 3GI3 (+90 °C in TGSH) or high-temp 2G elastomer (+95/+105 °C in TGSH2G)DIN VDE 0207-20
3Elastomeric phase screen (SH)Heavy-wall conductive elastomer screen (≤ 300 Ω·cm) draining to bare split earth coresDIN VDE 0250-812 / 813
4Symmetrical core & pilot lay-up3 SH-screened phase cores + 3 bare interstitial earth cores + central screened controlDIN VDE 0250-812
5Inner sheath & TG textile braid5GM3 inner bedding + vulcanised high-tenacity synthetic textile braid (Textilgeflecht)DIN VDE 0250-812
6Outer sheath (5GM5)Extra-heavy flame-retardant, oil- and tear-resistant polychloroprene 5GM5DIN VDE 0207-21

TGSH (3GI3 EPR +90 °C)

Standard 0.6/1 kV, 1.8/3 kV, or 3.6/6 kV textile-reinforced elastomeric-screened longwall shearer cable.

TGSH2G (High-Temp 2G +95/+105 °C)

Upgraded thermal-endurance 2G insulation compound for heavily loaded high-horsepower longwall shearers.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-812 / VDE 0250-813 (TGSH / TGSH2G). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV · 1.8/3 kV (3.3 kV) · 3.6/6 kV AC
AC routine test voltage
3.0 kV (1 kV) · 6.5 kV (3 kV) · 11 kV (6
SH screen volume resistivity
≤ 300 Ω·cm conductive elastomer
Control bundle voltage
230/400 V AC screened pilot/control cores

Thermal

Max. conductor temp. (TGSH / TGSH2G)
+90 °C (TGSH) · +95/+105 °C (TGSH2G)
Max. short-circuit temperature
+250 °C (5 s)
Ambient temperature (flexing)
-25 °C to +60 °C

Mechanical

Bretby flex-fatigue immunity
100 % free of metallic screen wires that
Min. bending radius (fixed
5 × D fixed · 6 × D flexing
Max. tensile load
20–25 N/mm² supported by TG textile braid

Resistance

Oil & hydraulic emulsion
DIN EN 60811-404 resistant
Flame retardancy
DIN EN 60332-1-2 self-extinguishing
Tear & cut propagation
TG textile braid + 5GM5 polychloroprene

Reference standards

Design basis
DIN VDE 0250-812 / DIN VDE 0250-813
Conductor standard
DIN EN 60228 Class 5 tinned copper
Compound standard
DIN VDE 0207-20 & 0207-21 (5GM5)

Identification

Core coding
3 phase cores + 3 bare split earth cores +
Outer sheath colour
Yellow or Orange high-visibility coal-face

Sizes

10 standard configurations (TGSH / TGSH2G)

Nominal dimensions, copper weights and electrical parameters for TGSH / TGSH2G per DIN VDE 0250-812 / VDE 0250-813 (TGSH / TGSH2G).

Dimensions & weights
Order designationConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard TGSH / TGSH2G configurations
TGSH 3×35+3×16/3E+4×2.5 0.6/1 kV3×35 + 3×16/3E + 4×2.5 (0.6/1 kV)3539.51,3102,180198
TGSH 3×50+3×25/3E+4×2.5 0.6/1 kV3×50 + 3×25/3E + 4×2.5 (0.6/1 kV)5043.81,8402,840219
TGSH 3×70+3×35/3E+4×4 0.6/1 kV3×70 + 3×35/3E + 4×4 (0.6/1 kV)7048.52,5703,710242
TGSH 3×95+3×50/3E+4×4 0.6/1 kV3×95 + 3×50/3E + 4×4 (0.6/1 kV)9553.83,4904,780269
TGSH2G 3×50+3×25/3E+4×4 1.8/3 kV3×50 + 3×25/3E + 4×4 (1.8/3 kV TGSH2G)5047.21,8903,240236
TGSH2G 3×70+3×35/3E+4×4 1.8/3 kV3×70 + 3×35/3E + 4×4 (1.8/3 kV TGSH2G)7052.02,5704,120260
TGSH2G 3×95+3×50/3E+4×4 1.8/3 kV3×95 + 3×50/3E + 4×4 (1.8/3 kV TGSH2G)9557.43,4905,250287
TGSH2G 3×120+3×70/3E+4×4 1.8/3 kV3×120 + 3×70/3E + 4×4 (1.8/3 kV TGSH2G)12062.04,4306,380310
TGSH2G 3×70+3×35/3E+4×4 3.6/6 kV3×70 + 3×35/3E + 4×4 (3.6/6 kV TGSH2G)7055.22,5904,480276
TGSH2G 3×95+3×50/3E+4×4 3.6/6 kV3×95 + 3×50/3E + 4×4 (3.6/6 kV TGSH2G)9560.53,5105,640302
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per DIN VDE 0250-812 / VDE 0250-813 (TGSH / TGSH2G).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage withstand test3.0 kV (1 kV), 6.5 kV (3 kV), or 11 kV (6 kV) rms / 5 min100 % of drums
SH conductive elastomer resistivity≤ 300 Ω·cm and continuous contact with split earth cores100 % of drums
Sample tests
Bretby reverse-bending enduranceZero dielectric or screen degradation after cyclic flexingPer production batch
Flame & oil resistanceDIN EN 60332-1-2 & EN 60811-404Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-812 / 813DIN EN 60332-1-2EN 10204 3.1

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX TGSH / TGSH2G LONGWALL
Delivery form
Fumigated export wooden drums
Standard drum lengths
300 m · 500 m · 1000 m (or custom cut
MOQ
100 m (stock sizes) · 300 m (custom build)
Lead time
3–5 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFTGSH / TGSH2G Underground Longwall Coal-Shearer Flexible Rubber – technical datasheet10 sizes · construction, technical data, approvalsXLSXTGSH / TGSH2G spec data (Excel)All 10 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between TGSH and TGSH2G?
Both cables combine a vulcanised textile reinforcement braid (TG = Textilgeflecht) with non-metallic semi-conductive elastomeric core screens (SH = Schirm aus halbleitendem Elastomer). TGSH uses standard +90 °C 3GI3 EPR insulation, while TGSH2G upgrades the insulation to a high-temperature 2G elastomer compound for higher current density on ultra-high-power longwall shearers.
Why do longwall coal operators prefer SH elastomeric screens over braided copper wire screens?
Inside a longwall Bretby cable handler, the cable bends back and forth thousands of times under tension. Metallic screen wires eventually suffer fatigue fracture, and broken wire ends pierce the phase insulation. The SH conductive rubber screen contains no thin wires to snap while maintaining full earth-leakage protection via the bare interstitial earth conductors.
What voltage ratings are covered by the TGSH / TGSH2G series?
TGSH and TGSH2G are manufactured for 0.6/1 kV (1000 V / 1140 V), 1.8/3 kV (3.3 kV longwall systems), and 3.6/6 kV (see also (N)TS-TGSH 3.6-6 kV) to cover all standard underground longwall shearer voltage levels. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
How does the TG textile braid improve cable service life on the coal face?
Vulcanised between the inner and outer 5GM5 polychloroprene sheaths, the high-tenacity TG textile braid locks the two rubber layers into a single composite shell that resists longitudinal ripping, Bretby link pinching, and torsional twisting. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
