DIN VDE 0250-812 / 813 mining trailing cablesDIN VDE 0250-8120.6/1 kV · KON+ST+ÜL3GI3 EPR + 5GM5 PCP

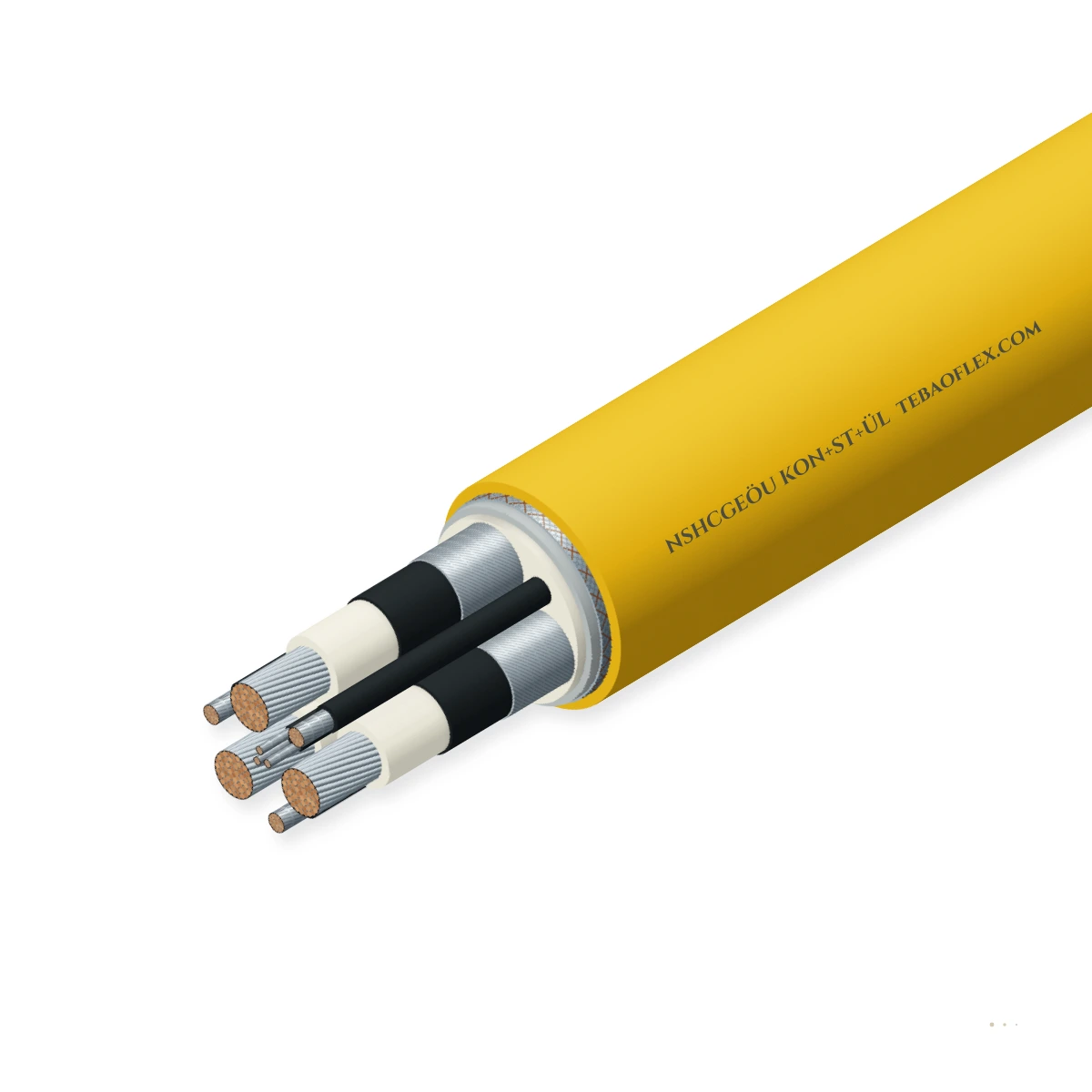

NSHCGEÖU KON+ST+ÜL Mining Trailing CableDIN VDE 0250-812 0.6/1 kV mining trailing cable with KON concentric earth, ST control &

NSHCGEÖU KON+ST+ÜL is a heavy-duty DIN VDE 0250-812 0.6/1 kV (and 1.8/3 kV) underground mining trailing cable featuring semi-conductive field/fault screening (GE), an overall concentric copper/steel earth-and-monitoring screen (KON + ÜL), and integrated

EMC screen
Oil-resistant
Flame-retardant
Anti-torsion braid
Order designation
NSHCGEÖU 3×50+4×2.5ST+25KON+ÜL
Outer Ø ≈
43.0 mm
Copper weight
1,825 kg/km
Total weight ≈
2,980 kg/km
Min. bend R (fixed)
258 mm
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
Umax 1.2 kV (1.8/3 kV option)
Monitoring
KON + ST + ÜL
Concentric earth + pilot + control
Field screen
GE Semicon
Conductive elastomer fault screen
Insulation
3GI3 EPR
+90 °C ozone-resistant EPR
Outer sheath
5GM5 PCP
Extra-heavy oil/flame rubber
Operating temp.
-25 to +80 °C
Max. conductor +90 °C

Typical values for this cable type, based on DIN VDE 0250-812 — confirmed in the datasheet and quotation for your order.

Application fit

Is NSHCGEÖU KON+ST+ÜL right for your machine?

Designed for underground coal mines, potash workings, and gallery roadheaders requiring instantaneous earth-fault and radial crush detection via concentric KON+ÜL monitoring.

Mine roadway & tunnel wall hangers

Suitable

Concentric KON+ÜL screen trips mine gate-end box relays immediately if a rock fall crushes the sheath.

Trailing & towing

Suitable

5GM5 polychloroprene jacket withstands heavy dragging behind roadheaders, loaders, and shuttle cars.

Longwall shearer & Bretby handler

Suitable

Flexible Class 5 tinned copper conductors and elastomeric GE layers tolerate chain-handler flexing.

Fixed installation

Suitable

Approved for roadway gallery hooks, mobile substation feeders, and gate-end interconnect spans.

Vertical / spreader reel

Not suitable

Not intended for free-hanging vertical shaft suspension without steel wire armour.

NSSHKCGERLÖU or NTSCGECCWÖU
Typical machinesUnderground coal & potash miningRoadheader & continuous miner feedersLongwall gate-end distributionTunnel gallery excavation

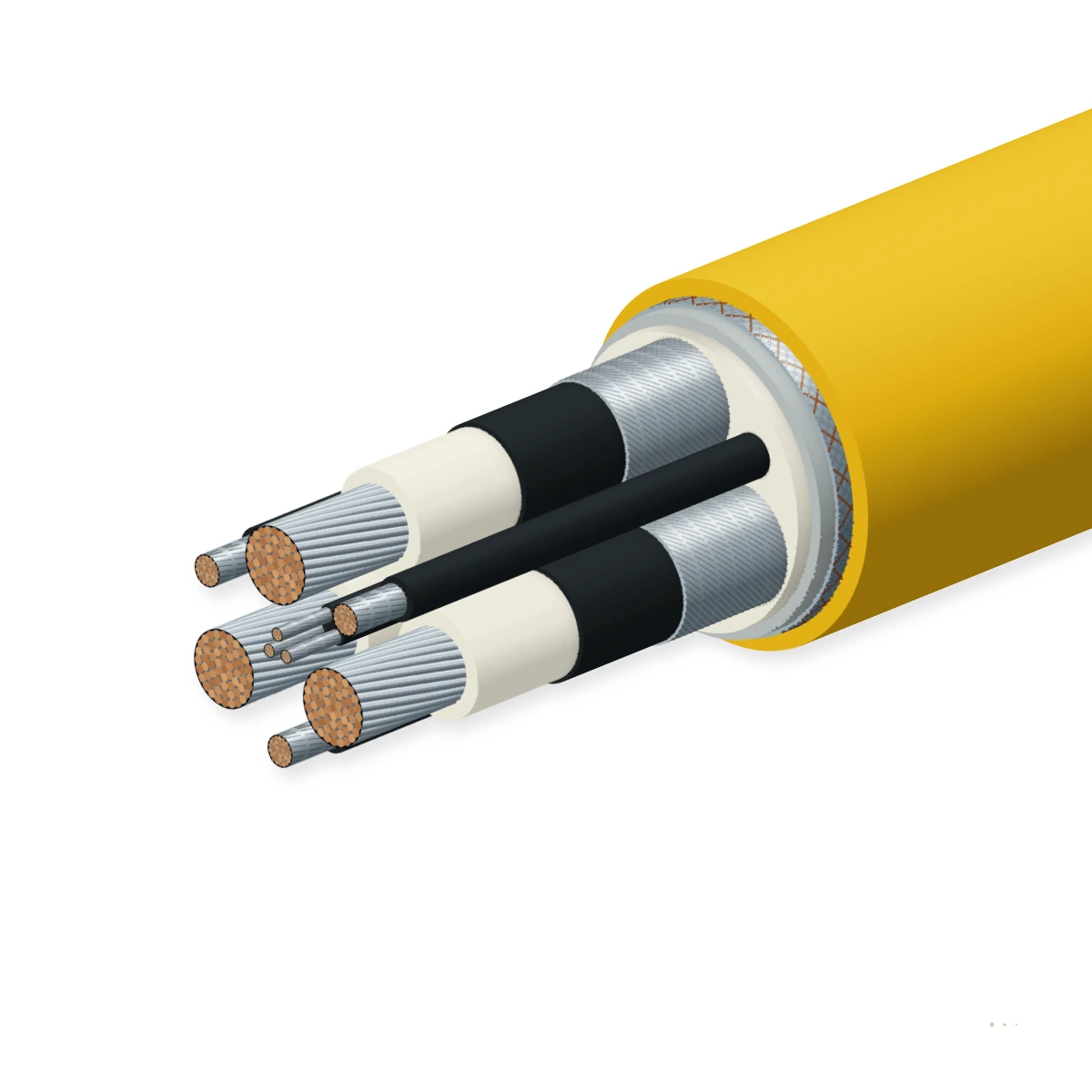

Construction

Layer by layer

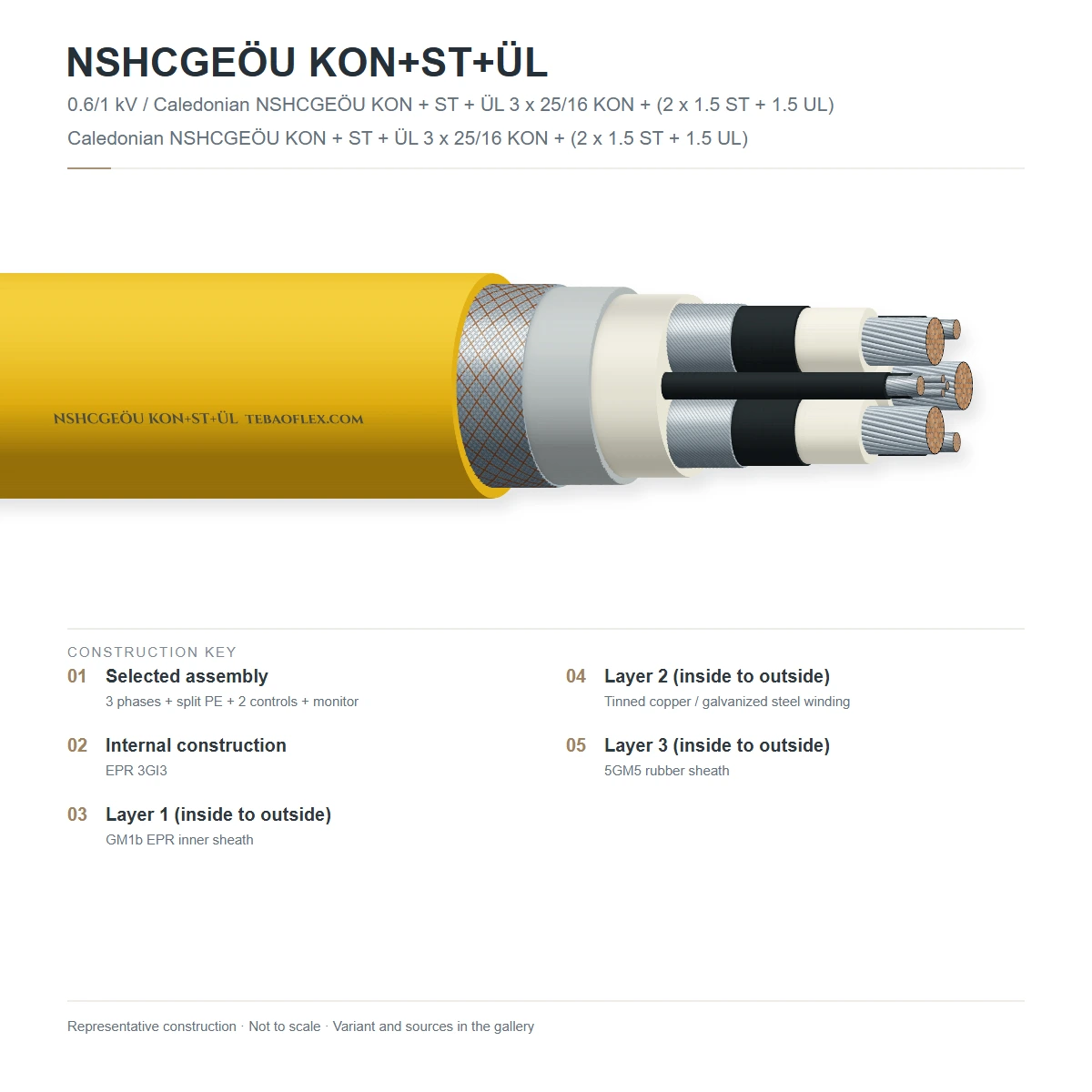

Three Class 5 tinned copper phase cores with 3GI3 EPR insulation, integrated ST control cores, inner elastomer sheath, GE semi-conductive

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Phase & ST control conductorsTinned finely stranded copper, Class 5 per DIN EN 60228DIN EN 60228 Class 5
2Core insulation (3GI3)Cross-linked ethylene propylene rubber compound 3GI3DIN VDE 0207-20
3Core & control lay-up3 power cores + insulated ST control cores laid up around elastomeric cradleDIN VDE 0250-812
4Inner sheath & GE layerGM1b elastomer inner bedding with semi-conductive elastomeric layer (GE)DIN VDE 0250-812
5Concentric KON + ÜL screenHelical tinned copper wires with counter-helix copper tape & insulated ÜL monitoringDIN VDE 0250-812
6Outer sheath (5GM5)Heavy-duty flame-retardant, oil- and tear-resistant polychloroprene compound 5GM5DIN VDE 0207-21

NSHCGEÖU KON+ÜL

3 phase cores + concentric earth/monitoring screen without auxiliary ST control cores.

NSHCGEÖU KON+ST+ÜL

3 phase cores + 3 to 7 ST control cores + overall concentric KON earth and ÜL pilot screen.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-812. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV (Umax 1.2 kV)
Control & ÜL core voltage
230/400 V AC
AC test voltage (power / control)
3.0 kV rms / 2.0 kV rms (5 min)
Screen transfer impedance
Low-impedance concentric KON copper fault

Thermal

Max. conductor operating temp.
+90 °C
Max. short-circuit temperature
+250 °C (5 s)
Ambient temperature (flexing)
-25 °C to +60 °C
Ambient temperature (fixed)
-40 °C to +80 °C

Mechanical

Max. tensile load on copper
15 N/mm²
Min. bending radius (fixed)
5 × cable outer diameter
Min. bending radius (flexing)
10 × cable outer diameter
Impact & crush protection
Concentric KON screen + semi-conductive GE

Resistance

Oil resistance
DIN EN 60811-404 (5GM5 compound)
Flame retardancy
DIN EN 60332-1-2 self-extinguishing
Abrasion & tear resistance
DIN VDE 0250-812 underground mining grade

Reference standards

Primary specification
DIN VDE 0250-812 (derived NSHCGEÖU design)
Conductor specification
DIN EN 60228 Class 5 tinned copper
Compound specifications
DIN VDE 0207-20 (3GI3) & 0207-21 (5GM5)

Identification

Core coding
DIN VDE 0293-308 colour/numbered cores
Outer sheath colour
Yellow (mining visibility) or Black with

Sizes

8 standard configurations (NSHCGEÖU KON+ST+ÜL)

Nominal dimensions, copper weights and electrical parameters for NSHCGEÖU KON+ST+ÜL per DIN VDE 0250-812.

Dimensions & weights
Order designationConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard NSHCGEÖU KON+ST+ÜL configurations
NSHCGEÖU 3×16+4×2.5ST+16KON+ÜL3×16 + 4×2.5 ST + 16 KON + ÜL1631.57401,460189
NSHCGEÖU 3×25+4×2.5ST+16KON+ÜL3×25 + 4×2.5 ST + 16 KON + ÜL2535.01,0051,850210
NSHCGEÖU 3×35+4×2.5ST+16KON+ÜL3×35 + 4×2.5 ST + 16 KON + ÜL3538.21,2952,260229
NSHCGEÖU 3×50+4×2.5ST+25KON+ÜL3×50 + 4×2.5 ST + 25 KON + ÜL5043.01,8252,980258
NSHCGEÖU 3×70+4×2.5ST+35KON+ÜL3×70 + 4×2.5 ST + 35 KON + ÜL7047.82,5103,910287
NSHCGEÖU 3×95+4×2.5ST+50KON+ÜL3×95 + 4×2.5 ST + 50 KON + ÜL9553.43,4305,060320
NSHCGEÖU 3×120+4×2.5ST+70KON+ÜL3×120 + 4×2.5 ST + 70 KON + ÜL12058.04,3806,240348
NSHCGEÖU 3×150+4×2.5ST+70KON+ÜL3×150 + 4×2.5 ST + 70 KON + ÜL15062.55,2407,380375
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per DIN VDE 0250-812.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage withstand test3.0 kV rms / 5 min on phase cores; 2.0 kV on ST/ÜL cores100 % of drums
Semi-conductive GE & KON continuityContinuity & transfer resistance per DIN VDE 0250-812100 % of drums
Sample tests
5GM5 tear & oil resistanceDIN VDE 0207-21 & DIN EN 60811-404Per production batch
Flame propagation testDIN EN 60332-1-2 self-extinguishingType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-812DIN EN 60332-1-2RoHS / CE

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX NSHCGEÖU KON+ST+ÜL 0.6/1 kV VDE
Delivery form
Fumigated export wooden drums
Standard drum lengths
300 m · 500 m · 1000 m (or custom cut
MOQ
100 m (stock sizes) · 300 m (custom build)
Lead time
3–5 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFNSHCGEÖU KON+ST+ÜL Mining Trailing Cable – technical datasheet8 sizes · construction, technical data, approvalsXLSXNSHCGEÖU KON+ST+ÜL spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
