High-temperature wires & cablesUL AWM Style 11905600 Vac · 300 °CExtruded PFA (30–8 AWG)

PFA High-Temperature Wire (UL AWM Style 11905)600 Vac 300 °C melt-extruded perfluoroalkoxy (PFA) single-core lead wire

600 Vac high-temperature single-conductor hook-up and appliance lead wire to UL 758 AWM Style 11905 (30 to 8 AWG), combining nickel-plated or copper conductors with pinhole-free melt-extruded perfluoroalkoxy (PFA) fluoropolymer insulation rated up to +300 °C.

Flame-retardant
Oil-resistant
Outdoor & humid
Approved
Order designation
UL 11905 · 18 AWG
Nominal OD
2.24 mm
PFA wall
0.51 mm
Mass ≈
14.2 kg/km
Max. DC res.
21.6 Ω/km
Check against my drumAll sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Max. operating T
+300 °C
UL 758 Style 11905 rating
Rated voltage
600 Vac
2.0 kV AC dielectric test
Insulation
Extruded PFA
Melt-extruded PFA fluoropolymer
AWG range
30–8 AWG
12 sizes from 30 to 8 AWG
Flammability
UL VW-1 / FT1
Self-extinguishing UL VW-1
Min. bend radius
6 × OD / 10 × OD
Fixed 6× · Flexing 10× OD

Typical values for this cable type, based on UL 758 Style 11905 — confirmed in the datasheet and quotation for your order.

Application fit

Is UL 11905 PFA High-Temp Wire right for your machine?

Melt-extrudable PFA fluoropolymer wire rated from -80 °C to +260 °C for continuous long-length runs in semiconductor furnaces, chemical baths and heaters.

Furnace, kiln & high-temp zone

Suitable

Continuous +260 °C service around industrial furnaces, autoclave feeds and semiconductor process tools.

Switchgear & control cabinet wiring

Suitable

High-purity internal harness and instrumentation wiring in chemical and cleanroom control panels.

Immersion & wet locations

Suitable

PFA is virtually impermeable to acids, solvents, steam and aggressive wet chemical splash.

Trailing & towing

Not suitable

Single-core fluoropolymer insulation lacks an elastomeric outer jacket for floor dragging.

Use NSSHÖU Heavy Rubber

Motorised monospiral reel

Not suitable

Fixed / internal high-temperature wire; not designed for dynamic reeling.

Use (N)SHTÖU Reeling
Typical machinesSemiconductor wafer & wet-bench toolsIndustrial ovens, kilns & band heatersChemical processing & corrosive vapour zonesAerospace & downhole high-temp sensorsMedical & pharmaceutical autoclavesHigh-intensity UV & halogen curing lamps

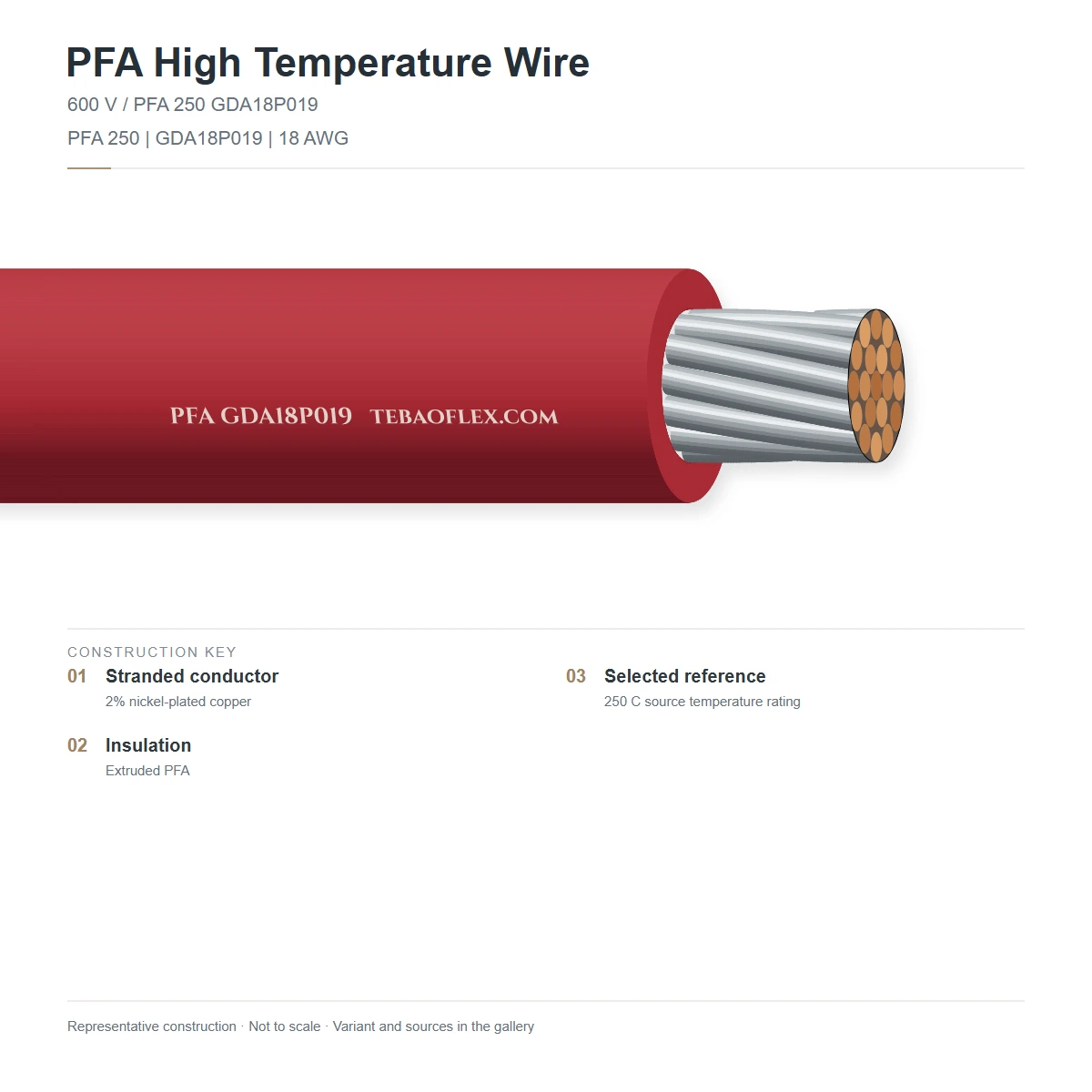

Construction

Layer by layer

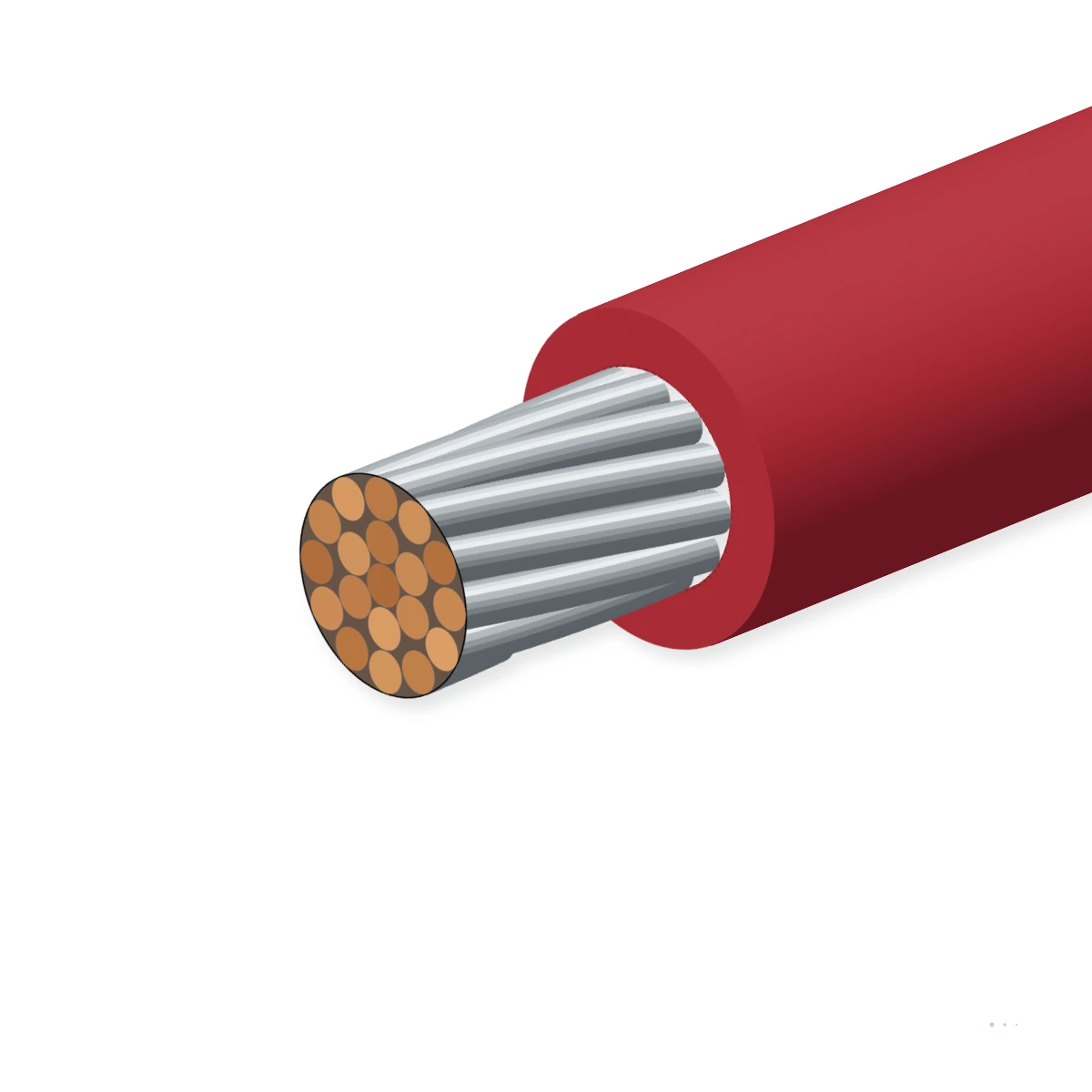

A single solid or concentric-stranded copper conductor (nickel-plated for full 300 °C UL 11905 thermal class) from 30 to 8 AWG is insulated with a homogeneous melt-extruded wall of perfluoroalkoxy (PFA, 0.51 mm on 30–10 AWG; 0.76 mm on 8 AWG) with no outer glass braid required.

123
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Annealed copper conductor coreSolid or concentric-stranded high-conductivity annealed copper, 30 to 8 AWGUL 758 Style 11905
2Nickel oxidation barrier plating2% or 27% nickel coating per ASTM B355 for 300 °C thermal class (or silver/bare copper per part specification)ASTM B355 / UL 758
3Extruded PFA insulationMelt-extruded perfluoroalkoxy (PFA) fluoropolymer, 0.51 mm (30–10 AWG) or 0.76 mm (8 AWG) radial wallUL 758 Style 11905

UL AWM Style 11905 · 30 to 10 AWG (0.51 mm wall)

600 Vac · 300 °C · Stranded or solid nickel-plated copper + 0.020 in (0.51 mm) extruded PFA insulation

UL AWM Style 11905 · 8 AWG (0.76 mm wall)

600 Vac · 300 °C · 133/29 stranded nickel-plated copper + 0.030 in (0.76 mm) extruded PFA insulation

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 758 Style 11905. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
600 Vac (UL 758 AWM Style 11905)
Dielectric test & permittivity
2.0 kV AC dielectric test + 6.0 kV spark test · dielectric constant ~2.1 across −90 °C to +260/300 °C
Conductor & plating options
Solid or stranded nickel-plated copper (for full 300 °C UL 11905 duty) or silver-plated/bare copper per part schedule (30 to 8 AWG)

Thermal

Operating temperature rating
−90 °C to +300 °C UL AWM Style 11905 rating (with 2% or 27% nickel-plated copper conductor; +260 °C continuous polymer service)
Melt-extrudable fluoropolymer stability
Perfluoroalkoxy (PFA) melting point ~305–310 °C enables continuous +260 to +300 °C rating in long splice-free spools

Mechanical

Extruded PFA wall thickness
0.020 in (0.51 mm) nominal extruded PFA radial wall (30 to 10 AWG) · 0.030 in (0.76 mm) on 8 AWG
Minimum bending radius
6 × OD fixed; 10 × OD flexing

Resistance

Flame & chemical resistance
UL VW-1 vertical flame retardant; complete chemical inertness to strong acids, bases, halogens, solvents, oils and steam
High-purity & ultra-low outgassing
Ultra-low extractables, zero plasticisers and < 0.03% moisture absorption for semiconductor & cleanroom duty

Reference standards

Applicable standard
UL 758 AWM Style 11905
Environmental compliance
RoHS & REACH compliant fluoropolymer insulation system

Identification

Base construction definition
Single conductor with homogeneous melt-extruded PFA insulation; no outer glass braid required
Standard insulation colours
Natural translucent, White, Black, Red, Blue, Yellow, Green, Brown, Orange, Violet, Grey & Green/Yellow

Sizes

12 configurations across UL AWM Style 11905 PFA wire (30 to 8 AWG)

Nominal stranding, conductor diameter, extruded PFA wall thickness, finished OD, mass and max DC resistance at 20 °C.

Dimensions, weights & DC resistance
UL Style · AWGSize
AWG		CSA ≈
mm²		Stranding
(count/AWG)		Conductor
plating		Cond. Ø
mm		PFA wall
mm		Nominal OD
mm		Mass ≈
kg/km		Max. DC res. (20 °C)
Ω/km		Enquiry
UL 11905 · 30 AWG30 AWG0.0577/38NiCu (300 °C)0.300.511.323.1358.0
UL 11905 · 28 AWG28 AWG0.0897/36NiCu (300 °C)0.380.511.403.7226.0
UL 11905 · 26 AWG26 AWG0.15519/38NiCu (300 °C)0.480.511.504.6137.0
UL 11905 · 24 AWG24 AWG0.24119/36NiCu (300 °C)0.610.511.635.887.5
UL 11905 · 22 AWG22 AWG0.38219/34NiCu (300 °C)0.760.511.787.654.8
UL 11905 · 20 AWG20 AWG0.61619/32NiCu (300 °C)0.970.511.9810.434.1
UL 11905 · 18 AWG18 AWG0.96319/30NiCu (300 °C)1.220.512.2414.221.6
UL 11905 · 16 AWG16 AWG1.2319/29NiCu (300 °C)1.370.512.3917.316.9
UL 11905 · 14 AWG14 AWG1.9419/27NiCu (300 °C)1.700.512.7224.510.7
UL 11905 · 12 AWG12 AWG3.0819/25NiCu (300 °C)2.180.513.2036.26.8
UL 11905 · 10 AWG10 AWG4.7437/26NiCu (300 °C)2.900.513.9154.04.4
UL 11905 · 8 AWG8 AWG8.61133/29NiCu (300 °C)4.240.765.77102.02.4
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Nickel-plated copper (2% or 27% nickel coating) prevents copper oxidation at 260–300 °C; solid conductor variants are also covered under UL 11905.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Enter your drum core diameterMinimum for this size is about 26 mm
Minimum bending radius
13 mm
Min. drum core diameter
≈ 26 mm
Cable weight on drum
1.4 kg
Outer diameter
2.2 mm
Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC dielectric & in-line spark test2.0 kV AC dielectric test and 100% 6.0 kV spark test per UL 758 Style 11905Every spool
Conductor DC resistance checkVerified at 20 °C across 30 to 8 AWGEvery spool
Sample tests
UL VW-1 vertical flame testSelf-extinguishing fluoropolymer flame test per UL 1581 VW-1Production lot
300 °C thermal aging testHigh-temperature oven aging and cold bend verification per UL 758Production lot

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UL AWM Style 11905CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX · E-file UL AWM STYLE 11905 · [AWG] · 300°C · 600V · VW-1 · PFA
Delivery form
Continuous splice-free melt-extruded spools and reels
Lengths
Standard spool lengths and custom cut-to-length leads
Certificate
EN 10204 3.1 inspection certificate with every dispatch
Quote response
Engineering specification and quote within 2 business hours

Technical documents

Downloads

PDFPFA High-Temperature Wire (UL AWM Style 11905) – technical datasheet12 sizes · construction, technical data, approvalsXLSXUL 11905 PFA High-Temp Wire spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does PFA (UL AWM Style 11905) compare with FEP and PTFE high-temperature wires?
PFA combines the +260 to +300 °C temperature rating of PTFE with the continuous melt-extrudability of FEP (which is limited to +200 °C). Unlike paste-extruded PTFE—which is limited by preform billet size—UL 11905 PFA wire can be extruded in long, continuous, splice-free lengths with higher flex life.
What conductor plating is required for 300 °C service in UL AWM Style 11905?
For continuous operation up to +300 °C under UL 758 Style 11905, nickel-plated copper (2% or 27% nickel coating) is specified to prevent high-temperature copper oxidation.
Does UL AWM Style 11905 include a fiberglass braid?
No. UL 758 Style 11905 is a single-conductor wire insulated solely with homogeneous melt-extruded PFA (0.51 mm wall on 30–10 AWG; 0.76 mm wall on 8 AWG), with no outer braid, shield or jacket.
What is the minimum bending radius for PFA high-temperature wire?
Maintain at least 6 × overall wire diameter for fixed routing and 10 × overall diameter for flexing applications.

Request a quote

Get an engineering quote for UL 11905 PFA High-Temp Wire

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

03Message for our engineers

PFA High Temperature Wire

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:
Send via WhatsApp
