Heavy-duty rubber cables (NSSHÖU)MGM 112 Type E2/E4/E5U0/U 660/1,100 V2/4/5-Core · Steel Armour

MGM 112 Type E2 / E4 / E5 Unscreened Armoured Auxiliary Cable660/1,100 V 2-, 4- & 5-core unscreened steel-wire-armoured mining rubber cable

Low-voltage 660/1,100 V unscreened steel-wire-armoured mining power and auxiliary cable to MGM 112 in Type E2 (2C), Type E4 (4C) and Type E5 (5C) with Class 5 tinned copper (2.5–150 mm²), GP8 EPR insulation, inner bedding, steel armour and PCP sheath.

EMC screen
Oil-resistant
Flame-retardant
Outdoor & humid
Order designation
MGM 112 Type E5 5×16
Outer Ø min
30.0 mm
Outer Ø max
32.6 mm
Weight ≈
2,110 kg/km
Min. bend R
196 mm
Check against my drumAll sizes (15)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
660/1,100 V
640/1,100 V AC · 3.0 kV test
Conductor temp.
+90 °C max.
+250 °C short-circuit (5 s)
Ambient temp.
−25…+80 °C
Flexing (−40…+80 °C fixed)
Bending radius
6–8 × OD
6 × OD fixed · 8 × OD flexing
Types covered
Type E2/E4/E5
2-core · 4-core · 5-core armoured
Size range
2.5–150 mm²
Class 5 SnCu + EPR + steel armour

Typical values for this cable type, based on MGM 112 / BS 6708 — confirmed in the datasheet and quotation for your order.

Application fit

Is MGM 112 Type E2 / E4 / E5 right for your machine?

MGM 112 Type E2, Type E4 and Type E5 provide unscreened-core, steel-wire-armoured 660/1,100 V cables for underground roadway lighting (2-core Type E2), 3-phase-plus-earth feeders (4-core Type E4) and 3-phase-plus-earth-plus-pilot circuits (5-core Type E5).

Trailing & towing

Suitable

Semi-mobile underground mining machinery, auxiliary pumps, fans, conveyors and roadway lighting strings.

Fixed installation

Suitable

Underground gallery wall cleats, substation interconnections, drift winches and mineral processing skids.

Immersion & wet locations

Suitable

Heavy-duty polychloroprene (RS4/EM2) outer jacket resists wet mine roadways, oil and rock abrasion.

Motorised monospiral reel

Not suitable

Steel wire armour is engineered for roadway and auxiliary interconnections, not fast crane reeling.

Use NSHTÖU Reeling
Typical machinesUnderground mine lighting & auxiliary powerMine ventilation fans & dewatering pumpsGate-end box & conveyor interlocks (5C)Quarry crushing & screening plantTunnel & shaft utility power distribution

Construction

Layer by layer

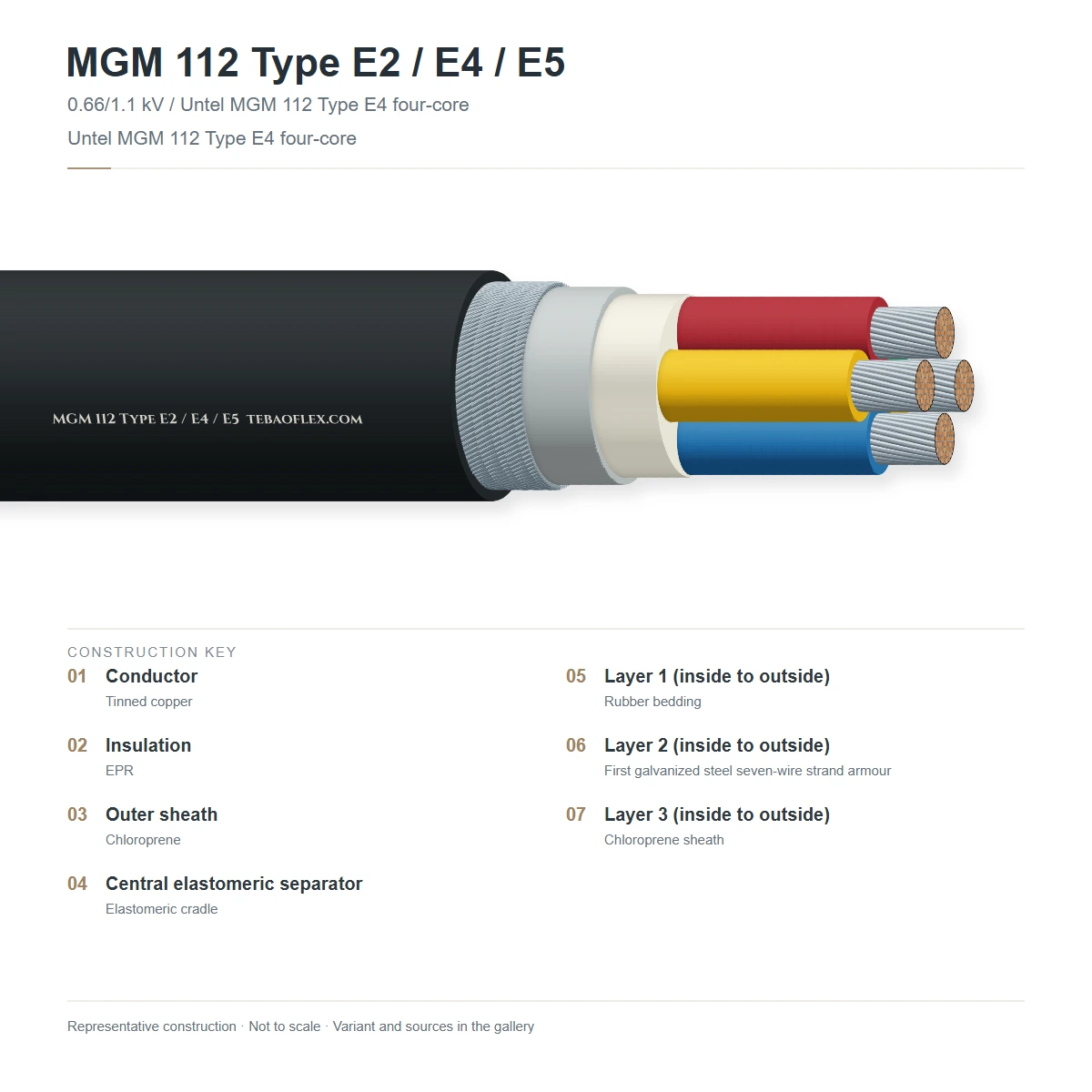

Shown: MGM 112 Type E5 5×16 — 5 unscreened EPR-insulated Class 5 tinned copper cores (3 phase + 1 earth + 1 pilot) laid around a central elastomeric filler, rubber inner bedding, galvanised steel wire armour and black PCP outer sheath.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Tinned copper conductorFine-stranded annealed tinned copper wire (IEC 60228 / BS EN 60228 Class 5)IEC 60228 Class 5
2EPR core insulationCross-linked ethylene-propylene rubber compound Type GP8 (+90 °C rated)BS 7655-1.2 GP8 / MGM 112
3Elastomeric center / cradleExtruded rubber cradle separator maintaining circularity and impact cushioningMGM 112 Type E2/E4/E5
4Elastomeric inner beddingExtruded vulcanised rubber inner sheath over the laid-up coresMGM 112 inner bedding
5Galvanised steel wire armourPliable / round galvanised steel wire armour providing high crush resistance and collective earth continuityMGM 112 / BS 6708
6Heavy-duty PCP outer sheathCross-linked polychloroprene (PCP / Type RS4 / EM2) extra-heavy-duty outer sheath, blackBS 7655-2.1 / IEC 60332-1-2

MGM 112 Type E2 (2×2.5 to 2×25 mm²)

2-core unscreened EPR-insulated armoured mining cable for lighting, single-phase and control supply

MGM 112 Type E4 (4×2.5 to 3×150+95 mm²)

4-core (3 phase + 1 earth) unscreened EPR-insulated armoured mining power cable

MGM 112 Type E5 (5×2.5 to 5×35 mm²)

5-core (3 phase + 1 earth + 1 pilot/neutral) unscreened EPR-insulated armoured mining cable

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on MGM 112 / BS 6708. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
660/1,100 V (640/1,100 V AC · 1.1 kV mining system)
AC test voltage
3000 V AC (50 Hz, 5 min)
Conductor stranding
IEC 60228 / BS EN 60228 Class 5 tinned copper
Core configurations
Type E2: 2C · Type E4: 4C (3P+E) · Type E5: 5C (3P+E+Pilot)
Collective armour path
Galvanised steel wire armour provides mechanical & earth screen

Thermal

Max. conductor temperature
+90 °C continuous operation
Short-circuit temperature
+250 °C max. (up to 5 s)
Temperature, flexing
−25 °C to +80 °C
Temperature, fixed
−40 °C to +80 °C

Mechanical

Min. bending radius, fixed
6 × overall diameter
Min. bending radius, moving
8 × overall diameter
Armour construction
Galvanised steel wire armour over extruded rubber inner bedding
Crush & impact duty
Heavy underground roadway, lighting & auxiliary feeder duty

Resistance

Flame retardance
IEC 60332-1-2 / BS EN 60332-1-2 underground mine flame test
Oil & hydraulic emulsion
EN 60811-404 mineral oil, grease & hydraulic fluid resistant
Mine water & humidity
Resistant to wet coal-mine roadways, sludge and grease
Abrasion & tear
Heavy-duty RS4/EM2 polychloroprene outer sheath

Reference standards

Primary specification
TTK MGM 112 (Type E2, Type E4 & Type E5) / BS 6708
Compound standards
BS 7655-1.2 GP8 (EPR) & BS 7655-2.1 RS4 / EN 50363 EM2 (PCP)
Conductor standard
IEC 60228 / BS EN 60228 Class 5
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour
Black
Core identification
Colour-coded or numbered cores + green-yellow earth (E4/E5)
Sheath marking
TEBAOFLEX MGM 112 TYPE E2 / E4 / E5 [Size] 660/1100V MINING CABLE
Customs tariff (HS)
8544.49 (insulated conductors ≤ 1000 V / 1100 V)

Sizes

15 standard MGM 112 Type E2 / E4 / E5 configurations

Typical MGM 112 / BS 6708 outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designationCores × mm²AWG ≈Outer Ø min
mm		Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
MGM 112 Type E2 — 2-Core Unscreened Armoured Lighting & Auxiliary Cables (660/1,100 V)
MGM 112 Type E2 2×2.52×2.51415.516.848460101
MGM 112 Type E2 2×42×41216.718.277560109
MGM 112 Type E2 2×62×61018.219.8115680119
MGM 112 Type E2 2×102×10820.822.6192910136
MGM 112 Type E4 — 4-Core Unscreened Armoured Power & Earth Cables (660/1,100 V)
MGM 112 Type E4 4×44×41219.321.0154760126
MGM 112 Type E4 4×104×10824.726.83841,340161
MGM 112 Type E4 4×164×16627.830.26141,790181
MGM 112 Type E4 3×35+1×253×35+1×25235.338.41,2483,050230
MGM 112 Type E4 3×70+1×353×70+1×352/043.747.52,3524,920285
MGM 112 Type E5 — 5-Core Unscreened Armoured Power + Earth + Pilot Cables (660/1,100 V)
MGM 112 Type E5 5×2.55×2.51419.020.6120710124
MGM 112 Type E5 5×45×41220.722.5192880135
MGM 112 Type E5 5×65×61022.824.82881,090149
MGM 112 Type E5 5×105×10826.528.84801,560173
MGM 112 Type E5 5×165×16630.032.67682,110196
MGM 112 Type E5 5×255×25434.837.81,2002,940227
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are typical values per MGM 112 / BS 6708. Minimum fixed bending radius shown is 6 × OD.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm is below 392 mmUse a larger drum core or a smaller cable size
Minimum bending radius
196 mm
Min. drum core diameter
≈ 392 mm
Cable weight on drum
105.5 kg
Copper content
38.4 kg
Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage test3.0 kV AC (50 Hz)Every manufactured length
Conductor DC resistanceIEC 60228 Class 5 (tinned copper)Every manufactured length
Sample tests
Vertical flame propagationIEC 60332-1-2 / EN 60332-1-2Per production batch
Insulation & sheath elastomer physical propertiesMGM 112 / BS 6708Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

MGM 112 / BS 6708CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX MGM 112 TYPE E2 / E4 / E5 [Size] 660/1100 V MINING CABLE
Delivery form
Export wooden drums or coils, cut-to-length on request
Packaging
Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options
Custom core counts, pilot cores or sheath colours on request

Technical documents

Downloads

PDFMGM 112 Type E2 / E4 / E5 Unscreened Armoured Auxiliary Cable – technical datasheet15 sizes · construction, technical data, approvalsXLSXMGM 112 Type E2 / E4 / E5 spec data (Excel)All 15 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20
