Heavy-duty 450/750 V (0.6/1 kV fixed protected) heat-resistant flexible rubber cable to EN 50525-2-21 with Class 5 copper conductors, +90 °C EI7 EPR core insulation and EM7 CSP (HOFR) outer sheath for generators, loadbanks, welding sets and hot plant.
Typical values for this cable type, based on EN 50525-2-21 (HD 22.12) — confirmed in the datasheet and quotation for your order.
Application fit
H07BN4-F is the +90 °C HOFR upgrade to H07RN-F, delivering higher continuous ampacity and thermal ageing stability on generator rental fleets, transformers and hot industrial machinery.
Temporary power distribution, generator loadbanks, site transformers and mobile heavy industrial plant.
Rated up to 0.6/1 kV in protected cable trays, conduits, motor terminal boxes and switchgear.
Crane festoons and hoist loops operating in high-ambient steelworks, foundries and boiler houses.
Suitable for slow coiling drums; for high-speed motorised crane reels, select NSHTÖU.
Use NSHTÖU ReelingConstruction

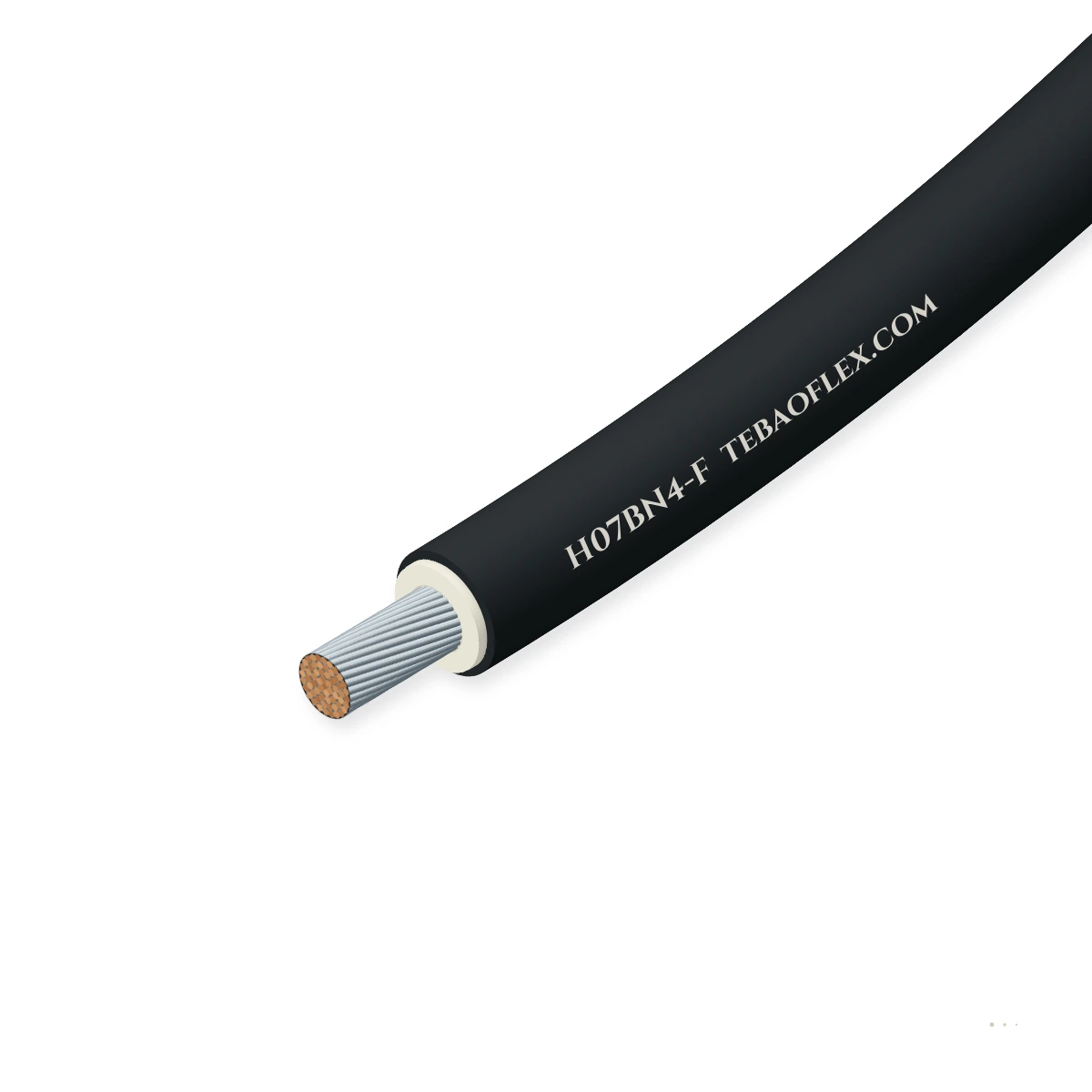

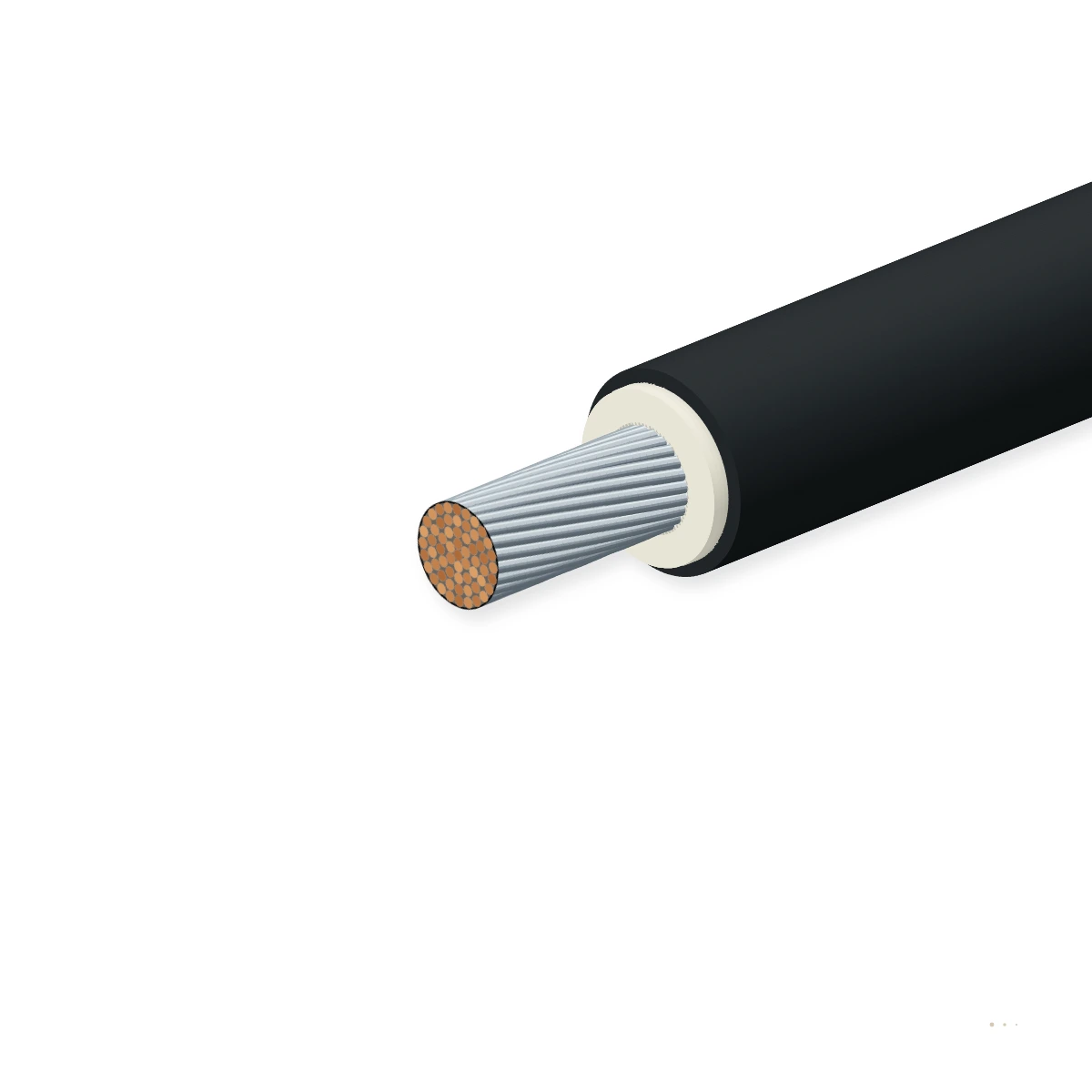

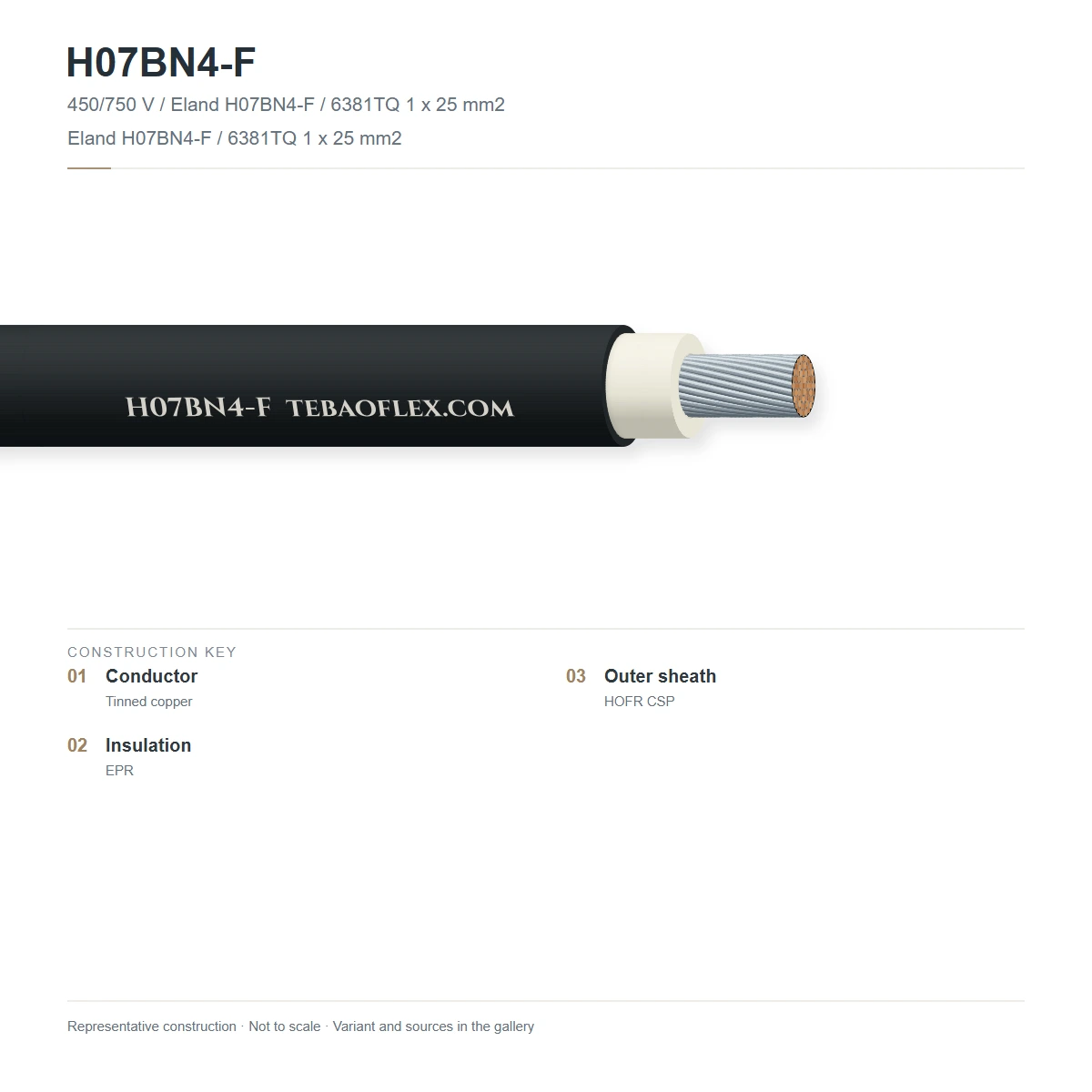

Shown: H07BN4-F 4G25 — Class 5 copper conductors, +90 °C EI7 EPR core insulation (HD 308 S2 colour code) and black +90 °C EM7 CSP (HOFR) outer sheath.
| # | Layer | Material & reference |
|---|---|---|
| 1 | Flexible copper conductor | Fine-stranded bare or tinned copper wire (IEC 60228 Class 5)EN 60228 Class 5 |
| 2 | Separator tape | Non-hygroscopic polyester foil separator over conductor on larger cross-sectionsFacilitates clean stripping |
| 3 | Heat-resistant EPR insulation | Cross-linked ethylene-propylene elastomer Type EI7 (+90 °C)EN 50363-1 EI7 |
| 4 | Heavy-duty HOFR outer sheath | Cross-linked chlorosulphonated polyethylene (CSP) / elastomer Type EM7, blackEN 50363-2-1 EM7 (+90 °C · oil, UV & flame resistant) |
High-current single-core power tails for generators, loadbanks and busbar links (0.6/1 kV protected)
Multi-core heavy-duty trailing and machine feeder cables with HD 308 S2 colour-coded cores
Technical data
Sizes
Typical EN 50525-2-21 (HD 22.12) outer diameter limits, copper content and cable weight.
| Order designation | Cores × mm² | AWG ≈ | Outer Ø min mm | Outer Ø max mm | Copper kg/km | Weight ≈ kg/km | Min. bend R mm | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Single-core H07BN4-F power & loadbank leads (16–240 mm²) | ||||||||
| H07BN4-F 1×16 | 1×16 | 6 | 9.9 | 10.8 | 154 | 235 | 43 | |
| H07BN4-F 1×35 | 1×35 | 2 | 13.2 | 14.3 | 336 | 445 | 57 | |
| H07BN4-F 1×50 | 1×50 | 1 | 15.2 | 16.5 | 480 | 620 | 66 | |
| H07BN4-F 1×70 | 1×70 | 2/0 | 17.1 | 18.6 | 672 | 835 | 74 | |
| H07BN4-F 1×95 | 1×95 | 3/0 | 19.3 | 21.0 | 912 | 1,110 | 84 | |
| H07BN4-F 1×120 | 1×120 | 4/0 | 21.3 | 23.2 | 1,152 | 1,380 | 93 | |
| H07BN4-F 1×185 | 1×185 | 350 kcmil | 25.8 | 28.0 | 1,776 | 2,060 | 112 | |
| H07BN4-F 1×240 | 1×240 | 500 kcmil | 29.0 | 31.5 | 2,304 | 2,650 | 126 | |
| Multicore H07BN4-F heavy-duty power & control cables (3G1.5–4G50) | ||||||||
| H07BN4-F 3G1.5 | 3G1.5 | 16 | 9.0 | 9.8 | 43 | 135 | 39 | |
| H07BN4-F 4G1.5 | 4G1.5 | 16 | 9.9 | 10.8 | 58 | 168 | 43 | |
| H07BN4-F 5G1.5 | 5G1.5 | 16 | 10.9 | 11.9 | 72 | 205 | 48 | |
| H07BN4-F 3G2.5 | 3G2.5 | 14 | 10.7 | 11.6 | 72 | 198 | 46 | |
| H07BN4-F 4G2.5 | 4G2.5 | 14 | 11.8 | 12.8 | 96 | 245 | 51 | |
| H07BN4-F 5G2.5 | 5G2.5 | 14 | 13.1 | 14.2 | 120 | 305 | 57 | |
| H07BN4-F 4G4 | 4G4 | 12 | 13.6 | 14.8 | 154 | 355 | 59 | |
| H07BN4-F 5G4 | 5G4 | 12 | 15.1 | 16.4 | 192 | 438 | 66 | |
| H07BN4-F 4G6 | 4G6 | 10 | 15.5 | 16.8 | 230 | 485 | 67 | |
| H07BN4-F 5G6 | 5G6 | 10 | 17.3 | 18.8 | 288 | 598 | 75 | |
| H07BN4-F 4G10 | 4G10 | 8 | 20.1 | 21.8 | 384 | 845 | 87 | |
| H07BN4-F 4G16 | 4G16 | 6 | 23.2 | 25.2 | 614 | 1,190 | 101 | |
| H07BN4-F 4G25 | 4G25 | 4 | 28.0 | 30.4 | 960 | 1,760 | 122 | |
| H07BN4-F 4G35 | 4G35 | 2 | 31.5 | 34.2 | 1,344 | 2,320 | 137 | |
| H07BN4-F 4G50 | 4G50 | 1 | 36.4 | 39.6 | 1,920 | 3,190 | 158 | |
| Cross-section mm² | AWG ≈ | Max. DC resistance 20 °C, Ω/km | 1-core in air 30 °C, A | 3–4 core in air 30 °C, A |
|---|---|---|---|---|
| 1.5 | 16 | 13.3 | 23 | 18 |
| 2.5 | 14 | 7.98 | 30 | 25 |
| 4 | 12 | 4.95 | 41 | 34 |
| 6 | 10 | 3.3 | 53 | 44 |
| 10 | 8 | 1.91 | 74 | 61 |
| 16 | 6 | 1.21 | 99 | 82 |
| 25 | 4 | 0.78 | 131 | 108 |
| 35 | 2 | 0.554 | 162 | 135 |
| 50 | 1 | 0.386 | 202 | 168 |
| 70 | 2/0 | 0.272 | 250 | 207 |
| 95 | 3/0 | 0.206 | 301 | 250 |
| 120 | 4/0 | 0.161 | 352 | 292 |
| 185 | 350 kcmil | 0.106 | 461 | 382 |
| 240 | 500 kcmil | 0.08 | 540 | 453 |
