Fixed installation
CNC machining centres, transfer lines, hydraulic power packs and wet-sump industrial equipment.
Product

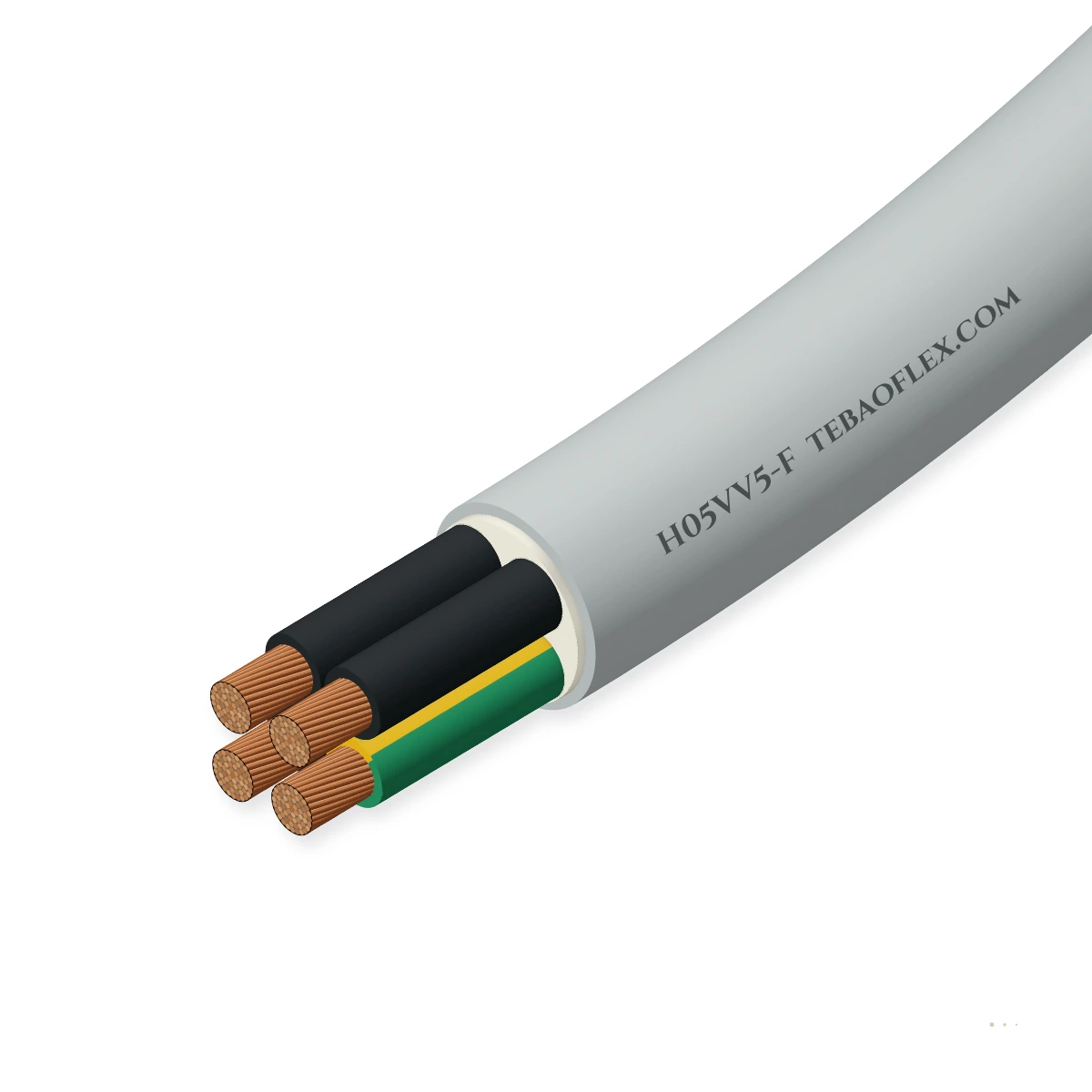

Harmonised European 300/500 V oil-resistant flexible control cable built to EN 50525-2-51 (`H05VV5-F`, `<HAR>`) with Class 5 bare copper conductors (0.5–2.5 mm²), numbered TI2 PVC cores and a special EN 60811-404 oil-resistant TM5 PVC outer sheath.
Typical values for this cable type, based on EN 50525-2-51 (DIN VDE 0285-525-2-51) — confirmed in the datasheet and quotation for your order.
Application fit
Unlike standard YY/H05VV-F cables whose ordinary PVC sheath swells and cracks when exposed to cutting emulsions, H05VV5-F is formulated with an EN 50363-4-1 Type TM5 (`V5`) oil-resistant outer jacket tested to EN 60811-404 for CNC machine tools, hydraulic presses and automotive transfer lines.
CNC machining centres, transfer lines, hydraulic power packs and wet-sump industrial equipment.
Suitable for occasional flexing without tensile stress in oily machine environments.
Use JZ-500-PURUnscreened control cable; for EMC-shielded oil-resistant circuits, select harmonised H05VVC4V5-K.
Use H05VVC4V5-KNot designed for high-cycle drag chains; select TMPU polyurethane JZ-500-PUR for dynamic abrasion.
Use JZ-500-PURConstruction

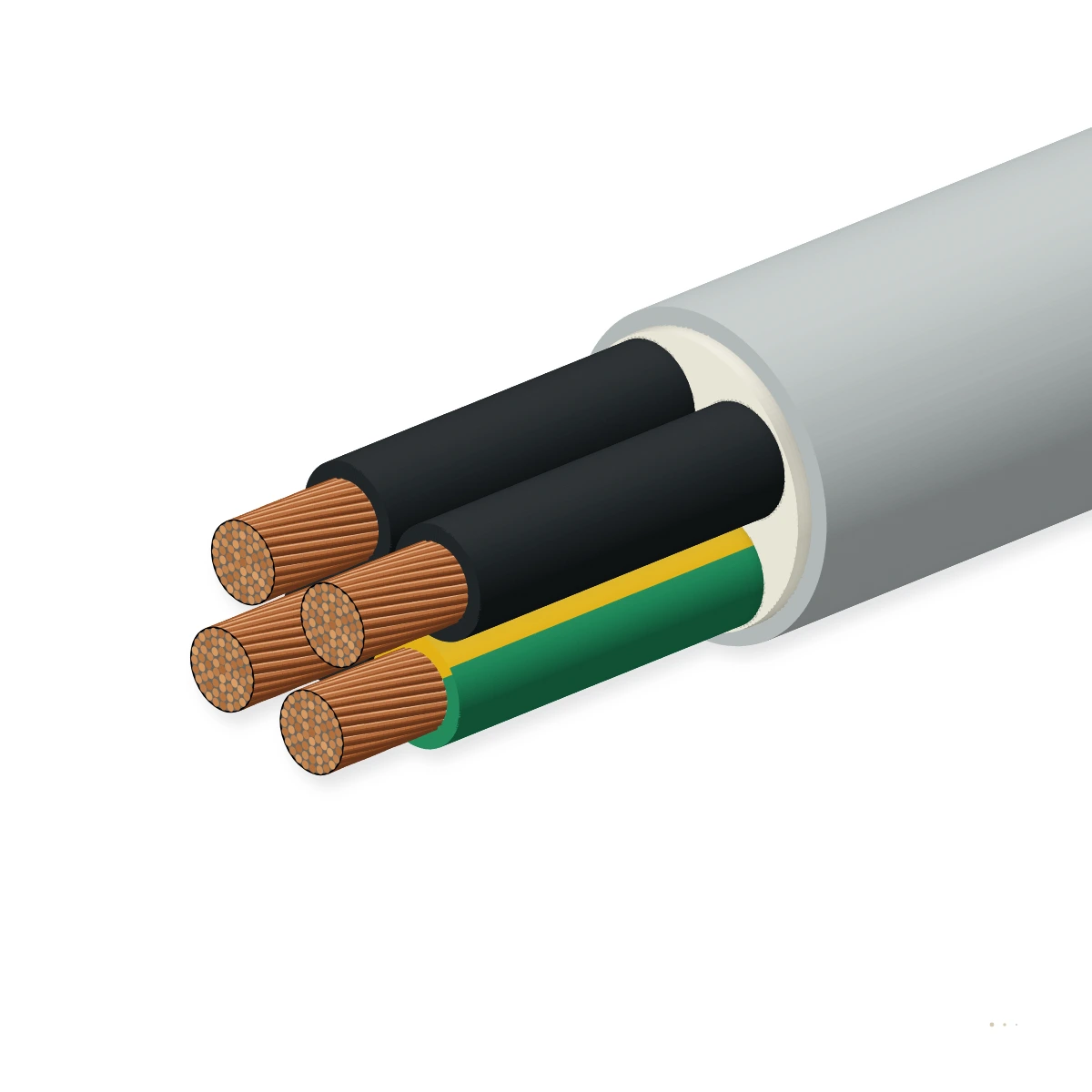

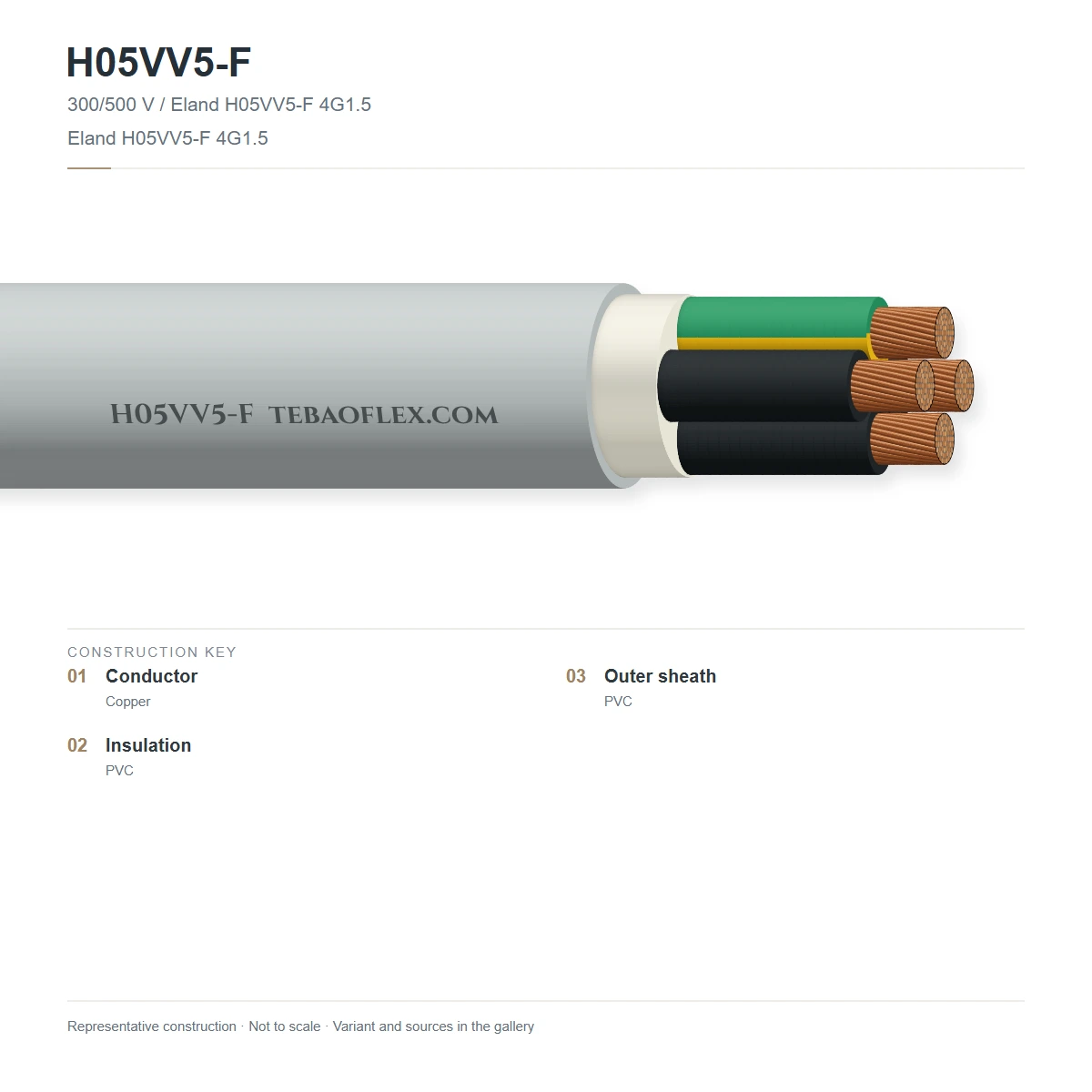

Shown: H05VV5-F 12G1.5 — Class 5 flexible bare copper conductors, TI2 PVC core insulation (black/white cores with sequential numbers + green-yellow earth per EN 50334) and pebble-grey RAL 7001 EN 50363-4-1 Type TM5 oil-resistant PVC outer sheath.
| # | Layer | Material & reference |
|---|---|---|
| 1 | Class 5 flexible copper conductor | Fine-stranded annealed bare copper to EN 60228 / IEC 60228 Class 5EN 60228 Class 5 |
| 2 | TI2 PVC core insulation (V) | Thermoplastic PVC compound Type TI2 (EN 50363-3) with printed sequential numbers + GN/YE coreEN 50363-3 TI2 · EN 50334 |
| 3 | Short-lay core stranding + tape | Cores stranded in concentric layers with non-hygroscopic fillers and separating tapeEN 50525-2-51 |
| 4 | TM5 oil-resistant PVC sheath (V5) | Special oil-, coolant- and emulsion-resistant PVC compound Type TM5 (EN 50363-4-1), grey RAL 7001EN 50363-4-1 TM5 · EN 60811-404 |
Harmonised 3G to 61G configurations (0.5–2.5 mm²) with green-yellow protective conductor
2X to 42X numbered-only control configurations without green-yellow core
Technical data
Sizes
Typical EN 50525-2-51 (DIN VDE 0285-525-2-51) outer diameter limits, copper content and cable weight.
| Order designation | Cores × mm² | AWG ≈ | Outer Ø min mm | Outer Ø max mm | Copper kg/km | Weight ≈ kg/km | Min. bend R mm | Enquiry |
|---|---|---|---|---|---|---|---|---|
| 0.50 mm² H05VV5-F Oil-Resistant Control (300/500 V) | ||||||||
| H05VV5-F 3G0.5 | 3×0.5 | 20 | 5.2 | 5.6 | 14 | 43 | 22 | |
| H05VV5-F 4G0.5 | 4×0.5 | 20 | 5.6 | 6.1 | 19 | 53 | 24 | |
| H05VV5-F 7G0.5 | 7×0.5 | 20 | 7.0 | 7.6 | 33 | 86 | 30 | |
| H05VV5-F 12G0.5 | 12×0.5 | 20 | 9.0 | 9.8 | 57 | 144 | 39 | |
| H05VV5-F 18G0.5 | 18×0.5 | 20 | 10.6 | 11.5 | 86 | 206 | 46 | |
| H05VV5-F 25G0.5 | 25×0.5 | 20 | 12.7 | 13.8 | 120 | 286 | 55 | |
| 0.75 mm² H05VV5-F Oil-Resistant Control (300/500 V) | ||||||||
| H05VV5-F 3G0.75 | 3×0.75 | 18 | 5.6 | 6.1 | 21 | 54 | 24 | |
| H05VV5-F 4G0.75 | 4×0.75 | 18 | 6.2 | 6.7 | 28 | 68 | 27 | |
| H05VV5-F 5G0.75 | 5×0.75 | 18 | 6.8 | 7.4 | 36 | 84 | 30 | |
| H05VV5-F 7G0.75 | 7×0.75 | 18 | 7.8 | 8.5 | 50 | 114 | 34 | |
| H05VV5-F 12G0.75 | 12×0.75 | 18 | 9.9 | 10.8 | 86 | 186 | 43 | |
| H05VV5-F 18G0.75 | 18×0.75 | 18 | 11.8 | 12.8 | 129 | 268 | 51 | |
| H05VV5-F 25G0.75 | 25×0.75 | 18 | 14.1 | 15.3 | 180 | 368 | 61 | |
| 1.00 mm² H05VV5-F Oil-Resistant Control (300/500 V) | ||||||||
| H05VV5-F 3G1.0 | 3×1.0 | 17 | 6.0 | 6.5 | 28 | 65 | 26 | |
| H05VV5-F 4G1.0 | 4×1.0 | 17 | 6.5 | 7.1 | 38 | 82 | 28 | |
| H05VV5-F 5G1.0 | 5×1.0 | 17 | 7.3 | 7.9 | 48 | 102 | 32 | |
| H05VV5-F 7G1.0 | 7×1.0 | 17 | 8.4 | 9.1 | 67 | 138 | 36 | |
| H05VV5-F 12G1.0 | 12×1.0 | 17 | 10.7 | 11.6 | 115 | 228 | 46 | |
| H05VV5-F 18G1.0 | 18×1.0 | 17 | 12.6 | 13.7 | 172 | 328 | 55 | |
| H05VV5-F 25G1.0 | 25×1.0 | 17 | 15.1 | 16.4 | 240 | 452 | 66 | |
| 1.50 mm² H05VV5-F Oil-Resistant Control (300/500 V) | ||||||||
| H05VV5-F 3G1.5 | 3×1.5 | 16 | 6.8 | 7.4 | 43 | 88 | 30 | |
| H05VV5-F 4G1.5 | 4×1.5 | 16 | 7.5 | 8.2 | 57 | 112 | 33 | |
| H05VV5-F 5G1.5 | 5×1.5 | 16 | 8.4 | 9.1 | 72 | 138 | 36 | |
| H05VV5-F 7G1.5 | 7×1.5 | 16 | 9.8 | 10.6 | 100 | 192 | 42 | |
| H05VV5-F 12G1.5 | 12×1.5 | 16 | 12.4 | 13.5 | 172 | 312 | 54 | |
| H05VV5-F 18G1.5 | 18×1.5 | 16 | 14.7 | 16.0 | 259 | 452 | 64 | |
| H05VV5-F 25G1.5 | 25×1.5 | 16 | 17.7 | 19.2 | 360 | 628 | 77 | |
| 2.50 mm² H05VV5-F Oil-Resistant Control (300/500 V) | ||||||||
| H05VV5-F 3G2.5 | 3×2.5 | 14 | 8.2 | 8.9 | 72 | 136 | 36 | |
| H05VV5-F 4G2.5 | 4×2.5 | 14 | 9.1 | 9.9 | 96 | 174 | 40 | |
| H05VV5-F 5G2.5 | 5×2.5 | 14 | 10.1 | 11.0 | 120 | 216 | 44 | |
| H05VV5-F 7G2.5 | 7×2.5 | 14 | 11.8 | 12.8 | 168 | 298 | 51 | |
| H05VV5-F 12G2.5 | 12×2.5 | 14 | 15.1 | 16.4 | 288 | 488 | 66 | |
| Cross-section mm² | AWG ≈ | Max. DC resistance 20 °C, Ω/km | Single pair/core 30 °C, A | Multi-core bundle 30 °C, A |
|---|---|---|---|---|
| 0.5 | 20 | 39 | 9.0 | 6.0 |
| 0.75 | 18 | 26 | 12.0 | 10.0 |
| 1 | 17 | 19.5 | 15.0 | 13.0 |
| 1.5 | 16 | 13.3 | 23.0 | 18.0 |
| 2.5 | 14 | 7.98 | 30.0 | 25.0 |
Reel check
A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| AC voltage test | 2.0 kV AC (50 Hz) | Every manufactured length |
| Conductor DC resistance | IEC 60228 / EN 50525-2-51 (DIN VDE 0285-525-2-51) (bare copper) | Every manufactured length |
| Sample tests | ||
| Vertical flame propagation | IEC 60332-1-2 / EN 60332-1-2 | Per production batch |
| Insulation & sheath material physical properties | EN 50525-2-51 (DIN VDE 0285-525-2-51) | Type approval |
