Mining trailing & reeling cablesAS/NZS 28021.1–33 kVClass 1 & 2

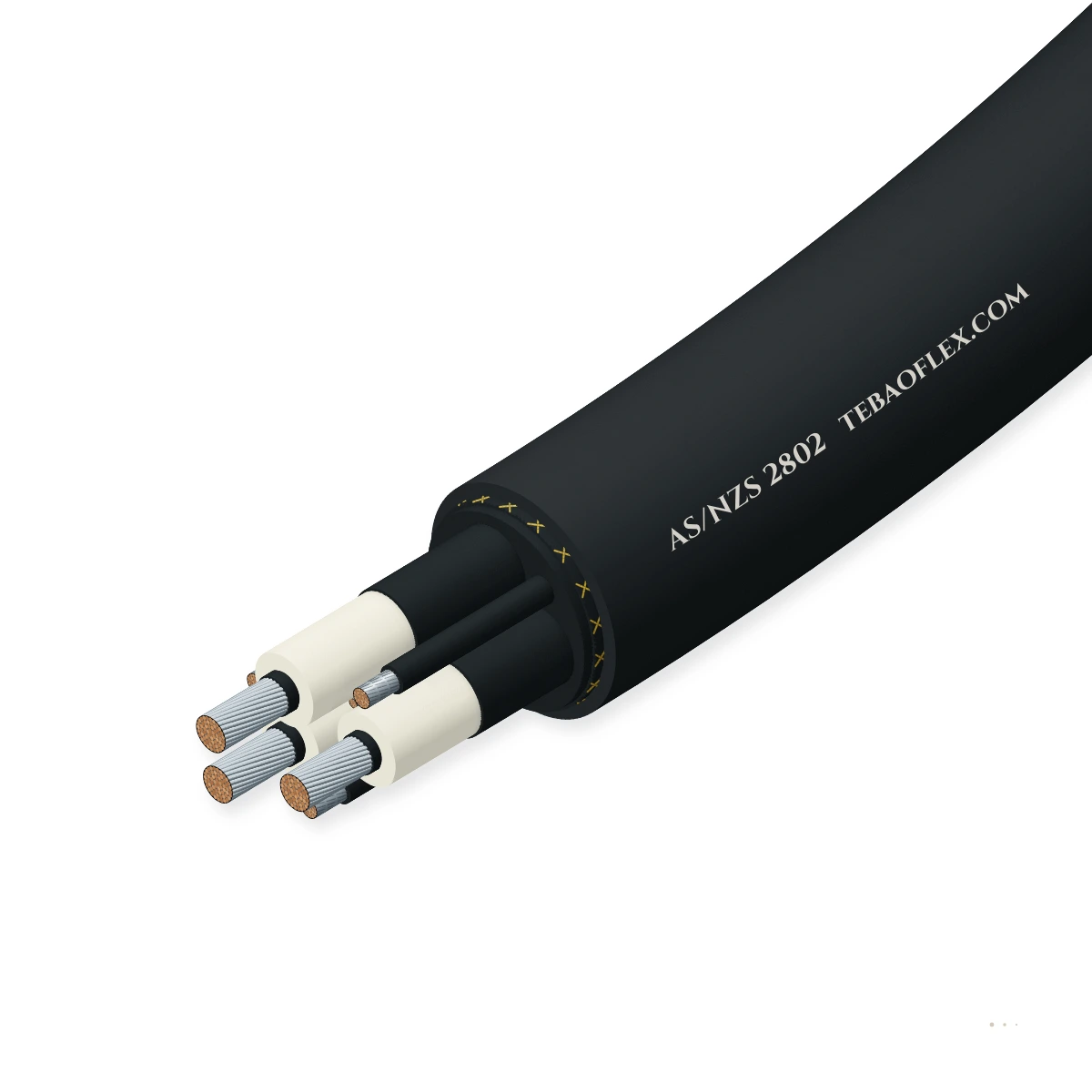

AS/NZS 2802 Mining Reeling & Trailing CablesEight cable types for mobile mining plant, 1.1 to 33 kV

Elastomer-insulated, heavy-duty sheathed power cables for draglines, shovels, drills and pumps in open-cut and metalliferous mines. Choose the type by screen, earth and pilot design, then the voltage grade and size.

EMC screen

Outdoor & humid

Water-resistant

Heavy-duty PCP sheath

Type · voltage grade · size

Order designation: Type 409.3 · 3 × 95 mm²
U0/U: 3.3/3.3 kV
Outer Ø ≈: 66.5 mm
Mass ≈: 7,650 kg/km
Sheath: 7.1 mm

All sizes (17)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 1.1–33 kV
Conductor size: 6–300 mm²
Conductor temp.: +90 °C
Min. temp.: −25 °C
Reeling bend R: 12 × OD
Pulling tension: 20 N/mm²

Typical values for this cable type, based on AS/NZS 2802 — confirmed in the datasheet and quotation for your order.

Application fit

Is AS/NZS 2802 right for your machine?

All types power mobile plant. Pick the type for the machine's earth, pilot and screen design, then check the bending radius for the duty.

Trailing & towing

Suitable

Built for trailing behind draglines, shovels, drills and pumps; Types 409 and 440 for long, abrasive runs.

Motorised monospiral reel

With conditions

Slow reeling (Types 441, 450, 451, 455); bending radius 12 × OD from 3.3 kV.

Ask engineering

Cylindrical / multi-layer drum

With conditions

Derate current on drums: 0.85 for one layer down to 0.35 for four layers.

Ask engineering

Fixed installation

With conditions

Type 412 suits armoured feeder runs; other types are designed for mobile equipment in free air.

AS/NZS 1802 underground mining cable

Immersion & wet locations

With conditions

Sheath rated for immersion and temporary water coverage, not for permanent submersion.

Ask engineering

Free-hanging vertical run

Not suitable

Flexible unarmoured trailing construction — do not suspend in deep vertical mine shafts without support.

Use BS 6708 Type 20/21 Armoured

Typical machinesDraglines & shovelsExcavatorsBlasthole drillsMine pumpsStackers & reclaimersWharf cranes

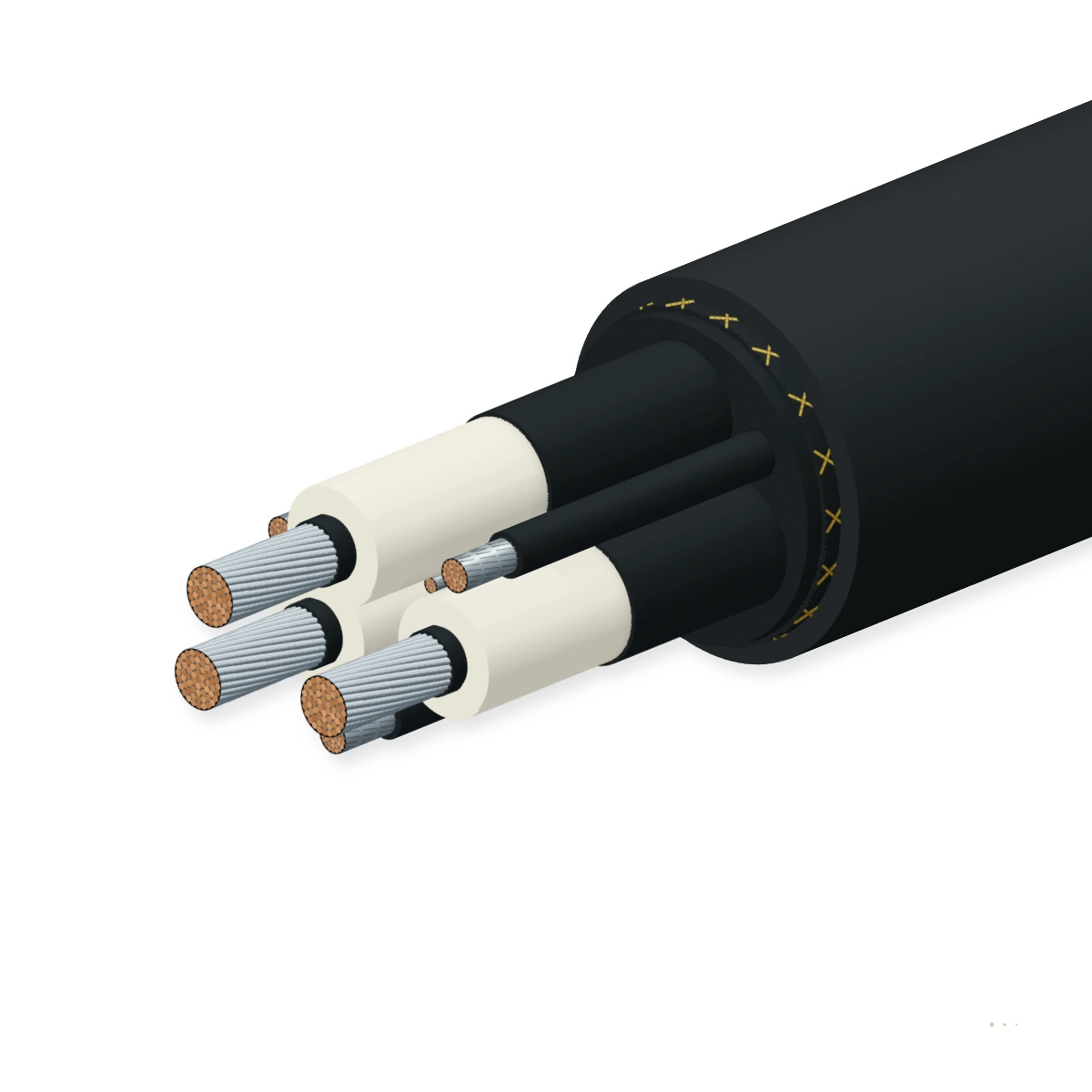

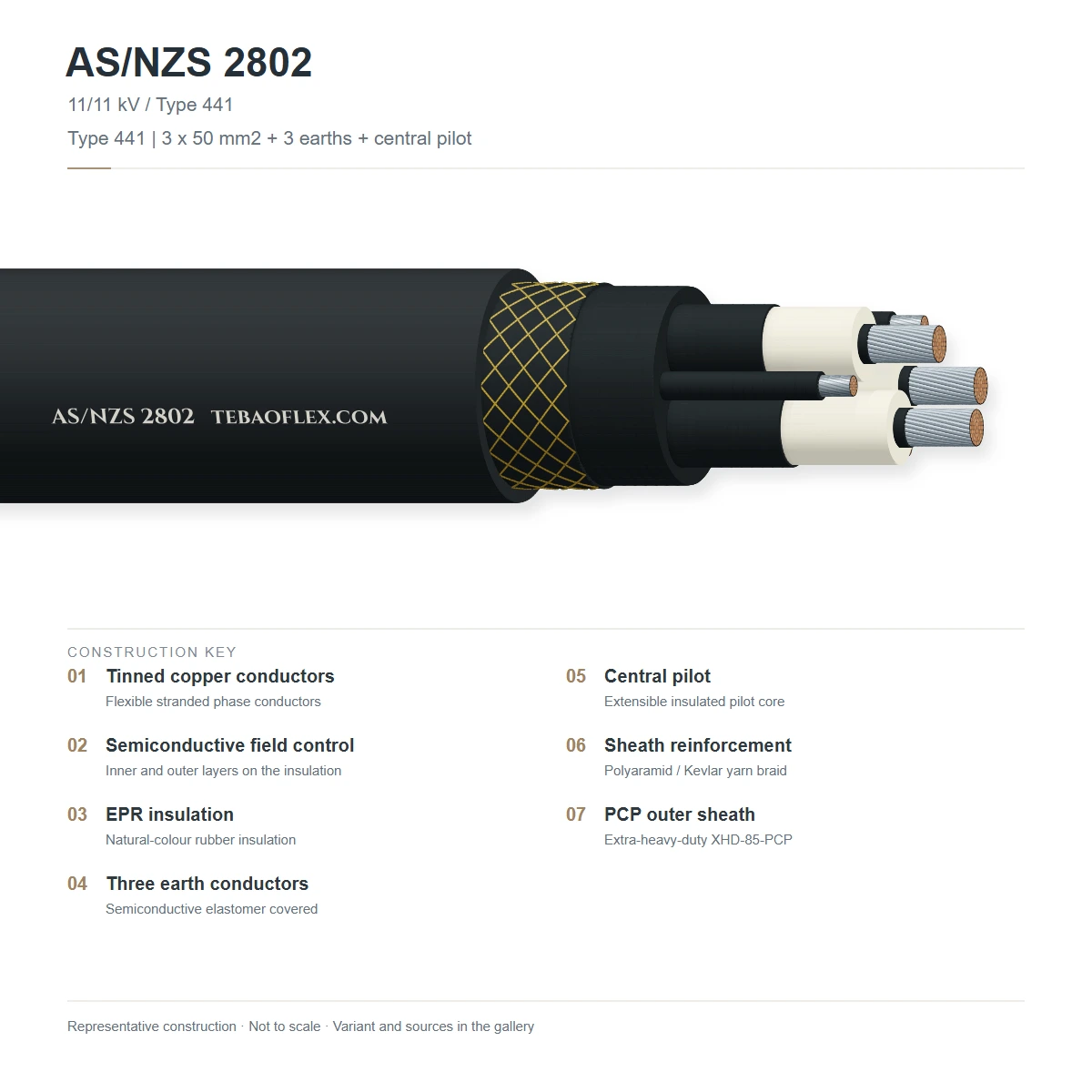

Construction

Layer by layer

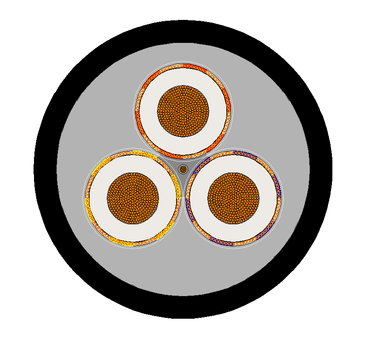

Shown: Type 409 — three composite-screened phase cores around a central pilot. Other types differ in screen, earth, pilot and reinforcement (see Types in this range).

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Conductor	Flexible tinned annealed copperAS/NZS 1125
2	Conductor screen	Semiconductive layer from 3.3 kV; polyester tape at 1.1 kVField control
3	Insulation	EPR, R-EP-90 (Class 2)AS/NZS 3808
4	Composite screen	Tinned copper wire interwoven with polyester yarn — the earth pathColoured tracers identify phases from 3.3 kV
5	Pilot	Central extensible pilot, EPR-covered tinned copperEarth-continuity monitoring
6	Sheath	Heavy-duty HD-85-PCP elastomer, polyaramid braid optionalAS/NZS 3808

Class 2 · R-EP-90

Types 409, 412, 440, 441.1 — heavier insulation and sheath radials

Class 1 · XR-EP-90

Types 441, 450, 451, 455 — smaller diameter and mass for the same size

Core colours

Red, white, blue; screen tracers from 3.3 kV; numbered cores on 441 and 455

Types in this range

Class 2 · 1.1–22 kVType 409

Composite screens · central pilot · polyaramid braid (optional)

Trailing for pumps, shovels, draglines, drills

Datasheet

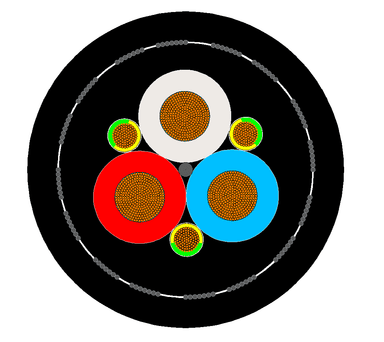

Class 2 · 1.1/1.1 kVType 412

3 earths · galvanised steel pliable armour · no pilot

Feeder runs where damage is likely

Datasheet

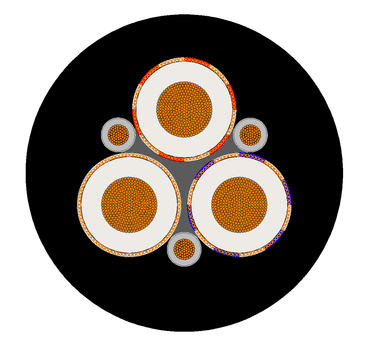

Class 2 · 1.1–22 kVType 440

Composite screens · three pilots · polyaramid braid

Long trailing runs and most reeling

Datasheet

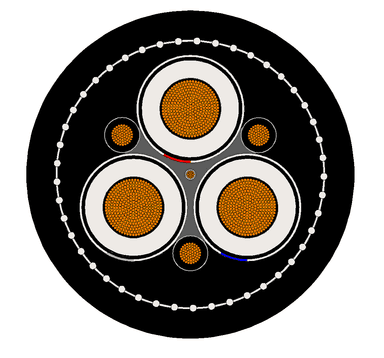

Class 1 · 3.3–22 kVType 441

Semiconductive screens · 3 earths · central pilot

Slow reeling and trailing, smaller OD

Datasheet

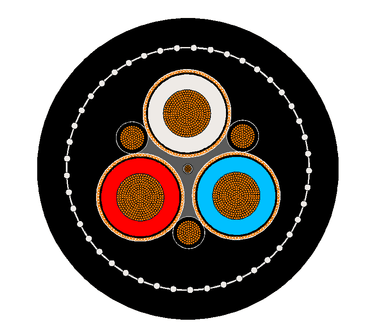

Class 2 · 1.1/1.1 kVType 441.1

Semiconductive screens · 3 earths · central pilot

General trailing and reeling at 1.1 kV

Datasheet

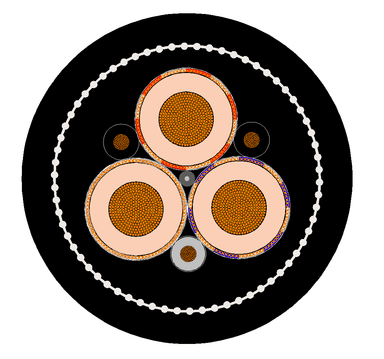

Class 1 · 3.3–33 kVType 450

Composite screens · 2 earths · 1 pilot

Draglines, shovels, wharf cranes — slow reeling

Datasheet

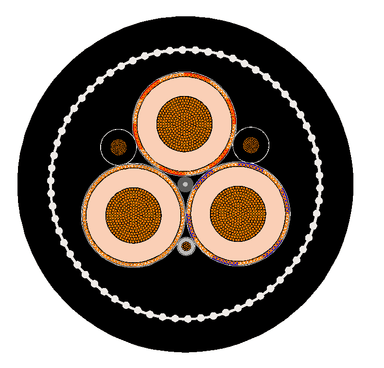

Class 1 · 3.3–22 kVType 451

As Type 450 with a reduced-size pilot

Draglines, shovels, excavators — slow reeling

Datasheet

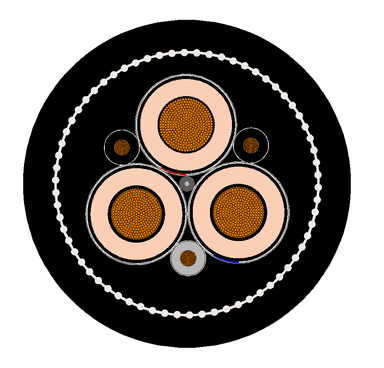

Class 1 · 3.3–33 kVType 455

Semiconductive screens · 2 earths · 1 pilot

Stackers and reclaimers — light, slow reeling

Datasheet

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on AS/NZS 2802. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 1.1/1.1 to 33/33 kV, by type
Screen / Field control: Composite copper or semiconductive, by type
Current rating: IEC 60287, 40 °C air — see table
Derating on drums: × 0.85 / 0.65 / 0.45 / 0.35 for 1–4 layers
Pilot DC resistance: ≤ 3 Ω/100 m (≤ 35 mm²), ≤ 2 Ω/100 m above
AC test voltage: 4.2 kV (1.1/1.1 kV types)

Thermal

Short-circuit temperature: +250 °C (5 s)
Max. conductor temperature: +90 °C
Min. operating temperature: −25 °C

Mechanical

Min. bending radius, repeated reeling: 12 × OD; 10 × OD at 1.1 kV
Min. bending radius, free flexing: 10 × OD; 6 × OD at 1.1 kV
Min. bending radius, fixed: 6 × OD; 4 × OD at 1.1 kV
Min. bending radius, over sheaves: 20 × OD; 10 × OD at 1.1 kV
Max. pulling tension: 20 N/mm² × phase-conductor area
Sheath reinforcement: Polyaramid braid (optional on 409)
Armour (Type 412): Galvanised steel pliable armour

Resistance

Flame retardance: Fire retardant
Water: Immersion / temporary coverage
UV & weather: Direct sun and weather
Chemicals: Very good, frequent exposure
Mechanical impact: Heavy

Reference standards

Cable type: AS/NZS 2802
Conductor: AS/NZS 1125
Compounds: AS/NZS 3808
Armour wires: AS/NZS 3863
Installation: AS/NZS 3007

Identification

Sheath colour: Black
Core identification: Red, white, blue; tracers from 3.3 kV
Insulation: R-EP-90 (Class 2), XR-EP-90 (Class 1)
Sheath compound: HD-85-PCP (Cl. 2), XHD-85-PCP (Cl. 1)

Sizes

281 sizes in 8 types

Typical values per type and voltage grade. Filter by type; other sizes on request.

Sizes & dimensions
Type · grade · size	U0/U kV	Earth each mm²	Pilot mm²	Screen /phase mm²	Insulation mm	Sheath mm	Outer Ø ≈ mm	Mass ≈ kg/km
Type 409 · Class 2 · 1.1–22 kV
Type 409.1 · 3 × 6 mm²	1.1/1.1	8.2	—	—	1.5	3.8	32.2	1,600
Type 409.1 · 3 × 10 mm²	1.1/1.1	8.2	—	—	1.5	3.8	34.3	1,850
Type 409.3 · 3 × 95 mm²	3.3/3.3	21.0	—	—	3.0	7.1	66.5	7,650
Type 412 · Class 2 · 1.1/1.1 kV
Type 412.1 · 3 × 35 mm²	1.1/1.1	5.3	—	—	1.6	4.0	44.6	4,150
Type 412.1 · 3 × 50 mm²	1.1/1.1	8.1	—	—	1.7	4.4	49.2	5,000
Type 440 · Class 2 · 1.1–22 kV
Type 440.1 · 3 × 6 mm²	1.1/1.1	—	1.0	8.2	1.5	3.8	31.0	1,500
Type 440.1 · 3 × 10 mm²	1.1/1.1	—	1.5	8.2	1.5	3.8	33.3	1,750
Type 441 · Class 1 · 3.3–22 kV
Type 441.3 · 3 × 16 mm²	3.3/3.3	—	—	—	2.2	4.6	43.5	2,430
Type 441.3 · 3 × 25 mm²	3.3/3.3	5.3	—	—	2.2	4.9	45.9	3,200
Type 441.1 · Class 2 · 1.1/1.1 kV
Type 441.1 · 3 × 6 mm²	1.1/1.1	2.1	—	—	1.5	3.8	30.7	1,400
Type 441.1 · 3 × 10 mm²	1.1/1.1	3.4	—	—	1.5	3.8	32.8	1,650
Type 450 · Class 1 · 3.3–33 kV
Type 450.3 · 3 × 16 mm²	3.3/3.3	—	—	6.3	2.2	4.5	42.9	2,680
Type 450.3 · 3 × 25 mm²	3.3/3.3	8.0	8.0	7.9	2.2	4.8	46.7	3,550
Type 451 · Class 1 · 3.3–22 kV
Type 451.3 · 3 × 25 mm²	3.3/3.3	8.0	9.0	7.9	2.2	4.8	46.7	3,600
Type 451.3 · 3 × 35 mm²	3.3/3.3	8.0	9.0	8.5	2.2	5.1	49.7	4,150
Type 455 · Class 1 · 3.3–33 kV
Type 455.3 · 3 × 16 mm²	3.3/3.3	—	—	—	2.2	4.2	39.5	2,260
Type 455.3 · 3 × 25 mm²	3.3/3.3	8.0	8.0	—	2.2	4.5	42.2	3,000

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Types 409 and 440: earth through the composite screens (Earth = screen earth area). Types 450 and 455: earth and pilot cores of equal size.
Mass in kg/km (converted from kg/100 m where published that way).

Electrical data
Type · grade · size	Conductor Ø mm	AC resistance 90 °C Ω/km	Reactance 50 Hz Ω/km	Volt drop mV/A·m	Capacitance µF/phase/km
Type 409 · Class 2 · 1.1–22 kV
Type 409.1 · 3 × 6 mm²	3.5	4.32	0.145	7.49	0.259
Type 409.1 · 3 × 10 mm²	4.6	2.58	0.133	4.47	0.314
Type 409.3 · 3 × 95 mm²	13.3	0.271	0.102	0.502	0.439
Type 440 · Class 2 · 1.1–22 kV
Type 440.1 · 3 × 6 mm²	3.5	4.32	0.141	7.49	0.259
Type 440.1 · 3 × 10 mm²	4.6	2.58	0.13	4.47	0.314
Type 441 · Class 1 · 3.3–22 kV
Type 441.3 · 3 × 25 mm²	7.2	0.951	0.12	1.66	0.395
Type 441.3 · 3 × 35 mm²	8.4	0.698	0.115	1.23	0.437
Type 441.1 · Class 2 · 1.1/1.1 kV
Type 441.1 · 3 × 6 mm²	3.5	4.32	0.143	7.49	0.259
Type 441.1 · 3 × 10 mm²	4.6	2.58	0.13	4.47	0.314
Type 450 · Class 1 · 3.3–33 kV
Type 450.3 · 3 × 25 mm²	7.2	0.951	0.118	1.66	0.395
Type 450.3 · 3 × 35 mm²	8.4	0.698	0.113	1.22	0.437
Type 451 · Class 1 · 3.3–22 kV
Type 451.3 · 3 × 25 mm²	7.2	0.951	0.118	1.66	0.395
Type 451.3 · 3 × 35 mm²	8.4	0.698	0.113	1.22	0.437
Type 455 · Class 1 · 3.3–33 kV
Type 455.3 · 3 × 25 mm²	7.3	0.951	0.112	1.66	0.404
Type 455.3 · 3 × 35 mm²	8.9	0.698	0.105	1.22	0.462

AC resistance and voltage drop at 90 °C and 50 Hz, three-phase.

Current ratings
Conductor mm²	1.1 kV, shaded A	1.1 kV, in sun A	3.3–33 kV, shaded A	3.3–33 kV, in sun A
6	49	38	—	—
10	66	51	—	—

Continuous rating, cable in air, 40 °C ambient, conductor 90 °C; guidance values per IEC 60287.
On drums multiply by 0.85 (1 layer), 0.65 (2), 0.45 (3), 0.35 (4 layers).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test, 1.1/1.1 kV	4.2 kV	Every length
Spark test of insulated cores	100 % in-line	Every core
Diameter & concentricity	Laser micrometer, min. sheath thickness	Every drum
Sample tests
Pilot DC resistance	≤ 3 Ω/100 m (≤ 35 mm²), ≤ 2 Ω/100 m above	Types 409, 441

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

AS/NZS 2802CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX · R-EP-90/HD-85-PCP · TYPE 409.6 · [year] · [size] · [metre mark]

Delivery form: Heat-treated timber drums, fully lagged, sealed ends, steel strapping
Lengths: Custom cut lengths
Certificate: EN 10204 3.1 inspection certificate per drum
Quote response: Engineering quote within 2 hours

Technical documents

Downloads

PDFAS/NZS 2802 Mining Reeling & Trailing Cables – technical datasheet17 sizes · construction, technical data, approvals XLSXAS/NZS 2802 spec data (Excel)All 17 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Which AS/NZS 2802 type should I choose?

Start from the machine's protection design. Types 409 and 440 are Class 2 trailing cables with composite screens for long, abrasive runs. Types 450, 451 and 455 are lighter Class 1 cables for draglines, shovels and stackers on slow reels. Type 412 adds steel armour for exposed feeder runs.

What is the difference between Class 1 and Class 2?

Class 2 types use R-EP-90 insulation with thicker insulation and sheath walls, giving a more robust cable. Class 1 types use the higher-grade XR-EP-90, which allows thinner walls, so the cable is smaller and lighter for the same conductor size — useful on reels and materials-handling machines.

What bending radius should the reel or sheave allow?

As typical guidance: repeated reeling 10 × OD at 1.1 kV and 12 × OD from 3.3 kV; free flexing 6 × and 10 × OD; passing over sheaves 10 × and 20 × OD. Use the outer diameter from the size table and confirm the drum and sheave design with our engineers.

How are the earth and pilot conductors arranged?

It depends on the type. Types 409 and 440 earth through composite copper screens, with one central or three interstitial pilots. Types 441 and 441.1 have three earths and a central pilot. Types 450, 451 and 455 have two earths and one pilot. Type 412 has three earths and no pilot.

Can these cables be used in underground coal mines?

No. AS/NZS 2802 covers surface mining, underground metalliferous mining and general movable plant; underground coal mines need cables to the coal-mining standards. See our AS/NZS 1802 range and confirm the required type with our engineers.

Request a quote

Get an engineering quote for AS/NZS 2802

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

Reel typeDrum core diameter (mm)Cable length on drum (m)Travel speed (m/min)Max. accelerationCycles per hourLength and quantityAmbient temperatureExposure (outdoor, water, oil, abrasion)Destination countryEquipment and operating conditions

03Message for our engineers

AS/NZS 2802 Surface Mining Cable

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:

Send via WhatsApp

Datasheet Request a quote

AS/NZS 2802 Mining Reeling & Trailing CablesEight cable types for mobile mining plant, 1.1 to 33 kV

Trailing & towing

Motorised monospiral reel

Cylindrical / multi-layer drum

Fixed installation

Immersion & wet locations

Free-hanging vertical run

Class 2 · R-EP-90

Class 1 · XR-EP-90

Core colours

Types in this range

Electrical

Thermal

Mechanical

Resistance

Reference standards

Identification

Inspection certificate

Product approvals

Company certificates

01Selected sizes

02Reel & motion

03Message for our engineers

AS/NZS 1802 Underground Mining Cable

(N)TSCGECEWÖU

NSHTÖU
