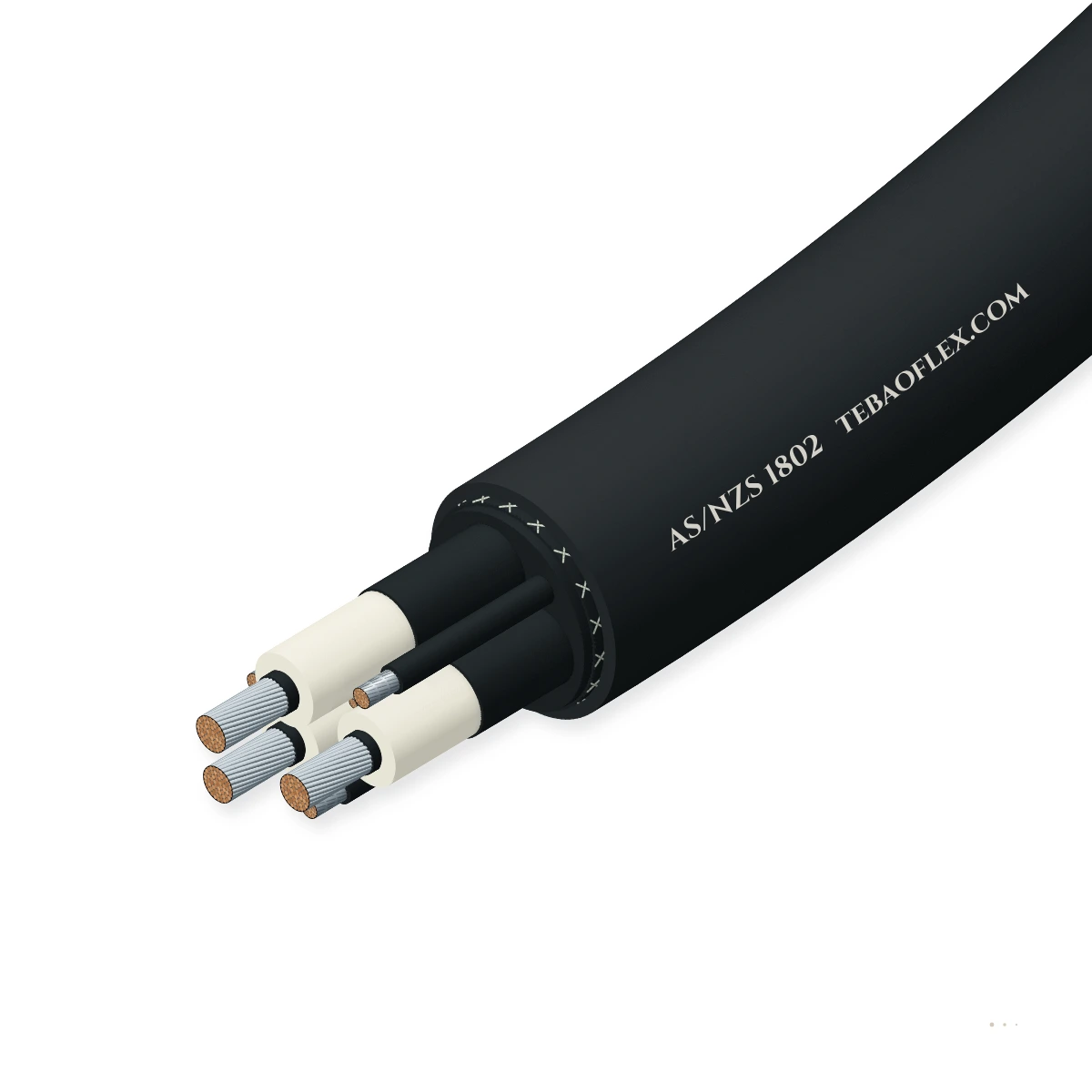

Mining trailing & reeling cablesAS/NZS 18021.1–11 kVTypes 209–275

AS/NZS 1802 Underground Coal Mining Reeling & Trailing CablesTen underground cable types for shearers, miners & shuttle cars, 1.1–11 kV

Elastomer-insulated, heavy-duty HD-85-PCP sheathed reeling, trailing and feeder cables for underground coal mines to AS/NZS 1802. Select the type by screen, earth, pilot and flexibility class across 1.1/1.1 kV to 11/11 kV.

EMC screen

Flame-retardant

Water-resistant

Oil-resistant

Select AS/NZS 1802 cable size

Order designation: Type 241.3 · 3.3/3.3 kV · 3×95 mm²
Voltage U0/U: 3.3/3.3 kV
R-EP-90 wall: 3.0 mm
Nominal OD: 64.2 mm
Total mass: 7,150 kg/km

All sizes (255)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 1.1–11 kV
Conductor size: 1.5–300 mm²
Conductor temp.: +90 °C
Min. temp.: −25 °C
Min. bend radius: 6 × D / 10 × D
Cable types: 10 types

Typical values for this cable type, based on AS/NZS 1802 — confirmed in the datasheet and quotation for your order.

Application fit

Is AS/NZS 1802 right for your machine?

Australian/New Zealand standard AS/NZS 1802 elastomer-sheathed trailing and reeling cables (Types 209, 210, 240, 241, 275) for underground coal shearers and shuttle cars.

Longwall shearer & Bretby handler

Suitable

Type 241 / 275 screened cables are purpose-built for longwall shearer Bretby handlers.

Cylindrical / multi-layer drum

Suitable

Type 210 / 275 shuttle-car reeling cables withstand continuous spooling under tension.

Trailing & towing

Suitable

Direct underground roadway and face trailing behind continuous miners, bolters and LHDs.

Mine roadway & tunnel wall hangers

Suitable

Gate-road flitting loops and DC/AC mobile face feeders.

Free-hanging vertical run

Not suitable

Flexible trailing construction — for fixed roadway or shaft feeders use AS/NZS 1972.

Use AS/NZS 1972 Feeder

Typical machinesLongwall shearersContinuous minersUnderground shuttle carsMonorail DCB loopsGate-end box feedersHand-held roof bolters

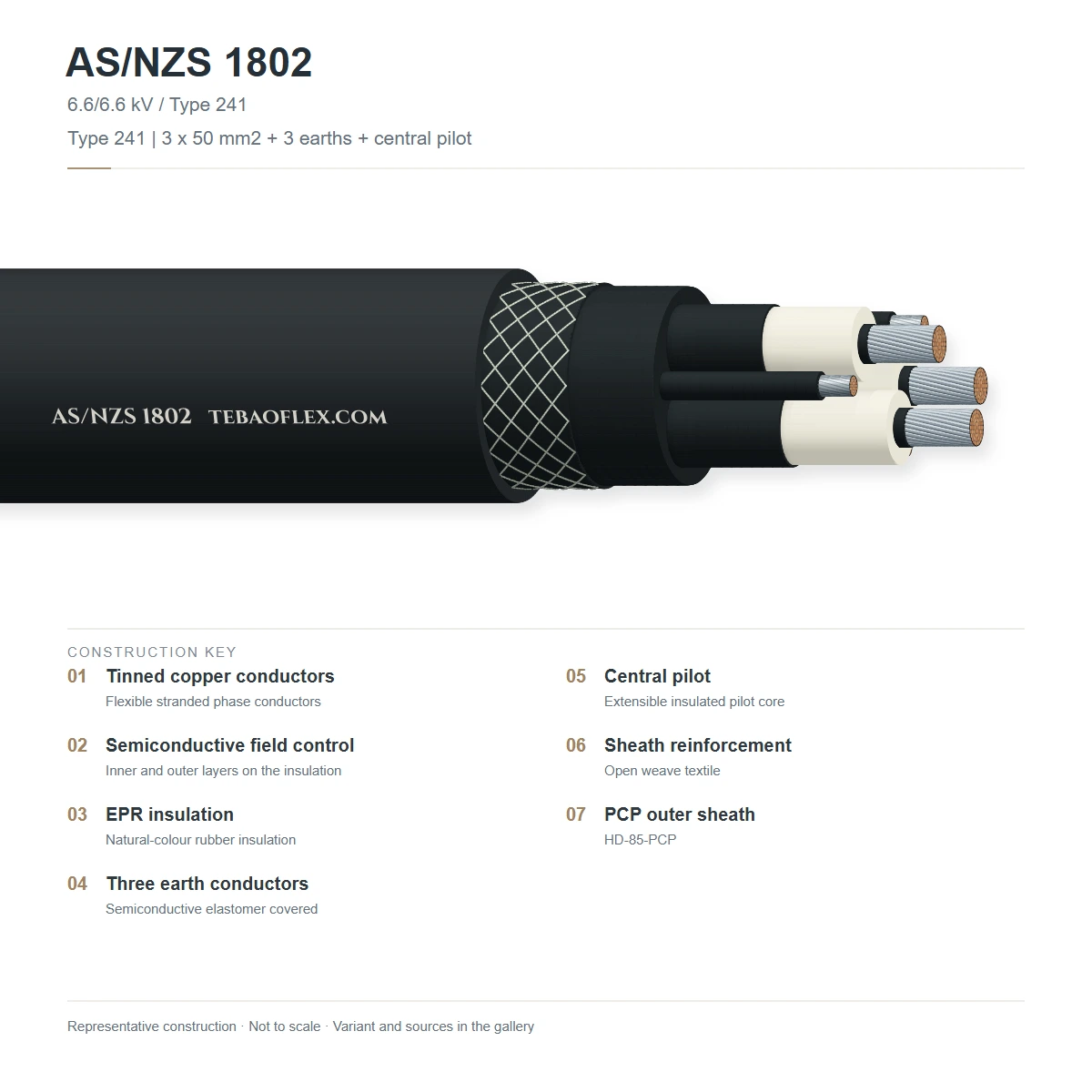

Construction

Layer by layer

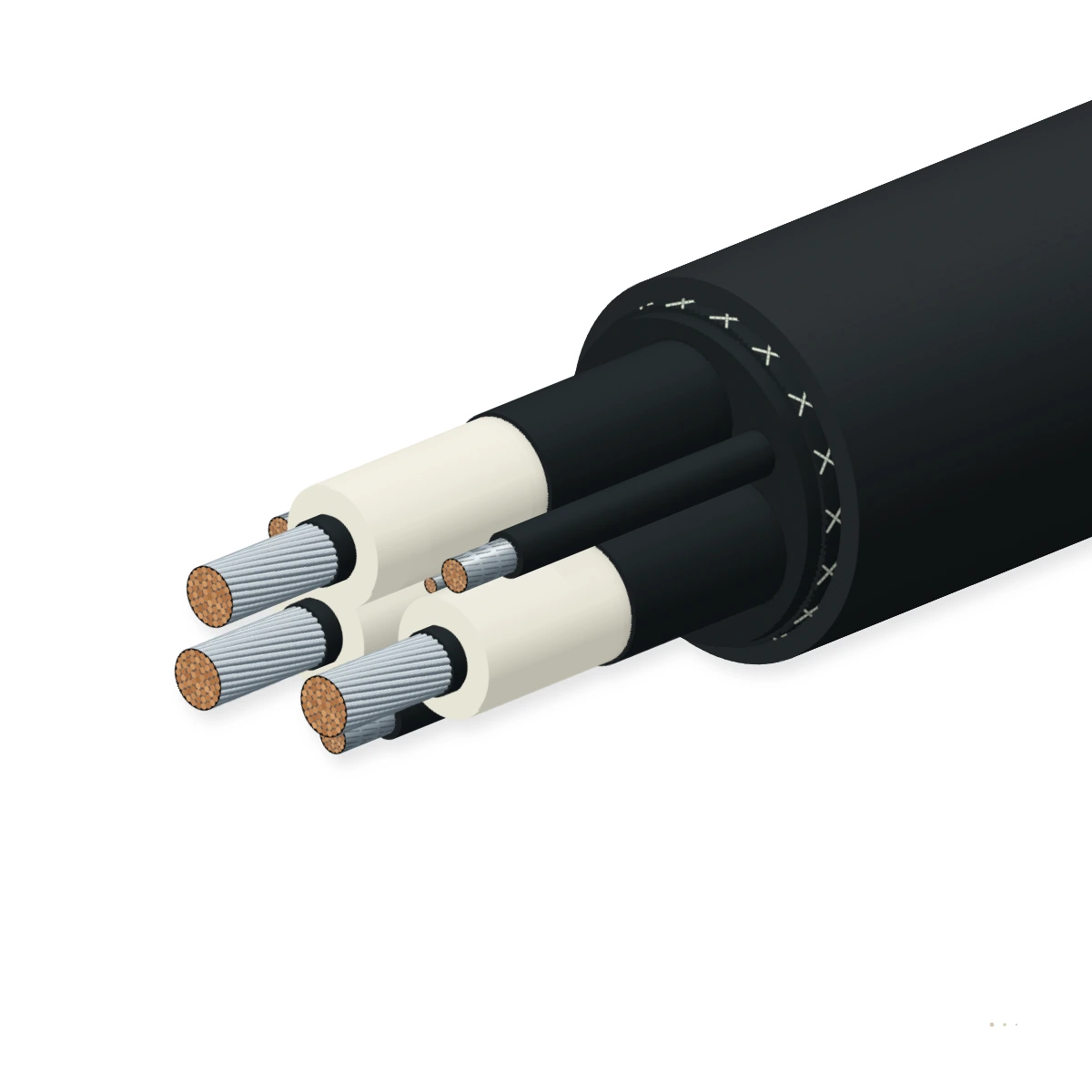

Shown: Semiconductive-screened Type 241 / 245 architecture with three flexible tinned copper phase cores, three interstitial earth cores, central extensible pilot(s) and open-weave reinforced HD-85-PCP outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Flexible tinned copper phase conductor	Flexible stranded tinned annealed copper per AS/NZS 1125 (extra-fine stranding on SF, Superflex and UF types)AS/NZS 1125
2	Conductor screen	Extruded semiconductive elastomer screen on 3.3/3.3 kV and above; polyester separator tape at 1.1/1.1 kVAS/NZS 1802
3	R-EP-90 EPR insulation	Thermoset ethylene propylene rubber (R-EP-90 per AS/NZS 3808) rated +90 °C continuous and +250 °C short-circuitAS/NZS 3808
4	Core earth screen (composite Cu/PET or semiconductive)	Composite tinned copper wire / polyester yarn braid (Types 209, 210, 240, 260) or semiconductive elastomer screen + 3 interstitial earths (Types 241, 245)AS/NZS 1802
5	Extensible pilot & interstitial earth cores	Central extensible EPR-insulated pilot (or 3 pilots on Types 240/245/245UF) plus 3 semiconductive-covered earth cores in intersticesAS/NZS 1802
6	Open-weave anti-torsion reinforcement (or SWA on Type 260)	Open-weave textile reinforcement locked into the sheath (Types 241, 245, 275) or pliable galvanised steel wire strand armour (Type 260)AS/NZS 1802
7	Heavy-duty HD-85-PCP outer sheath	Flame-retardant (Category C1), oil-, water- and abrasion-resistant heavy-duty polychloroprene (HD-85-PCP per AS/NZS 3808)AS/NZS 3808

Composite Copper/Polyester Screened (Types 209, 210, 240, 260)

Individual tinned-copper/polyester composite earth screens over each phase core; 1 central pilot (209, 210, 260) or 3 interstitial pilots (240).

Semiconductive Screened + 3 Interstitial Earths (Types 241, 241SF, 245, 245UF)

Replaces metallic core braids with semiconductive elastomer screens and 3 interstitial earth conductors for superior flexing in monorails and shearer chains.

Shuttle Car Anti-Corkscrewing Reeling (Type 275)

Unscreened 1.1 kV phase cores locked in a semiconductive elastomer cradle with 3 interstitial earths, central pilot and open-weave reinforcement.

Types in this range

Composite screen · 1.1–11 kVType 209

Composite Cu/PET phase screens · 1 central pilot · HD-85-PCP sheath

General underground trailing, continuous miners & pump feeders

Datasheet

Composite screen · 1.1/1.1 kVType 210

Composite Cu/PET phase screens · 1 central pilot · 1.5 & 2.5 mm²

Hand-held boring machines, roof bolters & light portable drills

Datasheet

Composite screen · 1.1–11 kVType 240

Composite Cu/PET phase screens · 3 interstitial pilots · HD-85-PCP sheath

Long feeder runs between transformer & gate-end box, continuous miners

Datasheet

Semicon screen · 1.1–11 kVType 241

Semiconductive screens · 3 interstitial earths · 1 central pilot

Continuous miners, monorail DCB feeders & longwall peripherals

Datasheet

Max. flexibility · 1.1–11 kVType 241SF

Extra-flexible Type 241 with semiconductive screens, 3 earths & 1 pilot

Tight underground turns, continuous miners & monorail loops

Datasheet

Superflex · 1.1–6.6 kVType 241 Superflex

Fine-stranded 0.50 mm wire Superflex construction · 3 earths · 1 pilot

Compact monorail loops supplying DCBs and longwall faces

Datasheet

Shearer cable · 1.1–6.6 kVType 245

Semiconductive screens · 3 interstitial earths · 3 central pilots

Longwall shearers, continuous miners & multi-pilot control loops

Datasheet

Ultra-flexible · 1.1–3.3 kVType 245UF

Ultra-flexible shearer chain construction · 3 earths · 3 central pilots

Tight-radius longwall shearer cable chains (bretby handlers)

Datasheet

Pliable armoured · 1.1–11 kVType 260

Composite Cu/PET screens · 1 pilot · pliable galvanised steel wire armour

Armoured underground feeder runs to transportable substations

Datasheet

Shuttle car reeling · 1.1/1.1 kVType 275

Semicon cradle · 3 interstitial earths · 1 central pilot · anti-corkscrew

High-speed reeling on underground coal shuttle cars (16–50 mm²)

Datasheet

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on AS/NZS 1802. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 1.1/1.1, 3.3/3.3, 6.6/6.6 & 11/11 kV
Earth-screen architecture: Composite Cu/PET (209–240, 260) or semicon (241–245, 275)
Pilot conductor arrangement: 1 central pilot (209, 210, 241, 275) or 3 pilots (240, 245)
Pilot max. DC resistance: ≤ 3.0 Ω/100 m (Type 245UF); ≤ 5.5 Ω/100 m (Type 210)

Thermal

Max. continuous conductor temp.: +90 °C
Short-circuit temperature: +250 °C (5 s maximum)
Min. installation temperature: −25 °C

Mechanical

Conductor stranding: Flexible stranded tinned annealed copper (AS/NZS 1125)
Minimum bend radius: 6 × D fixed; 10 × D dynamic flexing & reeling
Sheath reinforcement & armour: Open-weave textile braid (241/245/275); SWA pliable armour (260)

Resistance

Flame propagation: AS/NZS 1660.5.6 Category C1 flame retardant
Oil & water immersion: HD-85-PCP heavy-duty oil, water & abrasion resistant
Anti-corkscrewing design: Semiconductive cradle + open-weave reinforcement (Type 275)

Reference standards

Primary cable standard: AS/NZS 1802 (underground coal mining cables)
Compounds & conductors: AS/NZS 3808 (R-EP-90, HD-85-PCP); AS/NZS 1125

Identification

Phase core identification: Red, white, blue braid tracers (209/240) or printed numbers (241)
Outer sheath compound: Black heavy-duty HD-85-PCP polychloroprene (CPE/CSP optional)

Sizes

255 sizes across 10 AS/NZS 1802 underground cable types

Nominal dimensions, earth/screen cross-sections, masses and electrical parameters per type and voltage grade (1.1/1.1 kV to 11/11 kV).

Dimensions & mass (255)
Type · grade · size	Voltage U0/U	Phase area (mm²)	Conductor Ø (mm)	R-EP-90 wall (mm)	Screen / earth (mm²)	Outer sheath (mm)	Nominal OD (mm)	Total mass (kg/km)
Type 241 · Semiconductive Screened · 3 Earths + 1 Pilot · 1.1–11 kV (44)
Type 241.1 · 1.1/1.1 kV · 3×6 mm²	1.1/1.1 kV	6.0	3.5	1.5	1.0	3.8	29.9	1,300
Type 241.1 · 1.1/1.1 kV · 3×10 mm²	1.1/1.1 kV	10.0	4.6	1.5	1.5	3.8	32.0	1,550
Type 241.1 · 1.1/1.1 kV · 3×16 mm²	1.1/1.1 kV	16.0	6.2	1.6	3.0	3.9	35.9	2,000
Type 241.1 · 1.1/1.1 kV · 3×25 mm²	1.1/1.1 kV	25.0	7.2	1.6	4.5	4.2	38.9	2,550
Type 241.1 · 1.1/1.1 kV · 3×35 mm²	1.1/1.1 kV	35.0	8.4	1.6	6.0	4.4	42.0	3,100
Type 241.1 · 1.1/1.1 kV · 3×50 mm²	1.1/1.1 kV	50.0	9.7	1.7	8.0	4.9	46.3	3,800
Type 241.1 · 1.1/1.1 kV · 3×70 mm²	1.1/1.1 kV	70.0	12.0	1.8	12.5	5.3	52.4	5,100
Type 241.1 · 1.1/1.1 kV · 3×95 mm²	1.1/1.1 kV	95.0	13.3	2.0	12.5	5.8	57.1	6,050
Type 241.1 · 1.1/1.1 kV · 3×120 mm²	1.1/1.1 kV	120.0	15.3	2.1	13.8	6.3	62.9	7,450
Type 241.1 · 1.1/1.1 kV · 3×150 mm²	1.1/1.1 kV	150.0	17.2	2.3	17.0	6.7	68.6	9,100
Type 241.1 · 1.1/1.1 kV · 3×185 mm²	1.1/1.1 kV	185.0	18.8	2.5	22.0	7.3	74.4	10,850
Type 241.1 · 1.1/1.1 kV · 3×240 mm²	1.1/1.1 kV	240.0	21.7	2.8	27.0	8.0	83.2	13,700
Type 241.1 · 1.1/1.1 kV · 3×300 mm²	1.1/1.1 kV	300.0	24.3	3.0	35.2	8.7	90.8	16,700
Type 241.3 · 3.3/3.3 kV · 3×16 mm²	3.3/3.3 kV	16.0	6.2	3.0	3.0	5.0	45.0	2,850
Type 241.3 · 3.3/3.3 kV · 3×25 mm²	3.3/3.3 kV	25.0	7.2	3.0	4.5	5.3	48.2	3,500
Type 241.3 · 3.3/3.3 kV · 3×35 mm²	3.3/3.3 kV	35.0	8.4	3.0	6.0	5.6	51.2	4,100
Type 241.3 · 3.3/3.3 kV · 3×50 mm²	3.3/3.3 kV	50.0	9.7	3.0	8.0	6.0	55.0	4,850
Type 241.3 · 3.3/3.3 kV · 3×70 mm²	3.3/3.3 kV	70.0	12.0	3.0	12.5	6.4	60.6	6,200
Type 241.3 · 3.3/3.3 kV · 3×95 mm²	3.3/3.3 kV	95.0	13.3	3.0	16.0	6.8	64.2	7,150
Type 241.3 · 3.3/3.3 kV · 3×120 mm²	3.3/3.3 kV	120.0	15.3	3.0	20.0	7.2	69.3	8,550
Type 241.3 · 3.3/3.3 kV · 3×150 mm²	3.3/3.3 kV	150.0	17.2	3.0	27.0	7.6	74.2	10,300
Type 241.3 · 3.3/3.3 kV · 3×185 mm²	3.3/3.3 kV	185.0	18.8	3.0	35.2	8.0	78.5	11,900
Type 241.3 · 3.3/3.3 kV · 3×240 mm²	3.3/3.3 kV	240.0	21.7	3.0	39.5	8.6	85.8	14,500
Type 241.3 · 3.3/3.3 kV · 3×300 mm²	3.3/3.3 kV	300.0	24.3	3.0	50.0	9.1	92.3	17,350
Type 241.6 · 6.6/6.6 kV · 3×16 mm²	6.6/6.6 kV	16.0	6.2	5.0	3.0	6.1	55.9	4,100
Type 241.6 · 6.6/6.6 kV · 3×25 mm²	6.6/6.6 kV	25.0	7.2	5.0	4.5	6.4	59.4	4,950
Type 241.6 · 6.6/6.6 kV · 3×35 mm²	6.6/6.6 kV	35.0	8.4	5.0	6.0	6.7	62.5	5,600
Type 241.6 · 6.6/6.6 kV · 3×50 mm²	6.6/6.6 kV	50.0	9.7	5.0	8.0	7.1	66.2	6,450
Type 241.6 · 6.6/6.6 kV · 3×70 mm²	6.6/6.6 kV	70.0	12.0	5.0	12.5	7.4	71.7	7,900
Type 241.6 · 6.6/6.6 kV · 3×95 mm²	6.6/6.6 kV	95.0	13.3	5.0	16.0	7.9	75.5	9,050
Type 241.6 · 6.6/6.6 kV · 3×120 mm²	6.6/6.6 kV	120.0	15.3	5.0	20.0	8.3	80.6	10,650
Type 241.6 · 6.6/6.6 kV · 3×150 mm²	6.6/6.6 kV	150.0	17.2	5.0	27.0	8.6	85.1	12,350
Type 241.6 · 6.6/6.6 kV · 3×185 mm²	6.6/6.6 kV	185.0	18.8	5.0	35.2	9.0	89.5	14,100
Type 241.6 · 6.6/6.6 kV · 3×240 mm²	6.6/6.6 kV	240.0	21.7	5.0	39.5	9.6	96.8	16,850
Type 241.6 · 6.6/6.6 kV · 3×300 mm²	6.6/6.6 kV	300.0	24.3	5.0	50.0	10.2	104.0	19,950
Type 241.11 · 11/11 kV · 3×25 mm²	11/11 kV	25.0	7.2	7.6	4.5	7.8	73.8	7,200
Type 241.11 · 11/11 kV · 3×35 mm²	11/11 kV	35.0	8.4	7.6	6.0	8.1	76.8	8,000
Type 241.11 · 11/11 kV · 3×50 mm²	11/11 kV	50.0	9.7	7.6	8.0	8.5	80.5	8,950
Type 241.11 · 11/11 kV · 3×70 mm²	11/11 kV	70.0	12.0	7.6	12.5	8.9	86.1	10,600
Type 241.11 · 11/11 kV · 3×95 mm²	11/11 kV	95.0	13.3	7.6	16.0	9.3	89.7	11,800
Type 241.11 · 11/11 kV · 3×120 mm²	11/11 kV	120.0	15.3	7.6	20.0	9.7	94.8	13,500
Type 241.11 · 11/11 kV · 3×150 mm²	11/11 kV	150.0	17.2	7.6	27.0	10.0	99.3	15,400
Type 241.11 · 11/11 kV · 3×185 mm²	11/11 kV	185.0	18.8	7.6	32.0	10.4	104.0	17,200
Type 241.11 · 11/11 kV · 3×240 mm²	11/11 kV	240.0	21.7	7.6	39.5	11.0	111.0	20,350

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
For composite-screened types (209, 210, 240, 245, 260), 'Screen / earth (mm²)' gives the metallic copper cross-section of each phase screen; for semiconductive-screened/cradle types (241, 241SF, 241 Superflex, 245UF, 275), it gives the cross-section of each of the three interstitial earth conductors.
Masses have been converted from kg/100 m to kg/km (× 10) for consistency across all PDP tables.

Electrical parameters (174)
Type · grade · size	Voltage U0/U	Phase area (mm²)	AC resistance 90 °C (Ω/km)	Reactance 50 Hz (Ω/km)	Voltage drop (mV/A·m)	Capacitance (µF/km)
Type 241 · 1.1–11 kV (44)
Type 241.1 · 1.1/1.1 kV · 3×6 mm²	1.1/1.1 kV	6.0	4.320	0.139	7.490	0.259
Type 241.1 · 1.1/1.1 kV · 3×10 mm²	1.1/1.1 kV	10.0	2.580	0.127	4.470	0.314
Type 241.1 · 1.1/1.1 kV · 3×16 mm²	1.1/1.1 kV	16.0	1.580	0.116	2.740	0.379
Type 241.1 · 1.1/1.1 kV · 3×25 mm²	1.1/1.1 kV	25.0	0.951	0.110	1.660	0.432
Type 241.1 · 1.1/1.1 kV · 3×35 mm²	1.1/1.1 kV	35.0	0.698	0.106	1.220	0.493
Type 241.1 · 1.1/1.1 kV · 3×50 mm²	1.1/1.1 kV	50.0	0.523	0.102	0.923	0.526
Type 241.1 · 1.1/1.1 kV · 3×70 mm²	1.1/1.1 kV	70.0	0.346	0.097	0.622	0.599
Type 241.1 · 1.1/1.1 kV · 3×95 mm²	1.1/1.1 kV	95.0	0.271	0.094	0.497	0.591
Type 241.1 · 1.1/1.1 kV · 3×120 mm²	1.1/1.1 kV	120.0	0.210	0.091	0.397	0.640
Type 241.1 · 1.1/1.1 kV · 3×150 mm²	1.1/1.1 kV	150.0	0.166	0.090	0.327	0.652
Type 241.1 · 1.1/1.1 kV · 3×185 mm²	1.1/1.1 kV	185.0	0.137	0.089	0.283	0.657
Type 241.1 · 1.1/1.1 kV · 3×240 mm²	1.1/1.1 kV	240.0	0.107	0.087	0.239	0.672
Type 241.1 · 1.1/1.1 kV · 3×300 mm²	1.1/1.1 kV	300.0	0.085	0.085	0.208	0.719
Type 241.3 · 3.3/3.3 kV · 3×16 mm²	3.3/3.3 kV	16.0	1.580	0.129	2.750	0.255
Type 241.3 · 3.3/3.3 kV · 3×25 mm²	3.3/3.3 kV	25.0	0.951	0.123	1.660	0.280
Type 241.3 · 3.3/3.3 kV · 3×35 mm²	3.3/3.3 kV	35.0	0.698	0.117	1.230	0.311
Type 241.3 · 3.3/3.3 kV · 3×50 mm²	3.3/3.3 kV	50.0	0.523	0.112	0.926	0.347
Type 241.3 · 3.3/3.3 kV · 3×70 mm²	3.3/3.3 kV	70.0	0.346	0.105	0.626	0.408
Type 241.3 · 3.3/3.3 kV · 3×95 mm²	3.3/3.3 kV	95.0	0.271	0.101	0.501	0.439
Type 241.3 · 3.3/3.3 kV · 3×120 mm²	3.3/3.3 kV	120.0	0.210	0.097	0.400	0.492
Type 241.3 · 3.3/3.3 kV · 3×150 mm²	3.3/3.3 kV	150.0	0.166	0.093	0.330	0.541
Type 241.3 · 3.3/3.3 kV · 3×185 mm²	3.3/3.3 kV	185.0	0.137	0.091	0.285	0.584
Type 241.3 · 3.3/3.3 kV · 3×240 mm²	3.3/3.3 kV	240.0	0.107	0.088	0.240	0.659
Type 241.3 · 3.3/3.3 kV · 3×300 mm²	3.3/3.3 kV	300.0	0.085	0.085	0.209	0.727
Type 241.6 · 6.6/6.6 kV · 3×16 mm²	6.6/6.6 kV	16.0	1.580	0.141	2.750	0.181
Type 241.6 · 6.6/6.6 kV · 3×25 mm²	6.6/6.6 kV	25.0	0.951	0.135	1.660	0.193
Type 241.6 · 6.6/6.6 kV · 3×35 mm²	6.6/6.6 kV	35.0	0.698	0.129	1.230	0.212
Type 241.6 · 6.6/6.6 kV · 3×50 mm²	6.6/6.6 kV	50.0	0.523	0.123	0.931	0.234
Type 241.6 · 6.6/6.6 kV · 3×70 mm²	6.6/6.6 kV	70.0	0.346	0.115	0.632	0.271
Type 241.6 · 6.6/6.6 kV · 3×95 mm²	6.6/6.6 kV	95.0	0.271	0.111	0.507	0.292
Type 241.6 · 6.6/6.6 kV · 3×120 mm²	6.6/6.6 kV	120.0	0.210	0.106	0.407	0.325
Type 241.6 · 6.6/6.6 kV · 3×150 mm²	6.6/6.6 kV	150.0	0.166	0.102	0.337	0.354
Type 241.6 · 6.6/6.6 kV · 3×185 mm²	6.6/6.6 kV	185.0	0.137	0.100	0.293	0.381
Type 241.6 · 6.6/6.6 kV · 3×240 mm²	6.6/6.6 kV	240.0	0.106	0.096	0.247	0.426
Type 241.6 · 6.6/6.6 kV · 3×300 mm²	6.6/6.6 kV	300.0	0.085	0.093	0.217	0.467
Type 241.11 · 11/11 kV · 3×25 mm²	11/11 kV	25.0	0.951	0.148	1.670	0.150
Type 241.11 · 11/11 kV · 3×35 mm²	11/11 kV	35.0	0.698	0.141	1.230	0.163
Type 241.11 · 11/11 kV · 3×50 mm²	11/11 kV	50.0	0.523	0.135	0.936	0.178
Type 241.11 · 11/11 kV · 3×70 mm²	11/11 kV	70.0	0.346	0.126	0.638	0.204
Type 241.11 · 11/11 kV · 3×95 mm²	11/11 kV	95.0	0.271	0.122	0.515	0.219
Type 241.11 · 11/11 kV · 3×120 mm²	11/11 kV	120.0	0.210	0.116	0.416	0.241
Type 241.11 · 11/11 kV · 3×150 mm²	11/11 kV	150.0	0.165	0.112	0.345	0.261
Type 241.11 · 11/11 kV · 3×185 mm²	11/11 kV	185.0	0.136	0.109	0.302	0.279
Type 241.11 · 11/11 kV · 3×240 mm²	11/11 kV	240.0	0.106	0.104	0.257	0.309

Electrical parameters are stated at 50 Hz and 90 °C maximum conductor operating temperature.
Three-phase voltage drop values (mV/A·m) are based on lagging power factor 0.8.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
Conductor & pilot DC resistance and earth-screen continuity	100 % drum verification of phase, earth and extensible pilot resistance per AS/NZS 1125 and AS/NZS 1802	Every production length
High-voltage AC dielectric & partial discharge test	5-minute AC voltage withstand on all grades; partial discharge extinction test on 3.3/3.3 kV to 11/11 kV screened cores per AS/NZS 1802	Every production length
Sample tests
Flame propagation (AS/NZS 1660.5.6 Category C1)	Self-extinguishing vertical flame test compliance to Category C1 as mandated for underground coal mines	Type approval & periodic audit
HD-85-PCP oil, water immersion & tear resistance	Tensile, elongation and tear retention after hot oil and water immersion per AS/NZS 3808	Type approval & batch sample

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

AS/NZS 1802 Underground Coal Mining Reeling & Trailing CableAS/NZS 1660.5.6 Category C1 Flame RetardantNSW Resources Regulator / Dolomite & Underground Coal MDG 3608 Compliance

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX — AS/NZS 1802 — TYPE <CODE> — <U0/U kV> — 3 × <AREA> mm² — R-EP-90 / HD-85-PCP — C1 FLAME RETARDANT — YEAR — METRE MARK

Standard packing: 250 m, 500 m or custom face-length steel/timber mining drums
Outer sheath options: Black HD-85-PCP standard; high-visibility stripes or CPE/CSP on request
Export tariff code: HS 8544.60 (> 1,000 V underground mining cables)

Technical documents

Downloads

PDFAS/NZS 1802 Underground Coal Mining Reeling & Trailing Cables – technical datasheet255 sizes · construction, technical data, approvals XLSXAS/NZS 1802 spec data (Excel)All 255 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How do AS/NZS 1802 underground cables (200-series) differ from AS/NZS 2802 surface mining cables (400-series)?

AS/NZS 1802 governs underground coal mining reeling and trailing cables (Types 209, 210, 240, 241, 245, 260, 275 up to 11/11 kV), which require tighter outer diameters for narrow roadways, specialised anti-corkscrewing cradle designs for high-speed shuttle cars (Type 275) and ultra-flexible multi-pilot cores for longwall shearer chains (Types 245/245UF). AS/NZS 2802 covers open-cut surface mining cables (Types 409–455 up to 33/33 kV) built with heavier wall thicknesses and UV/solar-stabilised sheaths.

When should I choose a semiconductive-screened cable (Type 241 / 245) over a composite-screened cable (Type 209 / 240)?

Composite-screened cables (Types 209 and 240) wrap each phase core in a tinned-copper/polyester braid that acts as both the earth screen and fault return path, suited to feeder runs and moderate trailing duty. Semiconductive-screened cables (Types 241, 241SF, 245 and 245UF) replace the metallic core braid with a flexible conductive elastomer layer and three interstitial earth cores, eliminating copper braid wire fatigue in tight monorail loops and longwall shearer cable handlers.

Why do Types 240, 245 and 245UF incorporate three pilot conductors instead of a single central pilot?

Longwall shearers and extended transformer-to-gate-end-box feeder runs require separate circuits for earth-continuity monitoring, pilot-relay lockout and machine telemetry. Providing three insulated pilot conductors (interstitial in Type 240, or laid up in the centre of the cradle in Types 245 and 245UF) allows parallel pilot connection on long runs so loop resistance stays below the 3 Ω/100 m protection relay trip threshold.

What prevents Type 275 shuttle car cables from corkscrewing under high-speed bi-directional reeling?

Underground coal shuttle cars reel and pay out cable rapidly under high tension around guide rollers, which can twist conventional screened cores into permanent 'corkscrews'. Type 275 omits individual metallic core braids and seats the three 1.1 kV R-EP-90 phase cores into a moulded semiconductive elastomer cradle with three interstitial earths, a central extensible pilot and an open-weave anti-torsion reinforcement locked into the HD-85-PCP sheath.

Request a quote

Get an engineering quote for AS/NZS 1802

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

Reel typeDrum core diameter (mm)Cable length on drum (m)Travel speed (m/min)Max. accelerationCycles per hourLength and quantityAmbient temperatureExposure (outdoor, water, oil, abrasion)Destination countryEquipment and operating conditions

03Message for our engineers

AS/NZS 1802 Underground Mining Cable

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:

Send via WhatsApp

Datasheet Request a quote

AS/NZS 1802 Underground Coal Mining Reeling & Trailing CablesTen underground cable types for shearers, miners & shuttle cars, 1.1–11 kV

Longwall shearer & Bretby handler

Cylindrical / multi-layer drum

Trailing & towing

Mine roadway & tunnel wall hangers

Free-hanging vertical run

Composite Copper/Polyester Screened (Types 209, 210, 240, 260)

Semiconductive Screened + 3 Interstitial Earths (Types 241, 241SF, 245, 245UF)

Shuttle Car Anti-Corkscrewing Reeling (Type 275)

Types in this range

Electrical

Thermal

Mechanical

Resistance

Reference standards

Identification

Inspection certificate

Product approvals

Company certificates

01Selected sizes

02Reel & motion

03Message for our engineers

AS/NZS 2802

AS/NZS 1972

SHD / SHD-CGC
