Halogen-Free Armoured Signalling & Fire Detection Cables300/500 VDouble Steel Tape (B)Halogen-Free A-HHBH

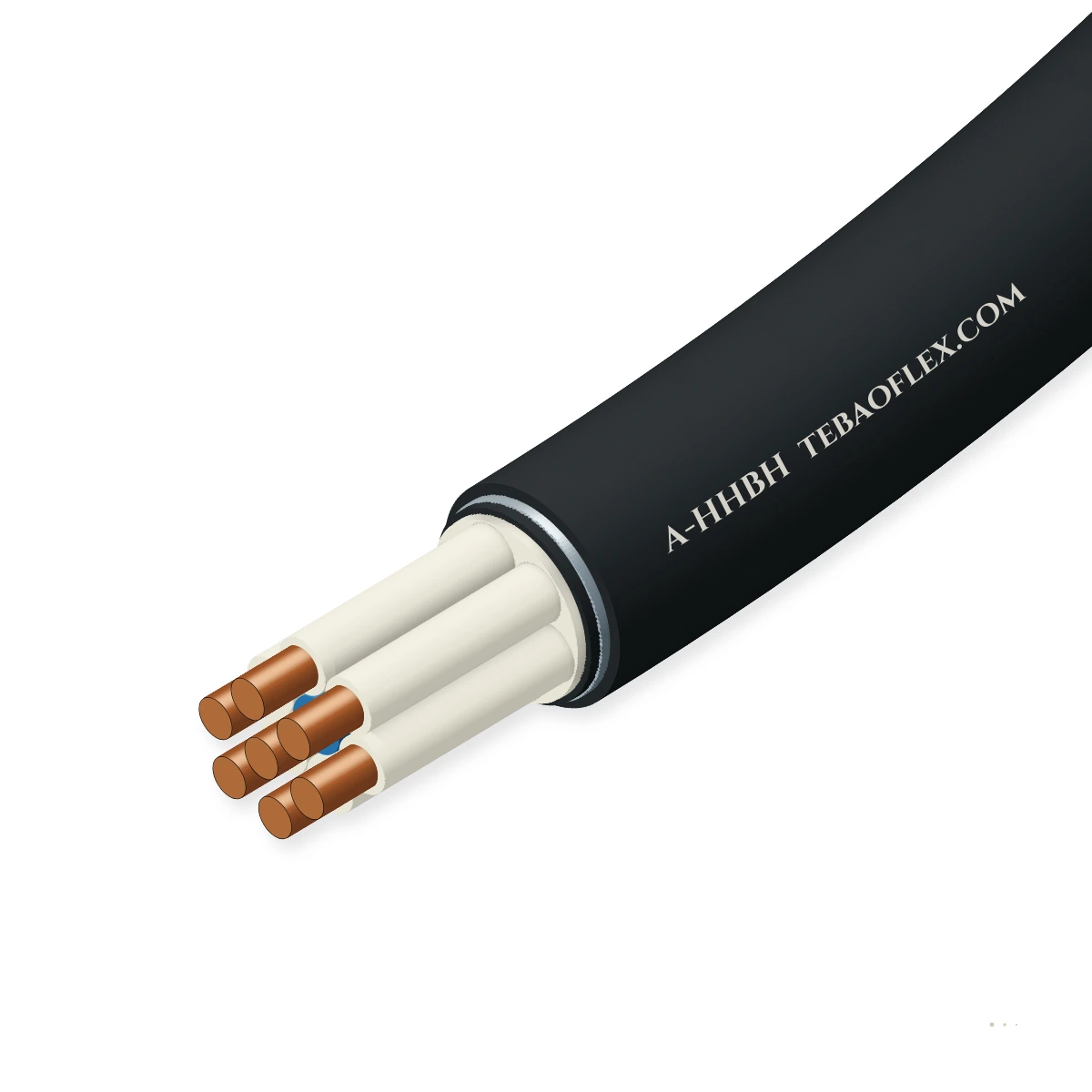

A-HHBH Halogen-Free Steel-Tape Armoured Signalling Cable300/500 V halogen-free double steel-tape armoured outdoor & tunnel signalling cable

A-HHBH is a rodent-proof, crush-resistant halogen-free (LSZH) outdoor and tunnel signalling cable constructed with solid bare copper conductors, halogen-free 'H' core insulation, a halogen-free extruded inner bedding 'H', double helical galvanized steel tape a

IEC 60332-3-24 LSZH

Rodent-Proof STA

DIN VDE 0816

Configuration

Order designation: A-HHBH 6×2×0.8
Outer Ø ≈: 14.2 mm
Copper weight: 58 kg/km
Total weight ≈: 310 kg/km
Min. bend R: 170 mm

All sizes (14)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Peak voltage: 300/500 V
Armouring: 2 × steel tape (
Conductor: Solid Cu Cl. 1
Insulation & sheat: 100 % LSZH (H)
Operating temp: -30 to +70 °C
Min. bend radius: 12 × cable OD

Typical values for this cable type, based on DIN VDE 0816 / DIN VDE 0276 — confirmed in the datasheet and quotation for your order.

Application fit

Is A-HHBH right for your machine?

Engineered for railway trackside troughing, metro tunnels, industrial fire-detection trunk lines and substation control ducts where rodent attack and mechanical crushing must be prevented without introducing PVC or PE halogens.

Fixed installation

Suitable

Installed in concrete trackside troughs, buried ducts, cable trenches and tunnel wall racks.

TBM gantry & advancing tunnel reel

Suitable

All-LSZH polymer system (core, bedding and outer sheath) meets underground tunnel smoke/acid rules.

Switchgear & control cabinet wiring

Suitable

Routes directly from outdoor trenches into indoor relay rooms and fire control panels.

Motorised monospiral reel

Not suitable

Class 1 solid copper conductors and double steel tape armour are strictly for fixed installation.

S07HXHX flexible LSZH

Typical machinesRail & metro trackside troughingRoad & utility tunnelsRefinery & plant fire alarm trunksPower substations & switchyardsAirport field lighting control

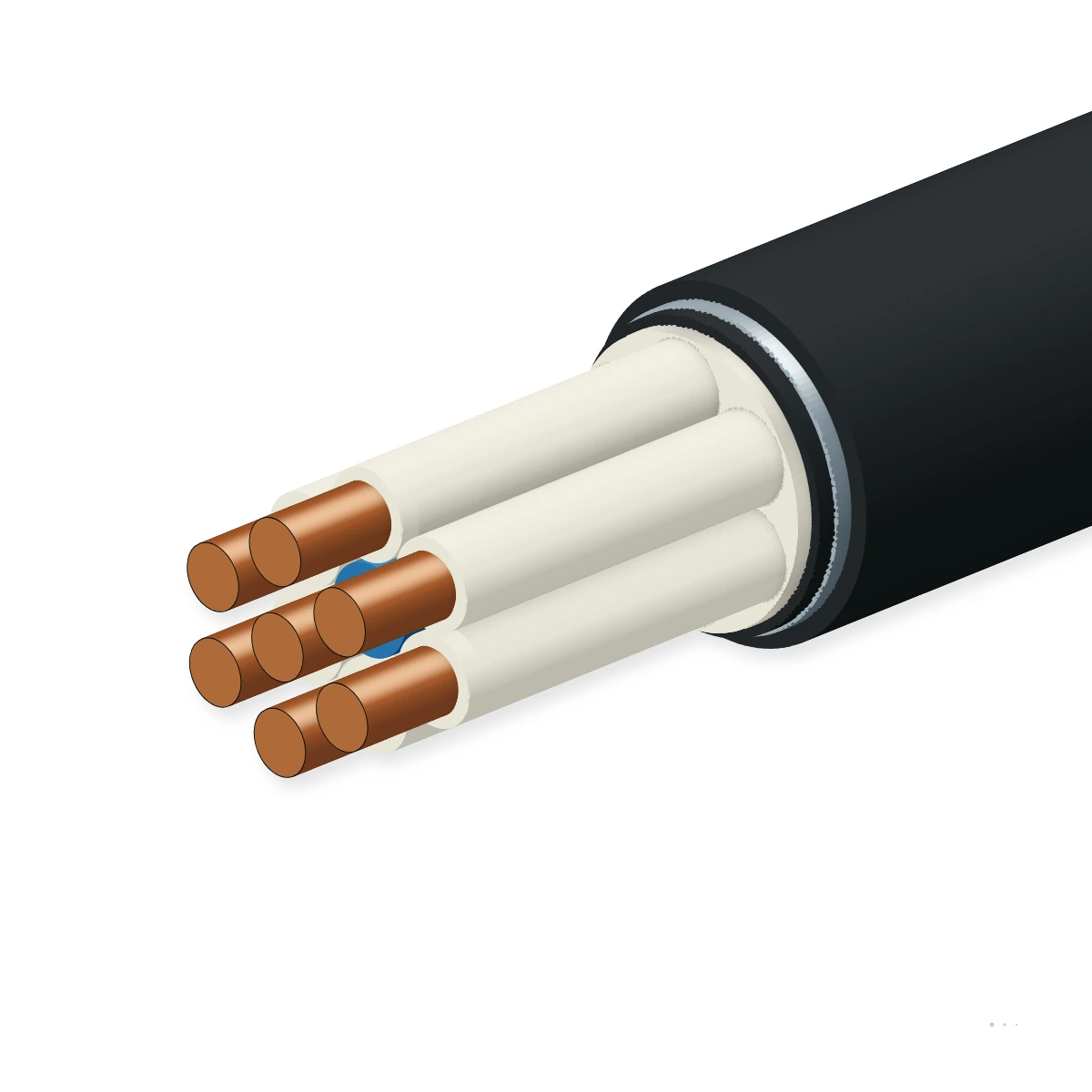

Construction

Layer by layer

Solid bare Cu conductors (pairs/quads or multi-core) + halogen-free H insulation + halogen-free H inner sheath + double galvanized steel tape armour (B) + UV-stabilised LSZH outer sheath (H).

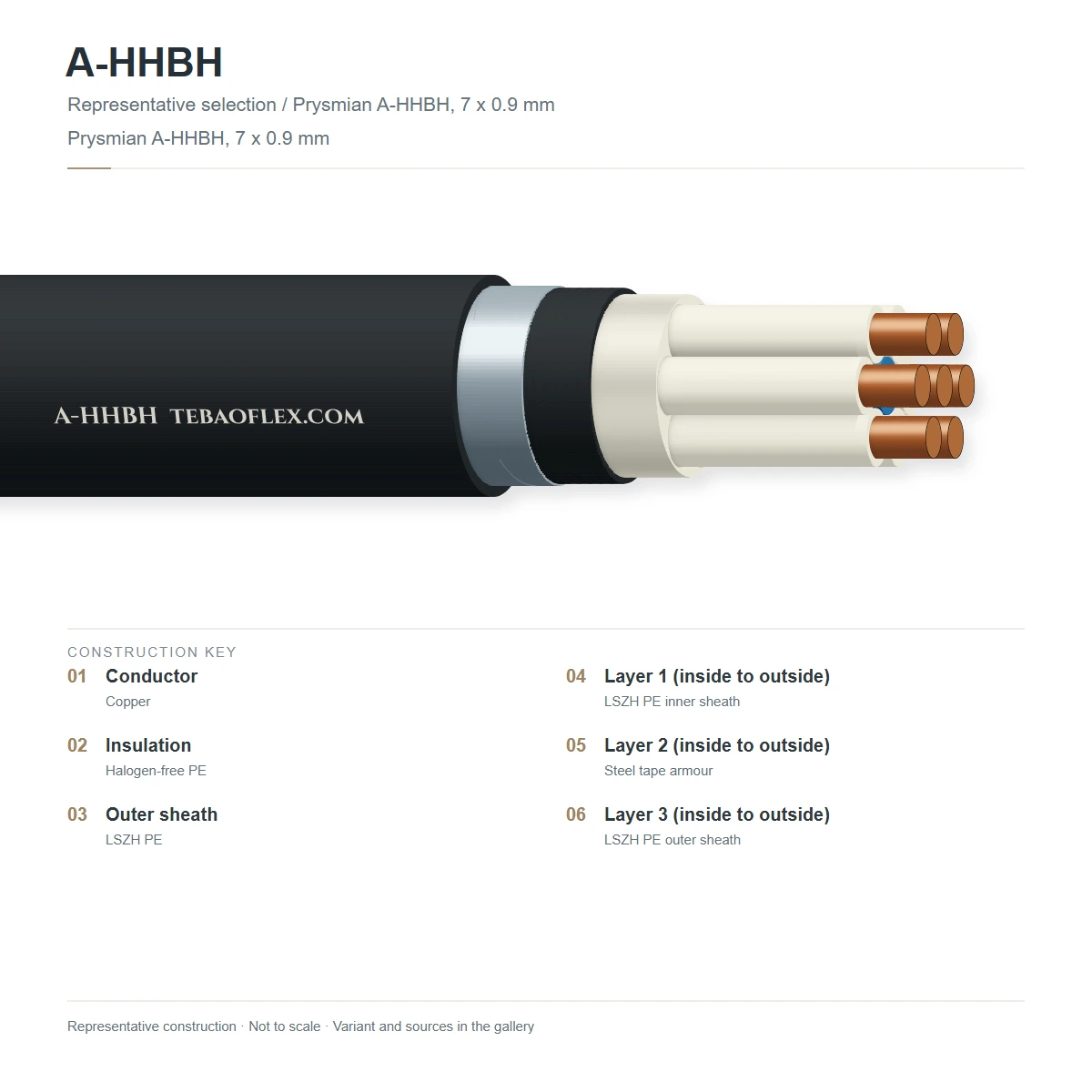

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Solid bare copper conductor	Annealed solid copper wire (0.8 mm, 1.4 mm Ø or 1.5–2.5 mm²) per IEC 60228 Class 1IEC 60228
2	Halogen-free core insulation (H)	Cross-linked or thermoplastic zero-halogen compoundDIN VDE 0816
3	Halogen-free inner sheath (H)	Extruded flame-retardant LSZH inner bedding under armourDIN VDE 0816
4	Double steel tape armour (B)	Two overlapping helical galvanized steel tapes (0.15–0.20 mm) for crush and rodent protectionDIN VDE 0816
5	Outer LSZH sheath (H)	UV- and weather-resistant halogen-free polyolefin compound HM4, BlackDIN VDE 0816

A-HHBH Paired / Star-Quad (0.8 / 1.4 mm)

Low-capacitance signalling pairs or star-quads for fire alarm ring buses, interlocks and railway telemetry.

A-HHBH Multi-Core Control (1.5 / 2.5 mm²)

Numbered or colour-coded 1.5 mm² and 2.5 mm² control cores for outdoor damper actuators, hydrant valves and alarms.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0816 / DIN VDE 0276. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage: 300/500 V
Routine AC test voltage: 2000 V rms (50 Hz, 1 min)
Insulation resistance @ 20 °C: ≥1000 MΩ·km

Thermal

Operating temperature range: -30 °C to +70 °C (up to +90 °C on cross-linked H grades)
Min. installation temperature: -5 °C

Mechanical

Minimum bend radius: 12 × overall cable diameter
Impact & rodent resistance: Double helical galvanized steel tape armour

Resistance

Flame propagation: IEC 60332-3-24 Cat. C & EN 60332-1-2
Halogen acidity & smoke: IEC 60754-1/2 (pH ≥4.3, ≤10 µS/mm) & IEC 61034-2 (≥60 % light transmittance)
UV & outdoor weathering: Carbon-black UV-stabilised HM4 outer sheath

Reference standards

Reference standards: DIN VDE 0816 / DIN VDE 0815 / EN 50288-7
Installation standard: DIN VDE 0891 outdoor & tunnel routing

Identification

Code breakdown: A = outdoor · H = LSZH insulation · H = LSZH inner sheath · B = steel-tape armour · H = LSZH outer sheath
Outer sheath colour: Black (or Orange on fire-alarm special runs)

Sizes

14 standard configurations (A-HHBH)

Nominal dimensions, masses and electrical ratings for A-HHBH according to DIN VDE 0816 / DIN VDE 0276.

Dimensions & masses
Designation	Configuration	Cond. size	Outer Ø ≈ mm	Copper kg/km	Total weight ≈ kg/km	Min. bend R fixed mm
A-HHBH standard series
A-HHBH 2×2×0.8	2×2×0.8 mm	0.50 mm²	11.2	19	195	134
A-HHBH 4×2×0.8	4×2×0.8 mm	0.50 mm²	12.6	39	250	151
A-HHBH 6×2×0.8	6×2×0.8 mm	0.50 mm²	14.2	58	310	170
A-HHBH 10×2×0.8	10×2×0.8 mm	0.50 mm²	16.2	96	410	194
A-HHBH 20×2×0.8	20×2×0.8 mm	0.50 mm²	19.8	193	625	238
A-HHBH 2×2×1.4	2×2×1.4 mm	1.54 mm²	13.8	59	295	166
A-HHBH 4×2×1.4	4×2×1.4 mm	1.54 mm²	16.0	118	405	192
A-HHBH 4×1.5 RE	4×1.5 mm²	1.50 mm²	13.0	58	265	156
A-HHBH 7×1.5 RE	7×1.5 mm²	1.50 mm²	14.8	101	345	178
A-HHBH 12×1.5 RE	12×1.5 mm²	1.50 mm²	18.0	173	505	216
A-HHBH 19×1.5 RE	19×1.5 mm²	1.50 mm²	20.6	274	690	247
A-HHBH 24×1.5 RE	24×1.5 mm²	1.50 mm²	23.2	346	845	278
A-HHBH 4×2.5 RE	4×2.5 mm²	2.50 mm²	14.2	96	330	170
A-HHBH 7×2.5 RE	7×2.5 mm²	2.50 mm²	16.4	168	445	197

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Nominal outer diameters and weights are subject to manufacturing tolerances per DIN VDE 0816 / DIN VDE 0276.

Electrical data
Configuration	Max. DC R @ 20 °C Ω/km	Current in air A	Current in duct/tray A
2×2×0.8 mm	36.600	6	5
4×2×0.8 mm	36.600	6	5
6×2×0.8 mm	36.600	6	5
10×2×0.8 mm	36.600	6	5
20×2×0.8 mm	36.600	6	5
2×2×1.4 mm	11.900	14	12
4×2×1.4 mm	11.900	14	12
4×1.5 mm²	12.100	18	15
7×1.5 mm²	12.100	14	12
12×1.5 mm²	12.100	11	9
19×1.5 mm²	12.100	9	8
24×1.5 mm²	12.100	8	7
4×2.5 mm²	7.410	25	22
7×2.5 mm²	7.410	20	17

Current ratings apply at +30 °C ambient in free air and +25 °C in enclosed tray/conduit.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
2.0 kV AC dielectric test & conductor continuity	No breakdown at 2.0 kV rms for 1 minute	100 % of drums
Sample tests
IEC 60332-3-24 Cat. C vertical bunched flame test	Charred portion ≤2.5 m above burner	Type qualification
IEC 60754-2 acid gas & IEC 61034-2 smoke density	pH ≥4.3, conductivity ≤10 µS/mm, transmittance ≥60 %	Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0816 / 0815IEC 60332-3-24 Cat. CIEC 60754-1/2 & IEC 61034-2RoHS 3 & CE Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX A-HHBH 7x1.5 RE HAL-FREE ARMOURED SIGNALLING IEC 60332-3-24 CE [year] [meter mark]

Delivery form: Fumigated export wooden drums or shrink-wrapped coils
Standard drum lengths: 500 m · 1000 m standard drums (cut lengths on request)
MOQ: 100 m (stock sizes) · 300–500 m (production)
Lead time: 2–4 weeks ex-works
Incoterms: EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFA-HHBH Halogen-Free Steel-Tape Armoured Signalling Cable – technical datasheet14 sizes · construction, technical data, approvals XLSXA-HHBH spec data (Excel)All 14 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

When should A-HHBH be selected over unarmoured JE-H(St)H indoor signalling cable?

Indoor JE-H(St)H cables have a thin unarmoured outer sheath intended only for dry building trays. When fire-detection or control circuits run through outdoor concrete troughs, underground ducts or road/rail tunnels exposed to rats and crushing loads, A-HHBH provides double galvanized steel tape armour with full LSZH fire performance.

What is the difference between A-HHBH and A-H(L)HBH?

Both cables use halogen-free core insulation, a halogen-free inner bedding, double steel tape armour and an LSZH outer sheath. A-H(L)HBH adds a fused longitudinal aluminium-copolymer moisture barrier '(L)' under the inner sheath for water-logged trenches, whereas A-HHBH is used in drained troughs, ducts and tunnel galleries.

Can A-HHBH be pulled directly from an outdoor trench into a building switchgear room?

Yes. Because every polymeric layer in A-HHBH is low-smoke zero-halogen (IEC 60754-2 / IEC 61034-2) and passes the IEC 60332-3-24 bunched vertical flame test, it complies with indoor building fire regulations without requiring an entry splice box.

How should the double steel tape armour of A-HHBH be grounded?

At the cable gland or entry frame, clamp the cleaned galvanized steel tapes with a constant-force spring or armoured brass gland and bond to the station main earthing bar to provide mechanical strain relief and magnetic interference screening.
