Product

Reeling cableNF M 82-375 / VDE 0250-812U0/U 0.6/1 kV (1.1 kV mining)TTAR Anti-Torsion Braid

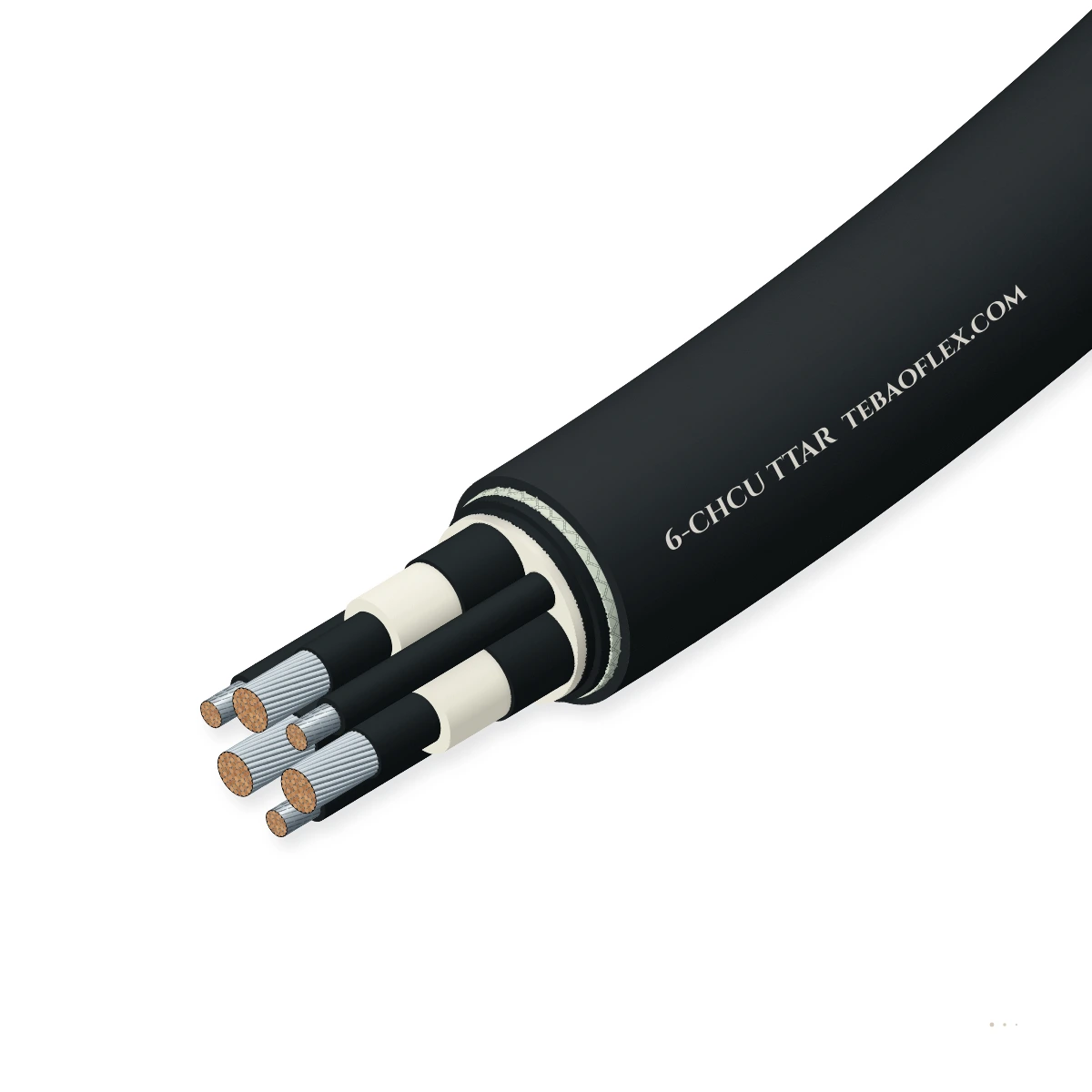

6-CHCU TTAR Extra-Heavy-Duty Trailing and Reeling Cable0.6/1 kV (1.1 kV mining) anti-torsion EPR/PCP/CSM cable for jumbos and LHD loaders

Built to NF M 82-375 and DIN VDE 0250-812 for extra-heavy-duty underground reeling and trailing on drill jumbos, LHD scooptrams and roadheaders, with 3GI3 EPR cores, anti-torsion braid (AR) and tear-proof 5GM5/CSM outer sheath.

Anti-torsion braid
Outdoor & humid
Oil-resistant
Flame-retardant
Order designation
6-CHCU TTAR 3×50+25
Outer Ø max
42.0 mm
Weight ≈
3,120 kg/km
Min. bend R
336 mm
Perm. pull
3,000 N
Check against my drumAll sizes (16)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
1.1 kV mining · max. AC 0.7/1.2 kV
Reeling speed
100 m/min
max. on motorised mining drums
Tensile load
20–25 N/mm²
20 N/mm² perm. · 25 N/mm² dynamic
Bending radius
6–8 × OD
6 × OD moving · 8 × OD reeling
Temperature
−25…+85 °C
flexing · +90 °C max. conductor
Sizes
16
3 × 16 + 16 to 3 × 150 + 70 mm²

Typical values for this cable type, based on NF M 82-375 / DIN VDE 0250-812 — confirmed in the datasheet and quotation for your order.

Application fit

Is 6-CHCU TTAR right for your machine?

6-CHCU TTAR combines Tout-Terrain (TT) double-sheath impact protection with an Anti-Rotation (AR) braid for combined reeling and rough roadway trailing in mines and tunnels.

Motorised monospiral reel

Suitable

Level-wind and monospiral drum reeling on tunnel drill jumbos, bolters and LHD loaders up to 100 m/min.

Cylindrical / multi-layer drum

Suitable

Multi-layer cylindrical drum reeling with AR braid preventing corkscrewing under ±100 °/m twist.

Mine roadway & tunnel wall hangers

Suitable

Extra-heavy-duty Tout-Terrain 5GM5/CSM outer sheath resists rock fall, tyre run-over and drilling fluids.

TBM gantry & advancing tunnel reel

Suitable

Primary 1,000/1,100 V feeder for electro-hydraulic drill jumbos, roadheaders and shotcrete rigs.

Trailing & towing

Suitable

Heavy trailing supply in quarries, open-pit benches and potash or hard-rock underground drifts.

Typical machinesTunnel drill jumbos & bolting rigsUnderground LHD scooptrams & loadersRoadheaders & continuous minersPotash, salt & hard-rock minesCivil tunnelling & cavern excavation

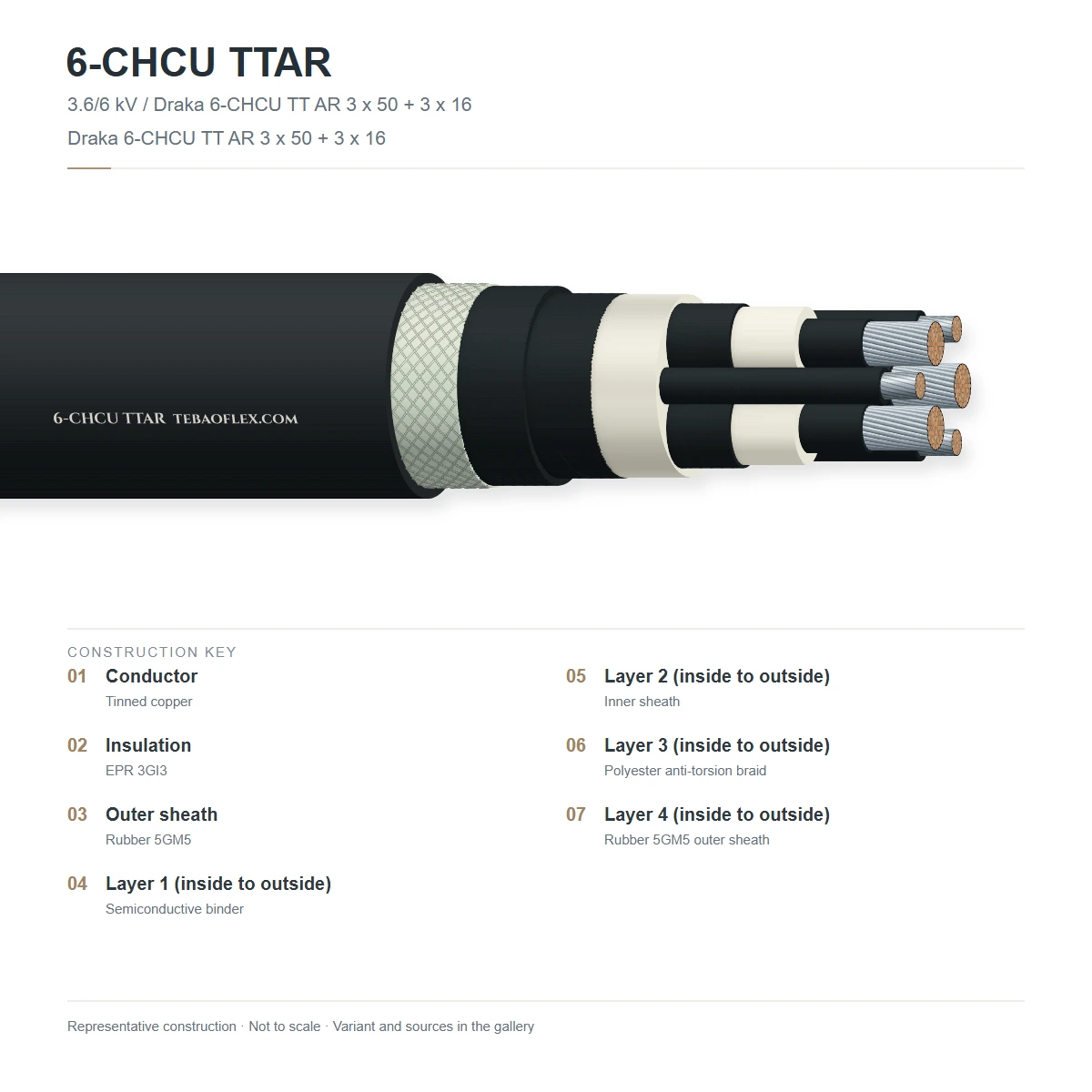

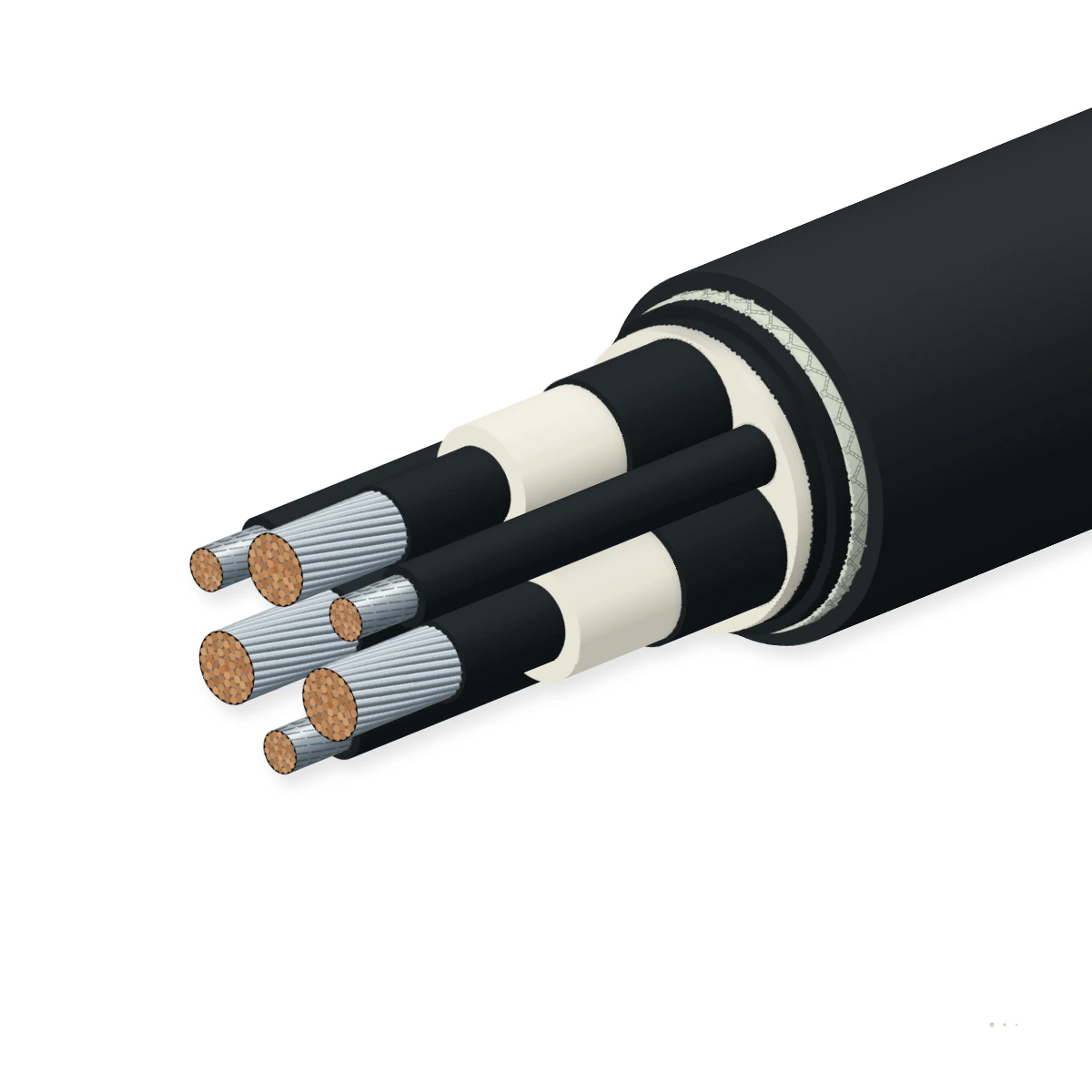

Construction

Layer by layer

Shown: 6-CHCU TTAR 3 × phase + 1 × protective earth + pilot cores with 3GI3 EPR insulation, vulcanised PCP inner sheath, high-tenacity anti-torsion braid (AR) and yellow/black 5GM5/CSM outer sheath.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Phase, earth & pilot conductorsElectrolytic tinned copper, extra-flexible Class 5 strandingIEC 60228 Class 5 / NF C 32-013
2Core insulationCross-linked ethylene-propylene elastomer (EPR) type 3GI3NF M 82-375 / DIN VDE 0207-20 · 90 °C continuous / 250 °C short-circuit
3Protective earth & pilot control cores1 × green-yellow insulated earth core (3G+1E) plus optional 1 to 3 extensible 2.5 or 4 mm² pilot coresShort-lay assembly around central elastomeric filler cradle
4Inner sheathVulcanised polychloroprene (PCP) elastomer compound type 5GM3Locks core lay geometry under multi-layer drum pressure
5Anti-torsion reinforcement (AR)High-tenacity synthetic / polyaramid anti-rotation braid vulcanised between sheathsPrevents corkscrew deformation during combined reeling and dragging (±100 °/m)
6Outer sheath (TTAR)Extra-heavy-duty polychloroprene / CSM elastomer compound type 5GM5 / EM2, yellow or blackNF M 82-375 · tear resistance ≥ 30 N/mm · oil EN 60811-404 · flame IEC 60332-1-2

6-CHCU TTAR (3P + E)

3 phase cores + 1 reduced or full green-yellow protective earth core (3×16+16 to 3×150+70 mm²)

6-CHCU TTAR + Pilots (3P + E + nP)

Includes 1 to 3 × 2.5 or 4 mm² pilot cores for remote gate-end box interlock and ground-check monitoring

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on NF M 82-375 / DIN VDE 0250-812. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV (up to 1.1 kV mining service)
Max. operating voltage AC
0.7/1.2 kV
Max. operating voltage DC
0.9/1.8 kV
AC test voltage (5 min)
3.5 kV AC (power cores) · 2.0 kV (pilots)
Current rating basis
DIN VDE 0298-4 / NF C 15-100 (30 °C in air)

Thermal

Temperature, flexing
−25 to +85 °C
Temperature, fixed
−40 to +85 °C
Max. conductor temperature
+90 °C
Short-circuit temperature (5 s)
+250 °C

Mechanical

Min. bending radius, moving
6 × OD trailing · 8 × OD forced reeling
Min. bending radius, fixed
4 × OD
Max. reeling speed
100 m/min
Max. tensile load
20 N/mm² perm. · 25 N/mm² dynamic
Torsional stress
± 100 °/m (with AR anti-torsion braid)

Resistance

Oil & drilling fluid resistance
EN 60811-404 (mineral & hydraulic oil)
Flame retardance
IEC 60332-1-2 / NF C 32-070 C2
Impact, cut & tear resistance
Extra-heavy-duty TTAR 5GM5/CSM (≥ 30 N/mm)
Water & humidity
AD7 / HD 22.16 submersible in tunnel water

Reference standards

Construction standard
NF M 82-375 / DIN VDE 0250-812
Conductor standard
IEC 60228 Class 5 / NF C 32-013
Compound designation
3GI3 EPR · 5GM3 inner · 5GM5/EM2 outer

Identification

Outer sheath colour
Yellow or black (high-visibility mining)
Core identification
HD 308 S2 + green-yellow + numbered pilots
Customs tariff (HS)
8544.49

Sizes

16 standard sizes (0.6/1 kV – 1.1 kV mining)

Typical dimensions for 6-CHCU TTAR (4-core 3P+E and multi-pilot 3P+E+3P configurations).

Dimensions & weights
Order designationCores × mm²Phase AWG ≈Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Perm. pull
N		Enquiry
3 × Phase + 1 × Earth (4-core)
6-CHCU TTAR 3×16+163 × 16 + 1 × 16629.86141,420238960
6-CHCU TTAR 3×25+163 × 25 + 1 × 16433.68741,8602691,500
6-CHCU TTAR 3×35+163 × 35 + 1 × 16236.81,1622,2902942,100
6-CHCU TTAR 3×50+253 × 50 + 1 × 25142.01,6803,1203363,000
6-CHCU TTAR 3×70+353 × 70 + 1 × 352/047.22,3524,1403784,200
6-CHCU TTAR 3×95+503 × 95 + 1 × 503/053.53,2165,4604285,700
6-CHCU TTAR 3×120+703 × 120 + 1 × 704/058.84,1286,7204707,200
6-CHCU TTAR 3×150+703 × 150 + 1 × 70300 kcmil63.64,9927,9505099,000
3 × Phase + 1 × Earth + Pilot cores
6-CHCU TTAR 3×16+16+3×2.53 × 16 + 16 + 3 × 2.5631.46861,580251960
6-CHCU TTAR 3×25+16+3×2.53 × 25 + 16 + 3 × 2.5435.29462,0402821,500
6-CHCU TTAR 3×35+16+3×2.53 × 35 + 16 + 3 × 2.5238.41,2342,4803072,100
6-CHCU TTAR 3×50+25+3×2.53 × 50 + 25 + 3 × 2.5143.61,7523,3403493,000
6-CHCU TTAR 3×70+35+3×2.53 × 70 + 35 + 3 × 2.52/048.82,4244,3803904,200
6-CHCU TTAR 3×95+50+3×43 × 95 + 50 + 3 × 43/055.23,3315,7404425,700
6-CHCU TTAR 3×120+70+3×43 × 120 + 70 + 3 × 44/060.44,2437,0104837,200
6-CHCU TTAR 3×150+70+3×43 × 150 + 70 + 3 × 4300 kcmil65.25,1078,2605229,000
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • TTAR = Tout-Terrain Anti-Rotation (extra-heavy-duty double elastomeric sheath with vulcanised anti-torsion braid).
  • Dynamic acceleration pull up to 25 N/mm² of total phase cross-section is permissible on tension-controlled jumbo and loader reels.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 700 mm ≥ 672 mmBending radius OK (8 × OD 42.0 mm)
60 m/min ≤ 100 m/minWithin the rated travel speed
Minimum bending radius
336 mm
Min. drum core diameter
≈ 672 mm
Cable weight on drum
468.0 kg
Copper content
252.0 kg
Indicative only: based on the datasheet outer diameter and 8 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage test on power & pilot cores3.5 kV AC for 5 min (power) · 2.0 kV AC (pilot)Every manufactured length
Conductor DC resistanceIEC 60228 Class 5 tinned copperEvery length
Sample tests
Sheath tear, impact & oil immersionTear ≥ 30 N/mm · EN 60811-404 oil immersion (100 °C, 24 h)Per batch
Flame propagationIEC 60332-1-2 / NF C 32-070 C2Per batch
Combined drum reeling & torsional fatigue test±100 °/m twist under 20–25 N/mm² tensile loadType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

NF M 82-375 / VDE 0250-812CE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX 6-CHCU TTAR 0.6/1 kV (1.1 kV) 3x50+25 NF M 82-375 · [year] · [metre mark]
Delivery form
Heavy export timber or steel mining drums, cut-to-length
Packaging
ISPM-15 heat-treated lagged drums with sealed moisture-proof ends

Technical documents

Downloads

PDF6-CHCU TTAR Extra-Heavy-Duty Trailing and Reeling Cable – technical datasheet16 sizes · construction, technical data, approvalsXLSX6-CHCU TTAR spec data (Excel)All 16 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does the French mining designation 6-CHCU TTAR mean?
Under NF M 82-375, '6' indicates the 0.6/1 kV (up to 1.1 kV mining) voltage class; 'C' and 'H' denote elastomeric EPR core insulation and a heavy-duty chloroprene/CSM outer sheath; 'CU' specifies Class 5 flexible copper conductors; 'TT' stands for Tout-Terrain (all-terrain impact and cut protection); and 'AR' denotes Anti-Rotation (the high-tenacity anti-torsion braid vulcanised between the inner and outer sheaths).
When should I specify 6-CHCU TTAR instead of standard 6-CHCU-TT?
Choose 6-CHCU TTAR whenever the cable is wound under high dynamic tension on monospiral or cylindrical reels, routed through multi-plane diversion rollers, or subjected to combined twisting and roadway dragging on electro-hydraulic drill jumbos and LHD scooptrams. The AR anti-torsion braid locks the inner and outer sheaths together against corkscrewing up to ±100 °/m and 20–25 N/mm² tensile pull.
Can 6-CHCU TTAR be supplied with pilot cores for ground-check and remote control?
Yes. Alongside standard 4-core (3 × phase + 1 × earth) power sizes from 3 × 16 + 16 up to 3 × 150 + 70 mm², 6-CHCU TTAR is supplied with one to three 2.5 mm² or 4 mm² extensible pilot cores laid up in the core interstices for gate-end box earth-continuity interlock and remote control.
What bending radius and drum derating apply on underground jumbo reels?
Maintain at least 6 × OD for free trailing loops and 8 × OD for forced drum reeling (drum barrel diameter ≥ 16 × OD). When wound in multiple layers on a jumbo or loader reel, apply DIN VDE 0298-4 layer derating factors to the 30 °C free-air current ratings to keep the 3GI3 EPR insulation within its +90 °C conductor limit.
