Product

power connection cable series(N)TMCGCHXOEUK 26/45 kVEN 45545-2 HL3 Halogen-FreeScreened 25 kV AC Rail HV

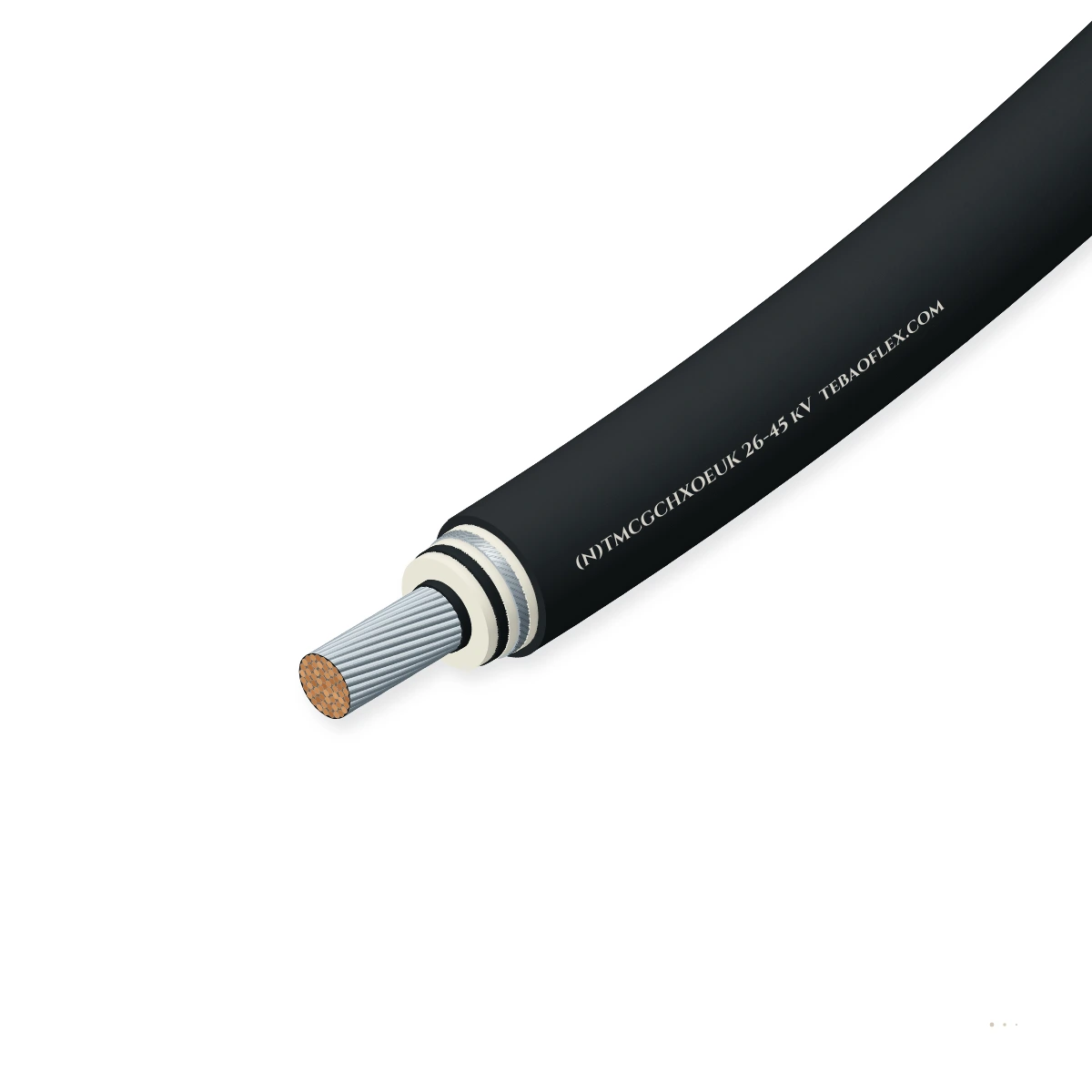

(N)TMCGCHXOEUK 26-45 kV 26/45 kV Screened Flexible Railway26/45 kV (Umax 52 kV) screened halogen-free EN 45545-2 HL3 railway HV cable

(N)TMCGCHXOEUK 26-45 kV Screened Flexible Railway Pantograph & Roof HV Cable (26/45 kV, Umax 52 kV; 50 mm² to 185 mm²) engineered per DIN VDE 0250-813 and EN 45545-2 Hazard Level HL3—combining Class 5 fine-stranded tinned copper.

EN 45545-2 HL1 / HL2 / HL3
Screened Touch-Safe 26/45 kV
-50 °C Cold-Flex ('K')
DIN VDE 0250-813 / EN 50153
Order designation
(N)TMCGCHXOEUK 1×95/16 26/45kV
Conductor + screen
95 mm² Cl.5 + 16 mm² Cu screen
Outer Ø ≈
48.2 mm
Weight ≈
2,980 kg/km
Ampacity (air 30°C)
375 A
All sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Standards
VDE 0250-813 / E
HL3 Railway HV Power Cable
Rated voltage
26 / 45 kV AC
Umax 52 kV · 65 kV AC test
Cross-sections
1 × 50 to 185 mm
+ 16 to 35 mm² Tinned Cu screen
Field control
G + 3GI3 EPR + G
Triple-extruded PD ≤ 5 pC
Fire safety
EN 45545-2 HL3
Halogen-free LSZH ('HX')
Cold rating ('K')
-50 °C to +90 °C
Arctic & alpine high-speed rail

Typical values for this cable type, based on DIN VDE 0250-813 / EN 45545-2 HL3 / EN 50264 / EN 50153 — confirmed in the datasheet and quotation for your order.

Application fit

Is (N)TMCGCHXOEUK 26-45 kV right for your machine?

The touch-safe, radially field-controlled 26/45 kV high-voltage power cable for 25 kV AC high-speed trainsets (EMU) and electric locomotives—allowing the 25 kV catenary supply to be routed directly along the earthed carbody roof, through inter-car gangways and down vertical carbody shafts into the underframe traction transformer.

TBM gantry & advancing tunnel reel

Suitable

Halogen-free cross-linked 'HX' elastomer sheath meets EN 45545-2 Hazard Level HL3 (R15/R16) for passenger trains operating in long.

Motor stator, traction & converter leads

Suitable

Grounded concentric tinned copper screen ('C') makes the outer jacket touch-safe per EN 50153, allowing direct clamping to.

Trailing & towing

Suitable

Flexible Class 5 tinned copper + braided/helical screen + '-50 °C K' cold elastomer handles inter-car gangway articulation on.

Fixed installation

Suitable

Compatible with standard plug-in separably insulated HV roof connectors (Pfisterer Connex / Staubli) and outdoor cold-shrink.

Typical machines25 kV AC High-Speed Rail Inter-Car & Roof HV BuslinesRoof Pantograph / VCB to Underframe Main TransformerEN 45545-2 HL3 Underground Tunnel Passenger EMUs15 kV 16.7 Hz / 25 kV 50 Hz Multi-System LocomotivesPlug-In HV Transformer Bushing & Roof Transition Leads

Construction

Layer by layer

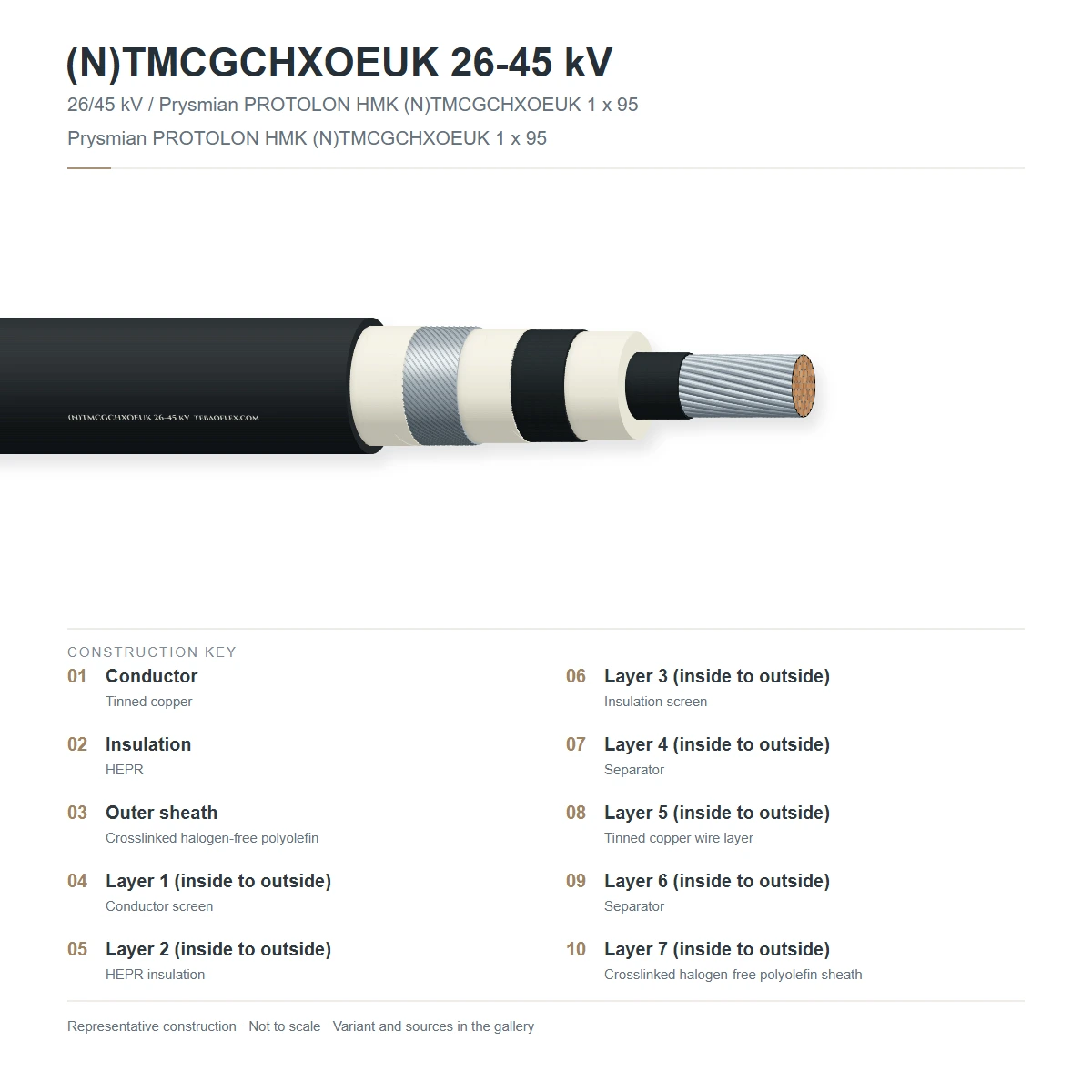

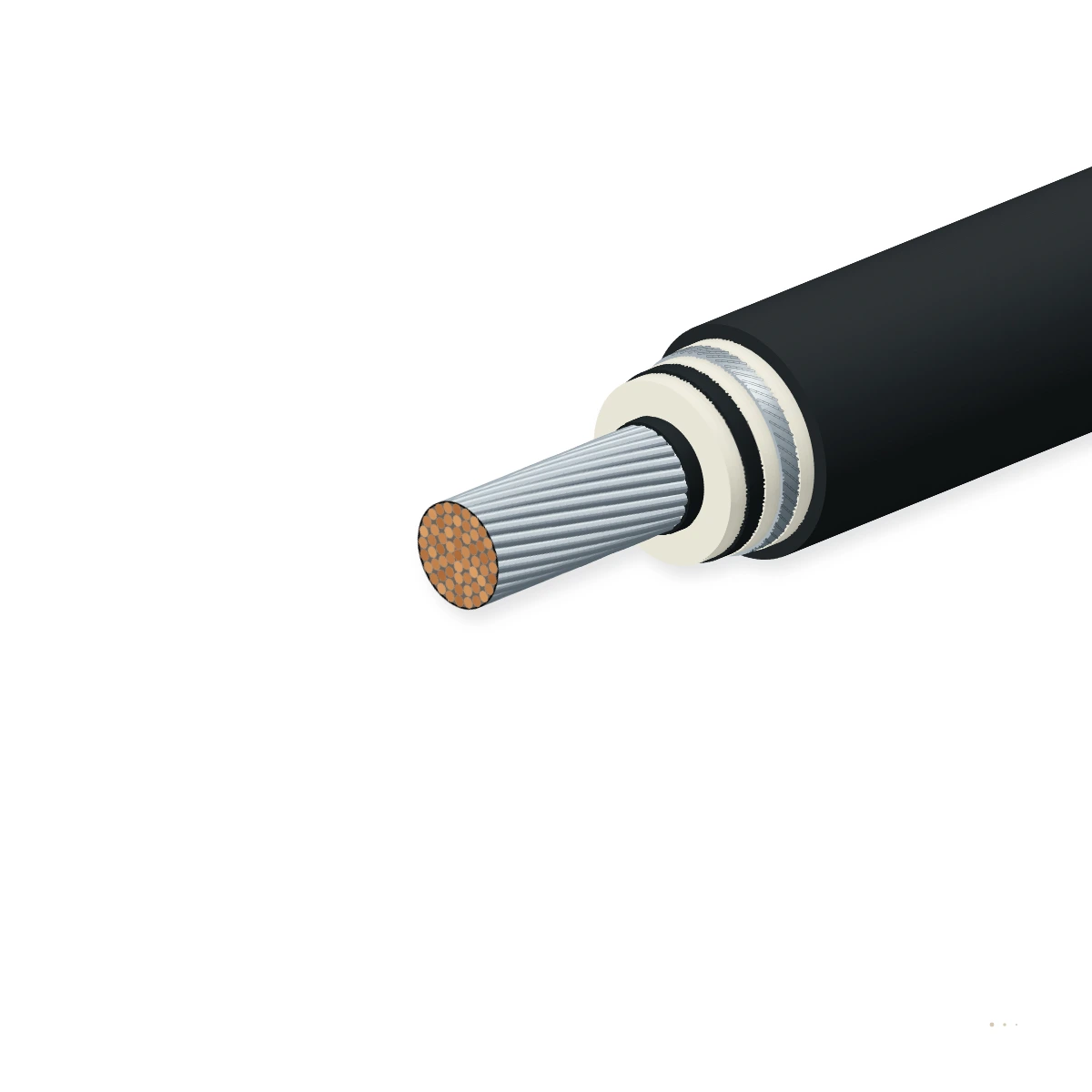

(N)TMCGCHXOEUK 26-45 kV Screened Railway HV Cable showing Class 5 fine-stranded tinned copper conductor, extruded inner semiconducting layer ('C'), 11.5 mm 3GI3 EPR high-voltage insulation, strippable outer semiconducting layer ('G'), concentric tinned copper wire/braid earth screen ('C'), and Black or Red halogen-free ('HX'), oil-resistant ('OEU'), -50 °C cold-flexible ('K') elastomer outer sheath.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Class 5 fine-stranded tinned copper conductorElectrolytic tin-coated annealed flexible copper wires per IEC 60228 Class 5 (50, 70, 95, 120, 150, 185 mm²)Low bending stiffness for routing through coach roof ducts and inter-car loops
2Triple-extruded inner ('C') & outer ('G') semiconducting layersVulcanized inner conductor screen and strippable outer semiconducting elastomer co-extruded with the 3GI3 dielectricGuarantees partial discharge ≤ 5 pC up to 45 kV and clean peel for HV connectors
311.5 mm 3GI3 High-Voltage EPR dielectric insulation90 °C ozone- and corona-resistant thermoset EPR compound Type 3GI3 per DIN VDE 0207-20Tested at 65 kV AC routine voltage and 250 kV lightning impulse
4Concentric tinned copper wire / counter-helix screen ('C')Helically applied fine tinned copper wires with counter-helix or braid (16, 25 or 35 mm² geometric cross-section)Confines electric field radially and diverts catenary short-circuit current to rail earth
5HX-OEU-K Halogen-Free, Oil- & -50 °C Cold-Resistant sheathCross-linked halogen-free flame-retardant elastomer ('HX') with oil resistance ('OEU') and -50 °C cold flexibility ('K')Certified to EN 45545-2 HL1/HL2/HL3 (R15/R16), IEC 60754-2 and IEC 61034-2

(N)TMCGCHXOEUK 26/45 kV (1×50/16, 1×70/16, 1×95/16 mm²)

Screened HL3 roof-to-transformer and inter-car 25 kV AC high-voltage cable for passenger EMUs and high-speed trainsets

(N)TMCGCHXOEUK 26/45 kV (1×120/25, 1×150/25, 1×185/35 mm²)

High-current screened HL3 26/45 kV cable for heavy electric locomotives and multi-MW high-speed power cars

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-813 / EN 45545-2 HL3 / EN 50264 / EN 50153. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (Uo/U / Umax)
26 / 45 kV AC (Umax = 52 kV AC)
Routine AC test & PD
65 kV AC rms for 5 min · Partial discharge ≤ 5 pC at 45 kV (1.73 × Uo)
Lightning impulse (BIL)
250 kV peak (1.2/50 µs wave)
Max. DC resistance @ 20 °C
0.393 Ω/km (50) · 0.277 Ω/km (70) · 0.206 Ω/km (95) · 0.164 Ω/km (120)

Thermal

Continuous conductor temp.
+90 °C continuous operation
Short-circuit temperature
+250 °C (conductor) · +200 °C (copper screen)
Cold-flex ('K') temperature
-50 °C to +80 °C ambient (-35 °C dynamic inter-car bending)

Mechanical

Min. bend radius
6 × OD (fixed carbody routing) · 10 × OD (inter-car flexing)
Vibration & fatigue
IEC 61373 Category 1 Class B carbody & roof mounted
Touch safety
Grounded 'C' screen satisfies EN 50153 high-voltage protection

Resistance

Railway fire hazard level
EN 45545-2 Hazard Level HL1, HL2 & HL3 (Requirement Sets R15 / R16)
Halogen-free & low smoke
IEC 60754-1/2 (pH ≥ 4.3, cond. ≤ 10 µS/mm) & IEC 61034-2 (≥ 70 %)
Oil, ester & UV resistance
Resistant to mineral/synthetic ester transformer fluid ('OEU'), UV & ozone

Reference standards

Design & railway standards
DIN VDE 0250-813 · EN 45545-2 · EN 50153 · EN 50163
Flame propagation
EN 60332-1-2 & EN 50305 / EN 60332-3-24
RoHS, REACH & CE
2011/65/EU RoHS 2, REACH & CE compliant

Identification

VDE code breakdown
(N)TM=MV flex · CGC=Semicon/Screen · HX=LSZH · OEU=Oil/Flame · K=-50°C
Outer sheath colour
Black (with Red HV warning mark) or Red
Customs tariff (HS)
8544.6010

Sizes

6 standard (N)TMCGCHXOEUK 26/45 kV Screened HL3 Railway HV configurations

Conductor & screen cross-section, outer diameter, weight, DC resistance and free-air ampacity.

26/45 kV screened dimensions & ampacity
VDE designationConductor + Cu screenOuter Ø ≈
mm		Weight ≈
kg/km		Max. DC R
Ω/km		Air 30°C
A		Enquiry
26/45 kV (Umax 52 kV) Screened EN 45545-2 HL3 Railway Cables
(N)TMCGCHXOEUK 1×50/16 26/45kV50 mm² Cl.5 + 16 mm² Cu screen44.22,2400.3930250
(N)TMCGCHXOEUK 1×70/16 26/45kV70 mm² Cl.5 + 16 mm² Cu screen46.02,5600.2770310
(N)TMCGCHXOEUK 1×95/16 26/45kV95 mm² Cl.5 + 16 mm² Cu screen48.22,9800.2060375
(N)TMCGCHXOEUK 1×120/25 26/45kV120 mm² Cl.5 + 25 mm² Cu screen50.83,4800.1640435
(N)TMCGCHXOEUK 1×150/25 26/45kV150 mm² Cl.5 + 25 mm² Cu screen52.83,9400.1320505
(N)TMCGCHXOEUK 1×185/35 26/45kV185 mm² Cl.5 + 35 mm² Cu screen55.44,5600.1080580
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters are calibrated to fit standard Pfisterer Connex Size 3/4 and Staubli 52 kV railway plug-in transformer bushings.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
100 % 65 kV AC (5 min) dielectric test & partial discharge (≤ 5 pC @ 45 kV)Zero breakdown and PD extinction across entire lengthEvery manufactured drum
Sample tests
EN 45545-2 R15/R16 HL3 fire, smoke density & toxicity qualificationPasses EN 60332-3-24, EN 50305 ITC toxicity & EN 61034-2 smokeNotified rail fire lab
-50 °C cold impact/bend ('K') & 250 kV lightning impulse testZero cracking at -50 °C and zero impulse breakdownType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

EN 45545-2 HL1 / HL2 / HL3DIN VDE 0250-813 (26/45 kV)EN 50153 / EN 50163 Rail HV

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX (N)TMCGCHXOEUK 1x95/16 26/45kV VDE 0250-813 EN 45545-2 HL3 CE
Delivery form
Fumigated wooden drums or steel export reels
Standard lengths
500 m · 1000 m (or custom cut lengths)
MOQ
100 m (standard) · 500 m (custom)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDF(N)TMCGCHXOEUK 26-45 kV 26/45 kV Screened Flexible Railway – technical datasheet6 sizes · construction, technical data, approvalsXLSX(N)TMCGCHXOEUK 26-45 kV spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Decode every letter in '(N)TMCGCHXOEUK 26/45 kV'—what does each symbol mean?
'(N)' = Based on German VDE standard; 'TM' = Medium/High-voltage flexible rubber cable (Trossenleitung Mittelspannung); 'C' = Inner semiconducting elastomer layer; 'G' = 3GI3 EPR rubber insulation + outer semiconducting elastomer layer; 'C' = Concentric tinned copper wire/braid screen; 'HX' = Halogen-free cross-linked elastomer sheath; 'OEU' = Oil-resistant & flame-retardant; 'K' = Kälteflexibel (-50 °C cold-resistant).
Why is the concentric copper screen ('C') mandatory when routing 25 kV AC from the train roof down to an underframe traction transformer?
On distributed-power high-speed trains (EMUs), the main traction transformer is mounted underneath the coach floor, so the 25 kV AC cable must pass through a vertical metal shaft inside the passenger carbody and across inter-car gangways. The grounded concentric copper screen ('C') confines the 25 kV electric field entirely inside the cable, eliminating corona on the jacket surface and ensuring 100 % touch safety per EN 50153.
Why is EN 45545-2 HL3 required on this cable?
High-speed passenger trains operating through underground cross-city and alpine tunnels fall into Operation Category 3/4 (Design Category A/N), which requires the highest European railway fire safety rating: Hazard Level HL3 under Requirement Sets R15 (interior) and R16 (exterior).
Does the outer semiconducting layer ('G') strip cleanly for plug-in HV transformer terminations?
Yes. The outer semiconducting elastomer is formulated with controlled adhesion so installers can peel it cleanly by hand without scoring the 11.5 mm 3GI3 EPR wall when fitting Pfisterer Connex or Euromold 52 kV separable connectors.
