Heavy-duty rubber cables (NSSHÖU)NF M 82-375U0/U 0.6/1 kVEPR · Screen E · PCP H

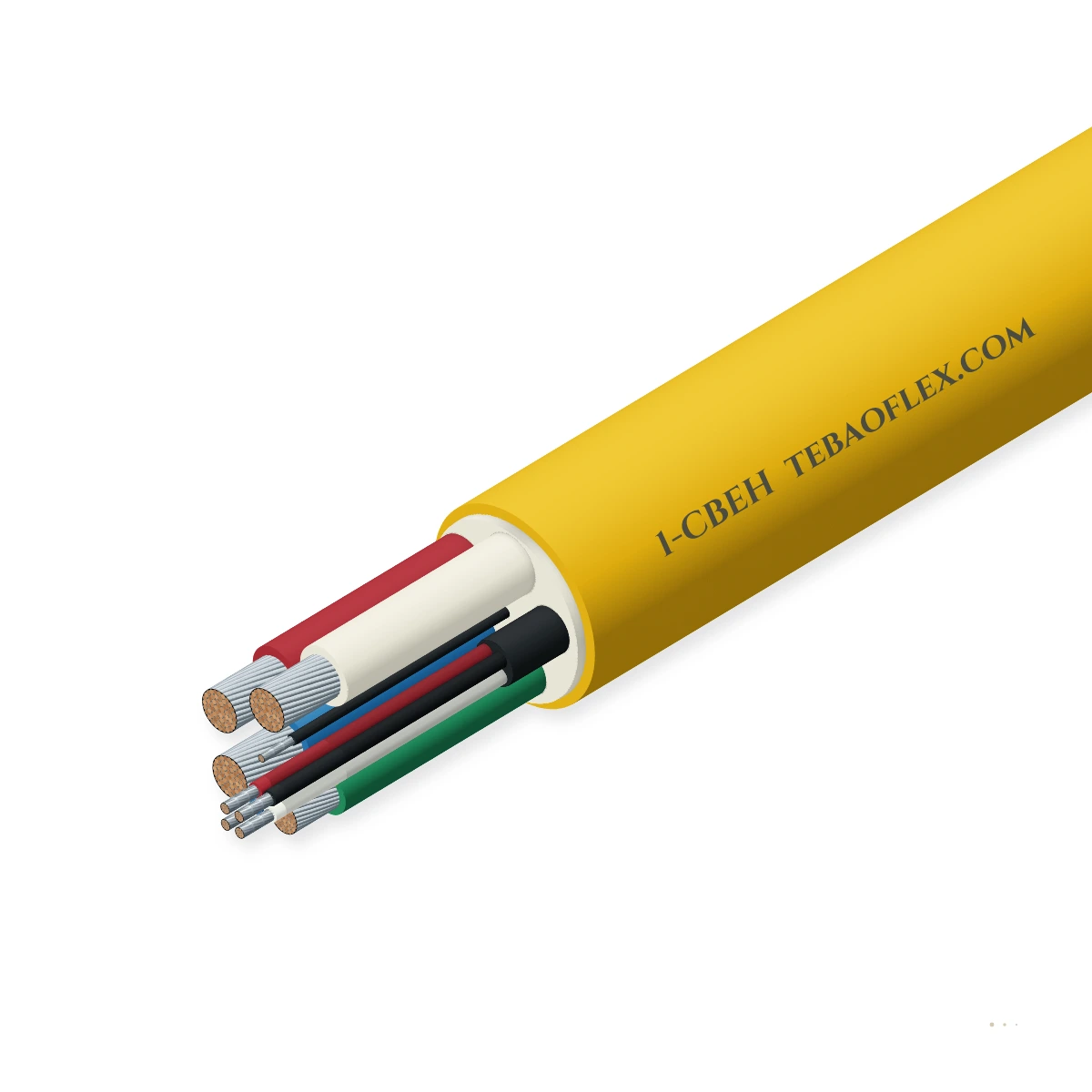

1-CBEH Underground Mining Rubber CableFrench NF M 82-375 0.6/1 kV screened underground mining EPR/PCP rubber cable

French-standard 0.6/1 kV (1 kV class) underground mining power and control cable to NF M 82-375 with Class 5 copper conductors ('C'), vulcanised EPR insulation ('B'), collective flexible metallic screen ('E') and flame-retardant PCP outer sheath ('H').

EMC screen
Oil-resistant
Flame-retardant
Outdoor & humid
Order designation
1-CBEH 3×35+25E+3×2.5
Outer Ø min
34.2 mm
Outer Ø max
37.2 mm
Weight ≈
2,590 kg/km
Min. bend R
186 mm
Check against my drumAll sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
1 kV class · 3.0 kV AC test voltage
Conductor temp.
+90 °C max.
+250 °C short-circuit (5 s)
Ambient temp.
−25…+80 °C
Flexing (−40…+80 °C fixed)
Bending radius
5–8 × OD
5 × OD fixed · 8 × OD flexing
Construction
C-B-E-H
Cu · EPR · metallic screen · PCP sheath
Size range
2.5–120 mm²
3P+E+3×2.5 pilots & 7–19C control

Typical values for this cable type, based on NF M 82-375 / NF C 32-310 — confirmed in the datasheet and quotation for your order.

Application fit

Is 1-CBEH right for your machine?

1-CBEH is engineered for semi-fixed and mobile underground mining interconnections, gallery distribution and quarry face equipment where collective metallic screening ('E') is required for earth-leakage protection on insulated-neutral mine networks.

Trailing & towing

Suitable

Underground mine gallery distribution, roadheaders, shuttle cars, drill jumbos and quarry conveyors.

Fixed installation

Suitable

Semi-fixed roadway hangers, mine substation feeders and gate-end box interconnections.

Immersion & wet locations

Suitable

Resistant to mine seepage water, mud and high humidity in subterranean workings.

Motorised monospiral reel

With conditions

Suitable for slow coiling; for high-speed crane drums without metallic screen, select NSHTÖU.

Use NSHTÖU Reeling
Typical machinesUnderground coal, potash & hard-rock minesFrancophone African & European miningTunnel boring & gallery excavationQuarry crushers & mineral processingMine gate-end & transformer feeders

Construction

Layer by layer

Shown: 1-CBEH 3×35+25E+3×2.5 — 3 EPR-insulated 35 mm² phase cores, 1×25 mm² earth core, 3×2.5 mm² pilot cores, elastomeric inner sheath, collective tinned-copper/steel braid screen ('E') and heavy-duty black polychloroprene outer sheath ('H').

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible copper conductors (C)Fine-stranded annealed bare or tinned copper wire (IEC 60228 Class 5): phase, earth and 2.5 mm² pilot coresIEC 60228 / NF C 32-013 Class 5
2Vulcanised EPR insulation (B)Cross-linked ethylene-propylene elastomer core insulation (+90 °C continuous rating)NF M 82-375 Type B
3Elastomeric inner beddingExtruded rubber inner sheath consolidating laid-up cores into a circular core assemblyMechanical cushioning under screen
4Collective metallic screen (E)Flexible tinned-copper or composite copper/galvanised-steel braid screen ('Écran') for earth-fault protectionNF M 82-375 earth-leakage & crush screen
5Heavy-duty PCP outer sheath (H)Cross-linked polychloroprene (neoprene / elastomer Type H), oil-, tear- and flame-resistantNF C 32-070 C2 / IEC 60332-1-2

1-CBEH Power + Pilots (3×P + E + 3×2.5)

3 phase cores (16–120 mm²) + protective earth + 3×2.5 mm² pilot/interlock cores under collective screen

1-CBEH Power (3×P + E)

4-core power and earth assembly (4×4 to 4×95 mm²) with collective metallic screen

1-CBEH Control & Signalling (7–19×2.5)

Screened multi-core 2.5 mm² mining control, remote-stop and telemetry cables

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on NF M 82-375 / NF C 32-310. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV (600/1000 V AC · 1 kV mining class)
Max. operating voltage
720/1200 V AC
AC test voltage
3000 V AC (50 Hz, 5 min) on power cores · 2000 V on pilots
Conductor stranding
IEC 60228 / NF C 32-013 Class 5 flexible copper
Fault-sensing screen
Collective metallic braid ('E') trips mine vigilohm/earth-fault relays

Thermal

Max. conductor temperature
+90 °C continuous operation (EPR Type B)
Short-circuit temperature
+250 °C max. (up to 5 s)
Temperature, flexing
−25 °C to +80 °C
Temperature, fixed
−40 °C to +80 °C

Mechanical

Min. bending radius, fixed
5 × overall diameter
Min. bending radius, moving
8 × overall diameter
Max. tensile load
15 N/mm² of copper cross-section
Impact & crush resistance
Reinforced by inner rubber bedding + metallic braid screen

Resistance

Flame retardance
NF C 32-070 Cat. C2 & IEC 60332-1-2 self-extinguishing
Oil & hydraulic fluids
EN 60811-404 mineral oil & grease resistant ('H' polychloroprene)
Mine water & humidity
Resistant to acidic/alkaline mine water and rock abrasion
Ozone & weathering
EN 60811-403 ozone-resistant EPR/PCP elastomer system

Reference standards

Construction standard
NF M 82-375 (Charbonnages de France / AFNOR mining series)
Related French norms
NF C 32-310 / NF C 32-102-4 / NF C 32-070
Conductor standard
IEC 60228 / EN 60228 Class 5
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour
Black (or yellow for high underground visibility)
Core identification
Colour-coded or numbered phase cores + GN/YE earth + numbered pilots
Sheath marking
TEBAOFLEX 1-CBEH [Size] 0.6/1kV NF M 82-375 MINING CABLE CE
Customs tariff (HS)
8544.49 (insulated conductors ≤ 1000 V)

Sizes

12 standard 1-CBEH configurations

Typical NF M 82-375 / NF C 32-310 outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designationCores × mm²AWG ≈Outer Ø min
mm		Outer Ø max
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
mm		Enquiry
1-CBEH Mining Power + Earth + 3×2.5 mm² Pilot Cables (16–120 mm²)
1-CBEH 3×16+16E+3×2.53×16+16E+3×2.5627.129.56861,520148
1-CBEH 3×25+16E+3×2.53×25+16E+3×2.5430.733.49461,980167
1-CBEH 3×35+25E+3×2.53×35+25E+3×2.5234.237.21,3152,590186
1-CBEH 3×50+25E+3×2.53×50+25E+3×2.5138.541.81,7473,340209
1-CBEH 3×70+35E+3×2.53×70+35E+3×2.52/043.146.82,4294,450234
1-CBEH 3×95+50E+3×2.53×95+50E+3×2.53/048.252.43,2935,810262
1-CBEH 3×120+70E+3×2.53×120+70E+3×2.54/052.457.04,2057,190285
1-CBEH 4-Core Screened Mining Power Cables (6–10 mm²)
1-CBEH 4G64G61018.820.4230680102
1-CBEH 4G104G10822.324.2384995121
1-CBEH Screened Multi-Core Mining Control & Signalling Cables (7–19×2.5 mm²)
1-CBEH 7×2.57×2.51417.919.516859098
1-CBEH 12×2.512×2.51422.324.2288910121
1-CBEH 19×2.519×2.51426.328.64561,320143
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are typical values per NF M 82-375 / NF C 32-310. Minimum fixed bending radius shown is 5 × OD.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 300 mm is below 372 mmUse a larger drum core or a smaller cable size
Minimum bending radius
186 mm
Min. drum core diameter
≈ 372 mm
Cable weight on drum
129.5 kg
Copper content
65.8 kg
Indicative only: based on the datasheet outer diameter and 5 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage test3.0 kV AC (50 Hz)Every manufactured length
Conductor DC resistanceIEC 60228 Class 5 (tinned copper)Every manufactured length
Sample tests
Vertical flame propagationIEC 60332-1-2 / EN 60332-1-2Per production batch
Insulation & sheath elastomer physical propertiesNF M 82-375 / NF C 32-310Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

NF M 82-375 / NF C 32-310CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX 1-CBEH [Size] 0.6/1 kV NF M 82-375 CE
Delivery form
Export wooden drums or coils, cut-to-length on request
Packaging
Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options
Custom core counts, pilot cores or sheath colours on request

Technical documents

Downloads

PDF1-CBEH Underground Mining Rubber Cable – technical datasheet12 sizes · construction, technical data, approvalsXLSX1-CBEH spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does the French mining designation 1-CBEH stand for?
Under French mining standard NF M 82-375 (Charbonnages de France / AFNOR): '1' = 1 kV rated voltage class (0.6/1 kV); 'C' = flexible copper conductor (Âme cuivre souple Class 5); 'B' = vulcanised ethylene-propylene rubber insulation (EPR); 'E' = collective flexible metallic screen (Écran métallique); and 'H' = heavy-duty oil- and flame-resistant polychloroprene (PCP/CSP) outer sheath.
How does 1-CBEH differ from 1-CHBU?
Both belong to the French NF M 82 underground mining cable family. 1-CBEH incorporates a collective metallic screen ('E') for earth-leakage fault detection on gallery distribution and mobile mining feeders, whereas CHBU (1-CHBU, 3-CHBU, 6-CHBU per NF M 82-376 / 82-377) uses a heavy metallic braid armour ('B' = Blindage/tresse) and heavy polyurethane/neoprene outer jacket ('U') for equipment interconnections across 1 kV, 3 kV and 6 kV.
Why do 1-CBEH power cables include three 2.5 mm² auxiliary cores?
French and West/North African underground mining gate-end boxes use pilot loop supervision, remote start/stop interlocks and earth-continuity monitoring. Integrating 3×2.5 mm² pilot cores inside the screened 1-CBEH assembly allows full gate-end protection through a single flameproof gland.
Is 1-CBEH suitable for damp underground galleries and potash or phosphate mines?
Yes. Tinned Class 5 copper conductors, cross-linked EPR core insulation and the heavy polychloroprene ('H') outer sheath resist saline potash brines, phosphate slurry, diesel mist and mechanical rock abrasion.

Request a quote

Get an engineering quote for 1-CBEH

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

03Message for our engineers

1-CBEH Underground Mining Rubber Cable

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:
Send via WhatsApp
