75 Ω Broadcast, Video & CATV Coaxial CablesSMPTE ST 2082-1 12G-SDI75 Ω ± 1.5 Ω · 84 % VoP18 AWG Ag-Cu · DC–6 GHz

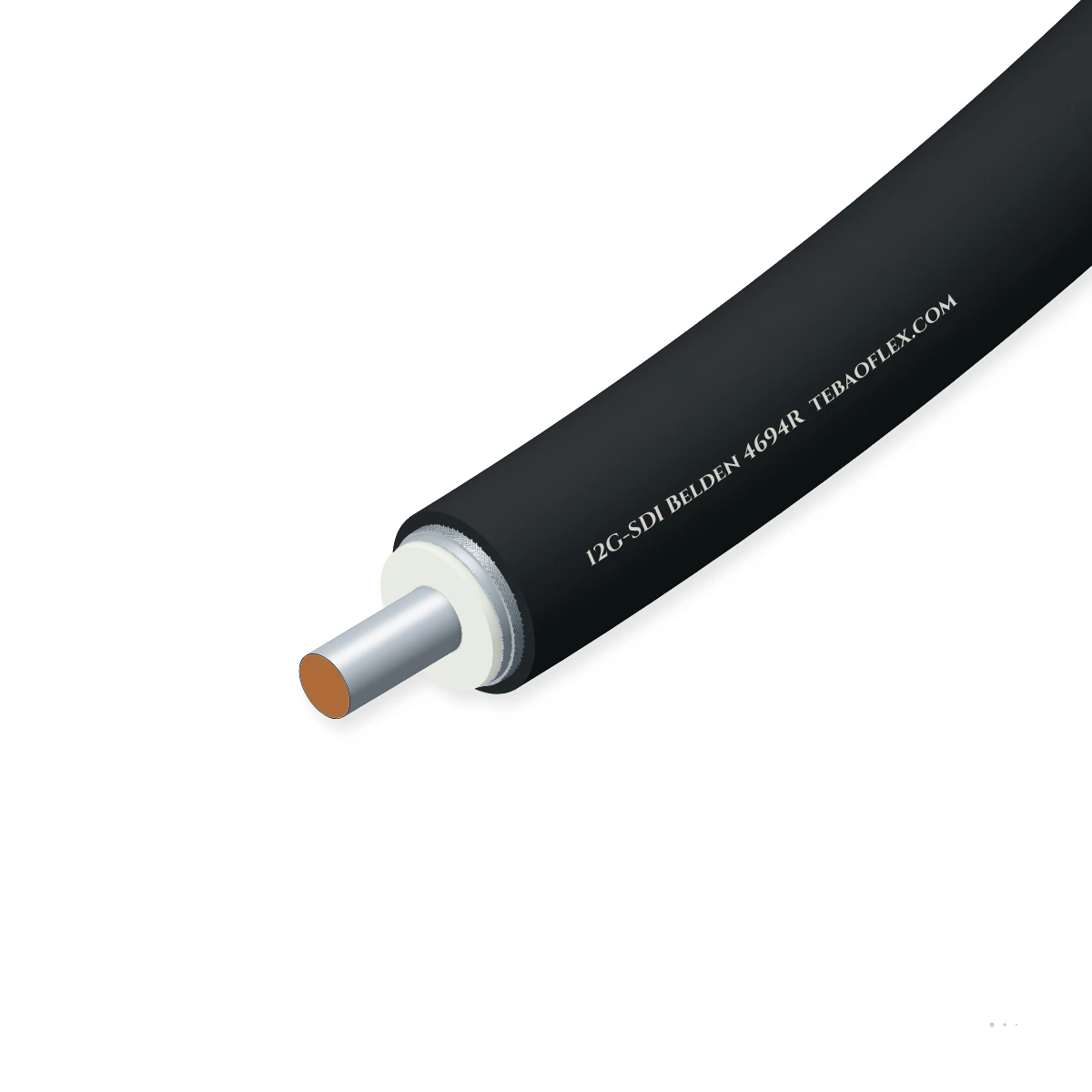

12G-SDI 75 Ω RG-6 4K UHD Broadcast Coaxial CableSMPTE ST 2082-1 · 75 Ω ± 1.5 Ω · RG-6 (Ø 6.96 mm) · 18 AWG (Ø 1.02) Ag-Cu · 84 % VoP

12G-SDI 4K UHD Broadcast Coaxial Cable (engineered to the industry-benchmark 4694R RG-6 geometry and SMPTE ST 2082-1 / ST 2081-1 / ST 424) transports uncompressed single-link 4K UHD (2160p60 at 11.88 Gbps) video over a single 75 Ω ± 1.5 Ω coaxial line

EMC screen
Low-EMC design
Flame-retardant
Approved
Order designation
12G-SDI 4694R Studio Riser PVC (18 AWG Ag-Cu)
Outer Ø ≈
6.96 mm
Metal weight
31.0 kg/km
Total weight ≈
59.5 kg/km
Min. bend R (fixed)
35 mm
All sizes (4)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Impedance Z₀
75 Ω ± 1.5 Ω
Swept to 6 GHz for 12G-SDI eye
Max. data rate
12 Gbps (2160p6
SMPTE ST 2082-1 single-link 4K
Center conductor
18 AWG (Ø 1.02
Silver-plated solid OFHC copper
Velocity / Cap.
84 % · 52.1 pF/m
3.97 ns/m propagation delay
Return loss
≥ 15 dB to 4.5
≥ 23 dB up to 1.5 GHz (3G-SDI)
Outer diameter
6.96 mm (0.274")
Standard RG-6 12G BNC size

Typical values for this cable type, based on SMPTE ST 2082-1 (12G-SDI) / ST 2081-1 (6G-SDI) — confirmed in the datasheet and quotation for your order.

Application fit

Is 12G-SDI 75 Ω RG-6 right for your machine?

Built for 4K/8K UHD television studio routers, master control rooms, stadium UHD camera trunks, OB production trucks, and LED video-wall processors requiring single-cable 12G-SDI connectivity.

Fixed installation

Suitable

UL 1666 CMR riser PVC or EN 50575 LSZH jacket installs directly in broadcast studio trays and risers.

Switchgear & control cabinet wiring

Suitable

Standard Ø 6.96 mm RG-6 profile fits high-density 12G-SDI BNC and Micro-BNC (HD-BNC) patch panels.

Trailing & towing

With conditions

Stranded Ag-Cu 4694F-style tactical PUR variant available for portable OB stage drums.

Energy chain / drag chain

Not suitable

84 % gas-injected foam PE dielectric must not be crushed in tight linear drag chains.

S 368 C
Typical machines4K / 8K UHD Broadcast StudiosOutside Broadcast (OB) Production TrucksLive Sports Stadium & Arena VideoMedical Surgical 4K Endoscopy SuitesPro-AV & LED Wall Processors

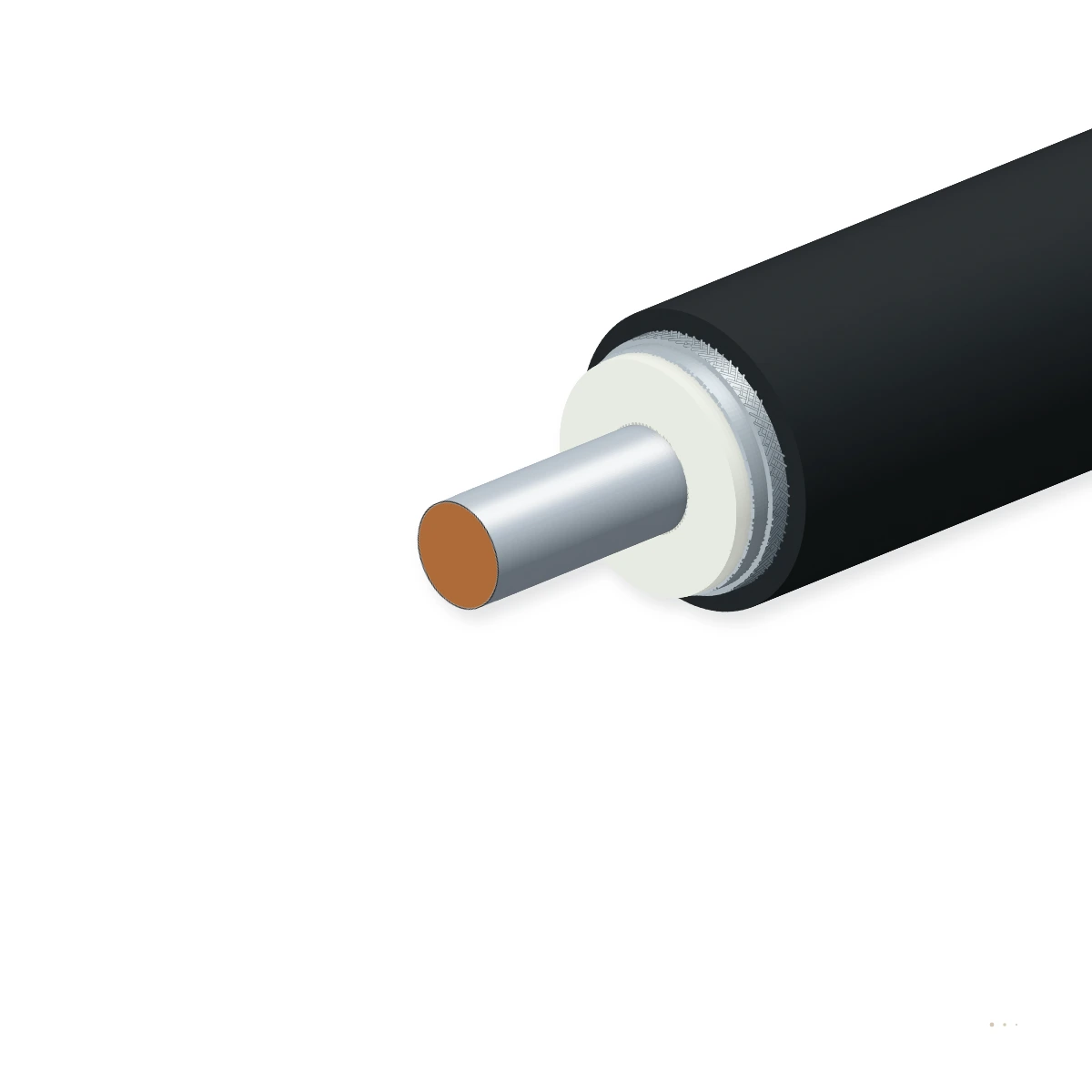

Construction

Layer by layer

18 AWG (Ø 1.02 mm) silver-plated solid copper center conductor, Ø 4.57 mm nitrogen gas-injected foam HDPE dielectric (84 % VoP), 100 %

12345
Schematic, not to scale — generated from the layer data

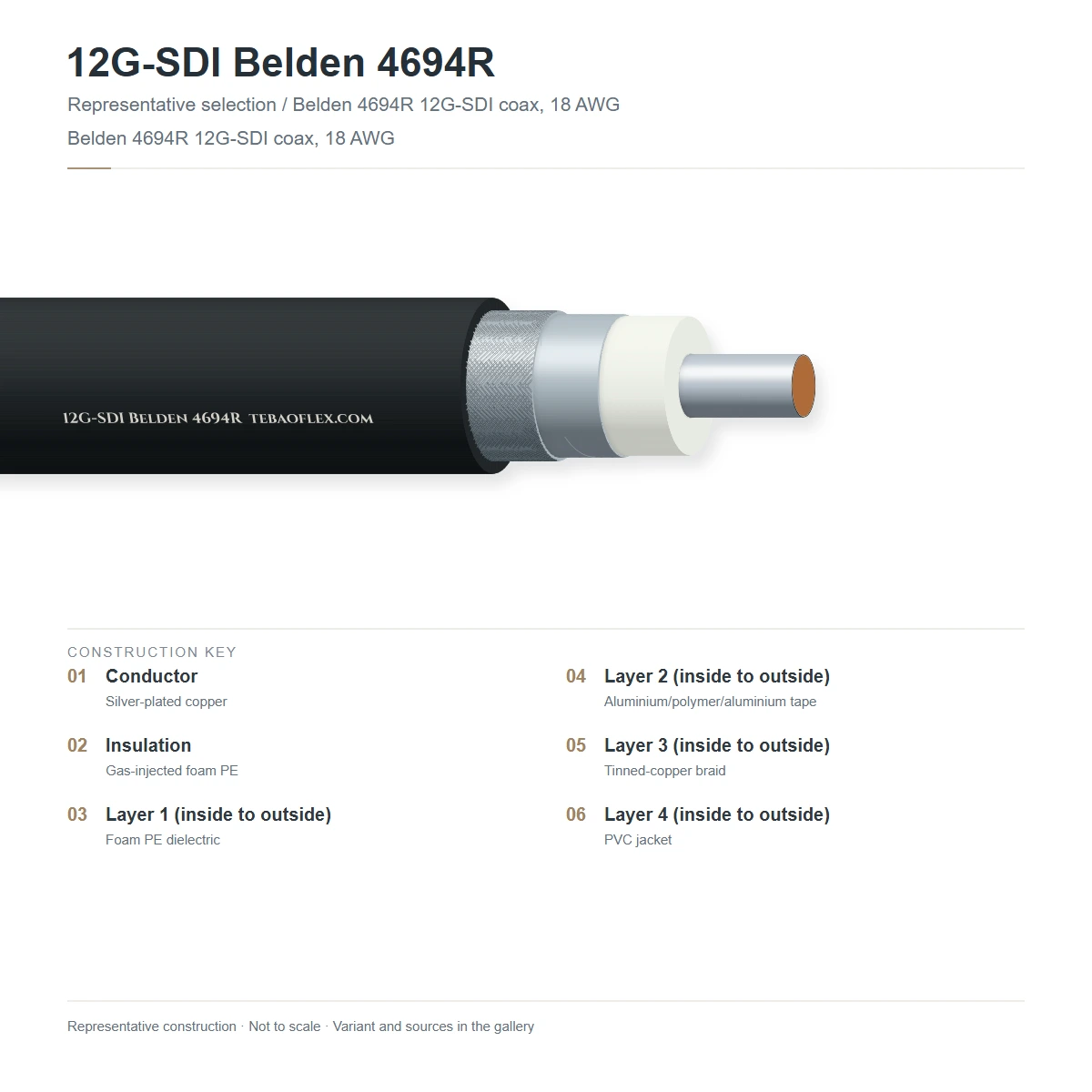

#LayerMaterial & reference
1Silver-plated solid copper center (18Ø 1.02 mm (0.040 in) solid silver-plated oxygen-free copper lowering skin-effect loss atSMPTE ST 2082-1
2Gas-injected foam HDPE dielectric (84Nitrogen-foamed high-density polyethylene with skin-foam-skin stabilisation, Ø 4.57 mmSMPTE ST 2082-1
3100 % bonded tri-laminate Al/PET/Al foilAluminium/polyester/aluminium tape bonded to dielectric for consistent impedance duringSMPTE ST 2082-1
495 % tinned copper wire braid shield36 AWG tinned copper wire braid (≥ 95 % optical coverage) providing > 95 dB RF shieldingSMPTE ST 2082-1
5Riser CMR PVC or Halogen-Free LSZHFlexible broadcast PVC (UL 1666 CMR) or LSZH (IEC 60332-3-24), Ø 6.96 mm ± 0.15 mmUL 1666 / IEC 60332

12G-SDI 4694R Riser PVC (18 AWG Solid Ag-Cu)

Standard studio installation RG-6 12G-SDI coax rated for ~75–85 m single-link 4K 2160p60 transmission.

12G-SDI 4694NH LSZH (Halogen-Free Studio/Venue)

Low-smoke zero-halogen Euroclass Cca/Dca jacket for European broadcast centers and public stadiums.

12G-SDI 4694F Flex PUR (7-Strand Ag-Cu OB Drum)

Stranded silver-plated center conductor and matte PUR jacket for deployable OB camera reels.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on SMPTE ST 2082-1 (12G-SDI) / ST 2081-1 (6G-SDI). Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic impedance Z₀
75 Ω ± 1.5 Ω
Nominal capacitance
52.1 pF/m (15.9 pF/ft)
Velocity of propagation (VoP)
84.0 % (3.97 ns/m delay)
Center / shield DC resistance
≤ 21.0 Ω/km / ≤ 5.9 Ω/km at 20 °C
Return loss (5 MHz – 1.5 GHz)
≥ 23 dB (exceeds SMPTE ST 424M)
Return loss (1.5 GHz – 4.5 GHz)
≥ 15 dB (exceeds SMPTE ST 2082-1)

Thermal

Operating temperature range
-30 °C to +75 °C
Installation temperature range
-15 °C to +70 °C
Riser fire rating (PVC)
UL 1666 CMR / CSA FT4 / IEC 60332-1-2
LSZH fire rating (optional)
IEC 60332-3-24 & IEC 60754-1/2
Plenum CMP option (FEP)
-20 °C to +75 °C UL 910 CMP
Operating voltage
300 V rms (UL CMR)

Mechanical

Center conductor diameter
1.02 mm solid Ag-Cu (18 AWG, 0.040 in)
Dielectric diameter
4.57 mm ± 0.08 mm (0.180 in)
Outer jacket diameter
6.96 mm ± 0.15 mm (0.274 in)
Min. bend radius (fixed / install)
35 mm (5×D) / 70 mm (10×D)
Max. pulling tension
300 N (69 lbf)
Nominal cable weight
59.5 kg/km (40 lb/1000 ft)

Resistance

6 GHz skin-effect mitigation
Silver-plated oxygen-free copper center
Bending impedance stability
Bonded foil prevents foil buckling
LTE / 5G / Wi-Fi 6E immunity
> 95 dB tri-foil + 95 % braid shield
Abrasion & pulling slickness
Satin studio finish for dense conduit pulls
UV resistance (black jacket)
Sunlight resistant per UL 1581
RoHS / REACH status
RoHS 3 compliant

Reference standards

4K UHD 12G-SDI standard
SMPTE ST 2082-1 (11.88 Gbps)
6G / 3G / HD-SDI standards
SMPTE ST 2081-1, ST 424, ST 292
Flame & riser standards
UL 1666 CMR, CSA FT4, IEC 60332-1-2
Coaxial RF test standard
IEC 61196-1
Connector interface norm
SMPTE ST 2082-1 75 Ω 12G BNC / HD-BNC
Quality certification
EN 10204 3.1 + 100 % 6 GHz SRL sweep

Identification

Dielectric colour
White gas-injected FHDPE
Outer jacket colours
Black, Violet (4K signature), Blue, Green
Surface legend
TEBAOFLEX 12G-SDI 4K UHD 75 OHM RG6 SMPTE
Standard reel lengths
305 m (1000 ft), 500 m, 1000 m
Cable size group
RG-6 18 AWG Broadcast (0.274" OD)
Batch traceability
Lot number & VNA sweep trace ID

Sizes

4 standard configurations (12G-SDI 4694R)

Dimensional, physical and high-frequency electrical parameters for 12G-SDI 4694R per SMPTE ST 2082-1 (12G-SDI) / ST 2081-1 (6G-SDI).

Dimensions & construction
Order designationConstruction / VariantConductorOuter Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard 12G-SDI 4694R variants
12G-SDI 4694R Studio Riser PVC (18 AWG Ag-Cu)75 Ω Bonded Foil + 95% TC Braid18 AWG (Ø 1.02 Ag-Cu)6.9631.059.535
12G-SDI 4694NH Halogen-Free LSZH75 Ω Bonded Foil + 95% TC Braid18 AWG (Ø 1.02 Ag-Cu)6.9631.063.035
12G-SDI 4694F Mobile OB PUR (7×0.34 Ag-Cu)75 Ω Double Braid + Foil (PUR)18 AWG (7×0.34 Ag-Cu)7.0538.064.035
12G-SDI Mini RG-59 Rack Patch (20 AWG Ag-Cu)75 Ω Bonded Foil + 95% TC Braid20 AWG (Ø 0.81 Ag-Cu)5.9223.546.030
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are nominal production values subject to manufacturing tolerances per SMPTE ST 2082-1 (12G-SDI) / ST 2081-1 (6G-SDI).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
100 % swept return loss (5 MHz to 6 GHz)RL ≥ 23 dB (to 1.5 GHz) and ≥ 15 dB (1.5 to 4.5 GHz)Every reel
TDR characteristic impedance & VoP75 Ω ± 1.5 Ω; velocity of propagation 84 % ± 1.5 %Every reel
Sample tests
6 GHz insertion loss & 12G-SDI eye pattern≤ 41.3 dB/100m at 6 GHz; zero pathological bit errors at 80 mPer batch
UL 1666 riser burn & IEC 60332-3 flame testPasses vertical riser shaft flame propagation testQualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

SMPTE ST 2082-1 / ST 2081-1UL 1666 CMR / CSA FT4RoHS 3 / CE

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX 12G-SDI 4K UHD 4694R EQUIV 18AWG
Delivery form
Spools, reels or export wooden drums
Standard reel lengths
100 m · 305 m (1000 ft) · 500 m · 1000 m
MOQ
100 m (stock) · 305–500 m (production)
Lead time
1–3 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDF12G-SDI 75 Ω RG-6 4K UHD Broadcast Coaxial Cable – technical datasheet4 sizes · construction, technical data, approvalsXLSX12G-SDI 75 Ω RG-6 spec data (Excel)All 4 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20
