Video
What the video shows
The video shows a black five-conductor SOOW sample from the prepared end, including the insulated stranded-copper conductors and round outer jacket.
Generator, cable-handling, and outdoor connection scenes illustrate mobile and temporary-power context. Final conductor assignment, size, connector, and installation requirements must be confirmed for the engineered circuit.
The video illustrates a sample, process, or operating context. Final product construction, suitability, standards, and test acceptance criteria are confirmed against the ordered specification.
SOOW / SJOOW product specifications
Review construction, dimensions, available conductor counts, and enquiry requirements.
SOOW / SJOOW product specificationsSOOW 5-Conductor Cable for Generators and Mobile Power

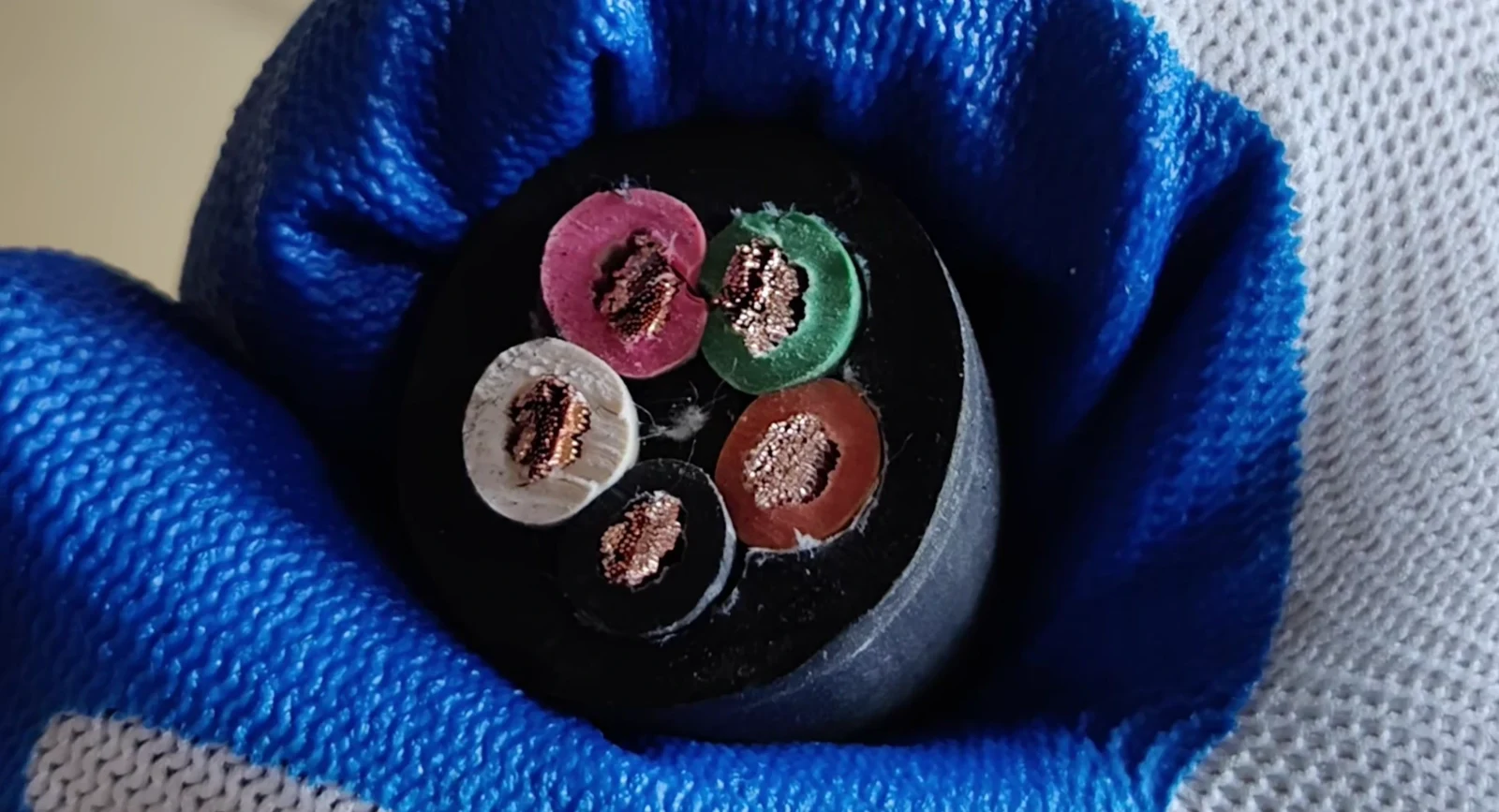

The video combines close views of a black five-conductor SOOW sample with generator, temporary-power, and outdoor connection scenes. The prepared cable end shows five individually insulated stranded-copper conductors inside a round flexible jacket.
What SOOW Means for Portable Power
SOOW is a North American flexible portable-cord designation. The two O letters identify oil resistance for both conductor insulation and the outer jacket, while W identifies suitability for applicable wet-location and outdoor service. Common constructions use flexible stranded copper conductors, EPDM rubber insulation, and a CPE outer jacket.
The related TEBAOFLEX product page publishes SOOW as a 600 V service-cord family and SJOOW as its normally 300 V junior-service counterpart. Final temperature, water, flame, approval, and installation claims depend on the exact product marking and ordered construction.
Why a Five-Conductor Construction May Be Selected
A five-conductor cord can support generator or portable-distribution configurations that require an additional current-carrying conductor alongside the equipment grounding conductor, including systems serving both three-phase and line-to-neutral loads. That does not assign a universal function to every colour in the sample. The engineered circuit, connector pinout, equipment documentation, and applicable code determine the function of each conductor.
The published SOOW specification range includes five-conductor constructions from 18 AWG × 5C through 2 AWG × 5C. The video demonstrates the physical arrangement of one sample; it does not establish the conductor size, ampacity, or wiring assignment for a particular installation.
Selecting SOOW for a Generator or Temporary-Power Run
Confirm the system voltage and phase, full-load current, run length and voltage drop, ambient conditions, expected movement, connector and strain-relief requirements, and the exact listing and jacket marking. Conductor size should be selected from the equipment rating and governing code rather than from a general AWG rule.
SOOW is intended for flexible portable-power duties where its rating and marking match the application. Its W designation does not make flexible cord a substitute for permanent building wiring.
What the Field Footage Shows
The video includes a towable generator, another generator connection scene, outdoor power-connection points, cable handling, and repeated views of the five-conductor sample. These scenes illustrate generator and mobile-power context; they do not establish compatibility with every generator, connector, or installation.
For dimensions, construction options, and enquiry details, review the SOOW / SJOOW flexible portable-cord product page. The broader rubber cable range provides additional flexible-cable context.
Frequently Asked Questions
Why use a five-conductor SOOW cord for generator power?
A five-conductor construction can support circuits requiring an additional current-carrying conductor alongside the equipment grounding conductor. The engineered circuit and connector pinout determine the actual assignment.
How should the conductor size be selected?
Use the equipment rating, full-load current, run length, voltage-drop calculation, ambient conditions, connector requirements, and applicable electrical code. Do not select the size from a general gauge rule alone.
Can SOOW be used outdoors?
The W designation identifies applicable wet-location and outdoor service, subject to the exact product marking and installation requirements. It does not authorize every outdoor or permanent-wiring use.
