Furnace, kiln & high-temp zone
Powers tilting coreless induction melting furnaces, vacuum induction melting (VIM) chambers and continuous strip/billet induction coils.
Product

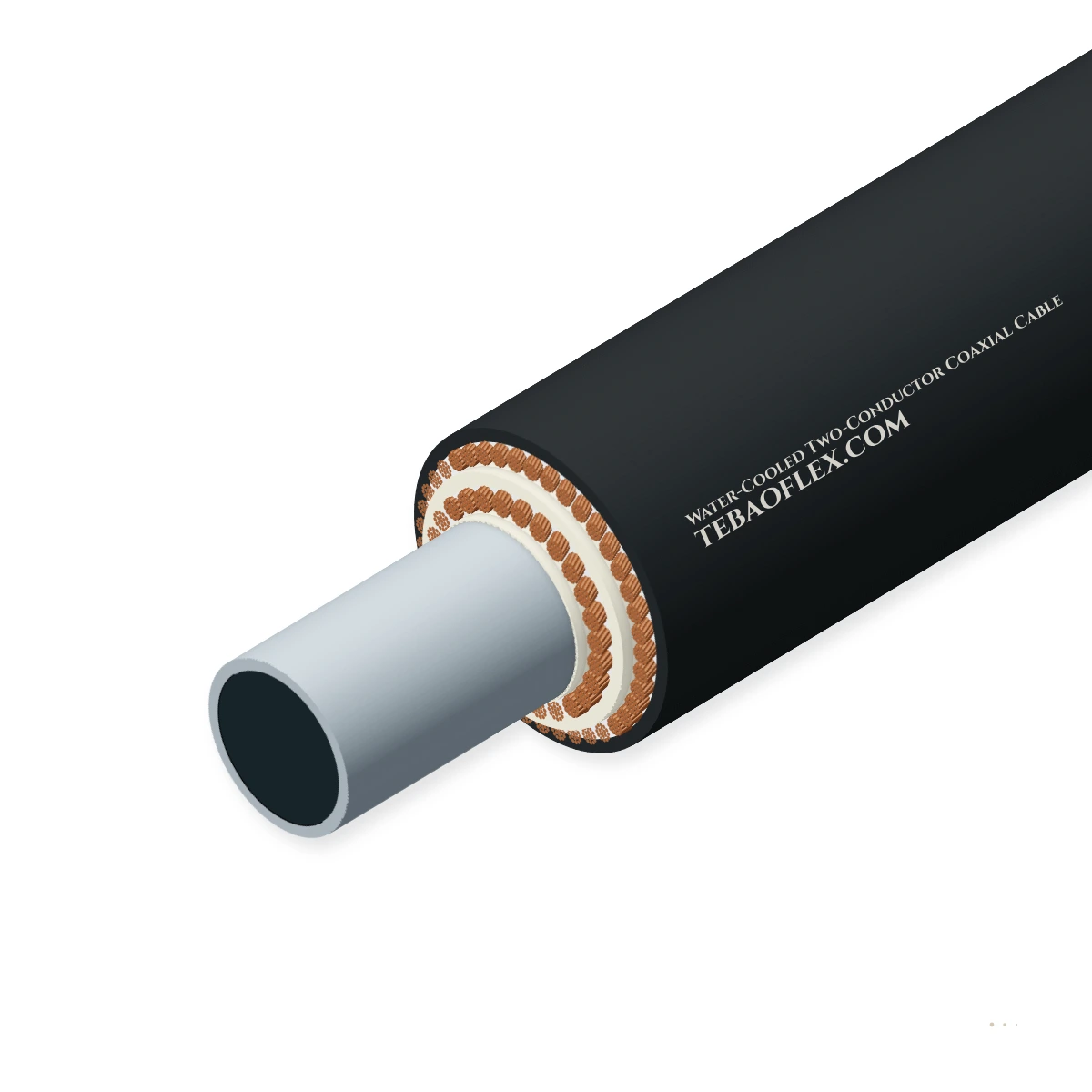

Low-reactance two-conductor coaxial and interleaved water-cooled flexible power cable (Water-Cooled Two-Conductor Coaxial Cable) built to IEC 60519-3 for medium- and high-frequency (50 Hz to 50 kHz, up to 3,000 V and 12 kA) coreless induction melting.
Typical values for this cable type, based on IEC 60519-3 / JB/T 6314 / VDE 0721 — confirmed in the datasheet and quotation for your order.
Application fit
At medium and high frequencies (250 Hz to 50 kHz), two separate single-conductor cables would suffer enormous inductive voltage drop (ΔV = 2πf·L·I) and violently repel each other. Placing both the Go (+I) and Return (−I) water-cooled conductors coaxially or in interleaved sectors inside a single hose cuts inductance by 75–85 % and cancels external magnetic forces.
Powers tilting coreless induction melting furnaces, vacuum induction melting (VIM) chambers and continuous strip/billet induction coils.
Dual internal cooling water paths remove high-frequency skin-effect and proximity-effect losses directly from both conductors.
Ultra-low loop inductance (0.04–0.08 µH/m) preserves resonant tank power factor (Q) between thyristor/IGBT inverters and work coils.
Water-cooled high-frequency furnace lead; custom-built to exact terminal-to-terminal length.
YHKGXSFoyn Shaft Wire-Armoured CableConstruction

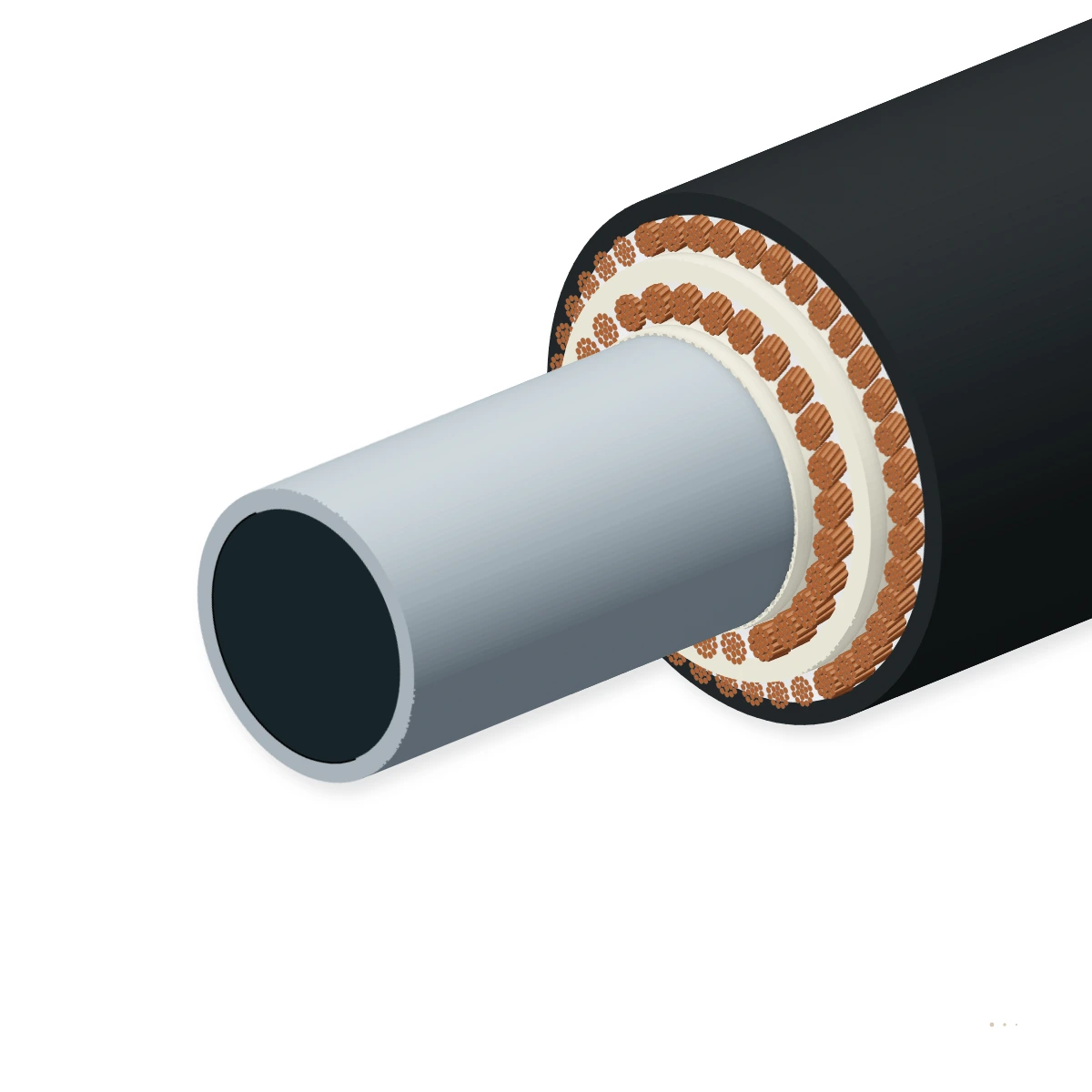

Shown: WC-2C-LR-2×320 (2×320 mm² · 5.5 kA · 2.5 kV · 250 Hz–4 kHz) low-reactance water-cooled induction cable with inner tinned-copper rope/hose core, high-dielectric silicone/EPDM barrier tube, concentric/interleaved outer tinned-copper return rope, dual isolated copper terminal blocks and slag-resistant EPDM outer cooling hose.
| # | Layer | Material & reference |
|---|---|---|
| 1 | Concentric / interleaved outer Return conductor (−I) | Concentric braided/stranded tinned copper rope (or 3+3 alternating ± sector ropes) bathedEncloses the forward magnetic flux so external stray field and mechanical cable whip are eliminated |
| 2 | Inner cooling channel & central Go conductor (+I) | Perforated PTFE/EPDM coolant core surrounded by fine Ø 0.15–0.25 mm tinned copperThin tinned strands suppress high-frequency eddy/skin loss while carrying the forward furnace current |
| 3 | High-dielectric inter-conductor barrier hose | Seamless extruded silicone rubber or peroxide-cured EPDM insulating tube + PTFE/polyimideSeparates the +I and −I conductors by minimal radial spacing to minimise loop inductance L |
| 4 | Cord-reinforced slag-resistant EPDM outer cooling hose | Abrasion-, heat- and splash-resistant EPDM rubber hose (with optional fiberglass/siliconeContains up to 0.8 MPa cooling water pressure and protects against foundry metal splash |
Lowest possible inductance (0.04 µH/m) and zero external stray field for 1 kHz to 50 kHz converters
Symmetrical impedance between Go and Return phases for high-current 150 Hz to 3 kHz melting furnaces
Technical data
Sizes
2×95 mm² to 2×630 mm² coaxial and interleaved go-and-return MF/HF induction furnace leads.
| Order designation | Go + Return area | Voltage · Freq. | Hose OD ≈ mm | Rated current kA | Water flow L/min | Min. bend R mm | Enquiry |
|---|---|---|---|---|---|---|---|
| High- & Medium-Frequency Coaxial Induction Leads (1–50 kHz · 2×95 to 2×240 mm²) | |||||||
| WC-2C-LR-2×95 | 2×95 mm² (Go & Return) | 1.5 kV · 1–10 kHz | 38.0 | 1.6 | 12 | 320 | |
| WC-2C-LR-2×150 | 2×150 mm² (Go & Return) | 1.5 kV · 1–10 kHz | 45.0 | 2.5 | 16 | 380 | |
| WC-2C-LR-2×240 | 2×240 mm² (Go & Return) | 2.0 kV · 0.5–10 kHz | 54.0 | 4.0 | 22 | 460 | |
| High-Current Melting Furnace Interleaved/Coaxial Leads (50 Hz–4 kHz · 2×320 to 2×630 mm²) | |||||||
| WC-2C-LR-2×320 | 2×320 mm² (Go & Return) | 2.5 kV · 0.25–4 kHz | 62.0 | 5.5 | 28 | 530 | |
| WC-2C-LR-2×400 | 2×400 mm² (Go & Return) | 3.0 kV · 0.1–3 kHz | 68.0 | 7.0 | 34 | 580 | |
| WC-2C-LR-2×500 | 2×500 mm² (Go & Return) | 3.0 kV · 0.05–2 kHz | 75.0 | 9.0 | 42 | 650 | |
| WC-2C-LR-2×630 | 2×630 mm² (Go & Return) | 3.0 kV · 0.05–1 kHz | 84.0 | 11.5 | 52 | 720 | |
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| 6.0–10.0 kV AC inter-conductor dielectric & 1.0 MPa hydrostatic test | Zero breakdown between Go and Return; zero water leakage over 30 min | Every cable assembly |
| Sample tests | ||
| 1 kHz / 10 kHz LCR bridge inductance (L') & AC resistance verify | Loop inductance L' ≤ 0.08 µH/m | Design & lot audit |
