High-temperature wireUL AWM Style 5170+450 °C Continuous600 V AC · UL VW-1

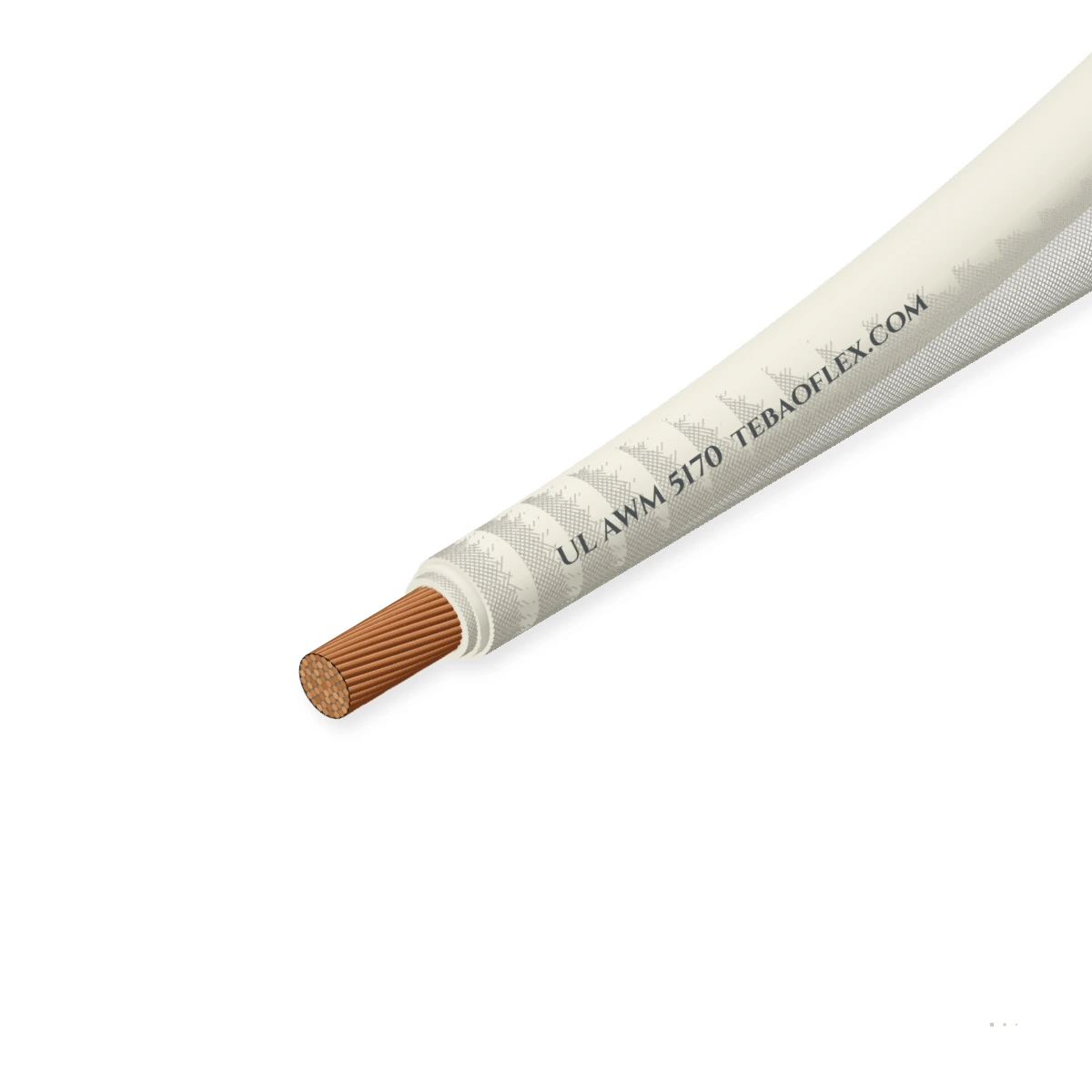

UL AWM 5170 450°C Mica-Tape and Glass-Braid High-TemperatureUL 758 Style 5170 +450 °C 600 V AC mica-tape and E-glass single-core appliance wire

UL AWM Style 5170 (+450 °C, 600 V AC) high-temperature appliance wire engineered with a 27 % nickel-plated copper (ASTM B355 Class 27) or pure Nickel 200 core, lapped phlogopite mica tapes, and a treated E-glass outer braid (24–4/0 AWG).

Flame-retardant
Approved
Ozone, UV & moisture
Order designation
UL 5170 1×2.08 (14 AWG)
Outer Ø ≈
3.80 mm
Wall thickness
0.95 mm
Total weight ≈
34.0 kg/km
Min. bend R (fixed)
23 mm
All sizes (10)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
600 V AC
UL 758 Style 5170 / CSA I A/B
Temperature
-60…+450 °C
UL +450 °C continuous · +550 °C
Conductor
27 % Ni-Cu / Ni
ASTM B355 Cl. 27 or Nickel 200
Insulation
Phlogopite mica
Lapped mica dielectric barrier
Outer jacket
Treated E-glass
Silicone/PTFE-saturated braid
Flame rating
UL VW-1 / FT1
Vertical flame test certified

Typical values for this cable type, based on UL 758 AWM Style 5170 (450 °C, 600 V AC) — confirmed in the datasheet and quotation for your order.

Application fit

Is UL AWM 5170 right for your machine?

Select UL AWM 5170 for single-core internal wiring of commercial ovens, band and cartridge heaters, kiln controls, and heat-treating equipment requiring UL-recognised +450 °C / 600 V AC performance.

Furnace, kiln & high-temp zone

Suitable

Certified under UL 758 Style 5170 for +450 °C continuous service (+550 °C peak with pure nickel core) in ovens, kilns, and band heaters.

Switchgear & control cabinet wiring

Suitable

High-temperature silicone/fluoropolymer-saturated E-glass braid strips cleanly on automatic cutting machines with minimal glass fray.

Fixed installation

Suitable

27 % nickel-plated copper conductor combines 75 % IACS electrical conductivity with +450 °C oxidation protection.

Immersion & wet locations

Not suitable

Fiberglass-and-mica insulation is designed for dry internal equipment wiring; use sealed FLAME ARREST LT for wet outdoor runs.

Use FLAME ARREST LT for wet zones
Typical machinesCommercial Pizza & Deck OvensPlastics Extruder Band HeatersIndustrial Cartridge & Strip HeatersGlass & Metal Heat-TreatingSemiconductor Thermal Chucks

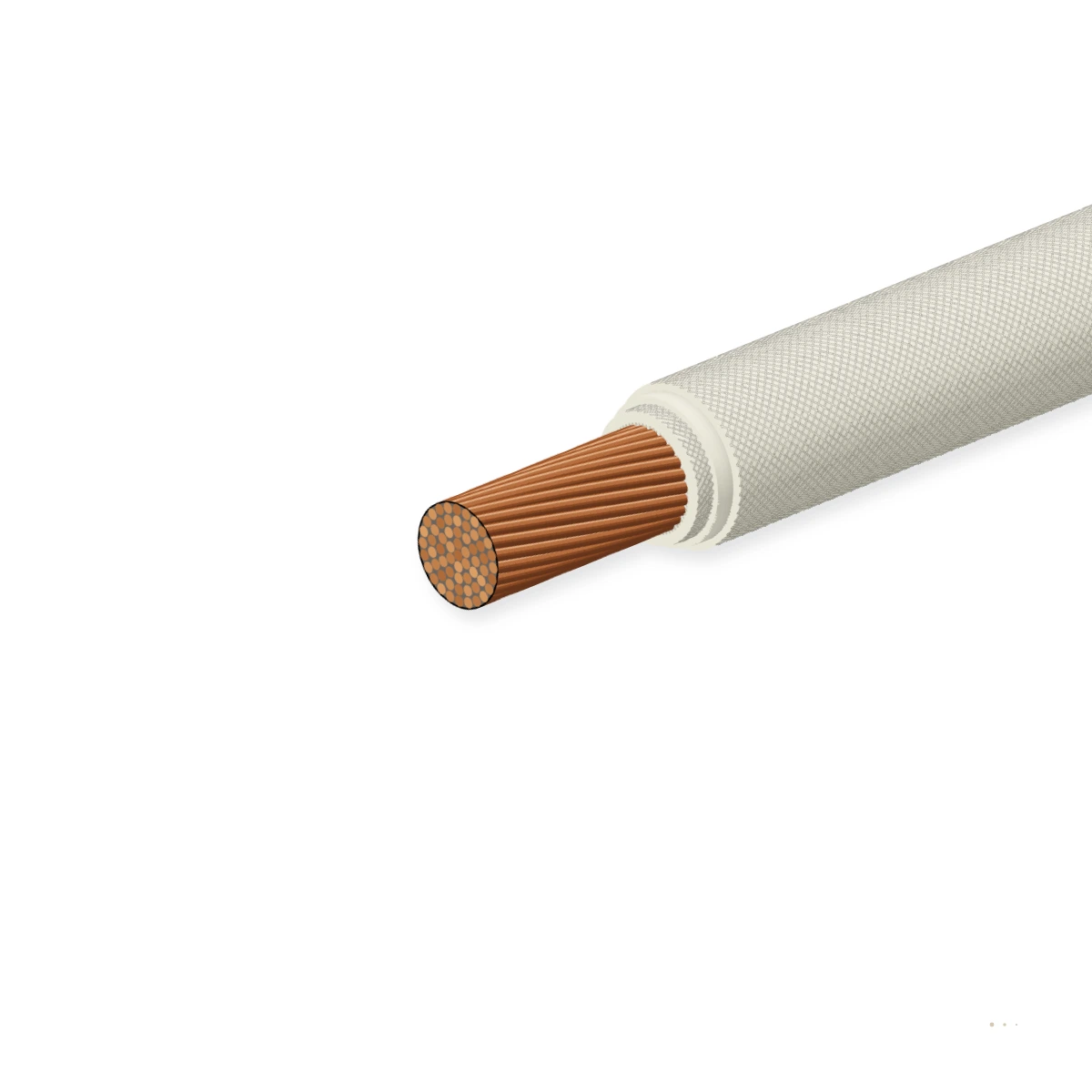

Construction

Layer by layer

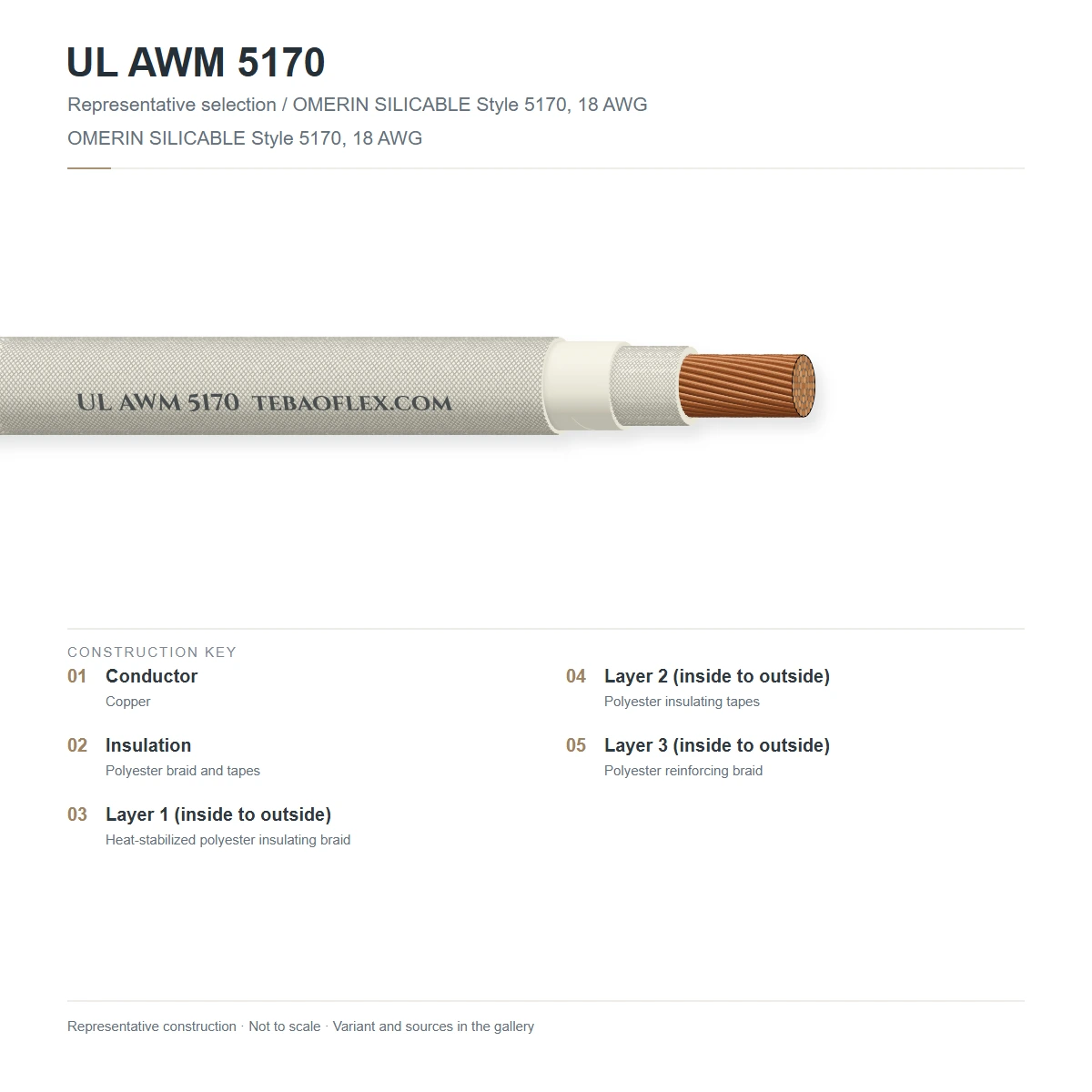

UL 758 Style 5170 single-core construction: stranded 27 % nickel-plated copper (or pure Nickel 200) conductor, helically lapped phlogopite mica tapes, and treated E-glass braid.

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
127 % nickel-plated copper or pure nickelFlexible stranded 27 % nickel-coated annealed copper (ASTM B355 Class 27) or pure Nickel 200 (ASTM B160, 24 AWG to 4/0 AWG)Heavy 27 % weight nickel cladding prevents copper core oxidation continuously at +450 °C
2Lapped phlogopite mica tapesMultiple helically wrapped phlogopite mica tapes bonded with high-temperature silicone elastomerProvides 600 V AC working insulation and 2,000 V AC dielectric strength at +450 °C
3Continuous-filament E-glass braidTightly woven fibreglass outer braid mechanically locking the mica tape layersProtects the mica dielectric against bending abrasion and terminal-block pinching
4Anti-fray high-temp saturantHeat-cured silicone-resin or PTFE dispersion finish (tan, white, or colour-tracer)Passes UL VW-1 / CSA FT1 vertical flame test and ensures clean stripping

UL 5170 Ni-Cu 27 % (24–2 AWG)

Standard 27 % nickel-plated copper conductor for lower voltage drop and +450 °C continuous service

UL 5170 Pure Nickel (24–4 AWG)

Pure Nickel 200 conductor option for extreme thermal cycling and +550 °C peak heat soak

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 758 AWM Style 5170 (450 °C, 600 V AC). Values for your order are confirmed in the datasheet and quotation.

Electrical

UL / CSA rated voltage
600 V AC rms
Dielectric withstand test
2,000 V AC rms (1 min) · 6.0 kV spark
Conductor conductivity
~75 % IACS (27 % Ni-Cu) · ~18 % IACS (Ni 200)
Insulation resistance (+20 °C)
≥ 500 MΩ·km dry

Thermal

UL continuous temperature
-60 °C to +450 °C
Short-term thermal peak
+500 °C (27 % Ni-Cu) · +550 °C (Ni 200)
Initial bake-in note
Organic saturant cures off harmlessly > +300 °C

Mechanical

Conductor size range
24 AWG to 4/0 AWG (0.20 to 107 mm²)
Composite wall thickness
0.76 mm (30 mil) to 1.90 mm (75 mil)
Min. bending radius
6 × overall wire diameter (fixed)

Resistance

Flame test
UL 1581 VW-1 & CSA FT1 vertical flame pass
Abrasion & cut-through
Reinforced by saturated E-glass outer braid
Halogen-free build
Halogen-free mica & E-glass insulation

Reference standards

UL / CSA AWM style
UL 758 Style 5170 · CSA AWM I A/B 450 °C
Conductor specification
ASTM B355 Class 27 / ASTM B160
RoHS & REACH
Asbestos-free, RoHS 3 & REACH compliant

Identification

Standard colours
Natural tan, white, black, red/blue tracers
Surface / tag legend
TEBAOFLEX E-FILE AWM STYLE 5170 450C 600V VW-1
Customs tariff (HS)
8544.49

Sizes

10 standard configurations (UL AWM 5170)

Engineering dimensions, conductor stranding, mass and electrical ratings for UL AWM 5170 per UL 758 AWM Style 5170 (450 °C, 600 V AC).

Dimensions & weights
Order designationCross-section / sizeConductor buildWall ≈
mm		Outer Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard UL AWM 5170 configurations
UL 5170 1×0.35 (22 AWG)0.35 mm² (22 AWG)7×0.25 mm 27% Ni-Cu0.852.503.410.515
UL 5170 1×0.52 (20 AWG)0.52 mm² (20 AWG)10×0.25 mm 27% Ni-Cu0.852.705.213.016
UL 5170 1×0.82 (18 AWG)0.82 mm² (18 AWG)16×0.25 mm 27% Ni-Cu0.903.008.217.518
UL 5170 1×1.31 (16 AWG)1.31 mm² (16 AWG)26×0.25 mm 27% Ni-Cu0.903.3013.024.020
UL 5170 1×2.08 (14 AWG)2.08 mm² (14 AWG)41×0.25 mm 27% Ni-Cu0.953.8020.534.023
UL 5170 1×3.31 (12 AWG)3.31 mm² (12 AWG)65×0.25 mm 27% Ni-Cu0.954.3032.548.026
UL 5170 1×5.26 (10 AWG)5.26 mm² (10 AWG)105×0.25 mm 27% Ni-Cu1.055.1051.572.031
UL 5170 1×8.37 (8 AWG)8.37 mm² (8 AWG)133×0.28 mm 27% Ni-Cu1.156.3082.0112.038
UL 5170 1×13.3 (6 AWG)13.3 mm² (6 AWG)133×0.36 mm 27% Ni-Cu1.257.60130.0172.046
UL 5170 1×21.2 (4 AWG)21.2 mm² (4 AWG)133×0.45 mm 27% Ni-Cu1.409.20208.0265.055
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal engineering values for UL AWM 5170 subject to standard manufacturing tolerances per UL 758 AWM Style 5170 (450 °C, 600 V AC).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Dielectric spark / high-voltage withstand test100 % in-line spark and AC/DC dielectric withstand per UL 758 AWM Style 5170 (450 °C, 600 V AC)Every manufactured length
Conductor DC resistance & continuity checkWithin maximum 20 °C resistance limit specified for UL AWM 5170Every spool or drum length
Sample tests
Thermal ageing & dimensional verificationWall thickness, concentricity and post-ageing elongation per UL 758 AWM Style 5170 (450 °C, 600 V AC)Per production batch
Flame, outgassing or high-temperature enduranceQualified to UL 758 AWM Style 5170 (450 °C, 600 V AC) thermal and environmental performance criteriaType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UL 758 AWM Style 5170 (450 °C, 600 V AC)CE (2014/35/EU) & RoHS 3 (2015/863/EU) CompliantREACH SVHC & Halogen/Asbestos Compliance Verified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX E-FILE AWM STYLE 5170 14 AWG 450C 600V VW-1
Delivery form
Precision spools, coils or export wooden drums
Standard lengths
50 m · 100 m · 500 m · 1000 m (or cut harnesses)
MOQ
100 m (stock sizes) · 300–500 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFUL AWM 5170 450°C Mica-Tape and Glass-Braid High-Temperature – technical datasheet10 sizes · construction, technical data, approvalsXLSXUL AWM 5170 spec data (Excel)All 10 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why does UL AWM 5170 specify 27 % nickel-plated copper (ASTM B355 Class 27) instead of standard 2 % or 10 % nickel plating?
Standard 2 % or 10 % nickel-plated copper is only rated up to +250 °C or +350 °C before copper diffuses through the thin nickel layer. A heavy 27 % by weight nickel cladding (ASTM B355 Class 27) provides a permanent diffusion barrier at +450 °C while keeping electrical resistance much lower than pure nickel.
How does UL AWM 5170 compare with UL 5107 or Type MG single-core wire?
All three are +450 °C, 600 V AC mica-tape and glass-braid constructions; UL Style 5170 uses a streamlined phlogopite mica tape + single saturant-treated E-glass braid profile optimized for compact appliance harnesses and automated stripping.
When should I upgrade from UL AWM 5170 (+450 °C) to CERAFIL CN8 (+800 °C)?
Use UL AWM 5170 for all UL-recognised 600 V appliance, oven, and band-heater leads up to +450 °C continuous (+550 °C peak). When ambient furnace temperatures exceed +500 °C continuously, E-glass begins to soften — upgrade to CERAFIL CN8 with pure Nickel 200 and alumino-silicate ceramic braid.
Is a slight wisp of smoke normal during the very first heat-up above +300 °C?
Yes. The organic anti-fray saturant applied to the outer E-glass braid for clean stripping volatilises during the first excursion above +300 °C, leaving the inorganic phlogopite mica and glass fibre insulation intact for +450 °C service.
