3D torsion robot control cable±360°/m 3D Torsion300/500 V (UL 600 V)Weld-Spatter PUR

Torsion-Resistant Robot Control Cable±360°/m 3D torsion-resistant PUR control cable for 6-axis robots

Engineered for 6-axis robot dress packs (Axes 1–6) with extra-fine 0.05–0.07 mm copper strands, PTFE friction-reducing layers, optional spiral D-screen and weld-spatter-resistant matte black PUR sheath rated for ≥ 5 million ±360°/m torsion cycles.

Anti-torsion braid
Oil-resistant
Flame-retardant
Low-EMC design
Order designation
ROBOT-900 12G0.75
Outer Ø ≈
10.0 mm
Copper weight
89 kg/km
Total weight ≈
152 kg/km
Min. bend R (moving)
75 mm
Check against my drumAll sizes (17)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Torsion rating
±360°/m
±180°/m on D-screened types
Rated voltage
300/500 V
U0/U · UL/CSA 600 V AWM
Bend radius
7.5 × OD
moving & 3D flex · 4 × OD fixed
Cycle life
≥ 5M cycles
combined torsion + bending
Temperature
−40…+80 °C
moving · −50…+80 °C fixed
Outer sheath
Matte Black PUR
weld-spatter & abrasion proof

Typical values for this cable type, based on DIN VDE 0285 / UL AWM Style 20939 — confirmed in the datasheet and quotation for your order.

Application fit

Is Torsion-Resistant Robot Control Cable right for your machine?

Purpose-built for multi-axis articulated robot arms (Axes 3 to 6) where simultaneous axial twisting (±360°/m) and bending occur inside corrugated dress packs.

Energy chain / drag chain

Suitable

Suitable for both 3D rotary robot wrists (±360°/m) and linear 7th-axis robot transfer tracks at 7.5 × OD.

Fixed installation

Suitable

UL 600 V AWM recognition allows continuous routing from robot controller cabinet up to the Axis-6 tool flange.

Self-supporting pendant & push-button drop

Suitable

Low-weight, flexible PUR construction works reliably on overhead suspended dress-pack spring balancers.

Motorised monospiral reel

Not suitable

Torsion-relieving reverse-lay stranding is designed for axial twist, not high-tension crane drum spooling.

Use NSHTÖU Reeling Cable
Typical machines6-Axis Automotive Body-in-White RobotsArc & Spot Welding Robot CellsEnd-of-Arm Tooling (EOAT) & GrippersVision-Guided Cobots & PalletisersAutomated Dispensing & Deburring

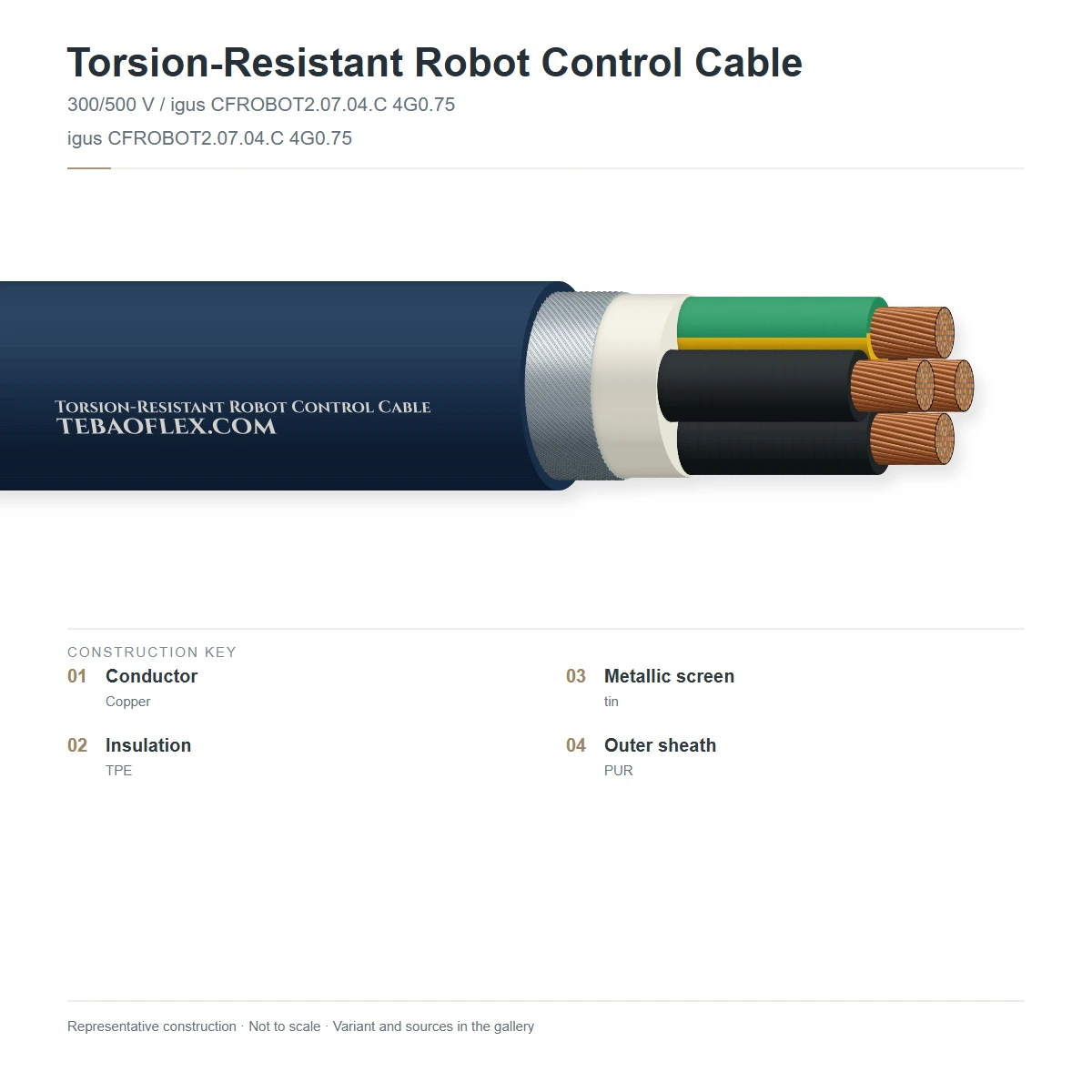

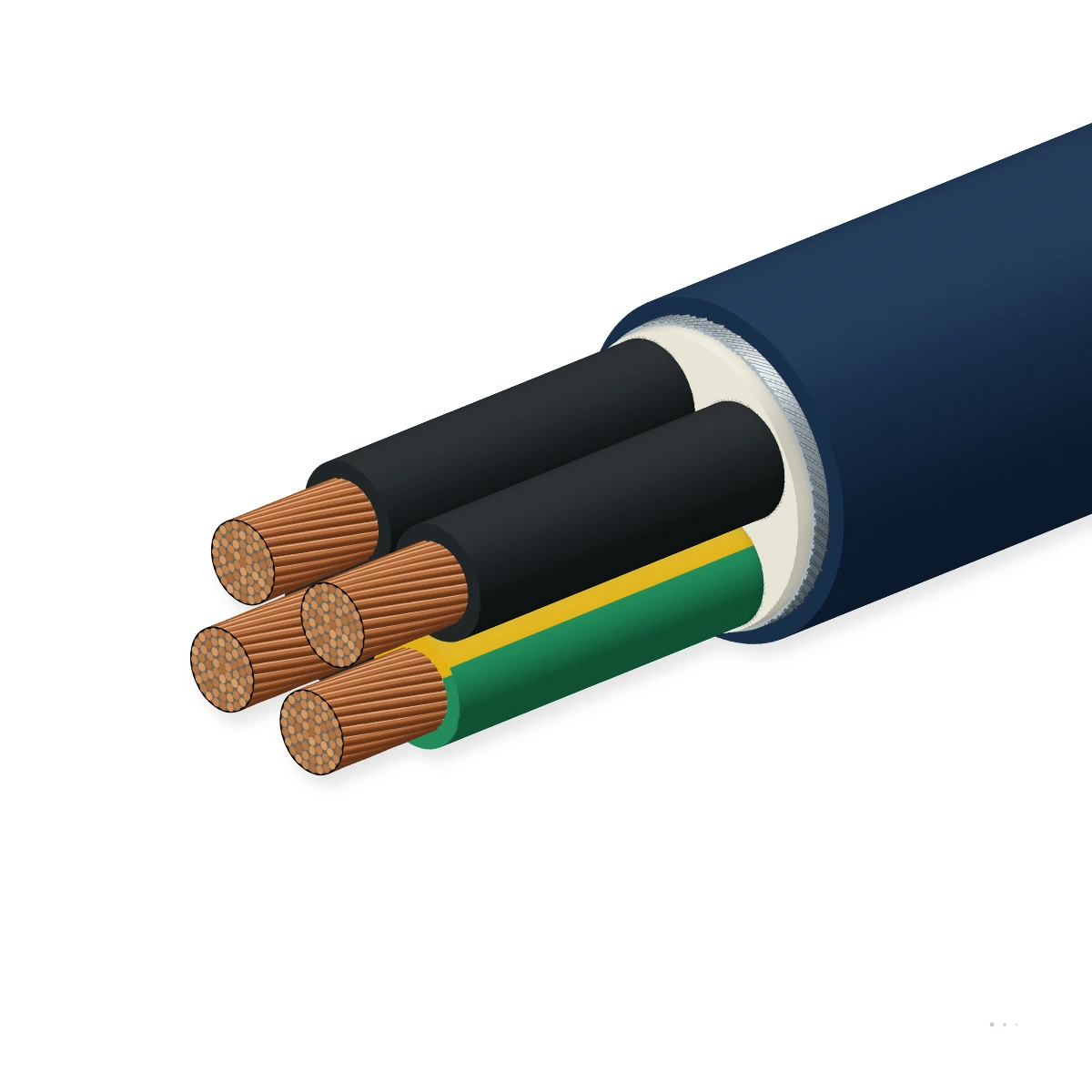

Construction

Layer by layer

Shown: ROBOT-900 12G0.75 control cable with torsion-relieving reverse-lay Class 6+ copper bundles, PTFE gliding wraps, optional helical D-screen and matte black PUR sheath.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Torsion-relieved copper conductorExtra-fine bare copper strands (0.05–0.07 mm filaments, exceeding IEC 60228 Class 6)Reverse-twist rope lay absorbs axial ±360°/m rotation without bird-caging
2High-modulus core insulationCross-linked TPE-E / modified PP with internal slip additiveDIN 47100 (0.25 mm²) or black numbered + GNYE (≥ 0.5 mm²)
3Central torsion bufferElastic synthetic elastomer core + interstitial gliding yarnsMaintains circular cross-section under simultaneous twist and bend
4PTFE anti-friction sliding tapeMulti-layer PTFE / non-woven fleece wrap around core bundleAllows cores to rotate freely inside outer jacket
5Optional spiral D-shield (DP)Helically wound tinned copper wire spiral screen (≥ 85 % linear coverage on DP version)Spiral shield twists elastically up to ±180°/m without cross-braid wire shear
6Weld-spatter PUR jacketLow-adhesion matte black polyurethane (TMPU, RAL 9005)DIN EN 50363-10-2 · resists hot weld spatter, oils and corrugated conduit wear

ROBOT-900 P (Unscreened)

Unscreened multi-core robot control & valve cable rated for ±360°/m over 5 million cycles

ROBOT-900 DP (Spiral D-Screen)

Adds helically wrapped tinned copper spiral shield (≥ 85 % coverage) rated for ±180°/m EMC robot duty

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0285 / UL AWM Style 20939. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
300/500 V (UL/CSA 600 V)
AC test voltage
3000 V AC (50 Hz, 5 min)
Screen / Field control
Unscreened (P) or ≥ 85 % helical Cu D-screen (DP)
Insulation resistance
≥ 200 MΩ·km at 20 °C

Thermal

Temperature, flexing
−40 °C to +80 °C
Temperature, fixed installation
−50 °C to +80 °C
Max. conductor temperature
+80 °C
Weld-spatter resistance
Short-term hot particle contact up to +150 °C

Mechanical

Torsional stress
±360°/m (unscreened P) · ±180°/m (screened DP)
Torsion endurance
≥ 5,000,000 torsion cycles
Min. bending radius, moving
7.5 × OD (3D robot & drag chain)
Min. bending radius, fixed
4 × OD
Max. acceleration
Up to 30 m/s² (3D wrist) · 50 m/s² (linear)

Resistance

Oil resistance
DIN EN 50363-10-2 · UL Oil Res I & II
Flame retardance
IEC 60332-1-2 · UL 1581 VW-1 / FT1
Halogen-free / Smoke density
IEC 60754-1/2 halogen-free
Silicone & LABS
100 % free of silicone and paint-wetting substances

Reference standards

Cable type (construction standard)
DIN VDE 0285 / ISO 10218 robot dress-pack spec
Conductor
Superfine copper exceeding IEC 60228 Class 6
Product approvals
UL AWM Style 20939 / 21223 · CSA AWM
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour
Matte Black (RAL 9005)
Core identification
0.25 mm²: DIN 47100 · ≥ 0.5 mm²: Black numbered + GNYE
Marking
TEBAOFLEX ROBOT-900 <size> ±360°/m 300/500V UL CE
Customs tariff (HS)
8544.49

Sizes

17 standard 3D torsion robot control sizes (0.25–1.0 mm²)

Available unscreened (ROBOT-900 P, ±360°/m) or with helical tinned copper D-screen (ROBOT-900 DP, ±180°/m; add ~0.6 mm to OD).

Dimensions & weights
Order designationCores × mm²Cross-sectionMax. torsion
per 1 m		Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
moving mm		Enquiry
0.25 mm² robot sensor & gripper I/O cores (DIN 47100)
ROBOT-900 4×0.254×0.250.25 mm²±360°/m4.8113136
ROBOT-900 8×0.258×0.250.25 mm²±360°/m6.2215246
ROBOT-900 12×0.2512×0.250.25 mm²±360°/m7.1317153
ROBOT-900 18×0.2518×0.250.25 mm²±360°/m8.3469862
ROBOT-900 25×0.2525×0.250.25 mm²±360°/m9.86413474
0.50 mm² robot valve & actuator control cores
ROBOT-900 4G0.54G0.50.5 mm²±360°/m5.6204442
ROBOT-900 7G0.57G0.50.5 mm²±360°/m6.9356952
ROBOT-900 12G0.512G0.50.5 mm²±360°/m8.96011467
ROBOT-900 18G0.518G0.50.5 mm²±360°/m10.59016279
ROBOT-900 25G0.525G0.50.5 mm²±360°/m12.612522894
0.75 mm² robot dress-pack control cores
ROBOT-900 4G0.754G0.750.75 mm²±360°/m6.2305646
ROBOT-900 7G0.757G0.750.75 mm²±360°/m7.7529258
ROBOT-900 12G0.7512G0.750.75 mm²±360°/m10.08915275
ROBOT-900 18G0.7518G0.750.75 mm²±360°/m11.913421889
1.00 mm² heavy-duty robot auxiliary cores
ROBOT-900 4G1.04G1.01.0 mm²±360°/m6.7406850
ROBOT-900 7G1.07G1.01.0 mm²±360°/m8.37011462
ROBOT-900 12G1.012G1.01.0 mm²±360°/m10.811918881
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • To order the spiral copper D-screened EMC execution (rated ±180°/m), specify suffix '-DP' (e.g. ROBOT-900-DP 12G0.75).

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 100 mm is below 150 mmUse a larger drum core or a smaller cable size
180 m/min ≤ 240 m/minWithin the rated travel speed
Minimum bending radius
75 mm
Min. drum core diameter
≈ 150 mm
Cable weight on drum
1.5 kg
Copper content
0.9 kg
Indicative only: based on the datasheet outer diameter and 7.5 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
3000 V AC dielectric voltage test3.0 kV AC for 5 min without breakdownEvery manufactured length
Sample tests
Combined 3D torsion & bending endurance test≥ 5 million cycles at ±360°/m (P) or ±180°/m (DP) over 1 m vertical test rigQualification & periodic audit
LABS / paint-wetting impairment testPass VW PV 3.10.7 silicone-free verification for automotive paint shopsType approval
Weld-spatter & abrasion testDIN ISO 4649 abrasion ≤ 30 mm³ and resistance to hot welding slagType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

CE & RoHS 2 / REACH CompliantUL AWM Style 20939 / 21223 (80 °C 600 V)VW PV 3.10.7 LABS-Free (Paint-Shop Approved)

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX ROBOT-900 <size> ±360°/m 300/500V LABS-FREE UL CE
Delivery form
Non-returnable fumigated wooden drums or coils
Standard lengths
100 m · 500 m · 1000 m (cut lengths on request)
MOQ
100 m (stock sizes) · 300 m (custom)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFTorsion-Resistant Robot Control Cable – technical datasheet17 sizes · construction, technical data, approvalsXLSXTorsion-Resistant Robot Control Cable spec data (Excel)All 17 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20
