DIN VDE 0250-812 / 813 mining trailing cablesDIN VDE 0250-813 Basis3.6/6 kV (Umax 7.2 kV)TG Textile + SH Semicon Screen

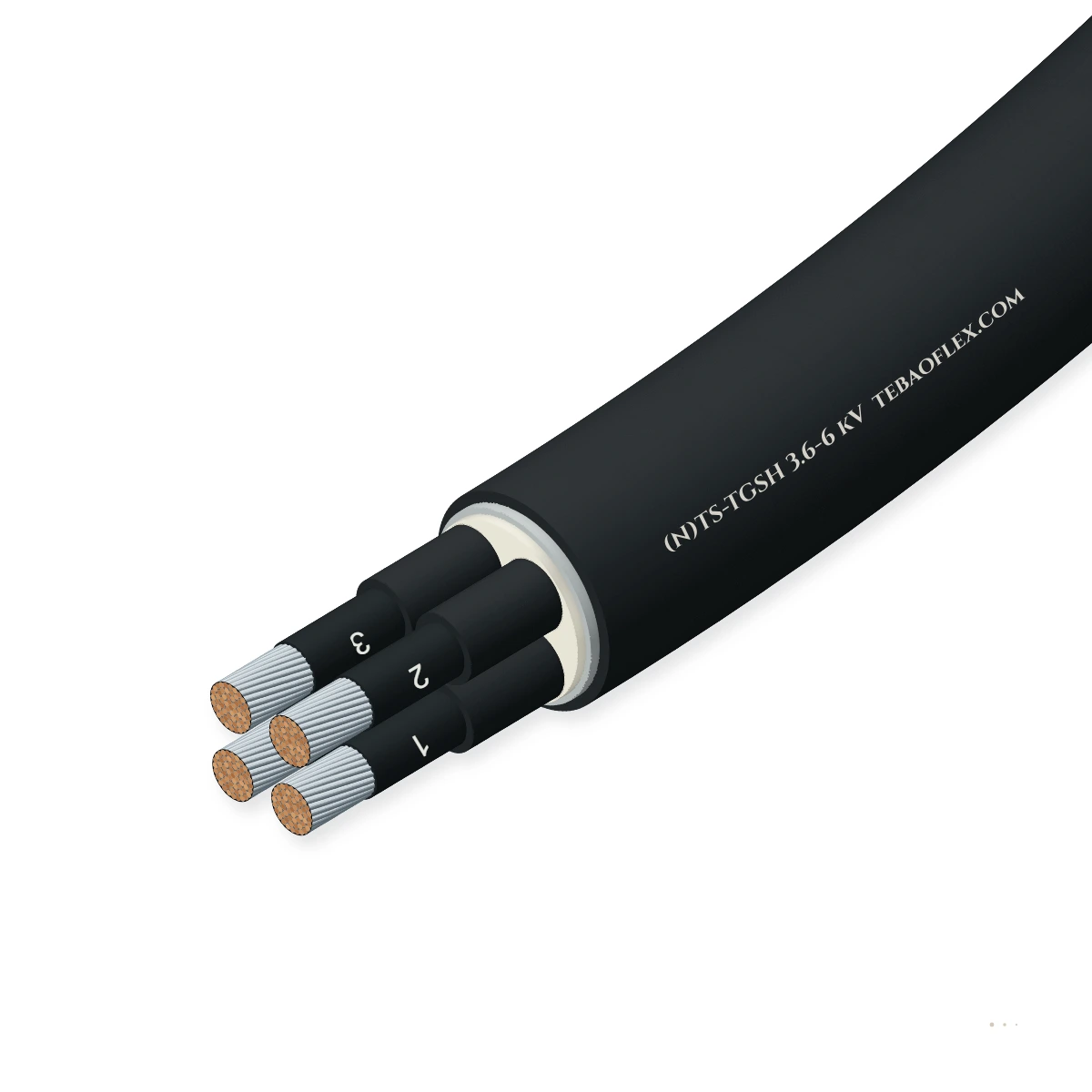

(N)TS-TGSH 3.6-6 kV Mining Trailing CableDIN VDE 0250-813 3.6/6 kV mining trailing cable with TG textile braid & SH semicon

(N)TS-TGSH 3.6-6 kV is a specialized medium-voltage (3.6/6 kV, Umax 7.2 kV) underground mining trailing cable based on DIN VDE 0250-813 that replaces fragile metallic wire screens with a fatigue-proof semi-conductive elastomeric screen system (SH) and a

EMC screen
Anti-torsion braid
Oil-resistant
Flame-retardant
Order designation
(N)TS-TGSH 3×70+3×35/3E+4×4 3.6/6 kV
Outer Ø ≈
54.5 mm
Copper weight
2,590 kg/km
Total weight ≈
4,380 kg/km
Min. bend R (fixed)
272 mm
All sizes (7)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
3.6/6 kV
Umax 7.2 kV AC 3-phase
Screen type
SH Elastomer
Non-metallic semicon rubber screen
Reinforcement
TG Textile Braid
Vulcanised anti-tear/torsion braid
Insulation
3GI3 MV EPR
+90 °C cross-linked EPR
Outer sheath
5GM5 PCP
Heavy-duty flame/oil rubber
Min. bend radius
5×D / 8×D
Fixed 5×D · Bretby flexing 8×D

Typical values for this cable type, based on DIN VDE 0250-813 — confirmed in the datasheet and quotation for your order.

Application fit

Is (N)TS-TGSH 3.6-6 kV right for your machine?

Designed for high-cycle 3.6/6 kV longwall coal shearers and Bretby drag chains where conventional metallic copper wire screens fail from flex-fatigue broken strands piercing the insulation.

Longwall shearer & Bretby handler

Suitable

Non-metallic SH elastomeric screen cannot suffer wire-strand fatigue breakage in tight Bretby loops.

Mine roadway & tunnel wall hangers

Suitable

TG textile reinforcement braid embedded in the 5GM5 sheath resists longitudinal ripping.

Trailing & towing

Suitable

Lighter and more flexible than wire-armoured MV cables for continuous face traversal.

Festoon & line chain

Suitable

Tight 8×D dynamic bend radius suits underground monorail festoon loops.

Vertical / spreader reel

With conditions

Suitable for horizontal handlers; for deep vertical shaft reeling use NTSCGEWÖU.

NTSCGEWÖU 3.6/6 kV
Typical machinesUnderground longwall coal faces3.6/6 kV shearers in Bretby handlersRoadheaders & continuous minersPotash & trona underground mining

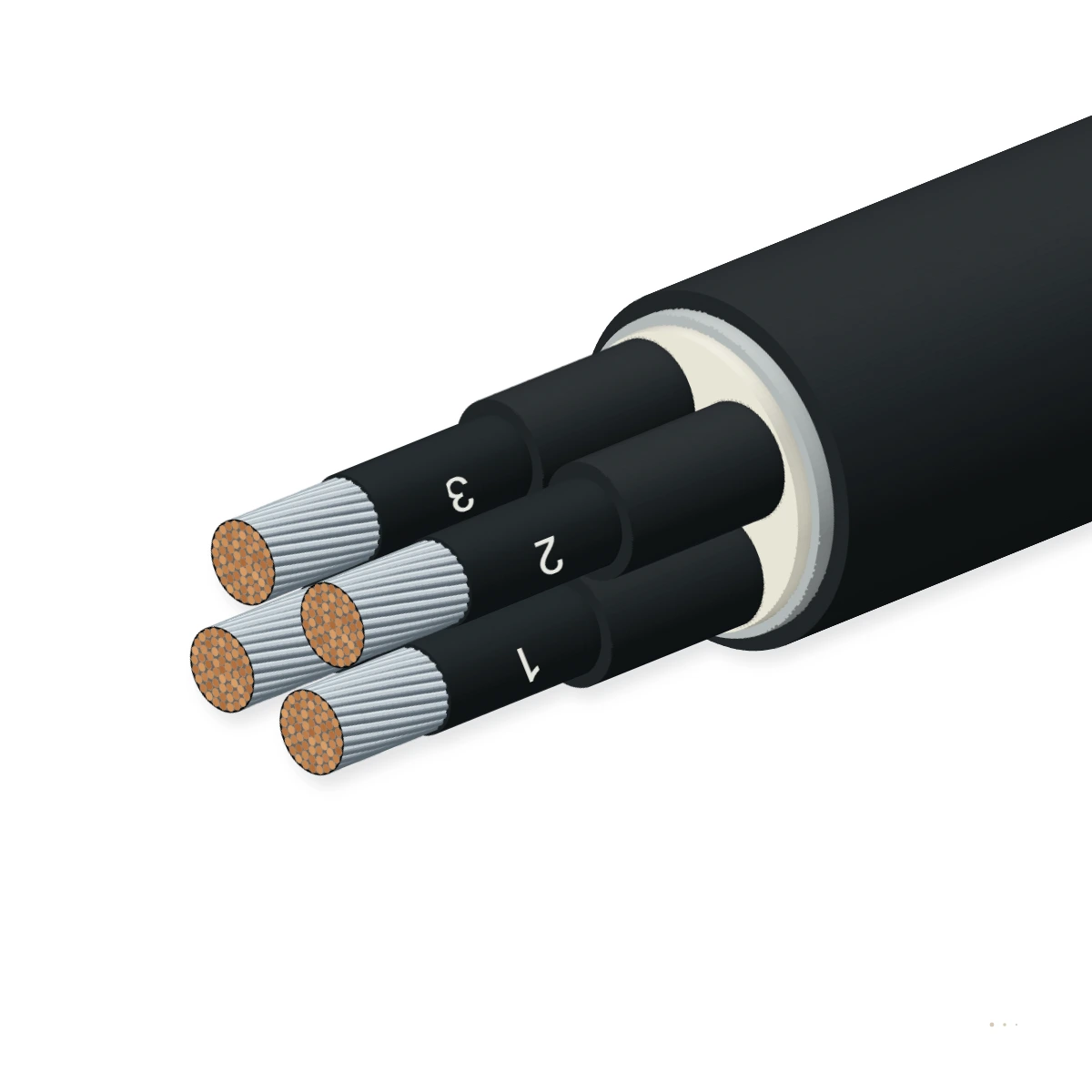

Construction

Layer by layer

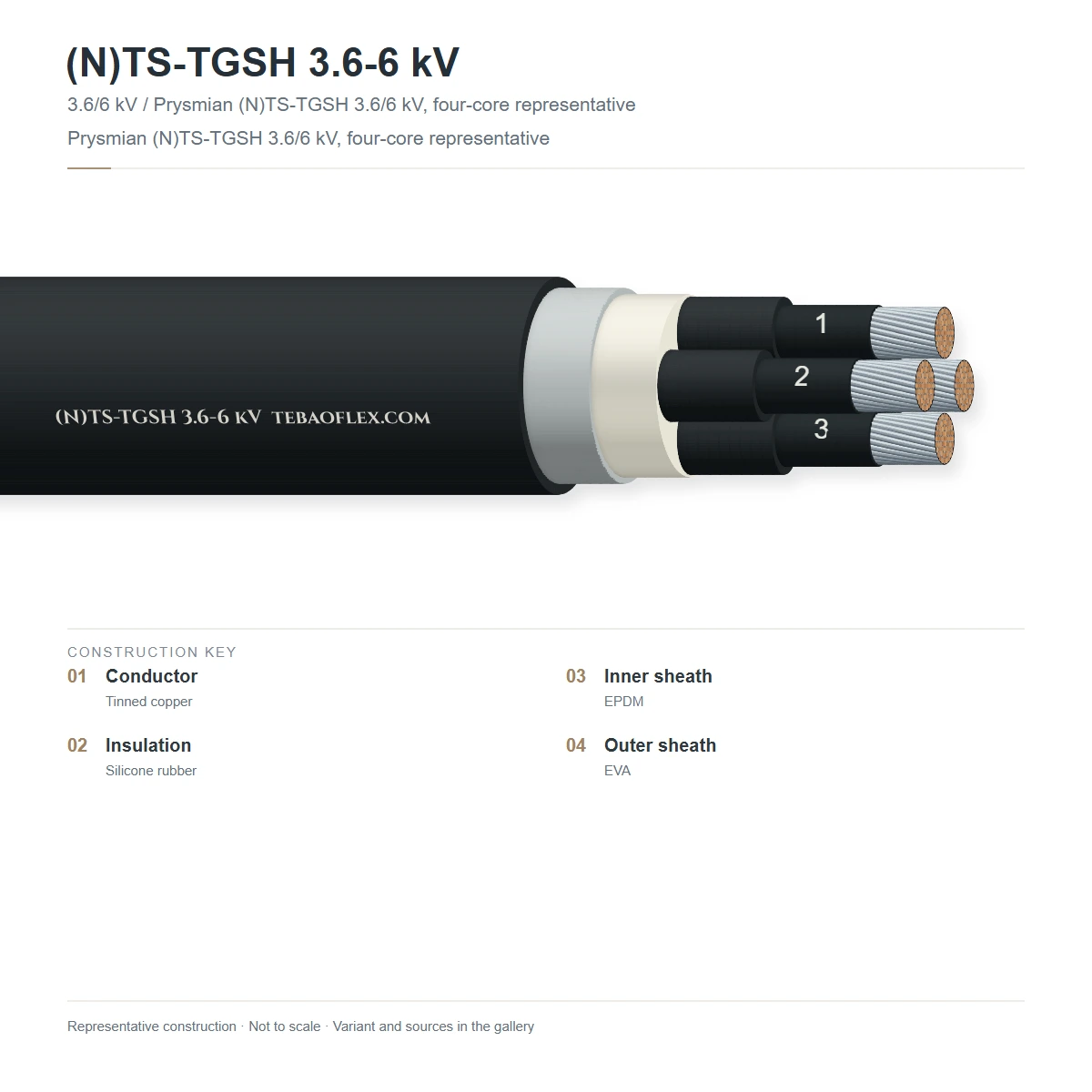

Three Class 5 tinned copper phase cores with 3GI3 EPR insulation and thick SH semi-conductive elastomeric screens in contact with split

1234567
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Phase, earth & pilot conductorsFinely stranded tinned annealed copper, Class 5 per DIN EN 60228DIN EN 60228 Class 5
2Inner conductor screenExtruded semi-conductive elastomer layer over phase conductorsDIN VDE 0250-813
3MV EPR insulation (3GI3)Cross-linked ethylene propylene rubber compound 3GI3 (3.6/6 kV)DIN VDE 0207-20
4Elastomeric phase screen (SH)Heavy-wall conductive elastomer screen (Schirm aus halbleitendem Elastomer) draining toDIN VDE 0250-813 (N)TS-TGSH
5Inner elastomeric sheathVulcanised polychloroprene/elastomer inner beddingDIN VDE 0250-813
6Textile reinforcement (TG)High-tenacity synthetic textile braid (Textilgeflecht) vulcanised between sheathsDIN VDE 0250-813
7Outer sheath (5GM5)Extra-heavy flame-retardant, oil- and tear-resistant polychloroprene 5GM5DIN VDE 0207-21

(N)TS-TGSH 3×S + 3E

3 phase cores + 3 interstitial earth conductors in continuous contact with SH elastomeric screens.

(N)TS-TGSH 3×S + 3E + ST

Includes 3 or 4 screened control/pilot cores in the central cradle for shearer automation.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-813. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
3.6/6 kV (Umax 7.2 kV)
AC routine test voltage
11 kV rms / 5 min
Specific volume resistance of SH
≤ 500 Ω·cm conductive elastomer
Sensitive earth-fault compatibility
Designed for high-sensitivity underground

Thermal

Max. conductor operating temp.
+90 °C
Max. short-circuit temperature
+250 °C (5 s)
Ambient temperature (flexing)
-25 °C to +60 °C
Ambient temperature (fixed)
-40 °C to +80 °C

Mechanical

Dynamic bending life
Zero metallic screen wire breakage under
Min. bending radius (fixed
5 × D fixed · 8 × D flexing
Max. tensile load
20 N/mm² supported by TG textile braid

Resistance

Oil & hydraulic emulsion
DIN EN 60811-404 resistant
Flame retardancy
DIN EN 60332-1-2 self-extinguishing
Tear propagation resistance
TG textile braid + 5GM5 polychloroprene

Reference standards

Design basis
DIN VDE 0250-813 (derived (N)TS-TGSH
Conductor standard
DIN EN 60228 Class 5 tinned copper
Compound standard
DIN VDE 0207-20 (3GI3) & 0207-21 (5GM5)

Identification

Core coding
Numbered phase cores 1, 2, 3 + split earth
Outer sheath colour
Yellow or Red with vulcanised designation

Sizes

7 standard configurations ((N)TS-TGSH 3.6-6 kV)

Nominal dimensions, copper weights and electrical parameters for (N)TS-TGSH 3.6-6 kV per DIN VDE 0250-813.

Dimensions & weights
Order designationConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard (N)TS-TGSH 3.6-6 kV configurations
(N)TS-TGSH 3×25+3×16/3E+4×2.5 3.6/6 kV3×25 + 3×16/3E + 4×2.5 (3.6/6 kV)2542.01,0402,280210
(N)TS-TGSH 3×35+3×16/3E+4×2.5 3.6/6 kV3×35 + 3×16/3E + 4×2.5 (3.6/6 kV)3545.21,3302,720226
(N)TS-TGSH 3×50+3×25/3E+4×2.5 3.6/6 kV3×50 + 3×25/3E + 4×2.5 (3.6/6 kV)5049.51,8603,410248
(N)TS-TGSH 3×70+3×35/3E+4×4 3.6/6 kV3×70 + 3×35/3E + 4×4 (3.6/6 kV)7054.52,5904,380272
(N)TS-TGSH 3×95+3×50/3E+4×4 3.6/6 kV3×95 + 3×50/3E + 4×4 (3.6/6 kV)9559.83,5105,520299
(N)TS-TGSH 3×120+3×70/3E+4×4 3.6/6 kV3×120 + 3×70/3E + 4×4 (3.6/6 kV)12064.54,4506,680322
(N)TS-TGSH 3×150+3×70/3E+4×4 3.6/6 kV3×150 + 3×70/3E + 4×4 (3.6/6 kV)15069.25,3207,820346
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per DIN VDE 0250-813.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
11 kV AC voltage withstand11 kV rms / 5 min on phase cores100 % of drums
SH conductive elastomer resistivityVolume resistivity & earth contact check per DIN VDE 0250-813100 % of drums
Sample tests
Bretby cyclic flex enduranceZero dielectric degradation after reverse-bend testPer production batch
Flame & oil resistanceDIN EN 60332-1-2 & EN 60811-404Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-813 BasisDIN EN 60332-1-2EN 10204 3.1

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX (N)TS-TGSH 3.6/6 kV VDE 0250-813 CE
Delivery form
Fumigated export wooden drums
Standard drum lengths
300 m · 500 m · 1000 m (or custom cut
MOQ
100 m (stock sizes) · 300 m (custom build)
Lead time
3–5 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDF(N)TS-TGSH 3.6-6 kV Mining Trailing Cable – technical datasheet7 sizes · construction, technical data, approvalsXLSX(N)TS-TGSH 3.6-6 kV spec data (Excel)All 7 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What do TG and SH signify in the (N)TS-TGSH 3.6-6 kV designation?
TG stands for Textilgeflecht (a vulcanised high-tenacity textile reinforcement braid embedded between the inner and outer polychloroprene sheaths), while SH stands for Schirm aus halbleitendem Elastomer (a thick non-metallic semi-conductive elastomeric screen surrounding each phase and control core). Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
Why replace metallic copper wire screens with an SH conductive elastomer screen on longwall shearers?
In high-cycle longwall Bretby cable handlers, fine copper screen wires eventually work-harden, snap, and poke back through the EPR insulation, causing internal phase-to-earth short circuits. The non-metallic SH elastomeric screen flexes indefinitely without broken metal wires while draining leakage current to the uninsulated interstitial copper earth cores.
How does (N)TS-TGSH 3.6-6 kV differ from low-voltage TGSH / TGSH2G?
(N)TS-TGSH 3.6-6 kV is engineered to DIN VDE 0250-813 with triple-extruded medium-voltage 3GI3 EPR dielectric walls and 11 kV AC routine test verification for 3.6/6 kV (Umax 7.2 kV) coal shearers, whereas standard TGSH is typically used on 0.6/1 kV to 1.8/3 kV faces.
How is fault current carried if the phase screen is conductive rubber?
Three bare or semi-conductive-sheathed Class 5 tinned copper earth conductors are laid in continuous longitudinal contact with the outer SH conductive elastomer screens of the three phase cores, providing a full-capacity metallic fault-current return path. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
