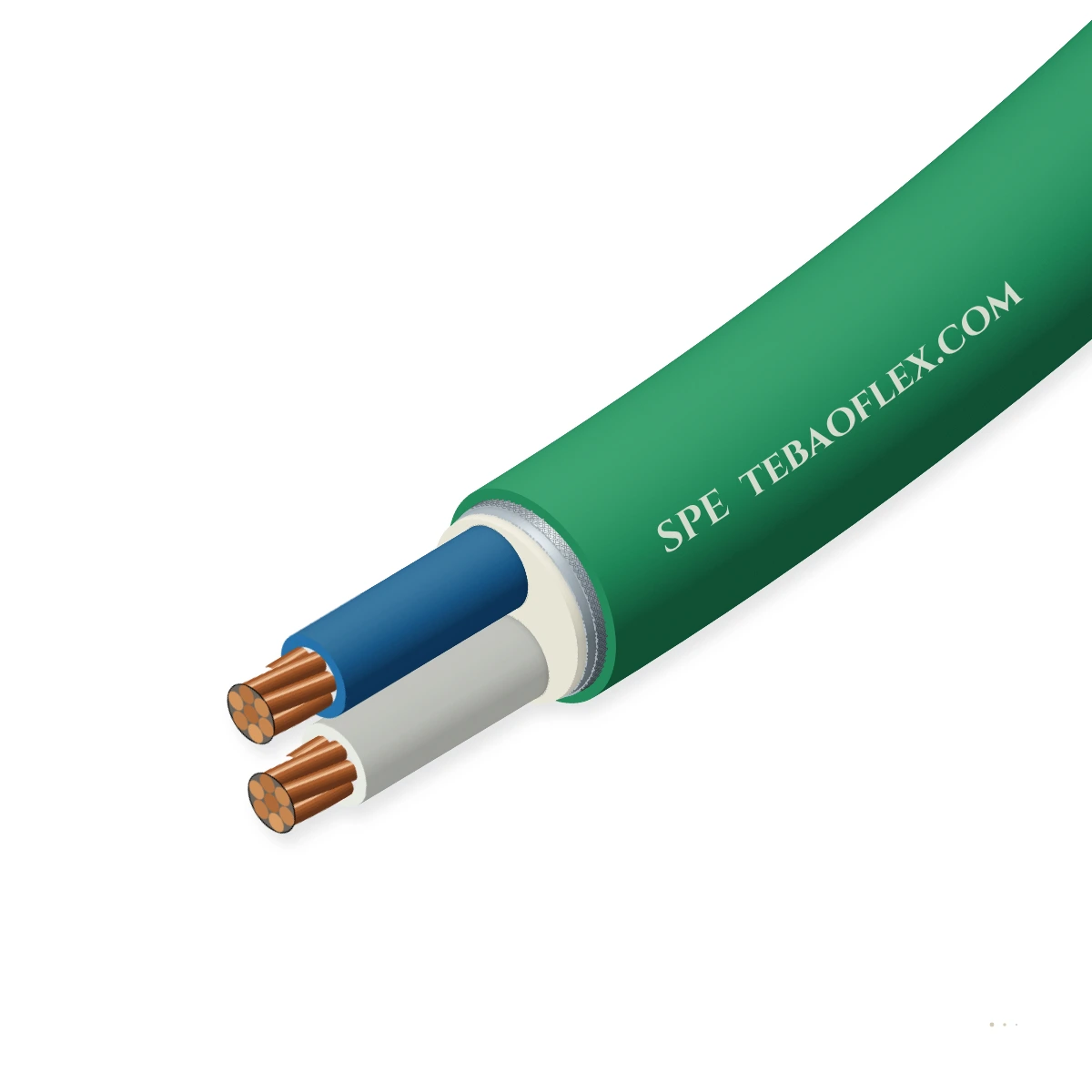

SPE Single Pair Ethernet CableIEC 61156-11/12/13 100 Ω 1×2 S/FTP Single Pair Ethernet cable for 10BASE-T1L (1000 m) to

SPE Single Pair Ethernet Cable is a 100 Ω balanced single-twisted-pair (1×2) S/FTP industrial data cable built to IEC 61156-11/12/13 and IEEE 802.3cg (10BASE-T1L up to 1,000 m on AWG 18) and IEEE 802.3bp (1000BASE-T1 up to 600 MHz on AWG 22–26), combining

Low-EMC design
EMC screen
Anti-torsion braid
Oil-resistant
Order designation
SPE 10BASE-T1L Trunk 1×2×AWG18/7 PUR
Outer Ø ≈
6.5 mm
Copper weight
28 kg/km
Total weight ≈
54 kg/km
Min. bend R (fixed)
26 mm
All sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Impedance Z0
100 Ω ± 10 Ω
0.1–20 MHz (T1L) / 1–600 MHz (T1)
Protocols
10M to 1 Gbps
10BASE-T1L / 100BASE-T1 / 1000BASE-T1
Max. reach
Up to 1,000 m
1,000 m @ 10 Mbps (AWG 18 T1L)
Power delivery
PoDL up to 50 W
IEEE 802.3bu / 802.3cg Class 10–15
Conductor sizes
AWG 18 to AWG 26
Solid, 7-wire flex & 19-wire chain
Shielding
S/FTP Dual
Al/PET pair foil + ≥85 % Cu braid

Typical values for this cable type, based on IEC 61156-11 / IEC 61156-12 / IEC 61156-13 (IEEE 802.3cg / 802.3bp) — confirmed in the datasheet and quotation for your order.

Application fit

Is SPE right for your machine?

Engineered for direct sensor-to-cloud IIoT links, process-plant APL/10BASE-T1L trunks up to 1,000 m, compact robotics, and Drag-Chain machinery where 1-pair SPE cuts weight and diameter by 45 %

Fixed installation

Suitable

AWG 18/1 and AWG 18/7 variants transmit 10BASE-T1L and PoDL over up to 1,000 m in process plants.

Energy chain / drag chain

Suitable

AWG 22/19 and AWG 26/19 PUR variants endure ≥ 5 million drag-chain cycles at 100 Mbps / 1 Gbps.

Switchgear & control cabinet wiring

Suitable

Terminates directly in IEC 63171-2 / 63171-5 / 63171-6 (T1 Industrial) and M8/M12 SPE connectors.

Immersion & wet locations

With conditions

Specify the PUR or Ex-i blue APL process sheath for wet chemical zones.

PROFIBUS PA
Typical machinesIIoT sensor-to-cloud field nodesProcess automation (Ethernet-APL / 10BASE-T1L)Compact robotics & cobot end-effectorsBuilding & factory automation backbones

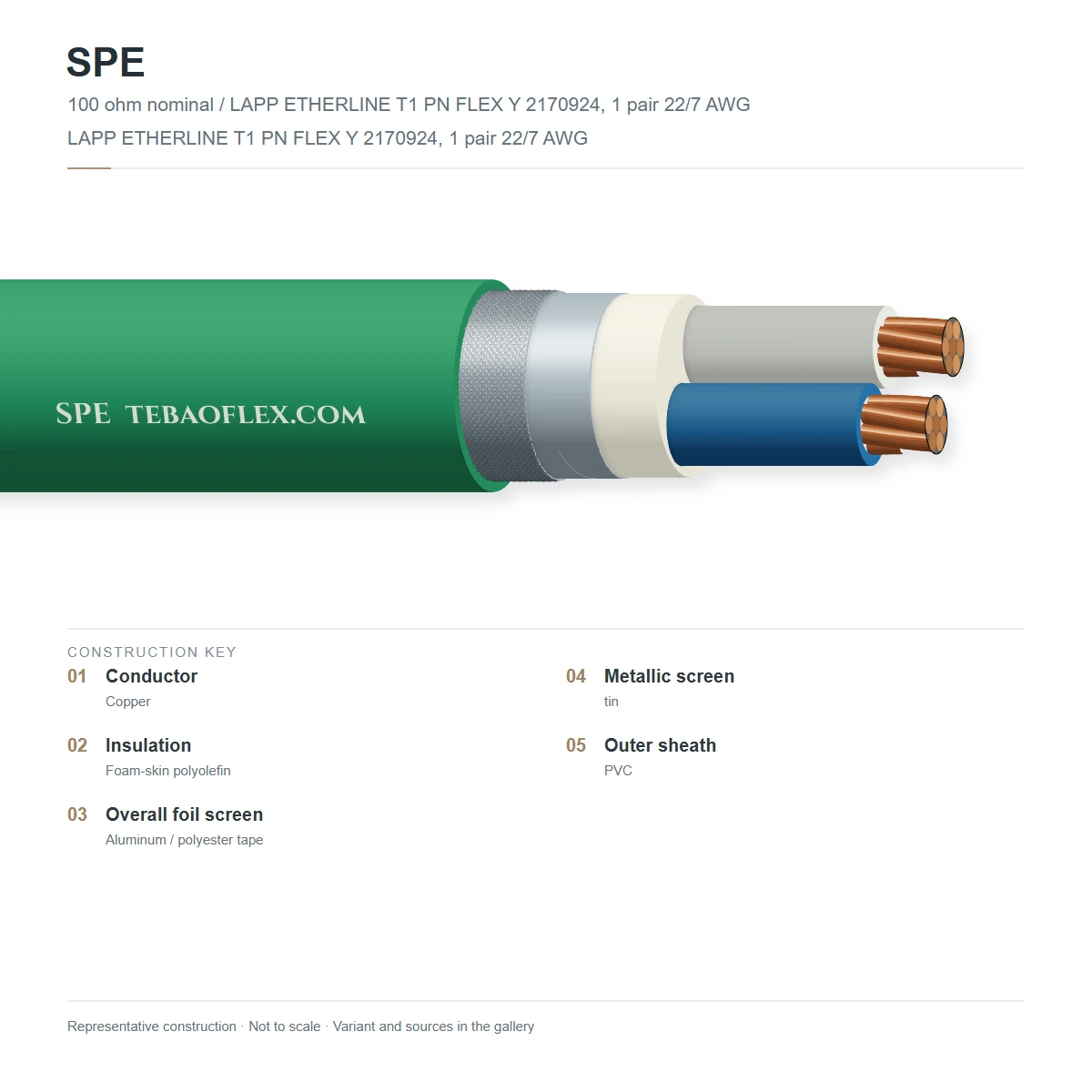

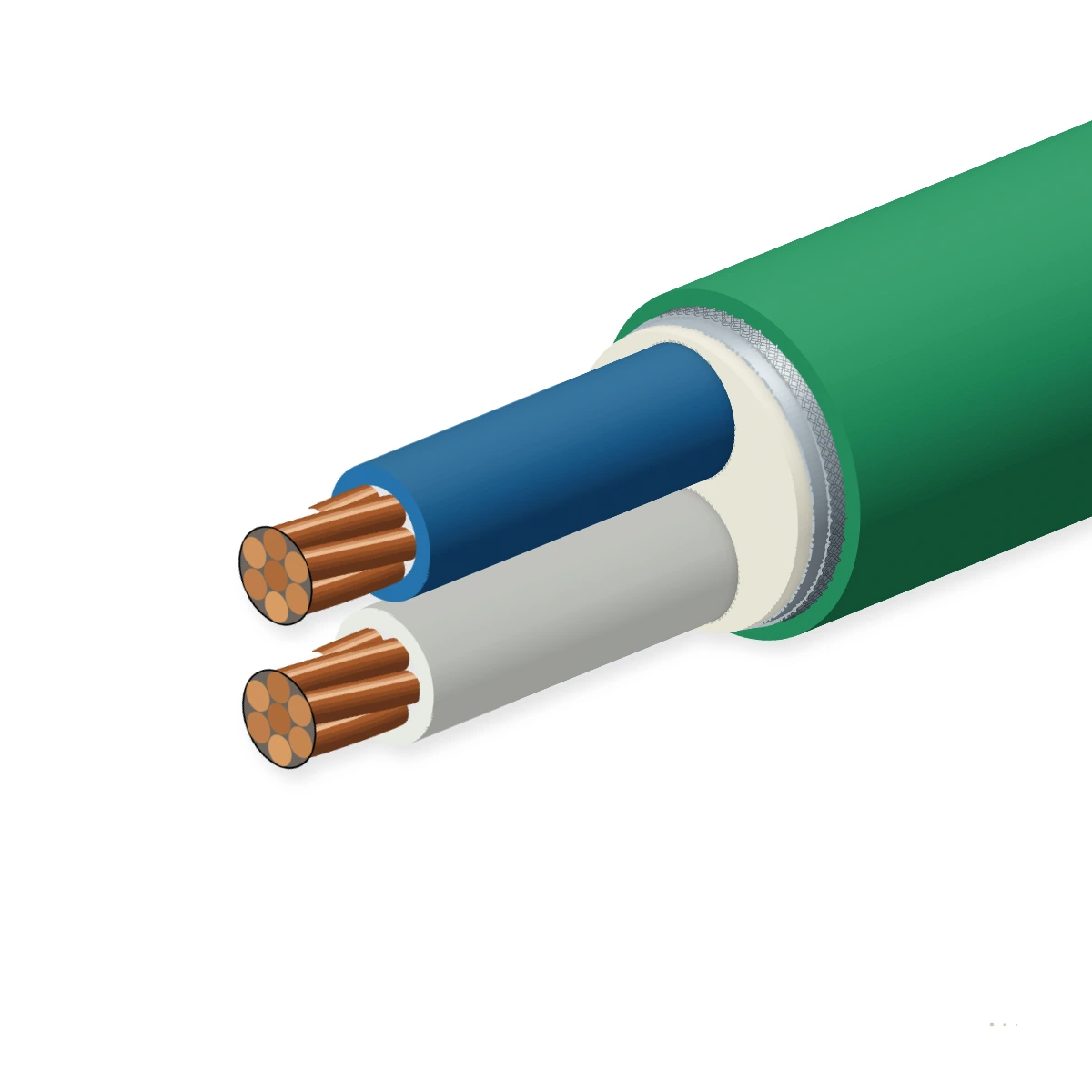

Construction

Layer by layer

One balanced twisted pair (White + Blue) of bare or tinned copper (AWG 18, 22, 24, or 26) insulated with low-loss cellular PE (O2YS)

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Balanced SPE copper conductorsSolid or stranded tinned copper (AWG 18 for 1000 m T1L; AWG 22/26 for 100M/1G T1)IEC 61156-11 / 61156-12 / 61156-13
2Foamed polyethylene (O2YS)Low-permittivity cellular PE dielectric tuned to Z0 = 100 ΩIEC 61156-11
3Pair foil screen (Al/PET)Aluminium-laminated polyester tape (100 % coverage, metal side outward)IEC 61156-11 S/FTP
4EMC copper braidTinned copper wire braid, optical coverage ≥ 85 %IEC 61156-11 / 61156-13
5Outer sheathFlame-retardant PVC, halogen-free PUR (TMPU), or FRNC/LSZHEN 50363-10-2 / IEC 60332

SPE 10BASE-T1L Trunk 1×2×AWG18

Long-reach 1,000 m 10 Mbps + 50 W PoDL / Ethernet-APL trunk cable (IEC 61156-13 / IEEE 802.3cg).

SPE 1000BASE-T1 Flex/Chain 1×2×AWG22 & AWG26

600 MHz 1 Gbps compact fixed, flexible, and drag-chain PUR cable (IEC 61156-11 / 61156-12).

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEC 61156-11 / IEC 61156-12 / IEC 61156-13 (IEEE 802.3cg / 802.3bp). Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic impedance Z0
100 Ω ± 10 Ω
Max. DC loop resistance @ 20 °C
≤ 44 Ω/km (AWG 18) · ≤ 115 Ω/km (AWG 22) ·
Mutual capacitance @ 1 kHz
≈ 45 pF/m
Velocity of propagation (VoP)
75–78 % (0.75–0.78 c)
Attenuation (AWG 18 @ 1/10/20 MHz)
1.6 / 4.9 / 7.0 dB/100m (10BASE-T1L)
Attenuation (AWG 22 @ 10/100/600
5.8 / 18.5 / 47.0 dB/100m (1000BASE-T1)

Thermal

Operating temp. (fixed / flex)
-40 °C to +85 °C fixed · -30 °C to +80 °C
PoDL current rating
Up to 1.36 A DC loop (IEEE 802.3cg Class

Mechanical

Min. bending radius (fixed / chain)
4 × D fixed · 7.5 × D drag-chain
Drag-chain endurance (AWG 22/19 &
≥ 5,000,000 cycles (PUR version)

Resistance

Oil & chemical resistance
EN 60811-404 · UL Oil Res I/II
Flame & halogen-free
IEC 60332-1-2 · IEC 60754-1/2 · UL VW-1

Reference standards

Primary cable standards
IEC 61156-11 (600 MHz fixed) · 61156-12
IEEE Ethernet standards
IEEE 802.3cg (10BASE-T1L/S), 802.3bw

Identification

Core colours
White + Blue (or Blue + Brown per APL)
Outer sheath colour
RAL 6018 Green, Water Blue, or Black

Sizes

6 standard configurations (SPE)

Nominal dimensions, copper weights, impedance and transmission parameters for SPE per IEC 61156-11 / IEC 61156-12 / IEC 61156-13 (IEEE 802.3cg / 802.3bp).

Dimensions & weights
Order designationConfigurationConductor sizeOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard SPE configurations
SPE 10BASE-T1L Trunk 1×2×AWG18/7 PVC1×2×AWG18/7 (1000m T1L PVC)AWG 18/7 (0.80 mm²)6.5285626
SPE 10BASE-T1L Trunk 1×2×AWG18/7 PUR1×2×AWG18/7 (1000m T1L PUR)AWG 18/7 (0.80 mm²)6.5285426
SPE 1000BASE-T1 Fixed 1×2×AWG22/1 LSZH1×2×AWG22/1 (600 MHz Fixed)AWG 22/1 (0.34 mm²)4.9193420
SPE 1000BASE-T1 Chain 1×2×AWG22/7 PUR1×2×AWG22/7 (Flex PUR)AWG 22/7 (0.34 mm²)5.1203620
SPE 1000BASE-T1 Drag-Chain 1×2×AWG22/19 PUR1×2×AWG22/19 (Drag-Chain PUR)AWG 22/19 (0.35 mm²)5.2203721
SPE Compact Chain 1×2×AWG26/7 PUR1×2×AWG26/7 (Compact Chain PUR)AWG 26/7 (0.14 mm²)4.0122216
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per IEC 61156-11 / IEC 61156-12 / IEC 61156-13 (IEEE 802.3cg / 802.3bp).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Impedance Z0, return loss & insertion loss sweepIEC 61156-11/12 (600 MHz) or IEC 61156-13 (20 MHz) limits100 % of reels
DC loop resistance & unbalance for PoDL≤ 2 % DC resistance unbalance; 1.0–1.5 kV DC dielectric100 % of reels
Sample tests
Coupling attenuation & transfer impedance≥ 75 dB EMC coupling attenuationPer production batch
5-million-cycle drag-chain flex testPUR AWG 22/19 & 26/7 continuous flexingType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

IEC 61156-11 / 12 / 13IEEE 802.3cg / 802.3bpUL AWM 21198 / CMG

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX SPE SINGLE PAIR ETHERNET 1X2
Delivery form
Non-returnable plywood reels or export drums
Standard reel lengths
100 m · 305 m · 500 m · 1000 m
MOQ
100 m (stock variants) · 500 m (custom)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP
