Product

Screened PUR spiral signal cable300 V DIN VDE 0812≥ 85 % Spiral Cu Screen3.5 : 1 Extension (L1:L0)

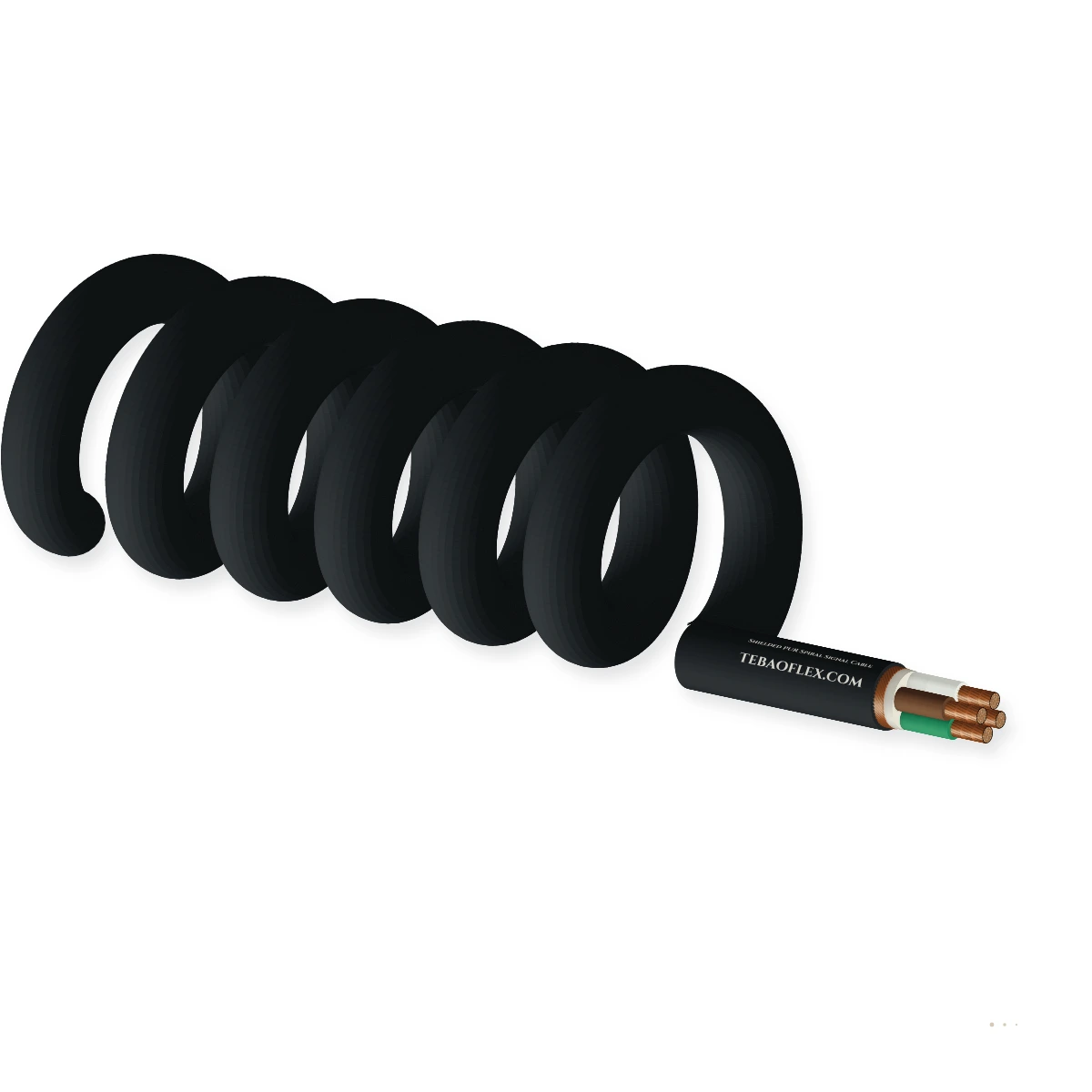

Shielded PUR Spiral Signal CableEMC-screened 3.5 : 1 retractable coiled PUR signal & pendant cable

Retractable EMC-screened coiled signal and instrumentation cable (0.14–0.50 mm²) featuring superfine Class 6 copper conductors, high-rebound TPE-E core insulation, ≥ 85 % tinned copper spiral D-screen and halogen-free PUR jacket for teach pendants and sensors.

Low-EMC design
EMC screen
Oil-resistant
Flame-retardant
Order designation
SPIRAL-PUR-C 7×0.25 (400/1400)
Cable Ø ≈
6.5 mm
Coil outer Ø ≈
25.0 mm
Linear copper
36 kg/km
Linear weight ≈
68 kg/km
Check against my drumAll sizes (14)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Extension ratio
3.5 : 1 (L1:L0)
clean spring-back recovery
EMC screen
≥ 85 % Cu screen
helical tinned copper D-shield
Rated voltage
300 V (250 V)
1500 V AC dielectric test
Cross-sections
0.14–0.50 mm²
2 to 18 DIN 47100 signal cores
Temperature
−30…+70 °C
flexing · −40…+80 °C static
Outer sheath
PUR (Grey/Black)
oil, microbe & abrasion proof

Typical values for this cable type, based on DIN VDE 0812 / DIN EN 50363-10-2 — confirmed in the datasheet and quotation for your order.

Application fit

Is Shielded PUR Spiral Signal Cable right for your machine?

Designed for handheld CNC teach pendants, mobile barcode/vision scanners, medical diagnostic carts, and linear displacement sensors requiring shielded retractable cords.

Self-supporting pendant & push-button drop

Suitable

Lightweight screened spiral cord for handheld CNC MPG handwheels, robot teach pendants and operator panels.

Free-hanging vertical run

Suitable

Retracts cleanly on vertical load-cell booms, weighing platforms and automated test probes.

Fixed installation

With conditions

200 mm straight ends terminate directly into circular M12/Sub-D connectors or cabinet EMC glands.

Use Screened PUR Chain Cable
Typical machinesCNC Handheld MPGs & Teach PendantsMedical Diagnostic & Imaging CartsMobile Weighing & Load-Cell SystemsAutomated Test & Probe StationsIndustrial Barcode & Vision Scanners

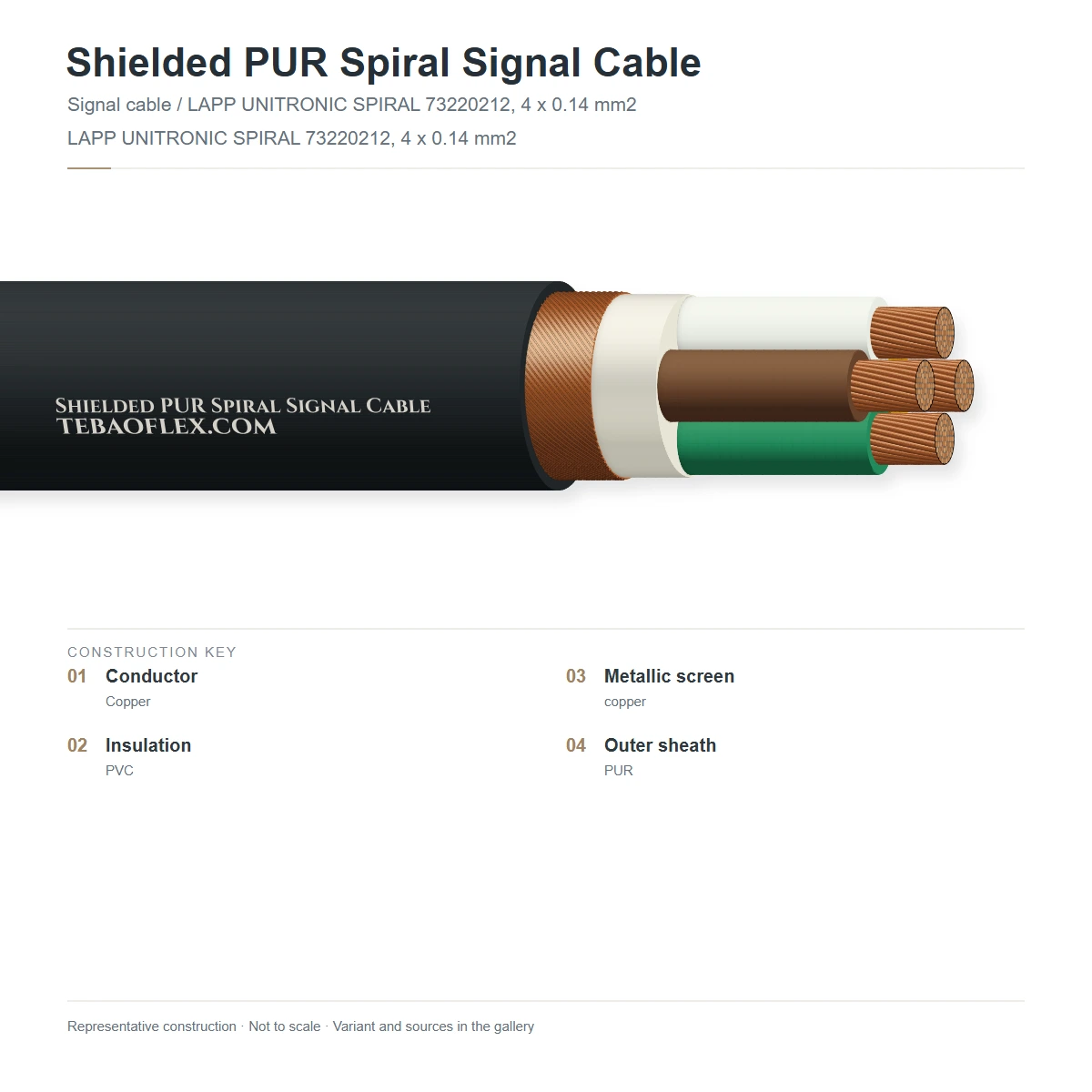

Construction

Layer by layer

Shown: SPIRAL-PUR-C 7×0.25 screened coiled signal cable with DIN 47100 colour-coded TPE-E cores, PTFE sliding wrap, helical tinned copper D-screen and silver-grey RAL 7001 PUR jacket.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Superfine signal conductorBare or tinned copper, superfine strands (IEC 60228 Class 6)Low bending stiffness for light pull force on handheld devices
2High-modulus TPE-E insulationThermoplastic polyester elastomer (TPE-E), colour-coded per DIN 47100Provides low capacitance (≈ 70 pF/m) and elastic coil rebound
3PTFE anti-friction wrapLow-friction fluoropolymer / non-woven tape over laid-up signal bundlePrevents core-to-screen friction during coil extension
4Helical tinned copper D-screenTorsion-compensated spiral tinned copper wire shield (≥ 85 % optical coverage)Unlike a rigid cross-braid, a helical D-screen winds with the spiral coil without kinking
5High-memory PUR outer sheathHalogen-free polyether polyurethane (TMPU), silver-grey RAL 7001 or matte black RAL 9005DIN EN 50363-10-2 · resists skin oils, disinfectants, coolants and floor abrasion

Multicore Screened (DIN 47100)

2 to 18 colour-coded signal cores (0.14–0.50 mm²) inside an overall helical tinned copper D-screen

Twisted-Pair Screened (TP-C)

Twisted differential pairs (2×2×0.14 to 6×2×0.25) with overall D-screen for RS-422/RS-485 handwheels and encoders

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0812 / DIN EN 50363-10-2. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
300 V (UL) · 250 V peak (DIN VDE 0812)
AC test voltage
1500 V AC core/core · 1000 V AC core/screen
Screen / Field control
Helical tinned copper D-screen ≥ 85 % coverage
Capacitance
≈ 70 pF/m (core/core) · ≈ 120 pF/m (core/screen)
Insulation resistance
≥ 200 MΩ·km at 20 °C

Thermal

Temperature, flexing
−30 °C to +70 °C (coil extension service)
Temperature, fixed installation
−40 °C to +80 °C
Max. conductor temperature
+70 °C

Mechanical

Extension ratio (L1 : L0)
Up to 3.5 : 1 (working length L1 vs block L0)
Standard block lengths (L0)
100, 200, 300, 400, 500, 750, 1000 mm
Straight tail ends
200 mm / 200 mm (axial or radial exit)
Extension endurance
≥ 100,000 full extension/retraction cycles

Resistance

Oil resistance
DIN EN 50363-10-2 (cutting oils & coolants)
Flame retardance
IEC 60332-1-2 self-extinguishing
Halogen-free / Smoke density
IEC 60754-1/2 halogen-free
Chemicals & disinfectants
Resists alcohol wipes, hydrolysis & microbes

Reference standards

Cable type (construction standard)
DIN VDE 0812 & DIN EN 50363-10-2
Conductor
IEC 60228 Class 6 superfine copper
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour
Silver-grey (RAL 7001) or Matte Black (RAL 9005)
Core identification
DIN 47100 colour code without colour repetition
Marking
TEBAOFLEX SPIRAL-PUR-C <size> EMC SCREENED CE
Customs tariff (HS)
8544.49

Sizes

14 standard EMC-screened spiral signal configurations

Each cross-section is available in block lengths L0 = 100, 200, 300, 400, 500, 750 and 1000 mm (L1 ≈ 3.5 × L0).

Dimensions, coil Ø & extension
Order designationCores × mm²Ref. L0 / Max L1Cable Ø ≈
mm		Coil outer Ø
mm ≈		Linear Cu
kg/km		Linear wt ≈
kg/km		Enquiry
0.14 mm² (AWG 26) ultra-light sensor & scanner spiral cords
SPIRAL-PUR-C 2×0.14 (300/1050)2×0.14300 / 1050 mm4.517.01432
SPIRAL-PUR-C 4×0.14 (300/1050)4×0.14300 / 1050 mm5.019.01941
SPIRAL-PUR-C 7×0.14 (300/1050)7×0.14300 / 1050 mm5.822.02754
SPIRAL-PUR-C 12×0.14 (300/1050)12×0.14300 / 1050 mm7.026.04178
0.25 mm² (AWG 24) CNC handwheel & teach-pendant spiral cords
SPIRAL-PUR-C 2×0.25 (400/1400)2×0.25400 / 1400 mm4.919.01838
SPIRAL-PUR-C 4×0.25 (400/1400)4×0.25400 / 1400 mm5.521.02549
SPIRAL-PUR-C 7×0.25 (400/1400)7×0.25400 / 1400 mm6.525.03668
SPIRAL-PUR-C 12×0.25 (400/1400)12×0.25400 / 1400 mm7.929.05698
SPIRAL-PUR-C 18×0.25 (400/1200)18×0.25400 / 1200 mm9.234.080136
0.34 mm² (AWG 22) instrumentation & load-cell spiral cords
SPIRAL-PUR-C 4×0.34 (500/1750)4×0.34500 / 1750 mm5.922.03158
SPIRAL-PUR-C 7×0.34 (500/1750)7×0.34500 / 1750 mm7.026.04682
SPIRAL-PUR-C 12×0.34 (500/1500)12×0.34500 / 1500 mm8.632.072122
0.50 mm² (AWG 20) 24 V control & actuator screened spiral cords
SPIRAL-PUR-C 4×0.50 (500/1750)4×0.50500 / 1750 mm6.524.04072
SPIRAL-PUR-C 7×0.50 (500/1750)7×0.50500 / 1750 mm7.829.062104
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Linear copper weight (kg/km) includes both the Class 6 signal conductors and the ≥ 85 % helical tinned copper D-screen.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Check results

Drum core 25 mm is below 66 mmUse a larger drum core or a smaller cable size
30 m/min ≤ 60 m/minWithin the rated travel speed
Minimum bending radius
33 mm
Min. drum core diameter
≈ 66 mm
Cable weight on drum
0.1 kg
Copper content
0.1 kg
Indicative only: based on the datasheet outer diameter and 5 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
1500 V AC dielectric test (core/core & core/screen)1.5 kV AC core/core · 1.0 kV AC core/screen for 5 minEvery manufactured coil batch
Screen continuity & optical coverage check≥ 85 % helical tinned copper D-screen coverageEvery production lot
Sample tests
100,000-cycle extension & screen integrity testZero shield wire breakage and ≤ 8 % block length growth after 100k pullsPer production lot
Halogen-free & oil/chemical resistancePass IEC 60754-1/2 and DIN EN 50363-10-2 TMPUType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

CE & RoHS 2 (2011/65/EU) / REACH CompliantIEC 60754-1/2 Halogen-Free TPE-E / PURDIN 47100 Signal Core Colour Standard

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX SPIRAL-PUR-C <size> DIN 47100 EMC CE
Delivery form
Individually bagged screened spiral cords in export cartons
Standard lengths
Block lengths L0 = 100 mm to 1000 mm (200/200 mm straight ends)
MOQ
100 m (stock sizes) · 300 m (custom)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFShielded PUR Spiral Signal Cable – technical datasheet14 sizes · construction, technical data, approvalsXLSXShielded PUR Spiral Signal Cable spec data (Excel)All 14 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why does Shielded PUR Spiral Signal Cable use a helical tinned copper D-screen instead of a braided wire mesh?
When a coiled spiral cable is stretched from its closed block length L0 to 3.5 × L0, the cable experiences continuous axial torsion along the helix. A rigid woven cross-braid locks the cable diameter, reduces coil spring-back elasticity, and suffers wire cross-over breakage. A helically wrapped tinned copper D-screen over a PTFE slip tape winds and unwinds smoothly with the coil while maintaining ≥ 85 % EMC coverage.
Why is TPE-E core insulation superior to PVC inside a thin-gauge screened spiral signal cable?
In fine 0.14 mm² and 0.25 mm² spiral cords, the outer PUR sheath is thin to keep the cord lightweight for handheld pendants. High-modulus TPE-E core insulation acts as an internal elastic spring that reinforces the coil's retraction memory, whereas soft PVC cores add dead weight and cause premature coil sagging.
What are typical applications for the 12×0.25 and 18×0.25 screened spiral sizes?
12×0.25 mm² and 18×0.25 mm² screened spiral cables are the standard choice for CNC manual pulse generators (MPG handwheels), robotic teach pendants, and mobile X-ray/ultrasound operator consoles that combine differential A/B encoder pulses, axis-selection rotary switches, LED status lines, and dual-channel E-stop safety contacts.
Can TEBAOFLEX supply this screened spiral cable pre-moulded with RJ45, M12, or circular aviation plugs?
Yes. We manufacture custom-moulded screened spiral assemblies with bend-relief grommets, 360°-shielded M12, Sub-D, RJ45, or multi-pin circular bayonet connectors tailored to your handheld controller.
