Product

High-temperature wireDIN VDE 0250 / EN 50525-2-83300/500 V-60 to +180 °C

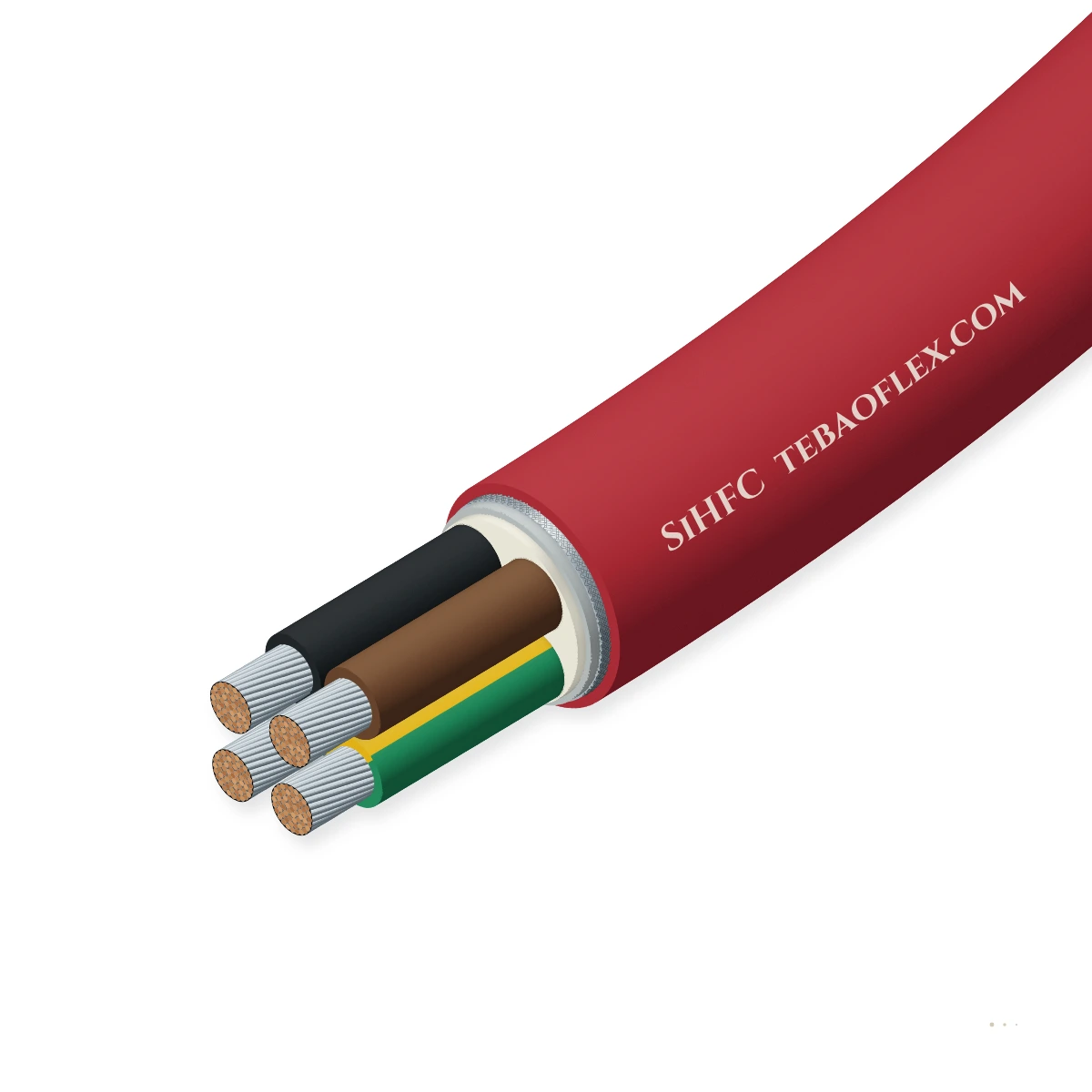

SiHFC Screened Multicore Silicone High-Temperature Cable300/500 V copper-braid EMC-screened multicore silicone cable for -60 °C to +180 °C

SiHFC (SiHF-C-Si) halogen-free EMC-screened multicore silicone cable with Class 5 tinned copper conductors, EI2 silicone core insulation, braided tinned copper screen, and red-brown silicone outer sheath for -60 °C to +180 °C.

EMC screen
Low-EMC design
Flame-retardant
Oil-resistant
Order designation
SiHFC 4G1.5
Outer Ø ≈
9.80 mm
Wall thickness
1.50 mm
Total weight ≈
200.4 kg/km
Min. bend R (fixed)
59 mm
All sizes (20)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
300/500 V
U0/U · 2000 V AC test voltage
Temperature
-60…+180 °C
Continuous · +220 °C short-term
Conductor
Sn-Cu Class 5
Fine-stranded tinned copper
EMC screen
Sn-Cu braid
≥ 85 % optical coverage shield
Min bend radius
6 × OD fixed
15 × OD occasional flexing
Core range
2 to 12 cores
0.75 to 6.0 mm² multicore range

Typical values for this cable type, based on DIN VDE 0250-1 / EN 50525-2-83 — confirmed in the datasheet and quotation for your order.

Application fit

Is SiHFC right for your machine?

Specify SiHFC where control, sensor, or drive interconnections run through high-ambient zones up to +180 °C and simultaneously require 360° braided copper EMC screening.

Furnace, kiln & high-temp zone

Suitable

Silicone rubber cores and outer jacket remain elastic from -60 °C to +180 °C around furnaces, steelmaking lines, and glass lehrs.

VFD inverter to AC motor screened feeder

Suitable

Dense tinned copper braid screen (≥ 85 % coverage) suppresses electromagnetic interference on hot-zone instrumentation and servo drives.

Fixed installation

Suitable

Suitable for fixed cable trays, conduits, and open machine frames in foundries, coking plants, and cement works.

Motorised monospiral reel

Not suitable

Silicone elastomer has lower tear resistance than polychloroprene or PUR; do not use on high-tension motorized crane reels.

Use NSHTÖU for drum reeling
Typical machinesSteelworks & Rolling MillsIndustrial Furnaces & KilnsGlass & Ceramic ProductionFoundry Automation & SensorsThermal Test Chambers

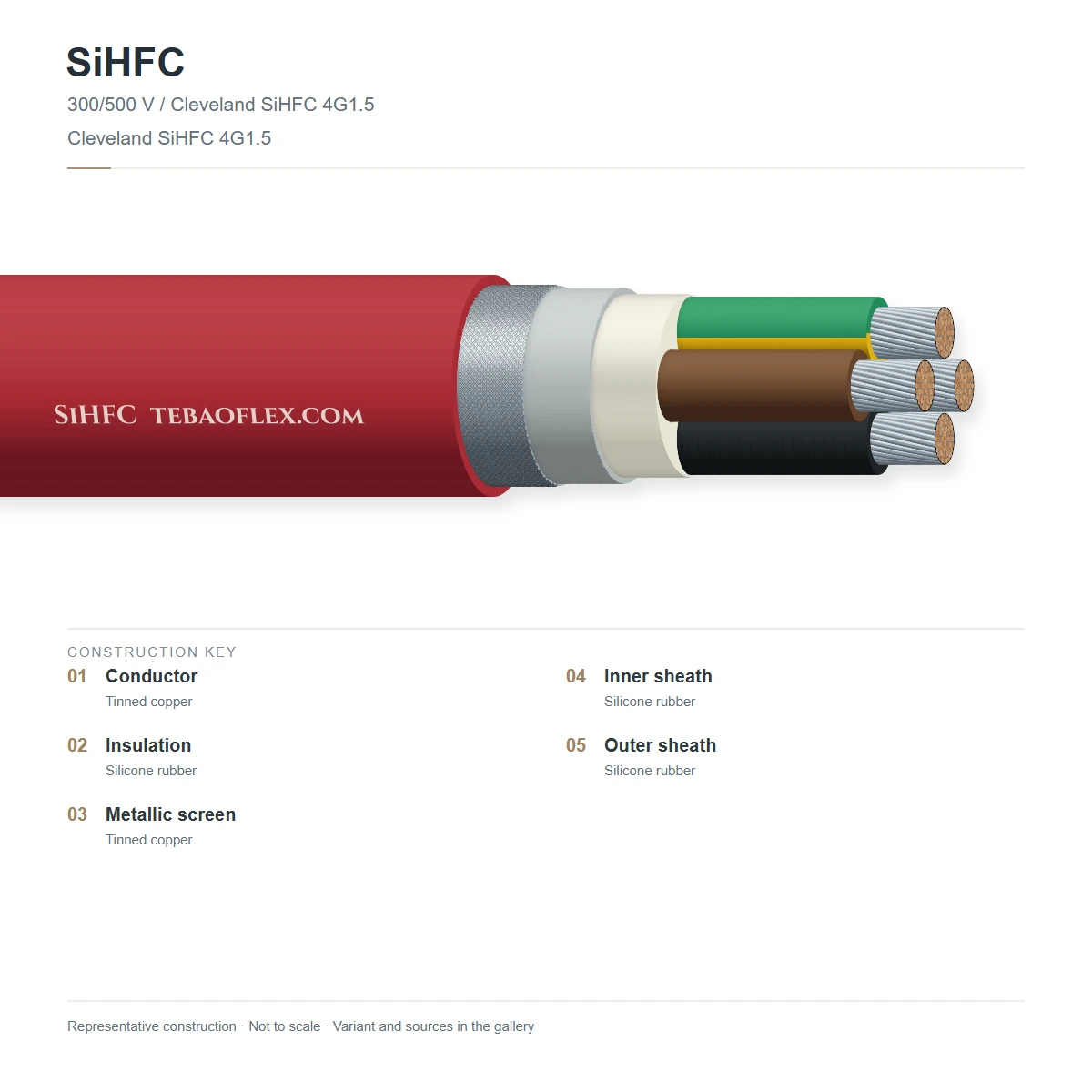

Construction

Layer by layer

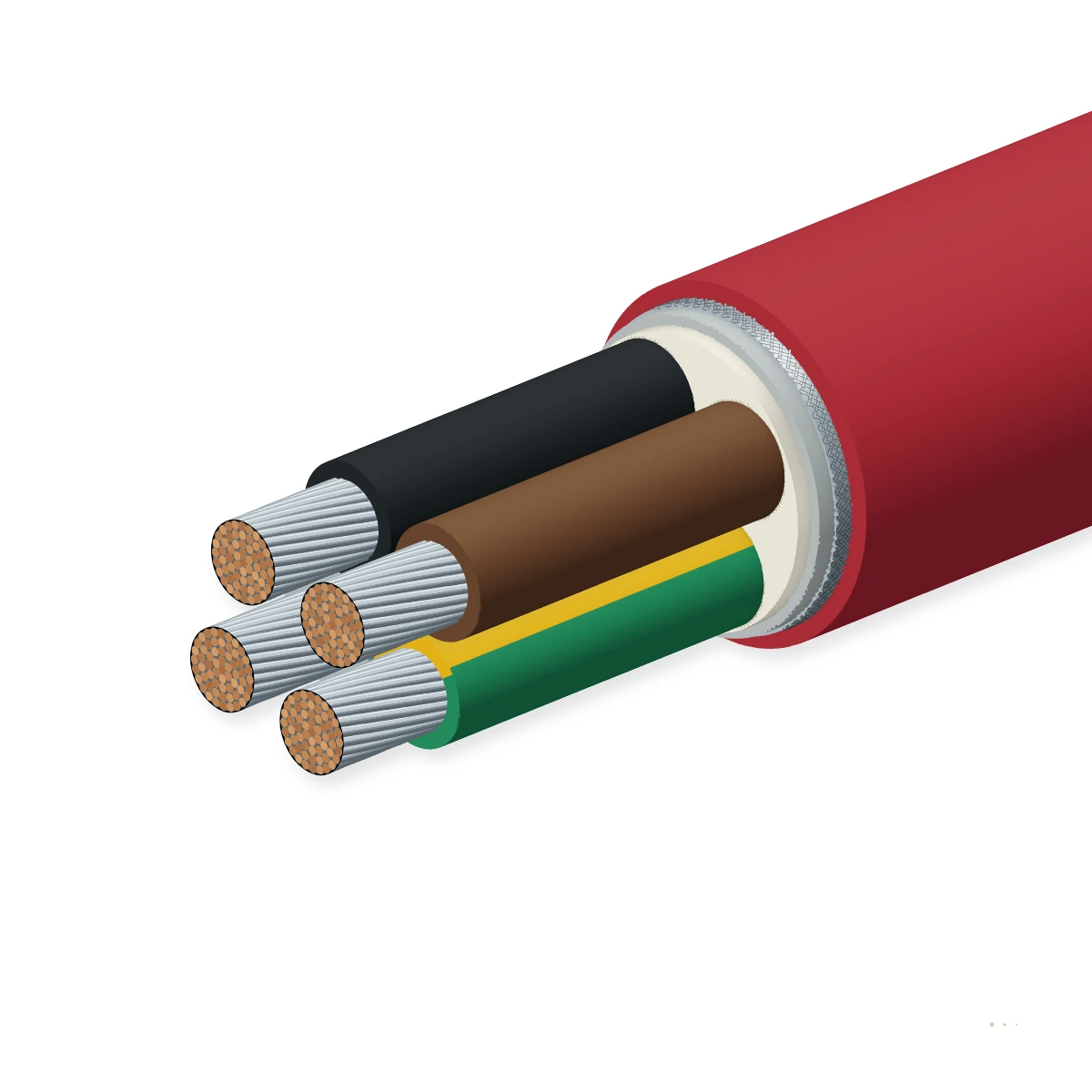

Shown: SiHFC 4G1.5 — Class 5 tinned copper cores, EI2 silicone insulation, polyester binding tape, tinned copper EMC braid, and red-brown silicone outer sheath.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Fine-stranded tinned copperTinned annealed electrolytic copper (IEC 60228 Class 5)Resists conductor oxidation up to +180 °C (+220 °C peak)
2Silicone core insulationCross-linked silicone rubber compound Type EI2 (EN 50363-1)Forms insulating SiO2 silica ash layer under direct flame exposure
3Core wrapping tapeHeat-resistant polyester / glass-fleece separator tape over cabled coresBinds the core bundle and prevents braid wires piercing core insulation
4Tinned copper EMC braidInterwoven tinned copper wire braid (≥ 85 % optical coverage)Low transfer impedance for EMI/RFI shielding across 30 MHz–1 GHz
5Outer silicone rubber sheathHalogen-free cross-linked silicone elastomer (red-brown)Resistant to high-molecular oils, vegetable fats, alcohols, and ozone

SiHFC-J (3G–12G)

Colour-coded or black numbered cores including green-yellow protective earth conductor

SiHFC-O (2×–7×)

Without green-yellow conductor for isolated thermocouple extension, RTD, and control circuits

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-1 / EN 50525-2-83. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
300/500 V AC
AC test voltage (core/core)
2000 V AC (50 Hz, 5 min)
AC test voltage (core/screen)
2000 V AC
Specific insulation resistance
≥ 200 MΩ·km at +20 °C
EMC braid optical coverage
≥ 85 % tinned copper wire braid

Thermal

Operating temperature (fixed)
-60 °C to +180 °C
Short-term peak temperature
+220 °C (intermittent thermal excursion)
Min. flexing installation temp.
-25 °C
Combustion silica ash integrity
Forms non-conductive SiO2 ash in fire

Mechanical

Conductor stranding
IEC 60228 Class 5 fine-stranded tinned Cu
Min. bending radius (fixed)
6 × overall cable diameter
Min. bending radius (flexing)
15 × overall cable diameter
Ventilation requirement
Keep well-ventilated above +100 °C

Resistance

Flame retardance
IEC 60332-1-2 vertical flame test
Halogen-free & acid gas
IEC 60754-1 & IEC 60754-2 (0 % halogens)
Smoke density
Low smoke emission per IEC 61034-2
Chemical & oil resistance
Resists animal/vegetable oils, ozone & UV

Reference standards

Reference standard
DIN VDE 0250-1 / EN 50525-2-83 based
Core identification
DIN VDE 0293-308 (≤ 5 cores) or numbered
RoHS & REACH
RoHS 3 & REACH SVHC compliant

Identification

Outer sheath colour
Red-brown (RAL 3011 / oxide red)
Sheath marking
TEBAOFLEX SiHFC [n×mm²] 300/500 V +180 °C
Customs tariff (HS)
8544.49

Sizes

20 standard configurations (SiHFC)

Engineering dimensions, conductor stranding, mass and electrical ratings for SiHFC per DIN VDE 0250-1 / EN 50525-2-83.

Dimensions & weights
Order designationCross-section / sizeConductor buildWall ≈
mm		Outer Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard SiHFC configurations
SiHFC 2×0.752×0.75Class 5 Sn-Cu (0.75 mm²)1.507.6043.3106.846
SiHFC 3G0.753G0.75Class 5 Sn-Cu (0.75 mm²)1.508.0052.0122.448
SiHFC 4G0.754G0.75Class 5 Sn-Cu (0.75 mm²)1.508.6061.5142.952
SiHFC 5G0.755G0.75Class 5 Sn-Cu (0.75 mm²)1.509.3071.3166.456
SiHFC 7G0.757G0.75Class 5 Sn-Cu (0.75 mm²)1.5010.0088.4198.460
SiHFC 2×12×1Class 5 Sn-Cu (1 mm²)1.508.0049.6120.048
SiHFC 3G13G1Class 5 Sn-Cu (1 mm²)1.508.4060.7138.350
SiHFC 4G14G1Class 5 Sn-Cu (1 mm²)1.509.0072.6161.754
SiHFC 5G15G1Class 5 Sn-Cu (1 mm²)1.509.7084.9188.458
SiHFC 2×1.52×1.5Class 5 Sn-Cu (1.5 mm²)1.508.6061.5142.952
SiHFC 3G1.53G1.5Class 5 Sn-Cu (1.5 mm²)1.509.0077.4166.554
SiHFC 4G1.54G1.5Class 5 Sn-Cu (1.5 mm²)1.509.8094.8200.459
SiHFC 5G1.55G1.5Class 5 Sn-Cu (1.5 mm²)1.5010.50111.9233.263
SiHFC 7G1.57G1.5Class 5 Sn-Cu (1.5 mm²)1.5011.40144.1287.168
SiHFC 12G1.512G1.5Class 5 Sn-Cu (1.5 mm²)1.5014.70228.7466.488
SiHFC 3G2.53G2.5Class 5 Sn-Cu (2.5 mm²)1.5010.90113.4244.165
SiHFC 4G2.54G2.5Class 5 Sn-Cu (2.5 mm²)1.5011.90141.2297.071
SiHFC 5G2.55G2.5Class 5 Sn-Cu (2.5 mm²)1.5012.90169.0352.177
SiHFC 4G44G4Class 5 Sn-Cu (4 mm²)1.9014.00206.8422.484
SiHFC 4G64G6Class 5 Sn-Cu (6 mm²)1.9015.50289.3553.693
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal engineering values for SiHFC subject to standard manufacturing tolerances per DIN VDE 0250-1 / EN 50525-2-83.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Dielectric spark / high-voltage withstand test100 % in-line spark and AC/DC dielectric withstand per DIN VDE 0250-1 / EN 50525-2-83Every manufactured length
Conductor DC resistance & continuity checkWithin maximum 20 °C resistance limit specified for SiHFCEvery spool or drum length
Sample tests
Thermal ageing & dimensional verificationWall thickness, concentricity and post-ageing elongation per DIN VDE 0250-1 / EN 50525-2-83Per production batch
Flame, outgassing or high-temperature enduranceQualified to DIN VDE 0250-1 / EN 50525-2-83 thermal and environmental performance criteriaType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-1 / EN 50525-2-83CE (2014/35/EU) & RoHS 3 (2015/863/EU) CompliantREACH SVHC & Halogen/Asbestos Compliance Verified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX SiHFC 4G1.5 300/500 V -60/+180 °C CE
Delivery form
Precision spools, coils or export wooden drums
Standard lengths
50 m · 100 m · 500 m · 1000 m (or cut harnesses)
MOQ
100 m (stock sizes) · 300–500 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFSiHFC Screened Multicore Silicone High-Temperature Cable – technical datasheet20 sizes · construction, technical data, approvalsXLSXSiHFC spec data (Excel)All 20 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How should the tinned copper braid screen on SiHFC be grounded for best EMC performance?
Terminate the tinned copper braid 360° inside a nickel-plated brass EMC cable gland at the control cabinet entry rather than twisting it into a long pigtail. Full-circumference clamping maintains low transfer impedance at high frequencies.
Why must silicone cables like SiHFC be installed in ventilated raceways above +100 °C?
When silicone elastomers are hermetically sealed in unventilated conduits above +100 °C in the absence of air, siloxane hydrolysis reduces mechanical elasticity prematurely. Open cable trays or ventilated ducts preserve the full +180 °C thermal rating.
What happens to SiHFC insulation if exposed to open flame?
In addition to passing IEC 60332-1-2 flame retardance and IEC 60754 halogen-free tests, combusted silicone rubber leaves behind a non-conductive silicon dioxide (SiO2) ceramic ash around the cores that helps prevent immediate short circuits.
When should I choose SRG-K instead of SiHFC?
Choose SiHFC when electromagnetic compatibility (EMC) copper braid shielding is required. If the primary hazard is mechanical abrasion or hot metal spatter without EMI noise, choose SRG-K with its outer varnished fibreglass braid.
