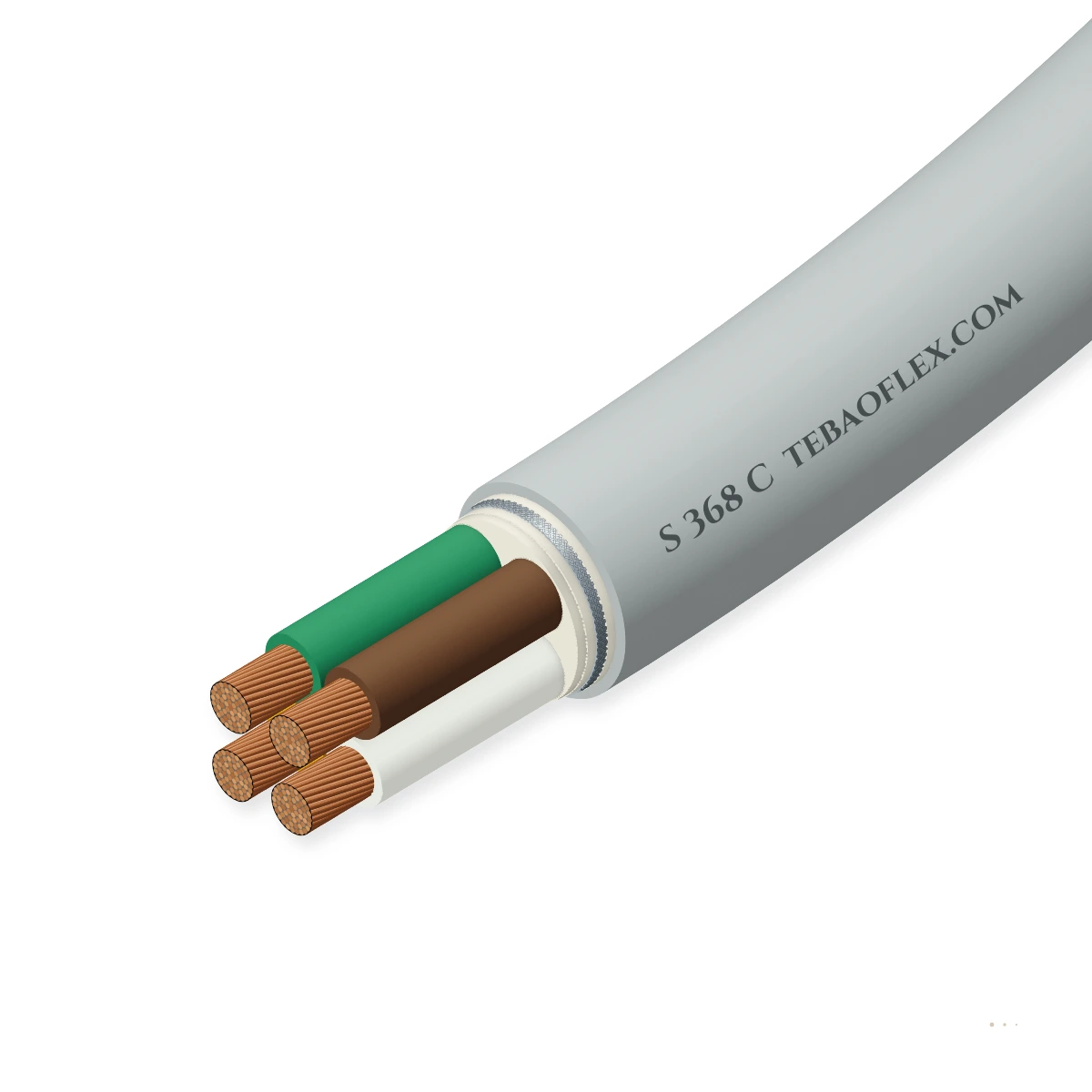

S 368 C Screened Multicore PUR Cable-Chain Data CableDIN VDE 0812 / UL 20233 · 350/500 V · 2 to 36 cores × 0.14–1.5 mm² · Class 6 Cu · Tinned

S 368 C is a continuous-flex screened multicore data and sensor cable (0.14 mm² to 1.5 mm², 350 V / 500 V peak) engineered specifically for high-speed linear drag chains, CNC machining centers, and automated gantry handling systems. It combines superfine

EMC screen
Low-EMC design
Oil-resistant
Flame-retardant
Order designation
S 368 C 4 × 0.25 mm²
Outer Ø ≈
5.10 mm
Metal weight
18.5 kg/km
Total weight ≈
36.0 kg/km
Min. bend R (fixed)
20 mm
All sizes (5)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Peak voltage
350 V / 500 V
300 V UL AWM Style 20233/21198
Cross-sections
0.14 to 1.5 mm²
2 to 36 cores · DIN 47100 colours
Conductor class
IEC 60228 Class
Extra-fine continuous-flex bare Cu
Min. bend radius
7.5×D (chain)
4×D static · > 5–10M flex cycles
EMC screening
≥ 85 % TC braid
Optimised braid angle for flexing
Temp. rating
-40 to +80 °C
-30 to +80 °C dynamic drag chain

Typical values for this cable type, based on DIN VDE 0812 / EN 50288-7 / UL AWM 20233 — confirmed in the datasheet and quotation for your order.

Application fit

Is S 368 C right for your machine?

Designed for incremental/absolute linear encoders, proximity switches, analog 4–20 mA / 0–10 V sensors, and PLC I/O inside power drag chains on CNC machine tools, semiconductor handlers, and

Energy chain / drag chain

Suitable

Short-pitch Class 6 cores, non-woven滑-fleece wrap, and low-adhesion PUR sheath support 5–10 million drag-chain cycles at 7.5 × D.

Trailing & towing

Suitable

Polyether PUR jacket resists cutting emulsions, synthetic hydraulic oils, and floor abrasion.

Fixed installation

Suitable

Compact outer diameter and 4 × D static bend radius simplify machine-tool cabinet entry.

Self-supporting pendant & push-button drop

With conditions

Handles ± 30°/m minor twist; for differential RS-485/encoder pairs specify twisted-pair S 369 C TP.

S 369 C TP
Typical machinesCNC Machining Centers & Milling GantriesLinear Encoders & Optical ScalesAutomated Storage & Retrieval (AS/RS)Semiconductor & PCB Pick-and-PlaceRobotics & Packaging Energy Chains

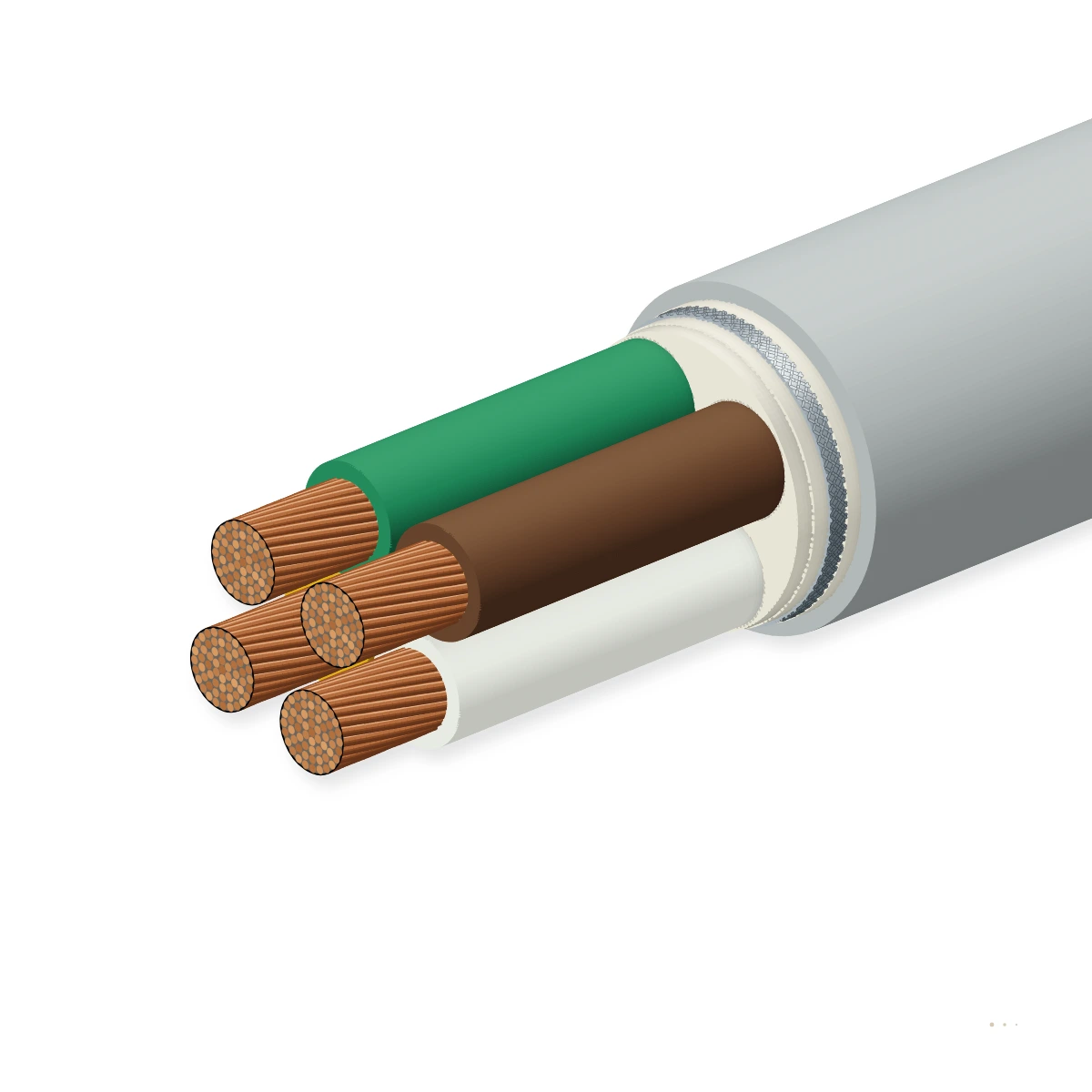

Construction

Layer by layer

Superfine Class 6 bare copper conductors, low-capacitance PP/TPE core insulation (DIN 47100 colour code), low-friction fleece wrap, ≥ 85 %

12345

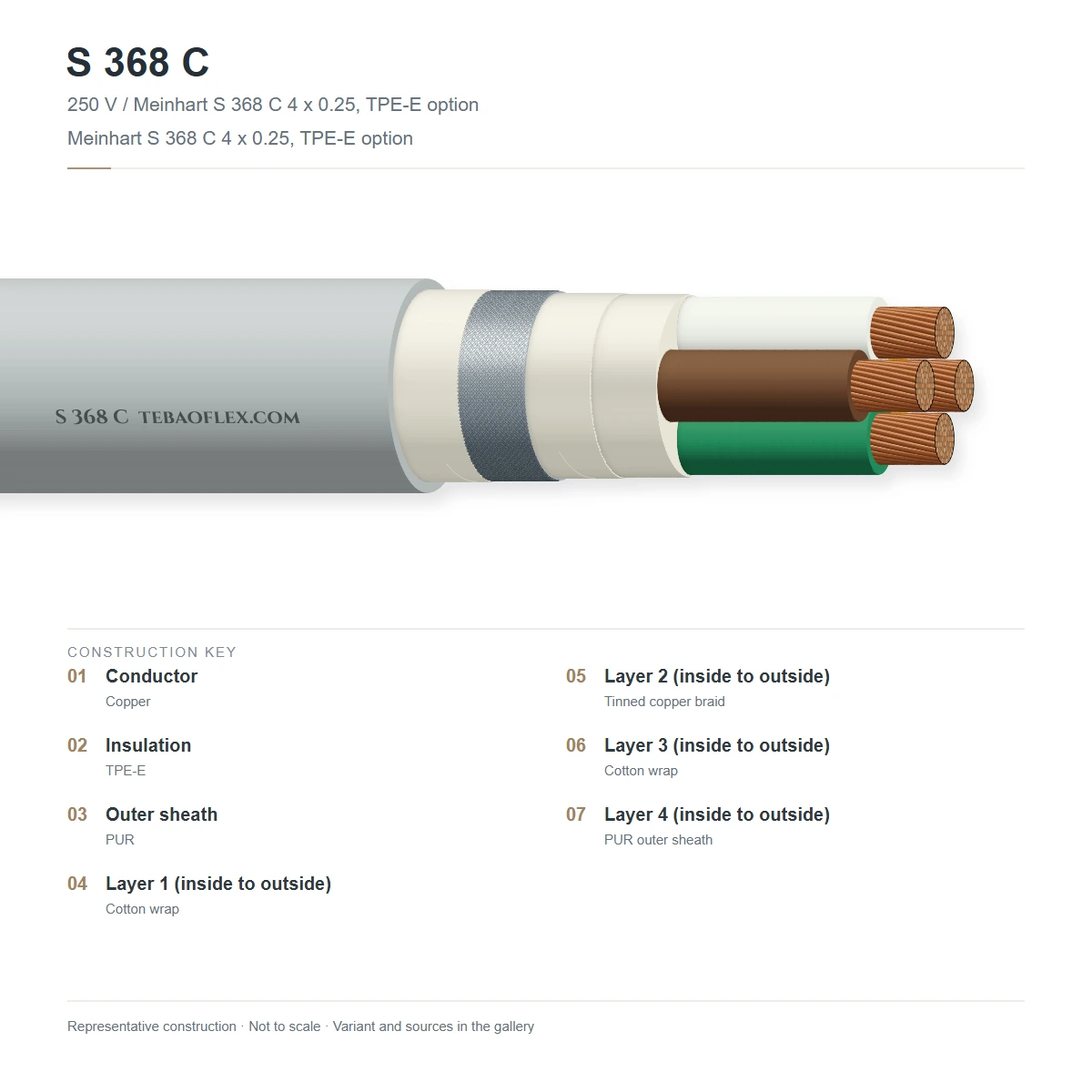

Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Superfine Class 6 bare copper conductorsExtra-fine stranded annealed bare copper per IEC 60228 Class 6 / VDE 0295 Class 6IEC 60228 Cl. 6
2Low-capacitance TPE / polyolefin coreThin-wall halogen-free polyolefin/TPE compound, colour-coded to DIN 47100DIN 47100
3Low-friction sliding fleece wrapNon-woven synthetic tape over layered cores preventing braid fretting during high-speedVDE 0812
4High-flex tinned copper wire braidOptimised-angle tinned copper wire braid with ≥ 85 % optical coverage for continuousEN 50288-7
5Halogen-free oil-resistant PUR outerPolyether polyurethane (TMPU per EN 50363-10-2), matte grey RAL 7001 or blackEN 50363-10-2

S 368 C (0.14–0.34 mm², 350 V)

Miniature sensor, encoder, and transducer drag-chain cable with DIN 47100 colour code.

S 368 C (0.50–1.50 mm², 500 V)

Heavy-duty actuator, valve-island, and 24 V DC I/O drag-chain data cable.

S 369 C TP (Twisted-Pair Sister Type)

Paired construction for RS-422/RS-485, SSI encoder, and differential analog signals.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0812 / EN 50288-7 / UL AWM 20233. Values for your order are confirmed in the datasheet and quotation.

Electrical

Operating peak voltage
350 V (0.14–0.34 mm²) / 500 V (≥ 0.50 mm²)
UL AWM voltage rating
300 V rms (UL Style 20233 / 21198)
Core-to-core capacitance
Approx. 70 pF/m at 800 Hz
Core-to-screen capacitance
Approx. 115 pF/m at 800 Hz
Dielectric test voltage
1,500 V AC (≤ 0.34 mm²) / 2,000 V AC (≥ 0.5
Insulation resistance at 20 °C
≥ 100 MΩ·km

Thermal

Fixed operating temperature
-40 °C to +80 °C
Dynamic drag-chain temperature
-30 °C to +80 °C
UL AWM temperature rating
+80 °C
Flame retardance
IEC 60332-1-2, UL VW-1 & CSA FT1
Halogen-free verification
IEC 60754-1/2 (zero halogens)
Smoke emission
Low smoke emission in machine enclosures

Mechanical

Conductor stranding class
IEC 60228 Class 6 superfine stranding
Min. bend radius (fixed / chain)
4 × D (fixed) / 7.5 × D (drag chain)
Max. travel speed in chain
Up to 5 m/s (gliding) / 10 m/s (free-span)
Max. acceleration
Up to 50 m/s²
Typical drag-chain cycle life
5,000,000 to 10,000,000 bend cycles
Core stranding geometry
Layered in short-pitch concentric tiers

Resistance

Oil & cutting-fluid resistance
EN 60811-404 / VDE 0473-811-404
Hydrolysis & microbe resistance
Polyether-based PUR resists emulsion decay
Abrasion & notch resistance
High tear strength against chain crossbars
UV & outdoor weather
UV-resistant outer sheath
LABS / silicone-free status
Paint-wetting impairment substance free
RoHS / REACH status
RoHS 3 compliant

Reference standards

German data cable design norm
DIN VDE 0812 / VDE 0295 Class 6
Sheath material standard
EN 50363-10-2 (TMPU polyurethane)
Core colour identification
DIN 47100
North American approval
UL/cUL AWM Style 20233 / 21198 (80 °C 300 V)
Halogen & flame standards
IEC 60754-1 & IEC 60332-1-2 / FT1
Quality certification
EN 10204 3.1 + chain endurance validation

Identification

Core colour code
DIN 47100 colour sequence
Outer sheath colour
Grey (RAL 7001) or Black (RAL 9005)
Surface legend
TEBAOFLEX S 368 C [N×mm²] PUR CHAIN UL20233
Standard drum lengths
100 m, 300 m, 500 m, 1000 m
Application code
S 368 C Screened Multicore Drag-Chain
Batch traceability
Lot number & sequential metre mark

Sizes

5 standard configurations (S 368 C)

Dimensional, physical and high-frequency electrical parameters for S 368 C per DIN VDE 0812 / EN 50288-7 / UL AWM 20233.

Dimensions & construction
Order designationConstruction / VariantConductorOuter Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard S 368 C variants
S 368 C 4 × 0.25 mm²4 cores (DIN 47100) + TC Braid0.25 mm² (24 AWG)5.1018.536.020
S 368 C 8 × 0.25 mm²8 cores (DIN 47100) + TC Braid0.25 mm² (24 AWG)6.4033.058.026
S 368 C 12 × 0.34 mm²12 cores (DIN 47100) + TC Braid0.34 mm² (22 AWG)7.9059.096.032
S 368 C 7 × 0.50 mm²7 cores (DIN 47100) + TC Braid0.50 mm² (20 AWG)7.4052.084.030
S 368 C 18 × 0.50 mm²18 cores (DIN 47100) + TC Braid0.50 mm² (20 AWG)10.80118.0185.043
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are nominal production values subject to manufacturing tolerances per DIN VDE 0812 / EN 50288-7 / UL AWM 20233.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage withstand & spark test1.5 kV / 2.0 kV AC for 5 min without breakdownEvery drum
Conductor DC resistance & capacitanceComplies with IEC 60228 Class 6 and ≤ 75 pF/m core-to-coreEvery drum
Sample tests
Linear drag-chain endurance test> 5,000,000 cycles at 7.5 × D without conductor or braid breakQualification
EN 60811-404 oil & IEC 60754-1 halogen-freePasses IRM 902 oil immersion and halogen-free verificationQualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0812 / EN 50363UL / cUL AWM 20233Halogen-Free / RoHS 3

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX S 368 C [N×mm²] SCREENED PUR
Delivery form
Spools, reels or export wooden drums
Standard reel lengths
100 m · 305 m (1000 ft) · 500 m · 1000 m
MOQ
100 m (stock) · 305–500 m (production)
Lead time
1–3 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFS 368 C Screened Multicore PUR Cable-Chain Data Cable – technical datasheet5 sizes · construction, technical data, approvalsXLSXS 368 C spec data (Excel)All 5 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why does standard LiYCY PVC data cable fail rapidly inside CNC drag chains, whereas S 368 C survives millions of cycles?
Standard LiYCY uses Class 5 stranding, long lay pitches, PVC insulation (which stiffens in coolants), and a tight braid angle; S 368 C upgrades to superfine Class 6 copper, ultra-short concentric core pitches, low-capacitance TPE/PP insulation, a sliding fleece separator, and an oil-proof polyether PUR sheath.
When should I choose S 368 C (multicore) vs S 369 C TP (twisted pair)?
Choose S 368 C for single-ended 24 V digital I/O, proximity switches, and common-return sensors; choose S 369 C TP whenever signals are differential—such as RS-422/RS-485, incremental A/B/Z encoder channels, SSI, or load-cell bridges—where twisted pairs cancel magnetic crosstalk. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.
Why is low-capacitance TPE/PP core insulation used instead of PVC inside S 368 C?
Polyolefin/TPE has half the dielectric constant of PVC, cutting core-to-core capacitance to ~70 pF/m (vs ~130 pF/m for PVC) so high-frequency encoder pulses travel over longer drag-chain runs without pulse rounding. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.
Is S 368 C suitable for automotive paint shops and cleanrooms?
Yes, S 368 C is manufactured completely free of silicone and paint-wetting impairment substances (LABS-free / PWIS-free) and uses a low-abrasion matte PUR jacket. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.
