Fixed installation
Primary duty — long-line transfer pipelines, overland pipe racks and three-phase balanced 3-core tracing.

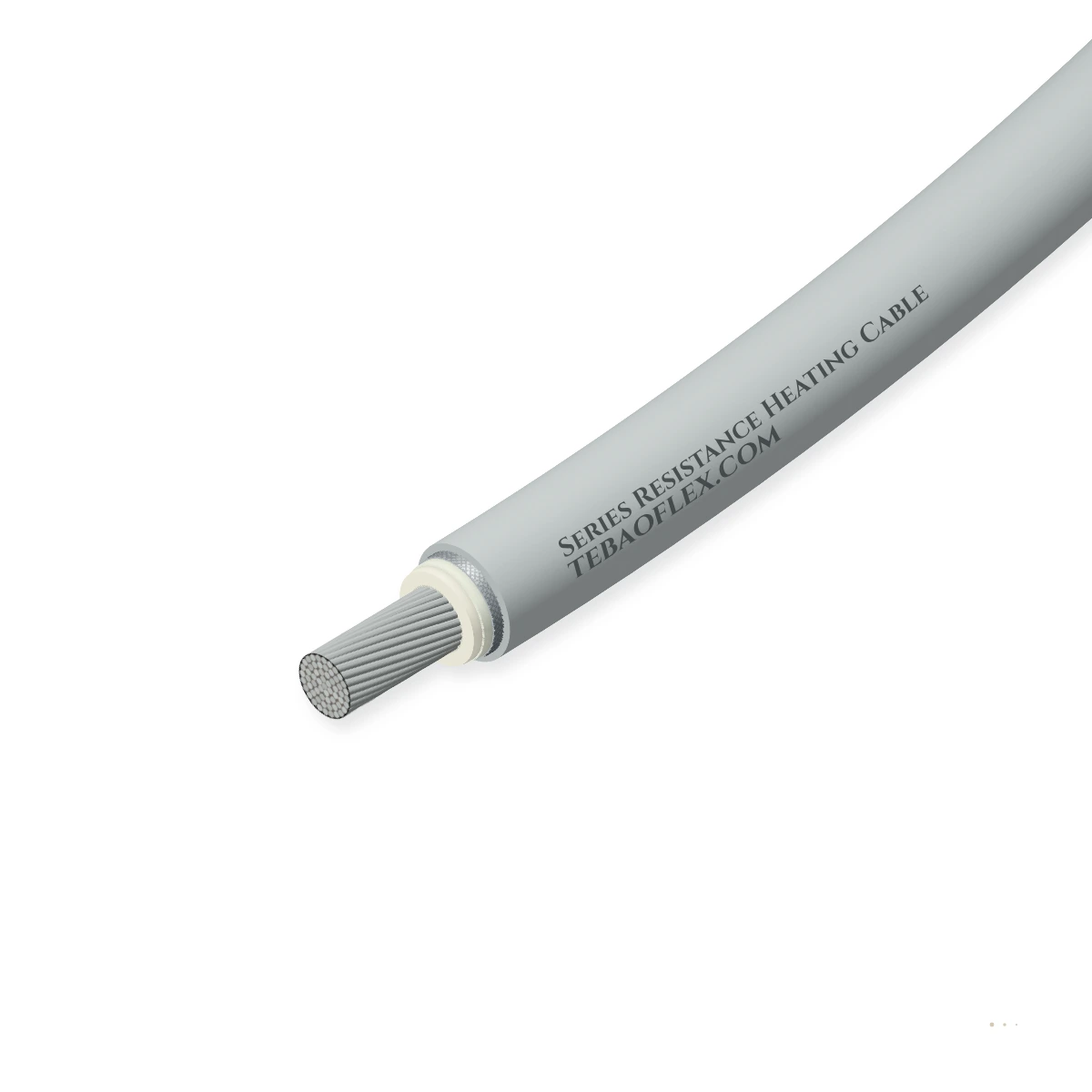

Product
Long-line series resistance heating cable to IEC/IEEE 60079-30-1, IEC 62395-1 and IEEE 515 in 1-, 2- and 3-core designs (0.0018–1.8 Ω/m), combining PTFE/PFA insulation, tinned-copper earth braid and PFA sheath for single-feed pipeline.
Typical values for this cable type, based on IEC/IEEE 60079-30-1 & IEEE 515 — confirmed in the datasheet and quotation for your order.
Application fit
Engineered series-resistance PTFE/PFA heating cable for long transfer pipelines, pipe racks and tank-to-jetty lines from 200 m to 3,500 m powered from a single supply point.
Primary duty — long-line transfer pipelines, overland pipe racks and three-phase balanced 3-core tracing.
PTFE/PFA dual-fluoropolymer construction resists steam purge (+260 °C), sour hydrocarbons, acids and marine salt mist.
Pinhole-free extruded PFA/FEP outer sheath over tinned-copper braid withstands wet outdoor culverts and washdown.
Fluoropolymer PTFE/PFA insulation is capped at +260 °C continuous exposure; use MI cable above +260 °C.
Use MI Heating CableFixed pipeline trace heater engineered for a specific circuit length; never run on dynamic reels.
Use (N)SHTÖU ReelingConstruction

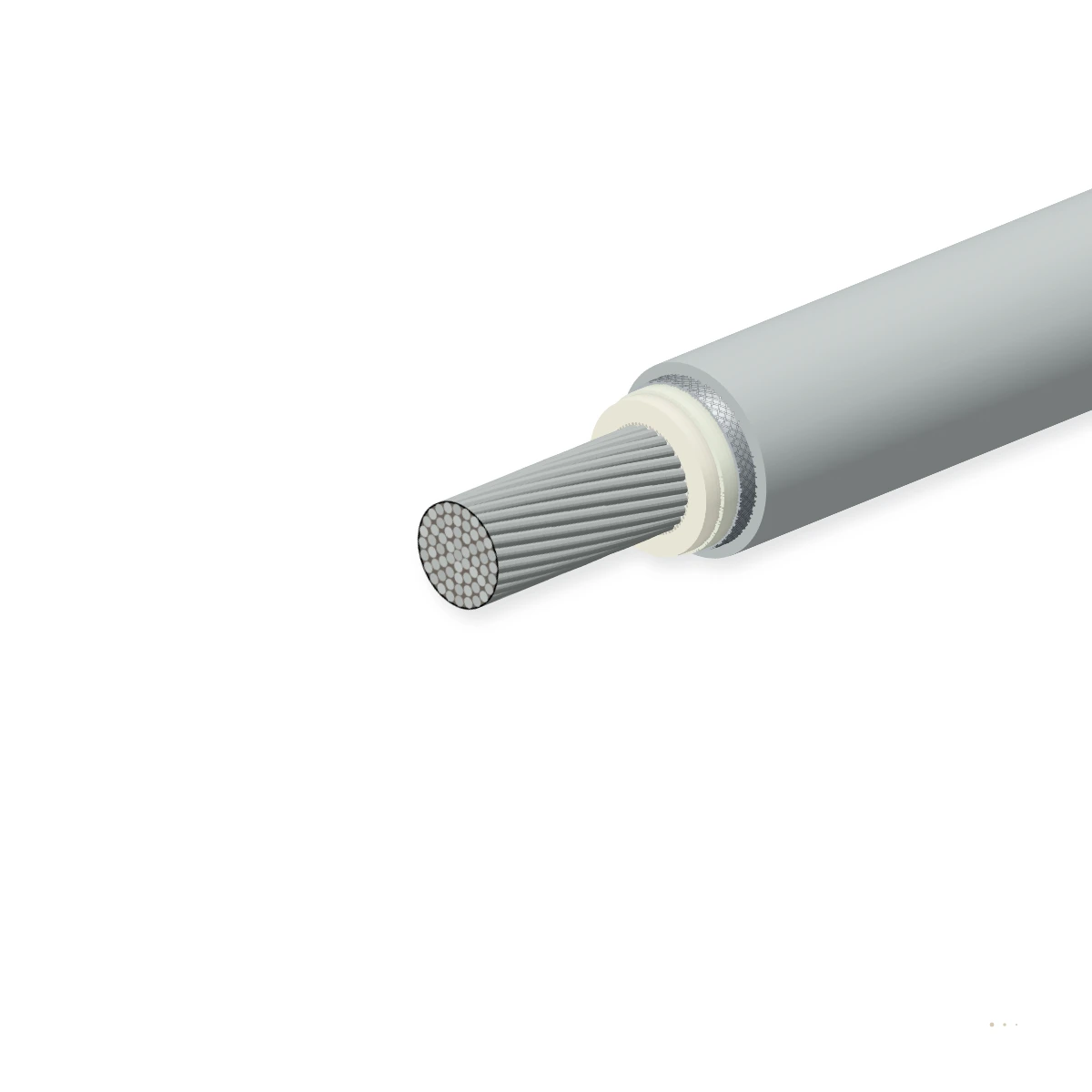

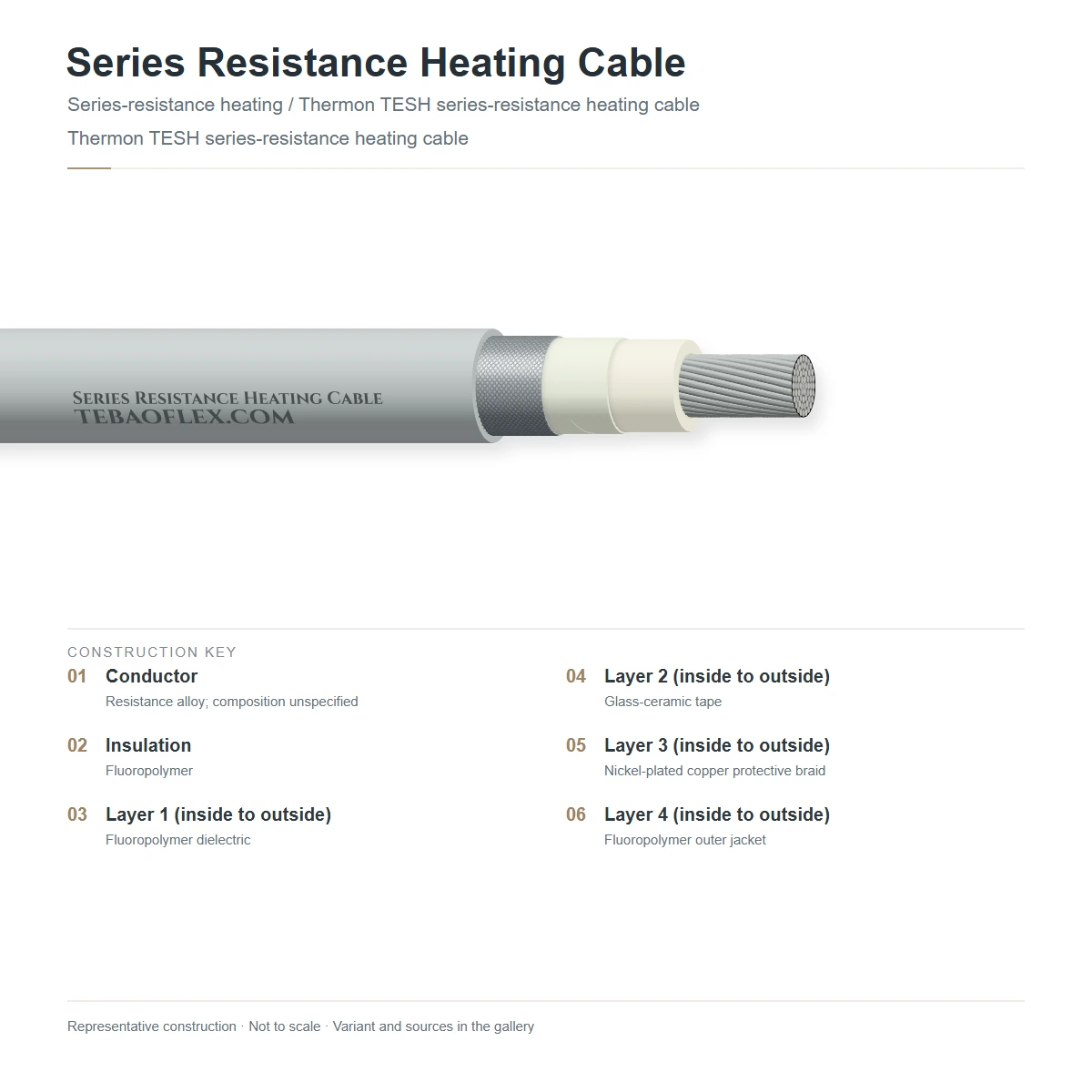

One, two or three stranded resistance conductors (copper for ultra-low Ω/m long runs, or calibrated CuNi / NiCr resistance alloys for medium runs) are insulated with high-dielectric PTFE/PFA fluoropolymer, wrapped with a thermal-diffusion glass/PTFE bedding tape, screened with a ≥ 70 % tinned-copper protective earth braid and sheathed in extruded PFA/FEP.
| # | Layer | Material & reference |
|---|---|---|
| 1 | Calibrated series resistance conductor(s) | 1, 2 or 3 stranded conductors in nickel-plated copper (1.5–16 mm²) or CuNi / NiCr resistance alloys (0.0018 to 1.8 Ω/m at 20 °C)IEC 60079-30-1 / IEEE 515 |
| 2 | PTFE / PFA fluoropolymer core insulation | Heavy-wall PTFE or melt-extruded PFA primary dielectric rated for 450/750 V (0.6/1 kV grade) and +260 °C continuous exposureIEC 60079-30-1 |
| 3 | PTFE / glass-fibre thermal bedding tape | Lapped PTFE/fibreglass binder tape equalising radial thermal flux and cushioning the core assemblyIEC 60079-30-1 |
| 4 | Tinned / nickel-plated copper earth braid | Closely woven tinned or nickel-plated copper wire braid (≥ 70 % optical coverage) providing continuous protective earthingIEC 60079-30-1 Clause 4.4 |
| 5 | Extruded PFA / FEP fluoropolymer outer sheath | Pinhole-free extruded perfluoroalkoxy (PFA) or FEP outer jacket resistant to +260 °C steam purge, hydrocarbons and corrosive chemicalsIEC 60079-30-1 / IEEE 515 |
450/750 V & 0.6/1 kV · +260 °C · Single resistance core + PTFE/PFA wall + SnCu braid + PFA outer sheath for 3×1C balanced 3-phase pipelines
450/750 V · +260 °C · Twin resistance cores looped at the far end so power supply and termination remain at one end of the pipe
450/750 V & 0.6/1 kV · +260 °C · Three star-connected resistance cores in one jacket for single-feed 400–690 V pipelines up to 3,500 m
Technical data
Sizes
Conductor resistance at 20 °C (Ω/m and Ω/km), alloy metallurgy, core count, voltage grade, nominal dimensions and mass.
| Model · Resistance code | Cores count | Res. @20°C Ω/m | Res. @20°C Ω/km | Conductor alloy / CSA | Voltage grade | Max exp. °C | Nominal OD mm | Mass ≈ kg/km | Enquiry |
|---|---|---|---|---|---|---|---|---|---|
| SRQ-1C-00018 · 10 mm² Cu | 1C | 0.0018 | 1.8 | NiCu 10 mm² | 0.6/1 kV | 260 | 7.8 | 148 | |
| SRQ-1C-00031 · 6.0 mm² Cu | 1C | 0.0031 | 3.1 | NiCu 6.0 mm² | 0.6/1 kV | 260 | 6.6 | 102 | |
| SRQ-1C-00046 · 4.0 mm² Cu | 1C | 0.0046 | 4.6 | NiCu 4.0 mm² | 0.6/1 kV | 260 | 5.8 | 76 | |
| SRQ-1C-00074 · 2.5 mm² Cu | 1C | 0.0074 | 7.4 | NiCu 2.5 mm² | 450/750 V | 260 | 5.2 | 58 | |
| SRQ-1C-0012 · 1.5 mm² Cu | 1C | 0.0121 | 12.1 | NiCu 1.5 mm² | 450/750 V | 260 | 4.7 | 45 | |
| SRQ-1C-0025 · CuNi Alloy | 1C | 0.0250 | 25.0 | CuNi2 2.5 mm² | 450/750 V | 260 | 5.2 | 57 | |
| SRQ-1C-0050 · CuNi Alloy | 1C | 0.0500 | 50.0 | CuNi6 2.0 mm² | 450/750 V | 260 | 5.0 | 52 | |
| SRQ-1C-0100 · CuNi Alloy | 1C | 0.1000 | 100.0 | CuNi10 1.5 mm² | 450/750 V | 260 | 4.7 | 46 | |
| SRQ-1C-0250 · CuNi23 Alloy | 1C | 0.2500 | 250.0 | CuNi23 1.5 mm² | 450/750 V | 260 | 4.7 | 45 | |
| SRQ-1C-0500 · CuNi44 Alloy | 1C | 0.5000 | 500.0 | CuNi44 1.0 mm² | 450/750 V | 260 | 4.4 | 39 | |
| SRQ-1C-1000 · NiCr Alloy | 1C | 1.0000 | 1,000.0 | NiCr 1.1 mm² | 450/750 V | 260 | 4.5 | 40 | |
| SRQ-1C-1800 · NiCr Alloy | 1C | 1.8000 | 1,800.0 | NiCr 0.6 mm² | 450/750 V | 260 | 4.2 | 34 | |
| SRQ-2C-0015 · Twin Loop | 2C | 0.0148 | 14.8 | 2×2.5 mm² NiCu | 450/750 V | 260 | 8.6 | 118 | |
| SRQ-2C-0200 · Twin Loop | 2C | 0.2000 | 200.0 | 2×1.5 mm² CuNi | 450/750 V | 260 | 8.0 | 96 | |
| SRQ-3C-00031 · 3-Phase Star | 3C | 0.0031 | 3.1 | 3×6.0 mm² NiCu | 0.6/1 kV | 260 | 12.8 | 310 | |
| SRQ-3C-00074 · 3-Phase Star | 3C | 0.0074 | 7.4 | 3×2.5 mm² NiCu | 0.6/1 kV | 260 | 10.2 | 175 |
| Cable configuration | Core res. Ω/km | 400V @ 15 W/m circuit m | 400V @ 25 W/m circuit m | 690V @ 15 W/m circuit m | 690V @ 25 W/m circuit m |
|---|---|---|---|---|---|
| 3 × SRQ-1C-00018 (10 mm² Cu) | 1.8 | 2,430 | 1,880 | 3,500 | 3,240 |
| SRQ-3C-00031 (3×6.0 mm² Cu) | 3.1 | 1,850 | 1,430 | 3,190 | 2,470 |
| 3 × SRQ-1C-00046 (4.0 mm² Cu) | 4.6 | 1,520 | 1,180 | 2,620 | 2,030 |
| SRQ-3C-00074 (3×2.5 mm² Cu) | 7.4 | 1,200 | 930 | 2,070 | 1,600 |
| 3 × SRQ-1C-0012 (1.5 mm² Cu) | 12.1 | 940 | 725 | 1,620 | 1,250 |
| 3 × SRQ-1C-0050 (CuNi6 Alloy) | 50.0 | 460 | 355 | 795 | 615 |
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| AC dielectric voltage withstand test | 2.5 kV to 3.5 kV RMS AC for 1 min (2U + 1,000 V) between resistance cores and earth braid | Every circuit / reel |
| Calibrated DC conductor resistance check | DC resistance per metre verified at +20 °C within ±5 % tolerance across each core | Every circuit / reel |
| Sample tests | ||
| 260 °C fluoropolymer thermal aging & cold bend | Thermal endurance at +260 °C and −60 °C cold mandrel bend test without cracking | Production lot |
| Mechanical impact & crush deformation test | Impact and 1,500 N crush verification followed by immersed dielectric withstand test | Production lot |
