AD8 Permanent-Submersion Rubber & Pump CablesHD 361 / AD80.6/1 kV+90 °C Submersible 'S1BN8-F'

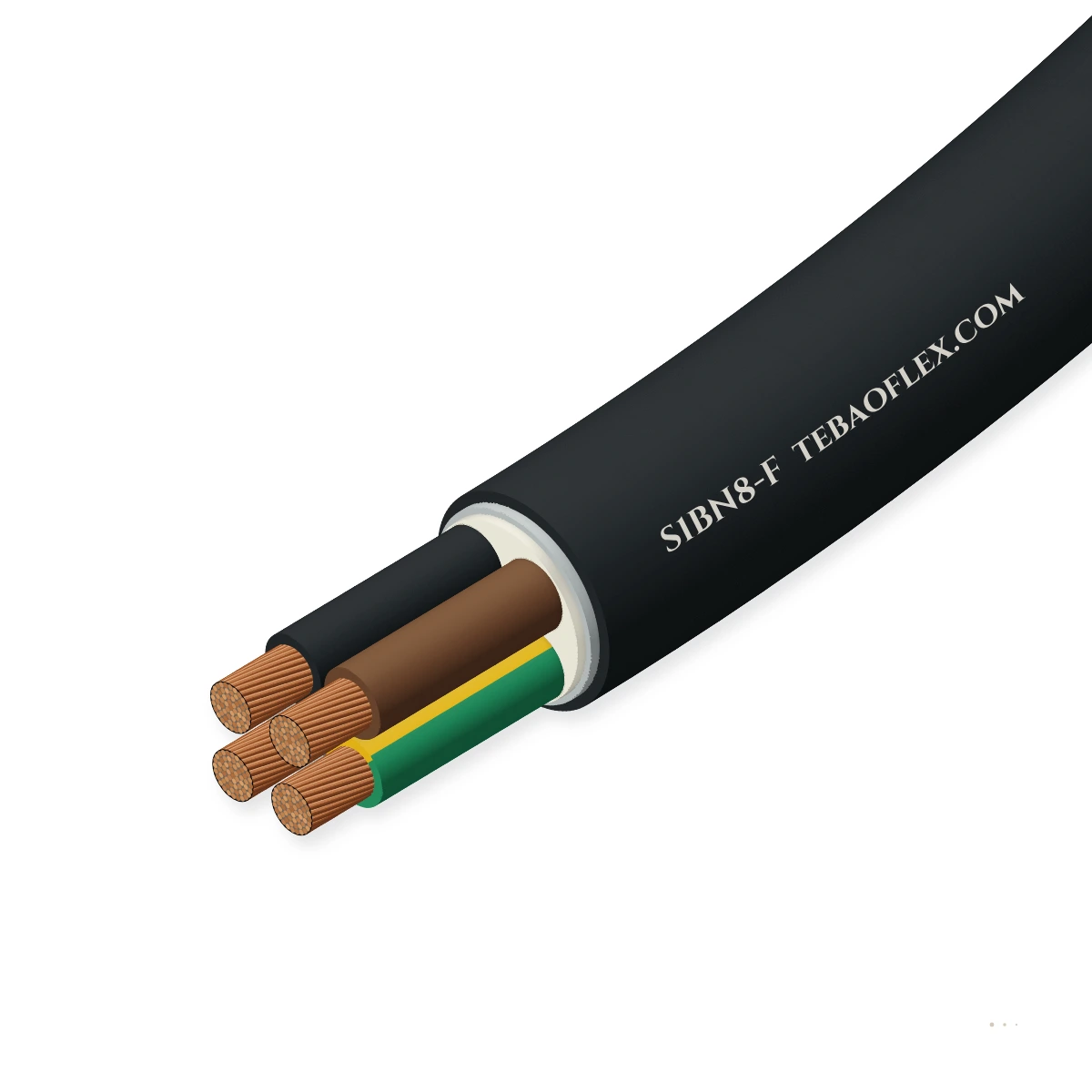

S1BN8-F 0.6/1 kV Heavy-Duty Submersible & IndustrialEN 50525-2-21 AD8 / HD 361 · 0.6/1 kV ('S1') · +90 °C EPR ('B') · AD8 PCP outer sheath

S1BN8-F is a heavy-duty 0.6/1 kV AD8 permanent-submersion and industrial flexible rubber power cable coded to CENELEC HD 361. Serving as the 0.6/1 kV and +90 °C EPR ('B') upgrade to H07RN8-F, it combines higher continuous current capacity and 1000 V

Water-resistant
Oil-resistant
Flame-retardant
Outdoor & humid
Order designation
S1BN8-F 4G6.0
Outer Ø ≈
17.6 mm
Copper weight
230 kg/km
Total weight ≈
485 kg/km
Min. bend R (fixed)
70 mm
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV AC
U0/U ('S1') · 1.5 kV DC
Water class
AD8 Submersion
Permanent immersion up to 100 m
Conductor max.
+90 °C ('B')
Heat-resistant EPR · +250 °C SC
Min. bend R
4 × D / 6 × D
Fixed submerged / mobile flexing
Size range
1.5–185 mm²
Single-core & multi-core feeders
Outer sheath
EM2 AD8 PCP 'N8'
Oil-, sewage- & flame-retardant

Typical values for this cable type, based on EN 50525-2-21 AD8 / HD 361 / VDE 0285 — confirmed in the datasheet and quotation for your order.

Application fit

Is S1BN8-F right for your machine?

Engineered for high-head submersible dewatering pumps, quarry and mine sump risers, floating pontoons, municipal wastewater plants, and heavy 0.6/1 kV wet industrial feeders.

Immersion & wet locations

Suitable

Certified for AD8 permanent water immersion up to 100 m depth in groundwater, slurries, and sewage.

Trailing & towing

Suitable

Tough EM2 polychloroprene ('N8') outer jacket resists wet quarry floors, pontoons, and trench dragging.

Fixed installation

Suitable

1000 V +90 °C EPR rating makes it ideal for long vertical borehole risers and industrial tray runs.

Mine roadway & tunnel wall hangers

Suitable

Widely deployed for dewatering pump stations and flooded heading feeders in mines and tunnels.

VFD inverter to AC motor screened feeder

Not suitable

Unscreened construction; select copper-braid screened S1BC4N8-F for VFD-driven submersible pumps.

S1BC4N8-F 0.6/1 kV
Typical machinesDeep-Well & Mine Dewatering PumpsMunicipal Sewage & Stormwater StationsDredging Pontoons & Floating MixersCivil Tunnelling & Cofferdam SumpsHeavy Wet-Process Industrial Plants

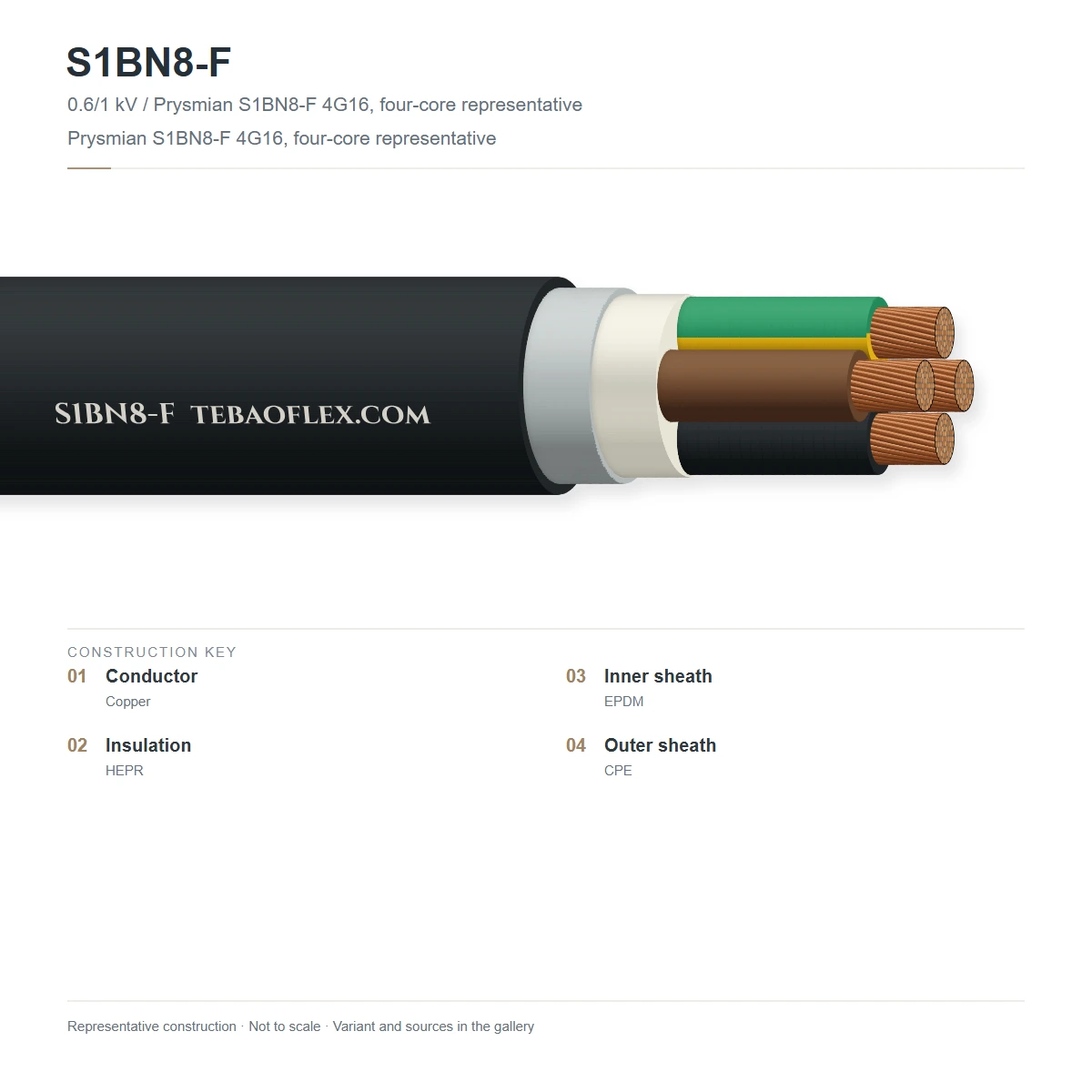

Construction

Layer by layer

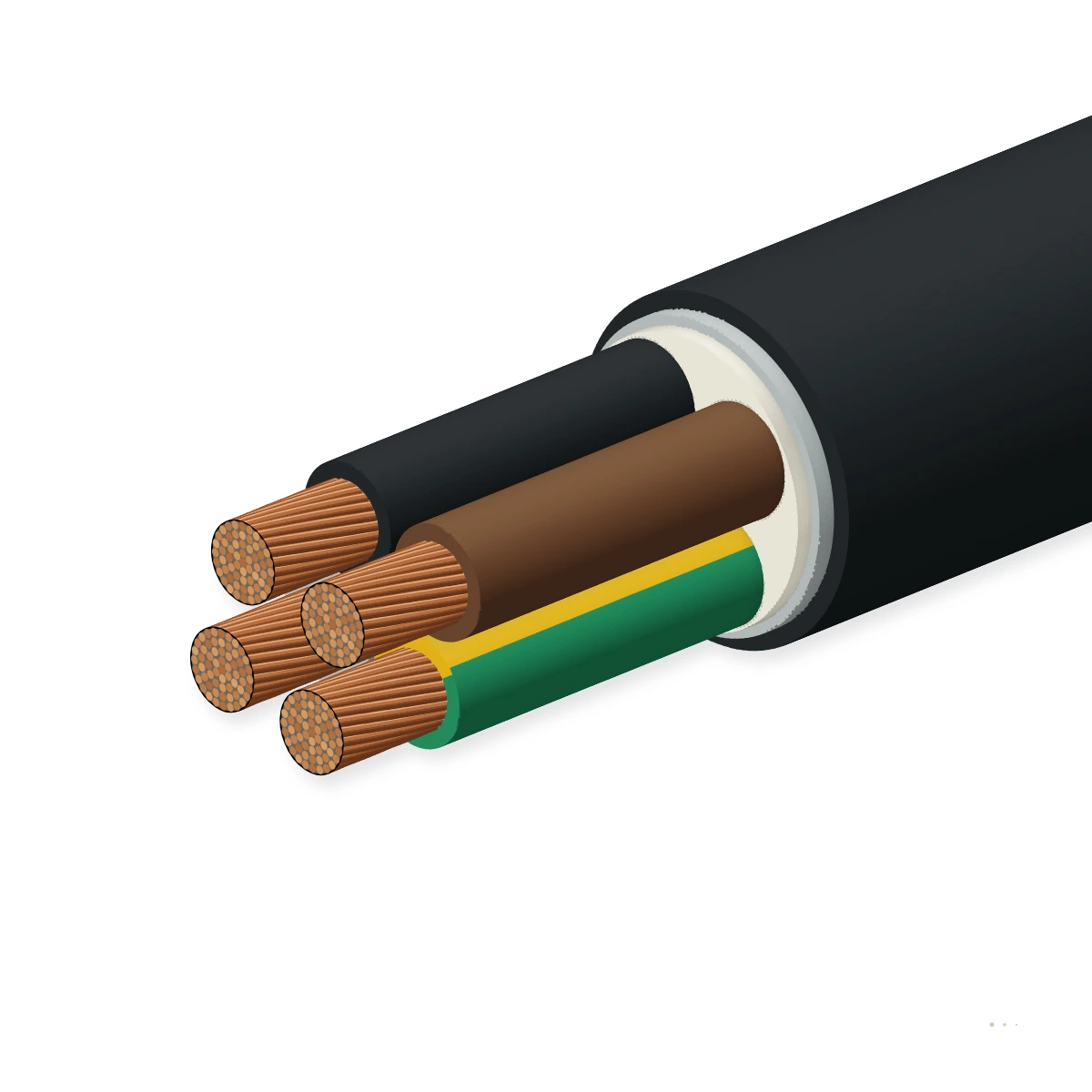

Class 5 fine-stranded copper conductors with 0.6/1 kV +90 °C low-water-uptake EPR insulation ('B', Type EI7) and a heavy-duty AD8

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible copper conductor ('-F')Class 5 fine-stranded plain or tinned annealed copper wireEN 60228 Class 5
20.6/1 kV +90 °C EPR insulation ('1B')Cross-linked ethylene-propylene elastomer Type EI7 / 3GI3 engineered for +90 °C ratingEN 50363-1
3Short-pitch water-resistant core lay-upCores stranded with tight pitch and hydrophobic elastomeric intersticesEN 50525-2-21
4AD8 submersible polychloroprene sheathHeavy-duty flame-retardant, oil-, sewage-, and abrasion-resistant polychloropreneEN 50363-2-1 / EN 50525-2-21

S1BN8-F Multi-Core (3G to 5G, 7G–18G)

0.6/1 kV three-phase power and control risers for DOL and star-delta submersible pumps (1.5–120 mm²).

S1BN8-F Single-Core (1×25 to 1×185 mm²)

High-current 0.6/1 kV single-core submersible leads for large axial-flow flood pumps and dewatering stations.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50525-2-21 AD8 / HD 361 / VDE 0285. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV AC (Um 1.2 kV)
Routine AC test voltage
3.5 kV rms / 5 min
Wet insulation resistance
≥ 500 MΩ·km at +20 °C
Conductor stranding class
EN 60228 Class 5
Ampacity gain vs H07RN8-F
+15 % to +18 % higher current rating
Operating frequency
50 / 60 Hz & DC

Thermal

Max. conductor temp. (in air)
+90 °C continuous ('B' EPR)
Max. water temperature (AD8)
+40 °C continuous (+50 °C peak)
Max. short-circuit temperature
+250 °C (max. 5 s)
Mobile ambient range (in air)
-25 °C to +60 °C
Fixed ambient range (in air)
-40 °C to +80 °C
Min. installation temperature
-25 °C

Mechanical

Min. bend radius (fixed)
4 × D (≤ 12 mm) / 5 × D (> 12 mm)
Min. bend radius (flexing)
6 × D (≤ 12 mm) / 8 × D (> 12 mm)
Max. submersion depth (AD8)
Up to 100 m water head (10 bar)
Max. tensile pull on copper
15 N/mm²
Crush & abrasion resistance
Heavy-duty EM2 polychloroprene
Tear strength
≥ 15 N/mm

Resistance

AD8 permanent water immersion
EN 50525-2-21 Annex D/E certified
Oil, grease & sewage sludge
EN 60811-404 oil-resistant EM2 PCP
Flame retardance
EN 60332-1-2 self-extinguishing
Ozone & UV weather resistance
EN 60811-403 ozone-proof
Chemical & slurry exposure
Resistant to pH 4–10 wastewater
Halogen status
Polychloroprene elastomer

Reference standards

Designation code system
CENELEC HD 361 S3 ('S1BN8-F')
Submersible reference norm
EN 50525-2-21 (H07RN8-F AD8 family)
Compound standard
EN 50363-1 (EI7) & EN 50363-2-1 (EM2)
Conductor standard
EN 60228 Class 5
Flame test standard
EN 60332-1-2
Quality certification
EN 10204 3.1 mill certificate

Identification

Core identification (≤ 5 cores)
HD 308 S2 colours (with G/Y)
Core identification (≥ 6 cores)
White numbers on black cores + G/Y
Outer sheath colour
Black
Surface marking
TEBAOFLEX S1BN8-F 0.6/1kV [n×mm²] +90C AD8 CE
Length marking
Sequential metre marking
Batch traceability
Lot number & year code

Sizes

12 standard configurations (S1BN8-F)

Nominal dimensions, copper weights and electrical parameters for S1BN8-F per EN 50525-2-21 AD8 / HD 361 / VDE 0285.

Dimensions & weights
Order designationConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard S1BN8-F configurations
S1BN8-F 3G2.53G2.52.512.27220549
S1BN8-F 4G2.54G2.52.513.59625854
S1BN8-F 4G4.04G4.04.015.615436262
S1BN8-F 4G6.04G6.06.017.623048570
S1BN8-F 4G104G101022.438479590
S1BN8-F 4G164G161625.86141,120103
S1BN8-F 4G254G252530.69601,650122
S1BN8-F 4G354G353534.21,3442,180137
S1BN8-F 4G504G505039.61,9203,020158
S1BN8-F 4G704G707044.82,6884,050179
S1BN8-F 1×951×959522.89121,21091
S1BN8-F 1×1501×15015027.21,4401,820109
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per EN 50525-2-21 AD8 / HD 361 / VDE 0285.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
0.6/1 kV AC dielectric voltage test3.5 kV rms for 5 minutes without breakdownEvery drum
Conductor DC resistanceComplies with EN 60228 Class 5 at 20 °CEvery drum
Sample tests
AD8 gravimetric water absorption & +90 °C ageingPasses EN 50525-2-21 Annex D/E water test and EI7 ageingPer batch
10 bar hydrostatic submersion & oil testPasses 100 m water pressure test, EN 60811-404 oil & EN 60332-1-2Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

EN 50525-2-21 AD8 / HD 361EN 60332-1-2CE / RoHS

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX S1BN8-F 0.6/1kV [n×mm²] +90C AD8
Delivery form
Fumigated export wooden drums or coils
Standard drum lengths
500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (production)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFS1BN8-F 0.6/1 kV Heavy-Duty Submersible & Industrial – technical datasheet12 sizes · construction, technical data, approvalsXLSXS1BN8-F spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why specify S1BN8-F instead of standard H07RN8-F submersible pump cable?
Standard H07RN8-F is limited to 450/750 V and +60 °C (+85 °C EPR) conductor temperature, whereas S1BN8-F upgrades the voltage rating to 0.6/1 kV ('S1', tested at 3.5 kV AC) and uses +90 °C heat-resistant EPR core insulation ('B') for 15–18 % higher current capacity and 690 V pump motors.
How is the CENELEC code S1BN8-F broken down?
Under HD 361, 'S' indicates a recognized national-type construction, '1' means 0.6/1 kV rated voltage, 'B' designates +90 °C ethylene-propylene rubber insulation, 'N8' specifies an AD8 permanent-submersion polychloroprene outer sheath, and '-F' denotes Class 5 flexible copper conductors. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
When should S1BC4N8-F be chosen over S1BN8-F?
Choose S1BC4N8-F when the 0.6/1 kV submersible pump or industrial motor is powered by a variable-frequency drive (VFD) or requires an overall tinned copper braid screen ('C4') for electromagnetic compatibility. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
Can single-core S1BN8-F cables be used in parallel on large flood-control pumps?
Yes, single-core S1BN8-F cables from 50 mm² to 185 mm² are widely installed in trefoil groups on high-capacity storm-water, dry-dock, and mine dewatering pumps. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
