AD8 Permanent-Submersion Rubber & Pump CablesHD 361 / AD80.6/1 kVScreened +90 °C 'S1BC4N8-F'

S1BC4N8-F 0.6/1 kV Screened Heavy-Duty Submersible & IndustrialEN 50525-2-21 AD8 / HD 361 · 0.6/1 kV ('S1') · +90 °C EPR ('B') · Cu braid ('C4') · AD8

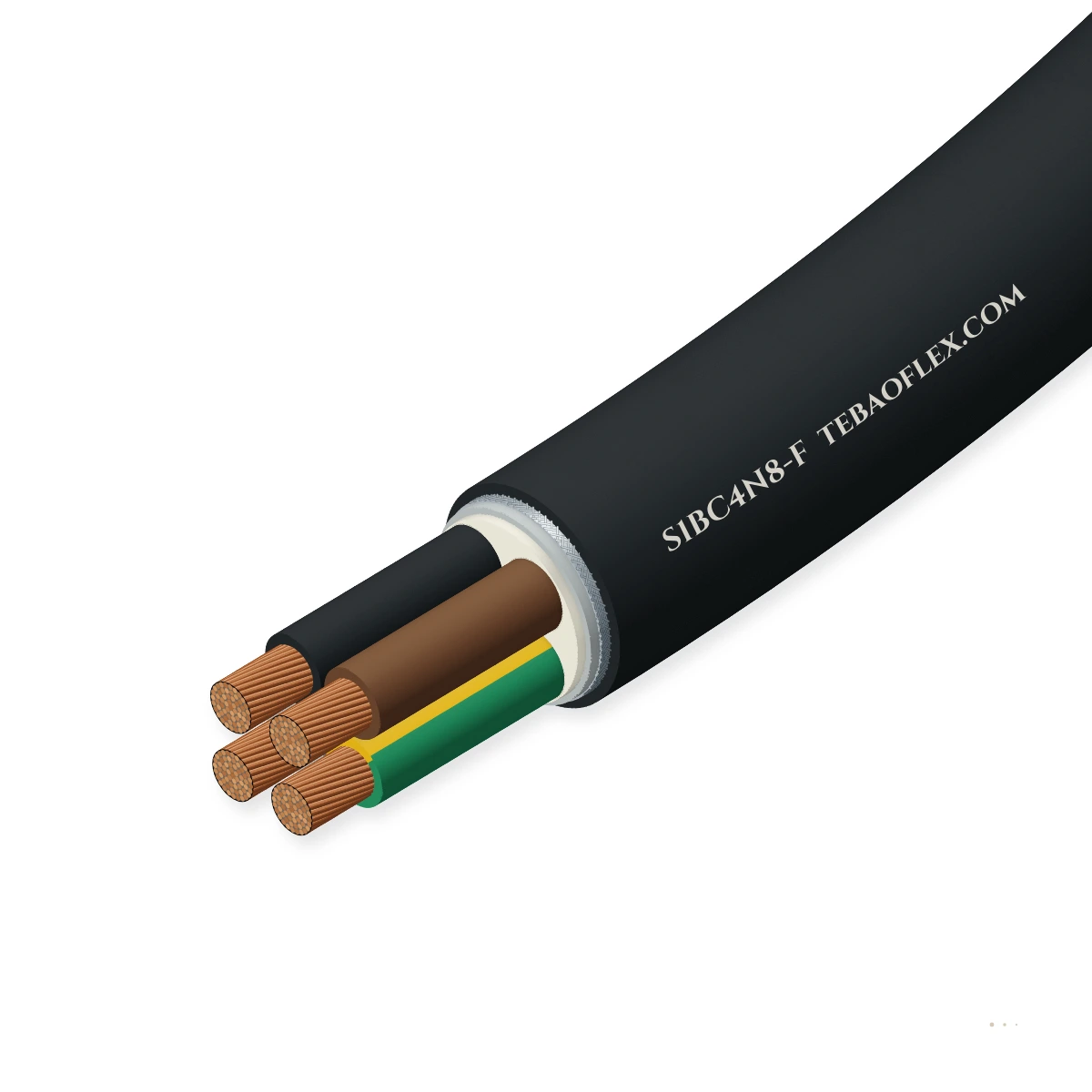

S1BC4N8-F is a heavy-duty 0.6/1 kV EMC-screened AD8 submersible and industrial rubber power cable coded to CENELEC HD 361. Combining 0.6/1 kV +90 °C EPR insulation ('1B'), a tinned copper braid screen ('C4'), and an AD8 water- and oil-resistant

Water-resistant
EMC screen
Low-EMC design
Oil-resistant
Order designation
S1BC4N8-F 4G10
Outer Ø ≈
24.2 mm
Copper weight
495 kg/km
Total weight ≈
960 kg/km
Min. bend R (fixed)
121 mm
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV AC
U0/U ('S1') · 1.5 kV DC
Water class
AD8 Submersion
Permanent immersion up to 100 m
EMC screening
Tinned Cu 'C4'
≥ 85 % braid for 690 V/1000 V VFDs
Conductor max.
+90 °C ('B')
High-ampacity EPR · +250 °C SC
Min. bend R
5 × D / 8 × D
Fixed installation / mobile flexing
Outer sheath
EM2 AD8 PCP 'N8'
Oil-, sewage- & flame-retardant

Typical values for this cable type, based on EN 50525-2-21 AD8 / HD 361 / VDE 0285 — confirmed in the datasheet and quotation for your order.

Application fit

Is S1BC4N8-F right for your machine?

Designed for high-power 400 V / 690 V VFD-driven submersible pumps, mine dewatering stations, offshore ballast pumps, dredge drives, and wet heavy-industrial machinery.

Immersion & wet locations

Suitable

AD8 permanent submersion rating up to 100 m depth in groundwater, mine sumps, and sewage.

VFD inverter to AC motor screened feeder

Suitable

0.6/1 kV +90 °C EPR dielectric and 'C4' tinned copper braid handle 400 V and 690 V PWM inverter drives.

Trailing & towing

Suitable

Heavy-duty polychloroprene ('N8') jacket withstands wet quarry, tunnelling, and dredge deck duty.

Mine roadway & tunnel wall hangers

Suitable

Widely specified for high-head underground mine dewatering pump feeders and wet shaft risers.

Motorised monospiral reel

With conditions

Suitable for pump deployment winches; use NTSCGEWÖU or (N)SSHCÖU for high-speed reeling.

(N)SSHCÖU 0.6/1 kV
Typical machinesHigh-Power VFD Submersible PumpsDeep Mine & Tunnel DewateringDredging & Port Ballast SystemsMunicipal Stormwater Pump StationsHeavy Wet-Process Industrial Drives

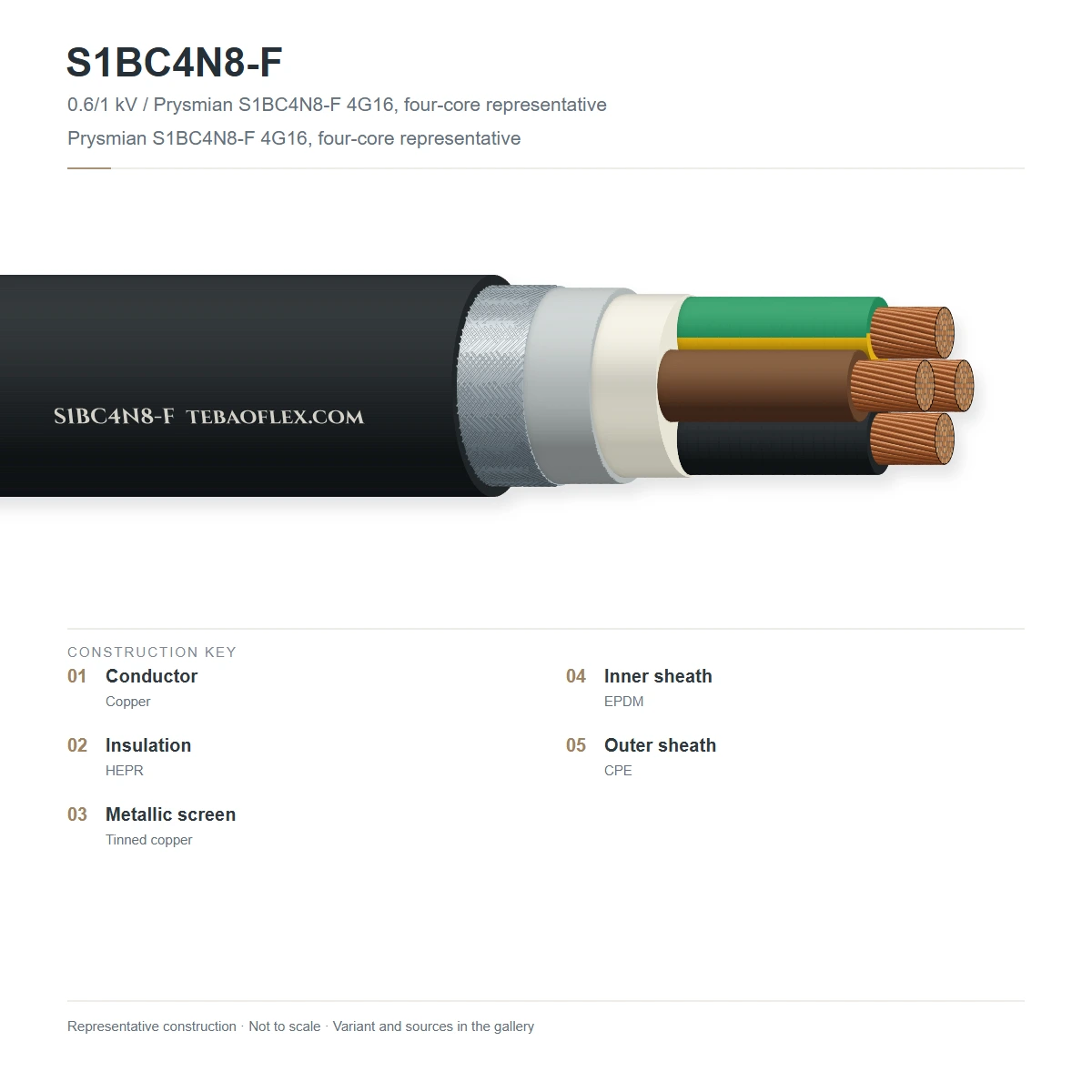

Construction

Layer by layer

Class 5 copper conductors, 0.6/1 kV +90 °C EPR insulation ('B'), extruded rubber inner sheath, ≥ 85 % tinned copper braid ('C4'), and AD8

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible copper conductor ('-F')Class 5 fine-stranded plain or tinned annealed copper wireEN 60228 Class 5
20.6/1 kV +90 °C EPR insulation ('1B')Cross-linked ethylene-propylene elastomer Type EI7 / 3GI3 with low water absorption andEN 50363-1
3Extruded elastomeric inner sheathWater-blocking rubber inner bedding filling core interstices under the copper braidEN 50525-2-21
4Tinned copper wire braid screen ('C4')Braided tin-coated copper wires with ≥ 85 % optical coverage for low-impedance VFD EMCHD 361 S3
5AD8 submersible polychloroprene sheathHeavy-duty flame-retardant, oil-, sewage-, and tear-resistant polychloroprene compoundEN 50363-2-1 / EN 50525-2-21

S1BC4N8-F 4G (2.5–120 mm²)

Screened 0.6/1 kV 4-core (3+PE) power feeder for 400 V / 690 V VFD-driven submersible pumps and wet drives.

S1BC4N8-F 3×+3G (Symmetrical VFD)

Three phase cores plus three split earth cores inside the C4 copper braid for large ≥ 35 mm² VFD pump motors.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50525-2-21 AD8 / HD 361 / VDE 0285. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV AC (Um 1.2 kV)
Routine AC test voltage
3.5 kV rms / 5 min
Screen optical coverage ('C4')
≥ 85 % tinned copper wire braid
VFD system compatibility
400 V & 690 V PWM inverter drives
Conductor stranding class
EN 60228 Class 5
Specific insulation resistance
≥ 500 MΩ·km at +20 °C

Thermal

Max. conductor temp. (in air)
+90 °C continuous ('B' EPR)
Max. water temperature (AD8)
+40 °C (+50 °C short-term)
Max. short-circuit temperature
+250 °C (max. 5 s)
Mobile ambient range (in air)
-25 °C to +60 °C
Fixed ambient range (in air)
-40 °C to +80 °C
Current rating advantage
+15 % higher ampacity vs S07RC4N8-F

Mechanical

Min. bend radius (fixed)
5 × overall diameter (D)
Min. bend radius (flexing)
8 × overall diameter (D)
Max. submersion depth (AD8)
Up to 100 m water head (10 bar)
Max. tensile pull on copper
15 N/mm²
Crush & abrasion resistance
Heavy-duty 0.6/1 kV EM2 PCP
Gland termination
360° EMC submersible cable entry

Resistance

AD8 permanent water immersion
EN 50525-2-21 Annex D/E certified
Oil, diesel & sewage sludge
EN 60811-404 oil-resistant EM2 PCP
Flame retardance
EN 60332-1-2 self-extinguishing
Ozone & UV weather resistance
EN 60811-403 ozone-proof
EMC & bearing-current mitigation
Low-impedance 'C4' tinned Cu braid
Halogen status
Polychloroprene outer sheath

Reference standards

Designation code system
CENELEC HD 361 S3 ('S1BC4N8-F')
Submersible design basis
EN 50525-2-21 AD8 & DIN VDE 0285
Compound standard
EN 50363-1 (EI7) & EN 50363-2-1 (EM2)
Conductor standard
EN 60228 Class 5
Flame test standard
EN 60332-1-2
Quality certification
EN 10204 3.1 mill certificate

Identification

Core identification (≤ 5 cores)
HD 308 S2 colours (with G/Y)
Core identification (≥ 6 cores)
White numbers on black cores + G/Y
Outer sheath colour
Black
Surface marking
TEBAOFLEX S1BC4N8-F 0.6/1kV [n×mm²] AD8 CE
Length marking
Sequential metre marking
Batch traceability
Lot number & year code

Sizes

12 standard configurations (S1BC4N8-F)

Nominal dimensions, copper weights and electrical parameters for S1BC4N8-F per EN 50525-2-21 AD8 / HD 361 / VDE 0285.

Dimensions & weights
Order designationConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard S1BC4N8-F configurations
S1BC4N8-F 4G2.54G2.52.515.014634575
S1BC4N8-F 4G4.04G4.04.017.221846586
S1BC4N8-F 4G6.04G6.06.019.431061597
S1BC4N8-F 4G104G101024.2495960121
S1BC4N8-F 4G164G161627.87481,340139
S1BC4N8-F 4G254G252532.81,1251,940164
S1BC4N8-F 4G354G353536.51,5402,520182
S1BC4N8-F 4G504G505042.02,1603,460210
S1BC4N8-F 4G704G707047.52,9804,610238
S1BC4N8-F 4G954G959553.64,0105,980268
S1BC4N8-F 7G2.57G2.52.518.624254093
S1BC4N8-F 12G2.512G2.52.523.6395835118
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per EN 50525-2-21 AD8 / HD 361 / VDE 0285.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
0.6/1 kV AC dielectric voltage test3.5 kV rms for 5 minutes without breakdownEvery drum
Conductor & C4 braid DC resistanceEN 60228 Class 5 & ≥ 85 % tinned copper braid verifiedEvery drum
Sample tests
AD8 water immersion & +90 °C thermal ageingPasses EN 50525-2-21 Annex D/E water uptake and EI7 ageingPer batch
Hydrostatic 10 bar submersion & oil testPasses 100 m water pressure test, EN 60811-404 oil & EN 60332-1-2Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

EN 50525-2-21 AD8 / HD 361EN 60332-1-2CE / RoHS

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX S1BC4N8-F 0.6/1kV [n×mm²] +90C
Delivery form
Fumigated export wooden drums or coils
Standard drum lengths
500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (production)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFS1BC4N8-F 0.6/1 kV Screened Heavy-Duty Submersible & Industrial – technical datasheet12 sizes · construction, technical data, approvalsXLSXS1BC4N8-F spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
