EN 50525 Harmonised Rubber CablesEN 50525-2-82300/500 VFlat Illumination 'H2'

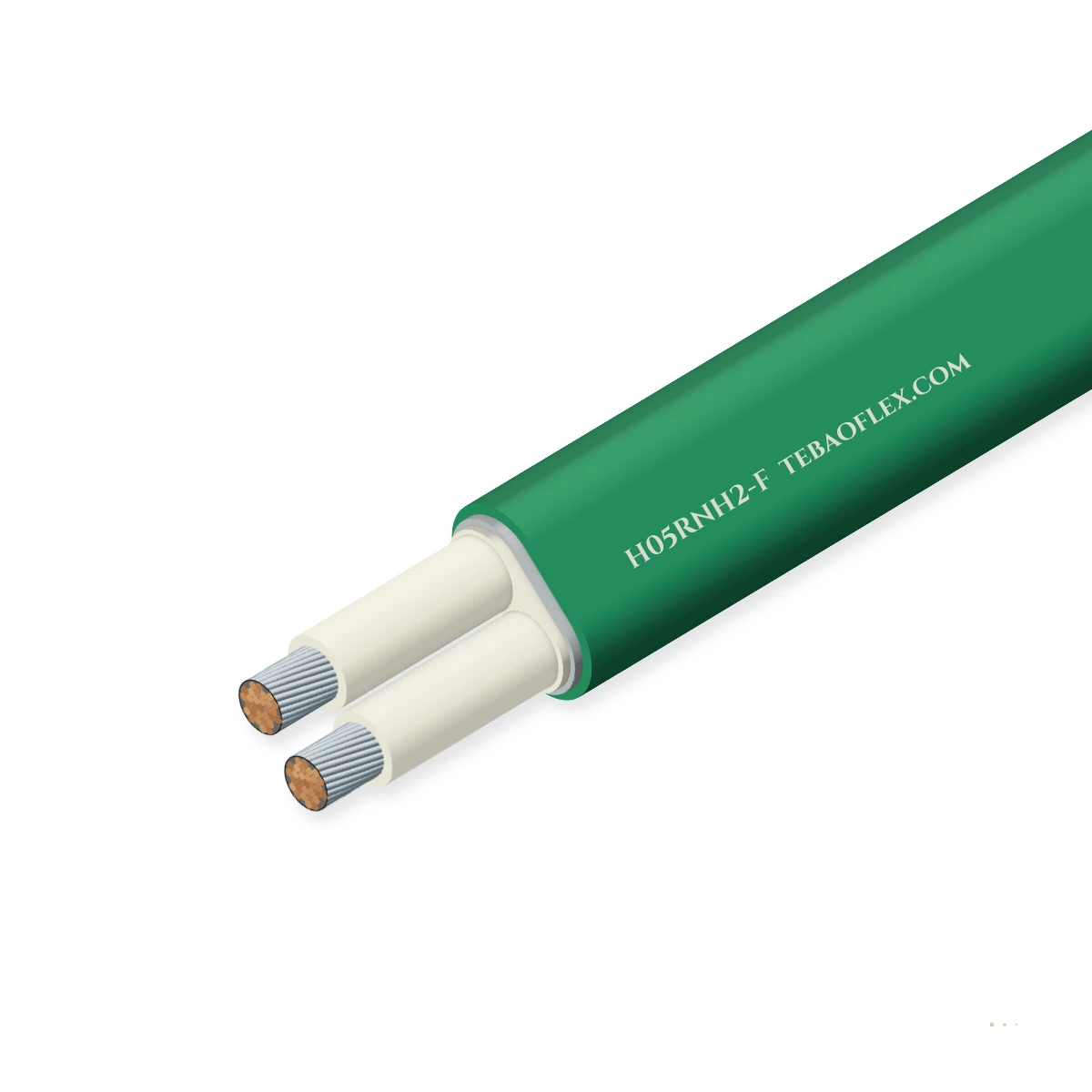

H05RNH2-F Flat Rubber Festoon and Decorative Illumination StringEN 50525-2-82 · 300/500 V · Flat profile ('H2') · EPR Type EI4 · Polychloroprene Type EM2

H05RNH2-F is the European harmonised 300/500 V flat rubber illumination chain and festoon cable manufactured to EN 50525-2-82 (formerly HD 22.14 / VDE 0282-14). Its calibrated 13.0 × 5.0 mm flat rectangular profile ('H2') accepts standard pin-piercing E27

Outdoor & humid
Ozone, UV & moisture
Oil-resistant
Flame-retardant
Order designation
H05RNH2-F 2×1.5 White (13.0×5.0 mm)
Outer Ø ≈
9.1 mm
Copper weight
29 kg/km
Total weight ≈
115 kg/km
Min. bend R (fixed)
36 mm
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
300/500 V
U0/U AC · Illumination chains
Flat profile
13.0 × 5.0 mm
Calibrated for piercing lampholders
Conductor max.
+60 °C (+85 °C)
EN 50525-2-82 / EPR thermal limit
Ambient (outdoor)
-25 to +60 °C
Year-round outdoor festoon duty
Standard sizes
2×1.5 & 2×2.5
Class 5 copper parallel cores
Sheath compound
EM2 Neoprene/PCP
Black, green, yellow, white or red

Typical values for this cable type, based on EN 50525-2-82 / VDE 0285-525-2-82 — confirmed in the datasheet and quotation for your order.

Application fit

Is H05RNH2-F right for your machine?

Purpose-engineered for outdoor and indoor decorative lighting chains, construction site temporary tunnel illumination, event festoon garlands, and light flat festoon loops.

Free-hanging vertical run

Suitable

Primary duty for suspended catenary illumination strings with pin-piercing E27/B22 sockets.

Festoon & line chain

Suitable

Flat twin profile bends smoothly along single-axis light festoon tracks and garlands.

Fixed installation

Suitable

Suitable for architectural facade lighting, construction site walkways, and tunnel strings.

Trailing & towing

With conditions

Designed for overhead catenary suspension rather than floor dragging under vehicles.

H07RN-F 450/750 V

Motorised monospiral reel

Not suitable

Do not energize while coiled or operate on motorized high-tension cable drums.

NSHTÖU 0.6/1 kV
Typical machinesTemporary Construction & Tunnel LightingArchitectural & Event IlluminationMunicipal Holiday & Street GarlandsTheme Parks & Outdoor HospitalityShipyard & Maintenance Walkway Lighting

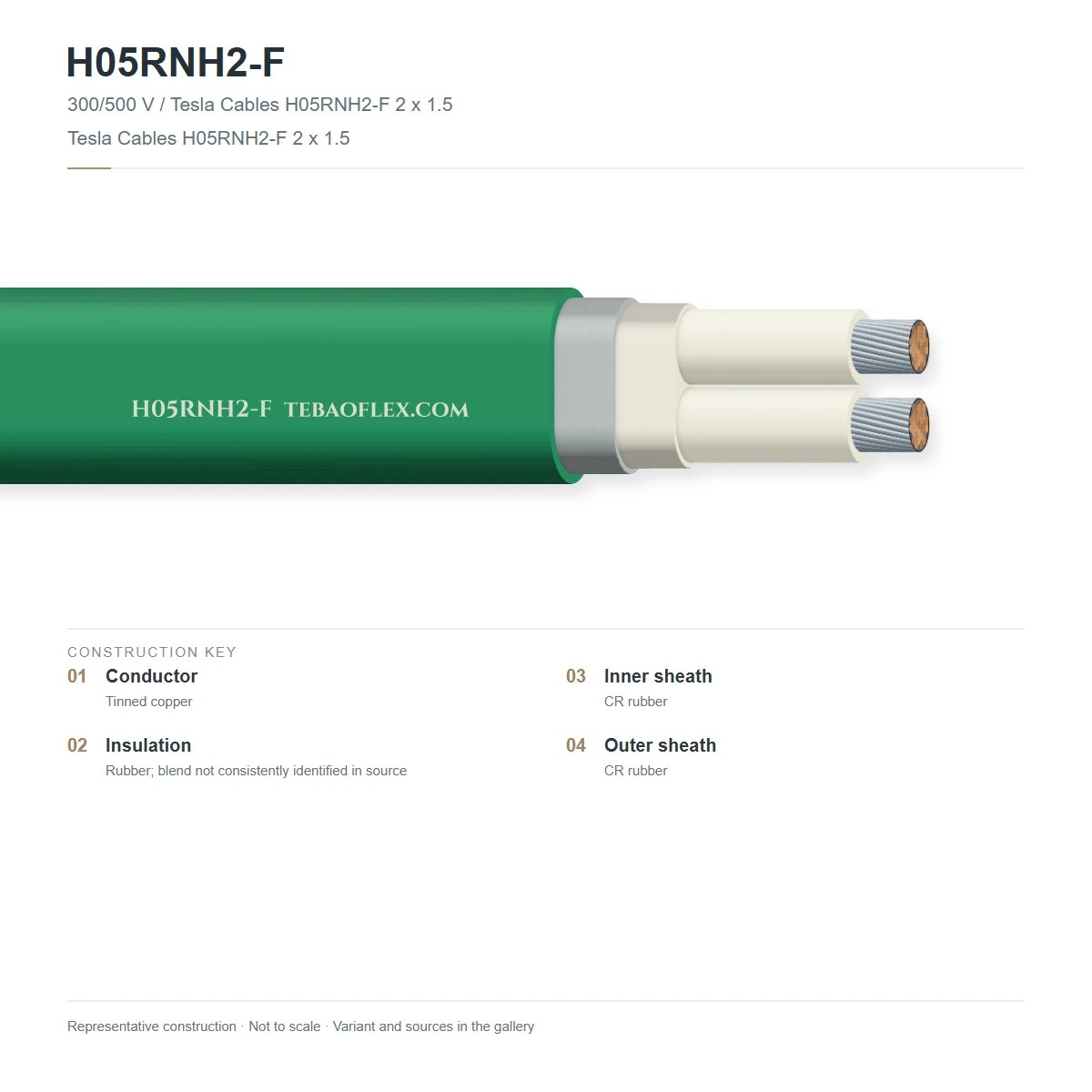

Construction

Layer by layer

Two parallel Class 5 copper conductors insulated with EI4 EPR and extruded into a calibrated 13.0 × 5.0 mm flat EM2 polychloroprene outer

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible copper conductor ('-F')Class 5 fine-stranded plain or tinned annealed copper wireEN 60228 Class 5
2EPR rubber insulation ('R')Cross-linked ethylene-propylene elastomer compound Type EI4EN 50363-1
3Parallel flat twin arrangement ('H2')Two insulated cores laid parallel on a precise centre-to-centre pitch for contact-pinEN 50525-2-82
4Calibrated flat polychloroprene sheathPolychloroprene (PCP) rubber compound Type EM2 extruded to 13.0 × 5.0 mm rectangularEN 50363-2-1 / EN 50525-2-82

H05RNH2-F 2×1.5 mm²

Standard 13.0 × 5.0 mm flat illumination cable for LED and incandescent E27/B22 festoon strings.

H05RNH2-F 2×2.5 mm²

Long-run 13.0 × 5.0 mm flat illumination cable minimizing voltage drop across extended tunnel and street

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50525-2-82 / VDE 0285-525-2-82. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
300/500 V AC
Routine AC test voltage
2.0 kV rms / 5 min
Current rating (1.5 / 2.5 mm²)
16 A / 25 A in free air
Conductor resistance class
EN 60228 Class 5
Insulation compound
Type EI4 cross-linked EPR
Operating frequency
50 / 60 Hz & DC

Thermal

Max. conductor operating temp.
+60 °C (EN 50525-2-82) / +85 °C EPR
Max. short-circuit temperature
+200 °C (max. 5 s)
Mobile / catenary ambient
-25 °C to +60 °C
Fixed installation ambient
-40 °C to +60 °C
Max. outer surface temperature
+50 °C touch-safe
Min. installation temperature
-25 °C

Mechanical

Nominal flat profile (W × H)
13.0 × 5.0 mm (±0.2 mm tolerance)
Min. bend radius (flat axis)
4 × cable height (H)
Max. catenary tensile load
15 N/mm² on copper conductors
Lampholder contact method
Insulation-displacement piercing pins
Sheath compound
Type EM2 polychloroprene (PCP)
Impact & weather durability
Outdoor IP44/IP65 string compatible

Resistance

Flame retardance
EN 60332-1-2 vertical flame test
Oil & grease resistance
EN 60811-404 Type EM2 PCP
UV & outdoor weathering
Permanent outdoor catenary rated
Ozone resistance
EN 60811-403 ozone-proof EI4/EM2
Water & rain splash
Seals tightly around piercing pins
RoHS / REACH status
CE & RoHS 3 compliant

Reference standards

Primary product standard
EN 50525-2-82 / VDE 0285-525-2-82
Former harmonised reference
HD 22.14 S3 / DIN VDE 0282-14
Material compound standard
EN 50363-1 (EI4) & EN 50363-2-1 (EM2)
Luminaire chain standard
EN 60598-2-20 lighting chains
Conductor standard
EN 60228 Class 5
Approval mark
HAR / VDE / CE

Identification

Core identification (2-core)
Blue and brown (HD 308 S2)
Outer sheath colours
Black, dark green, yellow, white, red
Harmonised stamp
H05RNH2-F <HAR> 2×1.5 or 2×2.5
Profile polarity rib
Longitudinal indexing ridge on sheath
Packaging
100 m coils or 500 m wooden drums
Batch traceability
Lot number & year code

Sizes

8 standard configurations (H05RNH2-F)

Nominal dimensions, copper weights and electrical parameters for H05RNH2-F per EN 50525-2-82 / VDE 0285-525-2-82.

Dimensions & weights
Order designationConfigurationPhase size mm²Flat W×H ≈
mm (eq. Ø)		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard H05RNH2-F configurations
H05RNH2-F 2×1.5 Black (13.0×5.0 mm)2×1.5 (Black)1.59.12911536
H05RNH2-F 2×1.5 Green (13.0×5.0 mm)2×1.5 (Green)1.59.12911536
H05RNH2-F 2×1.5 Yellow (13.0×5.0 mm)2×1.5 (Yellow)1.59.12911536
H05RNH2-F 2×1.5 White (13.0×5.0 mm)2×1.5 (White)1.59.12911536
H05RNH2-F 2×2.5 Black (13.0×5.0 mm)2×2.5 (Black)2.59.14813536
H05RNH2-F 2×2.5 Green (13.0×5.0 mm)2×2.5 (Green)2.59.14813536
H05RNH2-F 2×2.5 Yellow (13.0×5.0 mm)2×2.5 (Yellow)2.59.14813536
H05RNH2-F 2×2.5 White (13.0×5.0 mm)2×2.5 (White)2.59.14813536
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per EN 50525-2-82 / VDE 0285-525-2-82.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC dielectric voltage test2.0 kV rms for 5 minutes without breakdownEvery coil / drum
Flat profile dimensional gauge check13.0 × 5.0 mm ±0.2 mm to fit EN 60598-2-20 piercing lampholders100 % online laser gauge
Sample tests
Pin-piercing contact & pull-out testReliable contact and elastomeric self-sealing with E27/B22 socketsPer batch
Flame propagation, oil & ozone resistancePasses EN 60332-1-2, EN 60811-404 oil & EN 60811-403 ozone testsHAR / VDE type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

EN 50525-2-82 / HAREN 60598-2-20CE / RoHS

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX H05RNH2-F <HAR> 2×1.5 mm² EN
Delivery form
Fumigated export wooden drums or coils
Standard drum lengths
500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (production)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFH05RNH2-F Flat Rubber Festoon and Decorative Illumination String – technical datasheet8 sizes · construction, technical data, approvalsXLSXH05RNH2-F spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why do both 2×1.5 mm² and 2×2.5 mm² H05RNH2-F share the exact same 13.0 × 5.0 mm outer dimensions?
EN 50525-2-82 mandates an identical 13.0 × 5.0 mm flat rectangular profile and core spacing for both 2×1.5 mm² and 2×2.5 mm² so that standard E27 and B22 pin-piercing festoon lampholders fit either cross-section without changing sockets or gaskets. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
How do insulation-displacement lampholders work on H05RNH2-F?
When the festoon lampholder cap is screwed or clamped onto the flat H05RNH2-F cable, two sharp brass contact pins pierce through the resilient EM2 polychloroprene sheath and EI4 EPR insulation to contact the Class 5 copper cores while the rubber seals around the pins.
When should 2×2.5 mm² be selected over 2×1.5 mm²?
Select 2×2.5 mm² for long construction-tunnel lighting spans, high-wattage site worklights, or long outdoor event strings where lower conductor resistance (7.98 Ω/km vs 13.3 Ω/km) reduces end-of-line voltage drop. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
Can H05RNH2-F be left outdoors year-round?
Yes, the cross-linked EI4 EPR insulation and EM2 polychloroprene outer sheath resist UV sunlight, ozone, rain, frost down to -25 °C (mobile) / -40 °C (fixed), and oil splash. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
