industrial data rf cable seriesISO 14644-1 Class 1 Cleanroom100 Ω · Cat.5e / Cat.6 / Cat.6ADrag-Chain & ±180°/m Robot Torsion

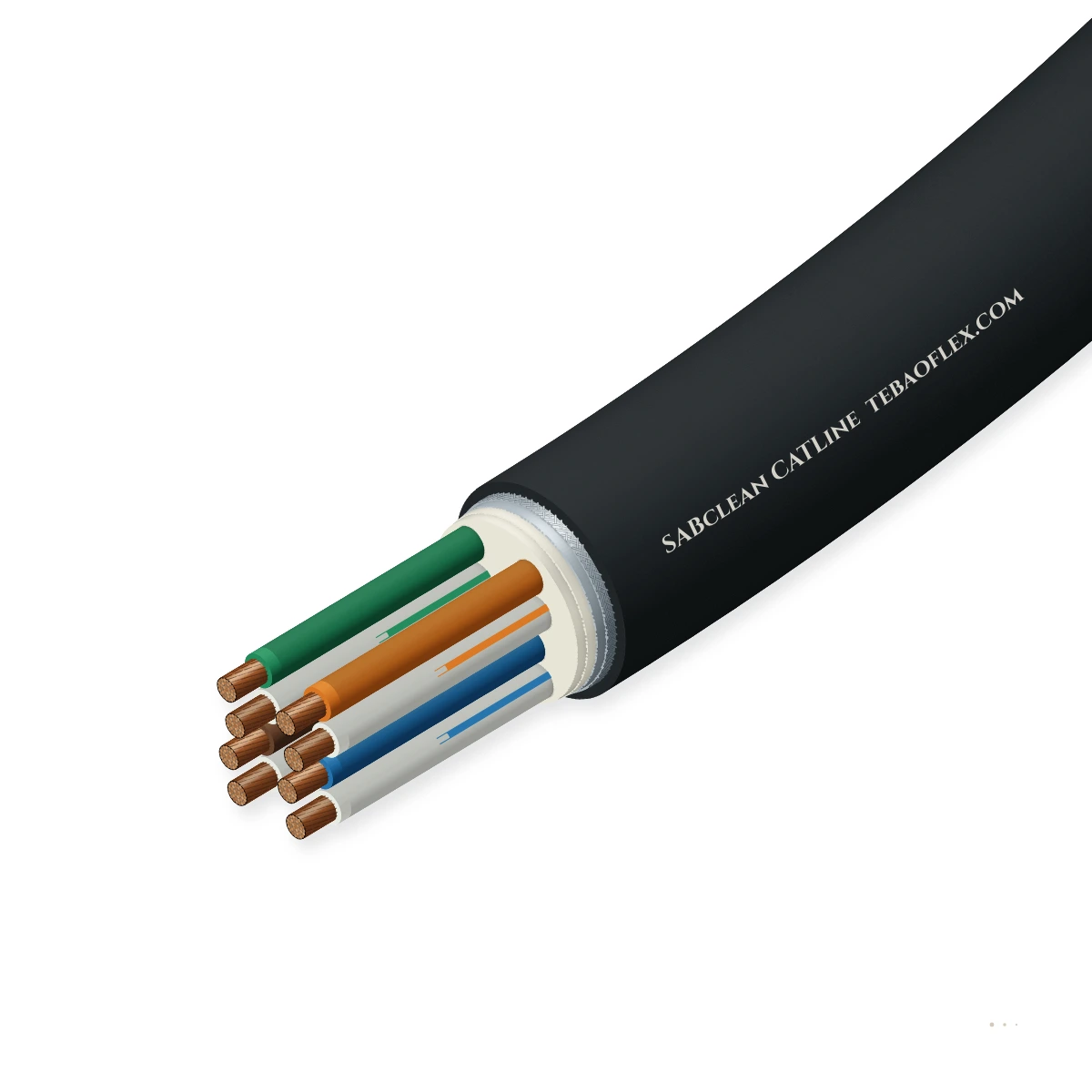

SABclean CATLine ISO Class 1 Cleanroom High-Flex IndustrialISO 14644-1 Class 1 low-outgassing continuous-flex Cat.5e / Cat.6 / Cat.6A cleanroom LAN

ISO Class 1 cleanroom (VDI 2083 / ISO 14644-1) continuous-flex industrial Ethernet cable (Cat.5e, Cat.6, Cat.6A) with 19-wire tinned copper cores, 100 Ω pairs, overall Al/PET foil plus ≥ 85 % tinned braid, and low-outgassing cleanroom sheath.

Approved
Low-EMC design
EMC screen
Flame-retardant
Order designation
SABclean CATLine Cat.6A S
Outer Ø ≈
6.90 mm
Wall thickness
0.90 mm
Total weight ≈
61.0 kg/km
Min. bend R (fixed)
35 mm
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Cleanroom class
ISO Class 1
ISO 14644-1 Part 1 & Part 14
Impedance
100 Ω ± 15 Ω
Cat.5e (100M) to Cat.6A (10G)
Conductors
19-wire Sn-Cu
AWG 26/19 or 24/19 ultra-flex
Flex endurance
≥ 10M cycles
Drag-chain + ±180°/m torsion
Outgassing
Ultra-low TVOC
ISO 14644-8 · LABS/silicone-free
Temperature
-40…+80 °C
UL/cUL AWM 80 °C 300V/600V

Typical values for this cable type, based on ISO 14644-1 Class 1 / VDI 2083 & ISO/IEC 11801 (Cleanroom High-Flex Ethernet) — confirmed in the datasheet and quotation for your order.

Application fit

Is SABclean CATLine right for your machine?

Specify SABclean CATLine for EUV/DUV semiconductor wafer steppers, OLED flat-panel cleanrooms, aseptic pharmaceutical filling robots, and vacuum-adjacent SCARA/wafer-handling gantries.

Energy chain / drag chain

Suitable

19-wire tinned Cu cores and matte cleanroom sheath achieve ≥ 10 million drag-chain cycles with ISO Class 1 particle control.

VFD inverter to AC motor screened feeder

Suitable

100 % Al/PET foil plus ≥ 85 % tinned copper braid shields 1G / 10G Ethernet from wafer-stage linear-motor drive noise.

Switchgear & control cabinet wiring

Suitable

Tested for ultra-low VOC outgassing (zero silicones/phthalates), preventing molecular contamination on wafer lithography optics.

Mine roadway & tunnel wall hangers

Not suitable

Precision cleanroom Ethernet cable is built for ISO Class 1–5 wafer fabs and medical cleanrooms, not rough mining roadways.

Use ETHERLINE ROBUST FR
Typical machinesSemiconductor Wafer Fab & LithographyFPD / OLED & Micro-LED CleanroomsAseptic Pharmaceutical & Biotech FillingBattery Dry-Room & Gigafactory RoboticsAerospace & Satellite Cleanroom Assembly

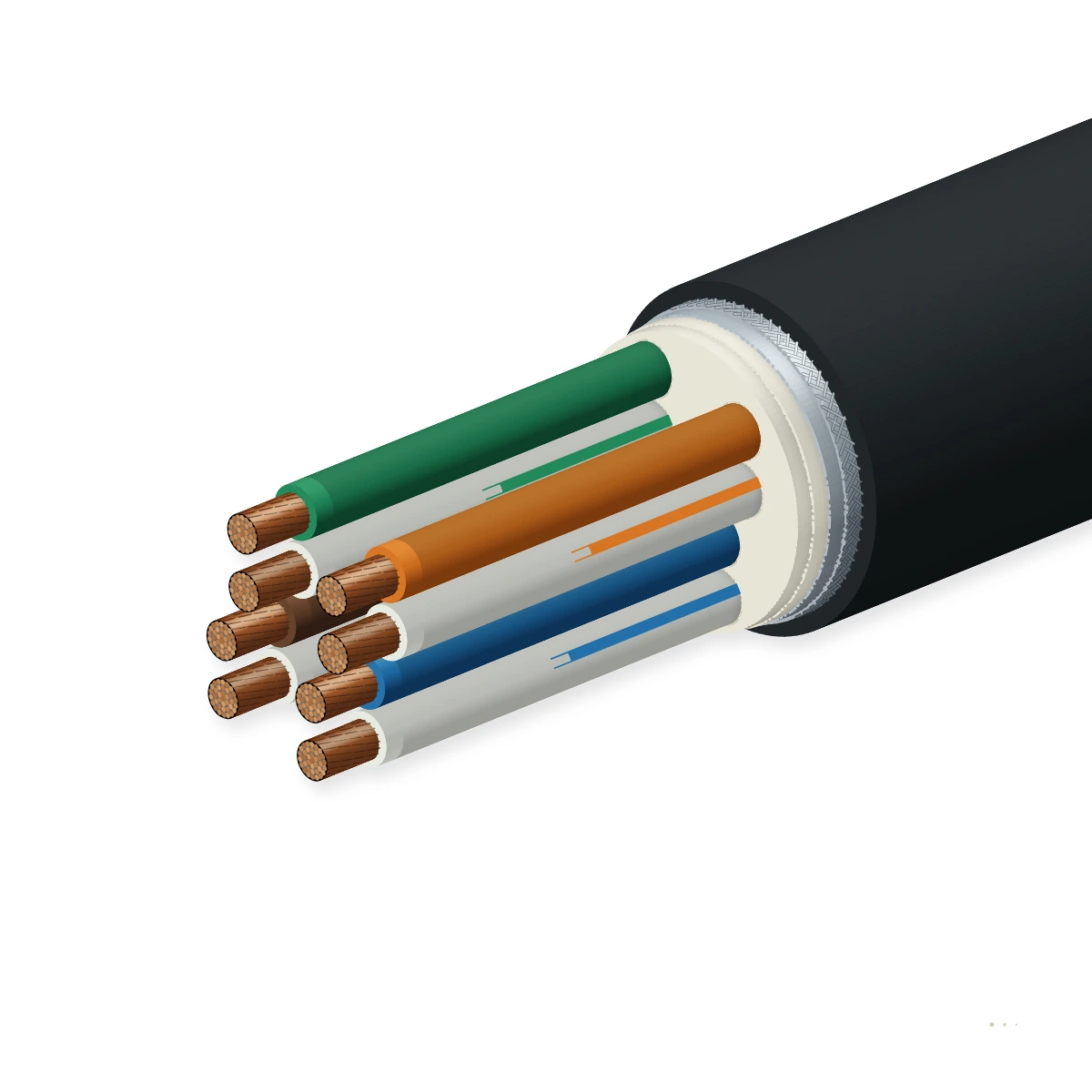

Construction

Layer by layer

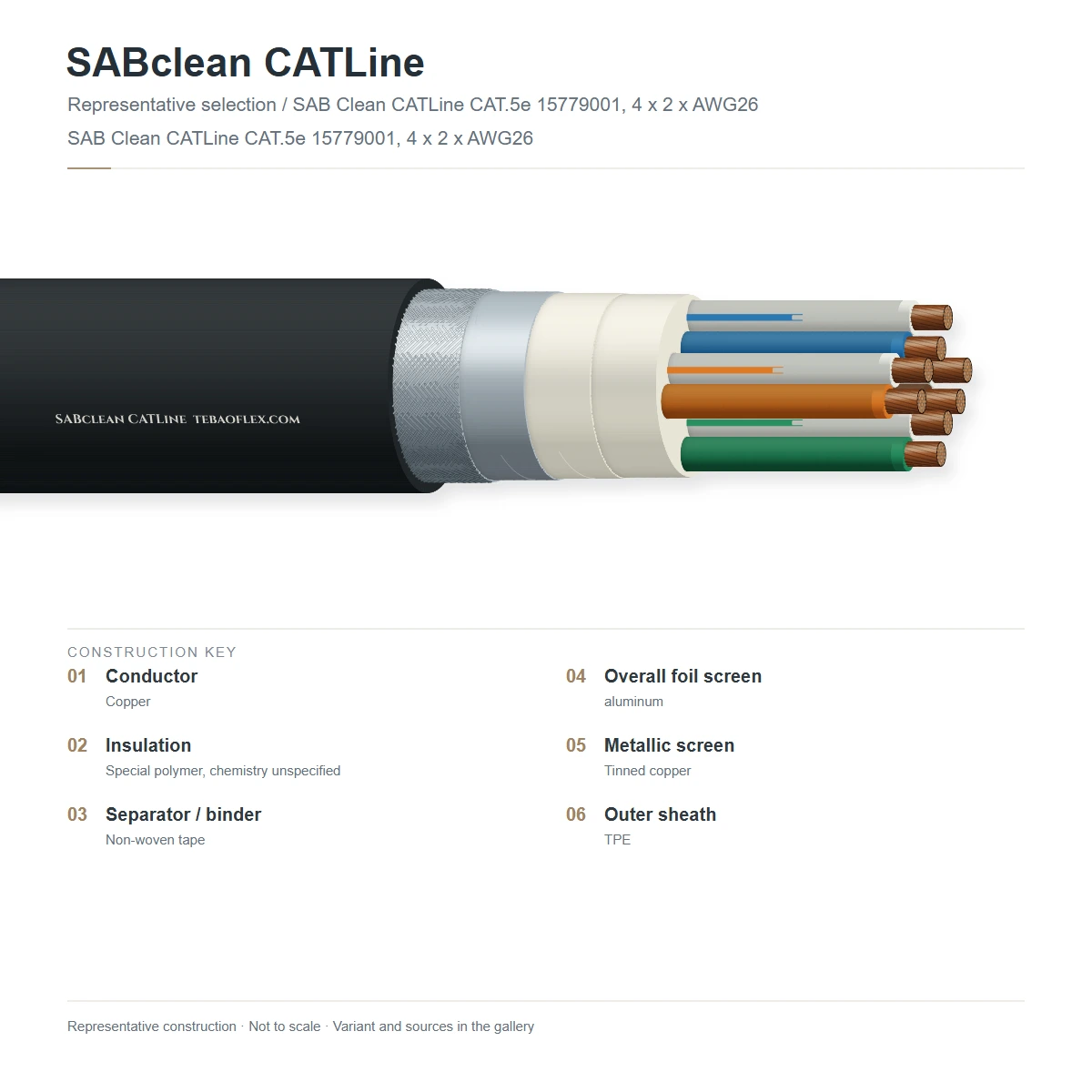

ISO Class 1 cleanroom Ethernet build: 19-wire tinned copper pairs (Cat.5e/6/6A), polyolefin insulation, PTFE low-friction wrap, Al/PET foil + Sn-Cu braid, and low-outgassing matte cleanroom TPE/PUR sheath.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
119-wire extra-fine stranded tinned copperStranded tinned copper wires (AWG 26/19 [0.14 mm²], AWG 24/19 [0.25 mm²], or AWG 22/19 [0.34 mm²])Withstands multi-million-cycle tight-radius bending and ±180°/m robotic torsion
2Low-capacitance polyolefin / foam-skin PE coresHalogen-free polyolefin or cellular PE (2-pair PROFINET star-quad or 4-pair TIA-568 colour code)Maintains 100 Ω ± 15 Ω impedance and 70–76 % velocity of propagation
3Low-friction PTFE/fleece wrap + 100 % Al/PET foilLow-wear fluoropolymer sliding tape + 100 % aluminum/polyester foil (plus pair shields on Cat.6A)Eliminates internal core-to-screen friction dust during high-acceleration linear motion
4Tinned copper wire braid screenHigh-flexibility tinned copper wire braid (≥ 85 % optical coverage)Class D / Class E / Class EA EMC compliance inside wafer-handler gantries
5ISO Class 1 low-outgassing cleanroom TPE/PUR jacketSpecial non-talc, non-blooming, halogen-free cleanroom elastomer (matte grey or blue)Certified to ISO 14644-1 Air Cleanliness Class 1 with ultra-low TVOC outgassing

SABclean CATLine Cat.5e S / R (Drag-Chain / Robot)

2×2×AWG26/19 or 1×4×AWG22/19 PROFINET & Industrial Ethernet for linear chains (S) or ±180°/m robots (R)

SABclean CATLine Cat.6 / Cat.6A (1 Gbps / 10 Gbps)

4×2×AWG26/19 or 4×2×AWG24/19 high-speed GigE Vision & 10GBASE-T wafer inspection camera cable

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on ISO 14644-1 Class 1 / VDI 2083 & ISO/IEC 11801 (Cleanroom High-Flex Ethernet). Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic impedance
100 Ω ± 15 Ω (1–100 MHz Cat.5e / 250M Cat.6 / 500M Cat.6A)
Conductor DC resistance @ 20 °C
≤ 140 (AWG 26/19) · ≤ 86 (24/19) · ≤ 58 Ω/km (22/19)
Velocity of propagation
70 % – 76 % nominal (mutual capacitance ≈ 48 pF/m)
Dielectric test voltage
1,500 V AC rms · UL AWM 300 V / 600 V rating

Thermal

Operating temp. (fixed)
-40 °C to +80 °C
Operating temp. (flexing)
-30 °C to +80 °C (UL +80 °C)
Cleanroom sterilization
Resists IPA alcohol wipe-down & H2O2 VHP vapor

Mechanical

Conductor stranding
19-wire extra-fine tinned Cu (AWG 26/19, 24/19, 22/19)
Min. bending radius
5 × OD (fixed) · 7.5–10 × OD (continuous drag-chain)
Torsion angle (CATLine R)
± 180°/m for ≥ 5 million robotic cycles

Resistance

Particulate emission
ISO 14644-1 Air Cleanliness Class 1 certified
Outgassing (TVOC / AMC)
ISO 14644-8 tested low outgassing · Zero silicone/LABS
Halogen-free & flame
IEC 60754-1/2 halogen-free · IEC 60332-1-2 / UL FT1

Reference standards

Cleanroom qualification
ISO 14644-1 Class 1, ISO 14644-8, VDI 2083
Ethernet & UL approvals
ISO/IEC 11801, PROFINET, EtherCAT, UL/cUL AWM
RoHS, REACH & LABS
RoHS 3, REACH, phthalate- & silicone-free

Identification

Outer sheath colour
Matte Grey (RAL 7035/7001) non-stick finish
Surface legend
TEBAOFLEX SABclean CATLine ISO CLASS 1 CLEANROOM ETHERNET
Customs tariff (HS)
8544.49

Sizes

8 standard configurations (SABclean CATLine)

Engineering dimensions, impedance, propagation velocity, and electrical ratings for SABclean CATLine per ISO 14644-1 Class 1 / VDI 2083 & ISO/IEC 11801 (Cleanroom High-Flex Ethernet).

Dimensions & weights
Order designationImpedance / sizeConductor & dielectricWall ≈
mm		Outer Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard SABclean CATLine configurations
SABclean CATLine Cat.5e S2×2×AWG26/19 · 100 Ω19-Wire Sn-Cu Drag-Chain0.755.2021.036.026
SABclean CATLine PN Cat.5e1×4×AWG22/19 · 100 Ω19-Wire PROFINET Type C0.906.5033.056.033
SABclean CATLine Cat.5e 4P4×2×AWG26/19 · 100 Ω19-Wire 4-Pair GigE S0.806.1028.048.031
SABclean CATLine Cat.5e R4×2×AWG26/19 · Robot±180°/m Torsion Cleanroom0.856.3029.050.032
SABclean CATLine Cat.6 S4×2×AWG26/19 · 250 MHz19-Wire 250 MHz GigE Vision0.856.6031.054.033
SABclean CATLine Cat.6A S4×2×AWG26/19 · 500 MHz10GBASE-T S/FTP Drag-Chain0.906.9035.061.035
SABclean CATLine Cat.6A 244×2×AWG24/19 · 500 MHzLong-Reach 10G S/FTP Chain0.957.8042.075.039
SABclean CATLine Cat.6A R4×2×AWG26/19 · Robot 10G±180°/m Torsion 10GBASE-T0.957.1036.064.036
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal engineering values for SABclean CATLine subject to standard manufacturing tolerances per ISO 14644-1 Class 1 / VDI 2083 & ISO/IEC 11801 (Cleanroom High-Flex Ethernet).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Characteristic impedance, return loss (VSWR) & TDR sweep100 % frequency-domain return loss and TDR impedance verification per ISO 14644-1 Class 1 / VDI 2083 & ISO/IEC 11801 (Cleanroom High-Flex Ethernet)Every manufactured length
Dielectric spark & high-voltage withstand test100 % in-line spark and AC/DC dielectric withstand per ISO 14644-1 Class 1 / VDI 2083 & ISO/IEC 11801 (Cleanroom High-Flex Ethernet)Every spool or drum length
Sample tests
Insertion loss (attenuation), velocity & capacitance checkAttenuation (dB/100m), VoP (%), and capacitance within ISO 14644-1 Class 1 / VDI 2083 & ISO/IEC 11801 (Cleanroom High-Flex Ethernet) limitsPer production batch
Screening attenuation, transfer impedance & environmental qualificationQualified to ISO 14644-1 Class 1 / VDI 2083 & ISO/IEC 11801 (Cleanroom High-Flex Ethernet) EMC shielding, thermal, and flame/fluid criteriaType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

ISO 14644-1 Class 1 / VDI 2083 & ISO/IEC 11801 (Cleanroom High-Flex Ethernet)CE (2014/35/EU) & RoHS 3 (2015/863/EU) CompliantREACH SVHC Compliance Verified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX SABclean CATLine CAT.6A 4x2xAWG26/19 ISO CLASS 1 CLEANROOM
Delivery form
Export wooden drums, flange reels or precision coils
Standard lengths
100 m · 305 m · 500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFSABclean CATLine ISO Class 1 Cleanroom High-Flex Industrial – technical datasheet8 sizes · construction, technical data, approvalsXLSXSABclean CATLine spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
