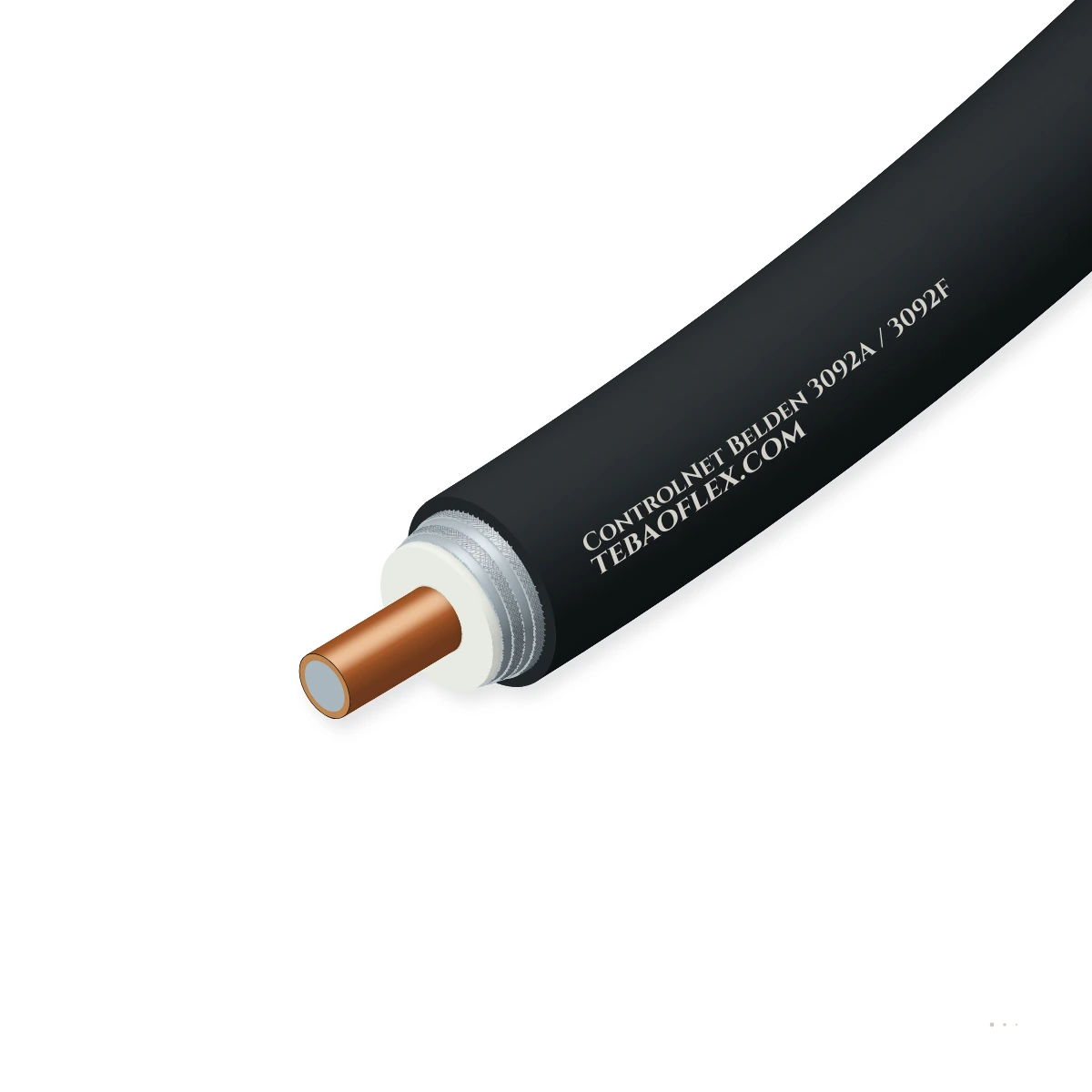

ControlNet RG-6 Quad-Shielded 75 Ω Industrial Coaxial Trunk Cable75 Ω RG-6 quad-shielded industrial ControlNet coaxial trunk cable (5 Mbps, 82 % VoP)

75 Ω quad-shielded RG-6 industrial coaxial trunk and drop cable (3092A / 3092F) for Rockwell Allen-Bradley ControlNet (5 Mbps Manchester) with an 18 AWG CCS core, gas-injected foam PE (82 % VoP, 53.1 pF/m), and Duobond Plus dual-foil/dual-braid quad shield.

Low-EMC design
EMC screen
Oil-resistant
Flame-retardant
Order designation
3092A Standard Trunk
Outer Ø ≈
7.57 mm
Wall thickness
0.95 mm
Total weight ≈
61.0 kg/km
Min. bend R (fixed)
75 mm
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Impedance
75 Ω ± 2 Ω
RG-6 industrial ControlNet coax
Velocity (VoP)
82 %
53.1 pF/m gas-injected foam PE
Shielding
Quad-shield
2 × Al/PET tapes + 60%/40% braids
Data rate
5.0 Mbps
Deterministic CTDMA up to 1000 m
Temperature
-30…+75 °C
PVC · up to +200 °C FEP plenum
Voltage rating
300 V RMS
UL CM / CL2 industrial rating

Typical values for this cable type, based on IEC 61158 Type 2 / ODVA ControlNet (RG-6 75 Ω Quad-Shield Coax) — confirmed in the datasheet and quotation for your order.

Application fit

Is ControlNet RG-6 Quad-Shield right for your machine?

Deploy 3092A (fixed trunk) and 3092F (flexing trunk) for Allen-Bradley ControlLogix, PLC-5, and distributed I/O deterministic 5 Mbps ControlNet redundant Channel A/B trunks.

Fixed installation

Suitable

3092A solid 18 AWG copper-clad steel conductor and 82 % VoP foam PE support unrepeated ControlNet trunk segments up to 1,000 m (2 nodes).

VFD inverter to AC motor screened feeder

Suitable

Four-layer quad shield (bonded foil + 60 % braid + foil + 40 % braid) prevents 5 Mbps Manchester packet errors in MV/LV drive rooms.

Switchgear & control cabinet wiring

Suitable

3092F stranded 19×30 AWG center conductor resists conductor fatigue inside swinging PLC cabinet doors and vibratory skids.

Motorised monospiral reel

Not suitable

RG-6 quad-shield trunk coax is not designed for heavy crane reeling drums; use Industrial Ethernet reeling cables instead.

Use ETHERLINE ROBUST FR
Typical machinesProcess Automation & DCS RedundancyAutomotive Stamping & Paint LinesWater & Wastewater Treatment PlantsPower Generation Turbine ControlMetallurgical Rolling Mills

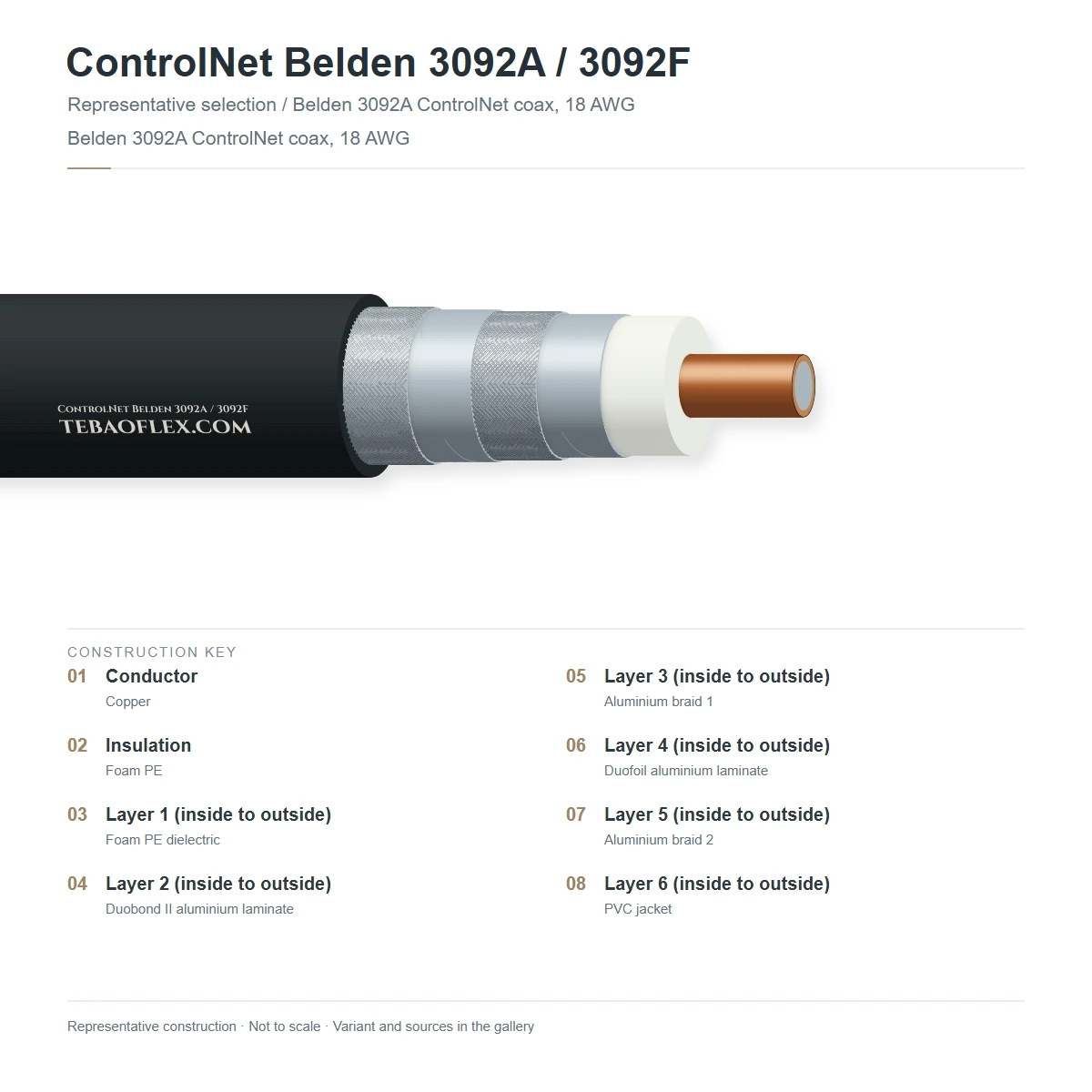

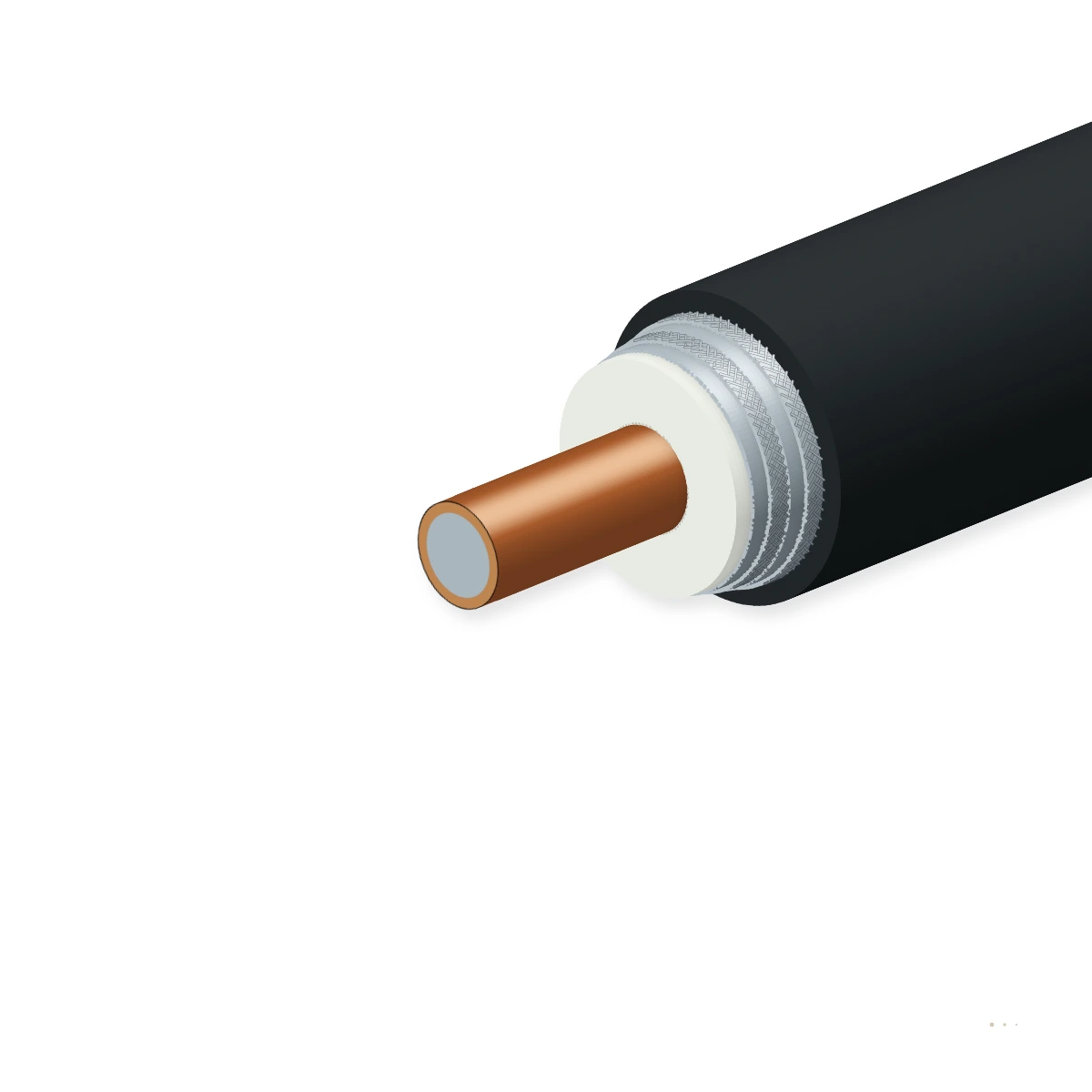

Construction

Layer by layer

RG-6 quad-shield ControlNet coax: 18 AWG CCS center conductor, gas-injected foam PE core, bonded Al/PET tape + 60 % Al braid + Al/PET tape + 40 % Al braid, and PVC jacket.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
118 AWG copper-clad steel (CCS) conductorSolid Ø 1.02 mm CCS (3092A) or 19×30 AWG stranded CCS/alloy (3092F)High tensile strength for BNC crimp pins and low 5–10 MHz skin-effect loss
2Gas-injected foam polyethylene dielectricNitrogen-foamed high-density polyethylene (Ø 4.57 mm, 82 % VoP, 53.1 pF/m)Low signal delay (4.06 ns/m) for strict ControlNet repeater timing budgets
3Inner bonded aluminum/polyester/aluminum tape100 % coverage bonded aluminum foil tape adhered to dielectricPrevents RF ingress and maintains constant shield-to-core spacing during bends
4Dual aluminum braids + second foil shield (Quad)60 % Al wire braid + 100 % Al/PET/Al tape + 40 % outer Al wire braidLow transfer impedance from 10 kHz to 100 MHz for high-noise plant floors
5Industrial PVC, CPE, LSZH or FEP outer jacketBlack sunlight/oil-resistant UL CM/CL2 PVC (Ø 7.57 mm) or harsh-duty CPE/FEPProtects the quad shield against conduit abrasion, oils, and moisture

3092A (Solid Trunk)

Solid 18 AWG (1.02 mm) CCS conductor for maximum 1,000 m trunk distance and low attenuation

3092F (Flexible Trunk)

Stranded 18 AWG (19×30 AWG) center conductor for flexing panels and high-vibration machinery

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEC 61158 Type 2 / ODVA ControlNet (RG-6 75 Ω Quad-Shield Coax). Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic impedance
75 Ω ± 2 Ω
Nominal capacitance
53.1 pF/m (16.2 pF/ft)
Velocity of propagation
82 % nominal (4.06 ns/m delay)
Attenuation @ 1 / 5 / 10 MHz
1.18 / 2.20 / 2.95 dB/100m (3092A)
Conductor / shield DC resistance
91.9 Ω/km center · 17.7 Ω/km quad shield

Thermal

Operating temperature (PVC)
-30 °C to +75 °C (3092A / 3092F)
Plenum FEP version (3093A)
-70 °C to +200 °C (UL CMP)
UL voltage rating
300 V RMS (UL CM / CL2)

Mechanical

Conductor / dielectric Ø
1.02 mm (18 AWG) / 4.57 mm foam PE
Overall diameter
7.57 mm (0.298 in) nominal
Min. bending radius
75 mm (10 × OD) installation
Max. pulling tension
614 N (138 lbf)

Resistance

Flame retardancy
UL 1685 FT4 / UL CMG / IEC 60332-1-2
Sunlight & oil resistance
UL Oil Res I & UV sunlight resistant
Transfer impedance
Quad-shield Class A++ EMC isolation

Reference standards

Fieldbus specification
IEC 61158 Type 2 / ODVA ControlNet
NEC / CEC approvals
NEC CM, CL2 · CEC CMG FT4
RoHS & REACH
RoHS 3 & REACH SVHC compliant

Identification

Outer jacket colour
Black (standard) or orange (intrinsically safe)
Jacket legend
TEBAOFLEX 3092A RG-6/U 75 OHM QUAD SHIELD CONTROLNET CM FT4
Customs tariff (HS)
8544.20

Sizes

8 standard configurations (ControlNet 3092A / 3092F)

Engineering dimensions, impedance, propagation velocity, and electrical ratings for ControlNet 3092A / 3092F per IEC 61158 Type 2 / ODVA ControlNet (RG-6 75 Ω Quad-Shield Coax).

Dimensions & weights
Order designationImpedance / sizeConductor & dielectricWall ≈
mm		Outer Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard ControlNet 3092A / 3092F configurations
3092A Standard Trunk75 Ω · 18 AWG SolidSolid CCS Ø 1.02 + Quad0.957.5732.061.075
3092F Flex Trunk75 Ω · 18 AWG Flex19×30 AWG + Quad Shield0.957.6233.063.076
3092A-CPE Chemical75 Ω · 18 AWG CPESolid CCS + Quad + CPE1.007.6532.066.077
3093A Plenum FEP75 Ω · 18 AWG FEPSolid CCS + Quad + FEP0.656.8632.058.069
3092A-LSZH75 Ω · 18 AWG LSZHSolid CCS + Quad + LSZH0.987.6032.065.076
3094A RG-11 Long Trunk75 Ω · 14 AWG SolidSolid CCS Ø 1.63 + Quad1.2010.3058.0112.0103
3095A Armored Trunk75 Ω · 18 AWG AIASolid CCS + Quad + Al Armor1.3511.8052.0145.0118
ControlNet Drop Coax75 Ω · 20 AWG FlexStranded + Quad Tap Cord0.856.9028.052.055
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal engineering values for ControlNet 3092A / 3092F subject to standard manufacturing tolerances per IEC 61158 Type 2 / ODVA ControlNet (RG-6 75 Ω Quad-Shield Coax).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Characteristic impedance, return loss (VSWR) & TDR sweep100 % frequency-domain return loss and TDR impedance verification per IEC 61158 Type 2 / ODVA ControlNet (RG-6 75 Ω Quad-Shield Coax)Every manufactured length
Dielectric spark & high-voltage withstand test100 % in-line spark and AC/DC dielectric withstand per IEC 61158 Type 2 / ODVA ControlNet (RG-6 75 Ω Quad-Shield Coax)Every spool or drum length
Sample tests
Insertion loss (attenuation), velocity & capacitance checkAttenuation (dB/100m), VoP (%), and capacitance within IEC 61158 Type 2 / ODVA ControlNet (RG-6 75 Ω Quad-Shield Coax) limitsPer production batch
Screening attenuation, transfer impedance & environmental qualificationQualified to IEC 61158 Type 2 / ODVA ControlNet (RG-6 75 Ω Quad-Shield Coax) EMC shielding, thermal, and flame/fluid criteriaType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

IEC 61158 Type 2 / ODVA ControlNet (RG-6 75 Ω Quad-Shield Coax)CE (2014/35/EU) & RoHS 3 (2015/863/EU) CompliantREACH SVHC Compliance Verified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX 3092A RG-6 75 OHM QUAD SHIELD CONTROLNET TRUNK CABLE CM FT4
Delivery form
Export wooden drums, flange reels or precision coils
Standard lengths
100 m · 305 m · 500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFControlNet RG-6 Quad-Shielded 75 Ω Industrial Coaxial Trunk Cable – technical datasheet8 sizes · construction, technical data, approvalsXLSXControlNet RG-6 Quad-Shield spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why must ControlNet trunks use quad-shielded 75 Ω RG-6 (3092A/3092F) instead of standard CCTV RG-59 or CATV RG-6?
ControlNet transmits 5 Mbps Manchester-encoded frames with strict attenuation (≤ 2.2 dB/100m at 5 MHz) and propagation velocity (82 %) budgets; standard CATV RG-6 lacks the four-layer shield coverage and tight 75 Ω ± 2 Ω impedance tolerance needed to prevent bit errors in industrial plants.
When should I use 3092A versus 3092F?
Use 3092A (solid 18 AWG conductor) for permanent conduit, tray, and long trunk runs up to 1,000 m; use 3092F (19-strand 18 AWG conductor) in vibrating machinery, flexing control panels, or short trunk segments with ~20 % shorter distance budgets.
What is the maximum unrepeated ControlNet trunk length with 3092A?
A single 3092A trunk segment supports up to 1,000 m with 2 nodes, 500 m with 24 nodes, or 250 m with the full 48-node capacity before a repeater is required, terminated with 75 Ω ± 1 % resistors at both ends.
Are special BNC connectors required for 3092A and 3092F?
Yes. Quad-shield ControlNet cables have a larger outer braid diameter than dual-shield RG-6 and require dedicated ControlNet quad-shield 75 Ω crimp BNC plugs.
