fiber optic cable seriesIEC 60794-4-20 OPPC10–220 kV Phase LineLaser-Welded FIMT

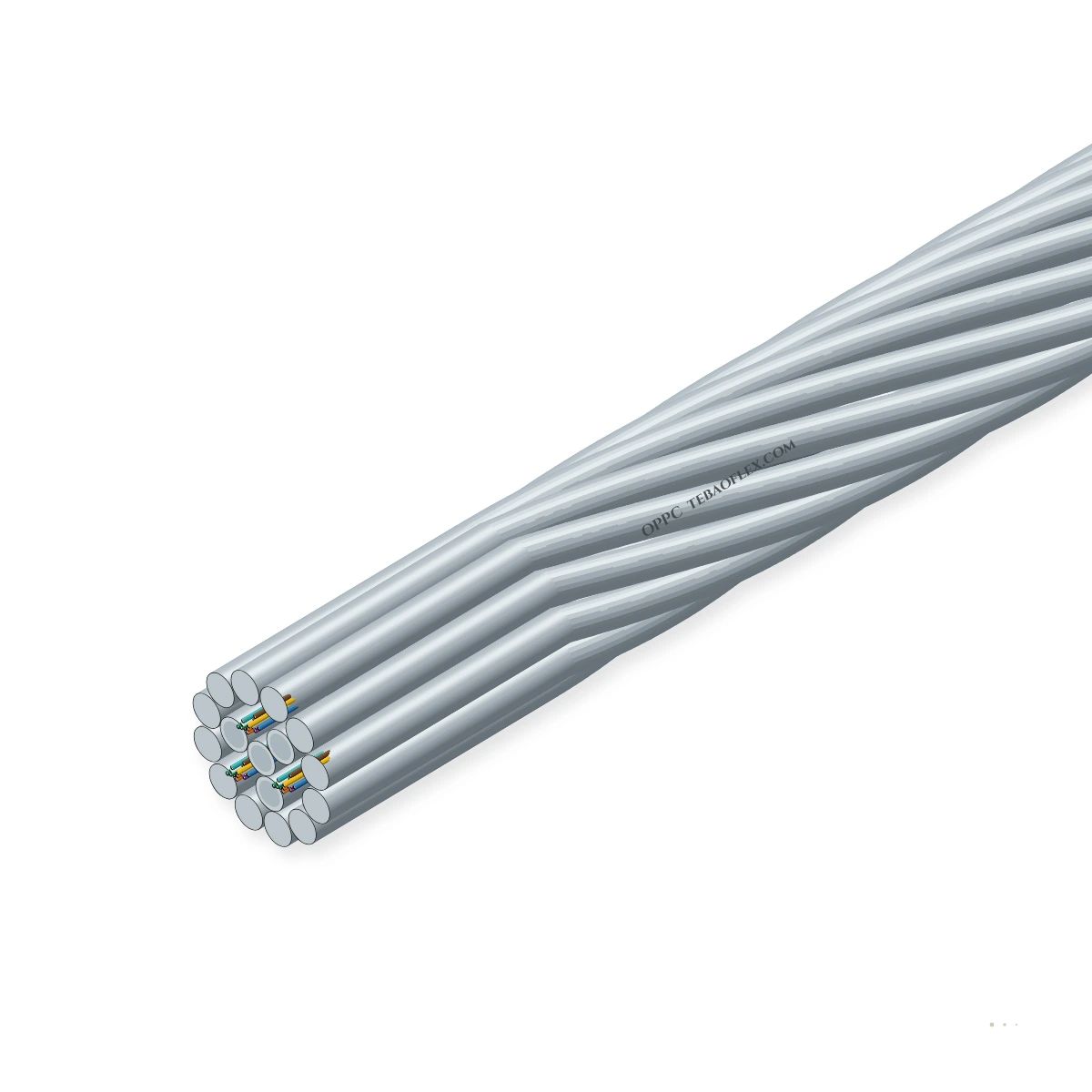

OPPC Optical Phase Conductor (OPPC) Overhead Power TransmissionOverhead HV/MV phase conductor with laser-welded 316L stainless-steel FIMT optical core

OPPC Optical Phase Conductor Overhead Power Transmission Composite Fibre Cable per IEC 60794-4-20 combining an ACSR/AAAC phase conductor with a hermetically laser-welded stainless-steel optical unit (12–96 G.652.D fibres) for 10 kV.

10–220 kV Overhead Phase
Hermetic 316L FIMT
ACSR / AAAC Matched
IEC 60794-4-20
Order designation
OPPC-48B1-185/30
Outer Ø
19.0 mm
Weight ≈
745 kg/km
Breaking load (RTS)
68 kN
Phase ampacity
495 A
All sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Fibre count
12 to 96 fibres
G.652.D / G.655 in 316L FIMT
Cross-section
70 to 400 mm²
ACSR / AAAC phase-matched
Continuous amp.
245 to 840 A
Continuous phase current
Breaking load
42 to 138 kN
Rated Tensile Strength (RTS)
Operating temp.
-40 to +90 °C
+200 °C short-circuit peak
Fibre loss
≤ 0.35 / 0.21
dB/km @ 1310 / 1550 nm

Typical values for this cable type, based on IEC 60794-4-20 / IEEE 1138 / IEC 61089 — confirmed in the datasheet and quotation for your order.

Application fit

Is OPPC right for your machine?

Replaces one of the three overhead power phase conductors on 10–220 kV wood-pole or H-frame lines that lack an overhead earth-wire peak for OPGW.

Free-hanging vertical run

Suitable

Strung on phase insulators across 10 kV, 35 kV, 66 kV, 110 kV and 220 kV overhead transmission spans.

Fixed installation

Suitable

Matches diameter, sag-tension, ampacity and ice/wind loading of the companion ACSR/AAAC phase conductors.

Immersion & wet locations

Suitable

Laser-welded 304L/316L stainless-steel FIMT blocks moisture and hydrogen darkening over 40-year grid service.

Energy chain / drag chain

Not suitable

Bare overhead high-voltage phase conductor; not for indoor or drag-chain use.

Use Industrial Breakout FO
Typical machines10–66 kV Rural & Renewable Collector Lines110–220 kV Sub-Transmission Without Earth WireWind & Solar Farm Grid InterconnectsDistribution Automation & Fault LocationConductor Temperature & Ice-Load DTS/DSS

Construction

Layer by layer

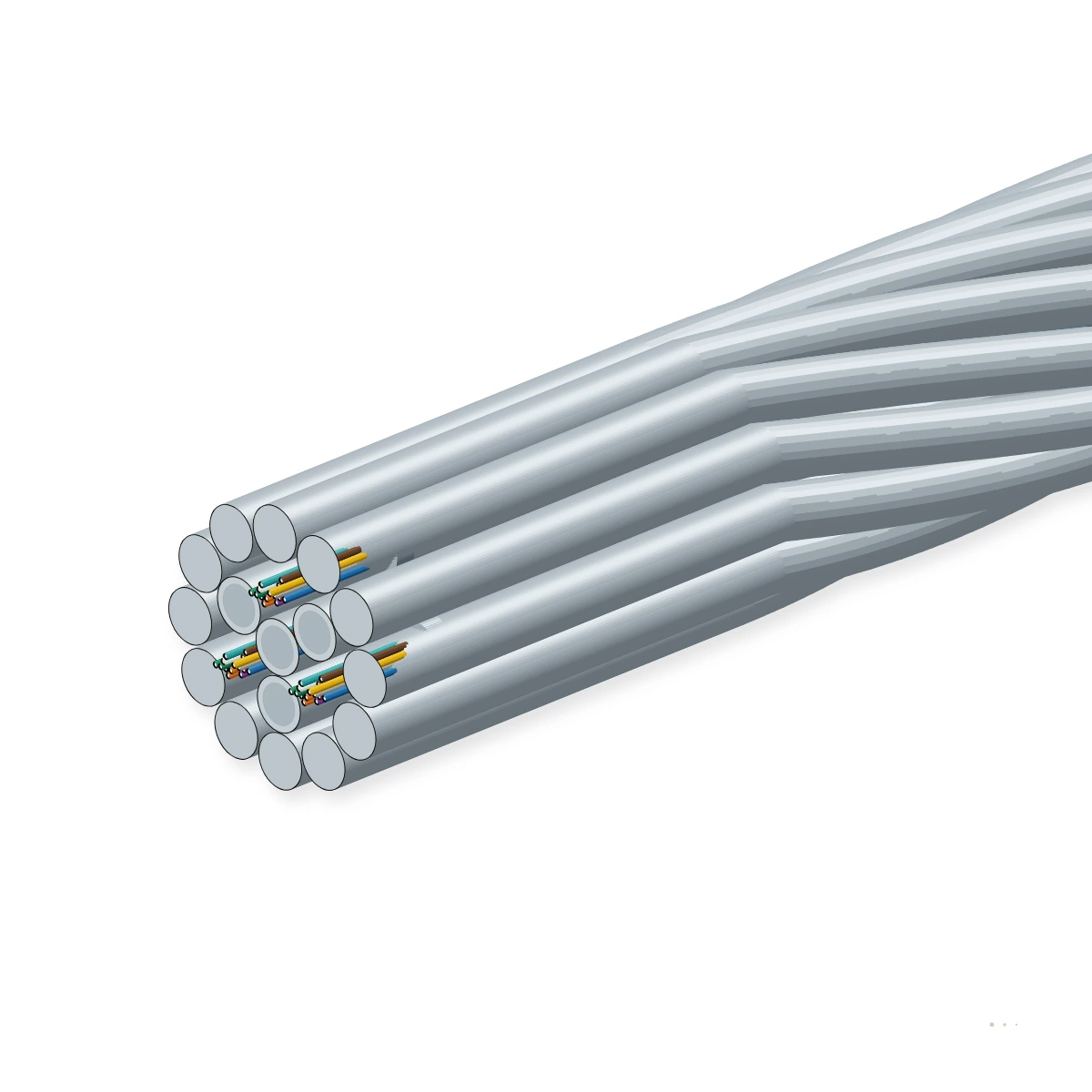

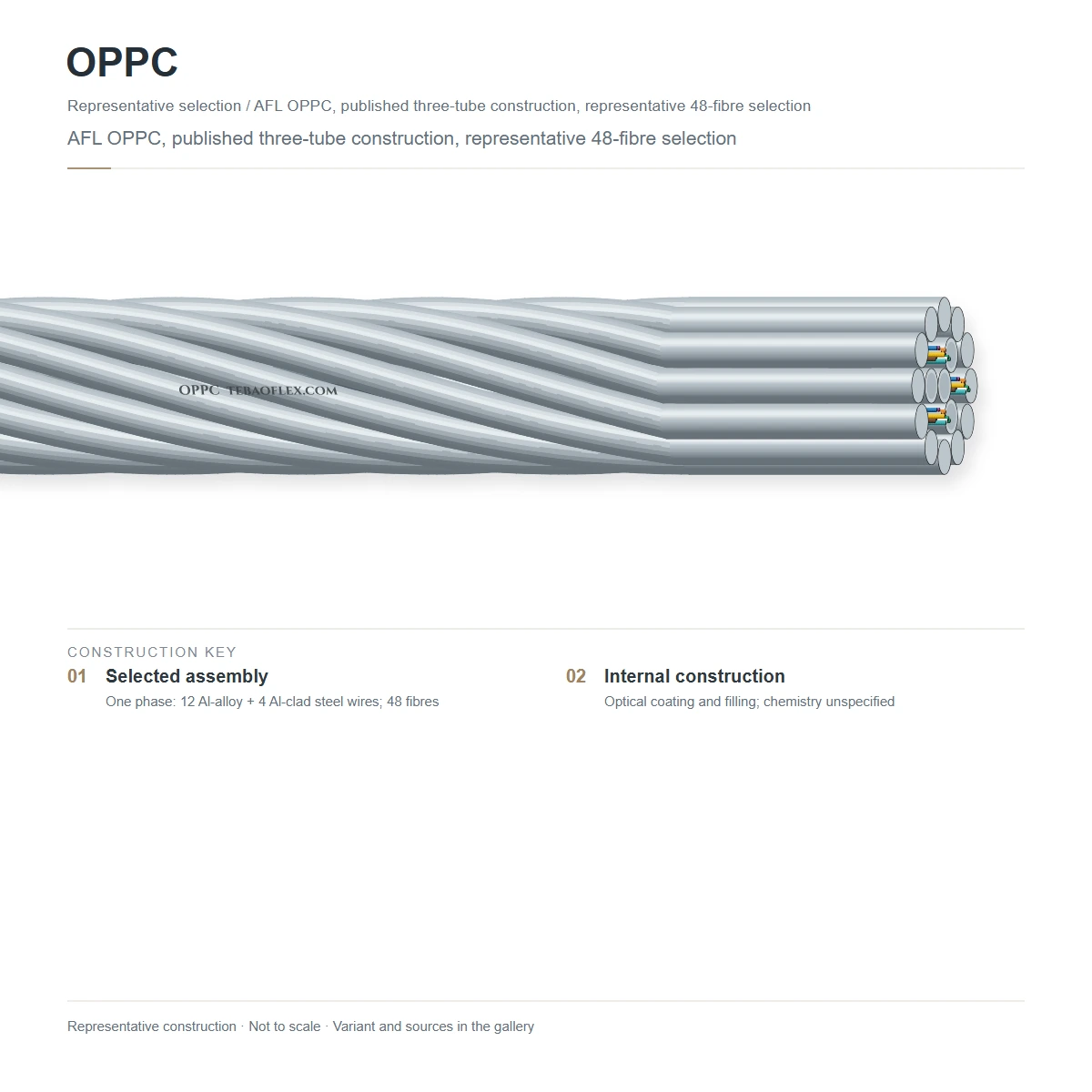

OPPC Optical Phase Conductor showing G.652.D/G.655 fibres in high-temperature gel inside a laser-welded 316L stainless-steel FIMT, inner ACS/steel reinforcement wires, and outer 1350-H19 / 6201-T81 aluminum phase wires.

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Single-mode optical fibres + high-temp gel12 to 96 ITU-T G.652.D / G.655 single-mode fibres (+ optional OM3/SM sensing fibres) in +200 °C silicone-free thixotropic compound≤ 0.35 dB/km @ 1310 nm · ≤ 0.21 dB/km @ 1550 nm
2Laser-welded 316L stainless-steel FIMTHermetically welded AISI 304L/316L stainless-steel tube (central or inner-layer stranded) with 0.25–0.40 % EFLIsolates fibres from continuous +90 °C phase heat & tension
3Inner Aluminum-Clad Steel (ACS) strength coreConcentric-lay Aluminum-Clad Steel (20SA–40SA per IEC 61232) or galvanized steel core wiresCarries catenary mechanical tension (RTS 42–138 kN)
4Outer EC Aluminum / AAAC phase conductor wires1 to 3 layers of hard-drawn 1350-H19 Aluminum (IEC 60889) or 6201-T81 Aluminum Alloy (IEC 60104) wiresCarries continuous 50/60 Hz phase current (245–840 A)

OPPC-70 to OPPC-150 (10–66 kV)

Matched to LGJ-70/10, 95/15, 120/20 & 150/25 ACSR phase conductors with 24–48 fibres

OPPC-185 to OPPC-400 (66–220 kV)

Matched to Drake / Lynx / Zebra ACSR phase conductors with 48–96 fibres and HV insulator splice boxes

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEC 60794-4-20 / IEEE 1138 / IEC 61089. Values for your order are confirmed in the datasheet and quotation.

Electrical

Continuous current (ampacity)
245 A (OPPC-70) to 840 A (OPPC-400) per IEC 61597
DC resistance @ 20 °C
0.072 to 0.410 Ω/km
Short-circuit capacity (I²t)
25 to 260 kA²·s (0.5 s to +200 °C)

Thermal

Continuous operating temp.
-40 °C to +90 °C (continuous phase current)
Short-circuit peak temp.
Up to +200 °C (0.5 s fault duration)
Linear expansion coeff.
17.8 to 19.6 × 10⁻⁶ /K (ACSR-matched)

Mechanical

Rated Tensile Strength (RTS)
42 kN to 138 kN
Modulus of elasticity
68 to 88 GPa (matched to companion phases)
Crush resistance
≥ 10,000 N / 100 mm
Min. bend radius
20 × OD (static) · 30 × OD (stringing sheave)

Optical

Fibre specification
ITU-T G.652.D / G.655 (high-temp +125 °C coating opt)
Attenuation @ 1310 / 1550 nm
≤ 0.35 dB/km / ≤ 0.21 dB/km
Excess fibre length (EFL)
0.25 % to 0.40 % inside 316L FIMT

Resistance

Hermeticity & moisture
100 % eddy-current tested 316L welded FIMT
Aeolian vibration
10⁸ cycles at 20 % RTS without wire or fibre break
HV isolation at joints
Porcelain/silicone composite HV optical insulator boxes

Reference standards

OPPC standard
IEC 60794-4-20 Aerial Optical Phase Conductors
Conductor standard
IEC 61089 · IEC 61232 (ACS) · IEC 60889
RoHS & REACH
2011/65/EU & EC 1907/2006 compliant

Identification

Outer appearance
Bare stranded aluminum phase conductor
Fibre colour code
TIA-598-D 12-colour + ring-coded bundles
Customs tariff (HS)
8544.7000

Sizes

6 standard OPPC phase-matched cross-sections (70 mm² to 400 mm²)

Electrical ampacity, DC resistance and mechanical RTS ratings for OPPC per IEC 60794-4-20.

Dimensions, ampacity & RTS
Order designationMatched ACSR & fibresOuter Ø
mm		Weight ≈
kg/km		RTS
kN		DC R @ 20 °C
Ω/km		Ampacity
A		Enquiry
10–66 kV Medium-Voltage OPPC (70–150 mm²)
OPPC-24B1-70/10ACSR 70/10 · 24F G.652.D11.4275260.410245
OPPC-24B1-120/20ACSR 120/20 · 24F G.652.D15.2495460.238365
OPPC-48B1-150/25ACSR 150/25 · 48F G.652.D17.1610560.192425
66–220 kV High-Voltage OPPC (185–400 mm²)
OPPC-48B1-185/30ACSR 185/30 · 48F G.652.D19.0745680.154495
OPPC-48B1-240/40ACSR 240/40 · 48F G.652.D21.6965860.119590
OPPC-96B1-400/50ACSR 400/50 · 96F G.652.D27.61,5101320.072840
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Continuous ampacity calculated at +80 °C conductor, +35 °C ambient, 0.6 m/s wind and 1000 W/m² solar radiation per IEC 61597.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
100 % eddy-current FIMT weld, DC resistance & OTDR testZero tube pinholes, DC R within IEC 61089, α ≤ 0.35 / 0.21 dB/kmEvery manufactured drum length
Sample tests
Continuous +90 °C thermal aging & +200 °C short-circuit testΔα ≤ 0.05 dB/km after thermal cycling and rated I²t fault pulseType qualification
Stress-strain, creep & aeolian vibration fatigue10⁸ vibration cycles and tensile loading to RTS per IEC 60794-4-20Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

IEC 60794-4-20 OPPC StandardIEC 61089 & IEEE 1138RoHS 2 & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

Stamped drum tag: TEBAOFLEX OPPC-<COUNT>B1-<AREA> IEC 60794-4-20
Delivery form
Fumigated export wooden or steel drums
Standard drum lengths
1000 m · 2000 m · 4000 m (or custom cut lengths)
MOQ
500 m (standard) · 1000 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFOPPC Optical Phase Conductor (OPPC) Overhead Power Transmission – technical datasheet6 sizes · construction, technical data, approvalsXLSXOPPC spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20
