fiber optic cable seriesIEC 60794-2-20Ø 2.0 mm Sub-UnitsLSZH / PUR Jacket

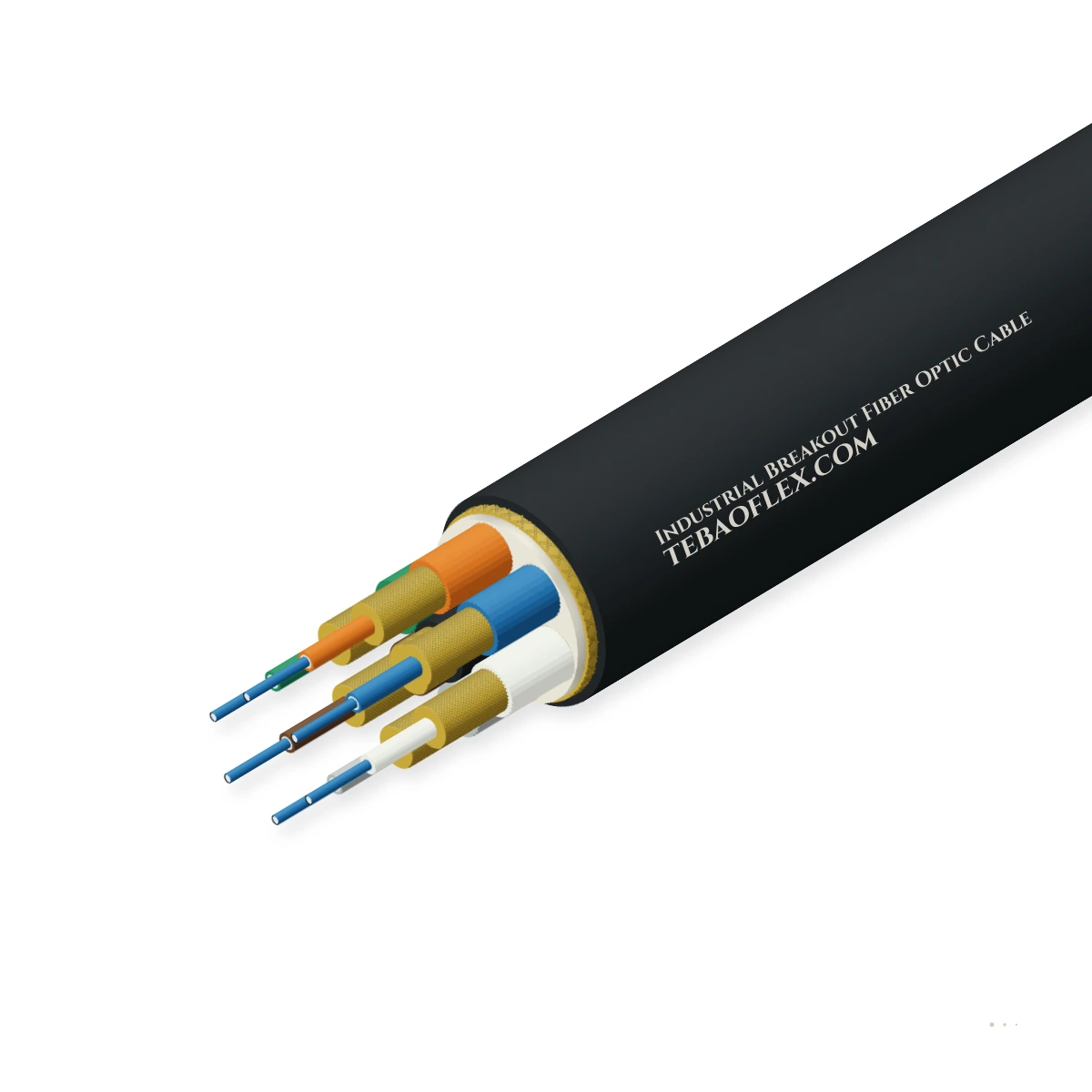

Industrial Breakout Fiber Optic CableTight-buffered 2.0 mm sub-unit industrial breakout optical cable

Industrial Breakout Fiber Optic Cable with individual 2.0 mm aramid-reinforced simplex sub-units around a central FRP rod for direct LC, SC or ST connector termination in industrial cabinets, trays and ducts per IEC 60794-2-20.

IEC 60332-3 LSZH
Oil-Resistant PUR
UV & Indoor/Outdoor
Dry Water-Blocked
Order designation
IND-BRK-04SM-G657A1
Outer Ø ≈
7.6 mm
Weight ≈
58 kg/km
Max. pull load
1,200 N
Min. bend R
76 mm
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Fibre grade
G.657.A1 / OM4
Single-mode or 50/125 µm MM
Sub-unit Ø
2.0 mm ± 0.1 mm
900 µm tight buffer + aramid
Fibre count
2 to 24 fibres
Individually jacketed sub-cables
Tensile load
1,200–2,800 N
Short-term pulling tension
Crush rating
1,500 N/100 mm
Radial compression resistance
Temperature
-40 to +75 °C
Continuous industrial operation

Typical values for this cable type, based on IEC 60794-2-20 / ISO/IEC 11801 / EN 50173 — confirmed in the datasheet and quotation for your order.

Application fit

Is Industrial Breakout Fiber Optic Cable right for your machine?

Designed for direct multi-connector fan-out in industrial switchgear, substation patch panels, machinery ducts, and plant backbone trays.

Fixed installation

Suitable

Direct tray, conduit, riser and control-cabinet routing without external splice fan-out kits.

Switchgear & control cabinet wiring

Suitable

Individual 2.0 mm sub-units route directly to LC, SC, ST or E2000 optical transceivers.

TBM gantry & advancing tunnel reel

Suitable

Halogen-free LSZH or abrasion-resistant PUR outer sheath withstands gallery and tunnel trays.

Energy chain / drag chain

With conditions

Suitable for occasional flexing; for continuous high-cycle drag chains specify PCF or POF duplex.

Use HITRONIC PCF DUPLEX
Typical machinesFactory Automation & PLC BackbonesPower Substations & SwitchgearProcess Plant Control RoomsWind Turbine Nacelle InterconnectsTunnel & Rail Signalling Cabinets

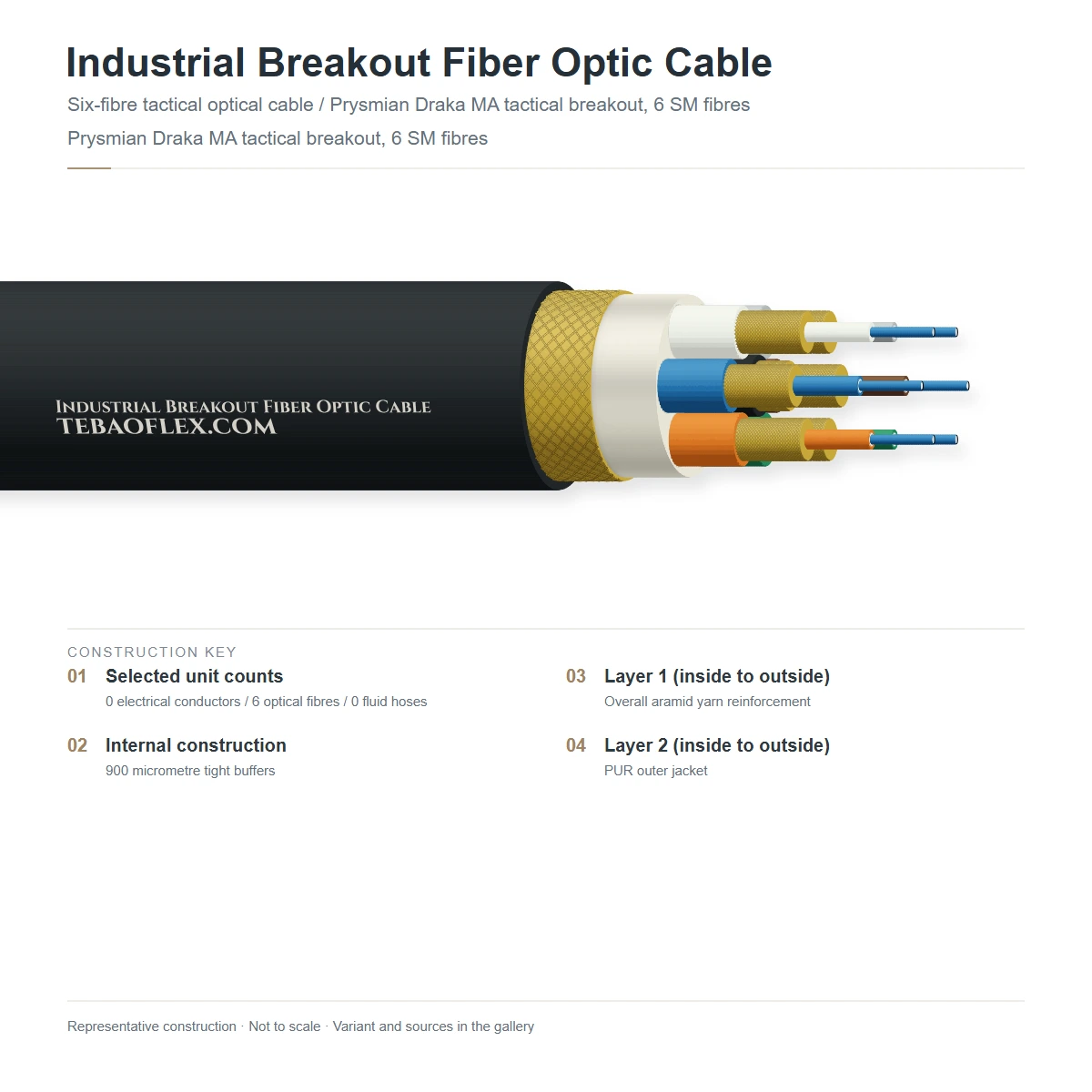

Construction

Layer by layer

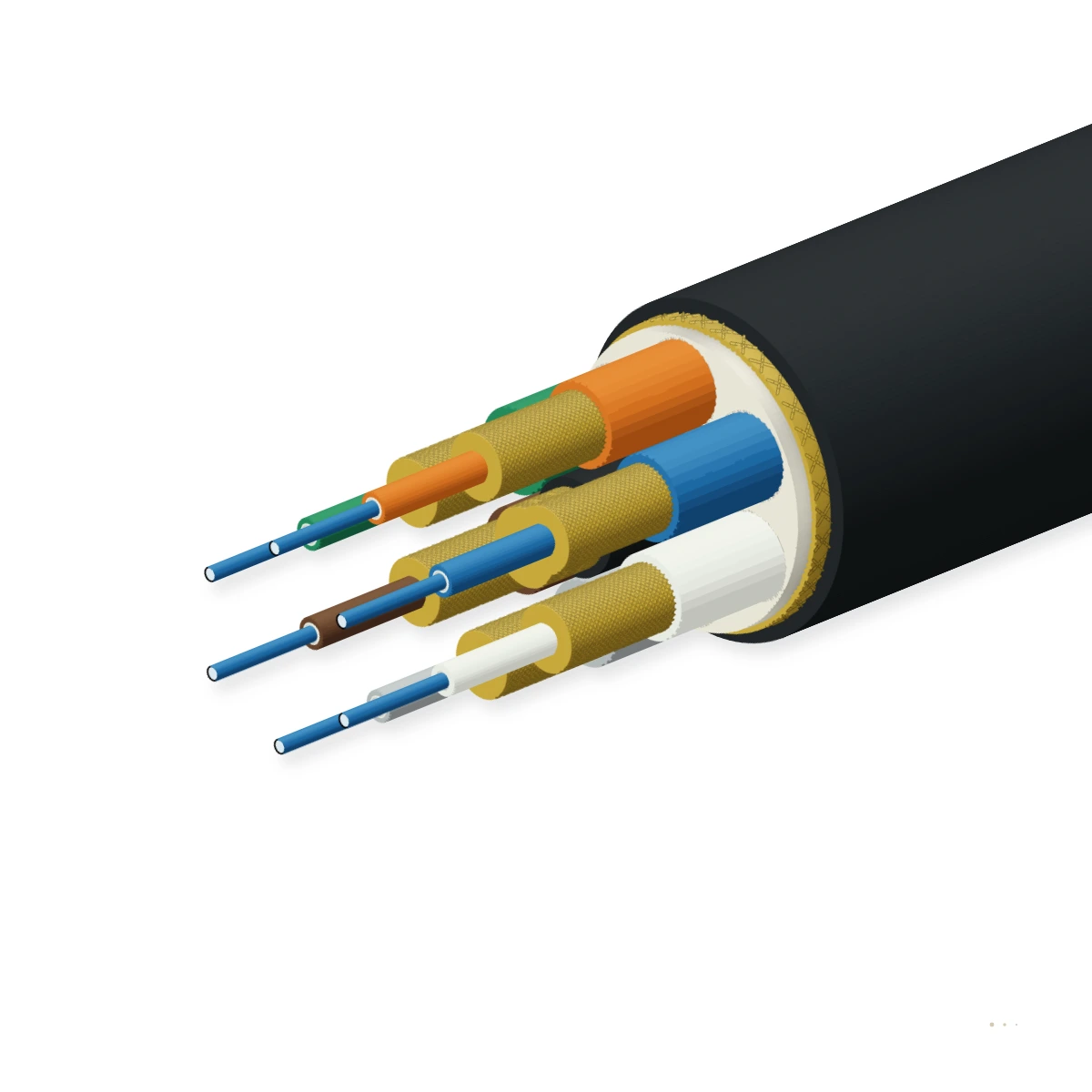

Cross-section of Industrial Breakout Fiber Optic Cable showing central FRP dielectric strength member, stranded 2.0 mm tight-buffered simplex sub-units, glass roving, and outer LSZH/PUR sheath.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Optical waveguide & tight buffer9/125 µm ITU-T G.657.A1 single-mode or 50/125 µm OM3/OM4 multimode silica fibre with 900 µm semi-tight thermoplastic bufferIEC 60793-2-50 / IEC 60793-2-10
2Simplex 2.0 mm sub-unit jacketHigh-modulus polyaramid yarn tensile surround and numbered Ø 2.0 mm LSZH sub-cable sheathSupports direct LC / SC / ST crimping without fan-out kit
3Central strength memberUp-jacketed non-metallic Fibre-Reinforced Plastic (FRP) rodAnti-buckling thermal stability across -40 to +75 °C
4Water-blocking & rodent barrierDry water-swellable tape plus E-glass yarn peripheral reinforcementLongitudinal moisture block & non-metallic rodent deterrent
5Outer industrial jacketFlame-retardant LSZH (IEC 60332-3-24) or oil-resistant polyether PURUV-stabilised, ripcord-equipped industrial outer sheath

Breakout-LSZH (OS2 / OM4)

Halogen-free flame-retardant jacket (CPR Cca / IEC 60332-3-24) for indoor control rooms and tunnels

Breakout-PUR (Heavy-Duty)

Oil-, coolant- and abrasion-resistant polyurethane outer sheath for factory floors and machine tools

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEC 60794-2-20 / ISO/IEC 11801 / EN 50173. Values for your order are confirmed in the datasheet and quotation.

Electrical

Dielectric design
100 % all-dielectric (metal-free)
EMI / RFI immunity
Complete immunity to HV switching surges
Sub-unit pull strength
≥ 400 N per 2.0 mm simplex sub-cable

Thermal

Operating temperature
-40 °C to +75 °C
Installation temperature
-15 °C to +60 °C
Storage temperature
-40 °C to +80 °C
Thermal cycling delta
≤ 0.05 dB/km (SM) / ≤ 0.10 dB/km (MM)

Mechanical

Sub-unit diameter
2.0 mm ± 0.1 mm (900 µm tight buffer)
Min. bend radius, static
10 × cable OD (25 mm per sub-unit)
Min. bend radius, dynamic
15 × cable OD during installation pull
Crush resistance
1,500 N / 100 mm (short-term) · 800 N (long-term)
Impact resistance
15 J, 3 impacts (IEC 60794-1-21 Method E4)

Optical

Fibre options
G.657.A1 (OS2) · OM2 · OM3 · OM4 (50/125 µm)
Attenuation (OS2 SM)
≤ 0.36 dB/km @ 1310 nm · ≤ 0.22 dB/km @ 1550 nm
Attenuation (OM3/OM4)
≤ 2.5 dB/km @ 850 nm · ≤ 0.7 dB/km @ 1300 nm
Modal bandwidth (OM4)
≥ 3,500 MHz·km (OFL) · ≥ 4,700 MHz·km (EMB @ 850 nm)

Resistance

Flame retardance
IEC 60332-1-2 & IEC 60332-3-24 Cat. C (LSZH)
Halogen-free & smoke
IEC 60754-1/2 & IEC 61034-2 (≥ 60 % transmittance)
Oil & chemical resistance
EN 60811-404 mineral oil resistant (PUR sheath)
Water penetration
Longitudinal dry block per IEC 60794-1-22 F5B

Reference standards

Cable construction
IEC 60794-2-20 (Multi-fibre breakout cables)
Structured cabling
ISO/IEC 11801-1 · EN 50173-1 · TIA-568.3-D
RoHS & REACH
2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Outer sheath colour
Black (outdoor/PUR), Aqua (OM3/OM4) or Yellow (OS2)
Sub-unit identification
Numbered 1–24 with TIA-598-D colour-coded tight buffers
Sheath marking
TEBAOFLEX INDUSTRIAL BREAKOUT FO <count> × 2.0mm
Customs tariff (HS)
8544.7000

Sizes

8 standard industrial breakout configurations (2 to 24 fibres)

Nominal dimensions, mechanical pull ratings and bend radii for 2.0 mm sub-unit Industrial Breakout Fiber Optic Cable per IEC 60794-2-20.

Dimensions & mechanical ratings
Order designationSub-units × ØOuter Ø ≈
mm		Weight ≈
kg/km		Max. pull
N		Min. bend R
static mm		Enquiry
Single-mode OS2 (ITU-T G.657.A1)
IND-BRK-02SM-G657A12 × 2.0 mm OS26.54280065
IND-BRK-04SM-G657A14 × 2.0 mm OS27.6581,20076
IND-BRK-08SM-G657A18 × 2.0 mm OS29.8941,80098
IND-BRK-12SM-G657A112 × 2.0 mm OS211.61322,200116
IND-BRK-24SM-G657A124 × 2.0 mm OS215.22152,800152
Multimode OM3 / OM4 (50/125 µm)
IND-BRK-04MM-OM44 × 2.0 mm OM47.6581,20076
IND-BRK-08MM-OM48 × 2.0 mm OM49.8941,80098
IND-BRK-12MM-OM412 × 2.0 mm OM411.61322,200116
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Each simplex sub-unit is 2.0 mm OD with an internal 900 µm tight buffer and dedicated polyaramid yarn for direct connector crimping.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
100 % bidirectional OTDR attenuation test≤ 0.36 / 0.22 dB/km (SM) or ≤ 2.5 / 0.7 dB/km (MM) with zero point discontinuitiesEvery manufactured drum length
Sample tests
Tensile & sub-unit pull-out performanceΔα ≤ 0.05 dB under rated installation tension per IEC 60794-1-21 E1Per production lot
Radial crush & repeated impact test1,500 N / 100 mm crush (Method E3) and 15 J impact (Method E4) without fibre breakType qualification
Bunched vertical flame & halogen-free testPass IEC 60332-3-24 Cat. C, IEC 60754-2 (pH ≥ 4.3) and IEC 61034-2Type qualification (LSZH)

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

IEC 60794-2-20 & ISO/IEC 11801CPR EN 50575 Class Cca-s1a,d1,a1 (LSZH)RoHS 2 (2011/65/EU) & REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX INDUSTRIAL BREAKOUT FO <COUNT>×2.0MM G.657.A1/OM4 IEC 60794-2-20
Delivery form
Fumigated export wooden or steel drums
Standard drum lengths
1000 m · 2000 m · 4000 m (or custom cut lengths)
MOQ
500 m (standard) · 1000 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFIndustrial Breakout Fiber Optic Cable – technical datasheet8 sizes · construction, technical data, approvalsXLSXIndustrial Breakout Fiber Optic Cable spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20
