PN-G-90100 Polish Mining Rubber CablesPN-G-901020.6/1 kV+90 °C Mining Rubber

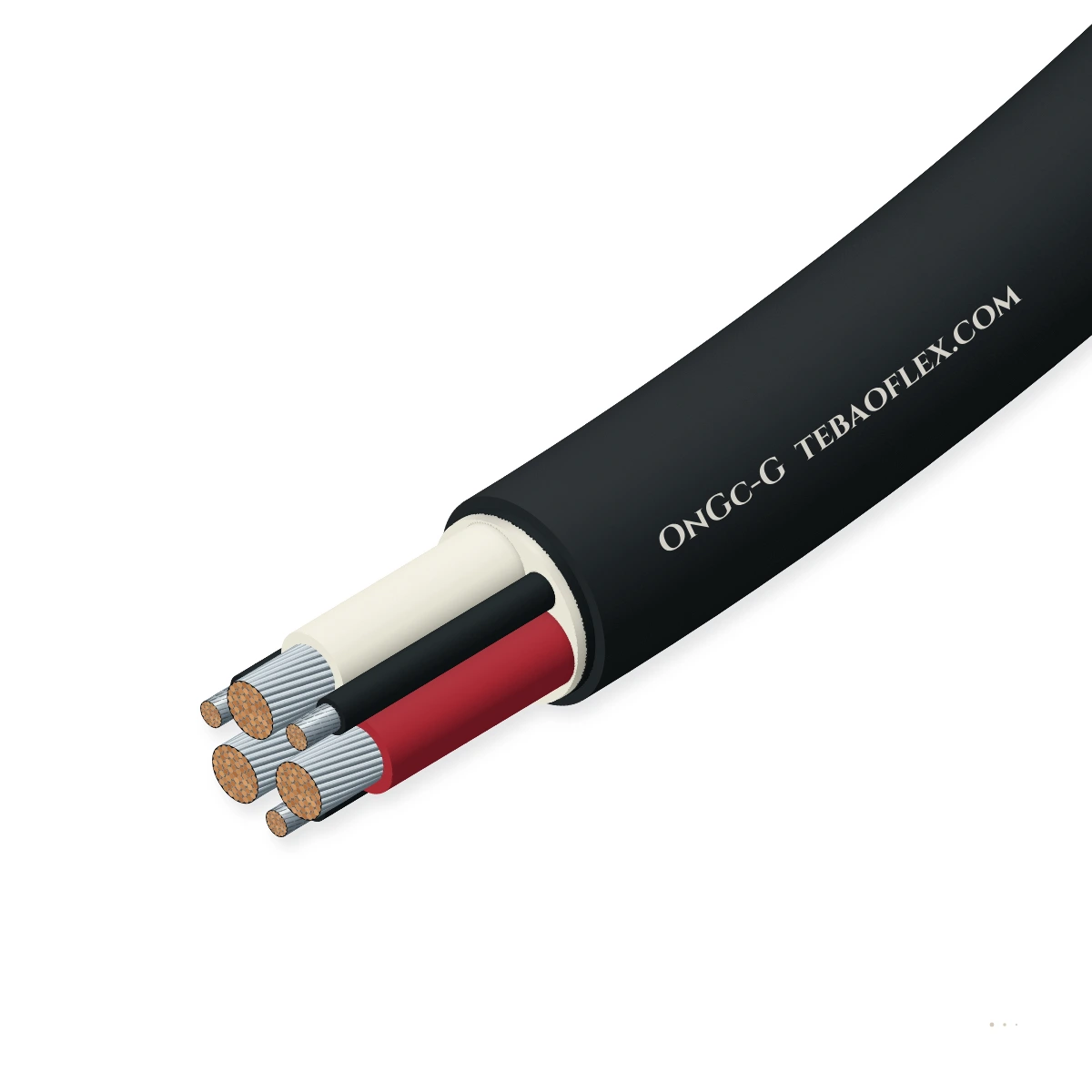

OnGc-G CablePN-G-90102 · 0.6/1 kV · Class 5 Cu · +90 °C heat-resistant EPR · Unscreened · Mining PCP

OnGc-G is a Polish-standard 0.6/1 kV heat-resistant unscreened flexible mining rubber power cable manufactured to PN-G-90102. The 'c' designation denotes +90 °C heat-resistant EPR insulation for higher current-carrying capacity, while '-G' certifies

Flame-retardant

Oil-resistant

Outdoor & humid

Approved

Configuration

Order designation: OnGc-G 4×16
Outer Ø ≈: 26.8 mm
Copper weight: 614 kg/km
Total weight ≈: 1,270 kg/km
Min. bend R (fixed): 161 mm

All sizes (12)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 0.6/1 kV
Conductor max.: +90 °C
Ambient (flex): -25 to +60 °C
Min. bend R: 6 × D / 10 × D
Phase size: 1.5–120 mm²
Flame test: IEC 60332-1-2

Typical values for this cable type, based on PN-G-90102 / ZN-TF-203 — confirmed in the datasheet and quotation for your order.

Application fit

Is OnGc-G right for your machine?

Engineered for higher-ampacity 0.6/1 kV power distribution to underground mine pumps, fans, drilling jumbos, and roadway machinery where unscreened feeders are permitted.

Mine roadway & tunnel wall hangers

Suitable

High-ampacity +90 °C feeder for underground gallery pumps, ventilation fans, and auxiliary drives.

Trailing & towing

Suitable

Flexible trailing connection for mobile skid units, crushers, and non-screened underground equipment.

Drilling jumbo & rotary mast feed

Suitable

Well suited to mobile drilling rigs and heading feeders requiring elevated thermal margin.

Motorised monospiral reel

With conditions

Permissible for light mono-spiral cable drums; use NSHTÖU for high-tension dynamic reeling.

NSHTÖU 0.6/1 kV

VFD inverter to AC motor screened feeder

Not suitable

Unscreened construction; select OnGcekż-G or (N)SSHCÖU when EMC or pilot earth monitoring is required.

OnGcekż-G

Typical machinesUnderground Coal & Salt MiningMine Dewatering & VentilationTunnel Boring Auxiliary FeedersQuarry & Aggregate ProcessingHeavy Industrial Power Distribution

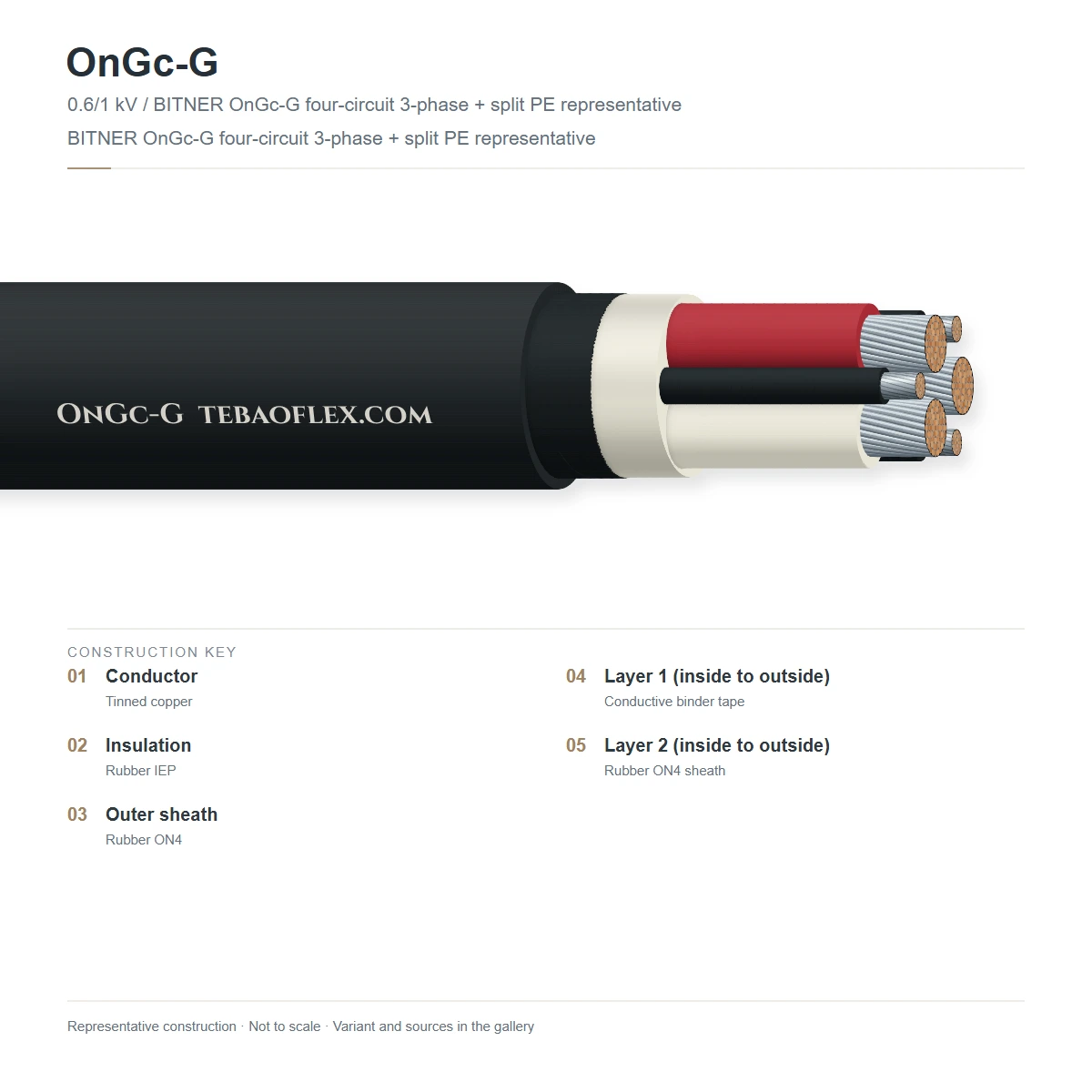

Construction

Layer by layer

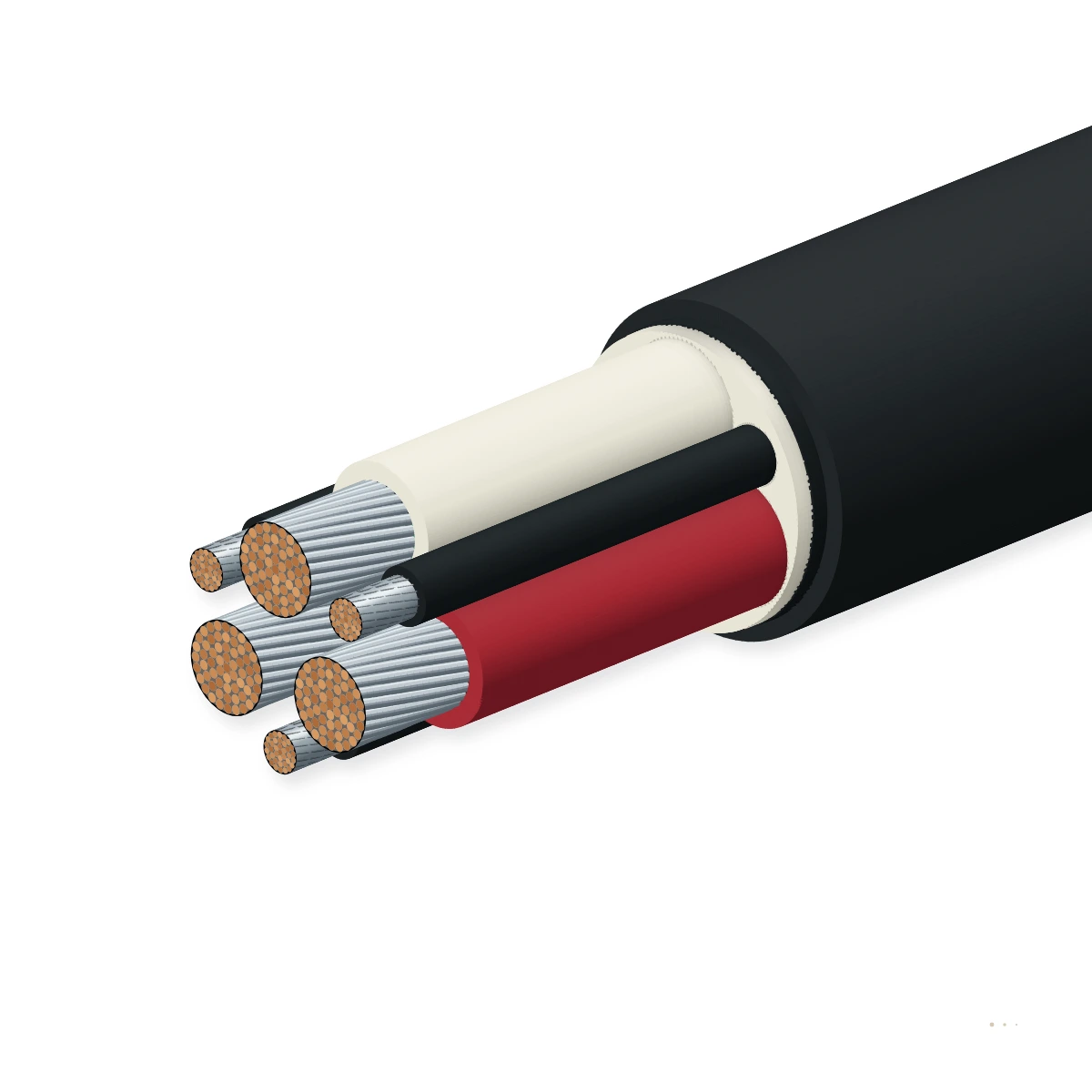

+90 °C heat-resistant EPR-insulated Class 5 copper cores laid up with an inner rubber filler and heavy-duty '-G' mining polychloroprene

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Flexible copper conductor	Plain or tinned annealed electrolytic copper, Class 5 fine-strandedIEC 60228 Class 5
2	Heat-resistant EPR insulation ('c')	Cross-linked +90 °C heat-resistant ethylene-propylene elastomer (EPR)PN-G-90102
3	Core lay-up & inner rubber filler	Cores stranded with short pitch in extruded elastomeric inner beddingPN-G-90102
4	Underground mining outer sheath ('-G')	Heavy-duty flame-retardant, oil- and abrasion-resistant polychloroprene (PCP) compoundPN-G-90100 / PN-G-90102

OnGc-G 4× (3+PE)

Three phase cores plus green/yellow protective earth core for underground three-phase motor feeders.

OnGc-G 5× (3+N+PE)

Five-core power and distribution feeder for underground lighting, dewatering, and workshop panels.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on PN-G-90102 / ZN-TF-203. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 0.6/1 kV AC
Maximum system voltage Um: 1.2 kV AC
Routine AC test voltage: 3.0 kV rms / 5 min
Max. short-circuit current density: 143 A/mm² (1 s, +90 to +250 °C)
Nominal frequency: 50 / 60 Hz
Conductor stranding class: IEC 60228 Class 5

Thermal

Max. conductor operating temp.: +90 °C continuous ('c' EPR)
Max. short-circuit temperature: +250 °C (max. 5 s)
Mobile ambient range: -25 °C to +60 °C
Fixed ambient range: -40 °C to +60 °C
Current rating advantage: +15 % to +18 % vs +70 °C OnG
Min. laying temperature: -15 °C

Mechanical

Min. bend radius (fixed): 6 × overall diameter (D)
Min. bend radius (mobile): 10 × overall diameter (D)
Max. static tensile pull: 15 N/mm² of copper cross-section
Crush & impact resistance: Heavy underground '-G' sheath grade
Tear resistance: ≥ 15 N/mm per PN-G-90100
Sheath tensile strength: ≥ 12.5 MPa unaged

Resistance

Flame retardance: IEC 60332-1-2 / PN-G-90100 '-G'
Mineral oil & grease: EN 60811-404 oil-resistant PCP
Mine water & dampness: Acidic & alkaline mine water resistant
Ozone resistance: Ozone-inert EPR core insulation
Weather & UV stability: Suitable for surface & underground
Halogen status: Chloroprene rubber (halogenated)

Reference standards

Primary product standard: PN-G-90102 / ZN-TF-203
Base mining series standard: PN-G-90100
Conductor standard: IEC 60228 Class 5
Core colour identification: PN-HD 308 S2 + G/Y
Flame test standard: PN-EN 60332-1-2
Quality certification: ISO 9001 & EN 10204 3.1

Identification

Core identification: HD 308 colours or numbered + G/Y
Protective earth core: Green/yellow per EN 50525
Outer sheath colour: Black
Surface legend: Embossed or printed model & voltage
Designation suffix '-G': Approved underground mining sheath
Batch traceability: Lot number & metre marking

Sizes

12 standard configurations (OnGc-G)

Nominal dimensions, copper weights and electrical parameters for OnGc-G per PN-G-90102 / ZN-TF-203.

Dimensions & weights
Order designation	Configuration	Phase size mm²	Outer Ø ≈ mm	Copper kg/km	Weight ≈ kg/km	Min. bend R fixed mm
Standard OnGc-G configurations
OnGc-G 4×4	4×4	4	17.2	154	440	103
OnGc-G 4×6	4×6	6	19.0	230	565	114
OnGc-G 4×10	4×10	10	23.2	384	890	139
OnGc-G 4×16	4×16	16	26.8	614	1,270	161
OnGc-G 4×25	4×25	25	31.8	960	1,860	191
OnGc-G 4×35	4×35	35	35.4	1,344	2,410	212
OnGc-G 4×50	4×50	50	40.8	1,920	3,290	245
OnGc-G 4×70	4×70	70	46.2	2,688	4,380	277
OnGc-G 4×95	4×95	95	52.0	3,648	5,690	312
OnGc-G 5×6	5×6	6	20.8	288	690	125
OnGc-G 5×10	5×10	10	25.4	480	1,070	152
OnGc-G 5×16	5×16	16	29.5	768	1,540	177

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per PN-G-90102 / ZN-TF-203.

Electrical & ampacity data
Configuration	Max. DC R @ 20 °C Ω/km	Current rating in air (A)	Current rating installed (A)	Mutual C pF/m ≈	AC test V rms
4×4	4.950	40	34	84	3,000
4×6	3.300	51	43	87	3,000
4×10	1.910	70	60	92	3,000
4×16	1.210	93	79	101	3,000
4×25	0.780	123	105	114	3,000
4×35	0.554	152	129	129	3,000
4×50	0.386	189	161	150	3,000
4×70	0.272	233	198	180	3,000
4×95	0.206	282	240	216	3,000
5×6	3.300	51	43	87	3,000
5×10	1.910	70	60	92	3,000
5×16	1.210	93	79	101	3,000

Current ratings apply at +25/+30 °C ambient in free air; apply standard derating factors for elevated ambient or drum coiling.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC dielectric voltage test	3.0 kV rms for 5 minutes between cores	100 % of drums
Conductor DC resistance	IEC 60228 Class 5 maximum at 20 °C	All phase & PE cores
Sample tests
Thermal ageing of +90 °C EPR insulation	Retains ≥ 75 % tensile & elongation after air-oven ageing per PN-G-90102	Per production lot
Underground '-G' flame & oil resistance	Passes PN-EN 60332-1-2 flame propagation and mineral oil immersion	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

PN-G-90102 / PN-G-90100IEC 60332-1-2CE / RoHS

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX OnGc-G 0.6/1 kV [n×mm²]

Delivery form: Fumigated export wooden drums or coils
Standard drum lengths: 500 m · 1000 m (or custom cut lengths)
MOQ: 100 m (stock sizes) · 300–500 m (production)
Lead time: 2–4 weeks ex-works
Incoterms: EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFOnGc-G Cable – technical datasheet12 sizes · construction, technical data, approvals XLSXOnGc-G spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
