PN-G-90100 Polish Mining Rubber CablesPN-G-901010.6/1 kVWater-Blocked Mining

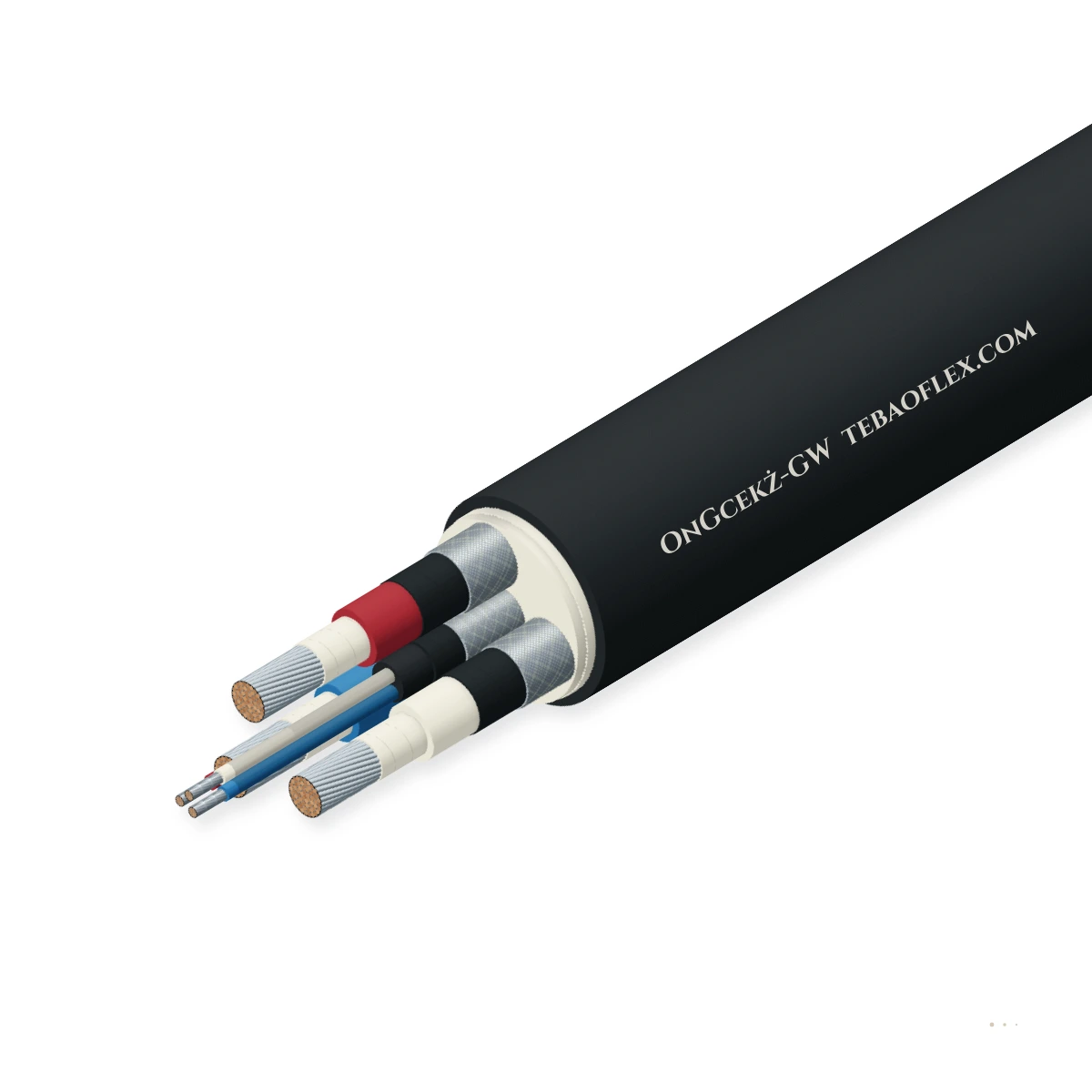

OnGcekż-GW CablePN-G-90101 · 0.6/1 kV · +90 °C EPR · Screened ('ek') · Pilot cores ('ż') · Water-blocked

OnGcekż-GW is a sealed, water-blocked 0.6/1 kV screened underground mining trailing cable to PN-G-90101 for wet longwall faces and water-sprayed roadheader headings. The '-GW' suffix signifies hydro-swelling water-blocking tapes and sealed elastomeric

Water-resistant
EMC screen
Flame-retardant
Oil-resistant
Order designation
OnGcekż-GW 3×50 + 1×25 + 4×2.5
Outer Ø ≈
44.8 mm
Copper weight
1,776 kg/km
Total weight ≈
3,360 kg/km
Min. bend R (fixed)
269 mm
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
Power cores · 250 V pilot cores
Conductor max.
+90 °C
Heat-resistant EPR · +250 °C SC
Water blocking
Sealed '-GW'
Longitudinal & radial moisture barrier
Min. bend R
6 × D / 10 × D
Fixed routing / Bretby handler
Phase size
16–120 mm²
3 screened phases + PE + pilots
Flame test
IEC 60332-1-2
Underground '-GW' PCP compound

Typical values for this cable type, based on PN-G-90101 / ZN-TF-205 — confirmed in the datasheet and quotation for your order.

Application fit

Is OnGcekż-GW right for your machine?

Designed for wet longwall coal faces, water-cooled cutter-loaders, and flooded roadway headings where high-pressure dust-suppression sprays or standing mine water threaten standard trailing cables.

Longwall shearer & Bretby handler

Suitable

Sealed against dust-suppression water sprays inside longwall shearer Bretby cable handlers.

Trailing & towing

Suitable

Reliable trailing feeder on wet roadway floors, sump headings, and water-flushed faces.

Immersion & wet locations

Suitable

Longitudinal water-blocking prevents moisture wicking into gate-end boxes if the jacket is nicked.

Mine roadway & tunnel wall hangers

Suitable

Ideal for wet incline roadways and humid underground district transformer feeders.

Motorised monospiral reel

With conditions

Suitable for low-tension shuttle reels; specify OnZGcekż-GW(A) for heavy tensile haulage.

OnZGcekż-GW(A)
Typical machinesWet Longwall Coal MiningWater-Cooled RoadheadersFlooded Mine Headings & SumpsPotash, Salt & Copper MinesUnderground Tunnelling Faces

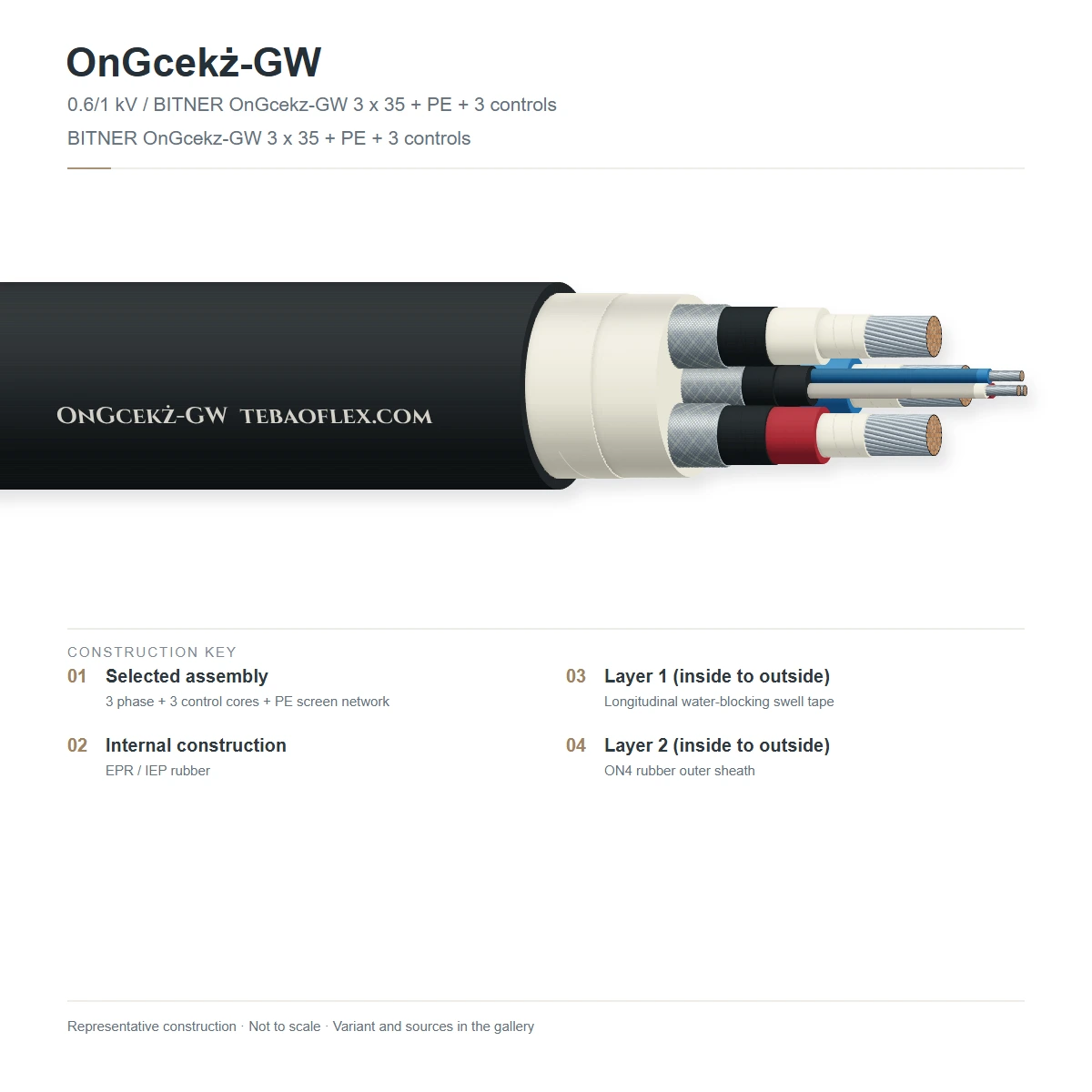

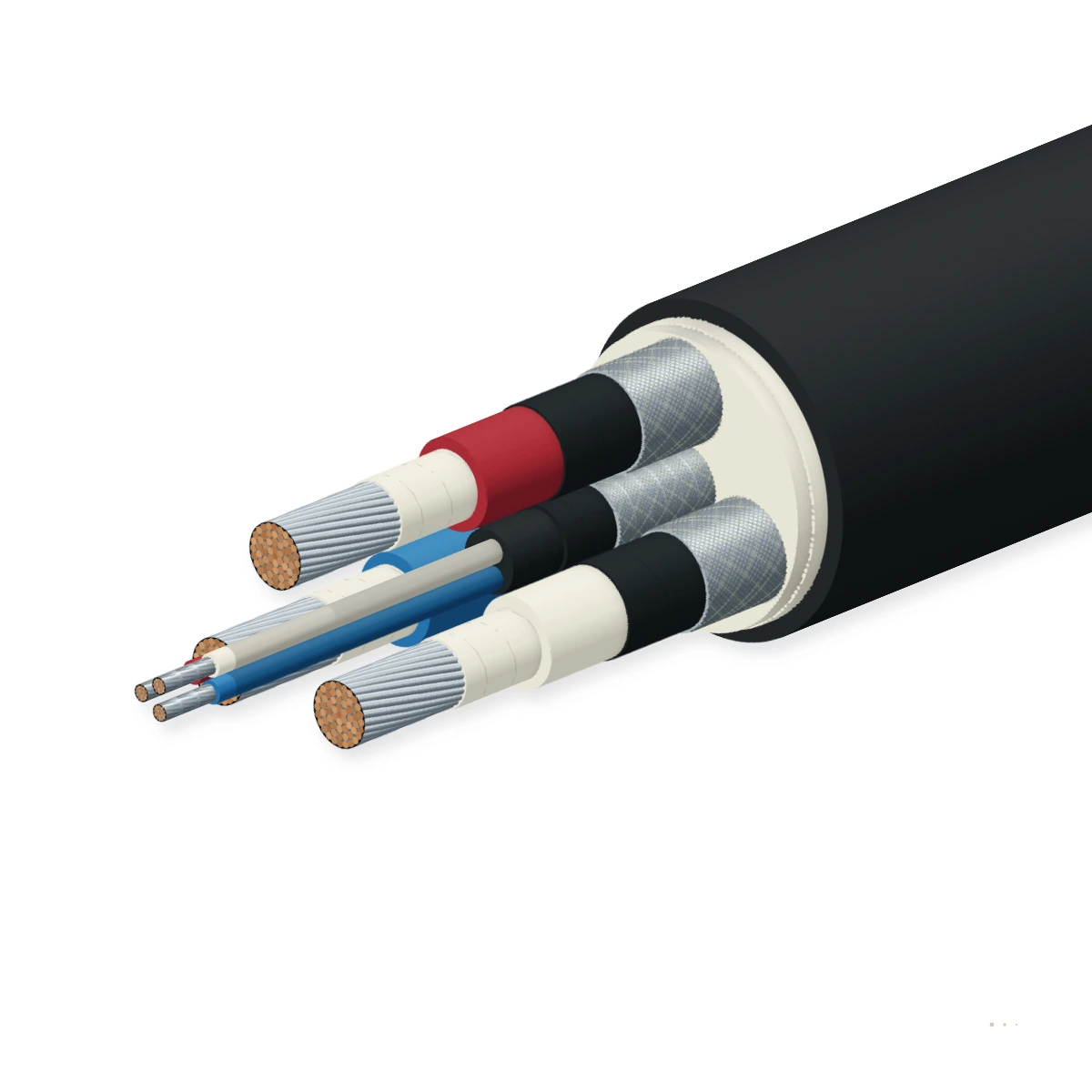

Construction

Layer by layer

Screened +90 °C EPR power cores and pilot unit encapsulated with hydro-swelling water-blocking barriers ('W') and a heavy-duty '-GW' PCP

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible copper conductorsClass 5 fine-stranded plain or tinned copper with water-blocking filler yarnsIEC 60228 Class 5
2+90 °C EPR insulation ('c')Cross-linked moisture-resistant ethylene-propylene elastomer (EPR)PN-G-90101
3Semi-conductive elastomeric screensExtruded semi-conductive rubber screen over each phase core and pilot bundlePN-G-90101
4Pilot bundle ('ż') & earth coreScreened bundle of 4–9 pilot cores plus bare flexible copper earth conductorPN-G-90101
5Hydro-swelling water-blocking barrierNon-woven water-swellable tape and sealed elastomeric interstices preventingZN-TF-205
6Water-sealed mining PCP sheath ('-GW')Heavy-duty flame-retardant, low-water-absorption polychloroprene compound, black or yellowPN-G-90101

OnGcekż-GW (4 pilot cores)

Water-blocked 3-phase + PE + 4×2.5 mm² pilot trailing cable for wet roadheaders and face conveyors.

OnGcekż-GW (7–9 pilot cores)

Extended pilot bundle for water-cooled longwall shearers with multi-channel control and monitoring.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on PN-G-90101 / ZN-TF-205. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (power cores)
0.6/1 kV AC (Um 1.2 kV)
Rated voltage (pilot cores 'ż')
250 V AC
Routine AC test (power / pilot)
3.0 kV / 1.5 kV rms for 5 min
Semi-conductive screen resistivity
≤ 500 Ω·m per PN-G-90101
Wet insulation stability
No dielectric drop in flooded troughs
Nominal frequency
50 Hz

Thermal

Max. conductor operating temp.
+90 °C continuous ('c' EPR)
Max. short-circuit temperature
+250 °C (max. 5 s)
Mobile ambient range
-25 °C to +60 °C
Fixed ambient range
-40 °C to +60 °C
Max. mine water temperature
+40 °C continuous immersion
Min. laying temperature
-15 °C

Mechanical

Min. bend radius (fixed)
6 × overall diameter (D)
Min. bend radius (flexing)
10 × overall diameter (D)
Max. tensile load on copper
15 N/mm²
Longitudinal water tightness
Passes head pressure penetration test
Crush & impact resistance
Heavy-duty '-GW' outer jacket
Tear strength
≥ 15 N/mm per PN-G-90100

Resistance

Water & moisture ingress
Sealed '-GW' longitudinal water-blocked
Flame retardance
IEC 60332-1-2 / PN-G-90100
Oil & hydraulic emulsion
EN 60811-404 resistant
Acidic/saline mine water
Chemically resistant PCP jacket
Ozone & corona stability
Ozone-resistant EPR & semicon
Halogen content
Chloroprene elastomer sheath

Reference standards

Primary product standard
PN-G-90101 / ZN-TF-205
Mining series base standard
PN-G-90100
Conductor standard
IEC 60228 Class 5
Flame propagation test
PN-EN 60332-1-2
Mining safety compliance
WUG Poland underground wet-face rules
Quality certification
EN 10204 3.1 test certificate

Identification

Phase core identification
Numbered 1, 2, 3
Pilot core identification
Numbered control cores in screened unit
Outer sheath colour
Black or yellow
Suffix '-GW' marking
Embossed water-blocked mining legend
Length marking
Sequential metre marking
Batch traceability
Lot number & year code

Sizes

12 standard configurations (OnGcekż-GW)

Nominal dimensions, copper weights and electrical parameters for OnGcekż-GW per PN-G-90101 / ZN-TF-205.

Dimensions & weights
Order designationPower + PE + ControlPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard OnGcekż-GW configurations
OnGcekż-GW 3×16 + 1×16 + 4×2.53×16 + 1×16 + 4×2.51633.87101,710203
OnGcekż-GW 3×25 + 1×16 + 4×2.53×25 + 1×16 + 4×2.52537.49702,150224
OnGcekż-GW 3×35 + 1×16 + 4×2.53×35 + 1×16 + 4×2.53540.21,2582,590241
OnGcekż-GW 3×50 + 1×25 + 4×2.53×50 + 1×25 + 4×2.55044.81,7763,360269
OnGcekż-GW 3×70 + 1×25 + 4×2.53×70 + 1×25 + 4×2.57049.62,3524,240298
OnGcekż-GW 3×95 + 1×35 + 4×2.53×95 + 1×35 + 4×2.59555.23,1685,390331
OnGcekż-GW 3×120 + 1×50 + 4×2.53×120 + 1×50 + 4×2.512060.04,0326,560360
OnGcekż-GW 3×50 + 1×25 + 7×2.53×50 + 1×25 + 7×2.55046.51,8483,550279
OnGcekż-GW 3×70 + 1×35 + 7×2.53×70 + 1×35 + 7×2.57051.22,5204,490307
OnGcekż-GW 3×95 + 1×50 + 7×2.53×95 + 1×50 + 7×2.59556.83,3845,680341
OnGcekż-GW 3×120 + 1×50 + 7×2.53×120 + 1×50 + 7×2.512061.24,1046,740367
OnGcekż-GW 3×95 + 1×50 + 9×2.53×95 + 1×50 + 9×2.59557.53,4325,810345
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per PN-G-90101 / ZN-TF-205.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage withstand test3.0 kV rms (power) and 1.5 kV rms (pilot) for 5 minutesEvery drum
Screen resistivity & earth contactSemi-conductive screen ≤ 500 Ω·m in continuous contact with PEEvery drum
Sample tests
Longitudinal water penetration test ('-GW')No water emergence through core interstices under hydrostatic headPer production batch
Flame propagation & oil resistancePasses PN-EN 60332-1-2 and EN 60811-404 oil immersionType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

PN-G-90101 / ZN-TF-205IEC 60332-1-2CE / RoHS

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX OnGcekż-GW 0.6/1 kV
Delivery form
Fumigated export wooden drums or coils
Standard drum lengths
500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (production)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFOnGcekż-GW Cable – technical datasheet12 sizes · construction, technical data, approvalsXLSXOnGcekż-GW spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
