PN-G-90100 Polish Mining Rubber CablesPN-G-901010.6/1 kVScreened Longwall Trailing

OnGcekż-G CablePN-G-90101 · 0.6/1 kV · +90 °C EPR · Semi-conductive screens ('ek') · Pilot cores ('ż')

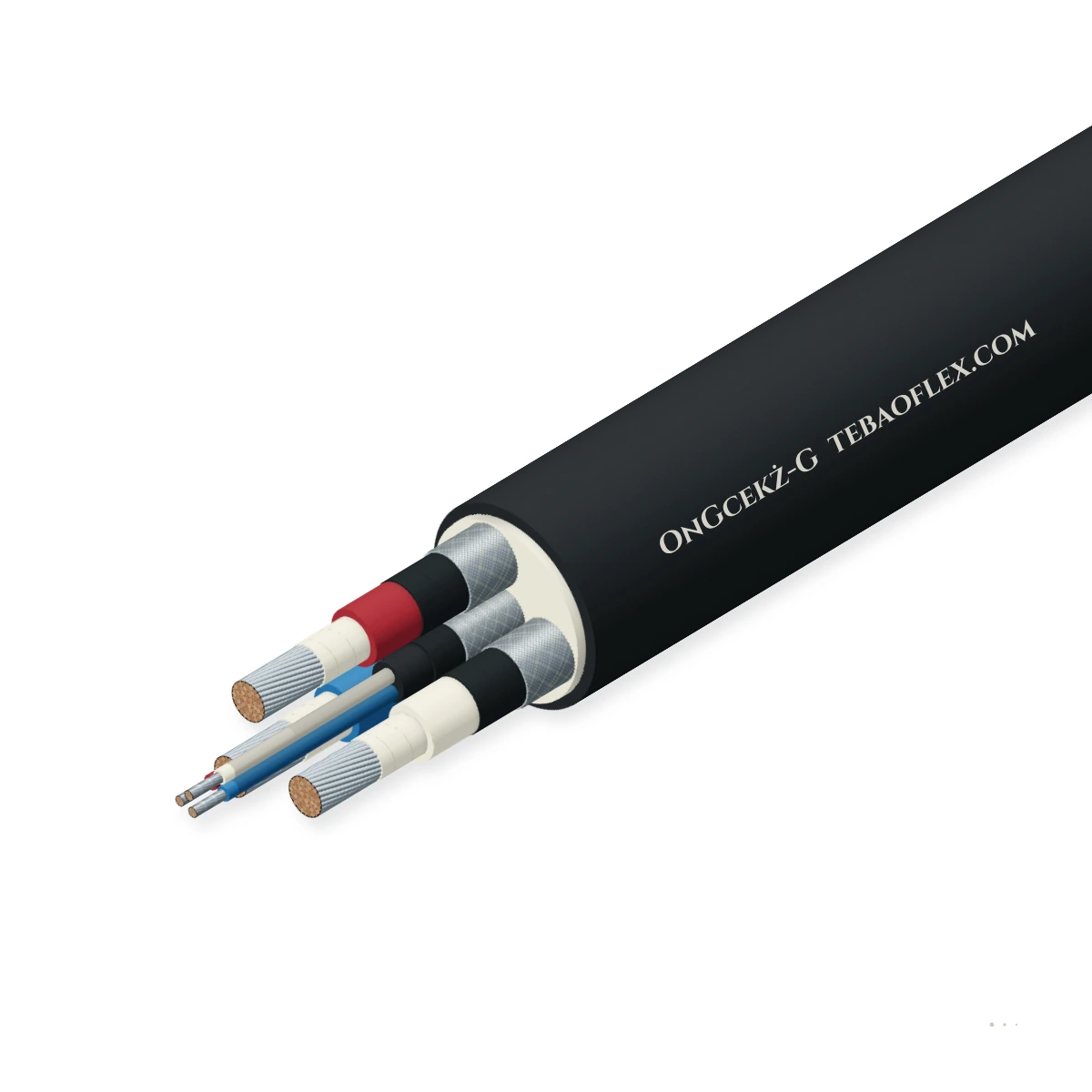

OnGcekż-G is the standard Polish 0.6/1 kV screened flexible longwall mining trailing cable to PN-G-90101 for coal shearers, roadheaders, and armoured face conveyors. It combines +90 °C EPR insulation ('c'), semi-conductive elastomeric screens ('ek')

EMC screen

Flame-retardant

Oil-resistant

Approved

Power + PE + Control

Order designation: OnGcekż-G 3×35 + 1×16 + 4×2.5
Outer Ø ≈: 39.6 mm
Copper weight: 1,258 kg/km
Total weight ≈: 2,510 kg/km
Min. bend R (fixed): 238 mm

All sizes (12)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 0.6/1 kV
Conductor max.: +90 °C
Core screening: Elastomeric 'ek'
Min. bend R: 6 × D / 10 × D
Phase size: 10–120 mm²
Flame test: IEC 60332-1-2

Typical values for this cable type, based on PN-G-90101 / ZN-TF-204 — confirmed in the datasheet and quotation for your order.

Application fit

Is OnGcekż-G right for your machine?

Purpose-built for underground longwall coal shearers, roadheaders, continuous miners, and Bretby automatic cable handlers requiring phase screening and pilot earth-continuity monitoring.

Longwall shearer & Bretby handler

Suitable

Engineered for continuous flexing inside longwall Bretby cable handler chains on shearer faces.

Trailing & towing

Suitable

Primary trailing feeder for roadheaders, loaders, and mobile face transformers in methane-hazard mines.

Mine roadway & tunnel wall hangers

Suitable

Connects flameproof gate-end boxes to longwall face machinery with intrinsic earth-leakage protection.

Motorised monospiral reel

With conditions

Suitable for low-tension monospiral shuttle reels; use OnZGcekż-GW(A) for severe axial haulage.

OnZGcekż-GW(A)

Immersion & wet locations

With conditions

Splash and dampness resistant; select water-blocked OnGcekż-GW for flooded workings.

OnGcekż-GW

Typical machinesUnderground Longwall Coal MiningRoadheader & Heading MachinesArmoured Face Conveyors (AFC)Potash & Copper Underground MinesFlameproof Gate-End Switchgear

Construction

Layer by layer

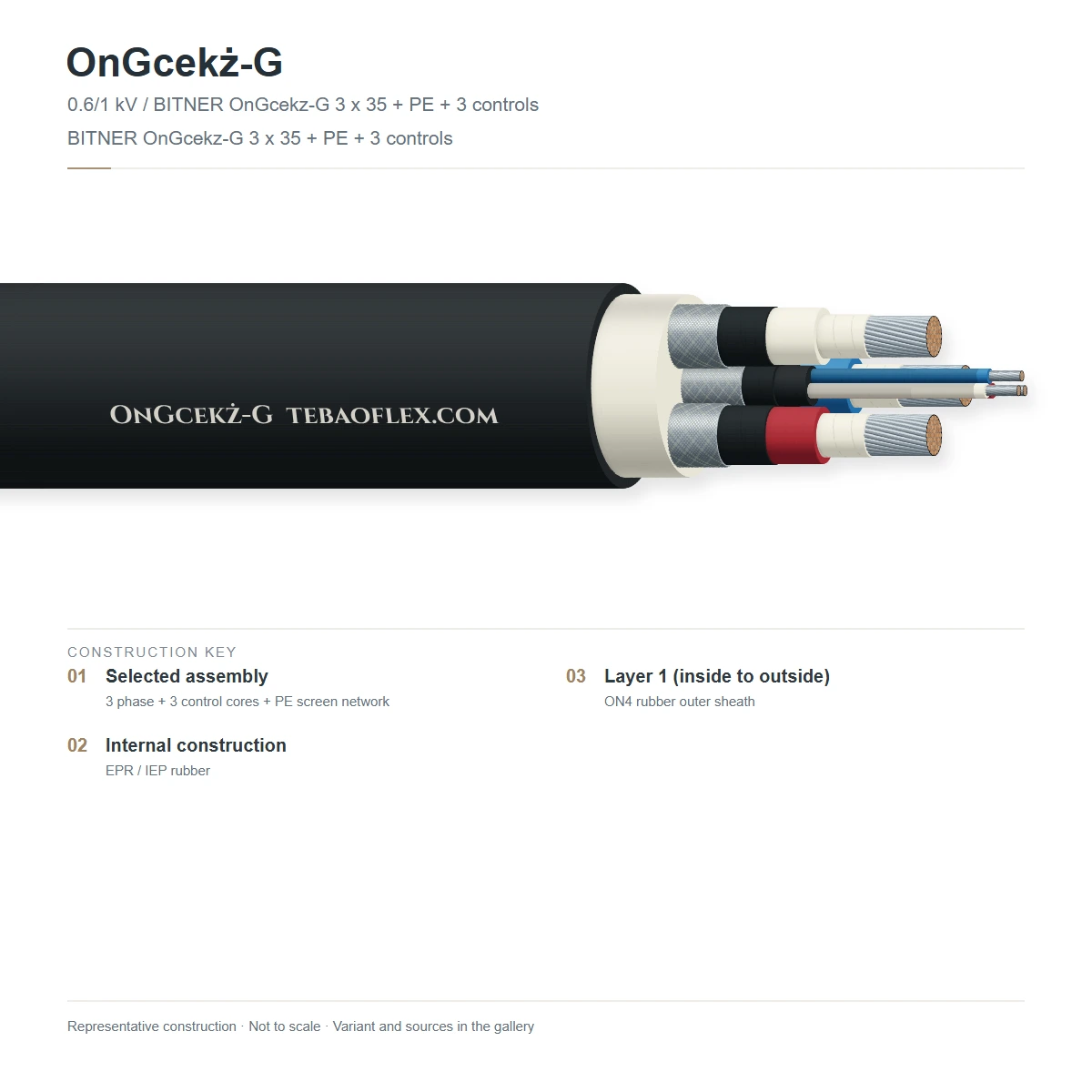

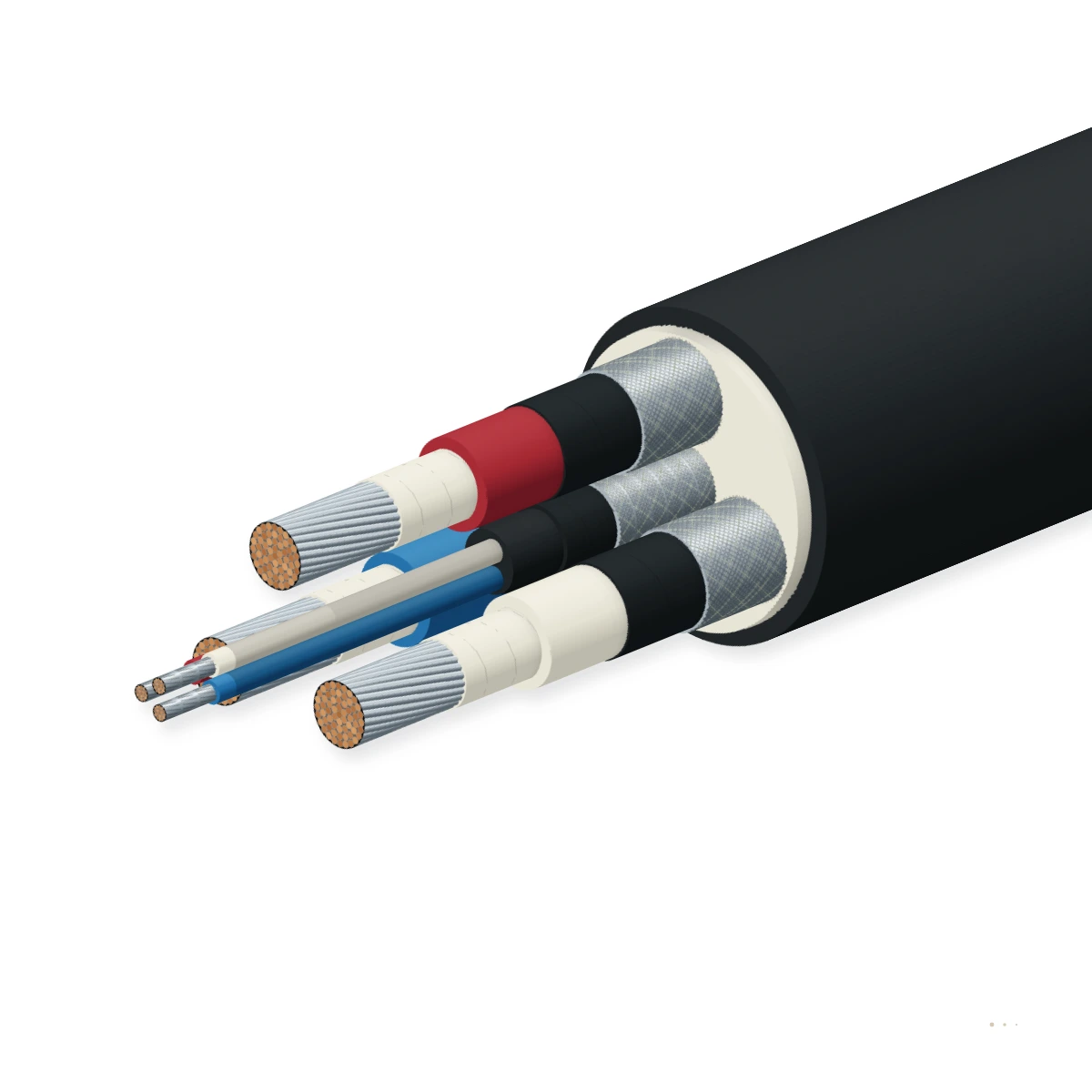

Three +90 °C EPR power cores with semi-conductive elastomeric screens ('ek'), laid around a central cradle with pilot unit ('ż'), bare

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Phase & pilot copper conductors	Class 5 fine-stranded plain or tinned annealed copper (power & control cores)IEC 60228 Class 5
2	+90 °C EPR insulation ('c')	Cross-linked heat-resistant ethylene-propylene elastomer on power and control coresPN-G-90101
3	Elastomeric core & collective screen	Semi-conductive rubber layer over each power core and over the laid-up control core bundlePN-G-90101
4	Auxiliary control unit ('ż') & earth	Screened bundle of 3–9 numbered pilot cores plus uninsulated stranded copper earthPN-G-90101
5	Heavy-duty mining outer sheath ('-G')	Flame-retardant, oil- and tear-resistant polychloroprene (PCP) rubber compound, black orPN-G-90101

OnGcekż-G 3×S + 1×So + n×s

Three screened phase cores (S), bare earth conductor (So), and screened bundle of 3 to 9 pilot cores (s).

OnGcekż-G with optical unit

Available with composite fibre-optic control elements for high-speed longwall shearer telemetry.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on PN-G-90101 / ZN-TF-204. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (power cores): 0.6/1 kV AC (Um 1.2 kV)
Rated voltage (pilot cores 'ż'): 250 V AC
Routine AC test (power / pilot): 3.0 kV / 1.5 kV rms for 5 min
Semi-conductive screen resistivity: ≤ 500 Ω·m per PN-G-90101
Nominal frequency: 50 Hz
Earth fault protection: Instantaneous phase-to-screen trip

Thermal

Max. conductor operating temp.: +90 °C continuous ('c' EPR)
Max. short-circuit temperature: +250 °C (max. 5 s)
Mobile ambient range: -25 °C to +60 °C
Fixed ambient range: -40 °C to +60 °C
Pilot core max. temperature: +90 °C
Min. flexing temperature: -25 °C

Mechanical

Min. bend radius (fixed): 6 × overall diameter (D)
Min. bend radius (flexing): 10 × overall diameter (D)
Bretby handler endurance: Designed for cyclic face travel
Max. dynamic tensile load: 15 N/mm² on power conductors
Crush & rockfall resistance: Heavy-duty '-G' PCP outer jacket
Abrasion resistance: High-tear mining elastomer

Resistance

Flame retardance: IEC 60332-1-2 / PN-G-90100 '-G'
Oil & hydraulic emulsion: EN 60811-404 resistant
Mine water resistance: Resistant to mineralized mine water
Ozone & corona stability: Ozone-free EPR + semi-conductive screen
Methane-atmosphere safety: Compatible with IT earth-leakage relays
Halogen content: Chloroprene outer sheath

Reference standards

Primary product standard: PN-G-90101 / ZN-TF-204
Mining series base standard: PN-G-90100
Conductor standard: IEC 60228 Class 5
Flame test standard: PN-EN 60332-1-2
Mining authority: WUG Poland underground longwall rules
Quality certificate: EN 10204 3.1 mill certificate

Identification

Phase core identification: Numbered 1, 2, 3 or coloured
Pilot core identification: Numbered control cores inside screen
Outer sheath colour: Black or high-visibility yellow
Sheath marking: Embossed OnGcekż-G 0.6/1 kV PN-G-90101
Length marking: Sequential metre marking
Batch traceability: Factory lot & year code

Sizes

12 standard configurations (OnGcekż-G)

Nominal dimensions, copper weights and electrical parameters for OnGcekż-G per PN-G-90101 / ZN-TF-204.

Dimensions & weights
Order designation	Power + PE + Control	Phase size mm²	Outer Ø ≈ mm	Copper kg/km	Weight ≈ kg/km	Min. bend R fixed mm
Standard OnGcekż-G configurations
OnGcekż-G 3×10 + 1×10 + 4×1.5	3×10 + 1×10 + 4×1.5	10	29.5	442	1,240	177
OnGcekż-G 3×16 + 1×16 + 4×2.5	3×16 + 1×16 + 4×2.5	16	33.2	710	1,650	199
OnGcekż-G 3×25 + 1×16 + 4×2.5	3×25 + 1×16 + 4×2.5	25	36.8	970	2,080	221
OnGcekż-G 3×35 + 1×16 + 4×2.5	3×35 + 1×16 + 4×2.5	35	39.6	1,258	2,510	238
OnGcekż-G 3×50 + 1×25 + 4×2.5	3×50 + 1×25 + 4×2.5	50	44.2	1,776	3,260	265
OnGcekż-G 3×70 + 1×25 + 4×2.5	3×70 + 1×25 + 4×2.5	70	49.0	2,352	4,120	294
OnGcekż-G 3×95 + 1×35 + 4×2.5	3×95 + 1×35 + 4×2.5	95	54.5	3,168	5,240	327
OnGcekż-G 3×120 + 1×50 + 4×2.5	3×120 + 1×50 + 4×2.5	120	59.2	4,032	6,380	355
OnGcekż-G 3×50 + 1×25 + 7×2.5	3×50 + 1×25 + 7×2.5	50	45.8	1,848	3,440	275
OnGcekż-G 3×70 + 1×35 + 7×2.5	3×70 + 1×35 + 7×2.5	70	50.6	2,520	4,360	304
OnGcekż-G 3×95 + 1×50 + 7×2.5	3×95 + 1×50 + 7×2.5	95	56.0	3,384	5,520	336
OnGcekż-G 3×120 + 1×50 + 9×2.5	3×120 + 1×50 + 9×2.5	120	60.8	4,152	6,640	365

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per PN-G-90101 / ZN-TF-204.

Electrical & ampacity data
Configuration	Max. DC R @ 20 °C Ω/km	Current rating in air (A)	Current rating installed (A)	Mutual C pF/m ≈	AC test V rms
3×10 + 1×10 + 4×1.5	1.910	70	60	92	3,000
3×16 + 1×16 + 4×2.5	1.210	93	79	101	3,000
3×25 + 1×16 + 4×2.5	0.780	123	105	114	3,000
3×35 + 1×16 + 4×2.5	0.554	152	129	129	3,000
3×50 + 1×25 + 4×2.5	0.386	189	161	150	3,000
3×70 + 1×25 + 4×2.5	0.272	233	198	180	3,000
3×95 + 1×35 + 4×2.5	0.206	282	240	216	3,000
3×120 + 1×50 + 4×2.5	0.161	326	277	252	3,000
3×50 + 1×25 + 7×2.5	0.386	189	161	150	3,000
3×70 + 1×35 + 7×2.5	0.272	233	198	180	3,000
3×95 + 1×50 + 7×2.5	0.206	282	240	216	3,000
3×120 + 1×50 + 9×2.5	0.161	326	277	252	3,000

Current ratings apply at +25/+30 °C ambient in free air; apply standard derating factors for elevated ambient or drum coiling.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test on power & pilot cores	3.0 kV rms (power) and 1.5 kV rms (pilot) for 5 minutes	Every drum
Semi-conductive screen resistivity & continuity	Screen contact with earth conductor verified per PN-G-90101	Every drum
Sample tests
Bending & mechanical impact test	No screen cracking or conductor break after cyclic bending	Per batch
Underground flame & oil resistance	Passes PN-EN 60332-1-2 and EN 60811-404 oil immersion	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

PN-G-90101 / PN-G-90100IEC 60332-1-2CE / RoHS

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX OnGcekż-G 0.6/1 kV [3×S+1×So+n×s]

Delivery form: Fumigated export wooden drums or coils
Standard drum lengths: 500 m · 1000 m (or custom cut lengths)
MOQ: 100 m (stock sizes) · 300–500 m (production)
Lead time: 2–4 weeks ex-works
Incoterms: EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFOnGcekż-G Cable – technical datasheet12 sizes · construction, technical data, approvals XLSXOnGcekż-G spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
