Product

Screened power & VFD / motor supply cablesHD 308 S2 Colour CoresU0/U 0.6/1 kVLow-Capacitance 2Y · EMC

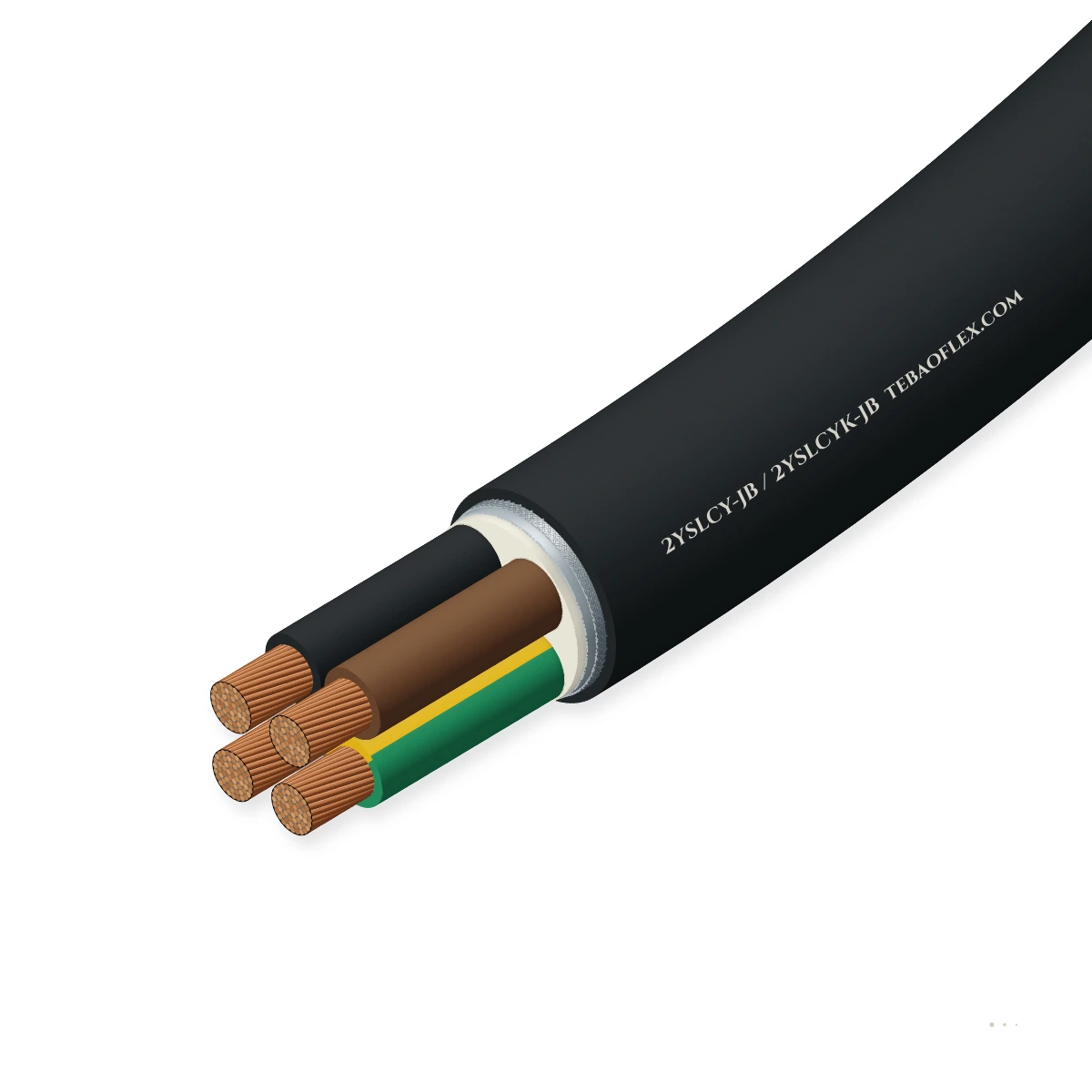

2YSLCY-JB / 2YSLCYK-JB Low-Capacitance Double-Screened JB VFDHD 308 S2 colour-coded low-capacitance PE 0.6/1 kV double-screened drive cable

Double-screened 0.6/1 kV VFD motor cable with HD 308 S2 colour-coded phase cores (-JB: brown, black, grey + GNYE), low-capacitance PE (2Y) insulation, Al/PET foil plus ≥ 85 % tinned-copper braid, in transparent or black UV/burial PVC.

Low-EMC design
EMC screen
Outdoor & humid
Flame-retardant
Versions
Order designation
2YSLCYK-JB 3×35 + 3G6
Outer Ø ≈
28.4 mm
Copper weight
1,410 kg/km
Total weight ≈
1,740 kg/km
Min. bend R (fixed)
114 mm
All sizes (16)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
AC test voltage 4000 V
Insulation (2Y)
Low-εr PE (2YI1)
low cable capacitance for long runs
EMC screening
Foil + ≥ 85% Cu
100% Al/PET tape + tinned Cu braid
Temperature
−40…+70 °C
fixed (−5…+70 °C flexing)
Min. bend radius
4 × D fixed
15 × D occasional flexing
Versions
2YSLCY-J / -K-J
transparent indoor or black outdoor

Typical values for this cable type, based on DIN VDE 0250 · DIN VDE 0207 · EN 61800-3 — confirmed in the datasheet and quotation for your order.

Application fit

Is 2YSLCY-JB / 2YSLCYK-JB right for your machine?

Select 2XSLCYK-J for fixed or occasionally flexed inverter-fed AC motor circuits requiring +90 °C XLPE ampacity and EN 61800-3 EMC compliance.

VFD inverter to AC motor screened feeder

Suitable

Low-permittivity XLPE cores and dual foil+braid screen limit PWM capacitive charging spikes and bearing currents.

Motor stator, traction & converter leads

Suitable

Symmetrical 3+3G construction balances phase impedance and provides 360° EMC gland earthing on large drives.

Fixed installation

Suitable

Reinforced black K-grade PVC jacket permits indoor cable trays, outdoor racks, and direct burial in ducts.

Energy chain / drag chain

With conditions

Suitable only for occasional flexing (15 × D); use PUR drag-chain servo cables for continuous carrier cycles.

Use Festoonflex C PUR-HF

Motorised monospiral reel

Not suitable

PVC outer sheath and foil screen are not designed for continuous motorised drum reeling under tension.

Use (N)SSHCÖU VFD
Typical machinesIndustrial VFD motor drivesPumps, fans & compressorsProcess & chemical plantsConveyor & extruder linesWater & HVAC stations

Construction

Layer by layer

Shown: 2YSLCYK-JB 3×50+3G10 — HD 308 S2 brown, black, grey phase cores + three split green-yellow earth cores.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1ConductorBare copper, finely stranded Class 5IEC 60228 / DIN EN 60228 Class 5
2Core insulationPolyethylene (PE, 2YI1) per DIN VDE 0207-2, low permittivityMinimises PWM capacitive leakage current
3Binding tapePolyester separator foil over concentric core lay-upMaintains circular low-capacitance geometry
4First EMC screen (foil)Aluminium-laminated polyester tape (100 % coverage)Blocks MHz inverter switching noise
5Second EMC screen (braid)Tinned copper wire braid (optical coverage ≥ 85 %)Low transfer impedance per EN 61800-3
6Outer sheathTransparent PVC (2YSLCY-J) or black UV/burial PVC (2YSLCYK-J)DIN VDE 0207-5 (YM2 / DMV6)

2YSLCY-JB

Transparent PVC sheath + colour-coded phase cores (brown, black, grey + GNYE per HD 308 S2)

2YSLCYK-JB

Black UV-stabilised & direct-burial PVC sheath (K) + colour-coded phase cores (-JB)

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250 · DIN VDE 0207 · EN 61800-3. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
600/1000 V
Max. operating voltage AC
1200 V
Max. operating voltage DC
1800 V
AC test voltage
4000 V (5 min)
Capacitance (core/core)
70–252 pF/m (size dependent)
Screen / Field control
100% Al/PET tape + ≥ 85% tinned Cu braid
Current rating
Per DIN VDE 0298-4 (+90 °C XLPE)

Thermal

Max. conductor temperature
+70 °C (+80 °C fixed)
Short-circuit temperature
+160 °C (max. 5 s)
Temperature, fixed installation
−40 °C to +80 °C
Temperature, flexing
−5 °C to +70 °C

Mechanical

Min. bending radius, fixed
4 × OD
Min. bending radius, moving
15 × OD (occasional flexing)
Max. tensile load (static)
50 N/mm² (fixed) · 15 N/mm² (pulling)
Direct burial suitability
Yes, reinforced K-grade PVC sheath

Resistance

Flame retardance
IEC 60332-1-2 / EN 60332-1-2
Oil resistance
Industrial oils & coolants (EN 50290-2-22)
UV & ozone
UV-stabilised black PVC (ISO 4892-2)
Water
AD7 / direct burial in damp ground

Reference standards

Cable type (construction standard)
DIN VDE 0276-603 / IEC 60502-1
Conductor
IEC 60228 / DIN EN 60228 Class 5
EMC compliance
EN 55011 / EN 61800-3
RoHS · REACH
2011/65/EU (RoHS 2) & EC 1907/2006

Identification

Sheath colour
Black (RAL 9005), UV-resistant
Core identification
HD 308 S2 (brown, black, grey + GNYE)
Marking
TEBAOFLEX 2XSLCYK-J 0.6/1 kV [size] EMC CE
Customs tariff (HS)
8544.49

Sizes

16 standard sizes (2YSLCY-JB & 2YSLCYK-JB)

Typical dimensions and electrical parameters for 2YSLCY-J / 2YSLCYK-J 0.6/1 kV.

Dimensions & weights
Order designationCores × mm²AWG ≈Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
4G concentric (3 phase + 1 GNYE earth)
2YSLCYK-JB 4G1.54G1.51610.69516542
2YSLCYK-JB 4G2.54G2.51412.215023049
2YSLCYK-JB 4G44G41213.923532556
2YSLCYK-JB 4G64G61015.632043562
2YSLCYK-JB 4G104G10819.253368577
2YSLCYK-JB 4G164G16622.87891,01091
Symmetrical 3+3G (3 phase + 3 split GNYE earths)
2YSLCYK-JB 3×16 + 3G2.53×16 + 3G2.5621.466289586
2YSLCYK-JB 3×25 + 3G43×25 + 3G4425.21,0251,310101
2YSLCYK-JB 3×35 + 3G63×35 + 3G6228.41,4101,740114
2YSLCYK-JB 3×50 + 3G103×50 + 3G101/032.82,0152,430131
2YSLCYK-JB 3×70 + 3G103×70 + 3G102/037.22,6903,180149
2YSLCYK-JB 3×95 + 3G163×95 + 3G163/042.63,6854,290170
2YSLCYK-JB 3×120 + 3G163×120 + 3G164/046.84,5105,180187
2YSLCYK-JB 3×150 + 3G253×150 + 3G25300 kcmil51.95,6806,490208
2YSLCYK-JB 3×185 + 3G353×185 + 3G35350 kcmil57.47,0908,050230
2YSLCYK-JB 3×240 + 3G503×240 + 3G50500 kcmil64.29,32010,480257
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Select 2YSLCY-J for indoor plant wiring or 2YSLCYK-J for outdoor UV and direct-burial installations.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC high-voltage dielectric test4000 V AC for 5 minEvery manufactured drum length
Conductor DC resistance checkPer IEC 60228 Class 5 limits at 20 °CEvery drum length
Sample tests
Mutual capacitance & transfer impedanceLow pF/m & Zt ≤ 25 mΩ/m @ 30 MHzPer production lot
Vertical flame propagationSelf-extinguishing per IEC 60332-1-2Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

CE (2014/35/EU Low Voltage Directive)EN 61800-3 / EN 55011 EMC Class A/BIEC 60332-1-2 Flame Retardant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX 2XSLCYK-J 0.6/1 kV [Cores×mm²] EMC LOW CAPACITANCE VFD MOTOR CABLE CE [Metre mark]
Delivery form
Cut-to-length or wooden export drums
Standard drum lengths
500 m · 1000 m
MOQ
100 m (stock sizes) · 500 m (production)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDF2YSLCY-JB / 2YSLCYK-JB Low-Capacitance Double-Screened JB VFD – technical datasheet16 sizes · construction, technical data, approvalsXLSX2YSLCY-JB / 2YSLCYK-JB spec data (Excel)All 16 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why choose 2XSLCYK-J (XLPE) over 2YSLCY-J (PE) for VFD motor feeders?
2XSLCYK-J uses cross-linked polyethylene (XLPE, 2X) insulation rated for +90 °C continuous conductor temperature (+250 °C short-circuit), whereas 2YSLCY-J uses thermoplastic PE (2Y) limited to +70 °C. The +90 °C rating increases ampacity by roughly 20 %—often allowing one conductor size smaller—while the black K-grade sheath permits outdoor UV exposure and direct burial.
When should I specify the symmetrical 3+3G design instead of 4G?
For motor ratings from 16 mm² (approx. 30 kW) upward, the symmetrical 3+3G arrangement splits the protective earth into three interstitial conductors placed symmetrically between the three phase cores. This equalises phase-to-earth coupling impedance and cancels common-mode currents that otherwise discharge through motor bearings.
How does the dual Al/PET tape plus tinned copper braid screen work?
The inner 100 % overlapping aluminium-polyester tape blocks high-frequency voltage spikes (MHz range) generated by fast IGBT switching edges, while the outer ≥ 85 % tinned copper braid provides a low-inductance return path from kHz to MHz and terminates cleanly in 360-degree EMC cable glands.
Can 2XSLCYK-J be installed underground or on outdoor pipe racks?
Yes. The 'K' designation denotes a reinforced, UV-stabilised black PVC outer sheath suitable for indoor cable trays, outdoor cable bridges exposed to sunlight, damp industrial trenches, and direct burial in soil or conduit without additional outer protection.

Request a quote

Get an engineering quote for 2YSLCY-JB / 2YSLCYK-JB

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

03Message for our engineers

2YSLCY-JB / 2YSLCYK-JB Low-Capacitance Double-Screened JB VFD

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:
