General rubber flexible cablesEN 50525-2-21U0/U 300/500 VEI4 EPR · EM1 Rubber

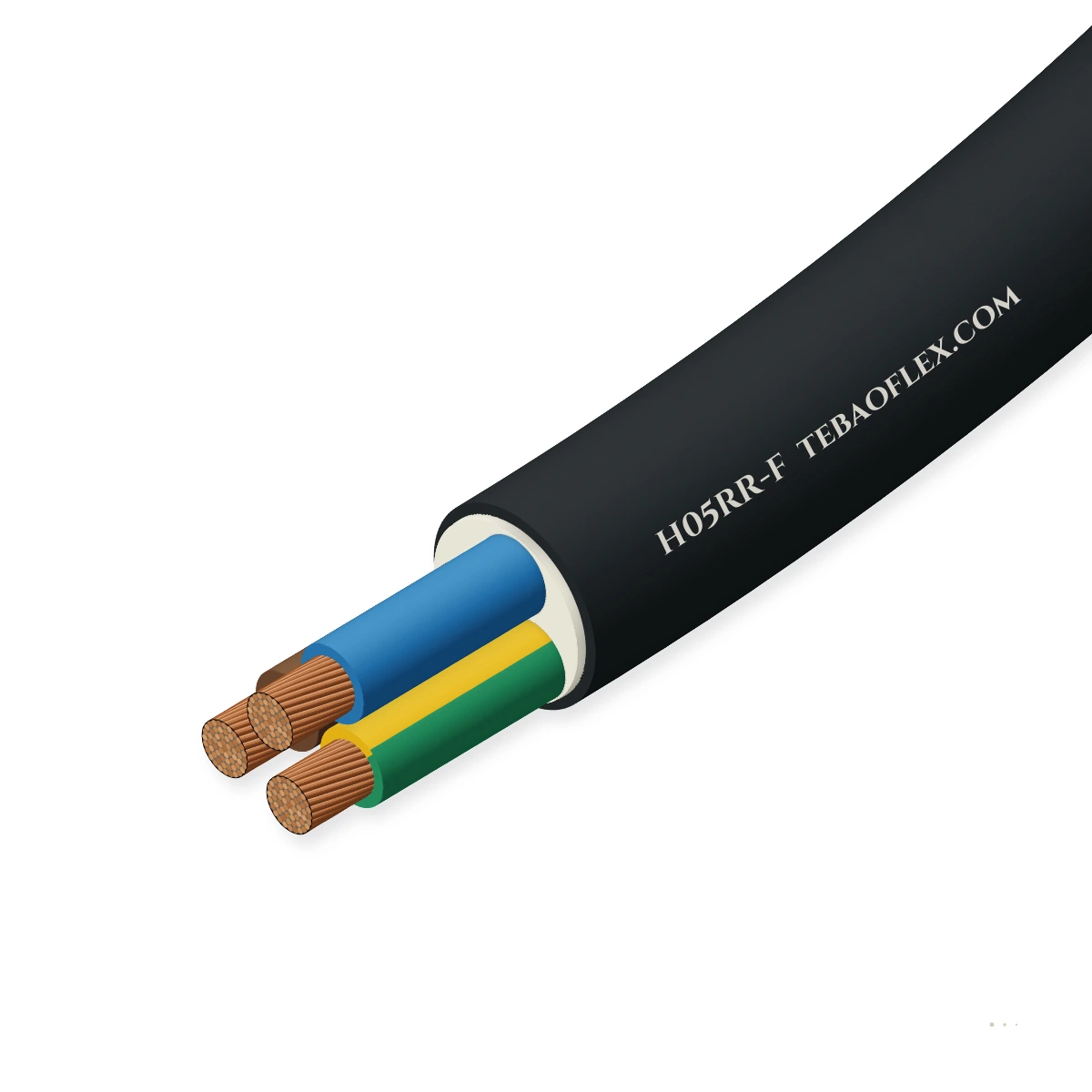

H05RR-F Rubber Flexible CableHarmonised 300/500 V EI4 EPR-insulated and EM1 rubber-sheathed indoor appliance cord

Flexible Class 5 bare copper cord with cross-linked EI4 EPR core insulation and ordinary-duty EM1 natural/synthetic elastomer outer sheath per EN 50525-2-21 for portable household appliances, light workshop tools and office or inspection equipment.

Flame-retardant

Ozone, UV & moisture

Approved

Short-Term Outdoor

Cores × cross-section

Order designation: H05RR-F 3G1.5
Outer Ø min: 8.2 mm
Outer Ø max: 8.9 mm
Weight ≈: 114 kg/km
Min. bend R: 36 mm

Check against my drum All sizes (18)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 300/500 V
Conductor temp.: +60 °C max.
Ambient temp.: −25…+60 °C
Bending radius: 3–6 × OD
Compounds: EI4 / EM1
Size range: 0.75–6 mm²

Typical values for this cable type, based on EN 50525-2-21 / IEC 60245-4 — confirmed in the datasheet and quotation for your order.

Application fit

Is H05RR-F right for your machine?

H05RR-F is built for light mechanical stress in dry or damp indoor rooms; its EM1 rubber sheath is not intended for mineral oil immersion or permanent outdoor exposure.

Trailing & towing

Suitable

Handheld power tools, soldering irons, inspection lamps and light mobile workshop equipment.

Fixed installation

Suitable

Flexible appliance supply leads and protected equipment wiring in dry or damp rooms.

Immersion & wet locations

Not suitable

EM1 ordinary rubber sheath is not rated for water immersion or oily workshop floors.

Use H05RN-F (EM2)

Motorised monospiral reel

Not suitable

Not designed for motorised or spring-loaded drum reeling under continuous tension.

Use S07BQ-F / NSHTÖU

Typical machinesPortable electric hand toolsHousehold & kitchen appliancesWorkshop inspection & test leadsLight commercial maintenance gearDry & damp indoor installations

Construction

Layer by layer

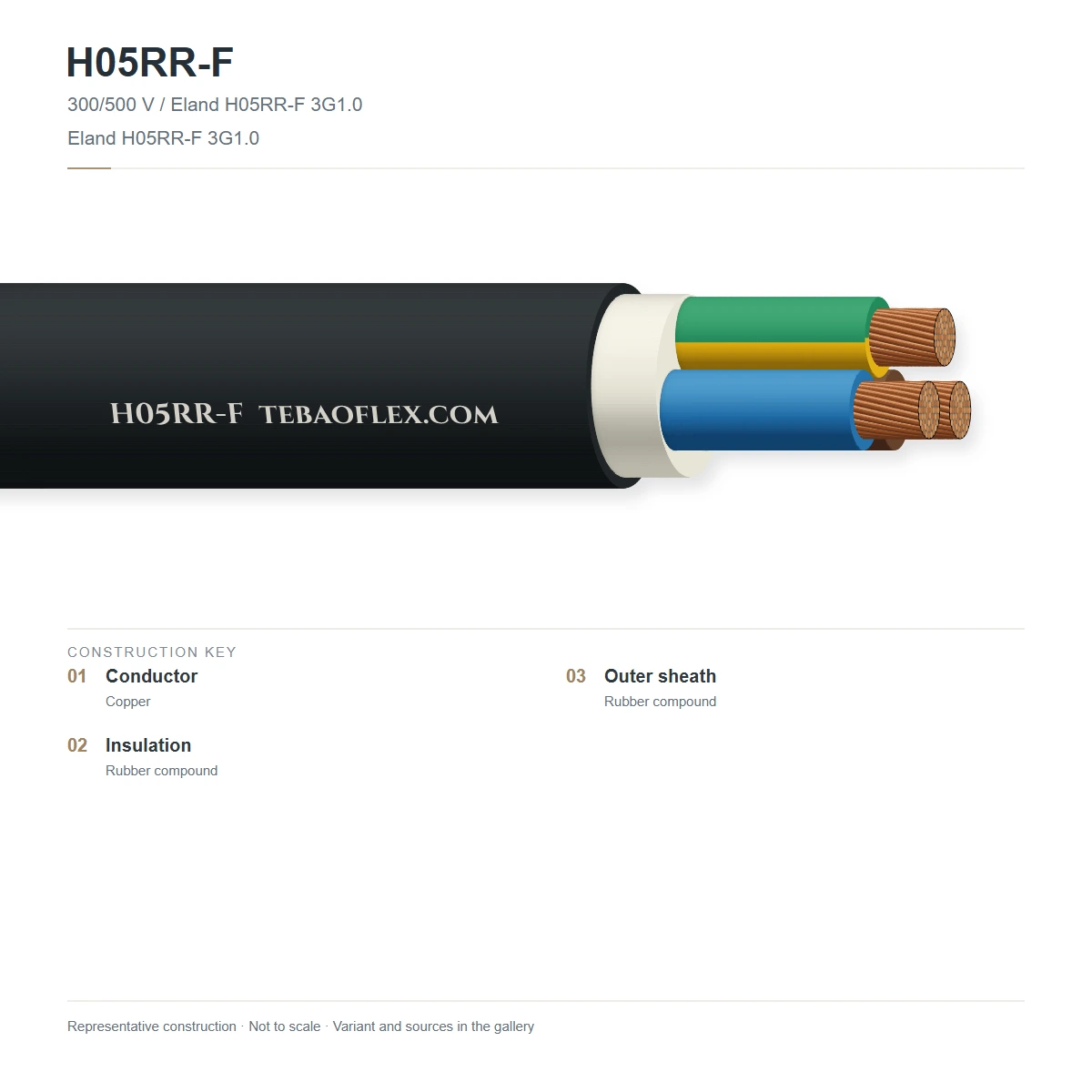

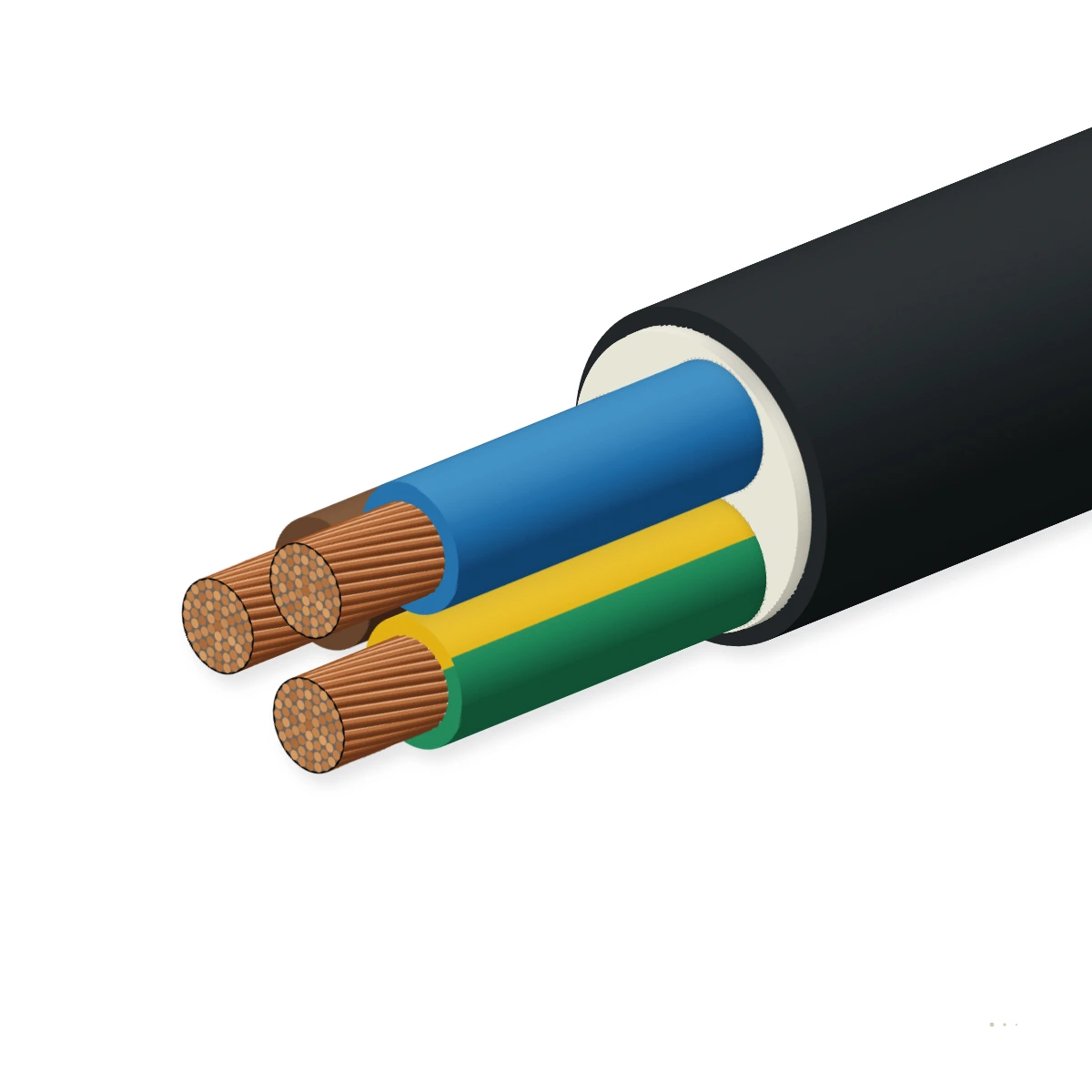

Shown: H05RR-F 3G1.5 — Class 5 bare copper conductors, EI4 EPR rubber core insulation (HD 308 S2 colour code) and black EM1 elastomer outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Flexible copper conductor	Fine-stranded bare copper wire (IEC 60228 Class 5)EN 60228 Class 5
2	Elastomeric core insulation	Cross-linked ethylene-propylene rubber compound Type EI4EN 50363-1 EI4 (+60 °C)
3	Outer rubber sheath	Cross-linked natural/synthetic rubber compound Type EM1, blackEN 50363-2-1 EM1 · ordinary mechanical duty

H05RR-F -J (G)

3 to 5 cores with green-yellow protective conductor per HD 308 S2

H05RR-F -O (X)

2-core ungrounded version (blue, brown) for Class II double-insulated tools

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50525-2-21 / IEC 60245-4. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 300/500 V AC
Max. operating voltage: 330/550 V AC
AC test voltage: 2000 V AC (50 Hz, 15 min)
Conductor stranding: IEC 60228 Class 5 fine-stranded bare copper
Current rating basis: DIN VDE 0298-4 / EN 50565-1 at 30 °C ambient

Thermal

Max. conductor temperature: +60 °C continuous operation
Short-circuit temperature: +200 °C max. (up to 5 s)
Temperature, flexing: −25 °C to +60 °C
Temperature, fixed: −30 °C to +60 °C

Mechanical

Min. bending radius, fixed: 3 × OD (OD ≤ 12 mm) · 4 × OD (OD > 12 mm)
Min. bending radius, moving: 6 × overall diameter (free movement)
Max. tensile load: 15 N/mm² dynamic (50 N/mm² static)
Mechanical duty class: Light mechanical duty in dry or damp interiors

Resistance

Flame retardance: IEC 60332-1-2 / EN 60332-1-2 self-extinguishing
Oil & chemical note: EM1 sheath not oil-resistant (use H05RN-F for oil contact)
Low-temperature elasticity: Remains supple down to −25 °C without PVC stiffening
Outdoor exposure: Temporary outdoor use only (not for permanent UV/immersion)

Reference standards

Construction standard: EN 50525-2-21 (HD 22.4 S4 / DIN VDE 0285-525-2-21)
International equivalent: IEC 60245-4 (60245 IEC 53)
Selection & installation: EN 50565-1 / DIN VDE 0298-300
RoHS & REACH: 2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour: Black
Core identification: HD 308 S2 colour code (2 to 5 cores)
Sheath marking: TEBAOFLEX H05RR-F <HAR> [Size] 300/500V EN 50525-2-21 CE
Customs tariff (HS): 8544.49 (insulated conductors ≤ 1000 V)

Sizes

18 standard H05RR-F configurations

Typical EN 50525-2-21 / IEC 60245-4 outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Outer Ø min mm	Outer Ø max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm
Harmonised H05RR-F sizes (0.75–6 mm² per EN 50525-2-21 Table B.1)
H05RR-F 2×0.75	2×0.75	18	5.7	6.2	14	50	25
H05RR-F 3G0.75	3G0.75	18	6.2	6.7	22	62	27
H05RR-F 4G0.75	4G0.75	18	6.7	7.3	29	75	29
H05RR-F 5G0.75	5G0.75	18	7.5	8.1	36	92	32
H05RR-F 2×1.0	2×1.0	17	6.1	6.6	19	59	26
H05RR-F 3G1.0	3G1.0	17	6.5	7.1	29	73	28
H05RR-F 4G1.0	4G1.0	17	7.2	7.8	38	90	31
H05RR-F 5G1.0	5G1.0	17	7.9	8.6	48	110	34
H05RR-F 2×1.5	2×1.5	16	7.5	8.2	29	92	33
H05RR-F 3G1.5	3G1.5	16	8.2	8.9	43	114	36
H05RR-F 4G1.5	4G1.5	16	9.1	9.9	58	142	40
H05RR-F 5G1.5	5G1.5	16	10.0	10.9	72	175	44
H05RR-F 3G2.5	3G2.5	14	9.8	10.6	72	166	42
H05RR-F 4G2.5	4G2.5	14	10.7	11.6	96	205	46
H05RR-F 5G2.5	5G2.5	14	11.9	12.9	120	252	52
H05RR-F 4G4	4G4	12	12.5	13.6	154	305	54
H05RR-F 5G4	5G4	12	13.9	15.1	192	378	60
H05RR-F 5G6	5G6	10	15.8	17.2	288	515	69

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are typical values per EN 50525-2-21 / IEC 60245-4. Minimum fixed bending radius shown is 4 × OD.

Electrical & current ratings
Cross-section mm²	AWG ≈	Max. DC resistance 20 °C, Ω/km	1-core in air 30 °C, A	3–4 core in air 30 °C, A
0.75	18	26	12	10
1	17	19.5	15	13
1.5	16	13.3	23	18
2.5	14	7.98	30	25
4	12	4.95	41	34
6	10	3.3	53	44

Current ratings at 30 °C ambient in free air per DIN VDE 0298-4 / EN 50565-1. Apply derating factors for elevated ambient temperature or reeling layer grouping.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Cable length on drum (m)

Drum core 300 mm ≥ 72 mmBending radius OK (4 × OD 8.9 mm)

Minimum bending radius: 36 mm
Min. drum core diameter: ≈ 72 mm
Cable weight on drum: 5.7 kg
Copper content: 2.2 kg

Indicative only: based on the datasheet outer diameter and 4 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	2.0 kV AC (50 Hz)	Every manufactured length
Conductor DC resistance	IEC 60228 Class 5 (bare copper)	Every manufactured length
Sample tests
Vertical flame propagation	IEC 60332-1-2 / EN 60332-1-2	Per production batch
Insulation & sheath elastomer physical properties	EN 50525-2-21 / IEC 60245-4	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

EN 50525-2-21 / IEC 60245-4CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX H05RR-F 300/500 V [Size] EN 50525-2-21 CE

Delivery form: Export wooden drums or coils, cut-to-length on request
Packaging: Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options: Custom core counts, pilot cores or sheath colours on request

Technical documents

Downloads

PDFH05RR-F Rubber Flexible Cable – technical datasheet18 sizes · construction, technical data, approvals XLSXH05RR-F spec data (Excel)All 18 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between H05RR-F and H05RN-F?

In the CENELEC designation code, the first 'R' indicates EI4 ethylene-propylene rubber (EPR) core insulation on both cables. The second letter identifies the outer sheath: H05RR-F uses an ordinary-duty EM1 rubber sheath for dry or damp indoor rooms, whereas H05RN-F uses a polychloroprene (EM2) sheath for oil exposure and permanent outdoor service. In addition, harmonised H05RR-F extends up to 6 mm² (5G6), while harmonised H05RN-F covers 0.75–1.0 mm².

Why choose H05RR-F over a standard PVC cord such as H05VV-F?

Thermoplastic PVC cords stiffen rapidly below +5 °C and retain coil memory on workshop floors. H05RR-F uses cross-linked EI4 EPR insulation and vulcanised EM1 rubber sheathing that remain supple down to −25 °C in motion and resist brief contact with hot tools better than PVC.

Can H05RR-F be used in oily machine shops or permanent outdoor lighting?

No. Because the EM1 outer compound is a general-purpose natural/synthetic elastomer without chloroprene oil protection, EN 50565-2 restricts H05RR-F to dry or damp indoor rooms and only brief outdoor portable tool use. Where mineral oils, cutting emulsions or permanent UV weather exposure exist, specify H05RN-F, H07RN-F or H05BQ-F.

How are the cores identified inside H05RR-F?

All 2-core to 5-core H05RR-F cables follow the harmonised HD 308 S2 colour code: 2-core (X) uses blue and brown; 3G uses green-yellow, blue and brown; 4G uses green-yellow, brown, black and grey; and 5G uses green-yellow, blue, brown, black and grey.
