General rubber flexible cablesEN 50525-2-21U0/U 300/500 VEI7 EPR · TMPU PUR

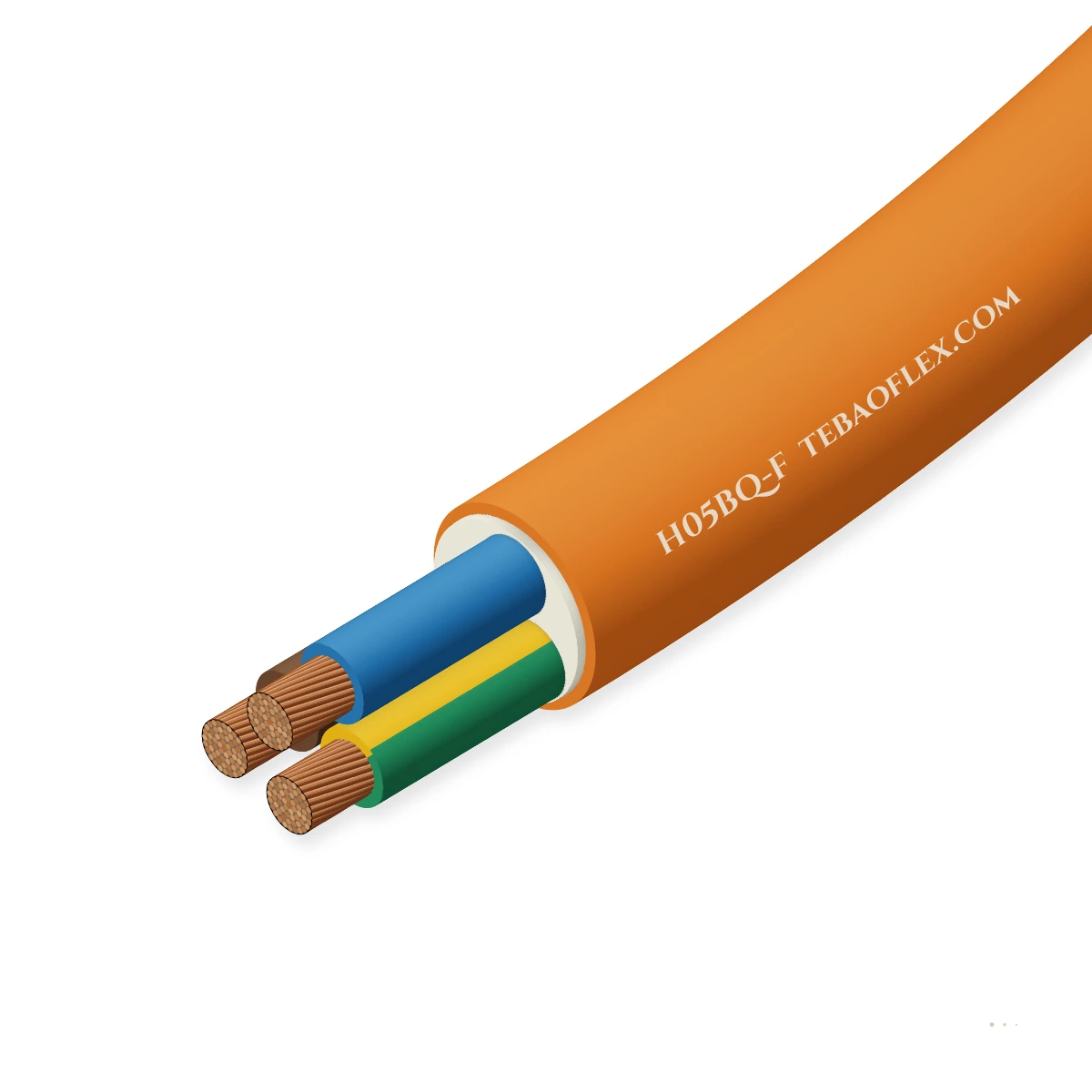

H05BQ-F PUR Sheathed Flexible CableHarmonised 300/500 V EI7 EPR-insulated and TMPU polyurethane-sheathed cord

High-visibility 300/500 V flexible cable combining +90 °C cross-linked EI7 EPR rubber core insulation with a cut-, notch-, oil- and microbe-resistant TMPU polyurethane outer sheath per EN 50525-2-21 for harsh workshop, construction and cold-climate tools.

Oil-resistant

Ozone, UV & moisture

Outdoor & humid

Cut & Abrasion PUR

Cores × cross-section

Order designation: H05BQ-F 3G1.0
Outer Ø min: 6.3 mm
Outer Ø max: 6.9 mm
Weight ≈: 71 kg/km
Min. bend R: 28 mm

Check against my drum All sizes (10)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 300/500 V
Conductor temp.: +90 °C max.
Ambient temp.: −40…+80 °C
Bending radius: 4–5 × OD
Compounds: EI7 / TMPU
Size range: 0.75–1.0 mm²

Typical values for this cable type, based on EN 50525-2-21 (HD 22.10) — confirmed in the datasheet and quotation for your order.

Application fit

Is H05BQ-F right for your machine?

H05BQ-F combines +90 °C cross-linked rubber core dielectric stability with extreme TMPU polyurethane jacket toughness down to −40 °C; for sizes ≥ 1.5 mm² at 450/750 V, select H07BQ-F.

Trailing & towing

Suitable

Portable power tools, site lighting, workshop floor leads and mobile instrumentation exposed to sharp swarf and oils.

Energy chain / drag chain

With conditions

Light guided movement supported; for continuous high-cycle drag chains, use dedicated chain cable.

Ask engineering

Fixed installation

Suitable

Machine tool chassis wiring, agricultural equipment and cold-storage installations down to −50 °C.

Motorised monospiral reel

Not suitable

Unreinforced 300/500 V cord; for spring or motorised reels, use reinforced S07BQ-F.

Use S07BQ-F Reinforced

Typical machinesConstruction & civil engineering toolsMachine shops & swarf-heavy floorsCold storage & alpine outdoor sitesAgricultural & municipal equipmentMobile sensors & control units

Construction

Layer by layer

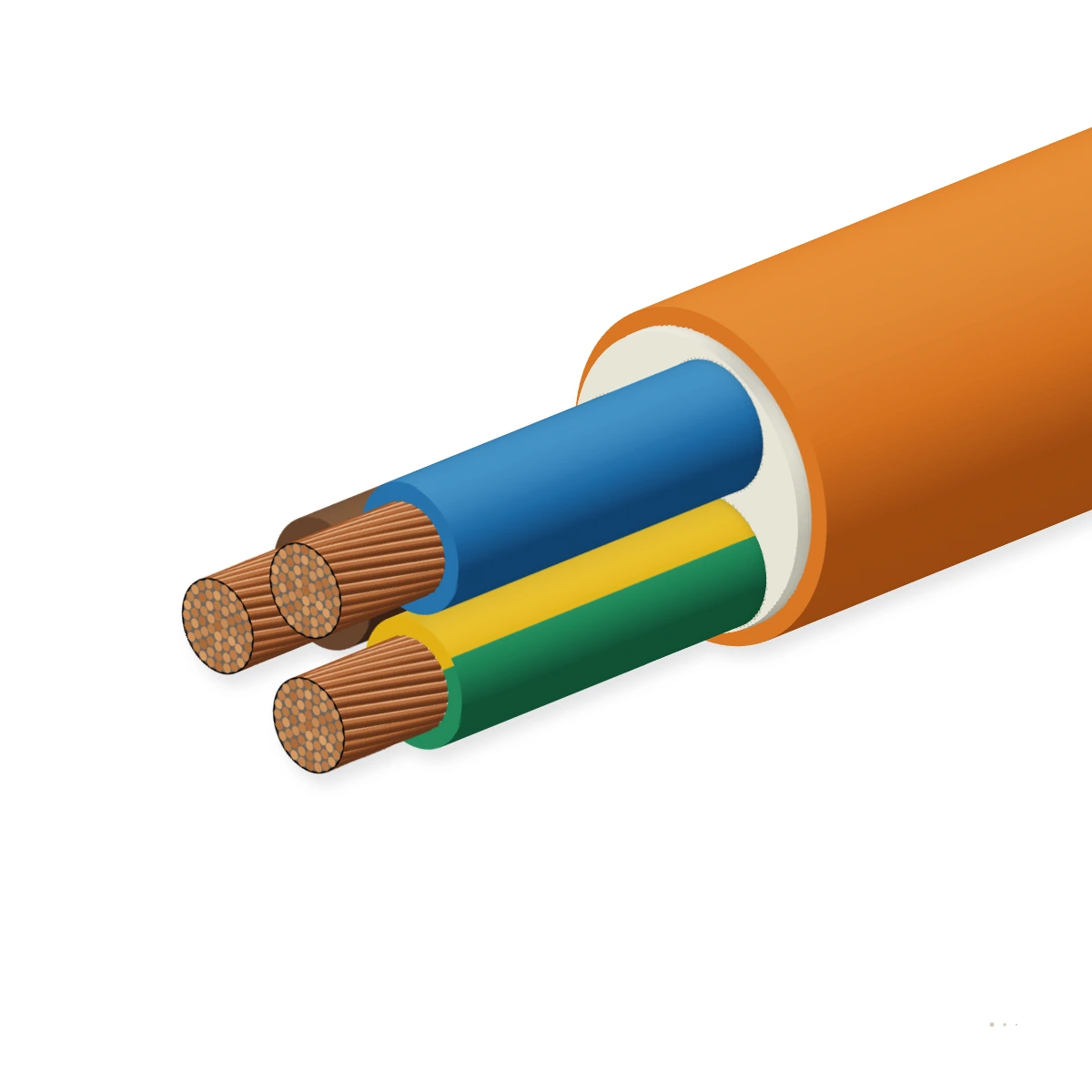

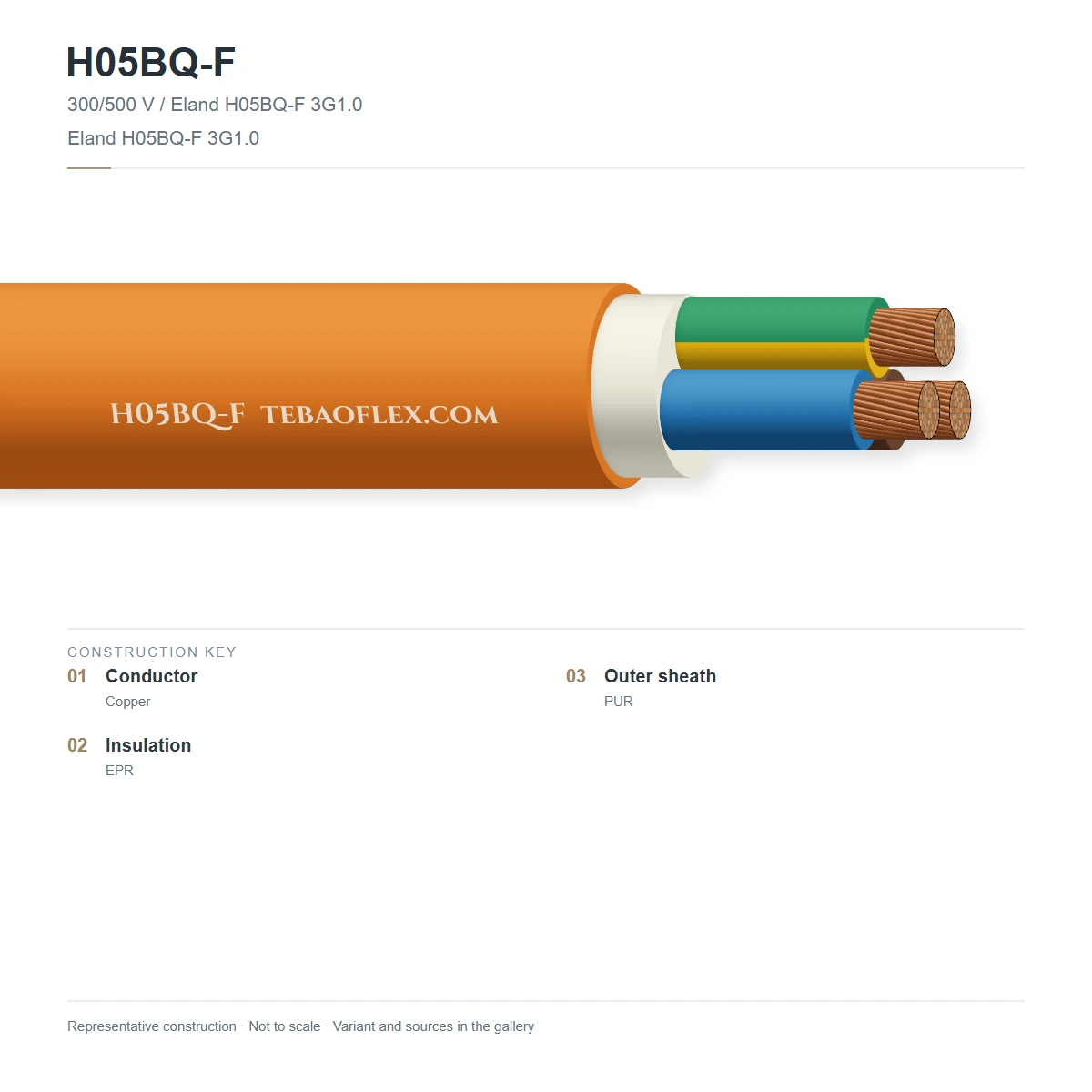

Shown: H05BQ-F 3G1.0 — Class 5 bare copper conductors, +90 °C EI7 EPR core insulation and high-visibility orange TMPU polyurethane outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Flexible copper conductor	Fine-stranded bare copper wire (IEC 60228 Class 5)EN 60228 Class 5
2	Heat-resistant EPR insulation	Cross-linked ethylene-propylene elastomer compound Type EI7 (+90 °C)EN 50363-1 EI7
3	Polyurethane outer sheath	Thermoplastic polyurethane elastomer Type TMPU (formerly 11YM1), orange (RAL 2003) or blackEN 50363-10-2 TMPU · halogen-free & oil-resistant

H05BQ-F Orange (RAL 2003)

High-visibility orange TMPU sheath for construction sites and workshop safety

H05BQ-F Black / Yellow

Optional black or yellow TMPU outer jacket for OEM machinery and stage/industrial leads

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50525-2-21 (HD 22.10). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 300/500 V AC
Max. operating voltage: 330/550 V AC
AC test voltage: 2000 V AC (50 Hz, 15 min)
Conductor stranding: IEC 60228 Class 5 fine-stranded bare copper
Current rating basis: DIN VDE 0298-4 (+90 °C EPR conductor rating)

Thermal

Max. conductor temperature: +90 °C continuous operation
Short-circuit temperature: +250 °C max. (up to 5 s)
Temperature, flexing: −40 °C to +80 °C
Temperature, fixed: −50 °C to +90 °C

Mechanical

Min. bending radius, fixed: 4 × overall diameter
Min. bending radius, moving: 5 × overall diameter (free flexing)
Max. tensile load: 15 N/mm² dynamic (50 N/mm² static)
Abrasion & notch resistance: High tear, cut and abrasion resistance (TMPU per EN 50363-10-2)

Resistance

Oil & coolant resistance: EN 60811-404 mineral oils, greases and cutting emulsions
Halogen-free: IEC 60754-1 / EN 60754-1 halogen-free compounds
Weather, UV & microbes: Resistant to UV sunlight, ozone, hydrolysis and microbes
Water exposure: AD6/AD7 splashing and temporary water immersion

Reference standards

Construction standard: EN 50525-2-21 (HD 22.10 S2 / DIN VDE 0285-525-2-21)
Compound standards: EN 50363-1 (EI7 EPR) & EN 50363-10-2 (TMPU PUR)
Application guide: EN 50565-1 / DIN VDE 0298-300
RoHS & REACH: 2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour: Orange (RAL 2003), yellow or black
Core identification: HD 308 S2 colour code (≤ 5 cores); black numbered (≥ 6 cores)
Sheath marking: TEBAOFLEX H05BQ-F <HAR> [Size] 300/500V EN 50525-2-21 CE
Customs tariff (HS): 8544.49 (insulated conductors ≤ 1000 V)

Sizes

10 standard H05BQ-F configurations

Typical EN 50525-2-21 (HD 22.10) outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Outer Ø min mm	Outer Ø max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm
Harmonised H05BQ-F sizes (0.75–1.0 mm² per EN 50525-2-21 Table B.4)
H05BQ-F 2×0.75	2×0.75	18	5.5	6.0	14	48	24
H05BQ-F 3G0.75	3G0.75	18	6.0	6.5	22	59	26
H05BQ-F 4G0.75	4G0.75	18	6.5	7.1	29	72	28
H05BQ-F 5G0.75	5G0.75	18	7.3	7.9	36	88	32
H05BQ-F 2×1.0	2×1.0	17	5.9	6.4	19	57	26
H05BQ-F 3G1.0	3G1.0	17	6.3	6.9	29	71	28
H05BQ-F 4G1.0	4G1.0	17	7.0	7.6	38	88	30
H05BQ-F 5G1.0	5G1.0	17	7.7	8.4	48	106	34
Multicore 05BQ-F control configurations (7-core)
05BQ-F 7G0.75	7G0.75	18	8.6	9.4	50	125	38
05BQ-F 7G1.0	7G1.0	17	9.2	10.0	67	152	40

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are typical values per EN 50525-2-21 (HD 22.10). Minimum fixed bending radius shown is 4 × OD.

Electrical & current ratings
Cross-section mm²	AWG ≈	Max. DC resistance 20 °C, Ω/km	1-core in air 30 °C, A	3–4 core in air 30 °C, A
0.75	18	26	12	10
1	17	19.5	15	13

Current ratings at 30 °C ambient in free air per DIN VDE 0298-4 / EN 50565-1. Apply derating factors for elevated ambient temperature or reeling layer grouping.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Cable length on drum (m)

Drum core 300 mm ≥ 56 mmBending radius OK (4 × OD 6.9 mm)

Minimum bending radius: 28 mm
Min. drum core diameter: ≈ 56 mm
Cable weight on drum: 3.6 kg
Copper content: 1.5 kg

Indicative only: based on the datasheet outer diameter and 4 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	2.0 kV AC (50 Hz)	Every manufactured length
Conductor DC resistance	IEC 60228 Class 5 (bare copper)	Every manufactured length
Sample tests
Vertical flame propagation	IEC 60332-1-2 / EN 60332-1-2	Per production batch
Insulation & sheath elastomer physical properties	EN 50525-2-21 (HD 22.10)	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

EN 50525-2-21 (HD 22.10)CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX H05BQ-F 300/500 V [Size] EN 50525-2-21 CE

Delivery form: Export wooden drums or coils, cut-to-length on request
Packaging: Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options: Custom core counts, pilot cores or sheath colours on request

Technical documents

Downloads

PDFH05BQ-F PUR Sheathed Flexible Cable – technical datasheet10 sizes · construction, technical data, approvals XLSXH05BQ-F spec data (Excel)All 10 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20
