General rubber flexible cablesEN 50525-2-21U0/U 300/500 VEI3/EM4 EVA · +110 °C

H05GG-F EVA Flexible CableHarmonised 300/500 V +110 °C EI3/EM4 cross-linked EVA heat-resistant flexible cord

Heat-resistant 300/500 V flexible cord to EN 50525-2-21 with Class 5 copper conductors, +110 °C cross-linked ethylene-vinyl acetate (EI3 EVA) core insulation and EM4 EVA outer sheath for high-temperature luminaires, heating appliances and commercial ovens.

Ozone, UV & moisture

Approved

+110 °C EVA Rated

Halogen-Free EVA

Cores × cross-section

Order designation: H05GG-F 3G1.5
Outer Ø min: 8.2 mm
Outer Ø max: 8.9 mm
Weight ≈: 116 kg/km
Min. bend R: 36 mm

Check against my drum All sizes (17)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 300/500 V
Conductor temp.: +110 °C max.
Ambient temp.: −25…+110 °C
Bending radius: 4–6 × OD
Compounds: EI3 / EM4
Size range: 0.75–6 mm²

Typical values for this cable type, based on EN 50525-2-21 (HD 22.7) — confirmed in the datasheet and quotation for your order.

Application fit

Is H05GG-F right for your machine?

H05GG-F bridges the thermal gap between +90 °C EPR rubber cords (H05BN4-F) and +180 °C silicone cables, delivering +110 °C continuous service with higher mechanical tear strength than silicone.

Furnace, kiln & high-temp zone

Suitable

High-temperature luminaires, drying ovens, bakery appliances and heating apparatus up to +110 °C continuous.

Switchgear & control cabinet wiring

Suitable

Internal and external wiring of commercial kitchen equipment, boilers, autoclaves and thermal process skids.

Trailing & towing

Suitable

Portable heating tools, soldering stations and mobile spot-heaters in dry or damp indoor rooms.

Motorised monospiral reel

Not suitable

Not designed for motorised drum reeling under high axial tension.

Use NSHTÖU Reeling

Typical machinesHigh-bay & stage lighting fixturesCommercial kitchen & bakery ovensIndustrial drying & curing chambersHeating apparatus & boiler plantPlastics extrusion & moulding zones

Construction

Layer by layer

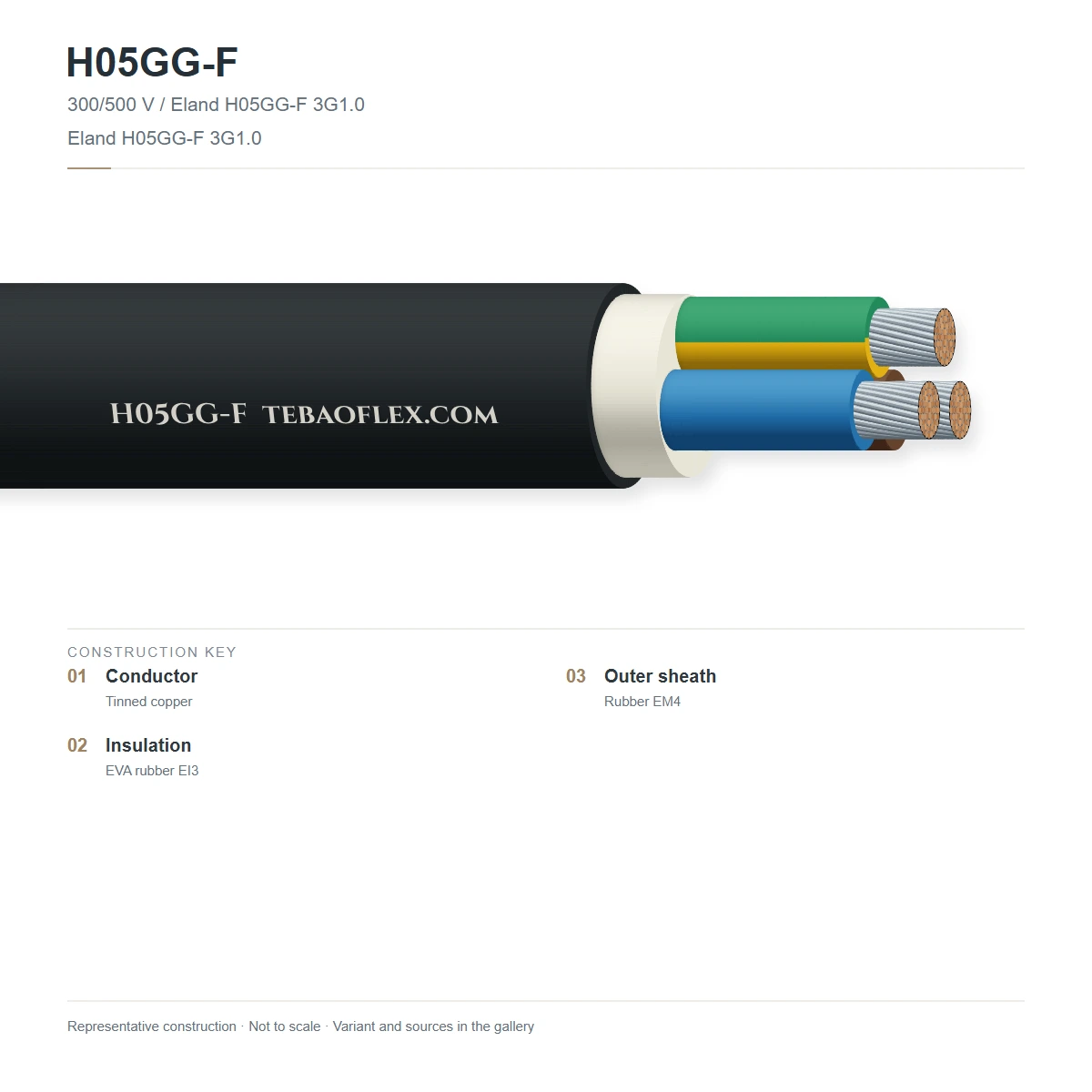

Shown: H05GG-F 3G1.5 — Class 5 tinned or bare copper conductors, +110 °C EI3 cross-linked EVA core insulation and black EM4 cross-linked EVA outer sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Flexible copper conductor	Fine-stranded bare or tinned copper wire (IEC 60228 Class 5)EN 60228 Class 5
2	+110 °C EVA core insulation	Cross-linked ethylene-vinyl acetate (EVA) elastomer Type EI3 (formerly 4GI1)EN 50363-1 EI3 (+110 °C continuous)
3	+110 °C EVA outer sheath	Cross-linked ethylene-vinyl acetate (EVA) elastomer Type EM4, black or whiteEN 50363-2-1 EM4 (+110 °C · halogen-free)

H05GG-F Black

Standard black EM4 cross-linked EVA outer sheath for industrial heating and lighting

H05GG-F White

Optional white EM4 cross-linked EVA outer sheath for architectural luminaires and clean kitchens

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50525-2-21 (HD 22.7). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 300/500 V AC
Max. operating voltage: 330/550 V AC
AC test voltage: 2000 V AC (50 Hz, 15 min)
Conductor stranding: IEC 60228 Class 5 flexible bare or tinned copper
Current rating basis: DIN VDE 0298-4 (+110 °C heat-resistant rating)

Thermal

Max. conductor temperature: +110 °C continuous (+120 °C short-term)
Short-circuit temperature: +250 °C max. (up to 5 s)
Temperature, flexing: −25 °C to +110 °C
Temperature, fixed: −40 °C to +110 °C

Mechanical

Min. bending radius, fixed: 4 × overall diameter (OD ≤ 12 mm: 3 × OD)
Min. bending radius, moving: 6 × overall diameter (free movement)
Max. tensile load: 15 N/mm² dynamic (50 N/mm² static)
Notch & tear strength: Cross-linked EVA offers higher tear strength than silicone rubber

Resistance

Thermal ageing resistance: EI3/EM4 cross-linked EVA resists embrittlement at +110 °C
Halogen-free: IEC 60754-1 halogen-free EVA insulation and sheath
Ozone & UV stability: EN 60811-403 ozone-resistant cross-linked EVA
Service environment: Dry, damp or wet interiors and protected heating equipment

Reference standards

Construction standard: EN 50525-2-21 (HD 22.7 S2 / DIN VDE 0285-525-2-21)
Compound standards: EN 50363-1 Type EI3 & EN 50363-2-1 Type EM4
Selection & installation: EN 50565-1 & DIN VDE 0298-300
RoHS & REACH: 2011/65/EU (RoHS 2) & EC 1907/2006 compliant

Identification

Sheath colour: Black or white
Core identification: HD 308 S2 colour code (2 to 5 cores)
Sheath marking: TEBAOFLEX H05GG-F <HAR> [Size] 300/500V 110°C EN 50525-2-21 CE
Customs tariff (HS): 8544.49 (insulated conductors ≤ 1000 V)

Sizes

17 standard H05GG-F configurations

Typical EN 50525-2-21 (HD 22.7) outer diameter limits, copper content and cable weight.

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	Outer Ø min mm	Outer Ø max mm	Copper kg/km	Weight ≈ kg/km	Min. bend R mm
Harmonised H05GG-F cross-linked EVA sizes (0.75–6 mm² per EN 50525-2-21 Table B.3)
H05GG-F 2×0.75	2×0.75	18	5.7	6.2	14	52	25
H05GG-F 3G0.75	3G0.75	18	6.2	6.7	22	64	27
H05GG-F 4G0.75	4G0.75	18	6.7	7.3	29	78	29
H05GG-F 2×1.0	2×1.0	17	6.1	6.6	19	61	26
H05GG-F 3G1.0	3G1.0	17	6.5	7.1	29	75	28
H05GG-F 4G1.0	4G1.0	17	7.2	7.8	38	92	31
H05GG-F 5G1.0	5G1.0	17	7.9	8.6	48	112	34
H05GG-F 2×1.5	2×1.5	16	7.5	8.2	29	94	33
H05GG-F 3G1.5	3G1.5	16	8.2	8.9	43	116	36
H05GG-F 4G1.5	4G1.5	16	9.1	9.9	58	145	40
H05GG-F 5G1.5	5G1.5	16	10.0	10.9	72	178	44
H05GG-F 3G2.5	3G2.5	14	9.8	10.6	72	170	42
H05GG-F 4G2.5	4G2.5	14	10.7	11.6	96	210	46
H05GG-F 5G2.5	5G2.5	14	11.9	12.9	120	258	52
H05GG-F 3G4	3G4	12	11.4	12.4	115	248	50
H05GG-F 4G4	4G4	12	12.5	13.6	154	312	54
H05GG-F 3G6	3G6	10	13.0	14.1	173	342	56

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Dimensions and weights are typical values per EN 50525-2-21 (HD 22.7). Minimum fixed bending radius shown is 4 × OD.

Electrical & current ratings
Cross-section mm²	AWG ≈	Max. DC resistance 20 °C, Ω/km	1-core in air 30 °C, A	3–4 core in air 30 °C, A
0.75	18	26	12	10
1	17	19.5	15	13
1.5	16	13.3	23	18
2.5	14	7.98	30	25
4	12	4.95	41	34
6	10	3.3	53	44

Current ratings at 30 °C ambient in free air per DIN VDE 0298-4 / EN 50565-1. Apply derating factors for elevated ambient temperature or reeling layer grouping.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Cable length on drum (m)

Drum core 300 mm ≥ 72 mmBending radius OK (4 × OD 8.9 mm)

Minimum bending radius: 36 mm
Min. drum core diameter: ≈ 72 mm
Cable weight on drum: 5.8 kg
Copper content: 2.2 kg

Indicative only: based on the datasheet outer diameter and 4 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	2.0 kV AC (50 Hz)	Every manufactured length
Conductor DC resistance	IEC 60228 Class 5 (bare copper)	Every manufactured length
Sample tests
Vertical flame propagation	IEC 60332-1-2 / EN 60332-1-2	Per production batch
Insulation & sheath elastomer physical properties	EN 50525-2-21 (HD 22.7)	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

EN 50525-2-21 (HD 22.7)CE · RoHS 2 (2011/65/EU) · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX H05GG-F 300/500 V 110°C [Size] EN 50525-2-21 CE

Delivery form: Export wooden drums or coils, cut-to-length on request
Packaging: Heat-treated ISPM-15 timber drums with sealed cable ends
Conductor / sheath options: Custom core counts, pilot cores or sheath colours on request

Technical documents

Downloads

PDFH05GG-F EVA Flexible Cable – technical datasheet17 sizes · construction, technical data, approvals XLSXH05GG-F spec data (Excel)All 17 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
